Specification:
Item Number | Standard Aperture | Optional Aperture | Maximum Fiber Capacity (0.75mm fiber tails) | Housing Material | Housing Color | Dimensions (mm) | Optional Remote Control |
LEI-4241DMX | 20/24/28mm | 30mm | 1250pcs | Aluminum | Black | L291XW264XH135 | RC-15 |
Electrical Parameters:
Input Voltage | Power Consumption |
100V-240V ac | 120W |
LED Parameters:
LED Power | LED Color | Color Temperature | Colour Temperature Options | Luminous Flux | Life Span |
4X24W | RGBW | W: 6000K | N/A | N/A | 50000h |

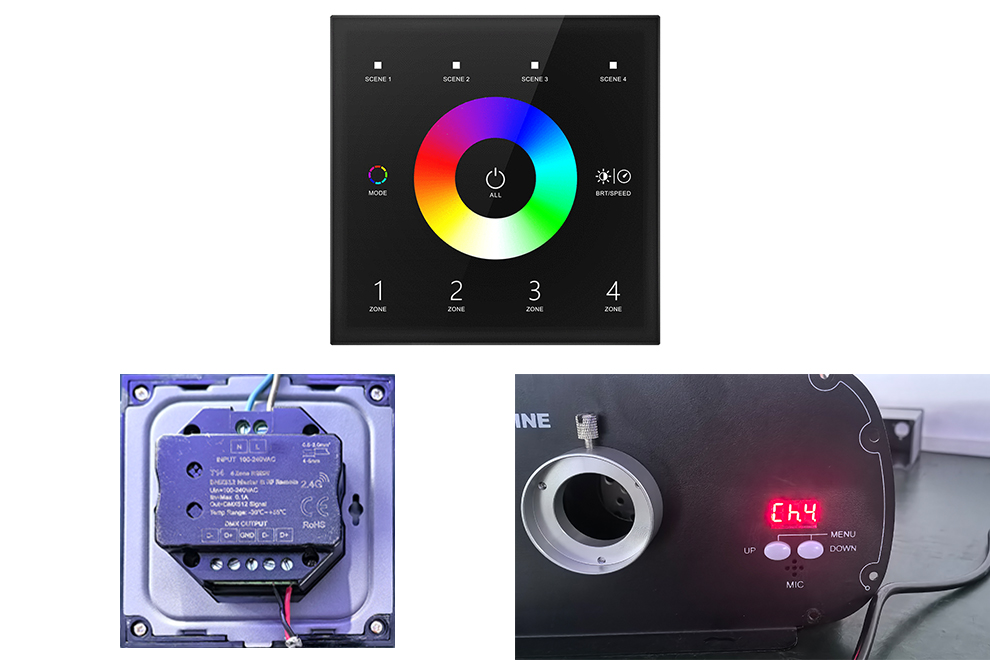

Control:
1 | Buttons + Display |
2 | Remote Control (optional) |
3 | Master-Slave |
4 | DMX512 Console |

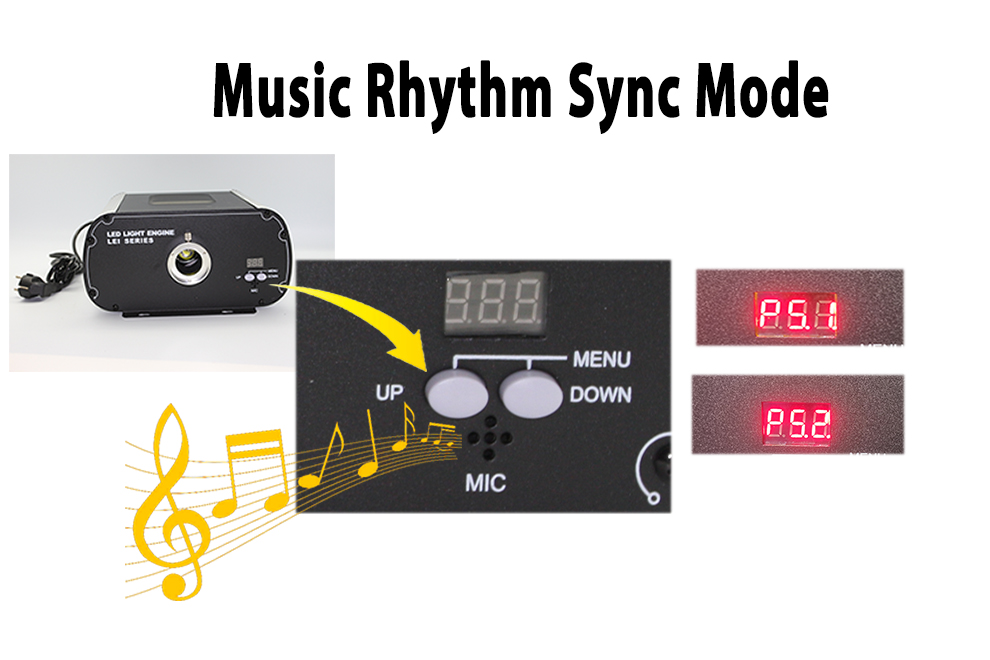

5 | Audio |

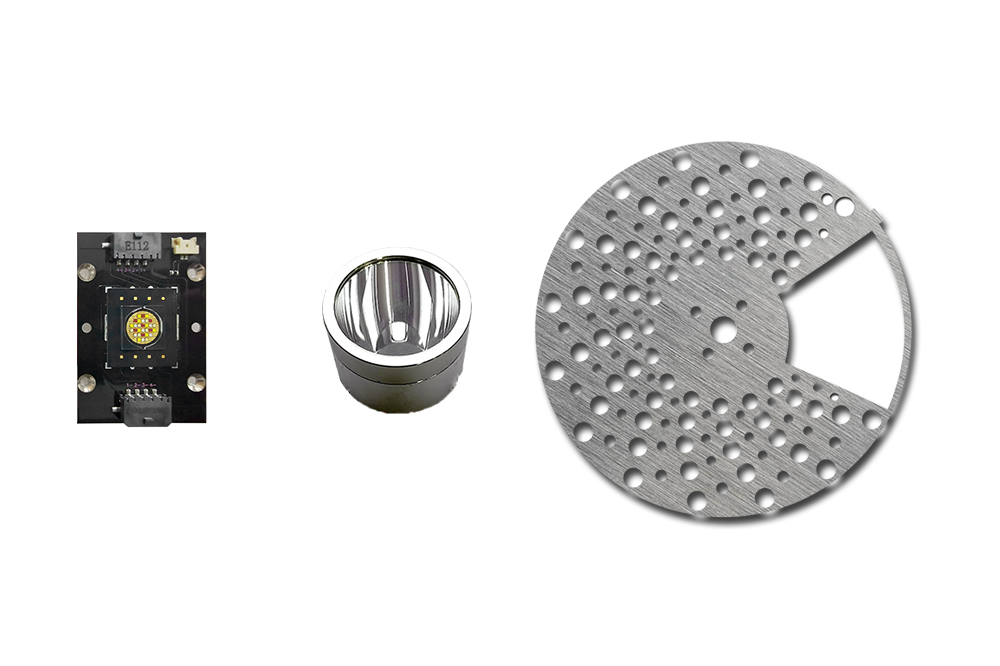

Spare Parts in the Package:
No. | Item | Quantity |
1 | Twinkle Wheel (built-in) | 1 |

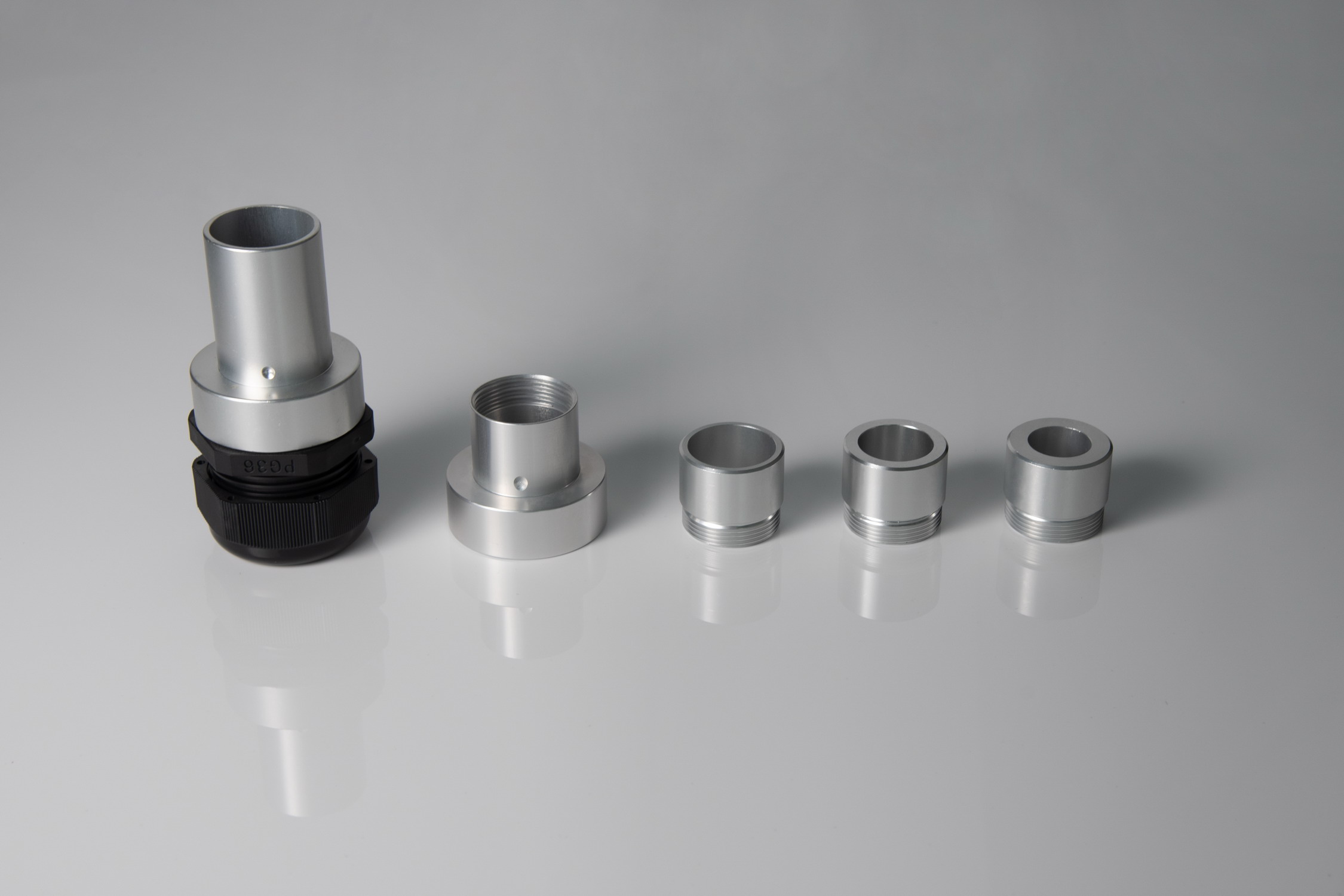

2 | 20/24/28mm 3-in-1 Fiber Connector | 1 |
3 | DMX Signal Cable | 1 |
4 | Fuse | 1 |
Optional Parts:
No. | Item |

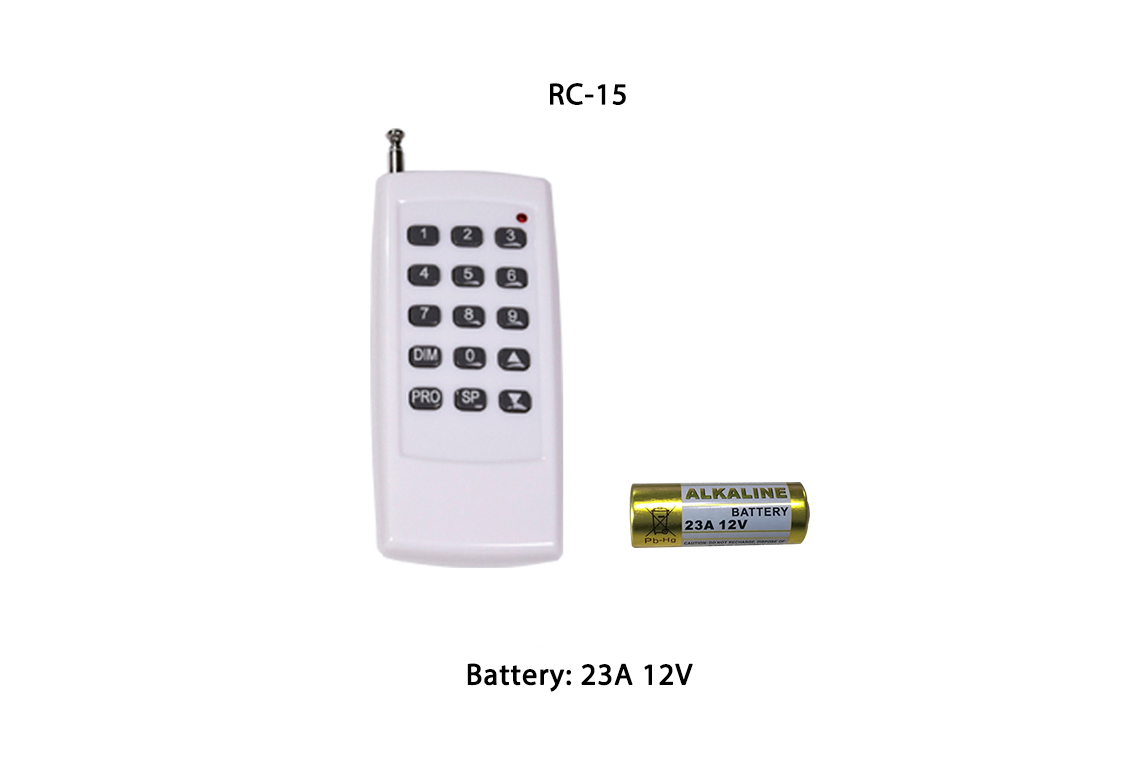

1 | 15-Key RF Remote Control |
2 | 30mm Fiber Connector |
Datasheet Download
Light Engine Specification-LEI-4121-4241-4361DMX.pdf

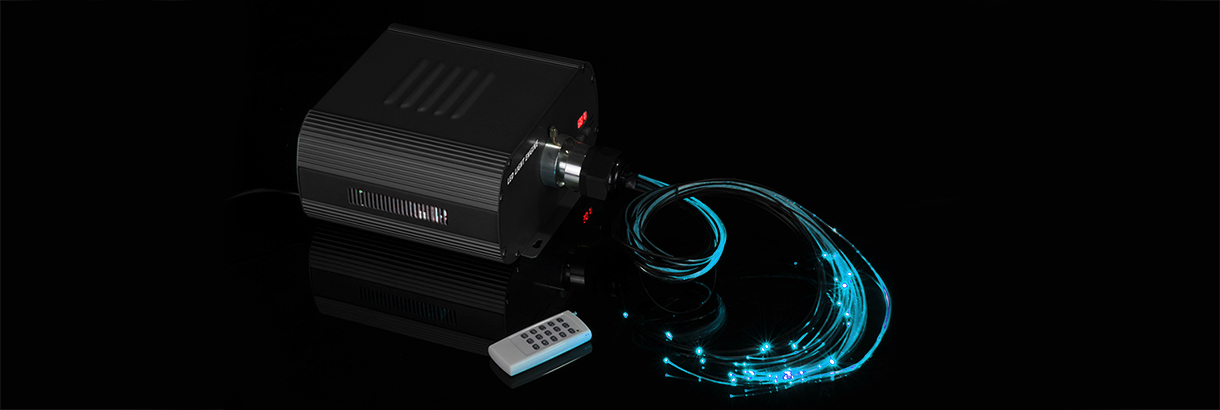

Video of Twinkle Effect Demo
