Specification:
Item Number | Standard Aperture | Optional Aperture | Maximum Fiber Capacity (0.75mm fiber tails) | Housing Material | Housing Color | Dimensions (mm) | Optional Remote Control |

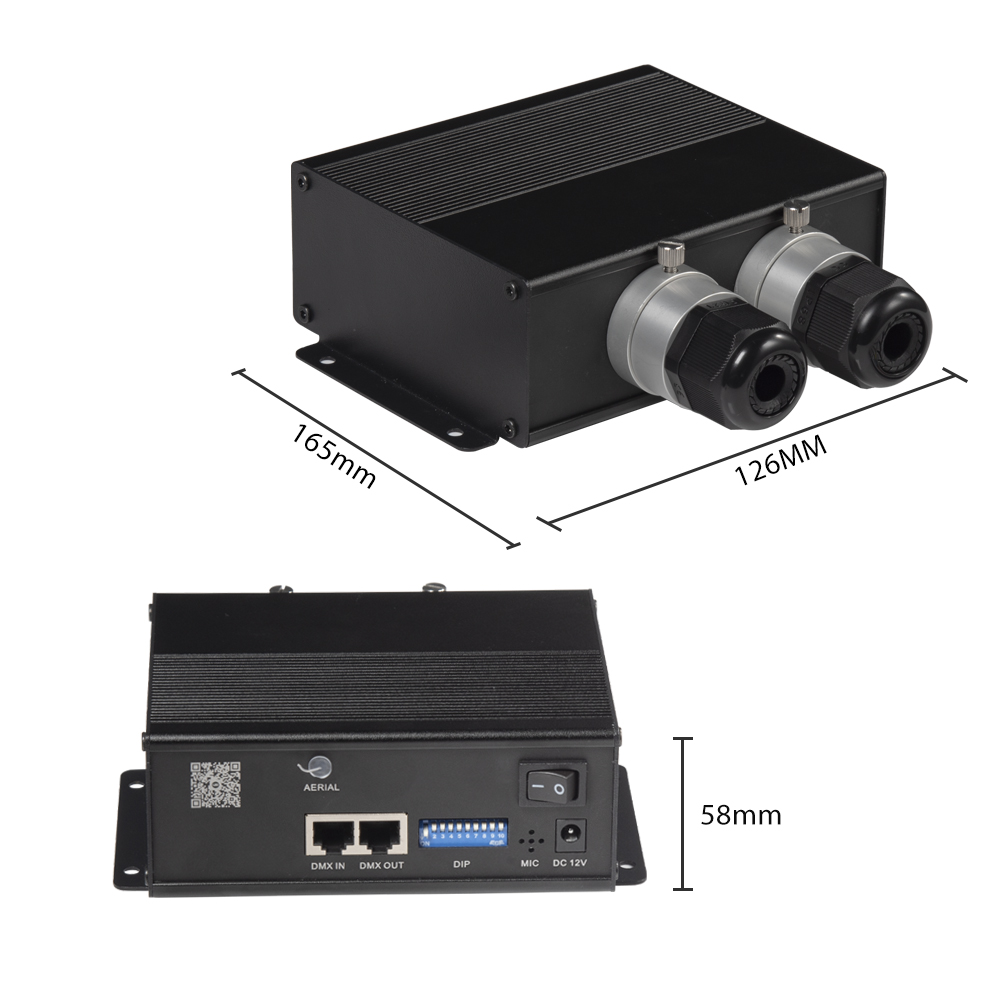

LEC-432DMX | 18mm | 20mm | 540pcs*2 | Aluminum | Black | L165XW126XH58 | RC-28M |
Electrical Parameters:
Working Voltage | Power Consumption | Input Voltage | Adapter Power |
12V | 27W | 100V-240V ac | 12V/2A |
LED Parameters:
LED Power | LED Color | Color Temperature | Color Temperature Options | Luminous Flux | Life Span |

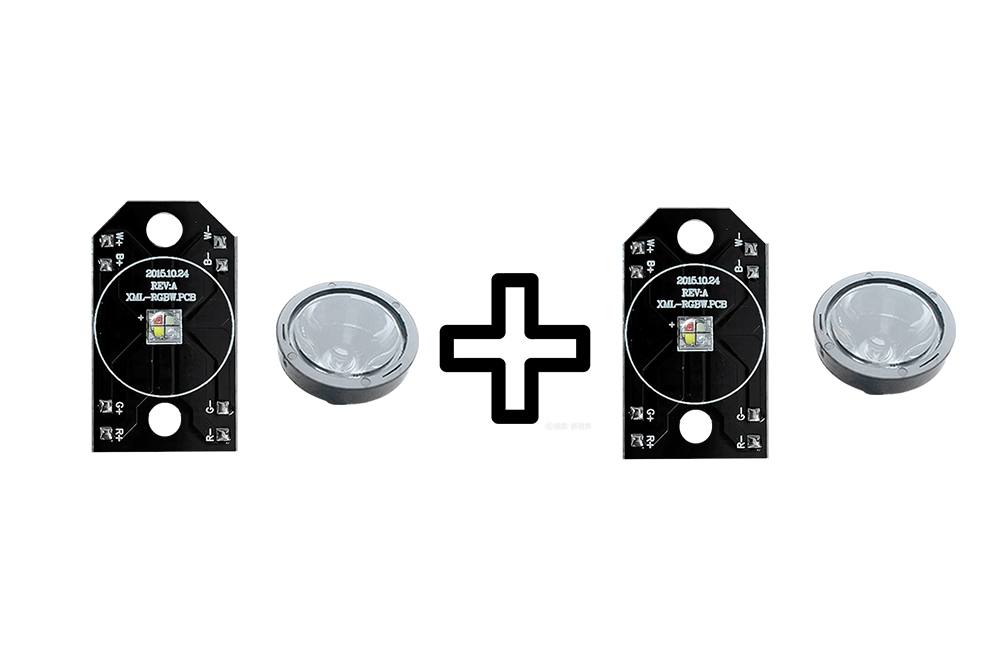

2-4X3W | RGBW | W: 6000K | W: 3000K | N/A | 50000h |
Controls:

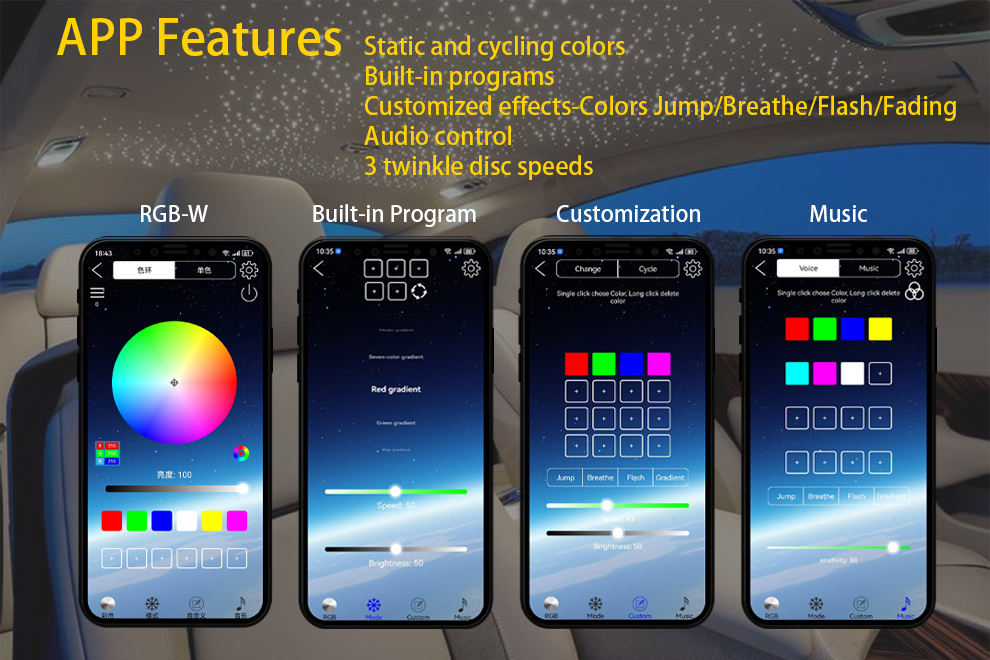

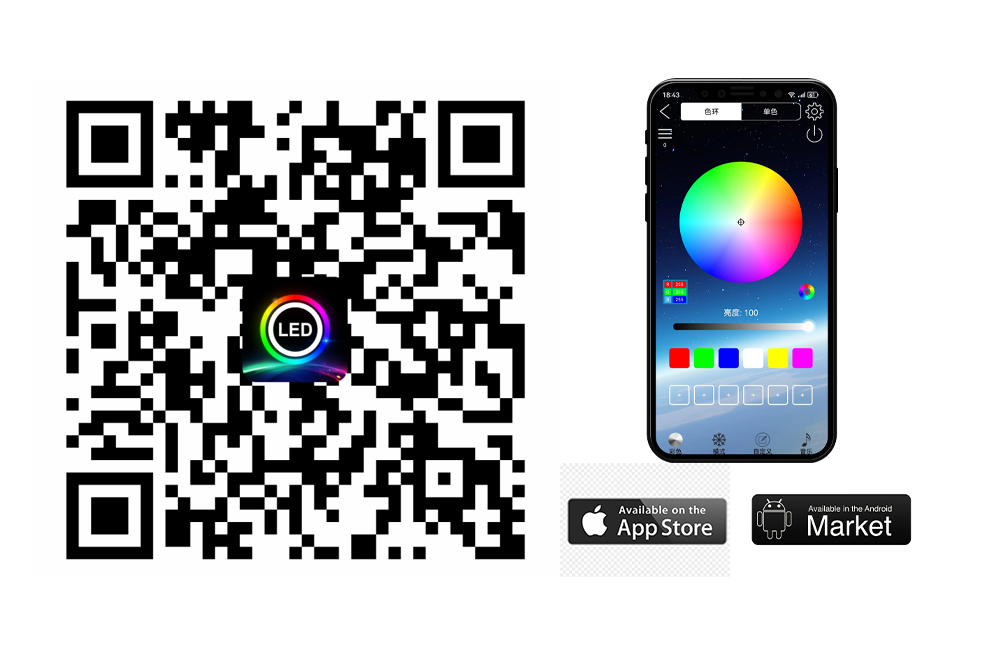

1 | APP Control |
2 | Remote Control |

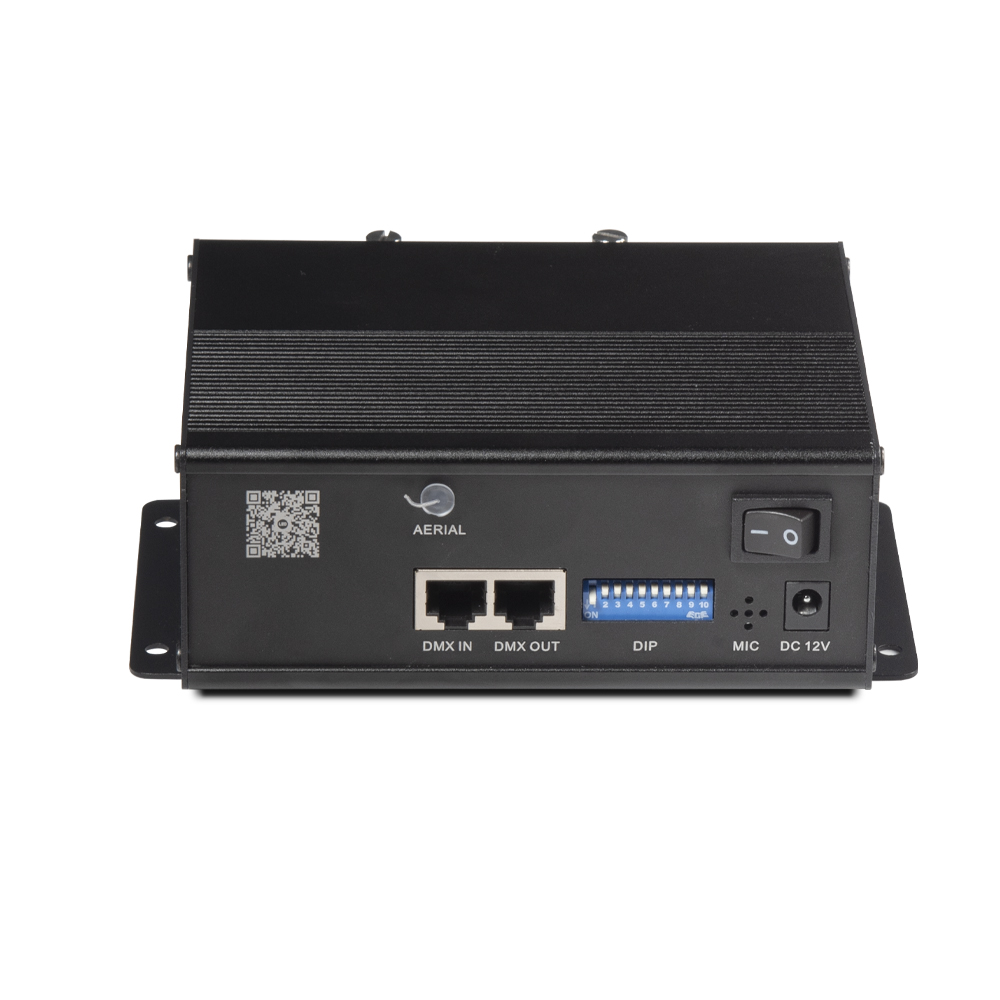

3 | DIP Switches |
4 | Master-Slave |
5 | DMX Control |

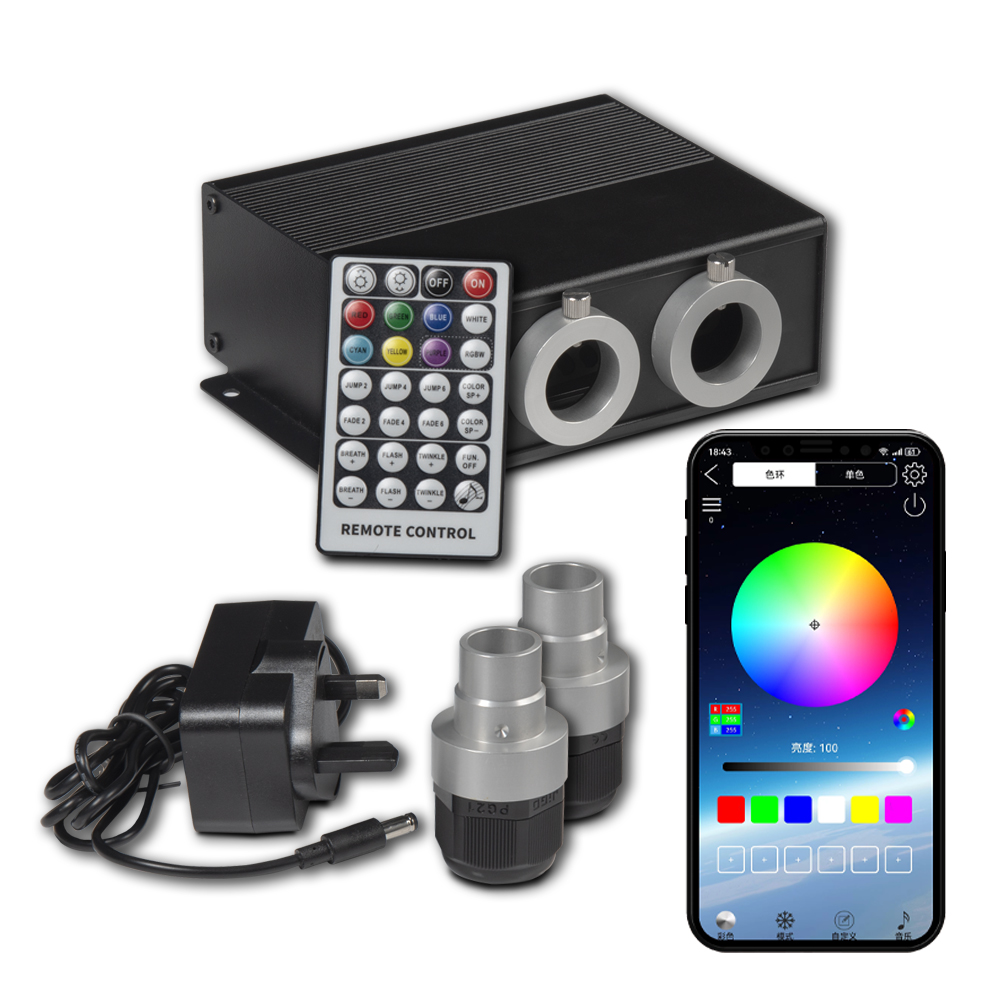

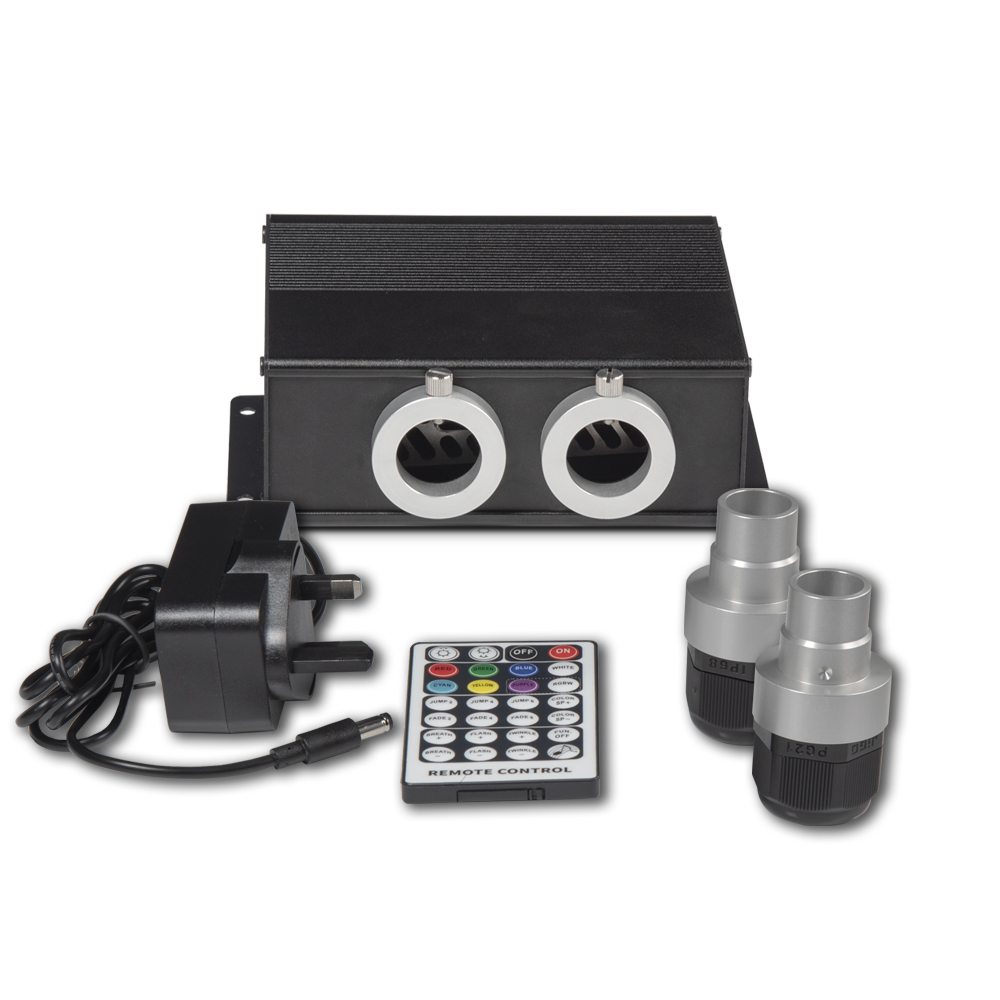

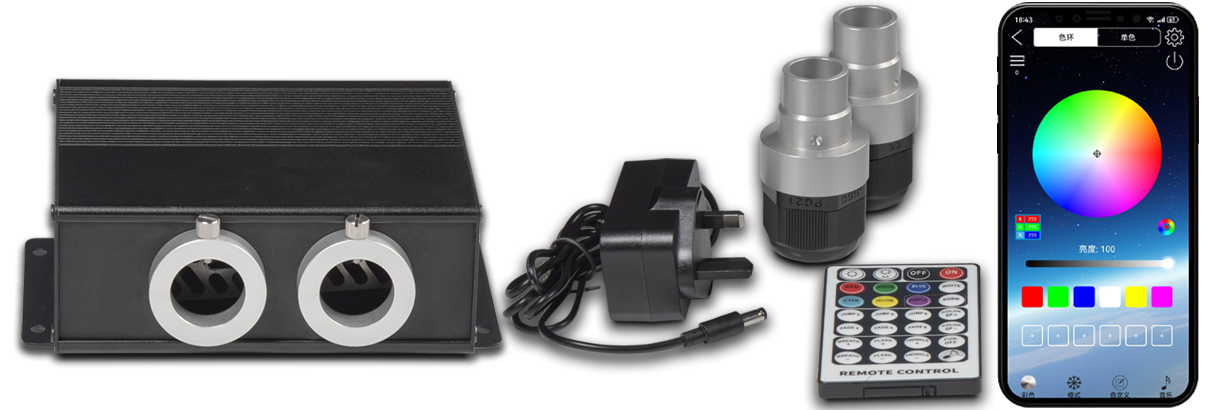

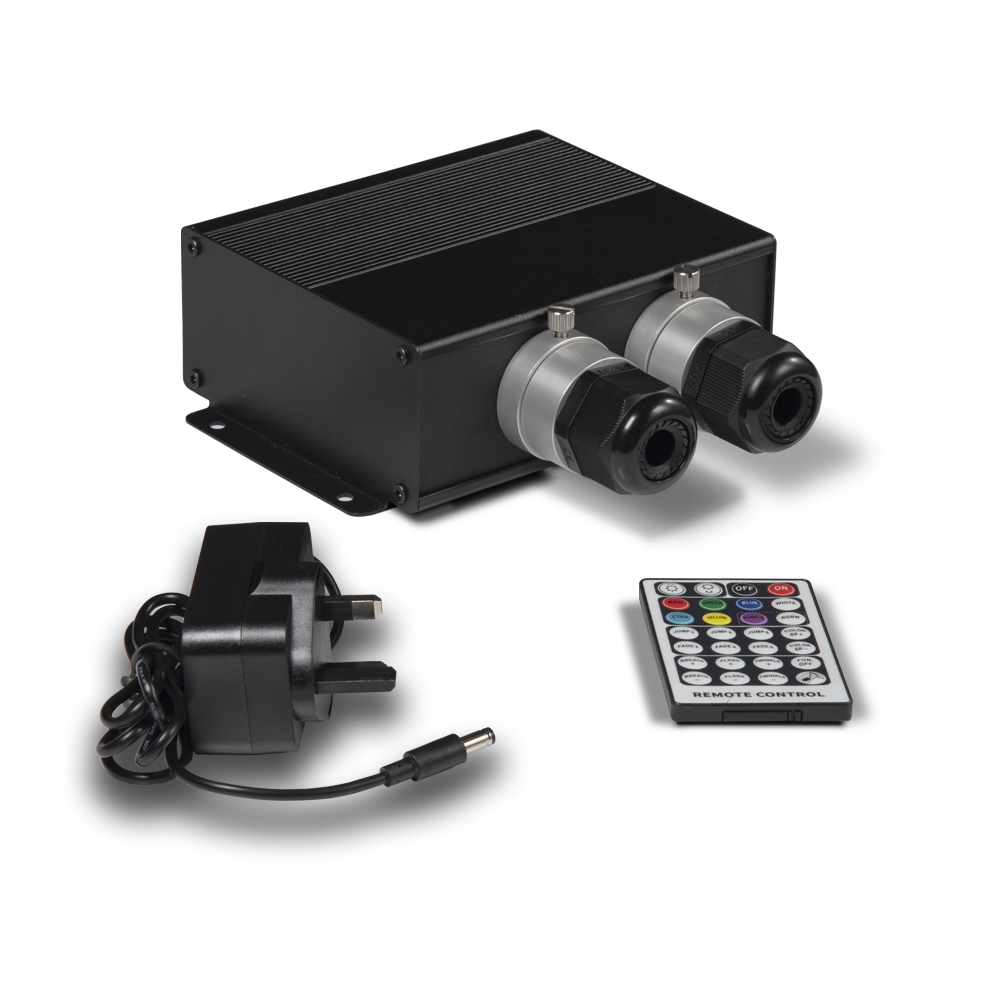

Spare Parts in the Package:
No. | Item | Quantity |
1 | Twinkle Wheel (built-in) | 1 |
2 | 18mm Fiber Connector | 2 |
3 | AC-DC Adapter | 1 |
4 | DMX512 Signal Cable | 1 |
Optional Parts:
No. | Item |

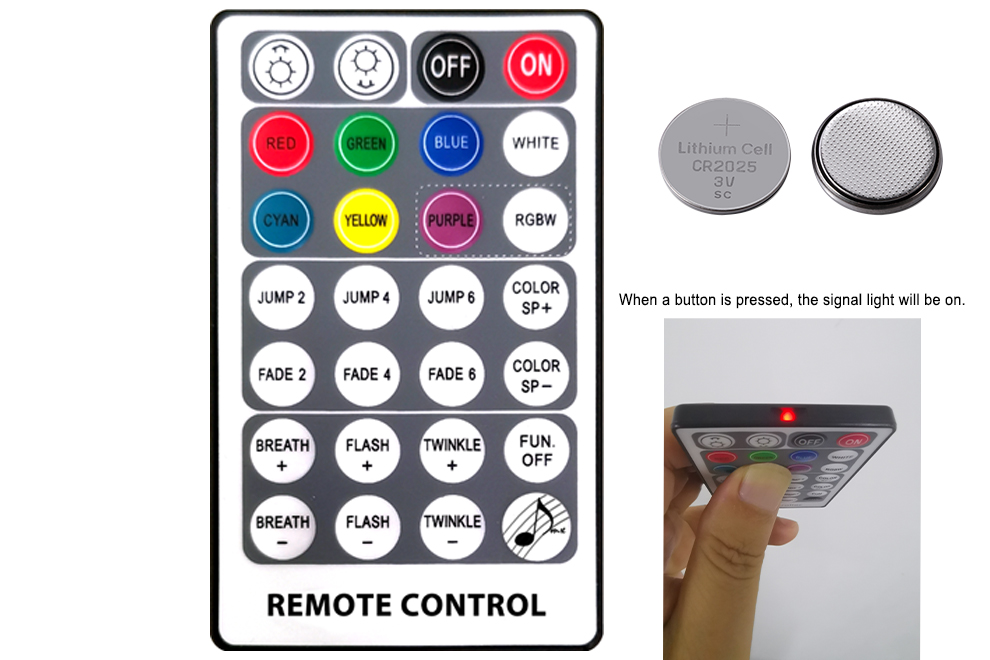

1 | 28-Key 2.4G Remote Control |

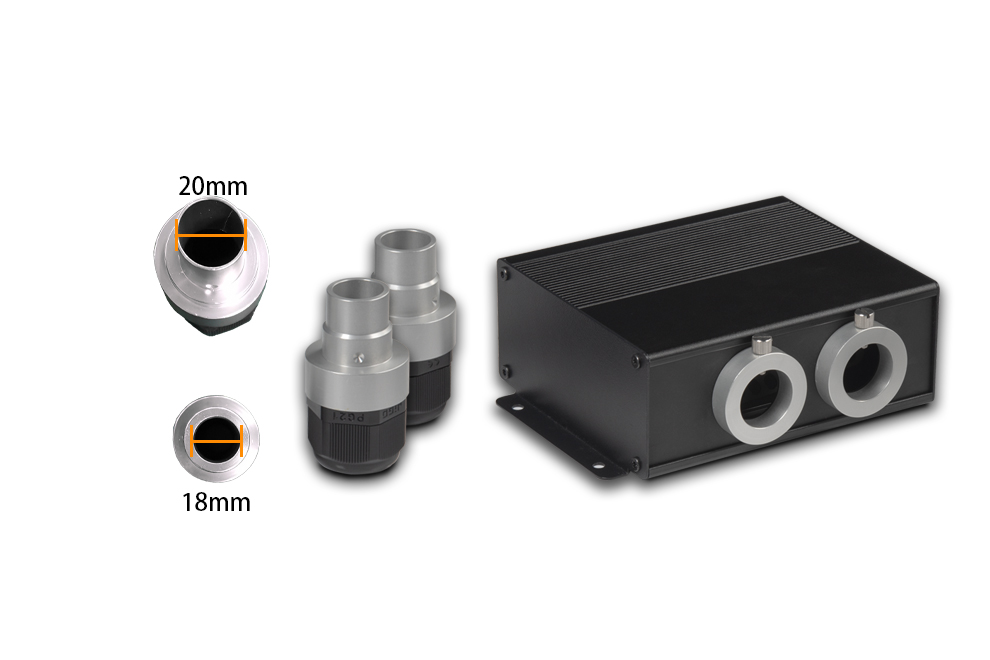

2 | 20mm Fiber Connector |

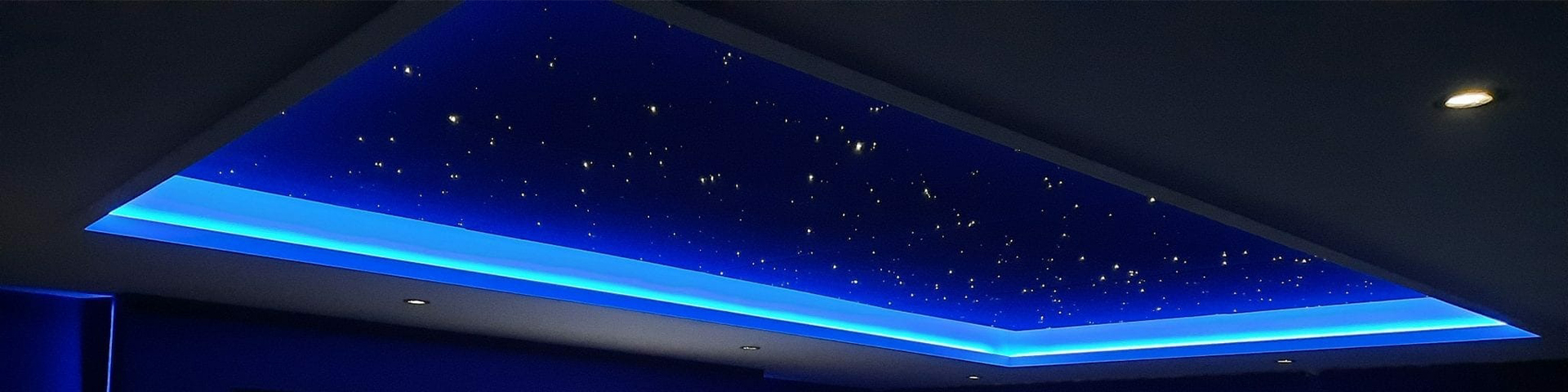

Video of Twinkle Effect Demo
