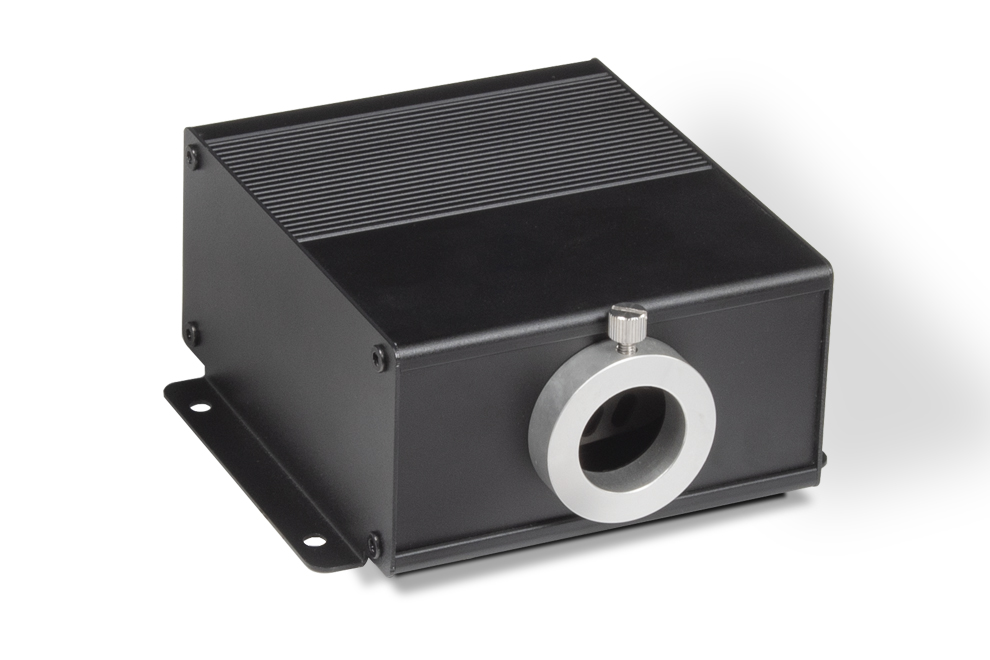

Specification:
Item Number | Standard Aperture | Optional Aperture | Maximum Fiber Capacity (0.75mm fiber tails) | Housing Material | Housing Color | Dimensions (mm) | Optional Remote Control |

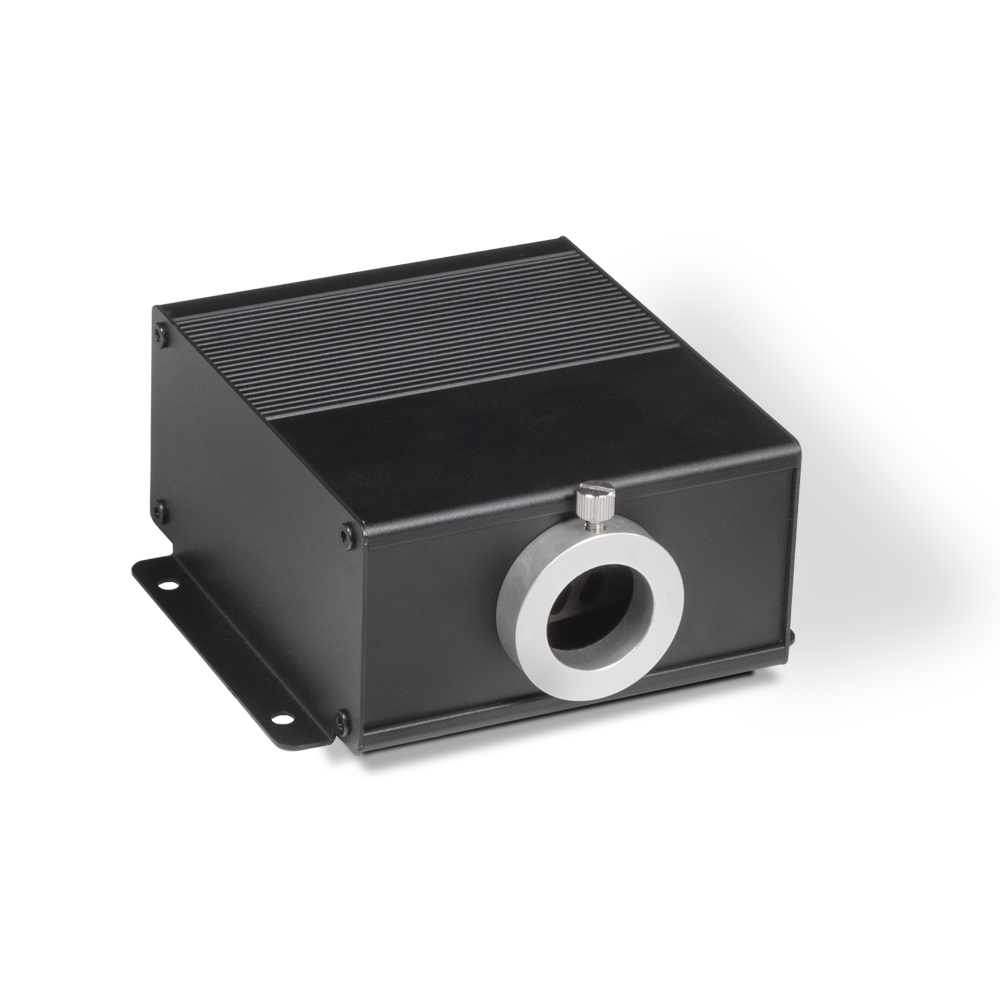

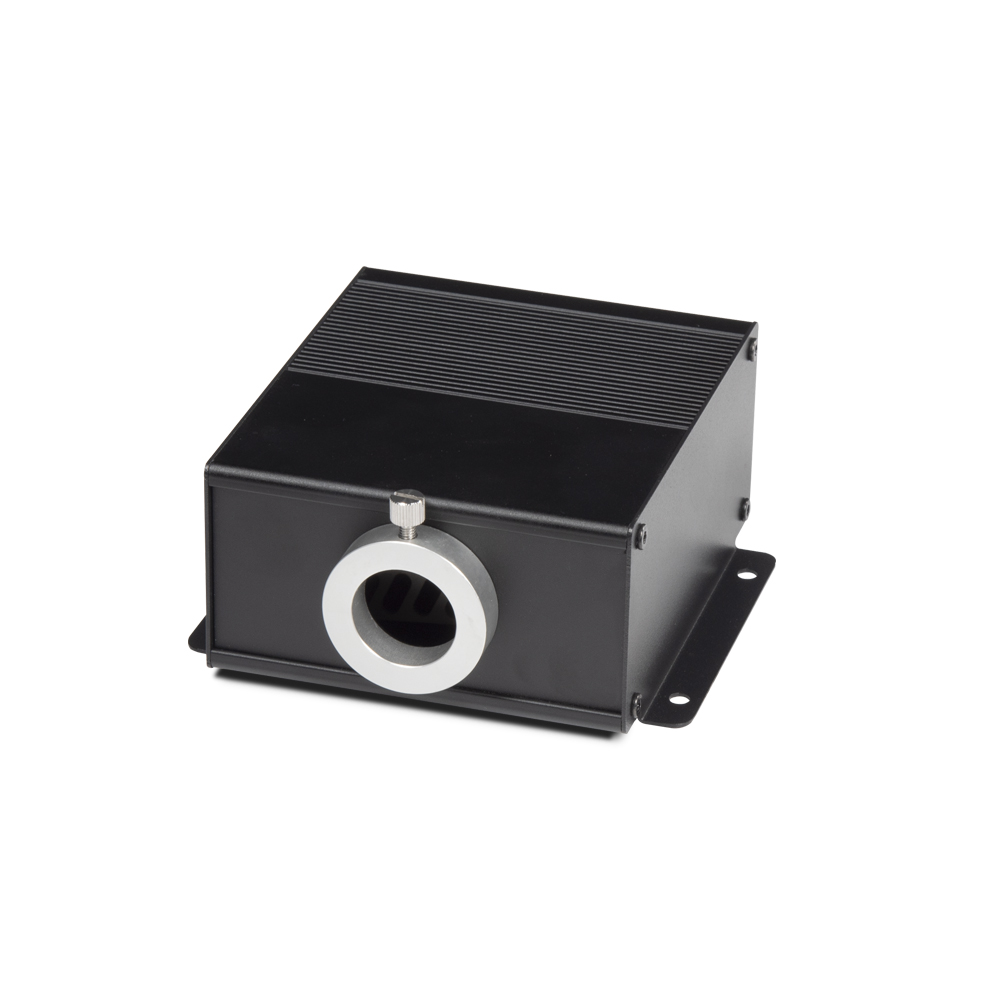

LEC-431DMX | 18mm | 20mm | 540pcs | Aluminum | Black | L165XW118XH58 | RC-28M |
Electrical Parameters:
Working Voltage | Power Consumption | Input Voltage | Adapter Power |
12V | 18W | 100V-240V ac | 12V/2A |

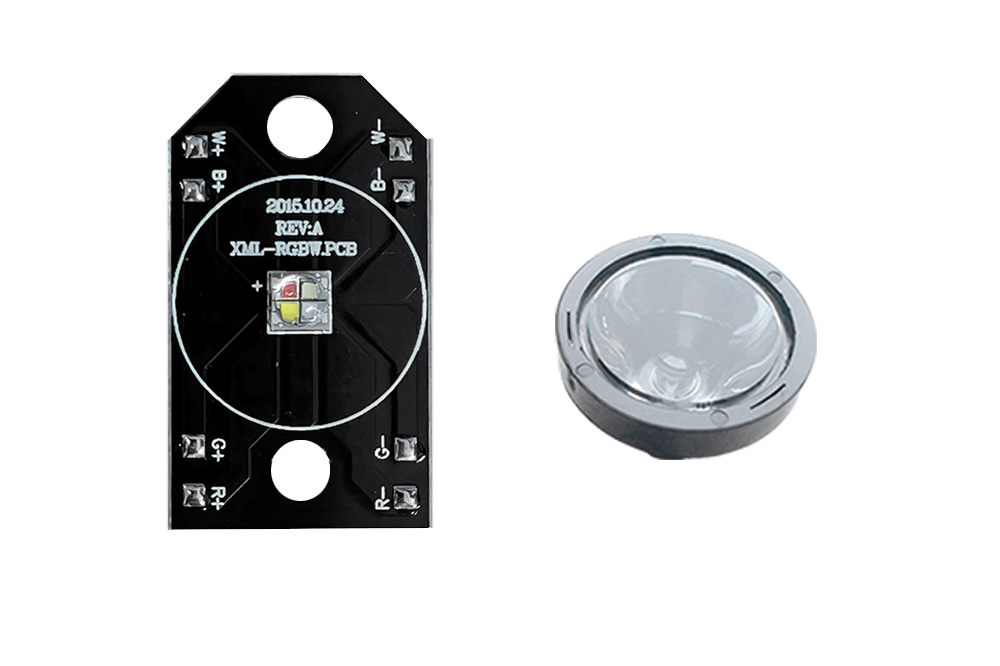

LED Parameters:
33LED Power | LED Color | Color Temperature | Color Temperature Options | Luminous Flux | Life Span |
4X3W | RGBW | W: 6000K | W: 3000K | N/A | 50000h |

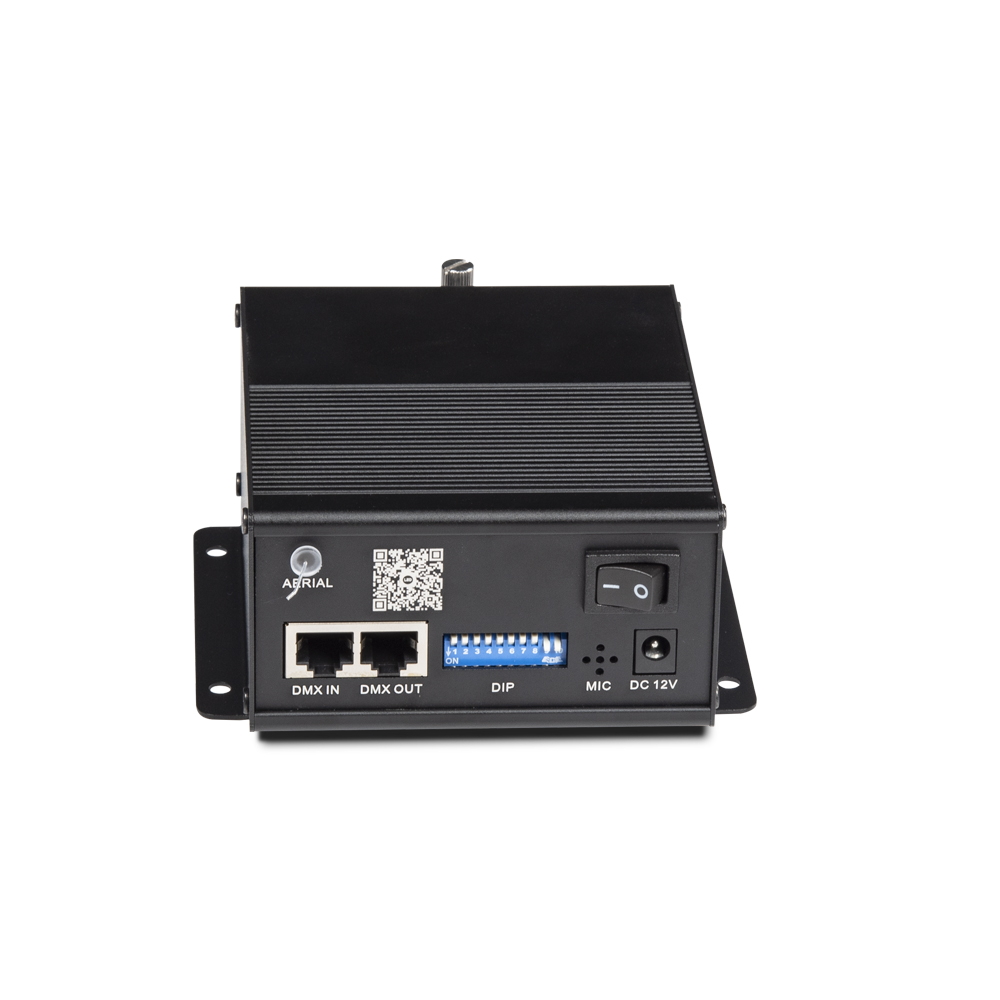

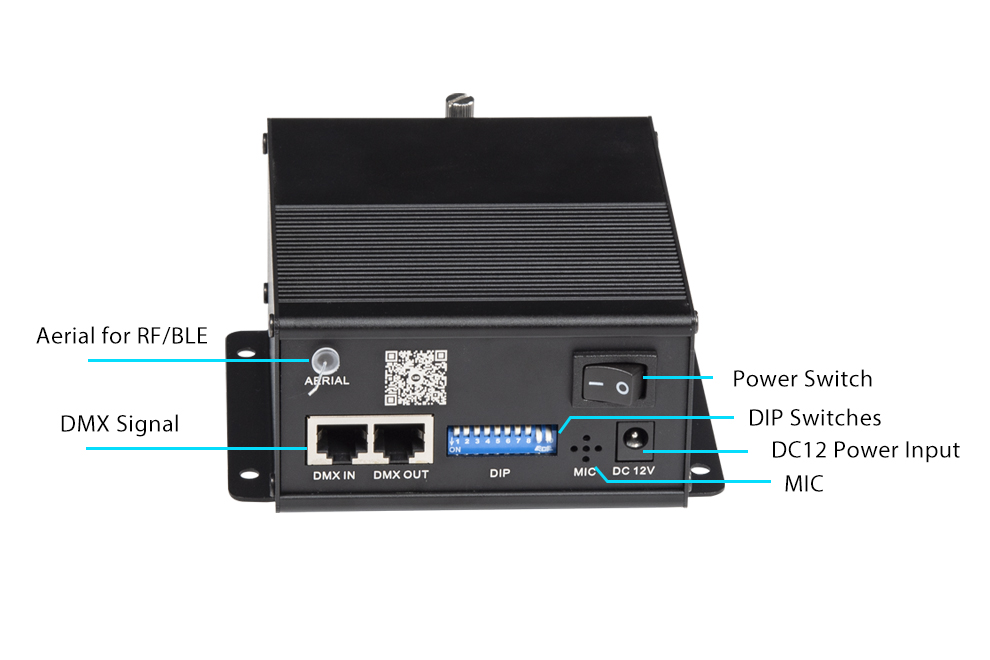

Controls:

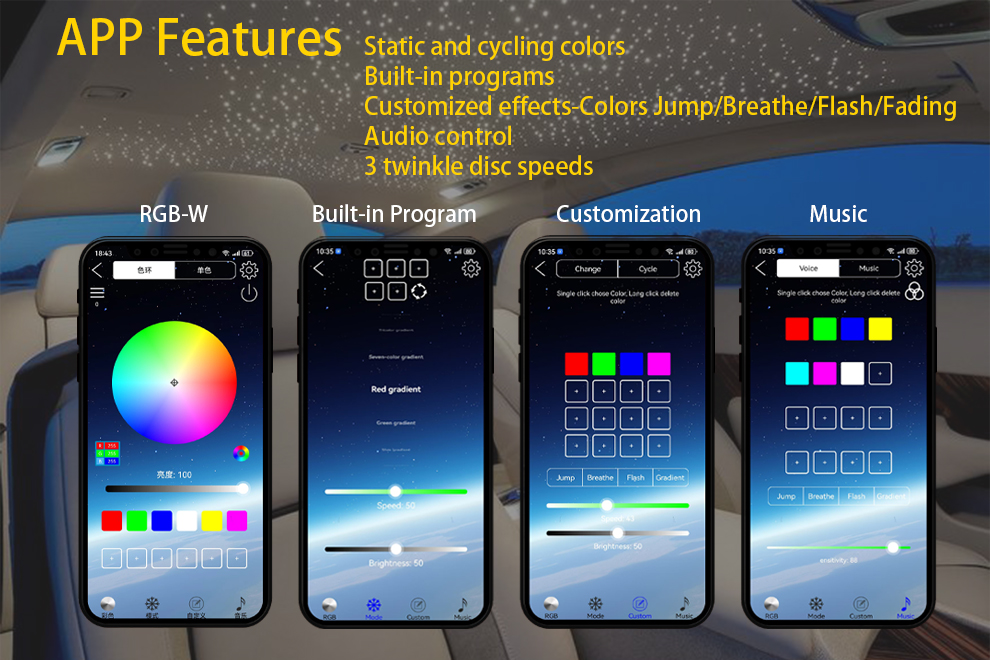

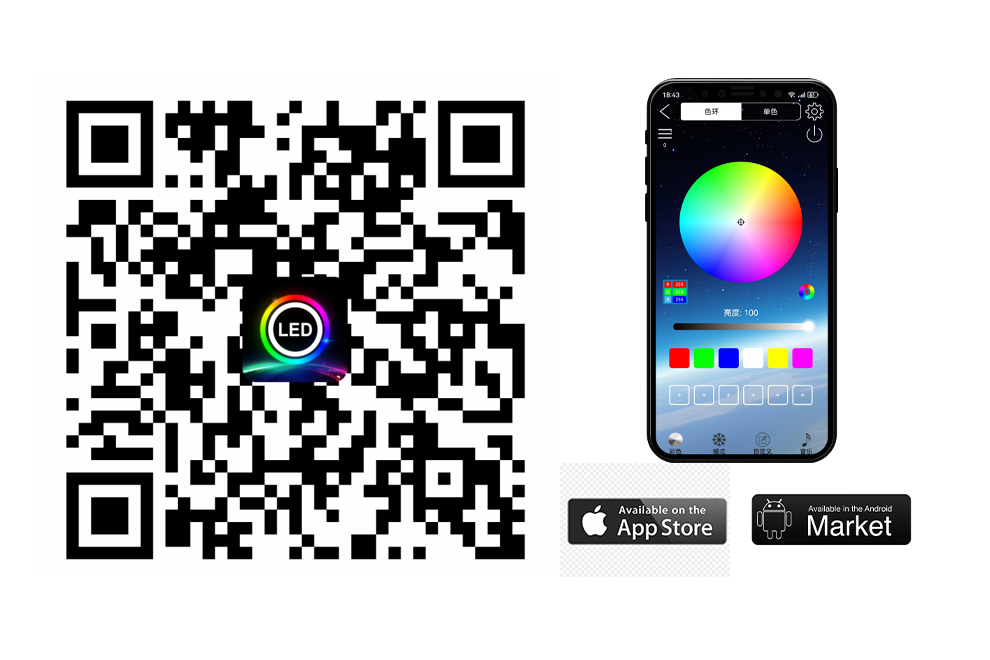

1 | APP/BLE |
2 | DIP Switches |
3 | Remote Control |
4 | Master-Slave |
5 | DMX Console |

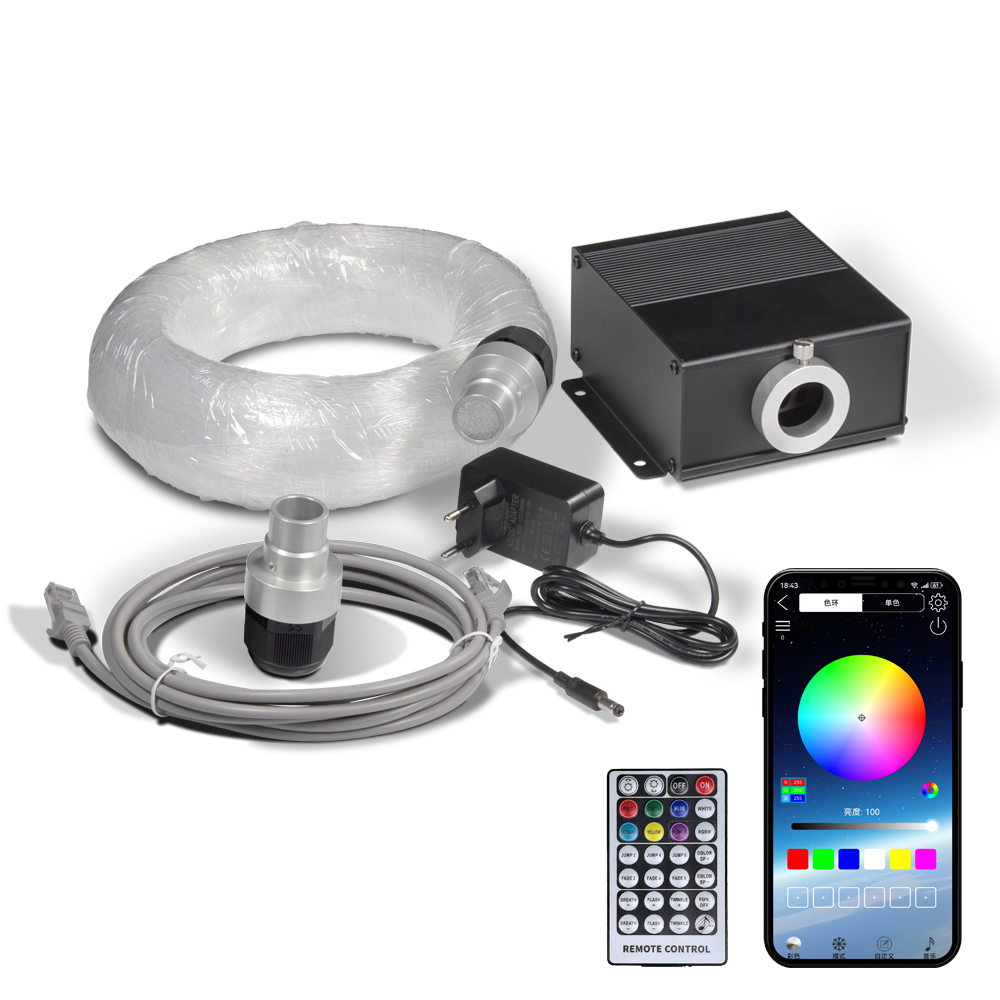

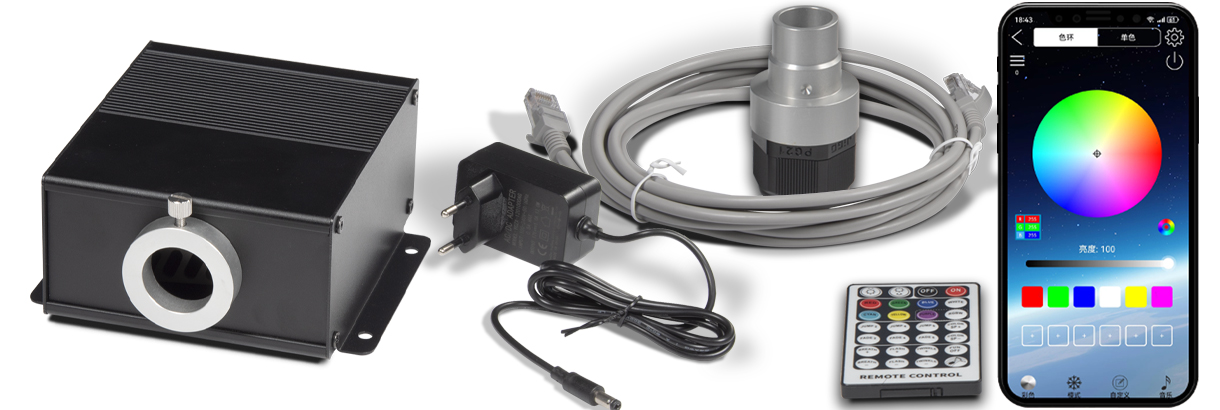

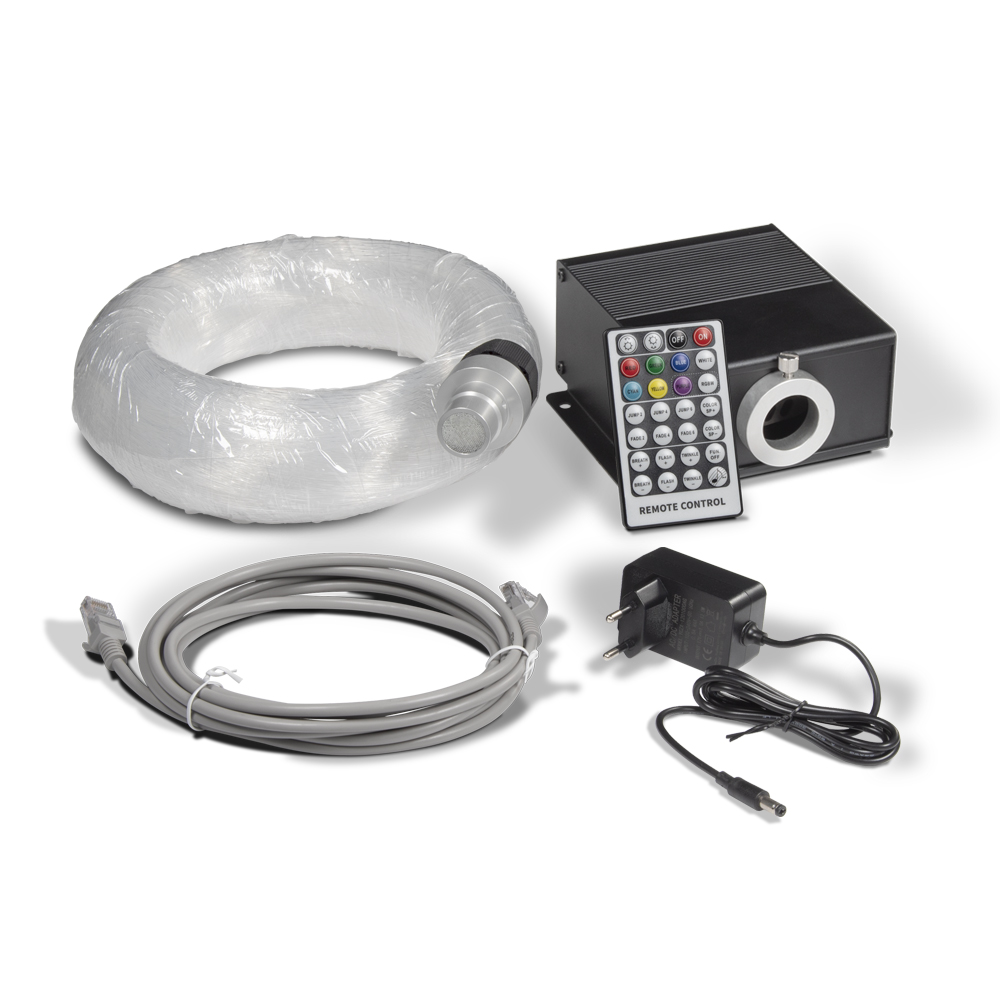

Spare Parts in the Package:
No. | Item | Quantity |
1 | Twinkle Plate (built-in) | 1 |

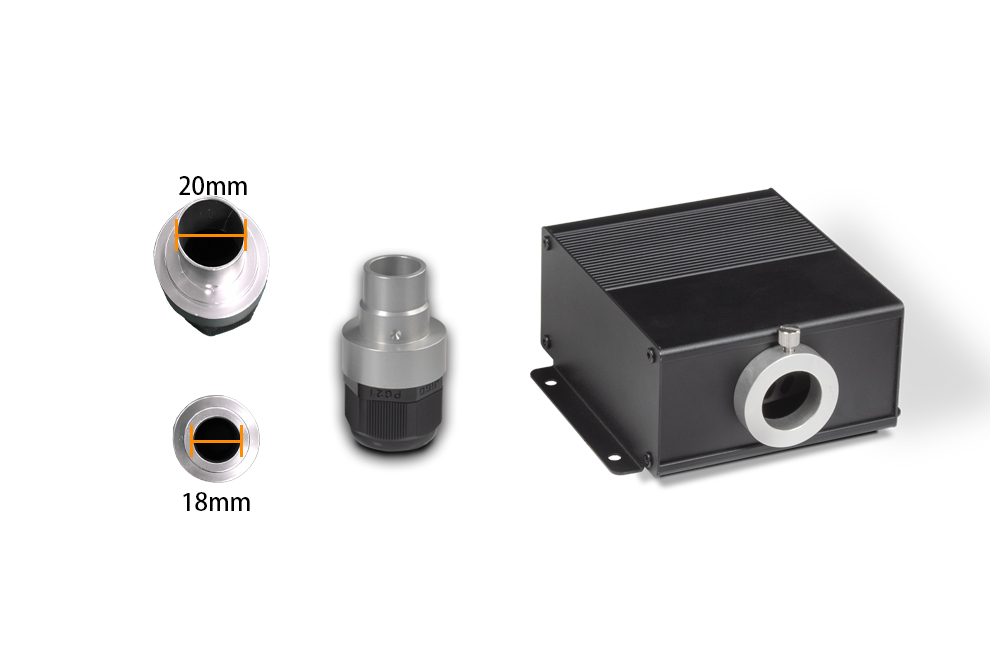

2 | 18mm Fiber Connector | 1 |
3 | AC-DC Adapter | 1 |
4 | DMX512 Signal Cable | 1 |
Optional Parts:
No. | Item |

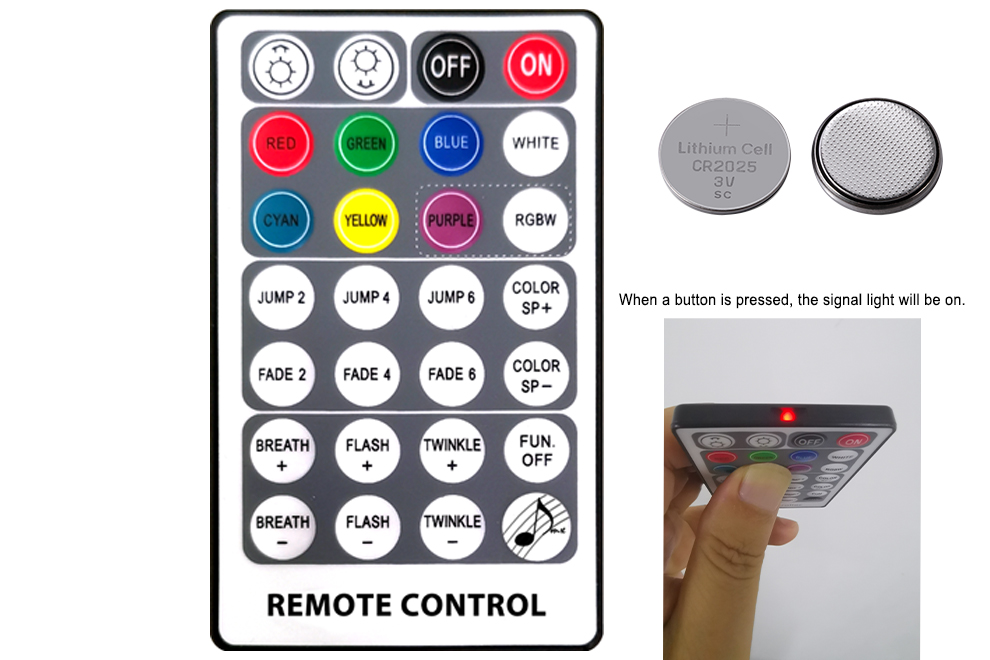

1 | 28-Key 2.4G Remote Control |
2 | 20mm Fiber Connector |
