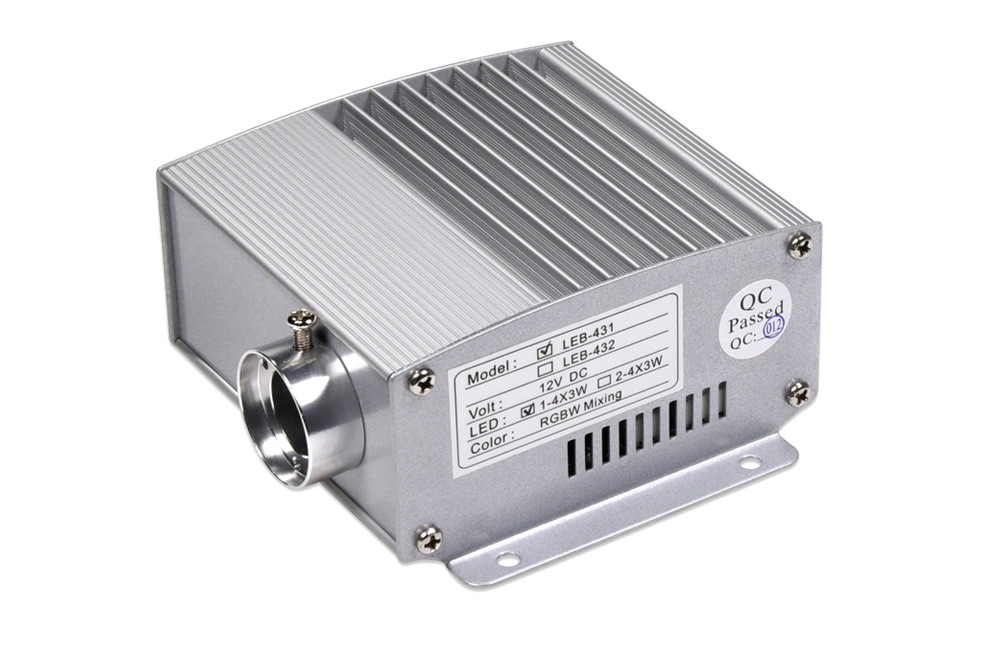

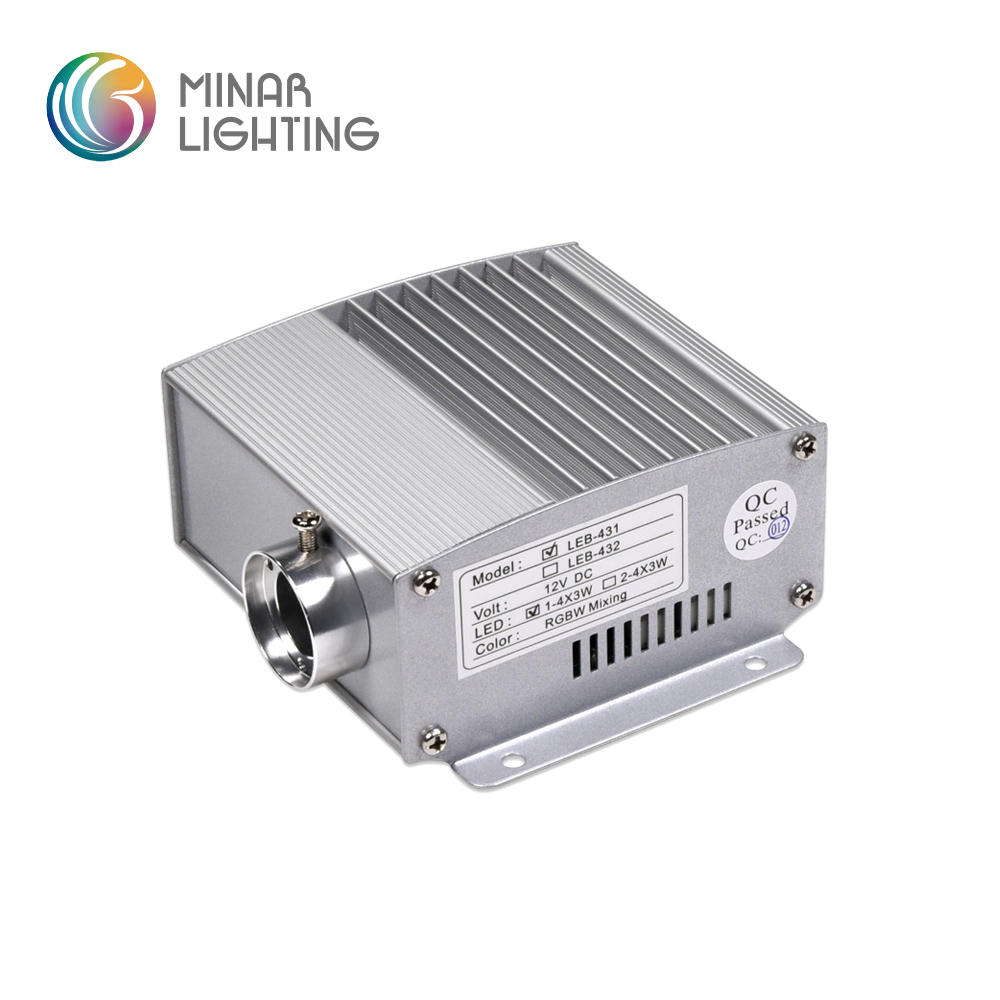

LEB-431

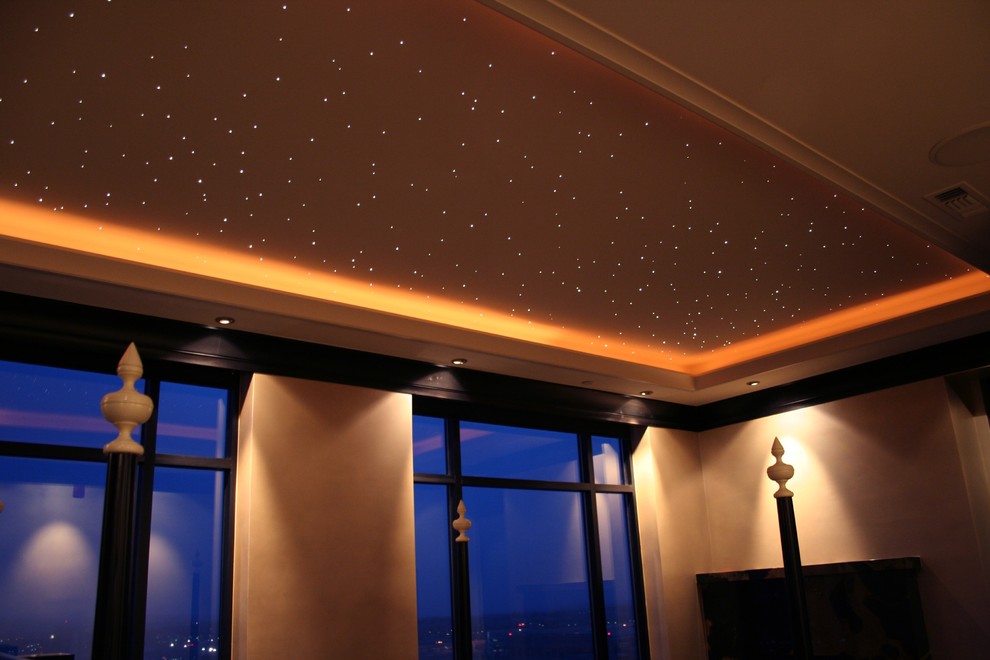

LEB series of LED light engine applies RGBW LED module as its source. This series of light engine does not contain any motors or fans. Being noice free, it is ideal for star ceilings in bedroom, home cinema, and other places that need to be kept quiet.

8W LED Light Engine for star ceiling

General Information:

1. Model: LEB-431,

2. Input Voltage: DC 12V,

3. Light Source: Colorful LED,

4. LED Type: RGBW, 4*3W, Cree,

5. Twinkle Disc: N/A,

6. Control: Remote control/DIP switches,

7. Light Emitting: Static color/Cycling colors,

8. Dimmable,

9. No fans or motor, noise free,

10. IP Rating: IP20,

11. Warranty: 2 Years,

12. Packing: Neutral color box.

- Noise Free

  1、The machine has no motor or fan, so it does not produce any noise when working.
  2、The machine has 26 built-in programs, which could be selected by DIP switches.

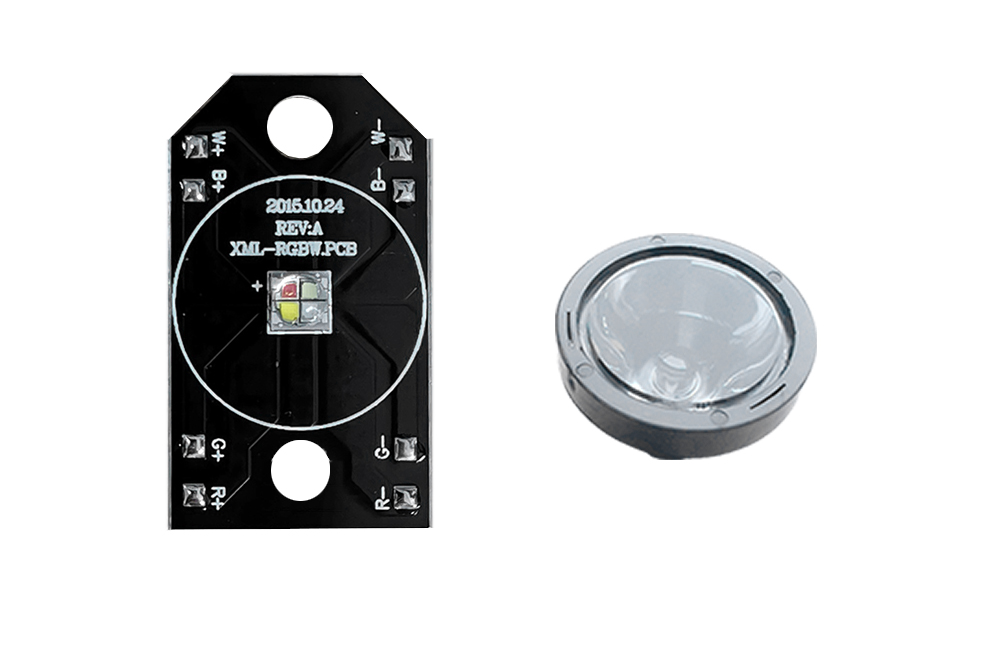

- RGBW + Lens

  The choice of CREE XML LED modules, together with the lens, delivers a super brightness to the small fibre optic machine. The four-colour LED module brings the starry ceiling a fantastic simulating effect.

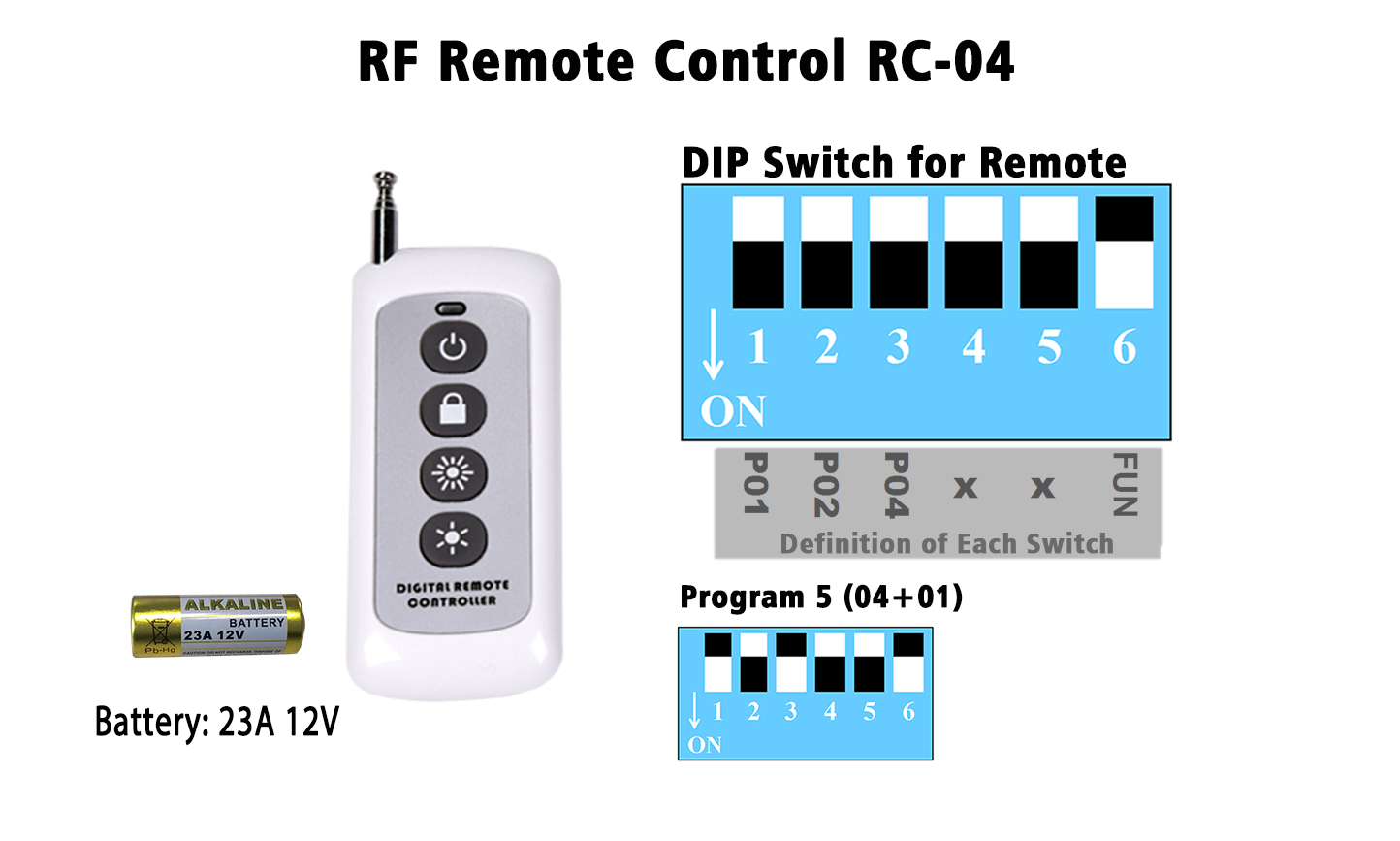

- Remote Control & DIP Switches

  LEB-431 has 26 built-in programmes, which can be selected by the DIP switches.

  The 4-key RF remote control has an effective control distance of around 25 metres in open area. The function of the 4-key remote control (SW6 ON):
  1. Turn on the light engine,
  2. Turn off the light engine,
  3. Fix the emitting color,
  4. Dimming.

  Battery: 23A 12V, 1pc (not included in the package).

SPECIFICATIONS

Specification:

Item Number

Standard

Aperture

Optional

Aperture

Maximum Fiber Capacity

(0.75mm fiber tails)

Housing

Material

Housing

Color

Dimensions

(mm)

Optional

Remote Control

LEB-431

14mm

18mm

450pcs

Aluminum

Silver

L125XW125XH60

RC-04

Electrical Parameters:

Working Voltage	Power Consumption	Input Voltage	Adapter Power
12V	8W	100V-240V ac	12V/1A

LED Parameters:

LED Power	LED Color	Color Temperature	Colour Temperature Options	Luminous Flux	Life Span
4X3W	RGBW	W: 6000K	W: 3000K	N/A	50000h

Control:

1	DIP Switches
2	Remote Control (optional)

Spare Parts in the Package:

No.	Item	Quantity
1	14mm Fiber Connector	1
2	AC-DC adapter	1

Optional Parts:

No.	Item
1	4-key Remote Contro
2	18mm Fiber Connector

USER MANUAL

Download the instruction manual/specification
