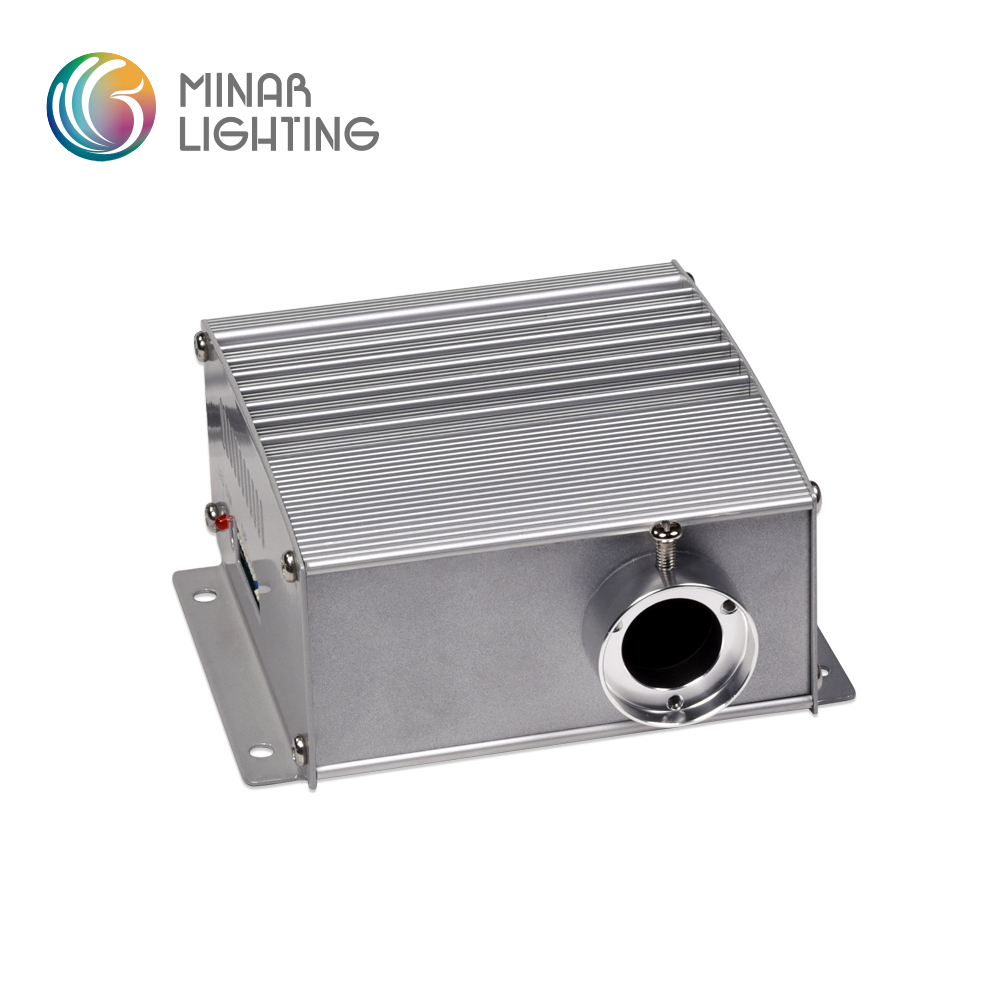

LEB-431DMX

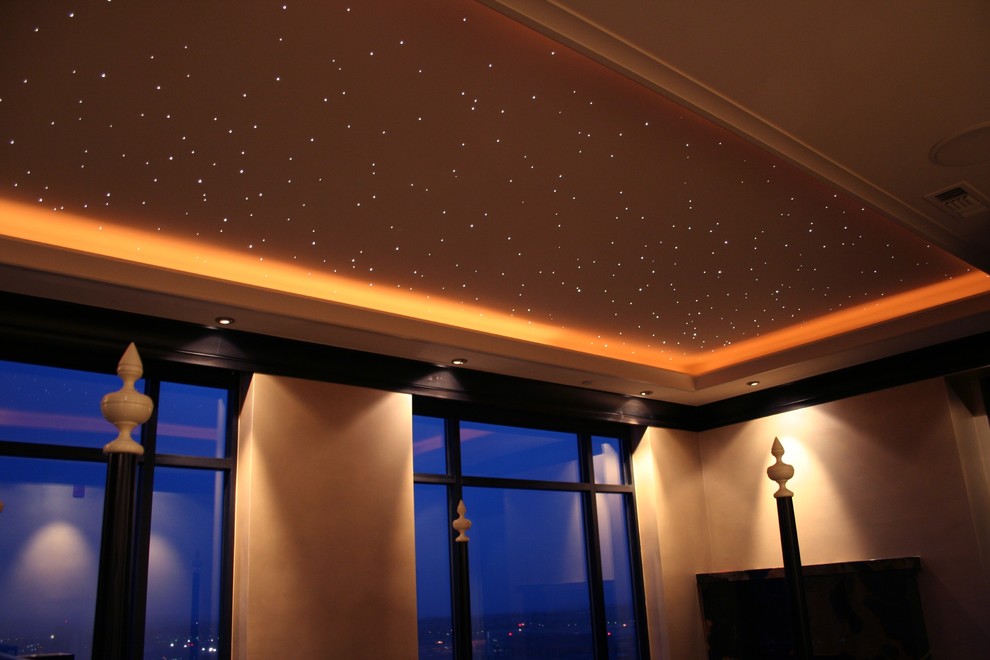

LEB series of LED light engine applies RGBW LED module as its source. This series of light engine does not contain any motors or fans. Being noice free, it is ideal for star ceilings in bedroom, home cinema, and other places that need to be kept quiet.

15W LED Light Engine for star ceiling

General Information:

1. Model: LEB-431DMX,

2. Input Voltage: DC 12V,

3. Light Source: Colorful LED,

4. LED Type: RGBW, 4*3W, Cree,

5. Twinkle Disc: N/A,

6. Control: DMX512/Remote control/DIP switches,

7. Light Emitting: Static color/Cycling colors,

8. Dimmable,

9. No fans or motors, noise free,

10. DMX512 protocol: DMX512 console or master-slave control

11. IP Rating: IP20,

12. Warranty: 2 Years,

13. Packing: Neutral color box.

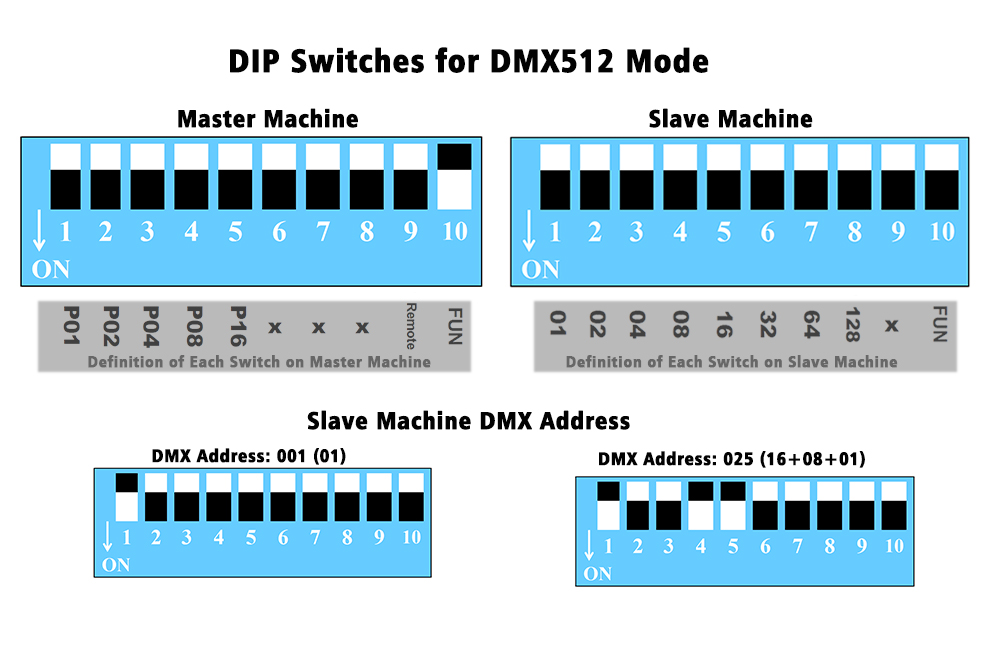

- Master-Slave Control

  Multiple units of the DMX512 light engines can be connected as a group via DMX signal cables to run the master-slave control mode. In master-slave control mode, there will be one and only one master light engine, and all the rest will be set as slave machine. The master runs the built-in program with or without the remote control, and all slave machines will automatically follow to have a synchronous or progressive effect.

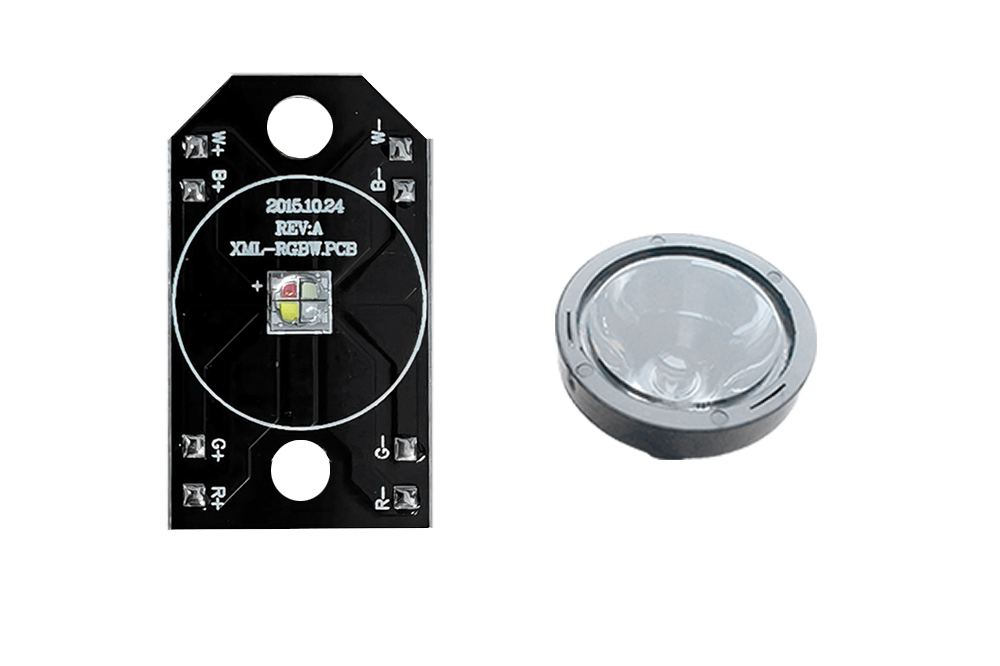

- RGBW + Lens

  1. The machine has no motor or fan, so it does not produce any noise when working.
  2. The four-colour LED module brings the starry ceiling a fantastic simulating effect.

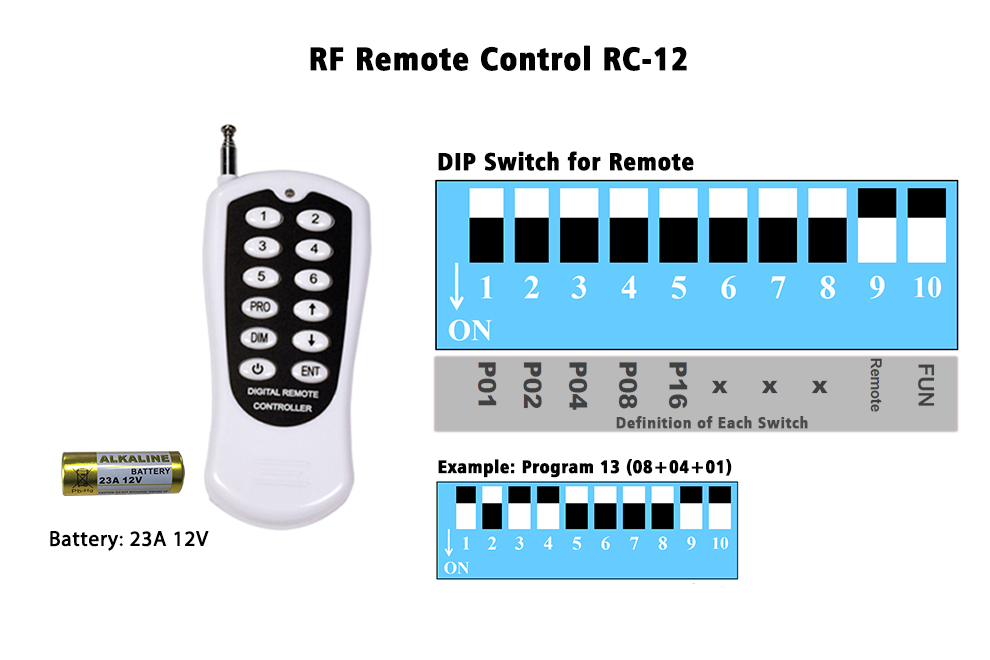

- Remote Control & DIP Switches

  LEB-431DMX has 26 built-in programmes, which can be selected by the DIP switches and the remote control (SW9 & SW10 ON).

  The 12-key RF remote control has an effective control distance of around 25 metres in open area. The function of the 12-key remote control (optional):
  1、Switching the machine on and off.
  2、Selecting the built-in programs.
  3、Dimming.

  Battery: 23A 12V, 1pc (not included in the package).

SPECIFICATIONS

Specification:

Item Number

Standard

Aperture

Optional

Aperture

Maximum Fiber Capacity

(0.75mm fiber tails)

Housing

Material

Housing

Color

Dimensions

(mm)

Optional

Remote Control

LEB-431DMX

14mm

18mm

450pcs

Aluminum

Silver

L125XW125XH60

RC-12

Electrical Parameters:

Working Voltage	Power Consumption	Input Voltage	Adapter Power
12V	15W	100V-240V ac	12V/2A

LED Parameters:

LED Power	LED Color	Color Temperature	Colour Temperature Options	Luminous Flux	Life Span
4X3W	RGBW	W: 6000K	W: 3000K	N/A	50000h

Control:

1	DIP Switches
2	Remote Control (optional)
3	Master-Slave
4	DMX Control

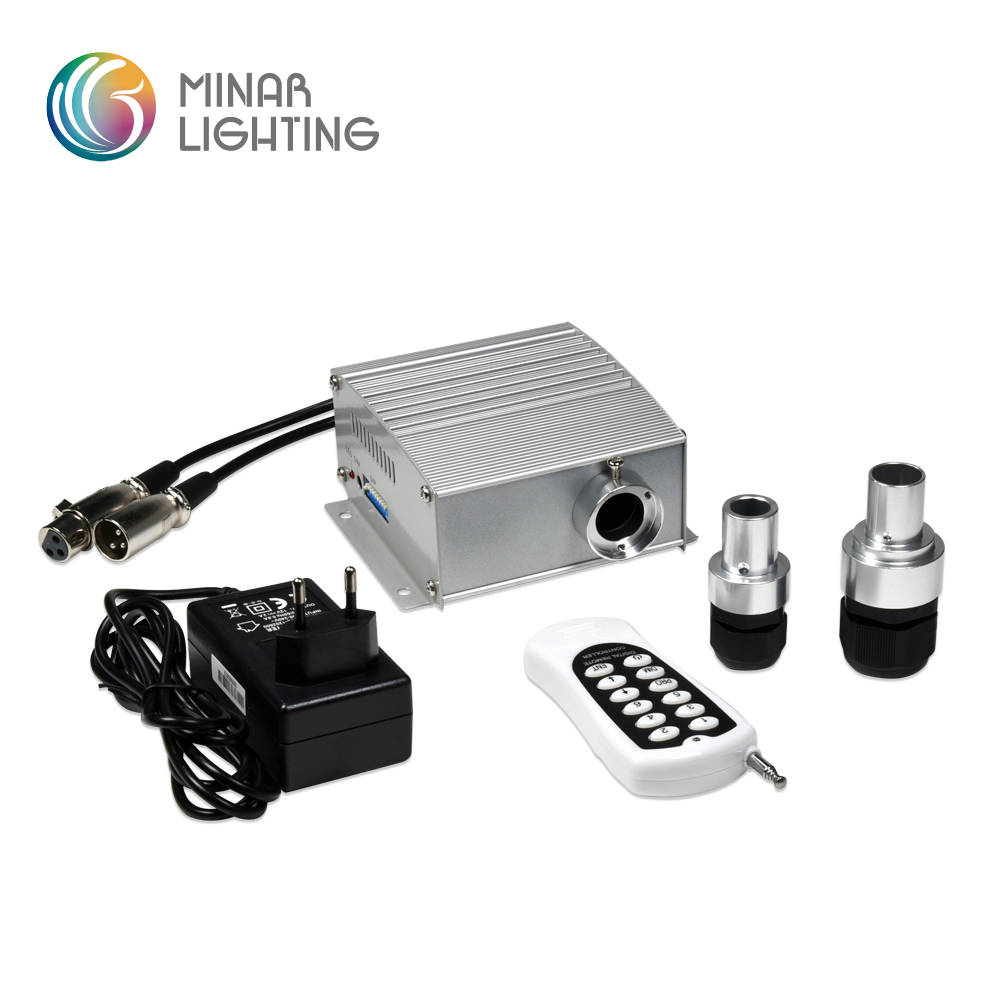

Spare Parts in the Package:

No.	Item	Quantity
1	14mm Fiber Connector	1
2	AC-DC Adapter	1
3	DMX512 Signal Cable	1

Optional Parts:

No.	Item
1	12-Key RF Remote Contro
2	18mm Fiber Connector

USER MANUAL

Download the instruction manual/specification
