LEG-501DMX

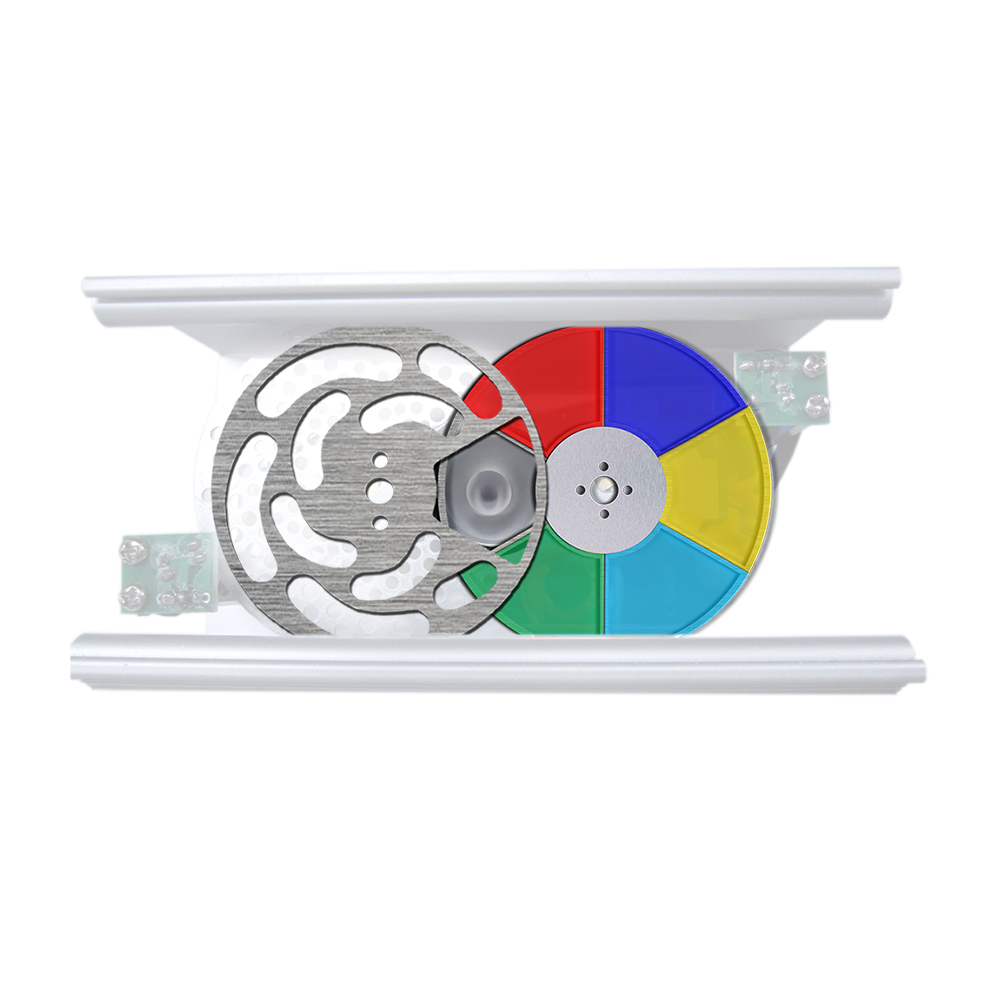

1. LEG-501DMX, a single-port dual-wheel light engine, provides a variety of color change options: static color, cycling colors, static color twinkle, cycling colors twinkle. Both wheels could be controlled separately.
2. Multiple fiber optic light engines can work in a group to perform synchronous or progressive effect.

DMX Channels:
1. CH1: Color,
2. CH2: Speed of color wheel,
3. CH3: Dimmer,
4. CH4: Speed of twinkle wheel.

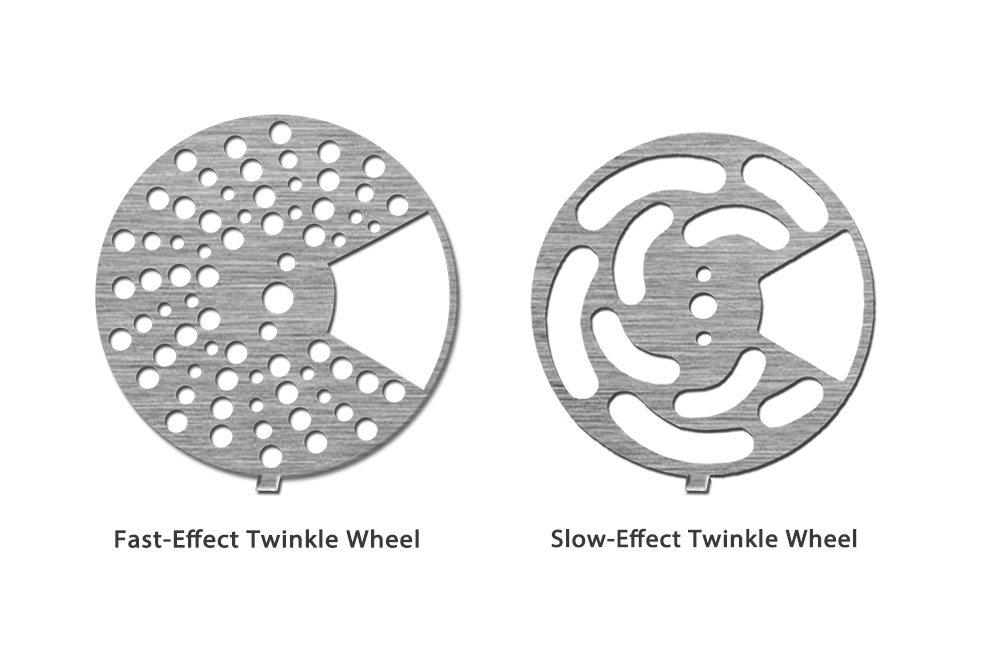

The twinkle wheels/discs that could be equipped into LEG-501DMX fiber optic light engine, from left to right:
1. The fast-effect twinkle wheel,
2. The slow-effect twinkle wheel

By default, the slow-effect twinkle wheel will be supplied in the light engine.

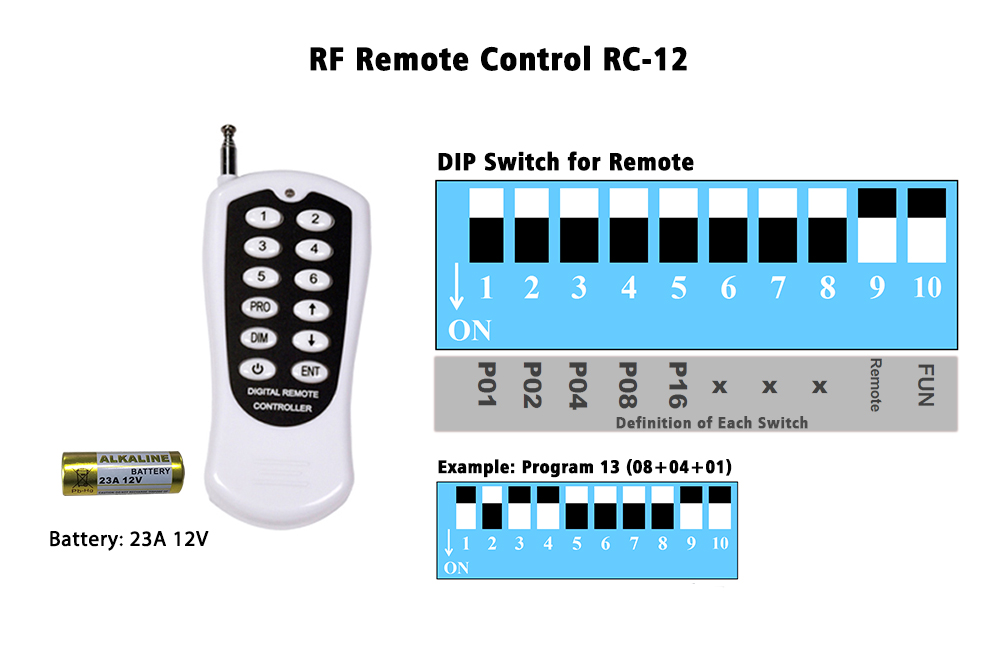

LEG-501DMX has 30 built-in programmes, which can be selected by the DIP switches and the remote control (SW9 & SW10 ON).

The 12-key RF remote control has an effective control distance of around 25 metres in open area. The function of the 12-key remote control (optional):
1、Switching the machine on and off.
2、Selecting the built-in programs.
3、Dimming.

Battery: 23A 12V, 1pc (not included in the package).

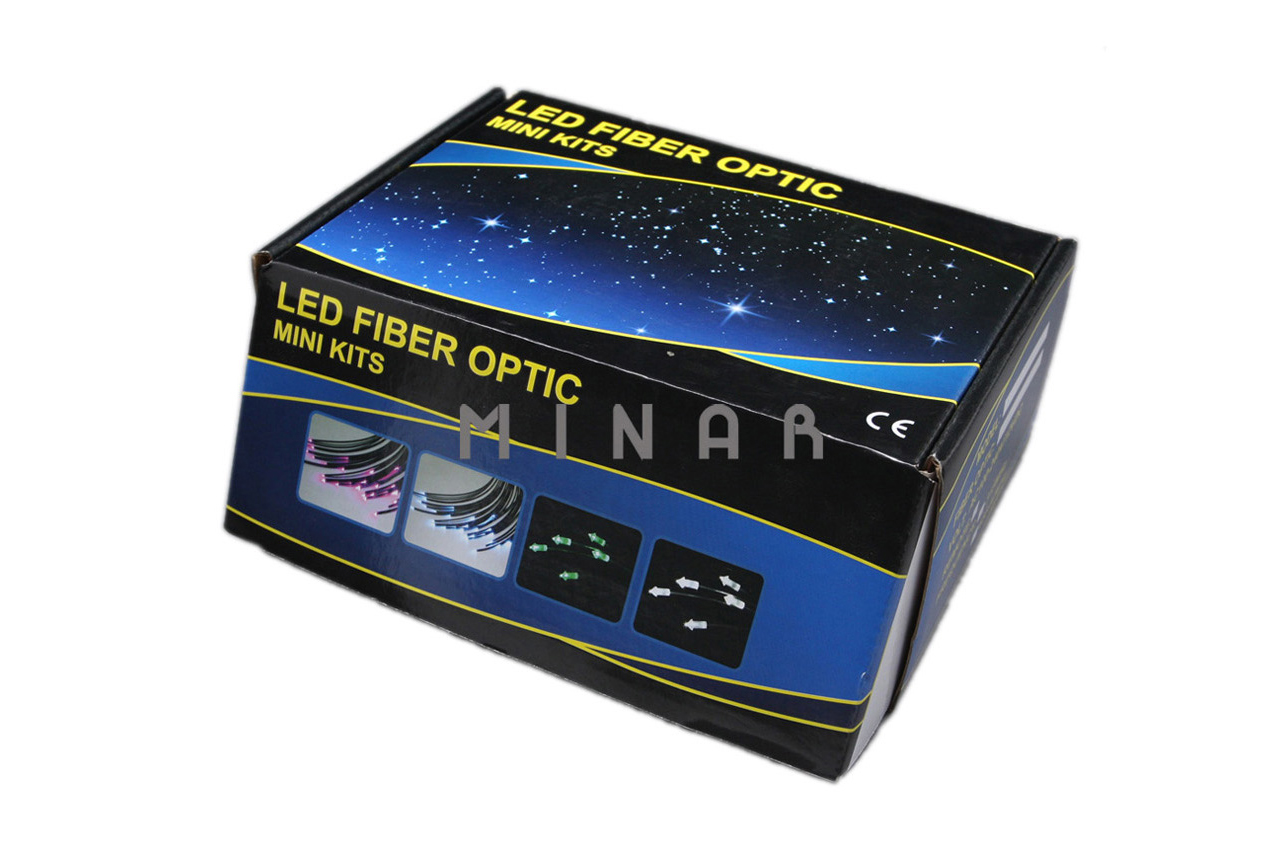

Low voltage fiber optic light engines are generally packaged in neutral color boxes. One unit of the fiber optic machine is packed in a color box. 8 to 10 color boxes are packed in an export carton.
