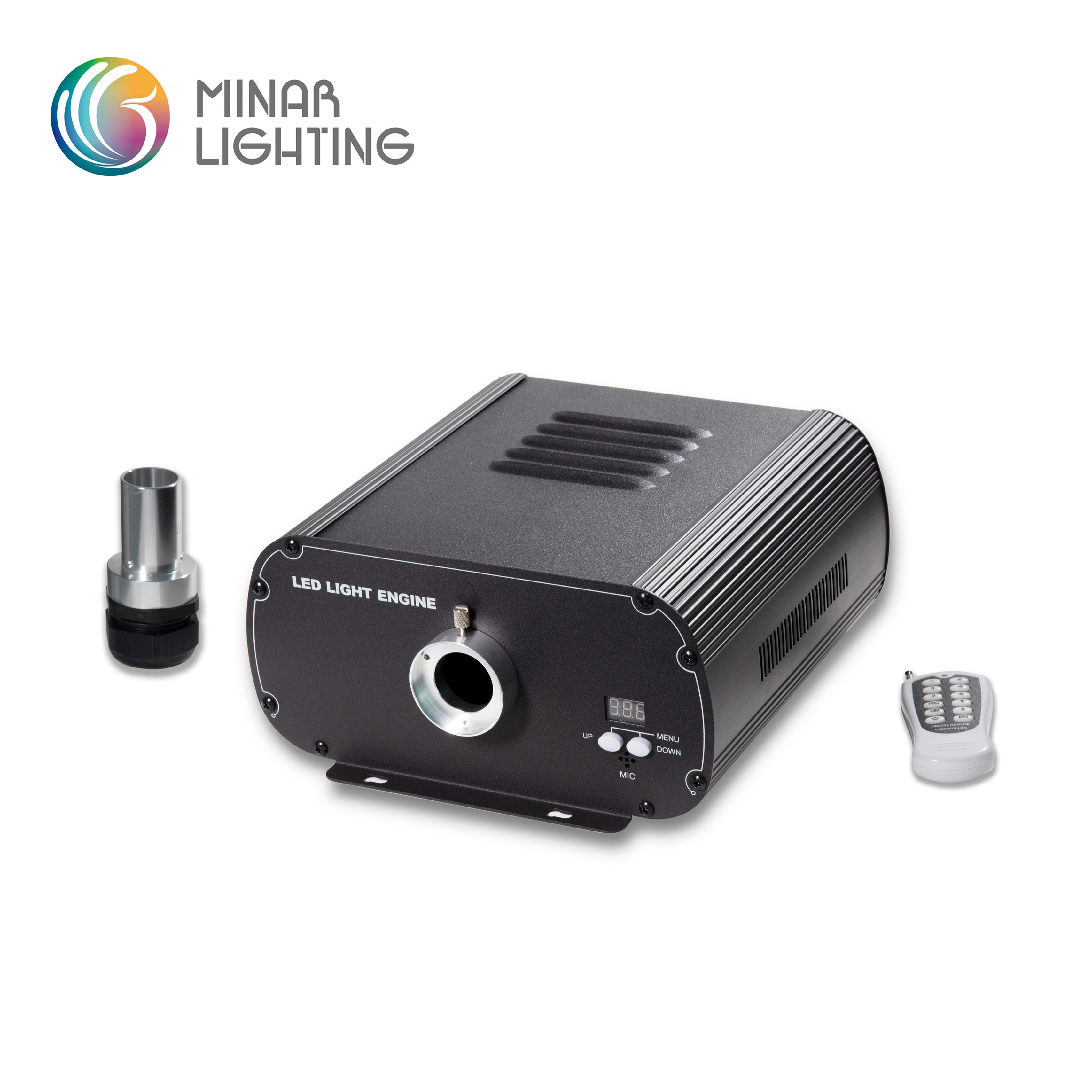

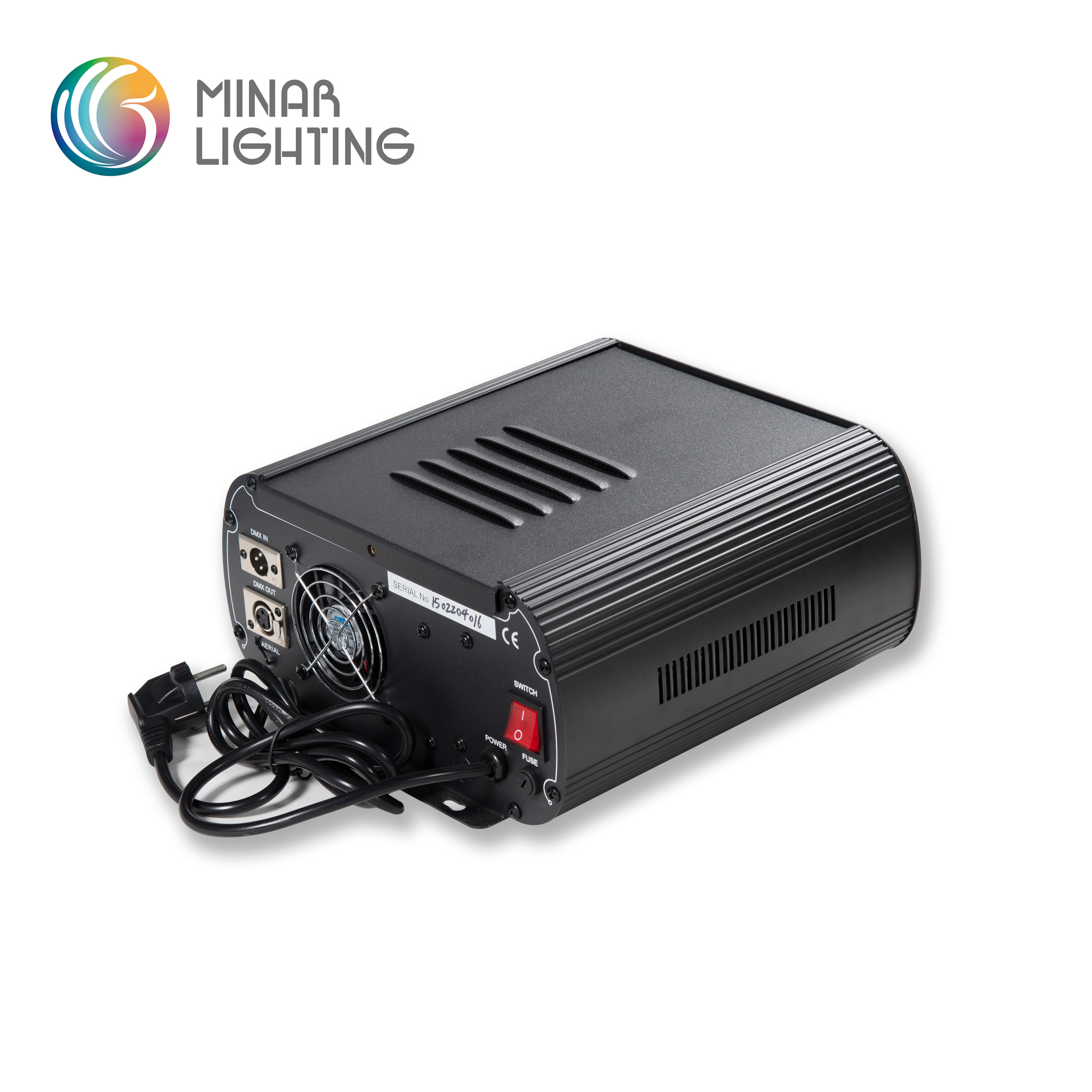

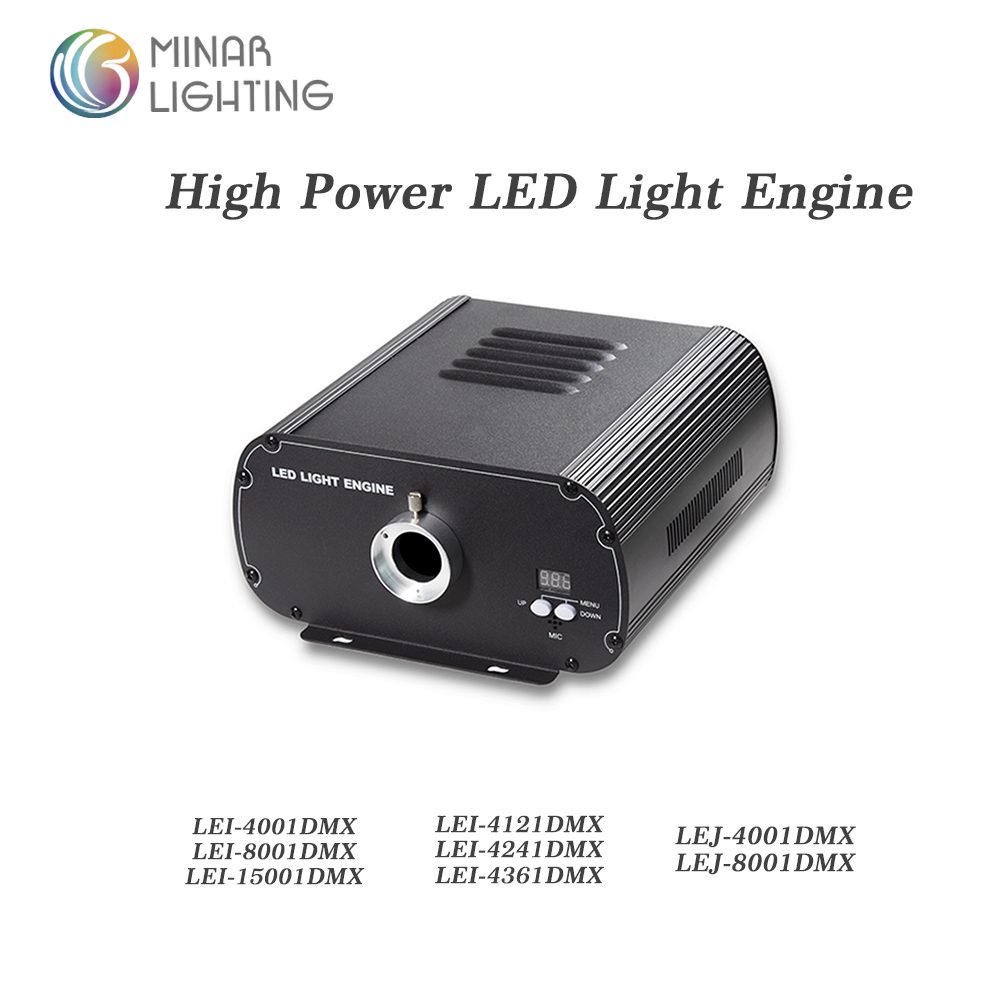

LEI-4001DMX

LEI series contains multiple line voltage LED models with power consumption from 50W to 150W. All models have either a 6-color wheel or a twinkle wheel. The maximum aperture of LEI series is 30mm, which is capable for 1250pcs of 0.75mm, or 650pcs of 1.0mm fiber strands.

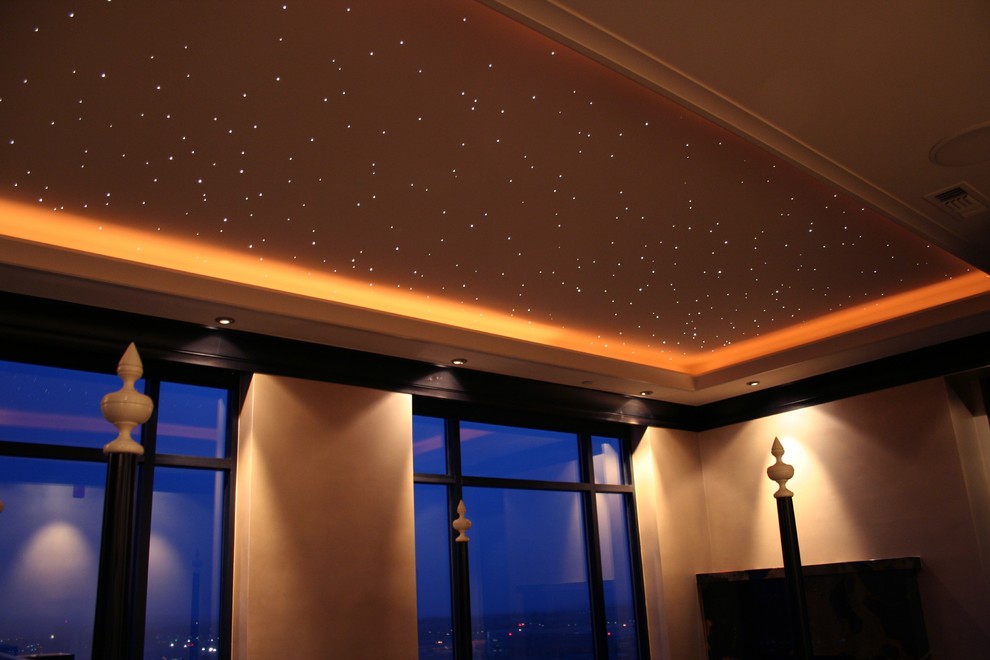

50W LED Light Engine for Large-Scale Ceilings

General Information:

1. Model: LEI-4001DMX,

2. Input Voltage: AC 100-240V,

3. Light Source: White light LED,

4. LED Type: 30W, Cree XPL, 3000K/4000K/6000K,

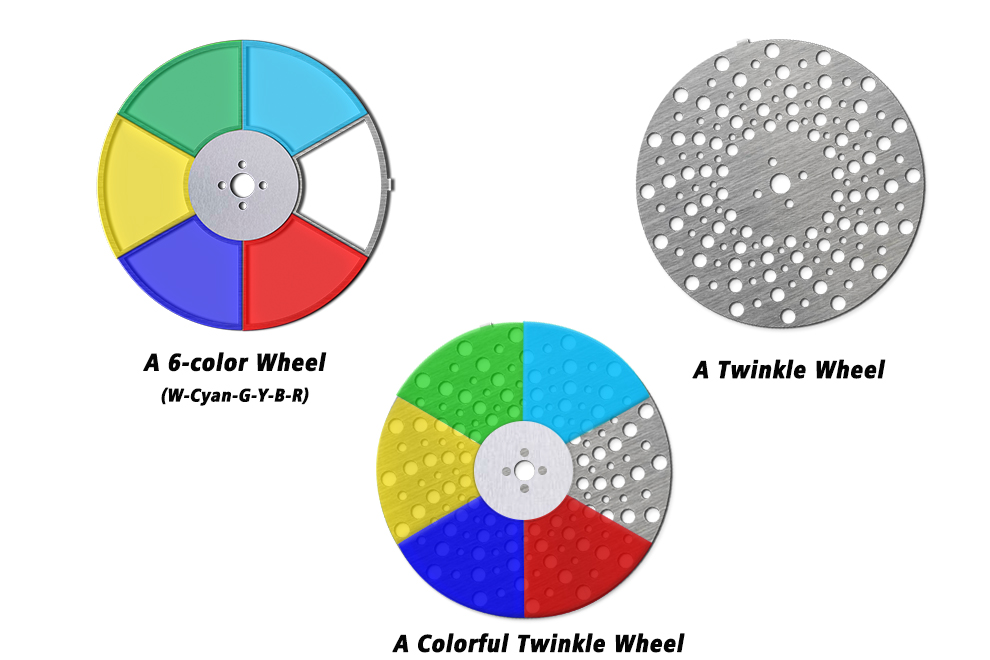

5. Wheel/Disc: 6-color wheel/Twinkle wheel/Colorful twinkle wheel,

6. Control: Remote control/Buttons and display/DMX512/Audio,

7. Light Emitting: Static color/Cycling colors,

8. Twinkle Effect: Optional,

9. Adjustable wheel spin speed,

10. Dimmable,

11. DMX512 protocol: DMX512 signal or master-slave control,

12. IP Rating: IP20,

13. Warranty: 2 Years,

14. Packing: Neutral export carton.

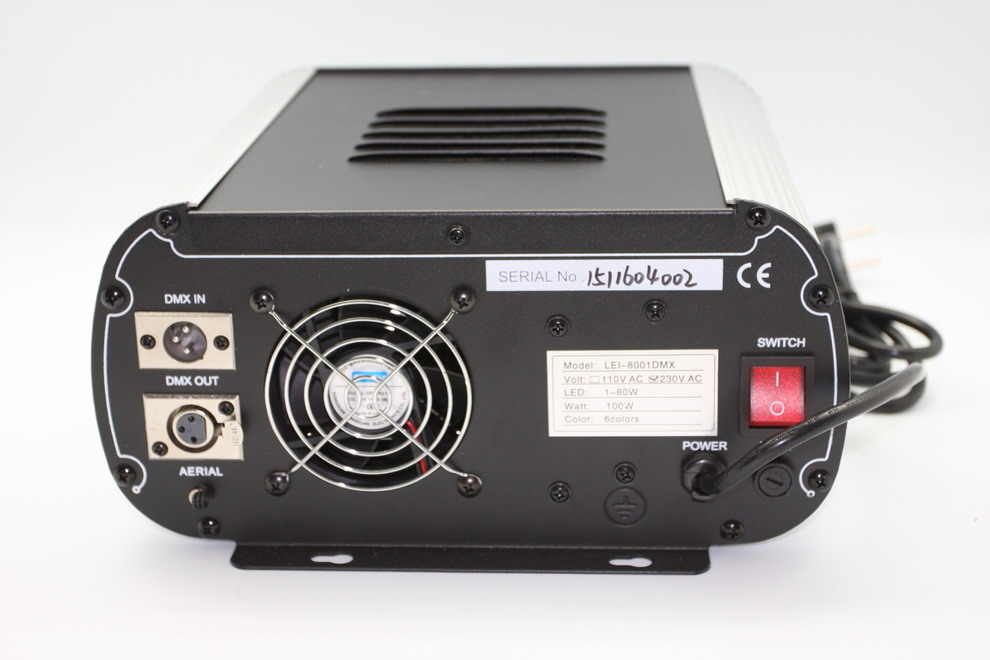

- Master-Slave Control

  Multiple units of the DMX512 light engines can be connected as a group via DMX signal cables to run the master-slave control mode. In master-slave control mode, there will be one and only one master light engine, and all the rest will be set as slave machines. The master runs the built-in program with or without the remote control, and all slave machines will automatically follow to have a synchronous or progressive effect.

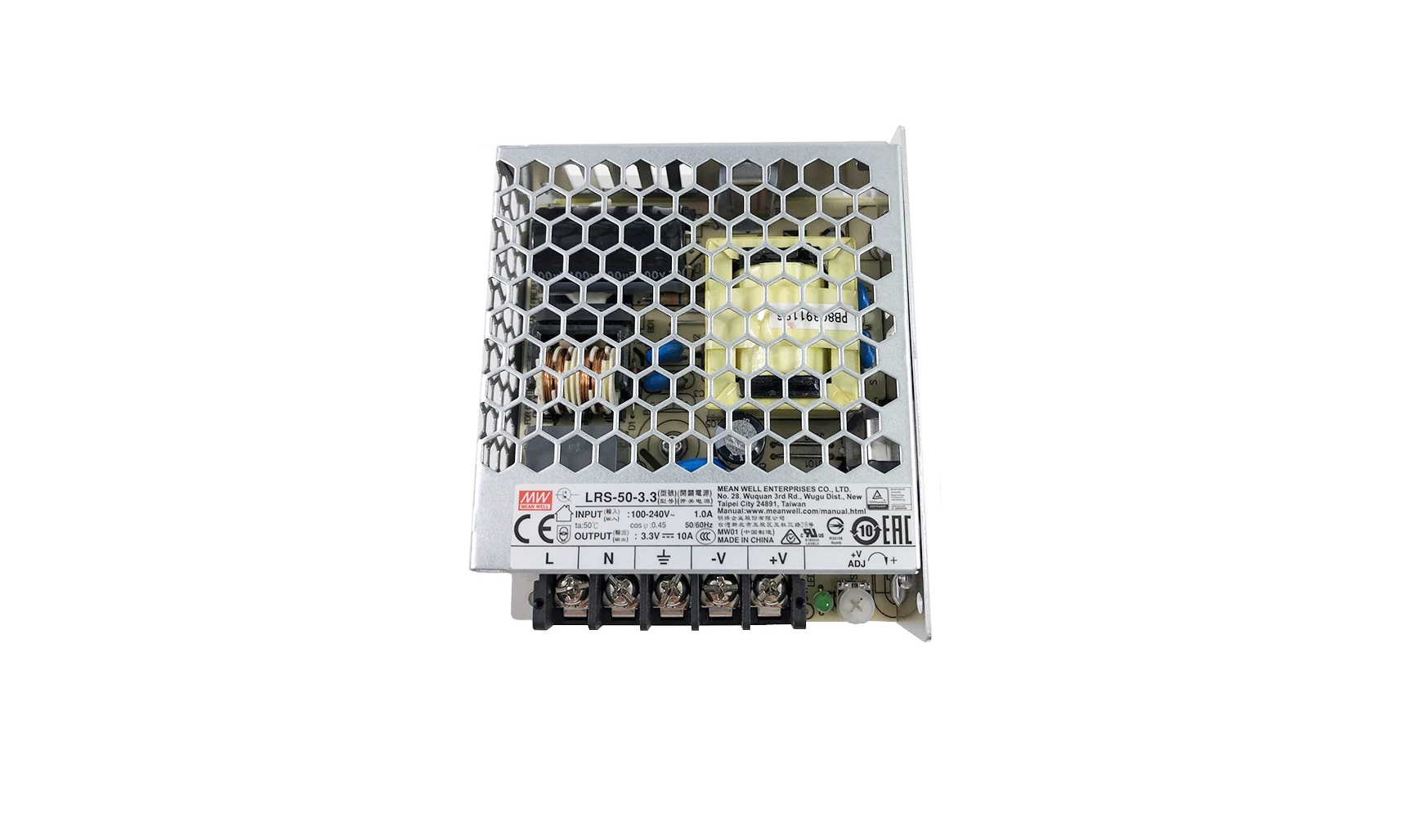

- Meanwell Power Supply

  Our line-voltage LED light engine is equipped with built-in Meanwell power supply to ensure the consistent high quality of Minar fiber optic light engines.

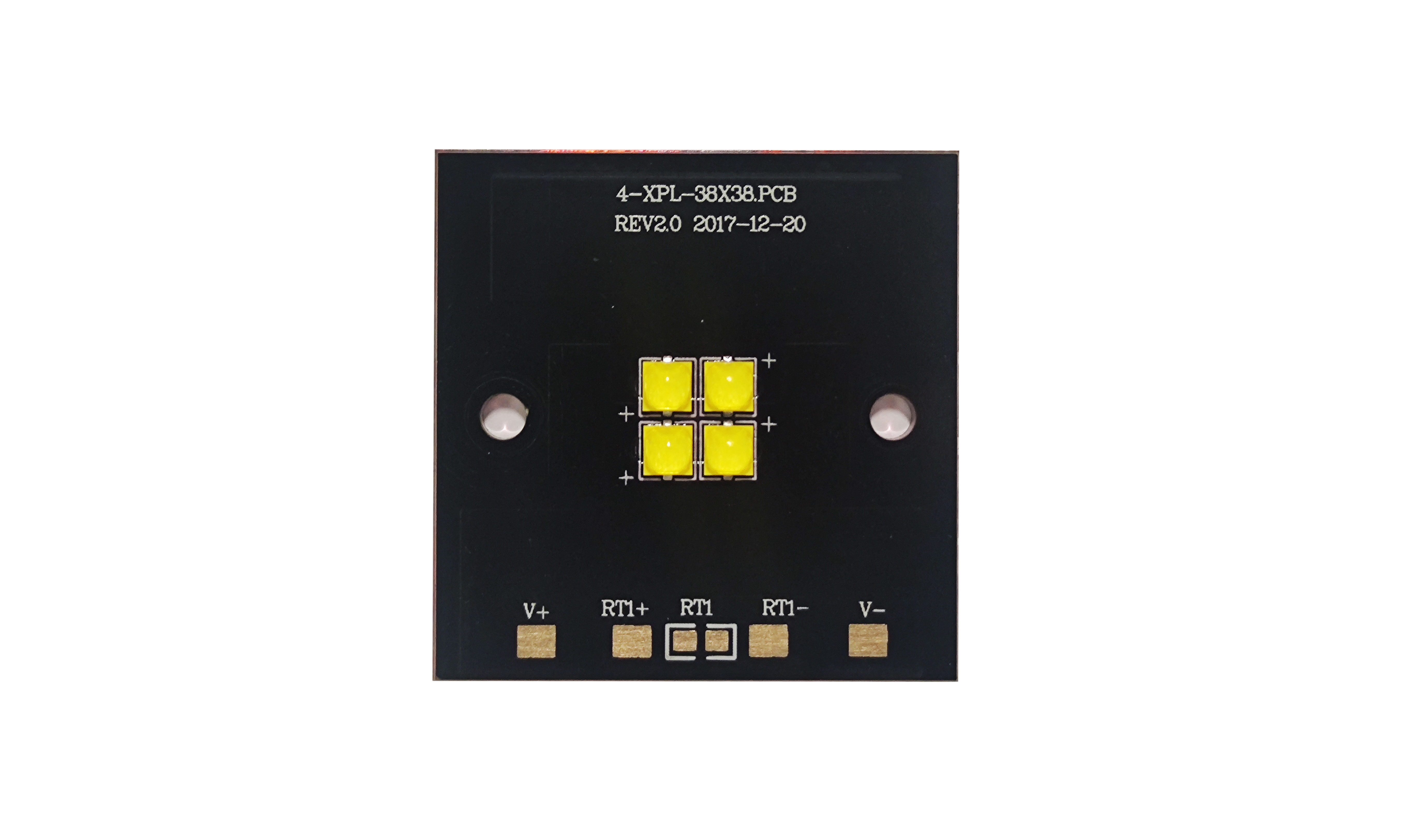

- CREE LED MODULE

  4 pieces of Cree XPL LED modules on copper plate have been applied as the light source in LEI-4001 and LEI-4001DMX. The actual LED power is 30W, and the color temperature options available are 3000K, 4000K and 6000K.

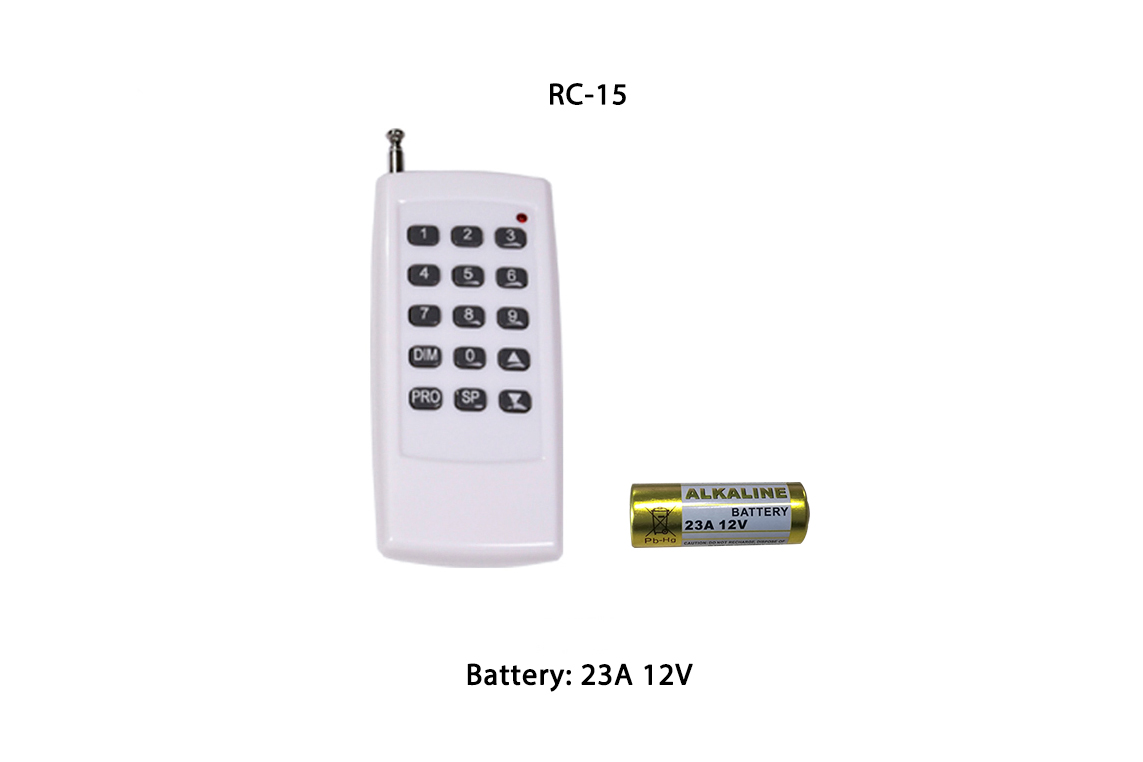

- 15-Key RF Remote Control

  DMX version of the line Voltage LED light engine could use 15-key RF remote control to have different programs, dimming and wheel speed adjustment. LEI-4001DMX has 14 built-in programmes, which can be selected using buttons+display or the remote control.

  The 15-key RF remote control has an effective control distance of around 25 metres in open area. The function of the 15-key remote control (optional):
  1. Select the built-in programs,
  2. Dimming,
  3. Adjust the wheel speed.

  Battery: 23A 12V, 1pc (not included in the package).

SPECIFICATIONS

Specification:

Item Number

Standard

Aperture

Optional

Aperture

Maximum Fiber Capacity

(0.75mm fiber tails)

Housing

Material

Housing

Color

Dimensions

(mm)

Optional

Remote Control

LEI-4001DMX

20/24/28mm

30mm

1250pcs

Aluminum

Black

L291XW264XH135

RC-15

Electrical Parameters:

Input Voltage	Power Consumption
100V-240V ac	50W

LED Parameters:

LED Power	LED Color	Color Temperature	Colour Temperature Options	Luminous Flux	Life Span
30W	White	6000K	3000K/4000K	3500lm @ 6000K	50000h

Control:

1	Buttons + Display
2	Remote Control (optional)
3	Master-Slave
4	DMX512 Console
5	Audio

Spare Parts in the Package:

No.	Item	Quantity
1	a 6-color Wheel (Built-in)	1

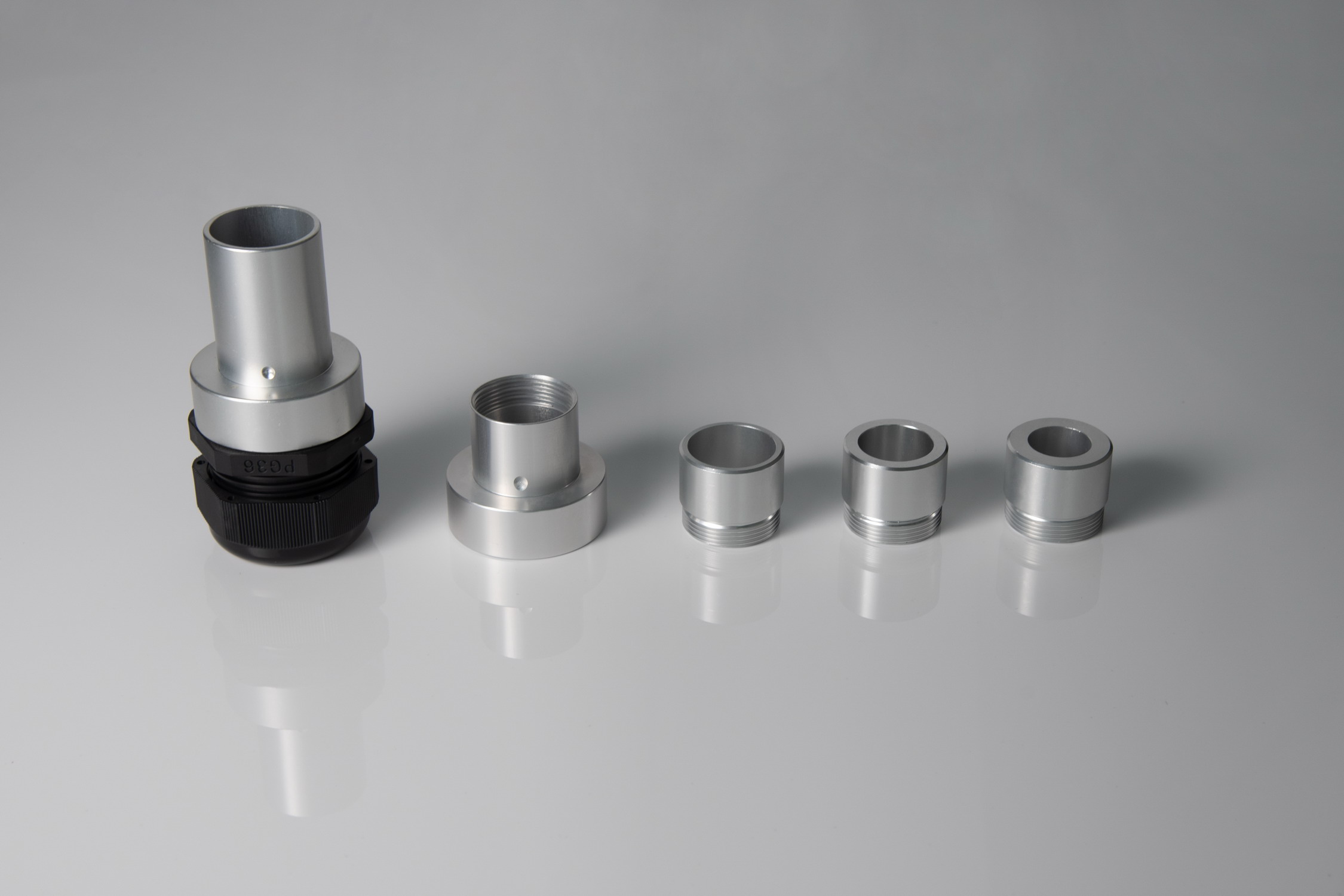

2	20/24/28mm 3-in-1 Fiber Connector	1
3	DMX signal cable	1
4	Fuse	1

Optional Parts:

No.	Item
1	15-Key RF Remote Control
2	Twinkle Wheel
3	Colorful Twinkle Wheel
4	30mm Fiber Connector

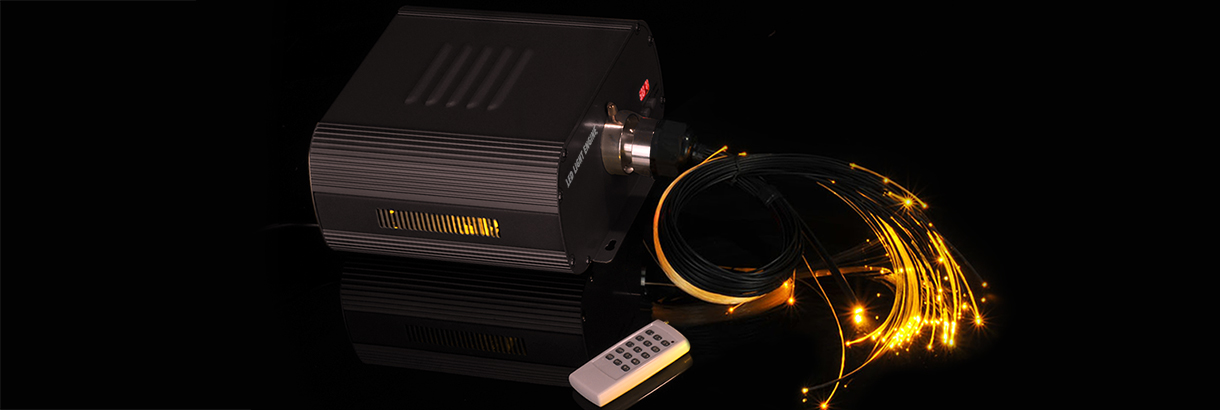

LEI with Fiber bundle-2.jpg

Datasheet Download

Light Engine Specification-LEI-4001-8001-15001DMX.pdf
