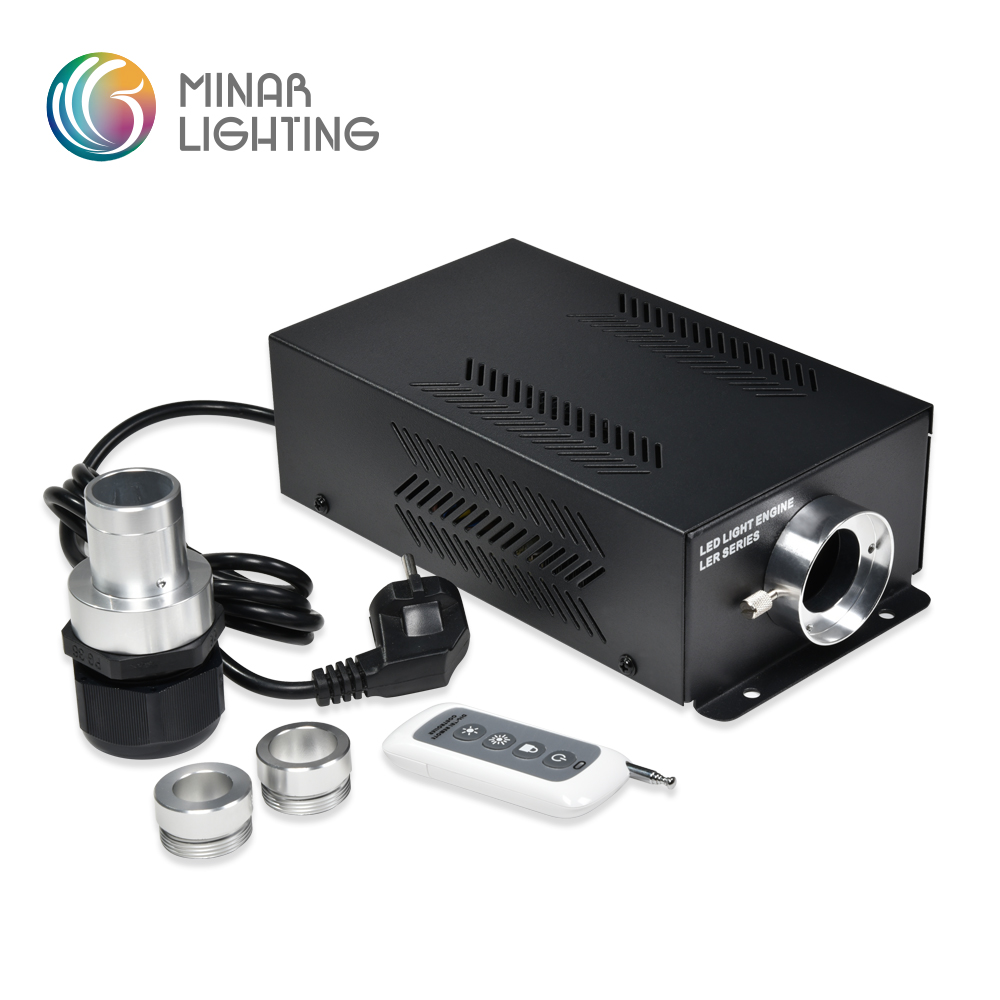

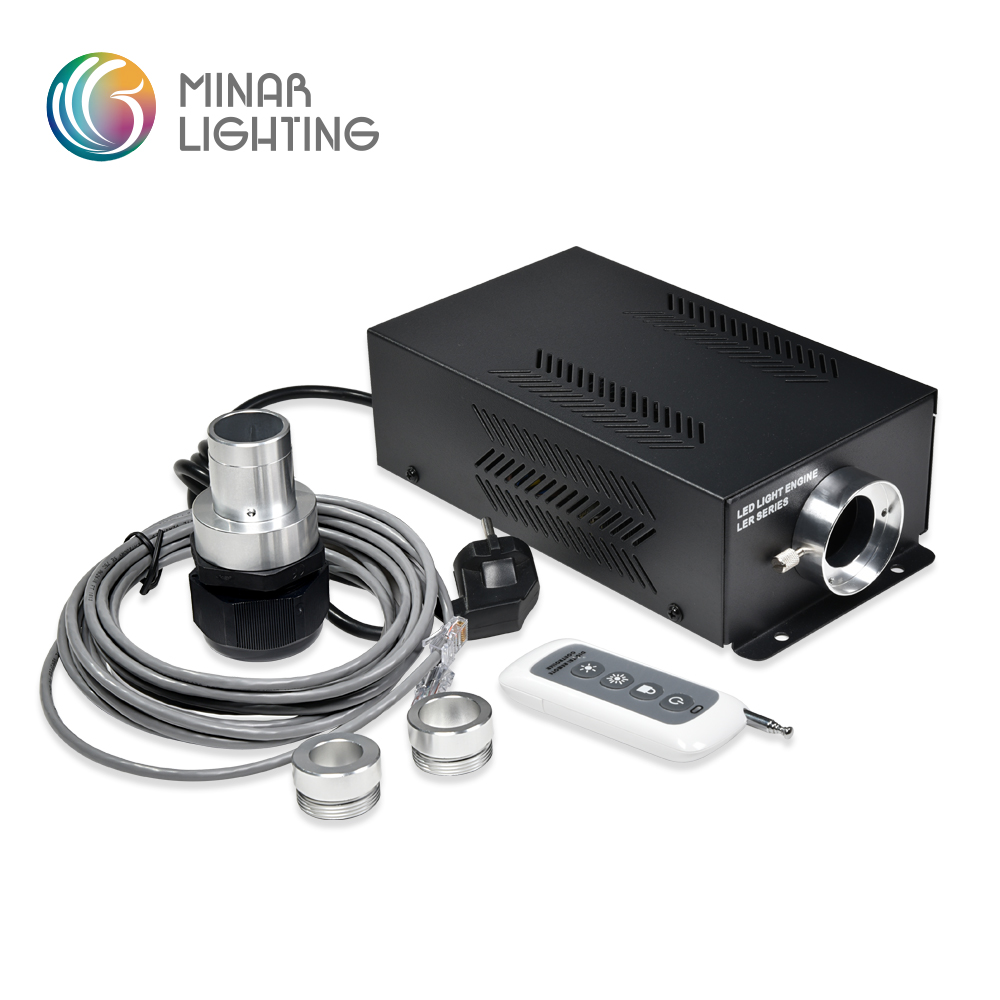

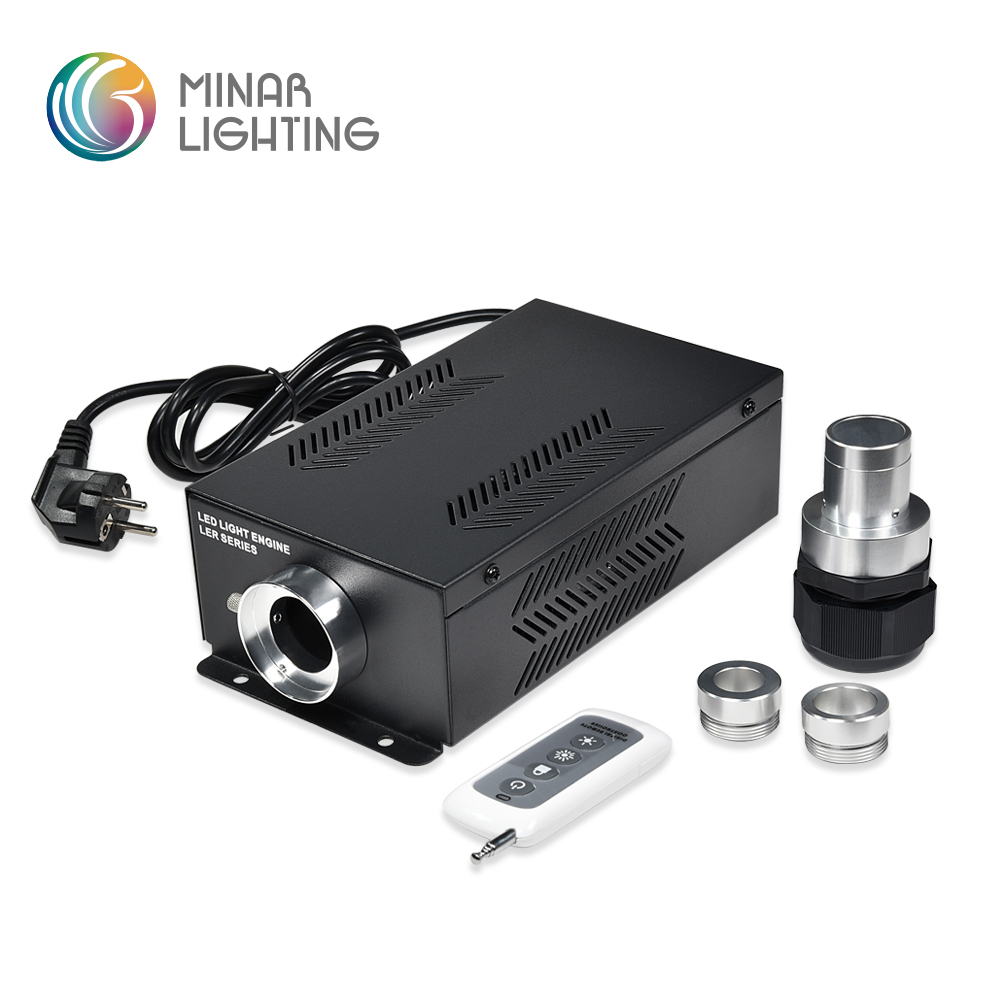

LER-3001DMX

Different from other line voltage light engines, both LER-3001DMX and LER-4121DMX do not contain any fans or motors. They are completely quiet during operation.

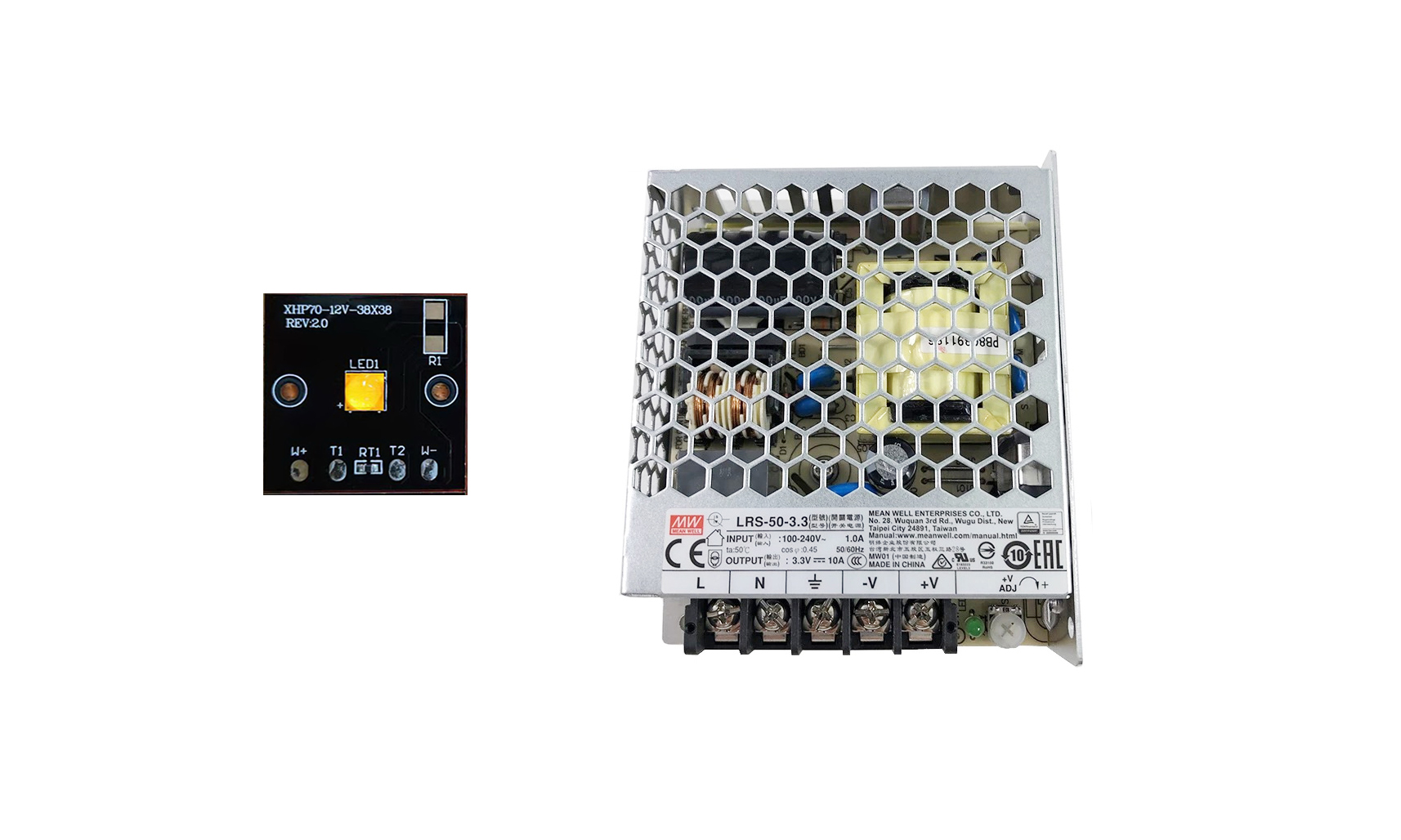

Cree XHP LED module is applied to this light engine.

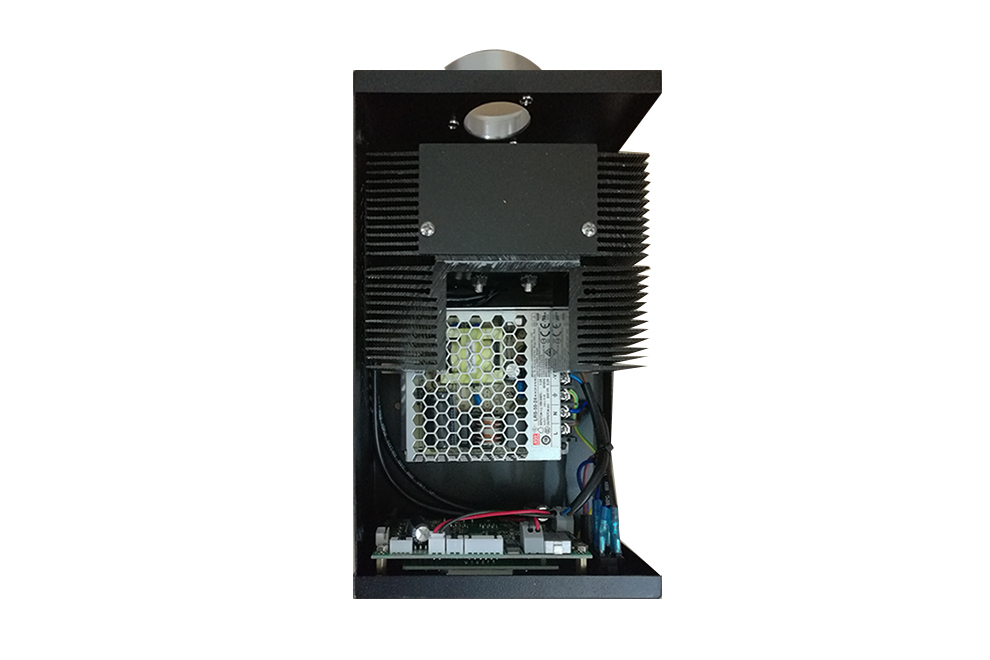

Our line-voltage LED light engines have been equipped with built-in Meanwell power supply to ensure the consistent high quality.

Multiple units of the DMX512 light engines can be connected as a group via DMX signal cables to run the master-slave control mode. In master-slave control mode, there will be one and only one master light engine, and all the rest will be set as slave machines. The master runs the built-in program with or without the remote control, and all slave machines will automatically follow to have a synchronous or progressive effect.

3 DMX Channels:
1. CH1: Dimming,
2. CH2: Brightness change speed,
3. CH3: Strobe.

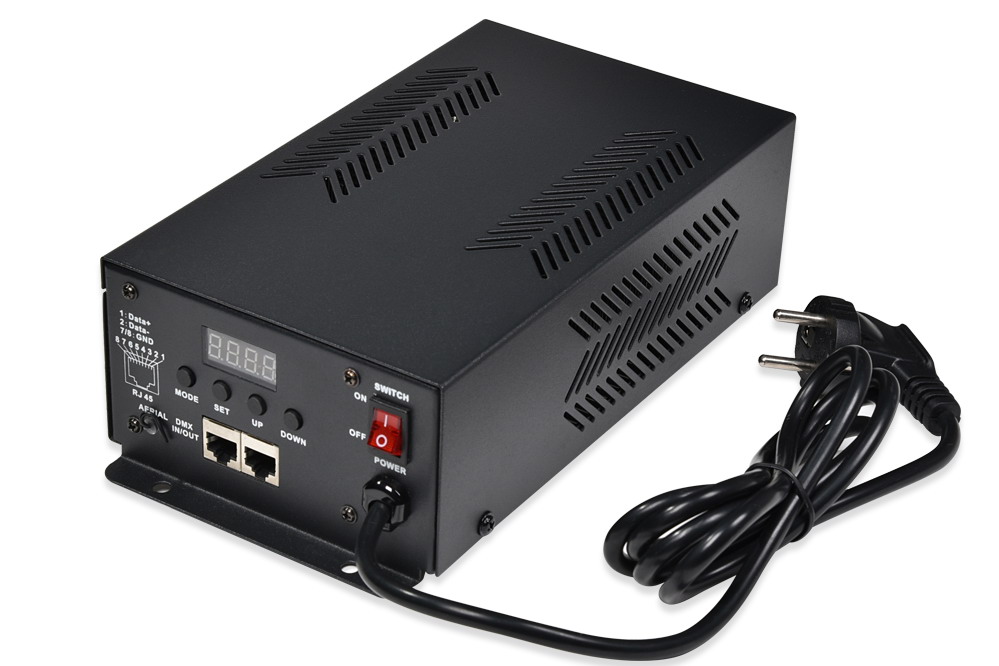

The light engine has 6 built-in programs which could be realized by the buttons and display on the back panel of the light engine.

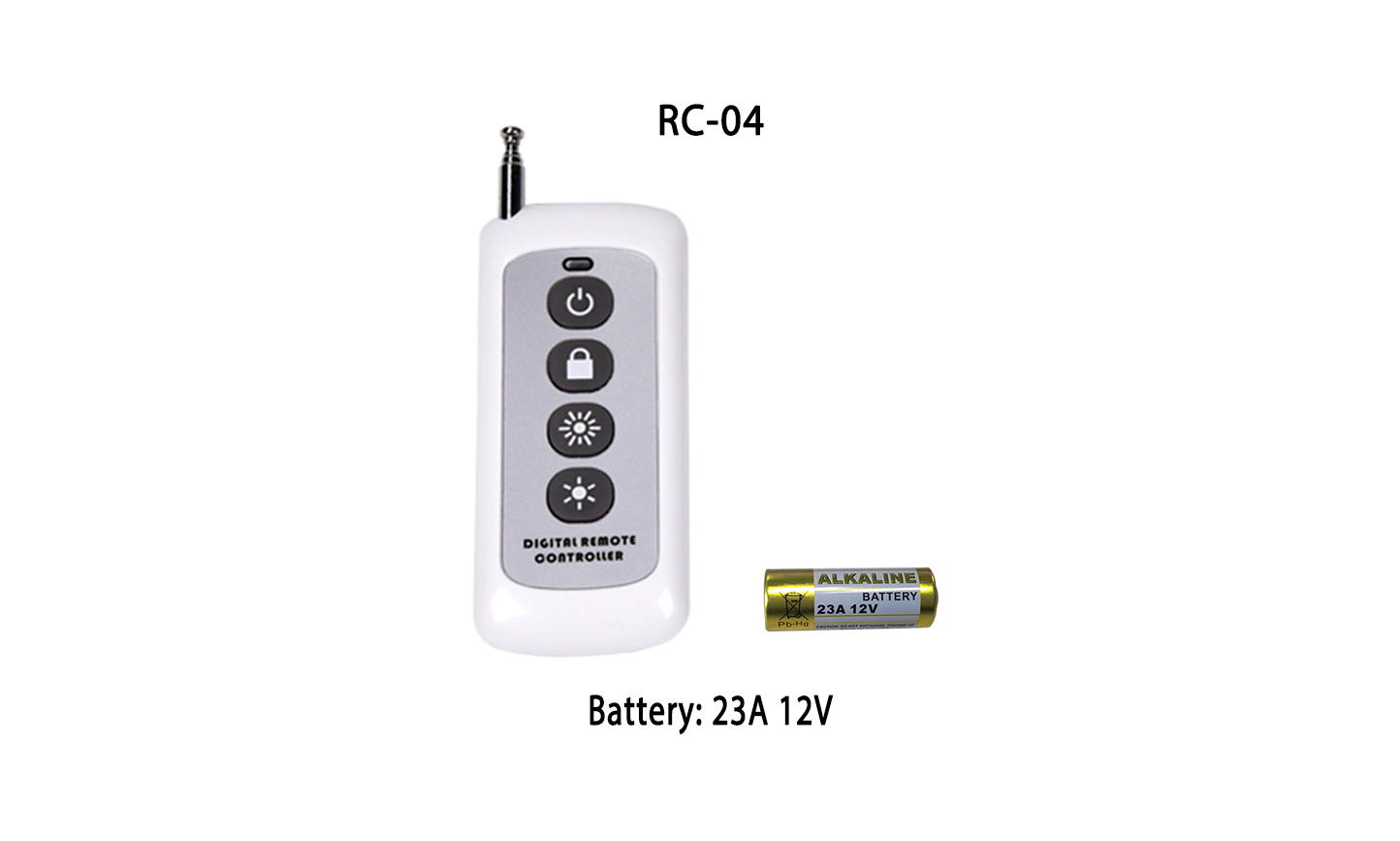

The 4-key RF remote control has an effective control distance of around 25 metres in open area. The function of the 4-key remote control (Optional):
1. Turn on the light engine,
2. Turn off the light engine,
3. Fix the emitting color,
4. Dimming.

Battery: 23A 12V, 1pc (not included in the package).
