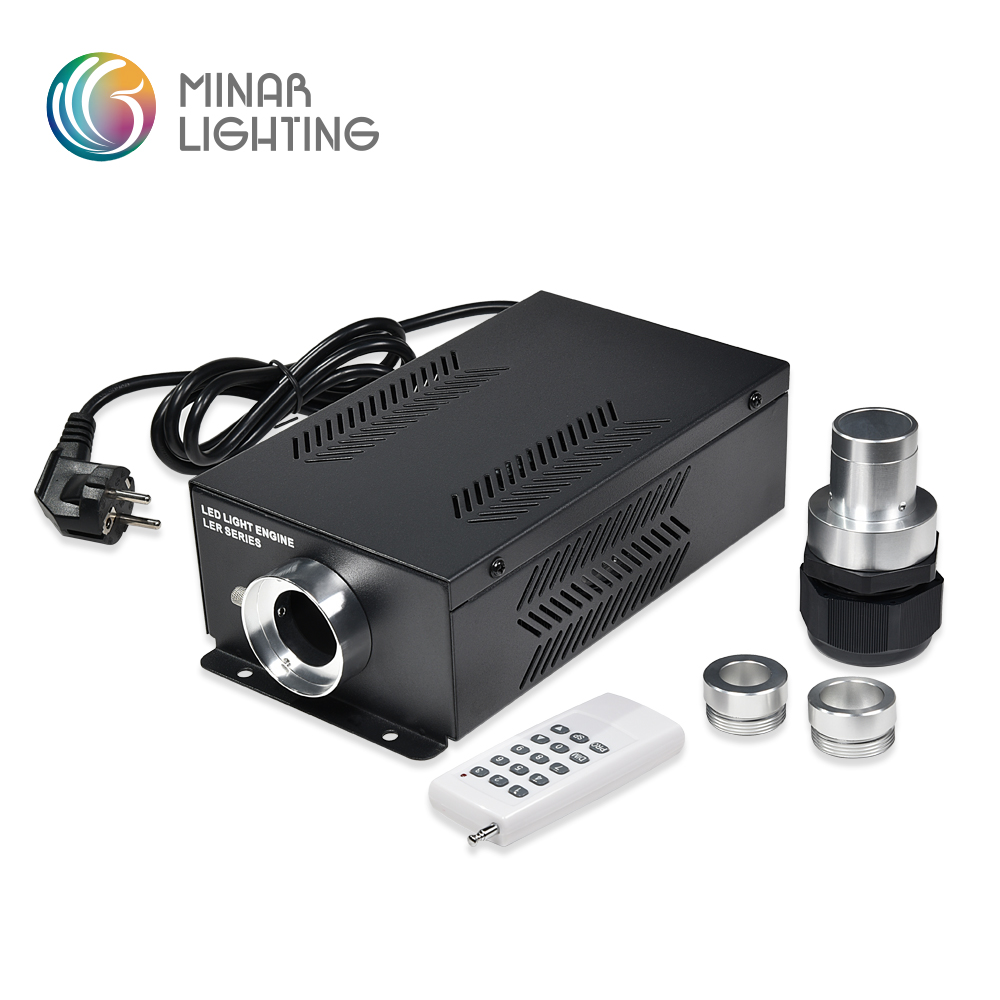

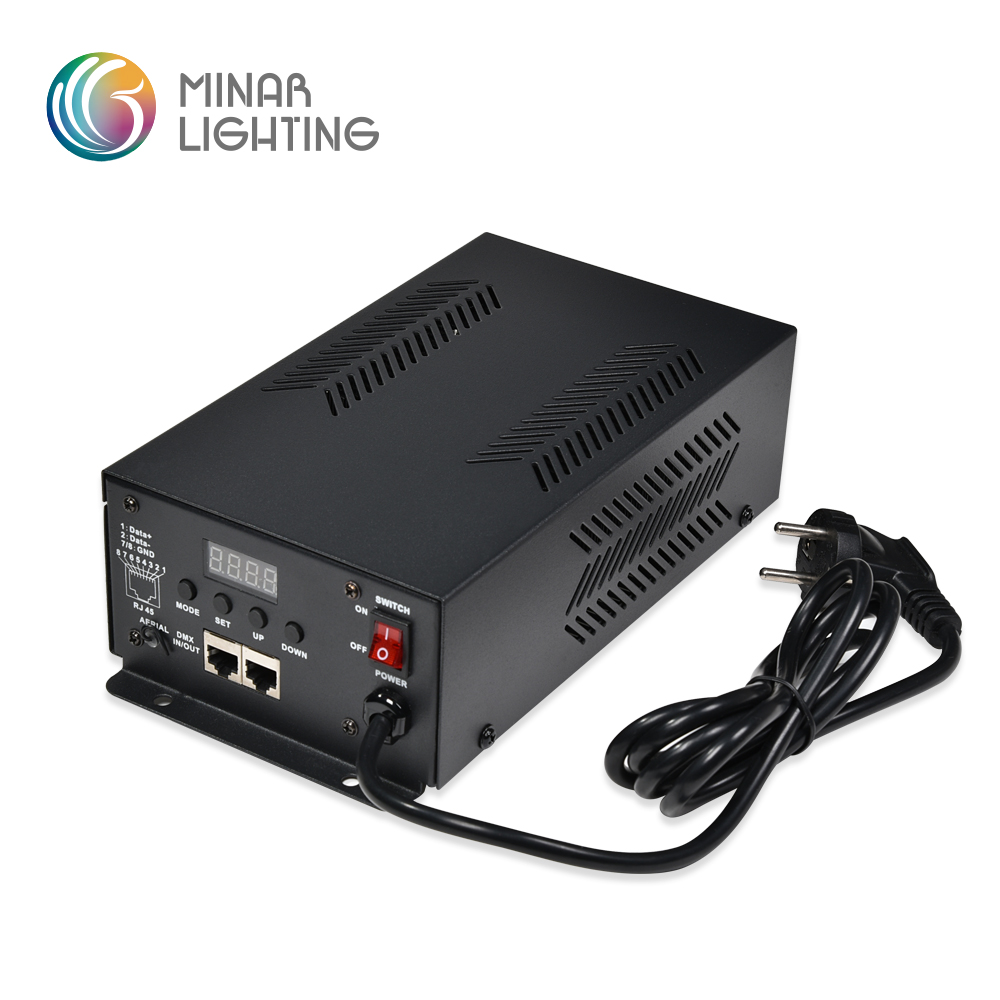

LER-4121DMX

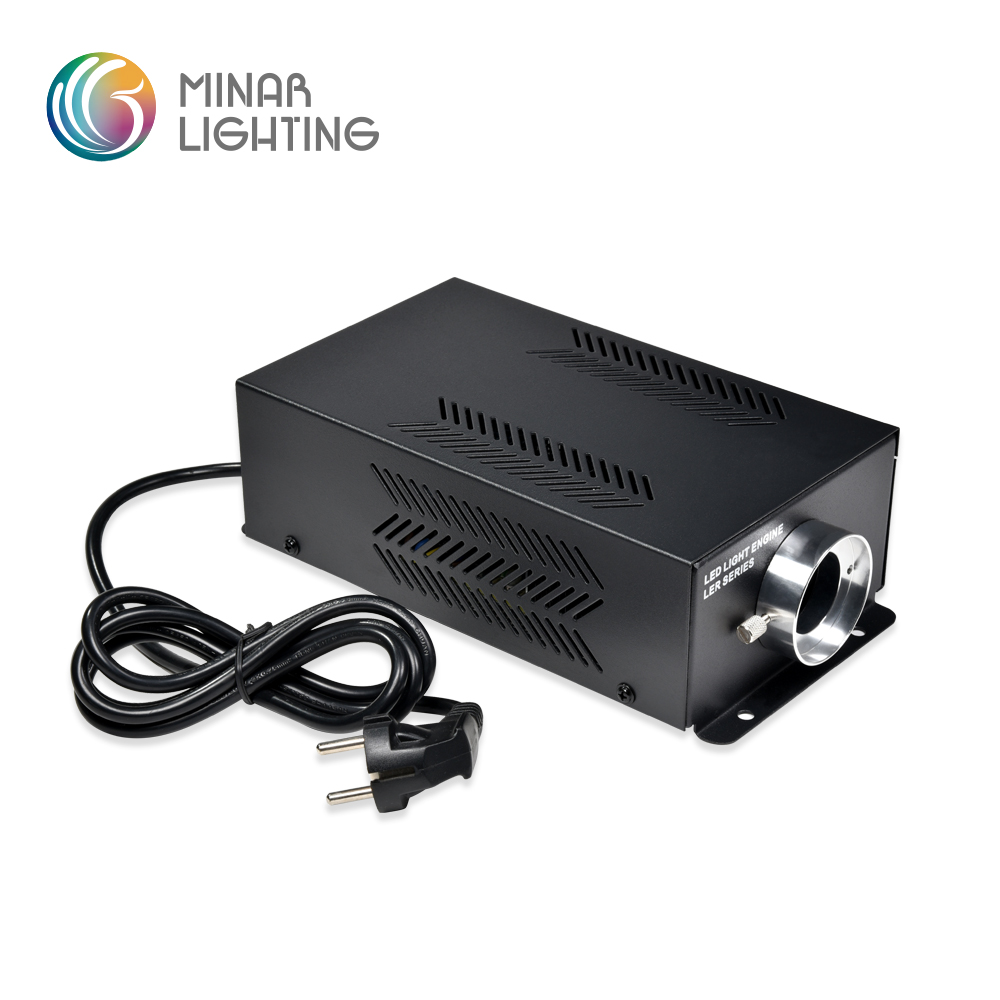

Different from other line voltage light engines, both LER-3001DMX and LER-4121DMX do not contain any fans or motors. They are completely quiet during operation.

By default, the light engine has 8 DMX channels as follows:
CH1: RED, CH2: Green,
CH3: Blue, CH4: White,
CH5: Speed, CH6: Overall dimming,
CH7: Strobe/Built-in program speed,
CH8: Built-in program.

4 DMX channels version is also available at request. This 4CH light engine is compatible with most of the LED strip controllers.

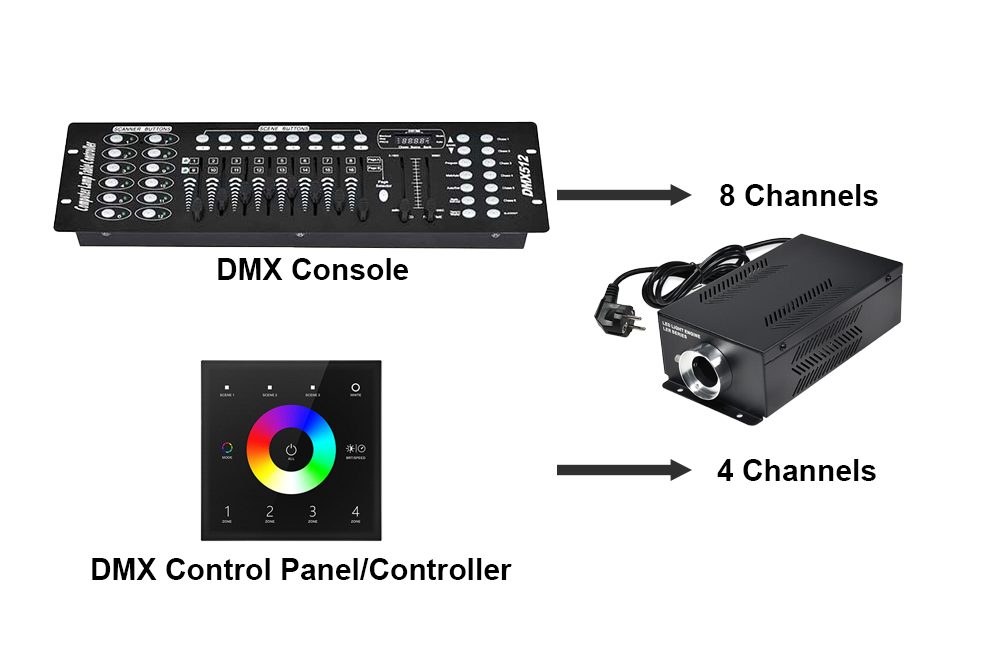

By default, LER-4121DMX has 8 DMX channels for colors and speed/dimming/flashing control via a DMX console. In case it is connected to a DMX controller/DMX control panel, the light engine needs to come out with 4 DMX channels of RGBW only.

Please contact the sales for 4 DMX channels model if you need it.

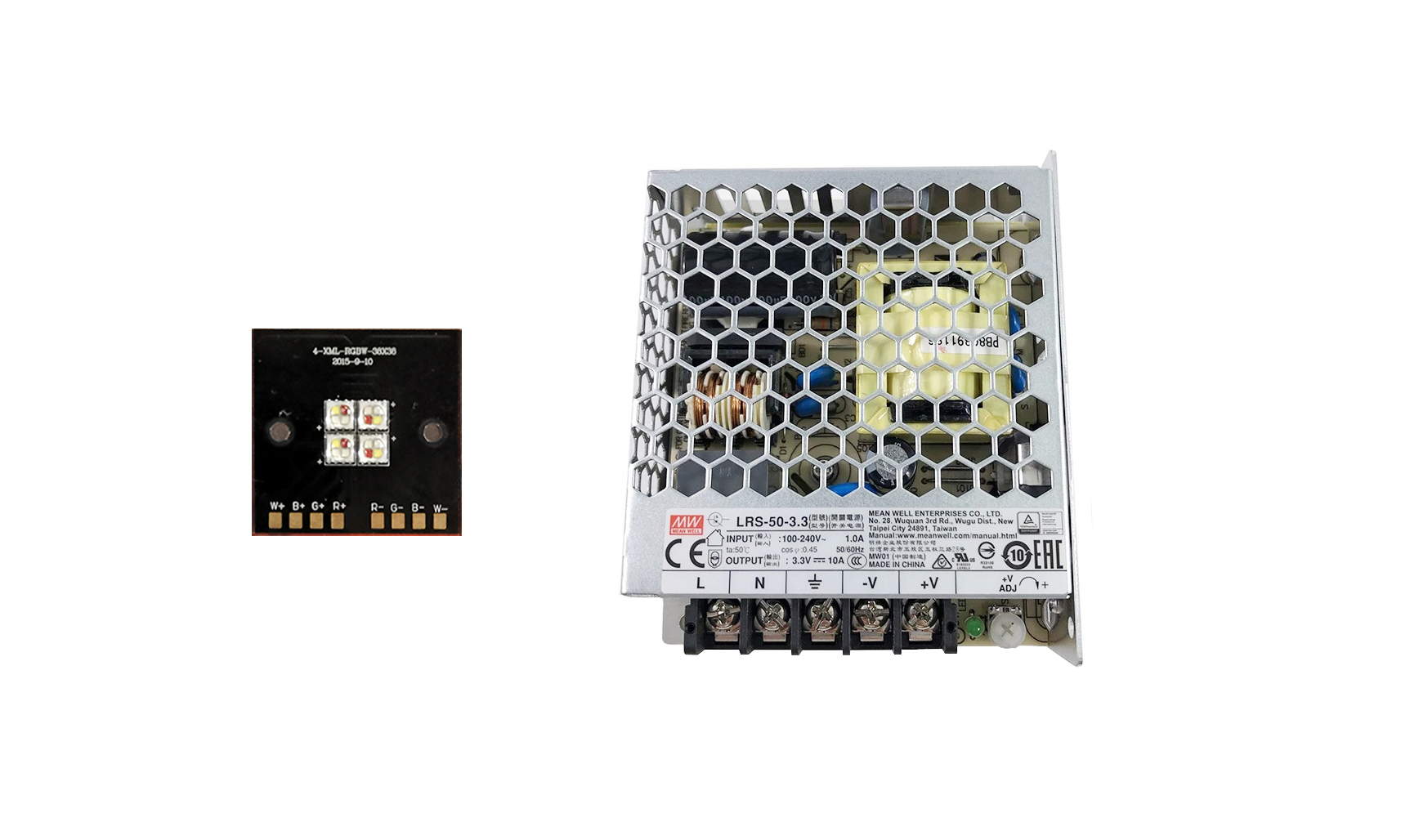

Cree XML LED module is applied to this light engine.

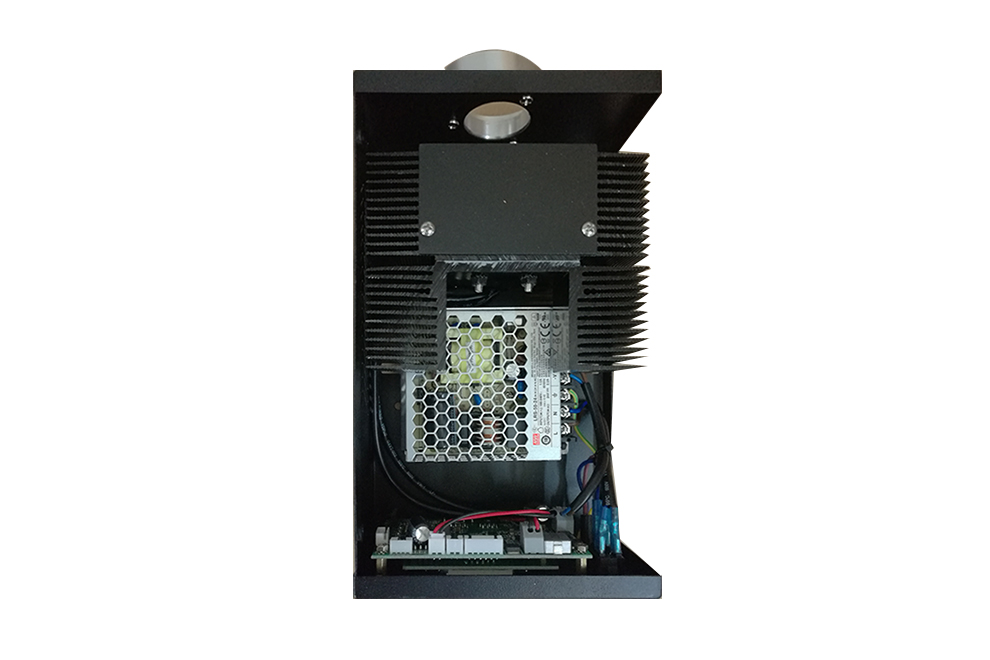

Our line-voltage LED light engines have been equipped with built-in Meanwell power supply to ensure the consistent high quality.

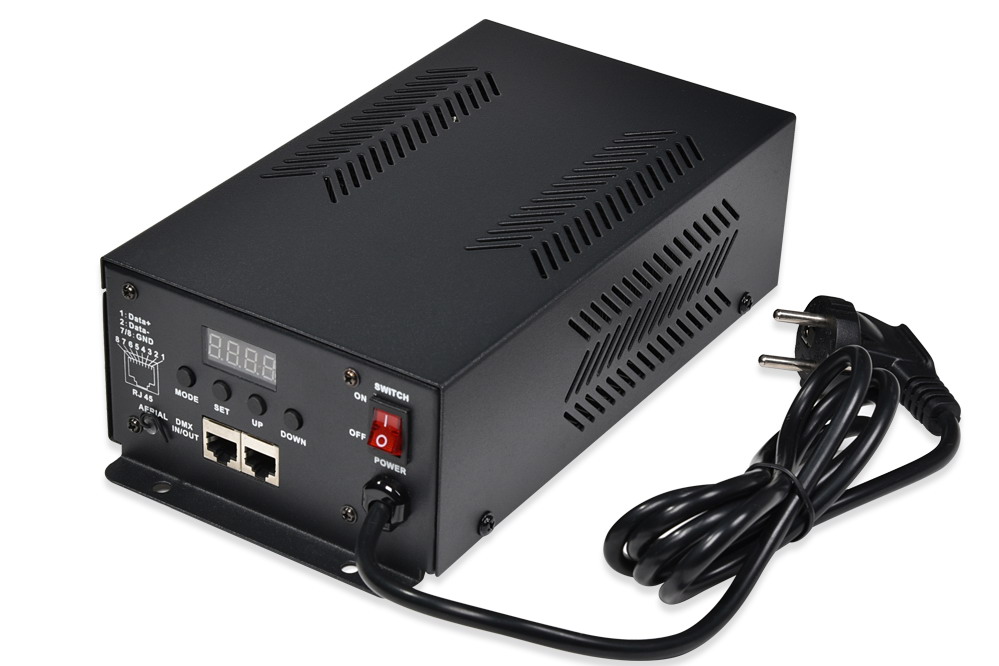

The light engine has 22 built-in programs which could be realized by the remote control or the buttons and display on the back panel of the light engine.

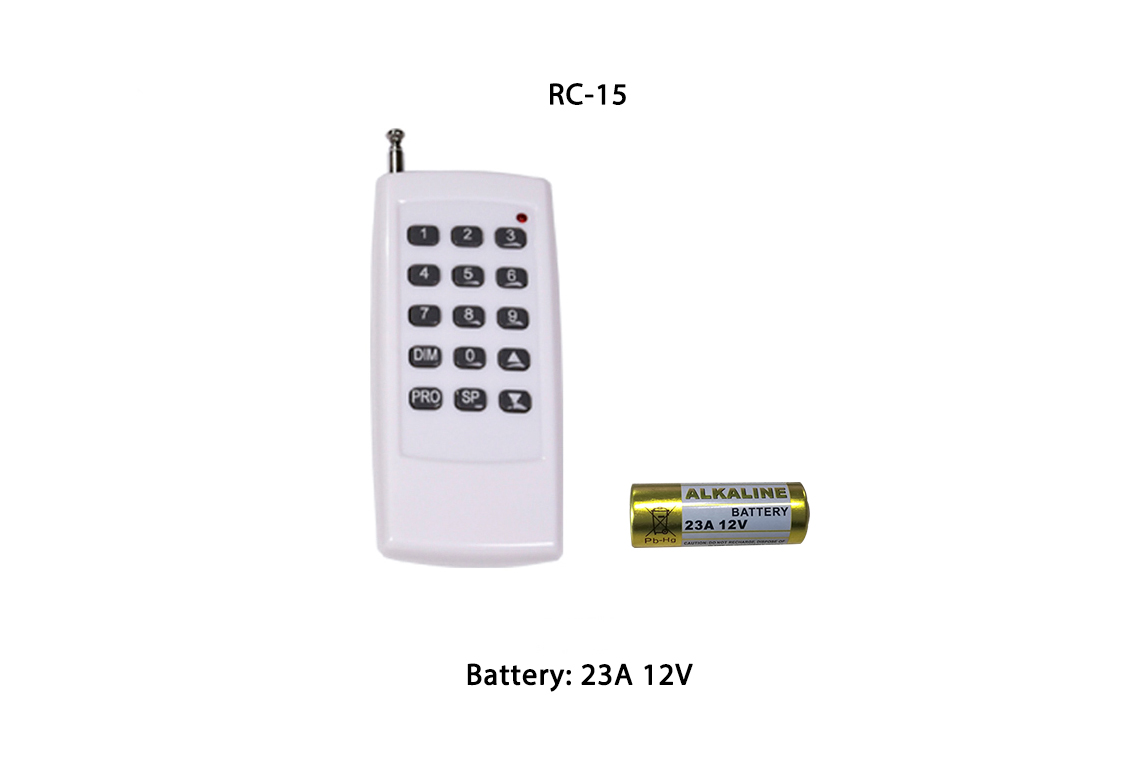

The 15-key RF remote control has an effective control distance of around 25 metres in open area. The function of the 15-key remote control (Optional):
1. Select the built-in programs,
2. Dimming,
3. Adjust the wheel speed.

Battery: 23A 12V, 1pc (not included in the package)
