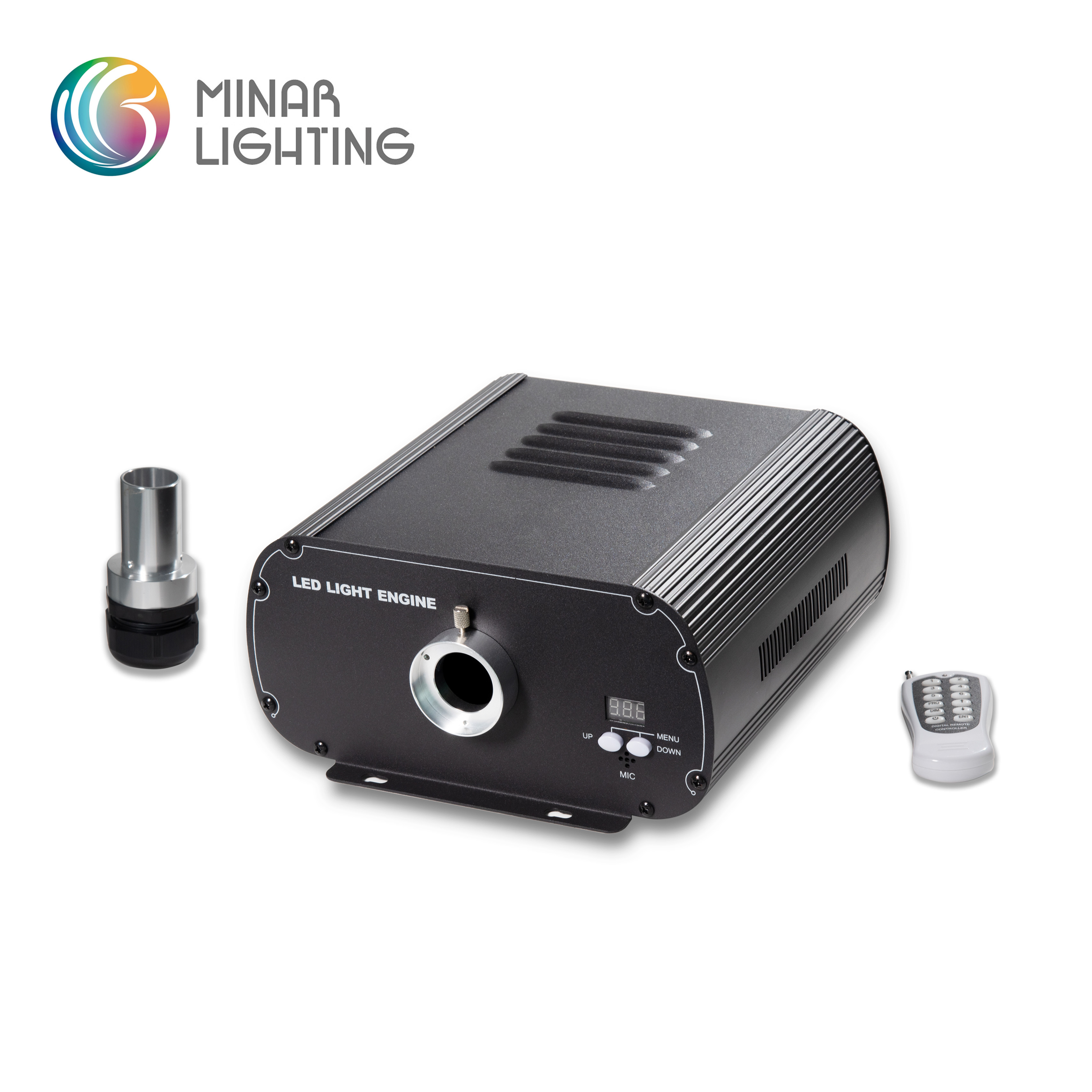

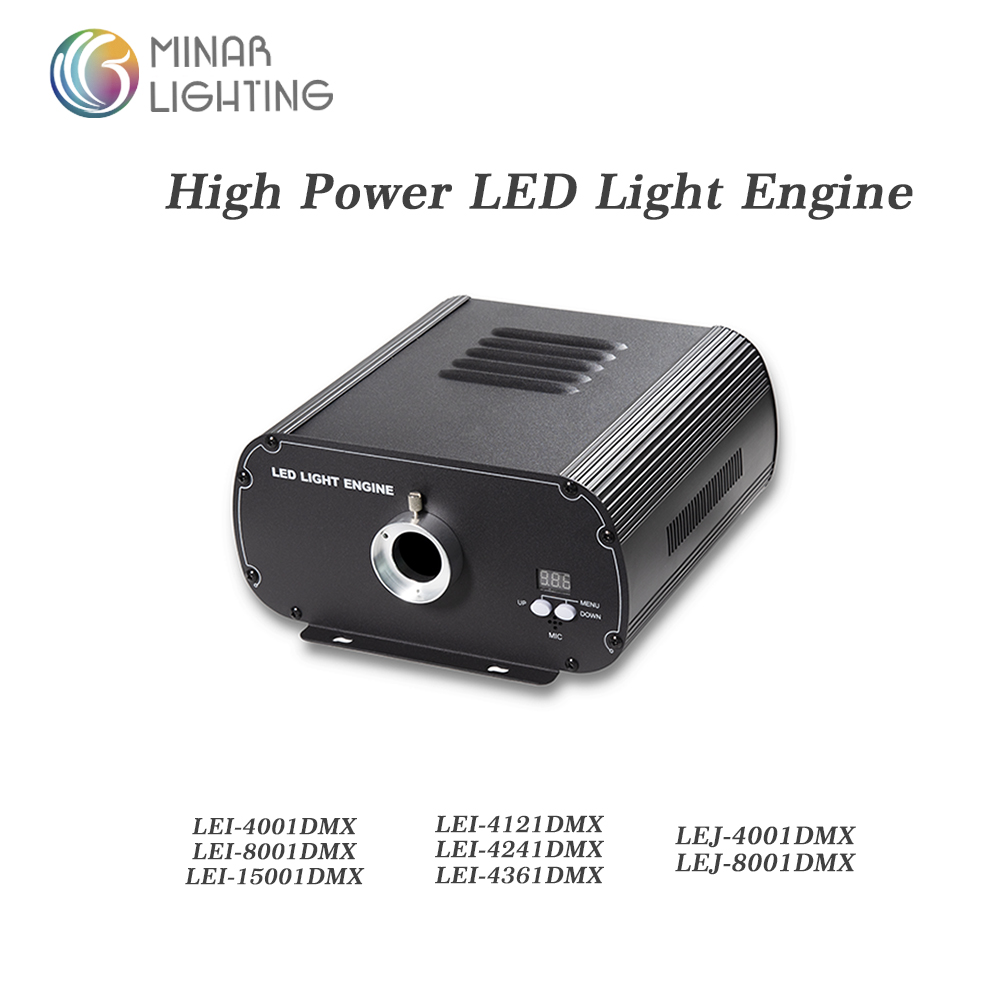

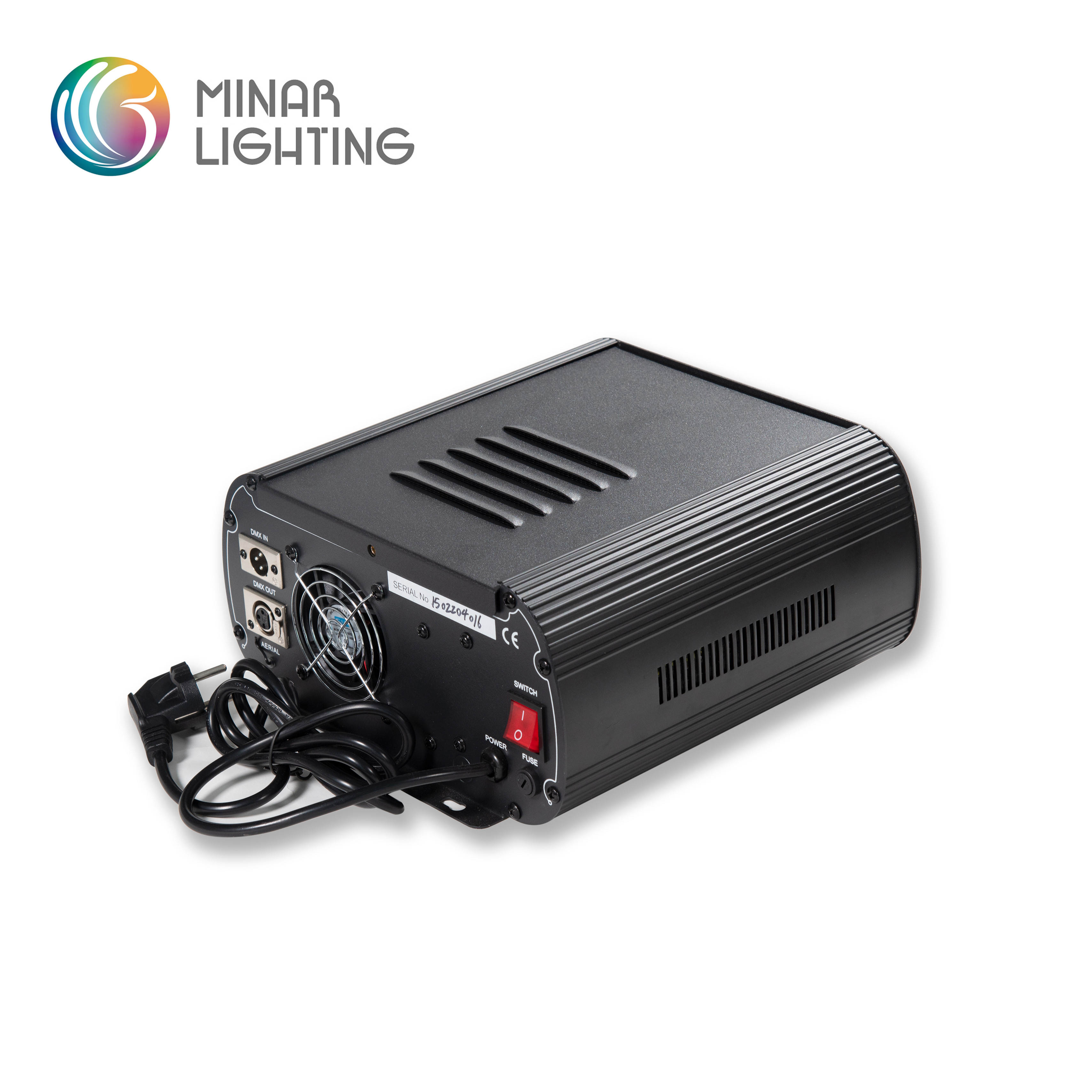

LEI-4121DMX

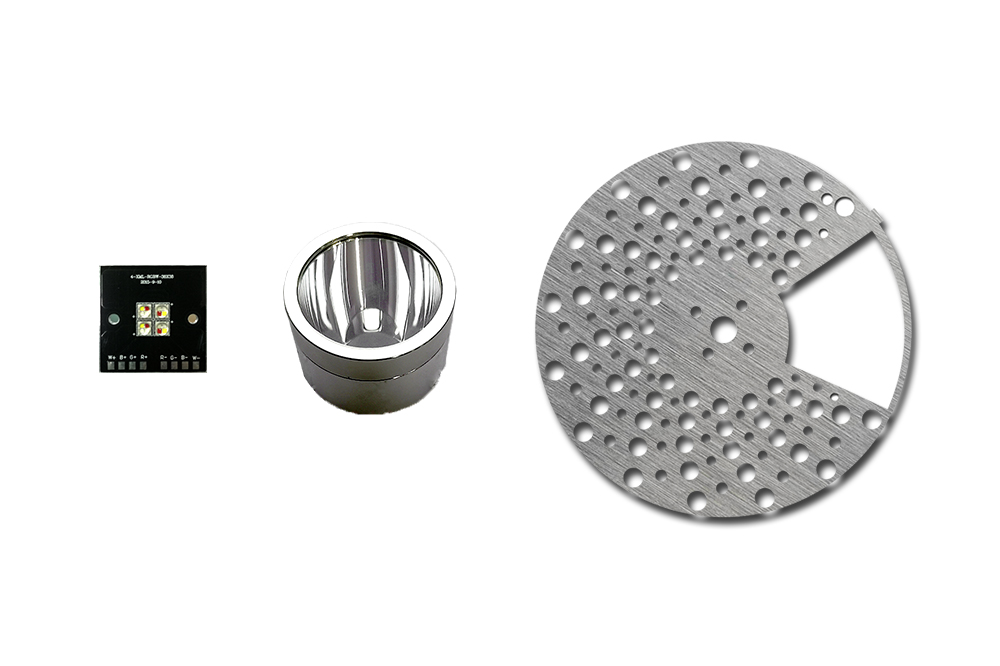

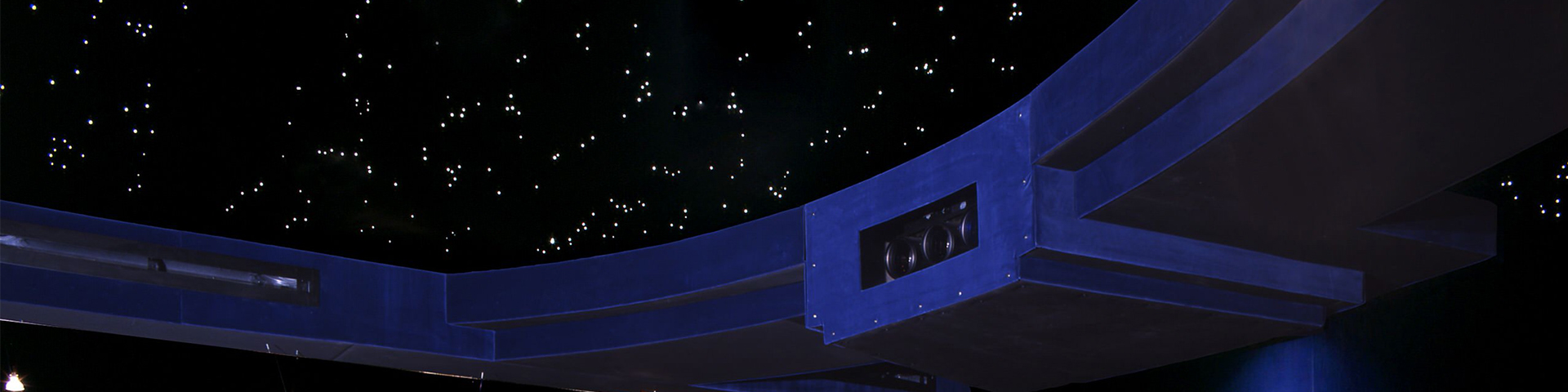

The best combination of fiber optic light engines for star ceilings is a four-color RGBW LED module and a twinkle disc. This group brings the starry ceiling a fantastic stimulating effect.

Multiple units of the DMX512 light engines can be connected as a group via DMX signal cables to run the master-slave control mode. In master-slave control mode, there will be one and only one master light engine, and all the rest will be set as slave machines. The master runs the built-in program with or without the remote control, and all slave machines will automatically follow to have a synchronous or progressive effect.

8 DMX Channels
CH1: Red, CH5: Speed,
CH2: Green, CH6: Dimmer,
CH3: Blue, CH7: Strobe,
CH4: White, CH8: Twinkle.

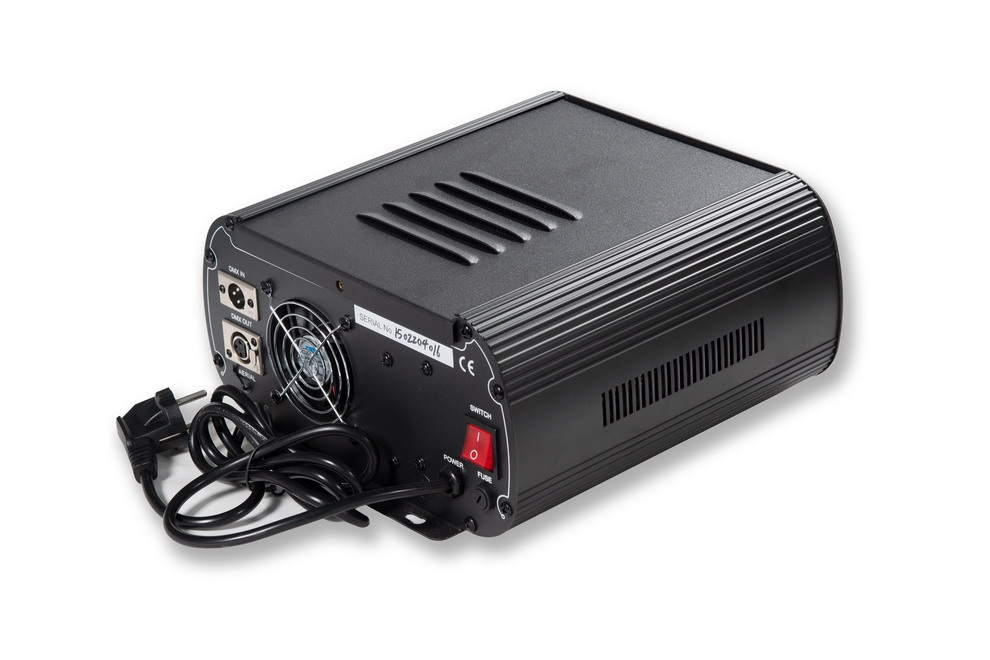

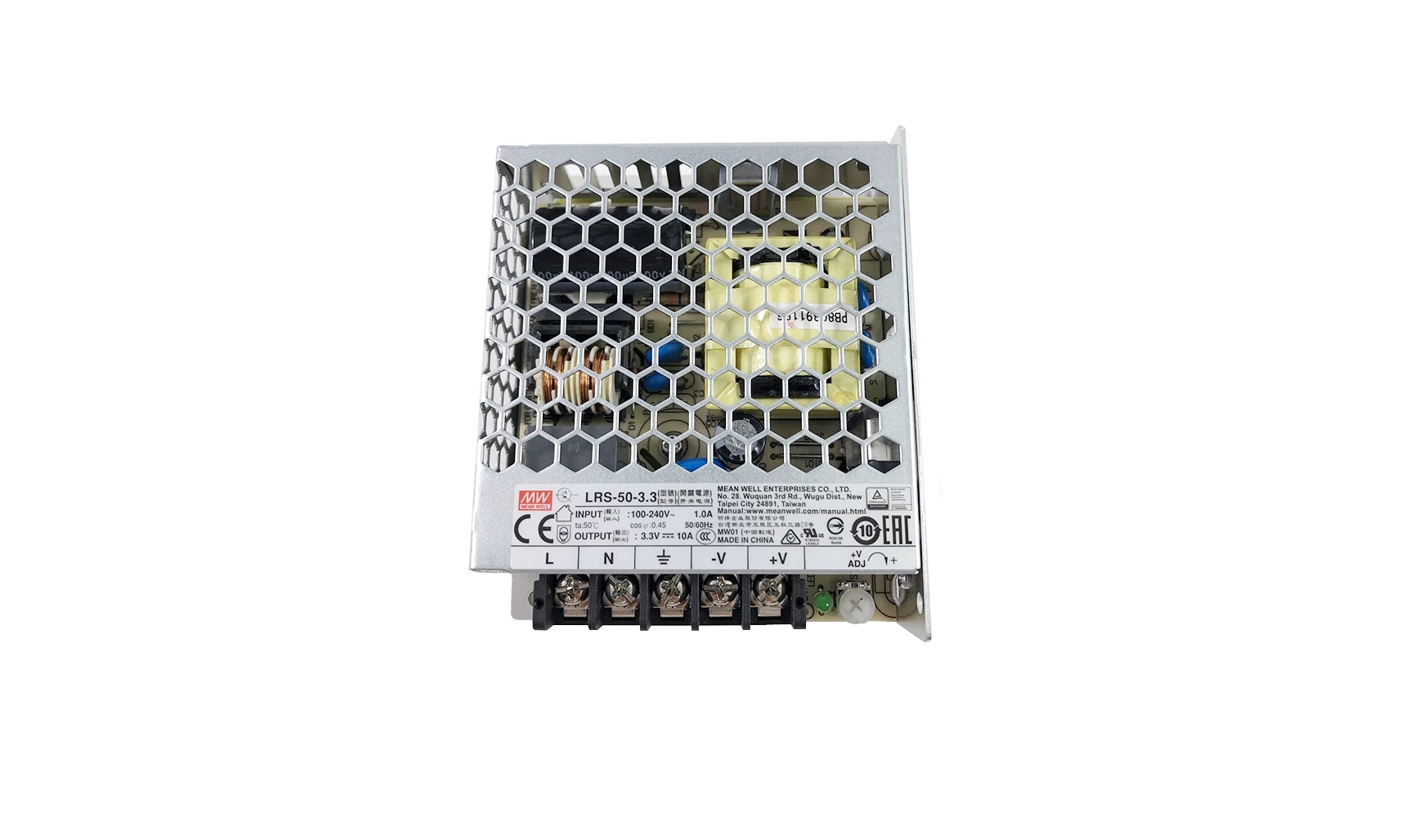

Our line-voltage LED light engine is equipped with built-in Meanwell power supply to ensure the consistent high quality of Minar fiber optic light engines.

DMX version of the line Voltage LED light engine could use 15-key RF remote control to have different programs, dimming, and wheel speed adjustment. LEI-4121DMX has 24 built-in programmes, which can be selected using buttons+display or the remote control.

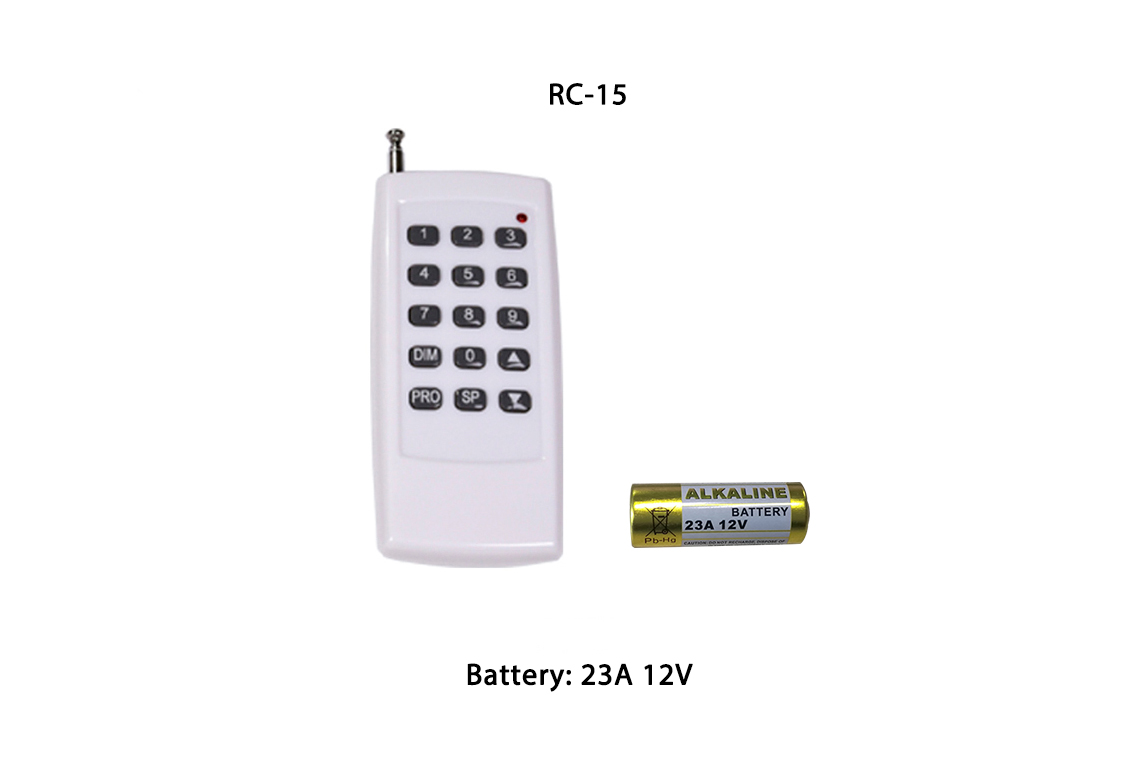

The 15-key RF remote control has an effective control distance of around 25 meters in an open area. The function of the 15-key remote control (Optional):
1. Select the built-in programs,
2. Dimming,
3. Adjust the wheel speed.

Battery: 23A 12V, 1pc (not included in the package).

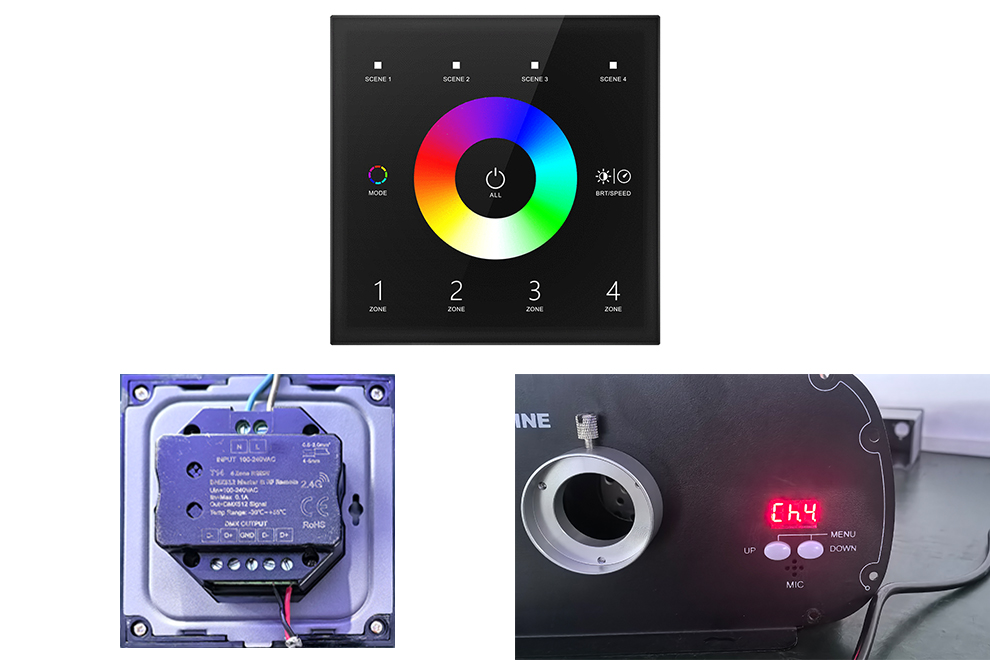

RGBW models of LEI series of light engines can also be controlled by the DMX touch panels. Please follow the steps below to connect the light engines and touch panels:
1. Set the light engines to Slave mode by setting its DMX channel to CH4 on the display.
2. Make sure that the touch panel is of the RGBW model/mode.
3. Cut off one XLR connector of the signal cable and connect it to the touch panels: RED Wire to D+, BLACK wire to D-;
4. Plug the other end of the signal cable into the light engine.
5. Turn on the touch panel and the light engine.
