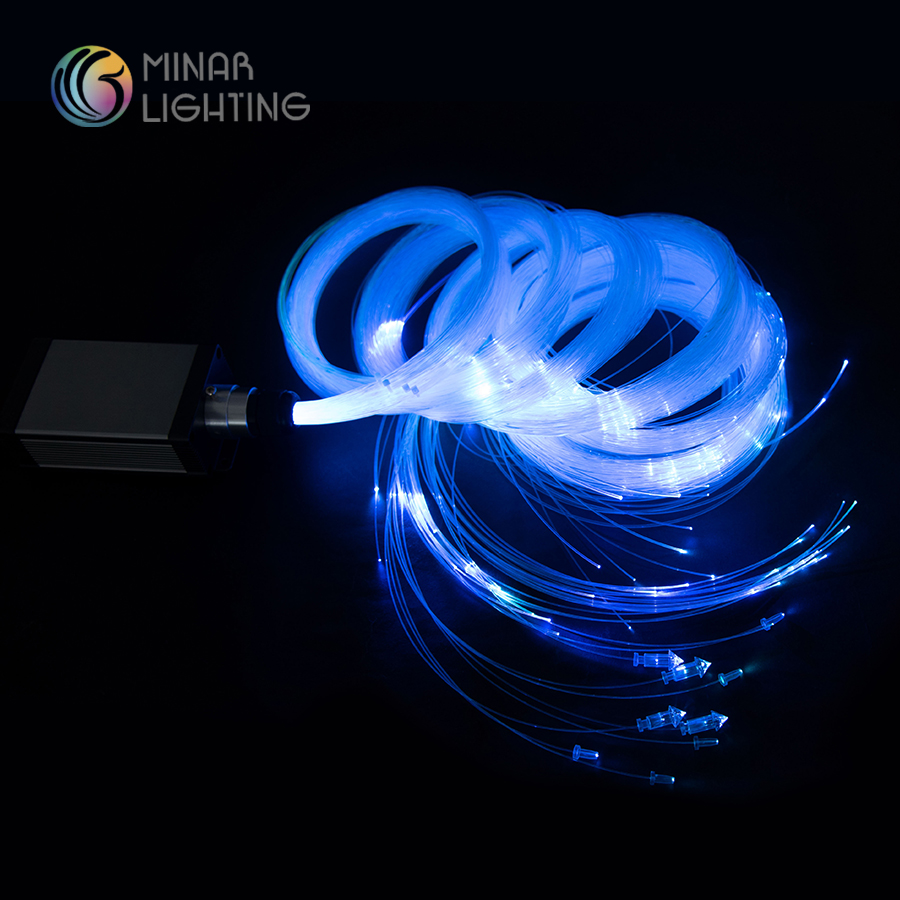

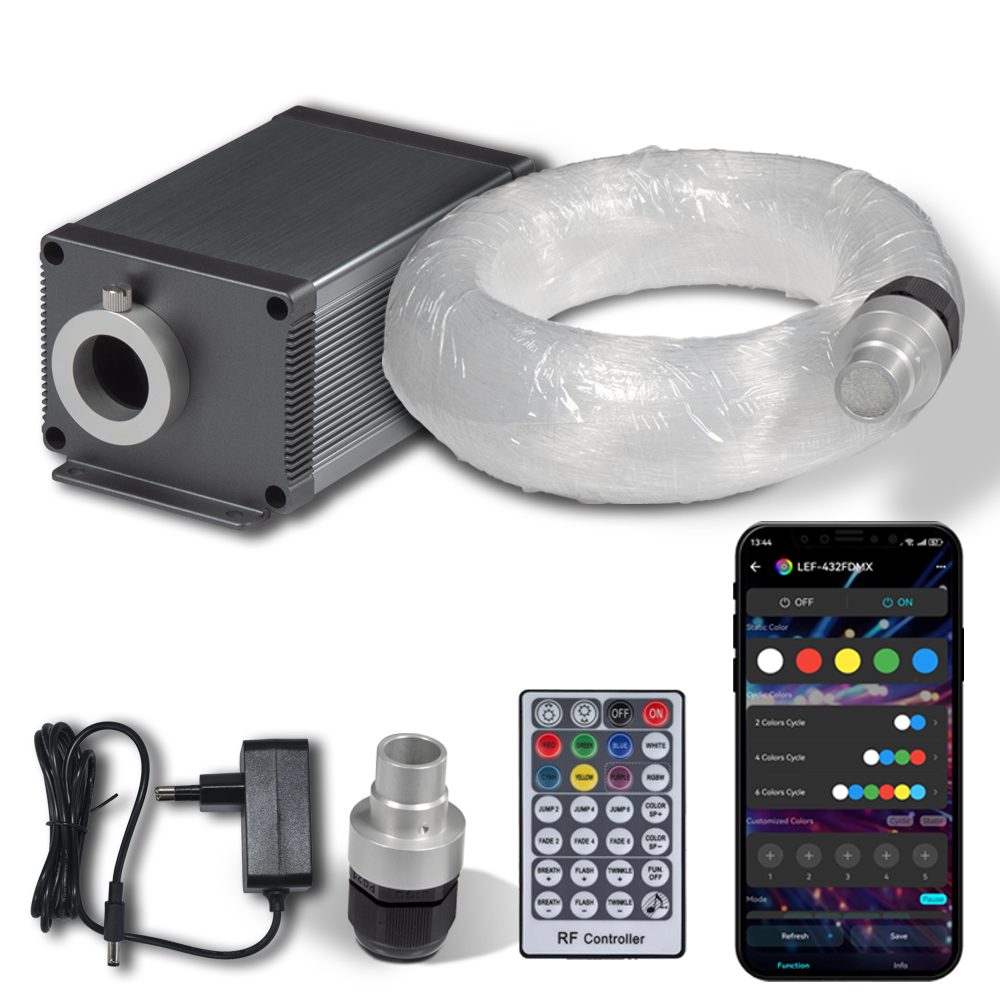

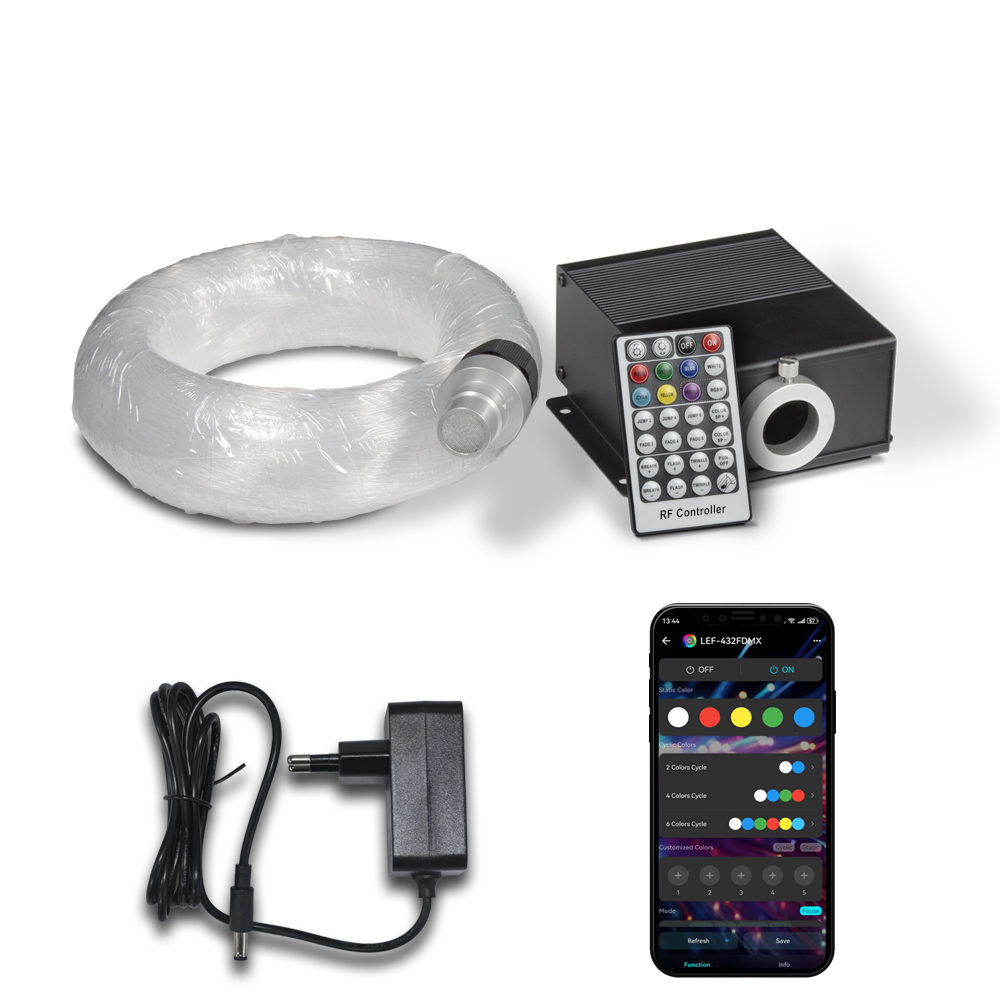

fiber optic lighting star kit|Minar Illumination

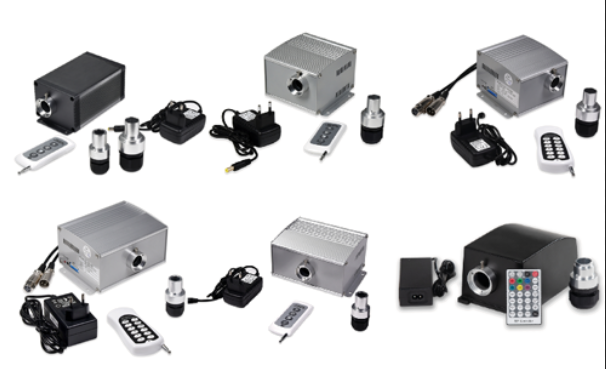

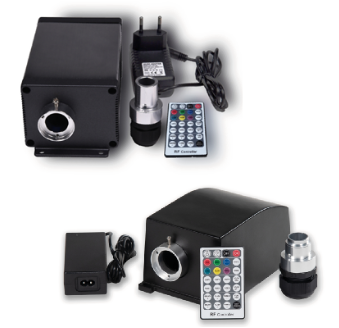

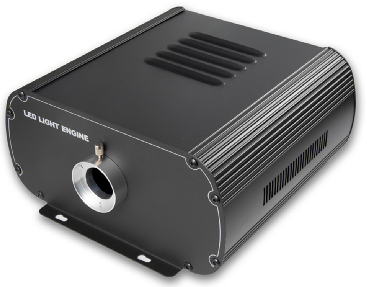

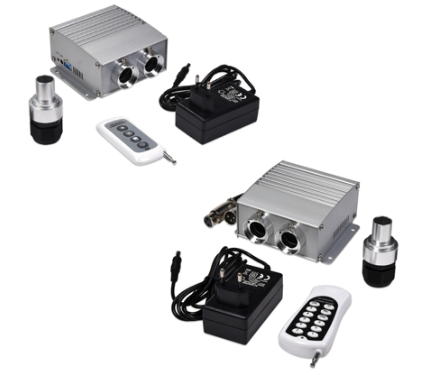

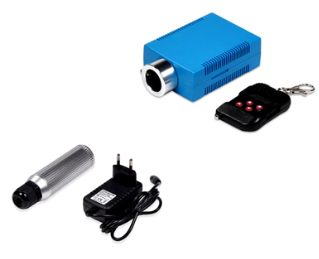

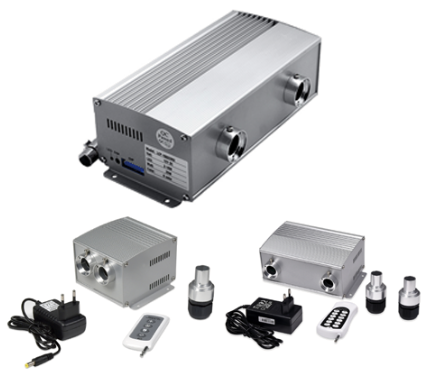

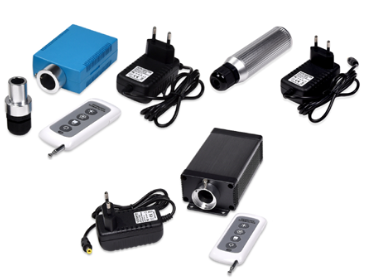

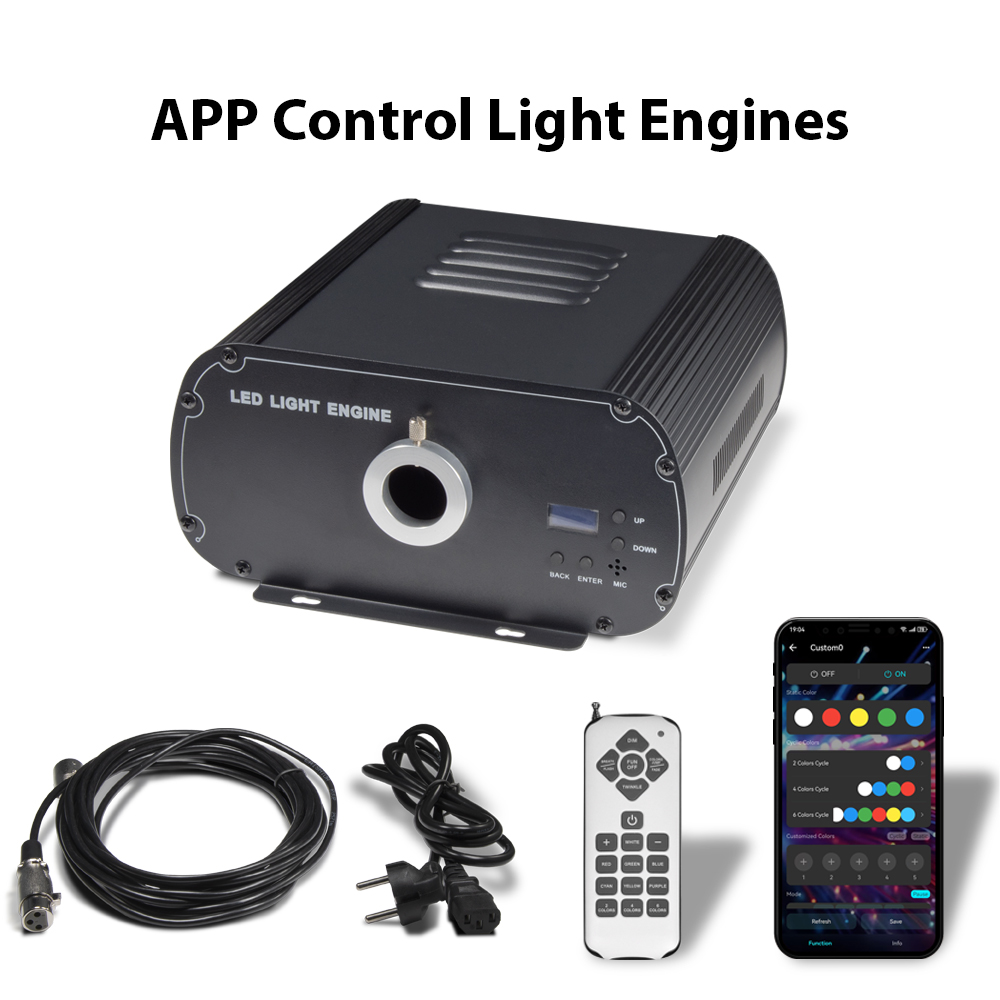

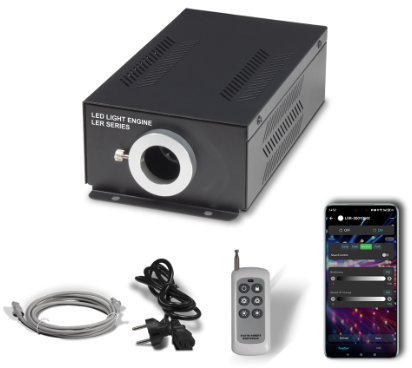

- Light Engines

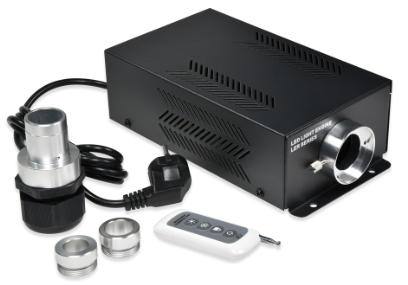

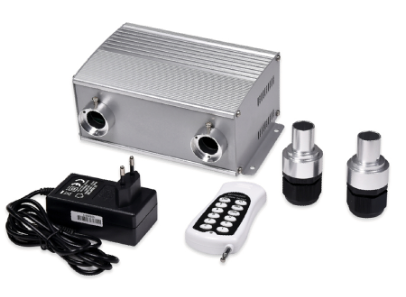

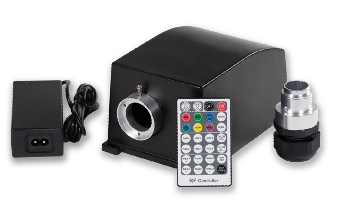

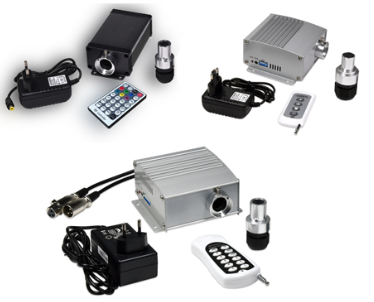

  Minar Illumination offers a variety of light engines for fiber kits. Usually, for standard kits, we recommend a 12V LED light engine to cover a ceiling with an area of up to 30 square meters.

  Most of the light engines recommended have an aperture of 18mm by default, or 20mm by request. For 18mm, the light engine is capable of 450pcs of 0.75mm fiber strands, while 20mm is capable of 540pcs of 0.75mm.

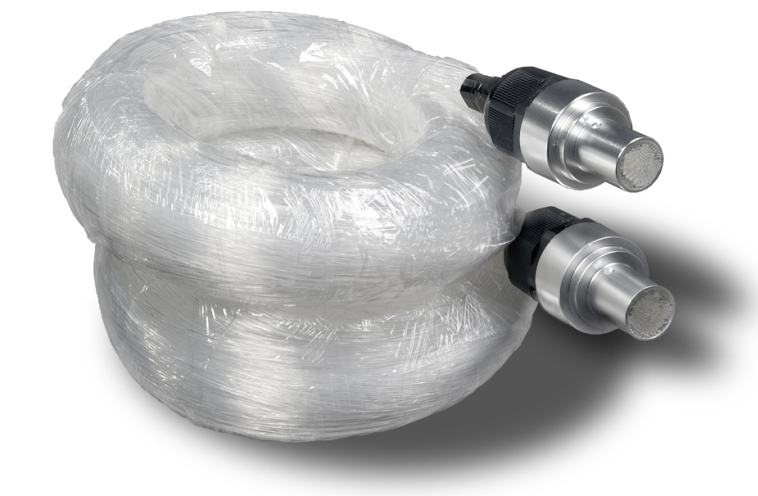

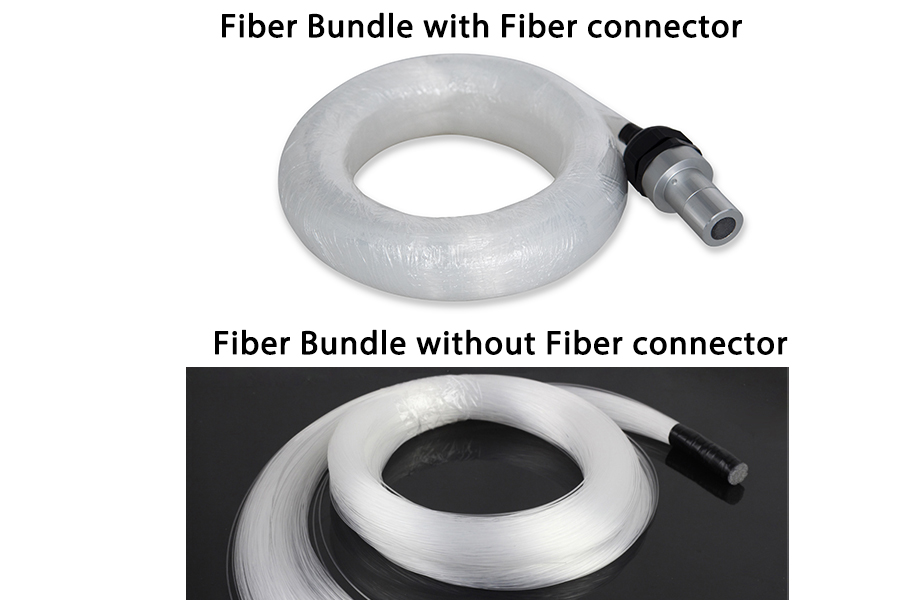

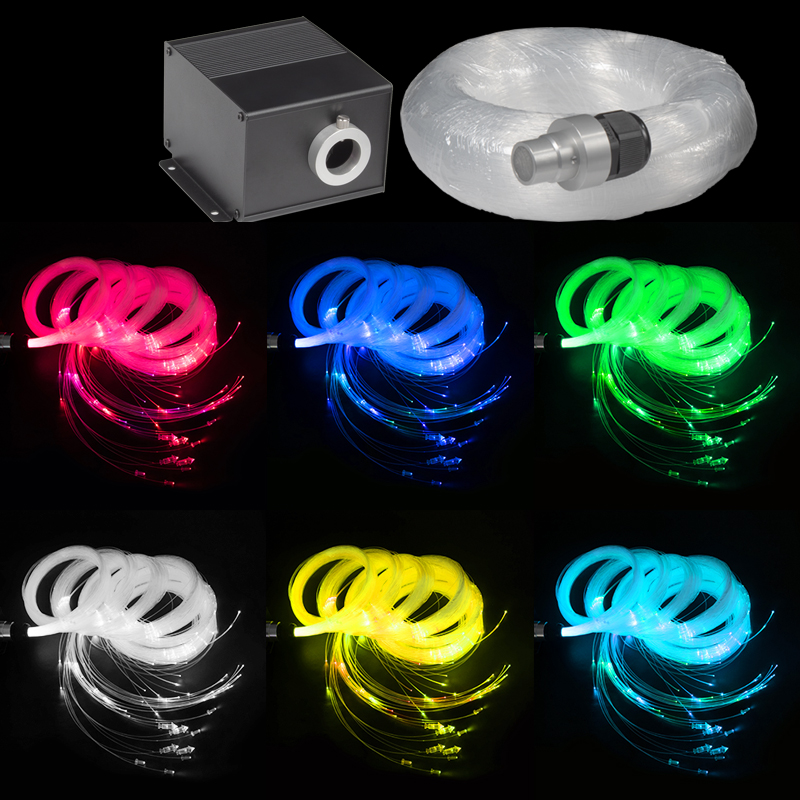

- Fiber Bundles

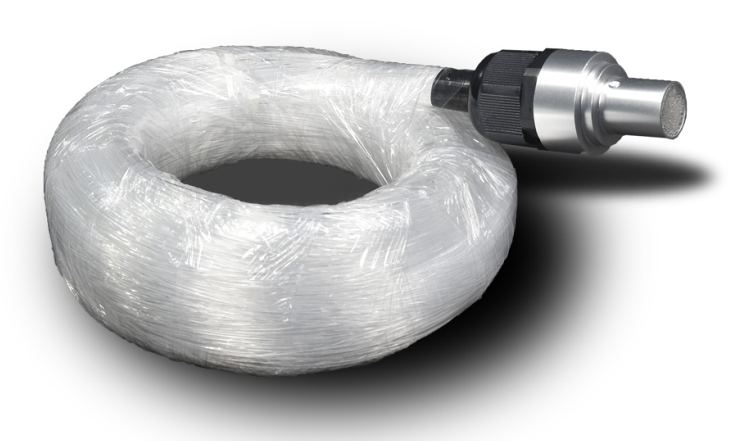

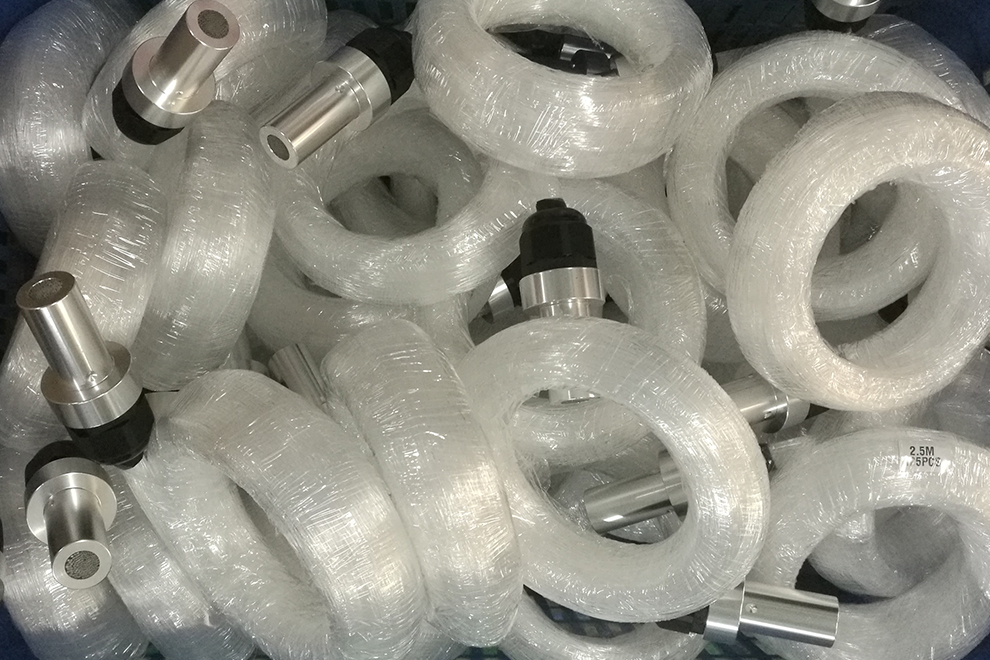

  The fiber bundles consist of fiber strands cut to length. It could be a mix of fiber strands of different diameters, lengths, and numbers.

  The fiber ends were collected into a cluster and cut to be even with the fiber connector. The fiber bundles are ready for installation after being unpacked.
- Fiber Connector

  By default, Minar will supply the fiber bundle with a fiber connector, which is also named the common end. If the fiber bundles are ordered without the light engine, please advise the sales of the right light engine model number so that the fiber bundle will have the right fiber connector.

  The fiber connectors are not universal. Each series of the light engine may have different fiber connectors.

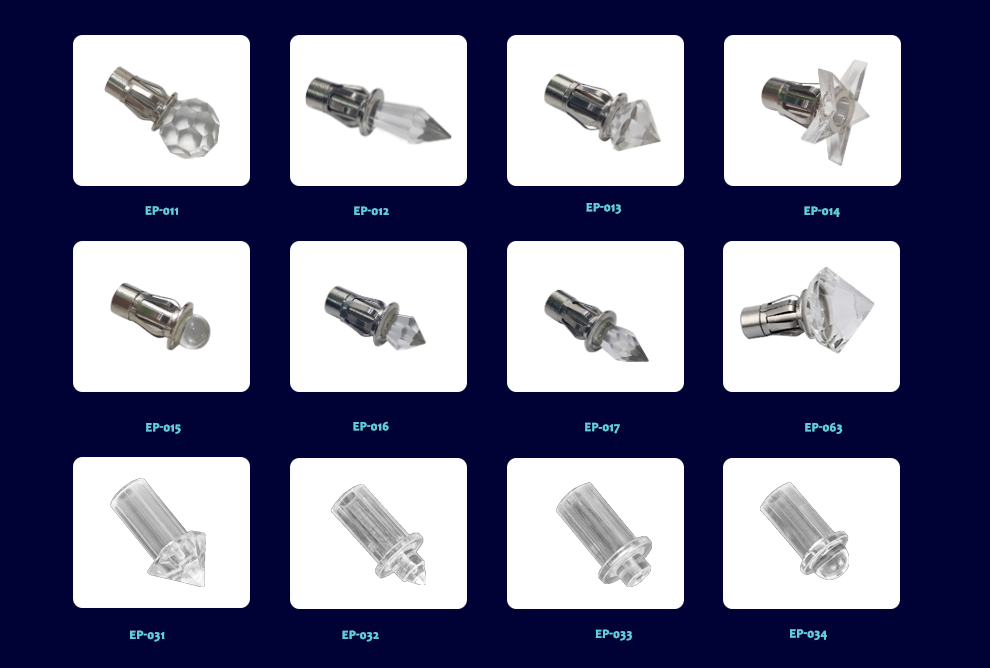

- End Fittings

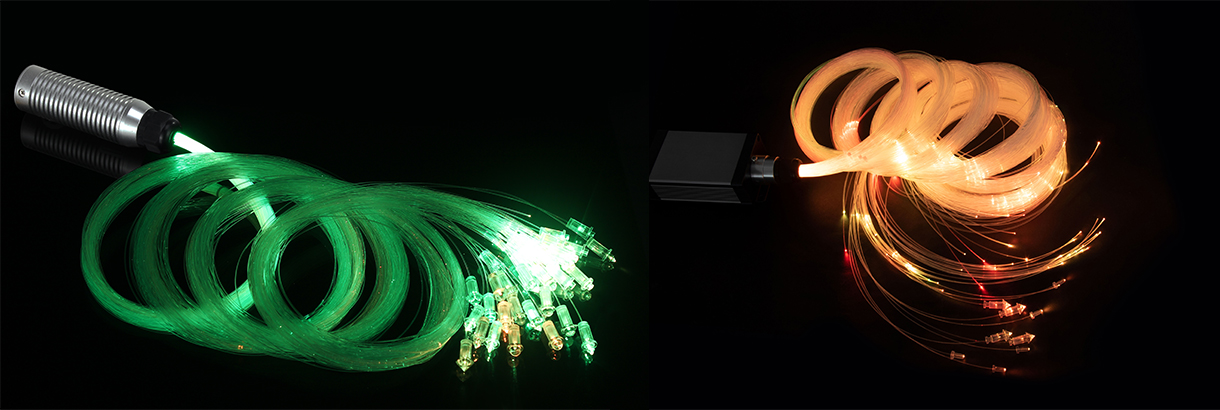

  The end fittings are not a MUST in the fiber kit. Usually, a small portion of the fiber strands applies end fittings to have a diffused light beam.

  Minar Illumination also provides OEM/ODM services for end fittings.

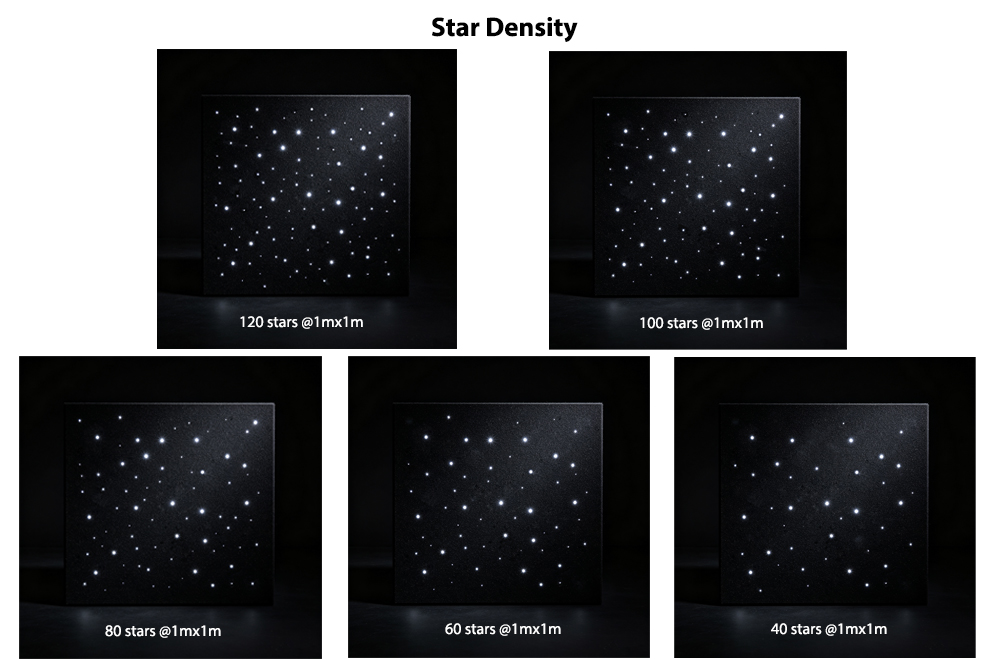

- Fiber Density

  We usually recommend 60 to 100 stars per square meter when the ceiling height is about 3 meters. Different fiber densities are shown on the left.

  Fiber strand diameters: 0.75mm, 1.0mm
  Panel material in the demonstration: Polyester fiber acoustic panels

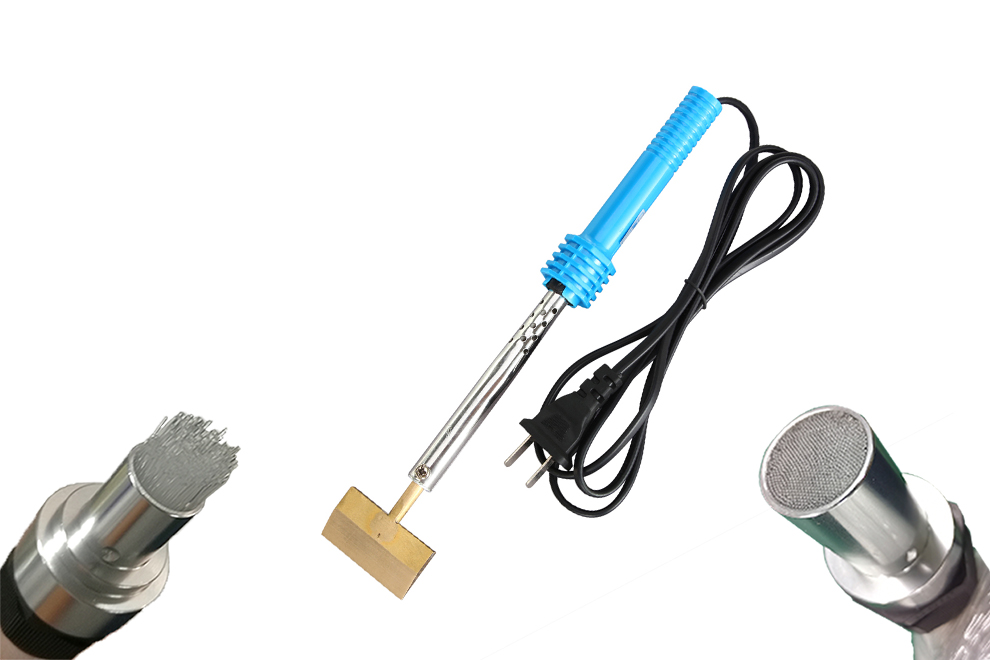

- Hot Knife

  A hot knife is recommended to cut off the fiber bundle flush with the port connector/common end when the fiber bundle is made on site.
- Accessories

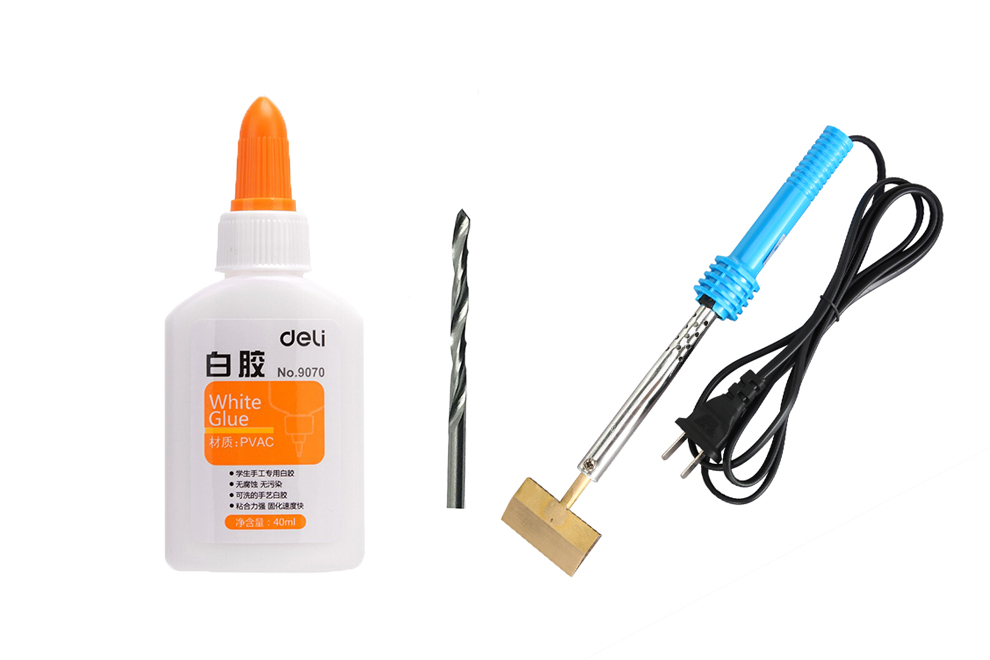

  The accessories needed during the installation are the glue, knife, drills, etc.

  Some clients prefer to buy the complete rolls of fiber strands and do the cutting on-site. As such the hot knife is also needed to cut the fiber ends, even to the fiber connector.

  The glue in the photo is for reference only. The glue is not allowed for either air or sea shipment.

SPECIFICATIONS

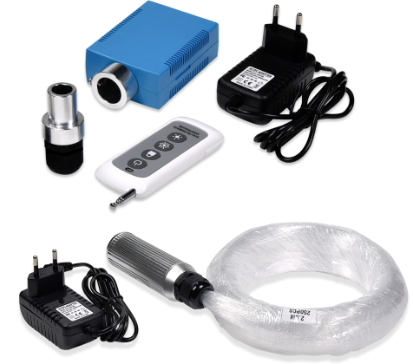

Standard Fiber Pack:

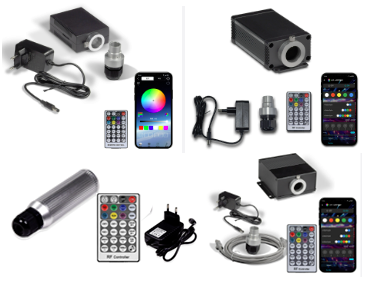

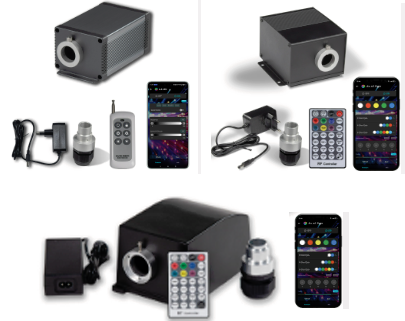

A. Light Engine:

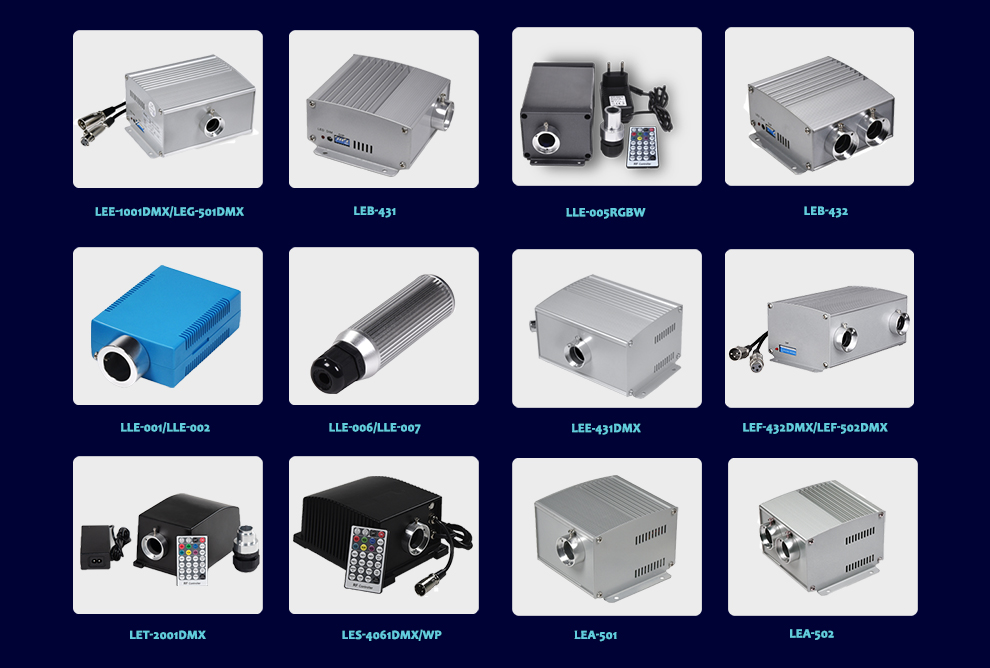

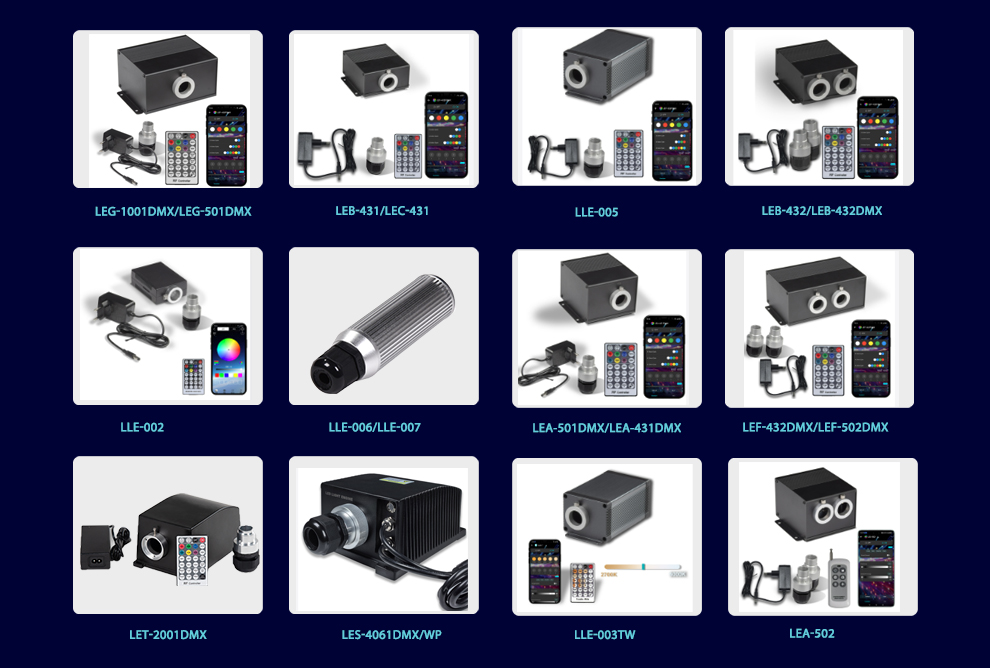

The full range of our low-voltage light engines

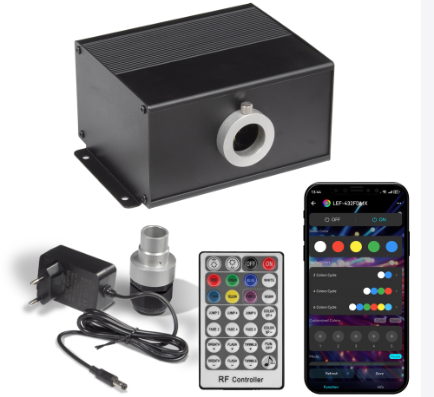

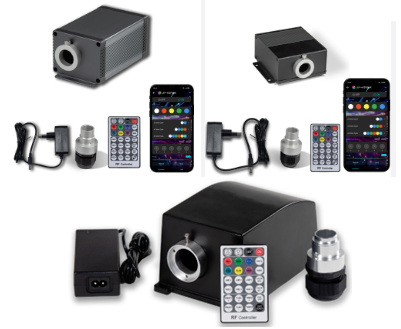

Single -Port	White LED	RGB/RGBW LED	RGBW + Twinkle Wheel

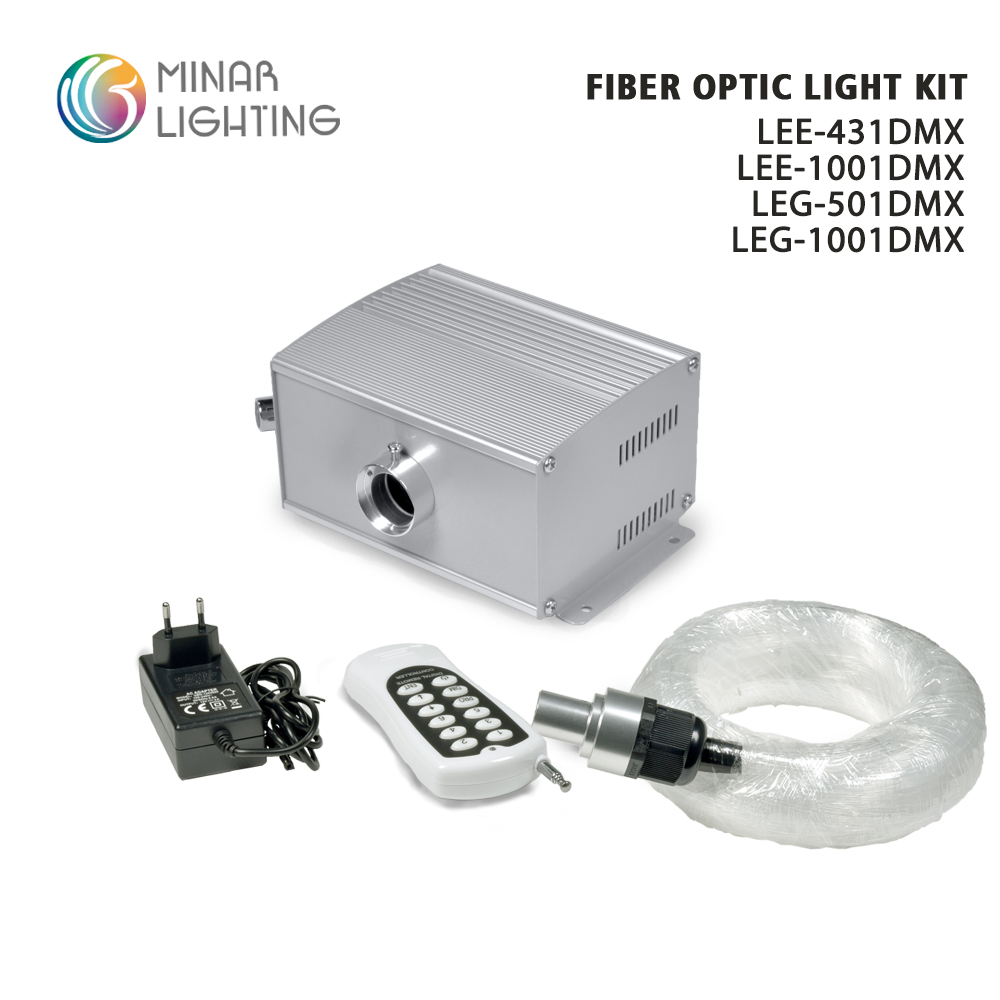

	LLE-001 LLE-007	LLE-002 LLE-004 LLE-006 LEB-431/431DMX	LLE-005 LEA-431/431DMX LEC-431/431DMX LET-4061DMX

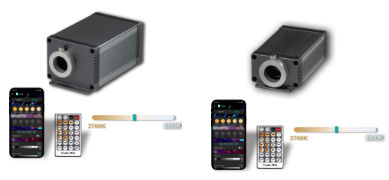

	White LED + Wheel (6-color/Twinkle)	6-color Wheel + Twinkle Wheel	CCT
	LLE-003 LEA-501/501DMX LEA-1001/1001DMX LET-2001DMX	LEG-501DMX LEG-1001DMX	LLE-003TW LLE-004TW

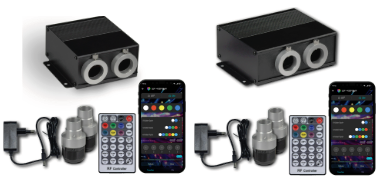

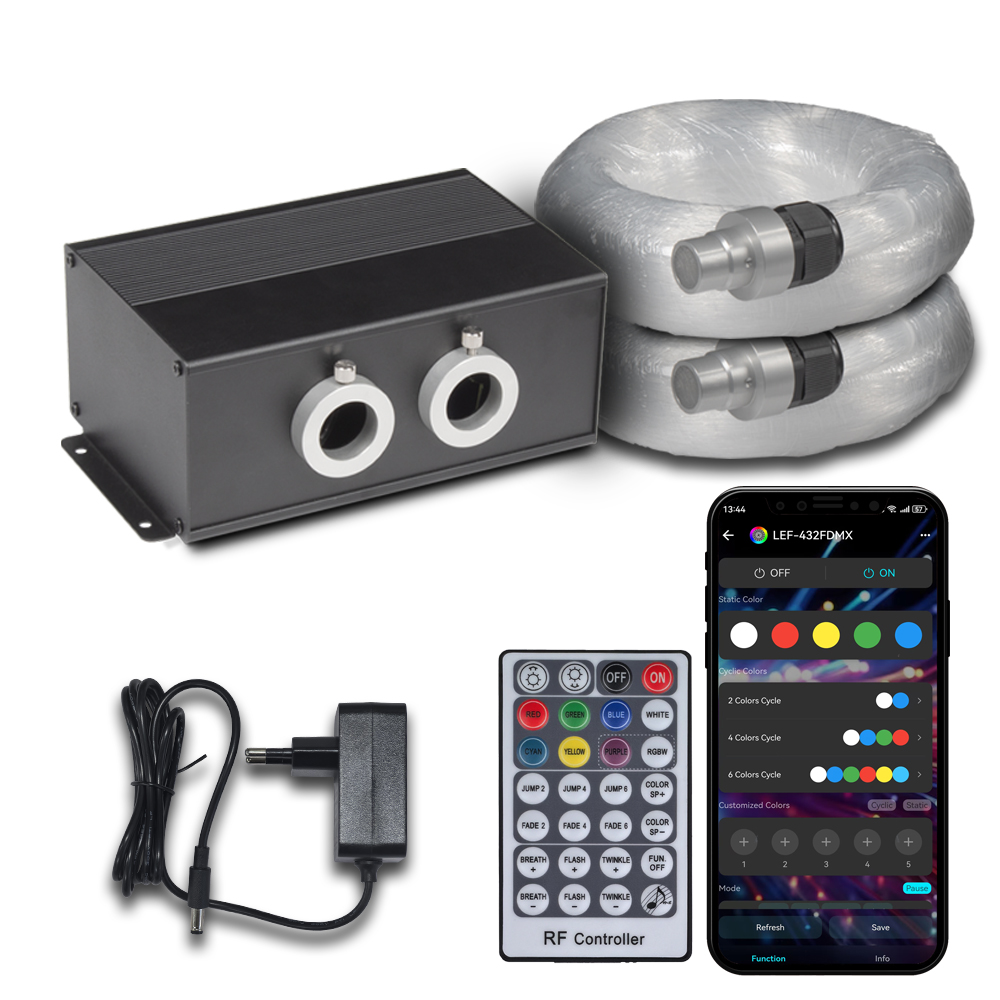

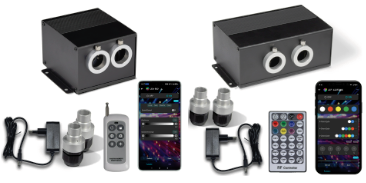

Dual-Port	White LED + Wheel (6-color/Twinkle)	RGBW LED	RGBW + Twinkle Wheel

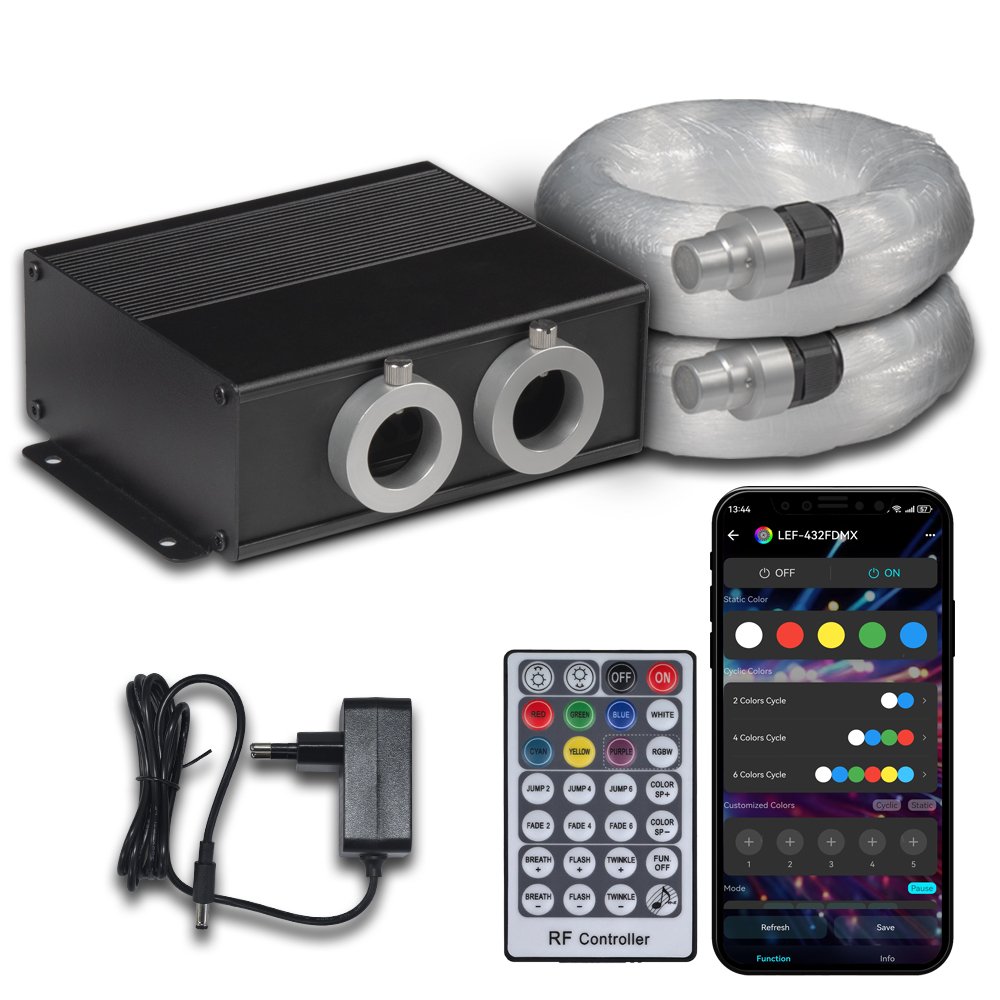

	LEA-502 LEF-502/502DMX LEF-1002/1002DMX	LEB-432/432DMX LEC-432/432DMX	LEF-432 LEF-432DMX

*: Both LEG-501DMX and LEG-100DMX have dual wheels: a 6-color wheel and a twinkle wheel.

B. Fiber Bundle:


Item No.	POF points per Square Meter	Ceiling Area	Fiber Strands Mix	Light Engines Recommended	Remarks

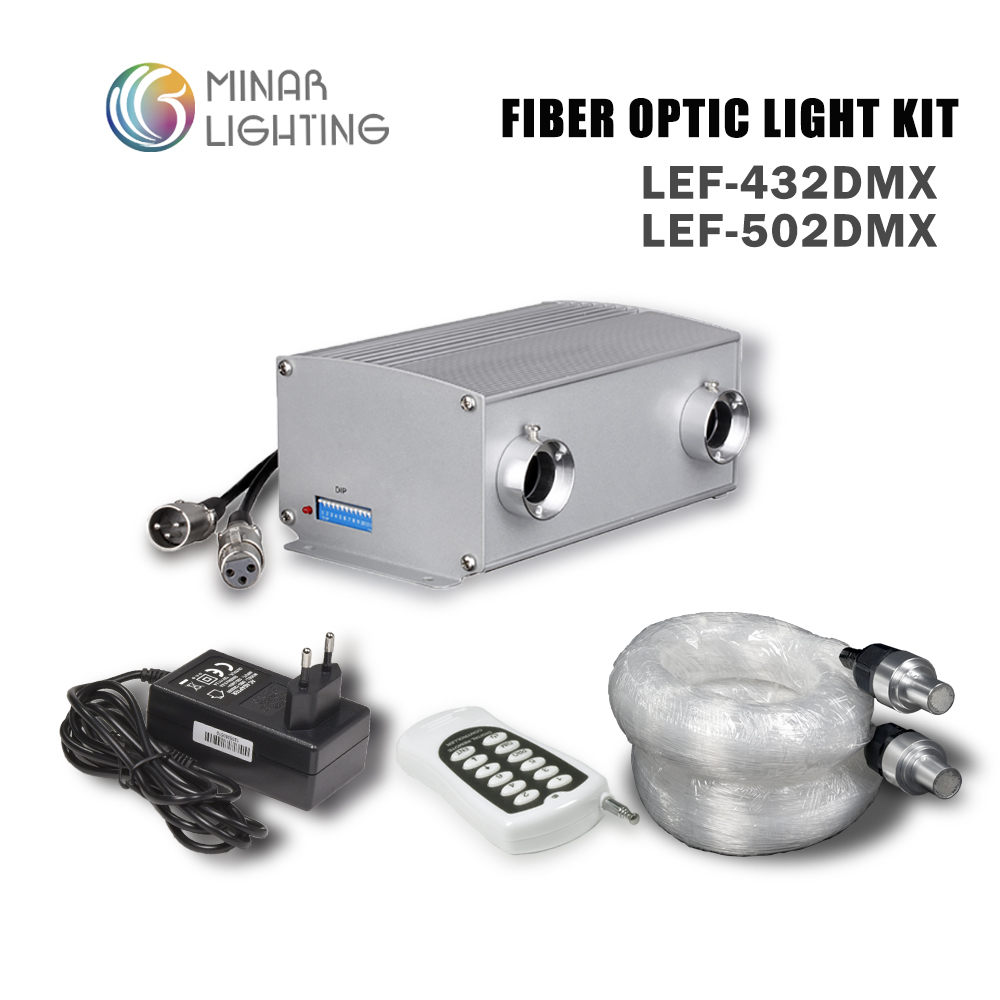

FB900-01	25-30	25M²-30M²	540pcs5m/pc0.75mm + 130pcs5m/pc1.0mm + 30pcs5m/pc1.5mm + 30pcs of crystal end pieces	LEA-502 LEB-432 LEF-432DMX LEF-502DMX	a. 2 fiber bundles with the same fiber strands mix for each item. b. Dual pots light engines are recommended.
FB900-02	25-30	25M²-30M²	650pcs5m/pc0.75mm + 60pcs5m/pc1.5mm + 30pcs of crystal end pieces
FB720-01	25-30	20M²-25M²	440pcs4.5m/pc0.75mm + 100pcs4.5m/pc1.0mm + 25pcs4.5m/pc1.5mm + 25pcs of crystal end pieces
FB720-02	25-30	20M²-25M²	520pcs4.5m/pc0.75mm + 50pcs4.5m/pc1.5mm + 25pcs of crystal end pieces
FB600-01	25-30	15M²-20M²	360pcs4m/pc0.75mm + 88pcs4m/pc1.0 mm+ 20pcs4m/pc1.5mm + 20pcs of crystal end pieces
FB600-02	25-30	15M²-20M²	440pcs4m/pc0.75mm + 40pcs4m/pc1.5mm + 20pcs of crystal end pieces
FB400-01	25-40	10M²-15M²	400pcs3m/pc0.75mm	LLE-001 LLE-002 LLE-003 LLE-004(RGBW) LLE-005(RGBW) LEA-501(/DMX) LEB-431(/DMX) LEA-1001(/DMX) LEA-431DMX LEG-501DMX LEG-1001DMX	Single-port light engines are recommended.
FB400-02	25-40	10M²-15M²	328pcs3m/pc0.75mm + 18pcs3m/pc1.5mm
FB250-01	25-40	6M²-10M²	250pcs2.5m/pc0.75mm
FB250-02	25-40	6M²-10M²	210pcs2.5m/pc0.75mm + 10pcs2.5m/pc1.5mm
FB200-01	30-40	5M²-7M²	200pcs2m/pc0.75mm
FB200-02	30-40	5M²-7M²	164pcs2m/pc0.75mm + 9pcs2m/pc1.5mm
FB150-01	30-50	3M²-5M²	150pcs2m/pc0.75mm
FB150-02	30-50	3M²-5M²	126pcs2m/pc0.75mm + 6pcs2m1.5mm

C. End Fittings:

1. Optional.

2. Our ceiling end fittings and plastic end fittings are recommended.

Customized Kit:

A. Light engine: All the light engines that Minar offers.

1. Line Voltage models:

Regular Type: White LED + 6-color Disc	DMX512: White LED + 6-color Disc	Twinkle Effect: RGBW LED + Twinkle Disc
LEI-4001	LEI-4001DMX	LEI-4121DMX
LEI-8001	LEI-8001DMX	LEI-4241DMX
LEI-15001	LEI-15001DMX	LEI-4361DMX

2. Other Models

LEU + LET Series		LER Series ( no built-in wheels)

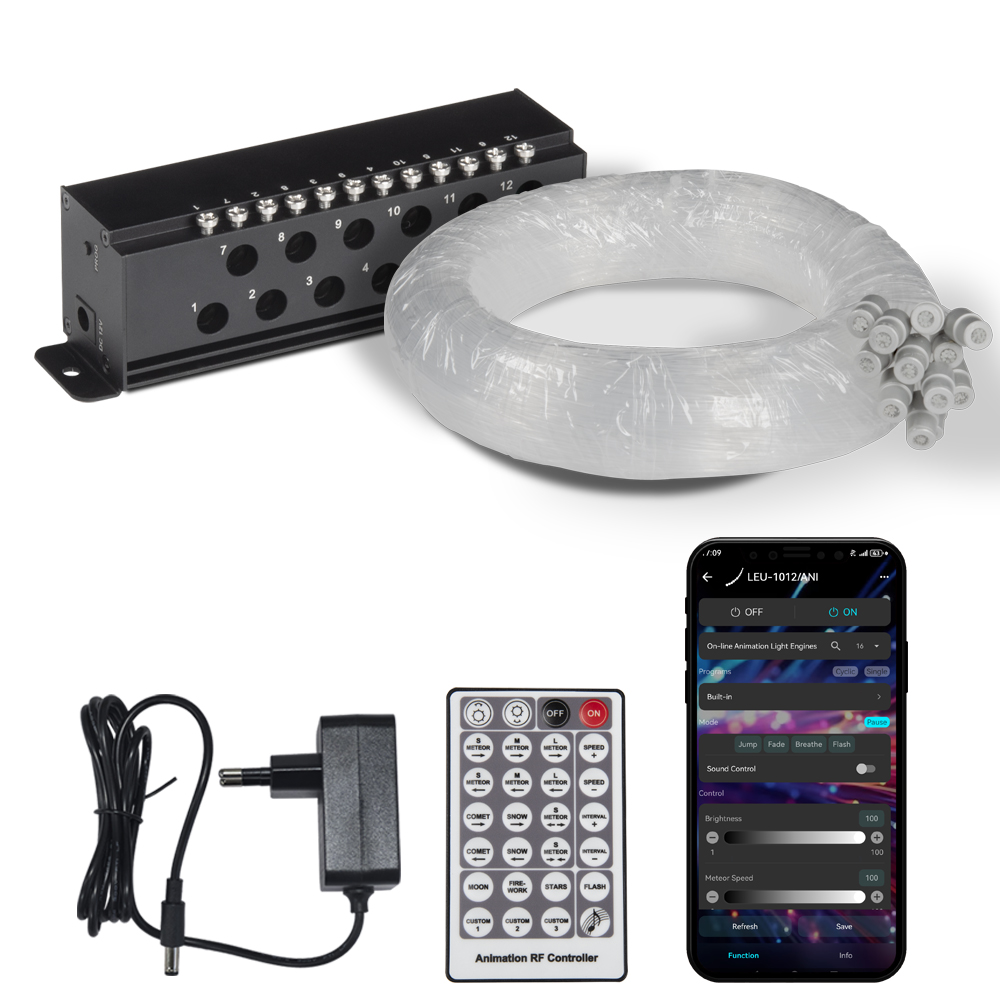

LEU-1012ANI LEU-1012DMX/ANI	Animation, white LED 12 Ports @ Φ5	LER-3001DMX	White LED Φ30

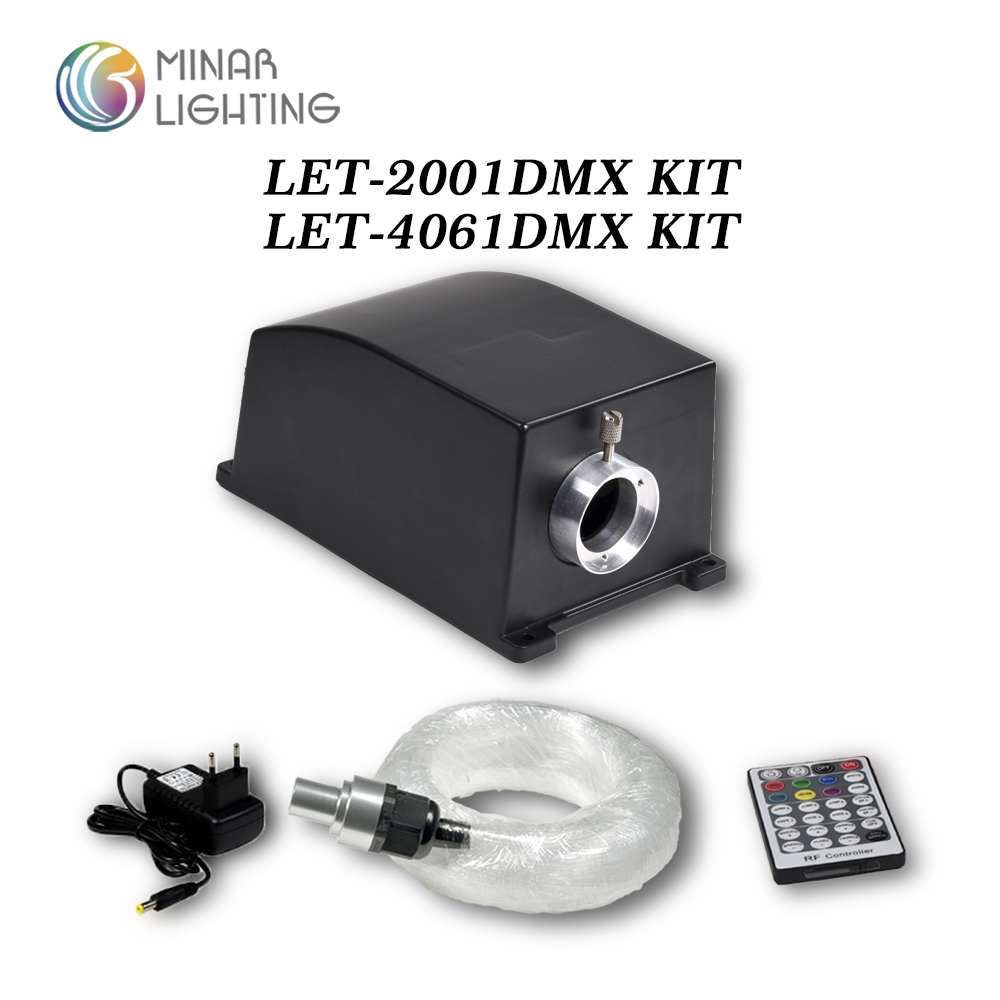

LET-2001DMX	White LED + 6-Color Disc Φ22	LER-3001TWDMX	CCT: 2700K~6000K Φ30
LET-4061DMX	RGBW LED + Twinkle Disc Φ22	LER-4121DMX	RGBW LED Φ30

B. Fiber Bundle: Fiber strands mix of different diameters, lengths, and numbers as per request or the ceiling size.

C. End Fittings: Optional. Customized design is also welcome.

Fiber Kits.jpg

USER MANUAL

Download the instruction manual/specification
OTHER PRODUCTS

Star Ceiling Kit

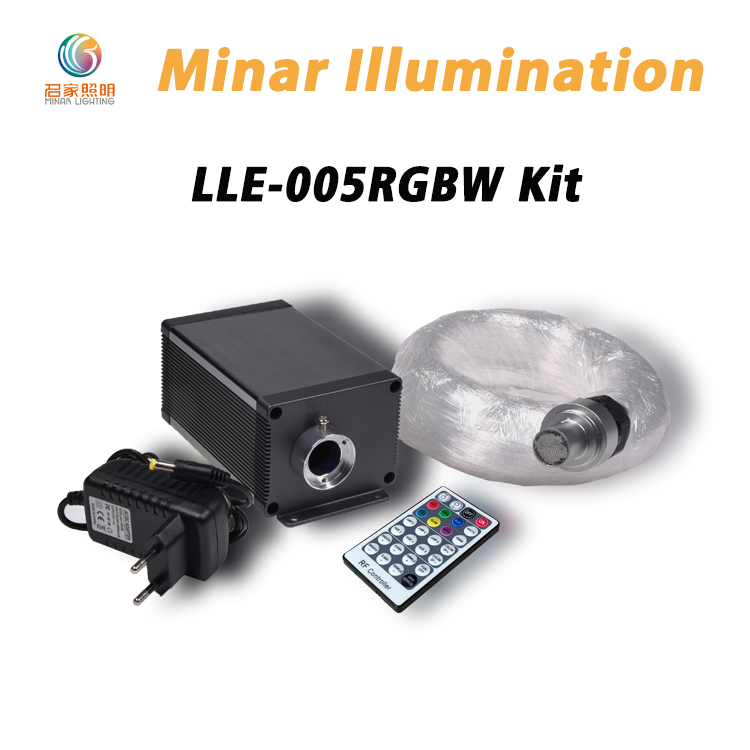

LLE-005 Kit
