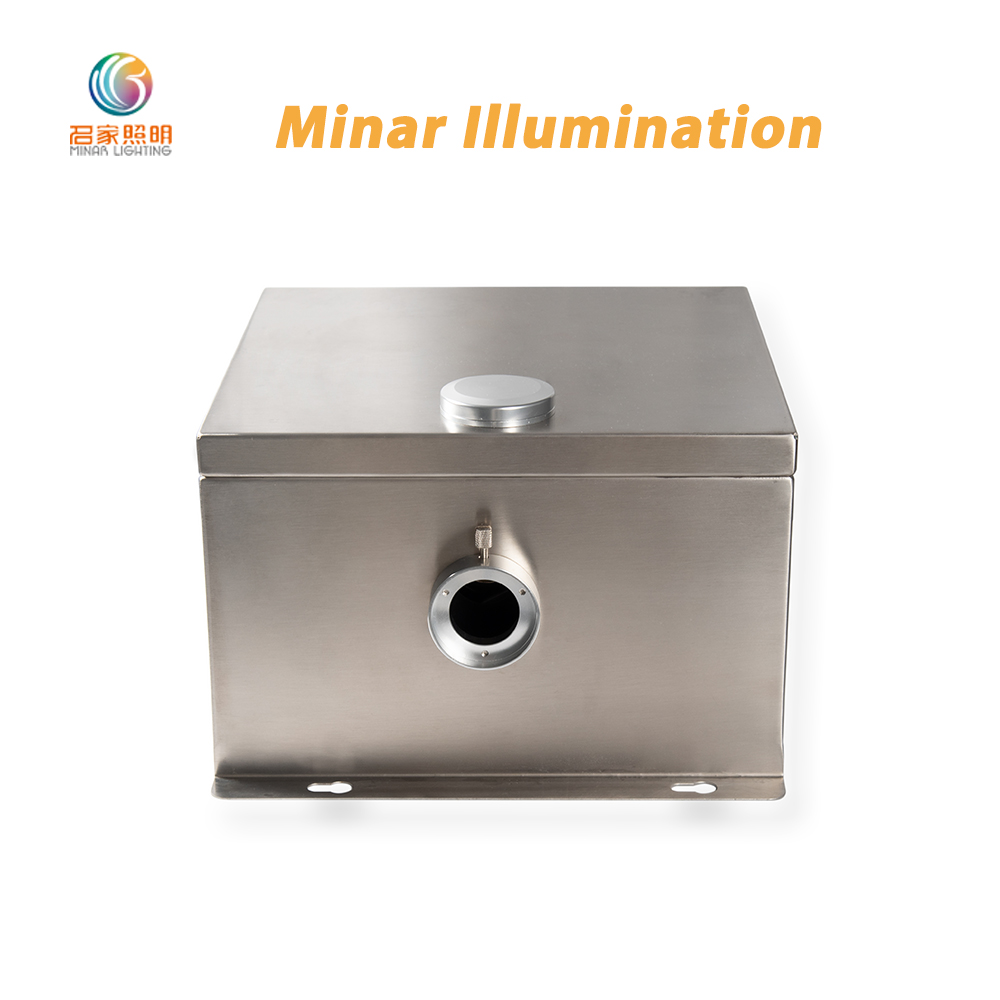

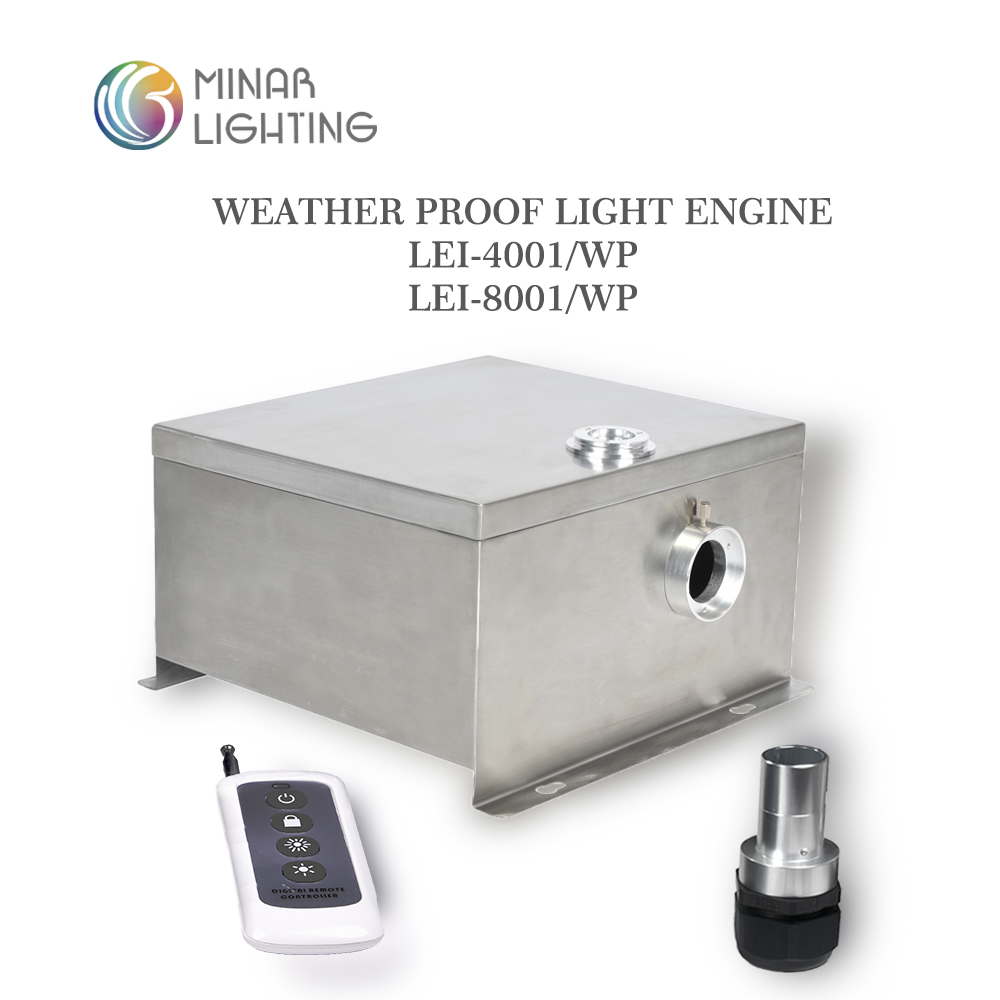

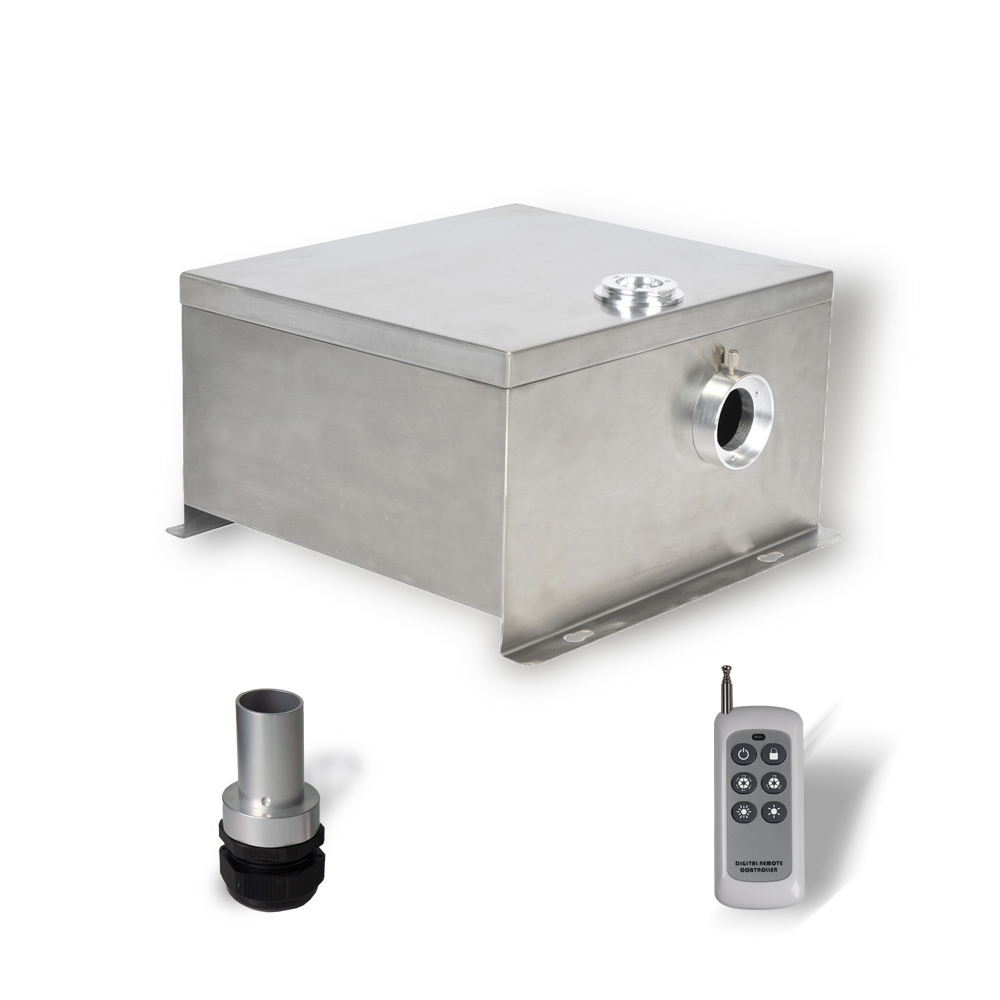

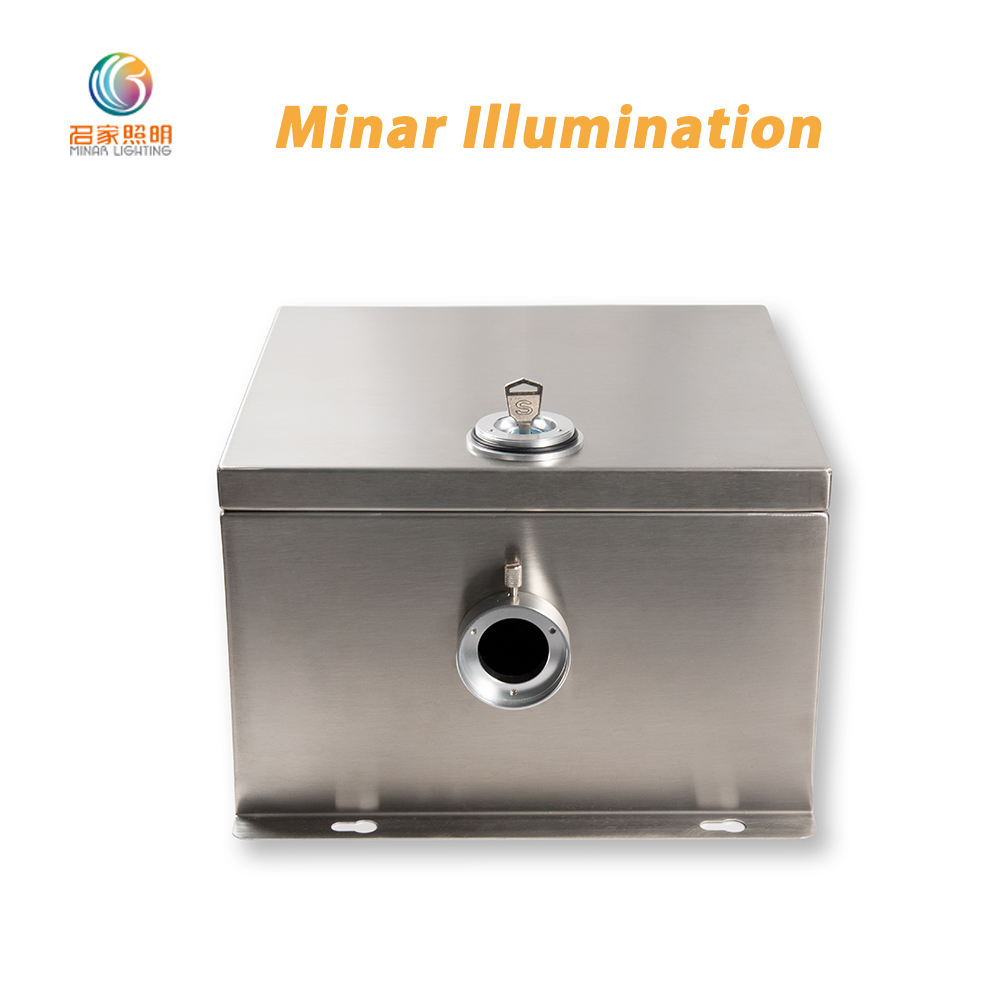

LEI-8001/WP

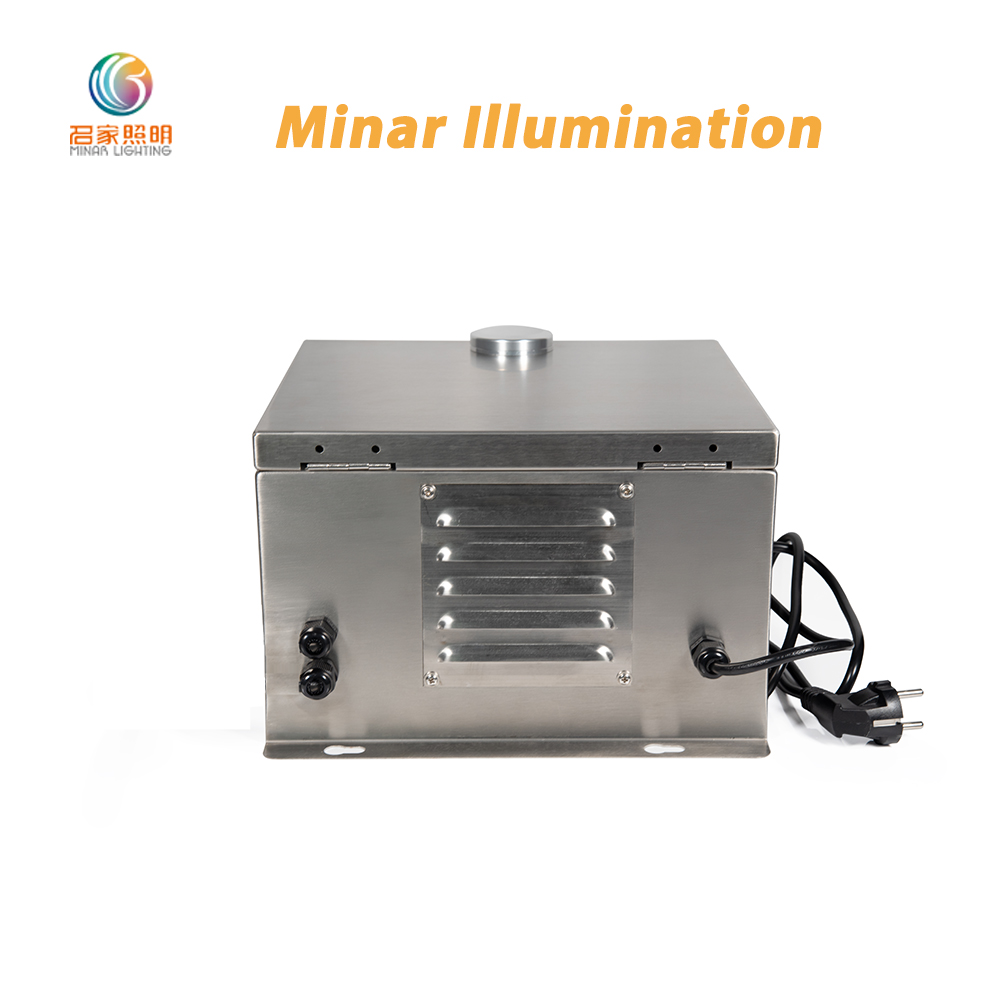

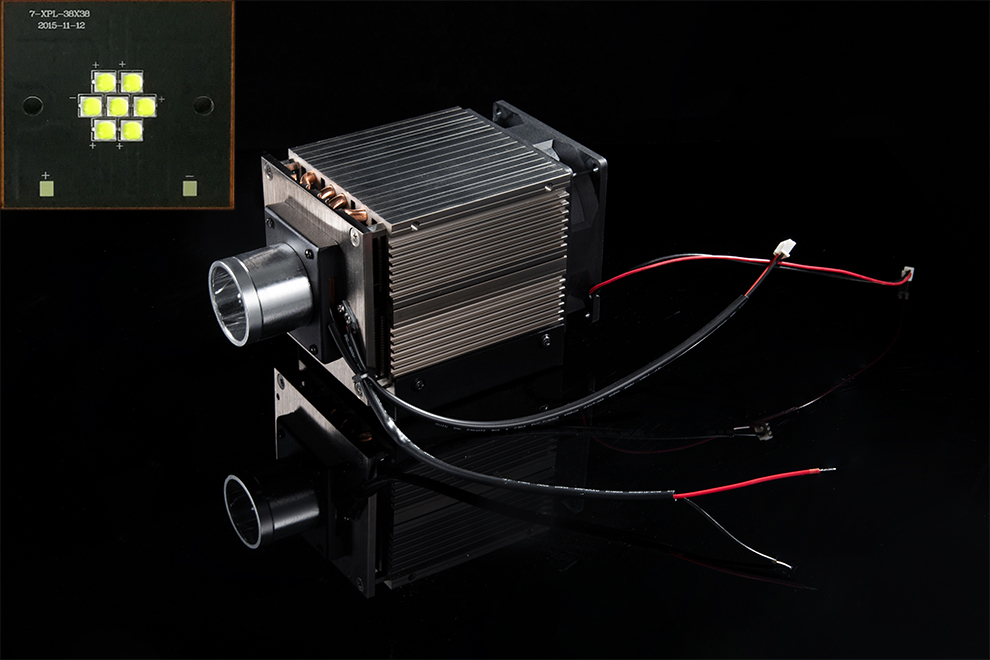

LEI-8001/WP light engine has adopted the specially designed heat sink with fans to achieve the superior heat dissipation result.

Temperature Detector has also been applied to protect the light engine from overheating.

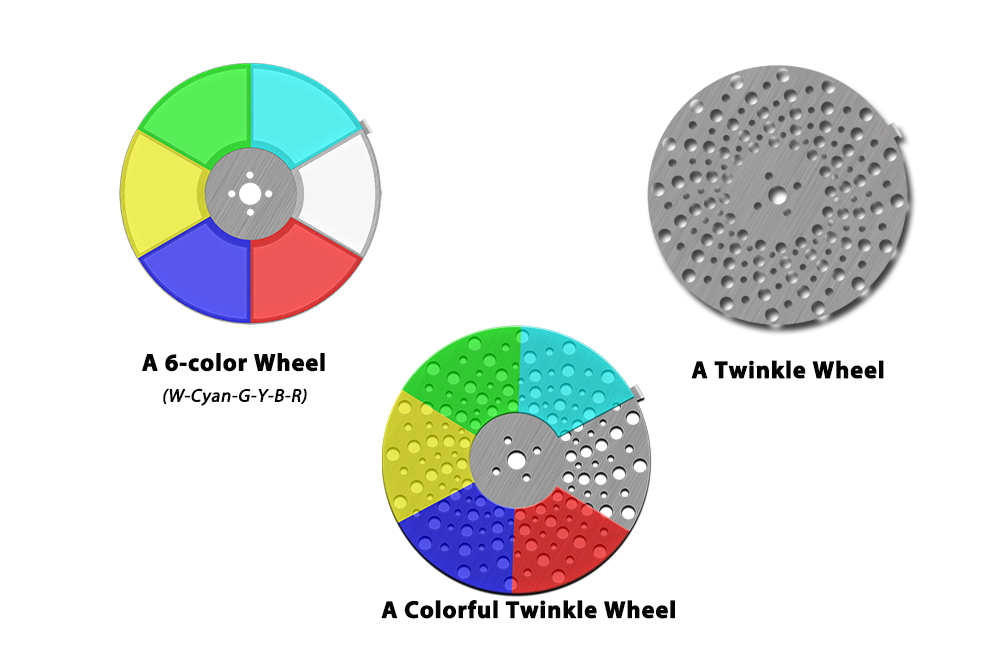

The wheels/discs that could be equipped into LEI-8001 fiber optic light engine, from left to right and top to bottom:
1. The 6-color wheel,
2. The twinkle wheel,
3. The colorful twinkle wheel.
The default wheel is the 6-color disc. Other wheels/discs are available at request, and the customized requirement is also welcome.

By default Minar provides one piece of 20mm/24mm/28mm 3-in-1 combined fiber connector for each line voltage light engine. These apertures are capable of 540pcs, 770pcs, and 1050pcs of 0.75mm fiber tails respectively. 30mm fiber connector is also available at request.

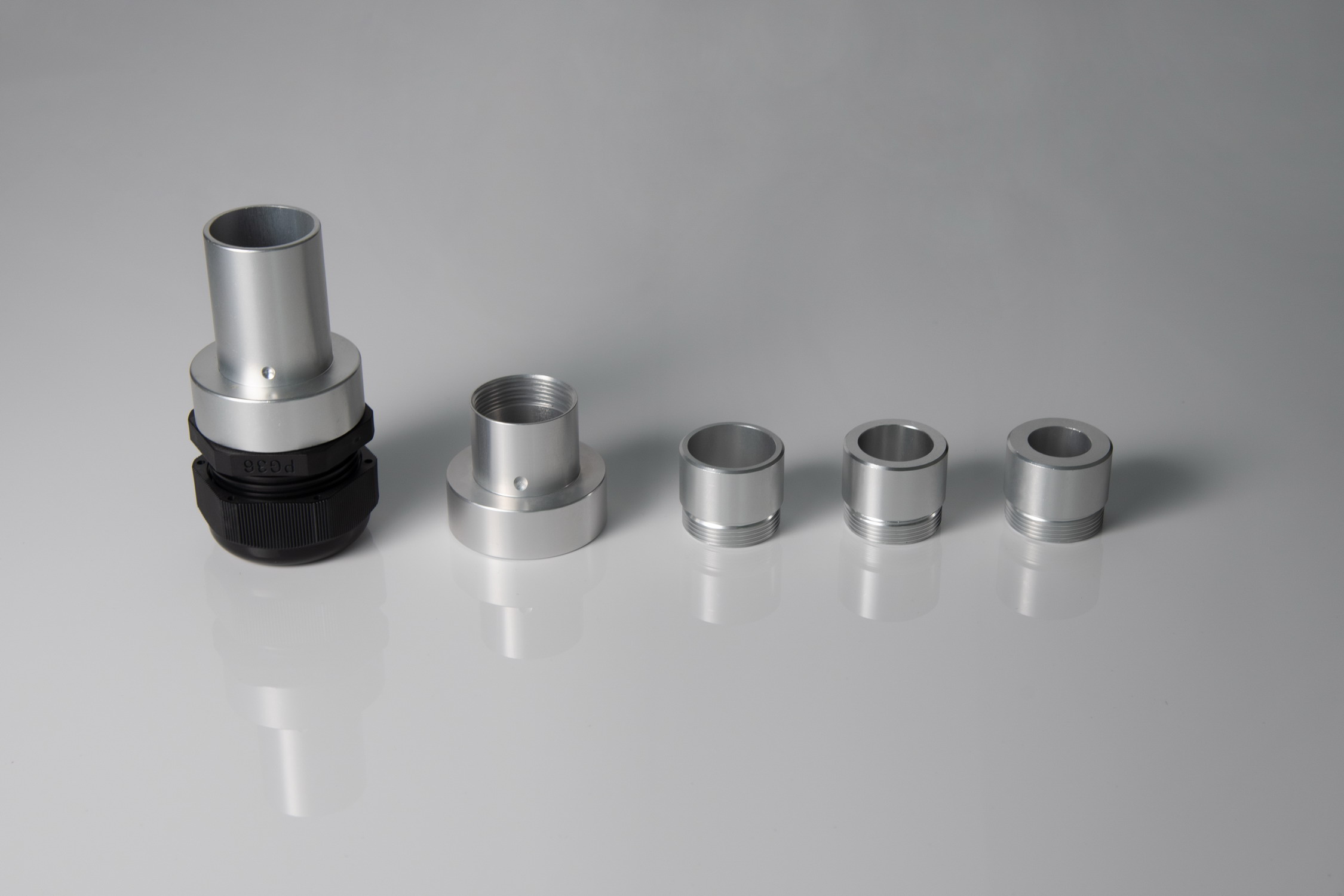

From left to the right, the fiber connector: 30mm, 28mm, 24mm, and 20mm.

Customized apertures are also welcome!

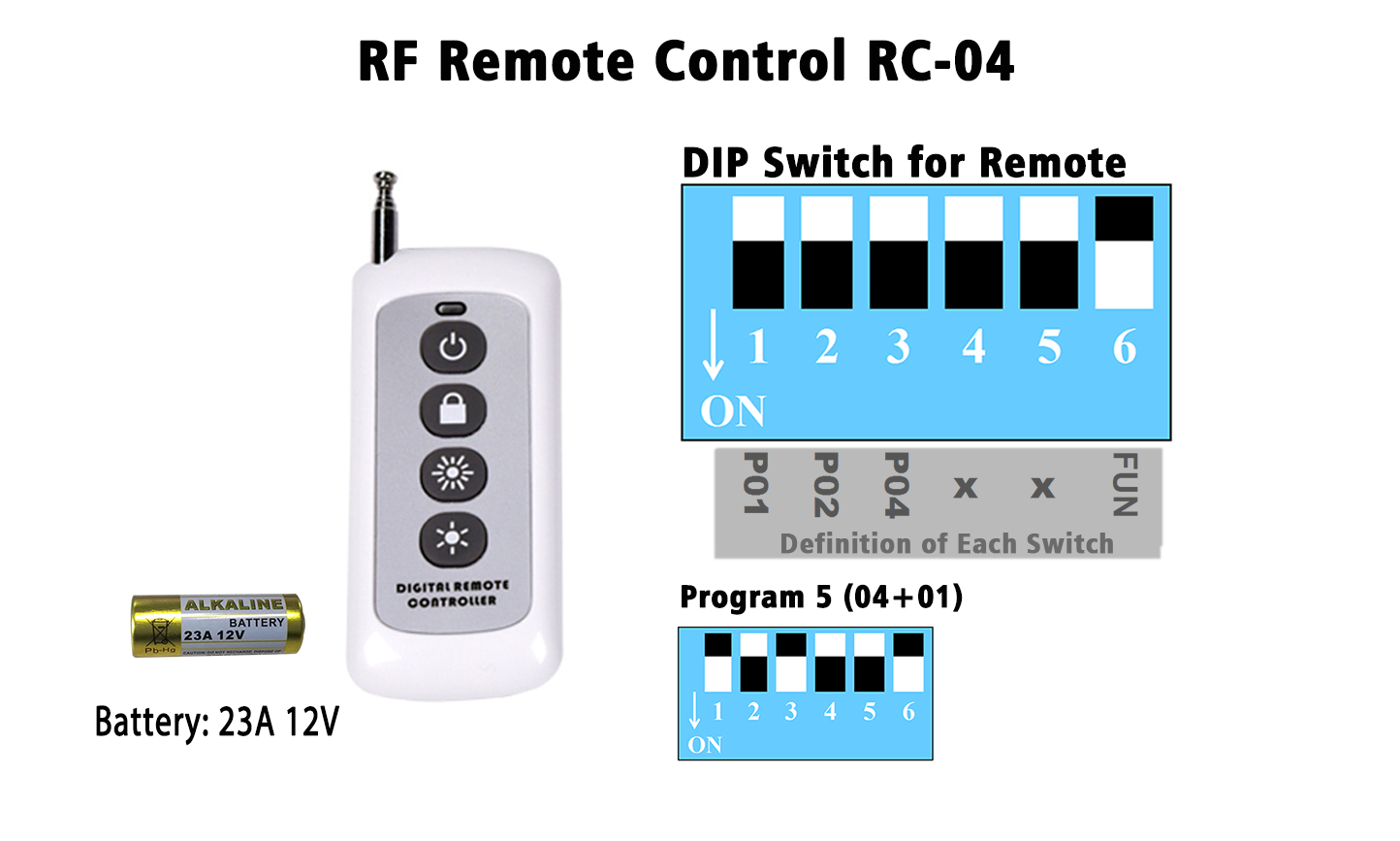

LEI-8001/WP has 8 built-in programmes, which can be selected by the DIP switches that are inside the stainless steel housing.

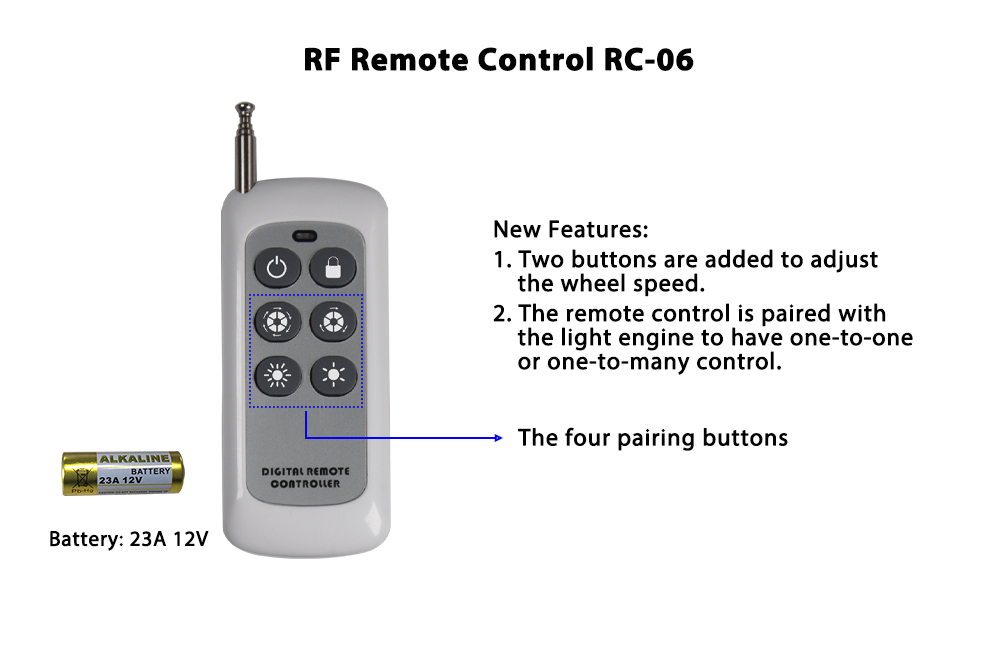

The 4-key RF remote control has an effective control distance of around 25 metres in open area. The function of the 4-key remote control (SW6 ON):
1. Turn on the light engine,
2. Turn off the light engine,
3. Fix the emitting color,
4. Dimming.

Battery: 23A 12V, 1pc (not included in the package).
