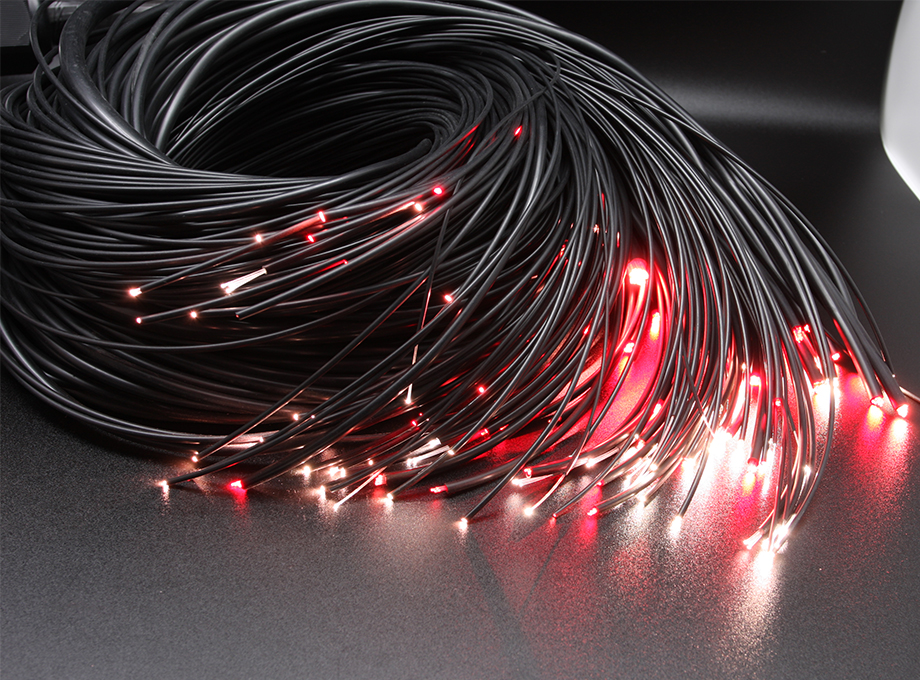

Sheathed End Glow Fiber Cable

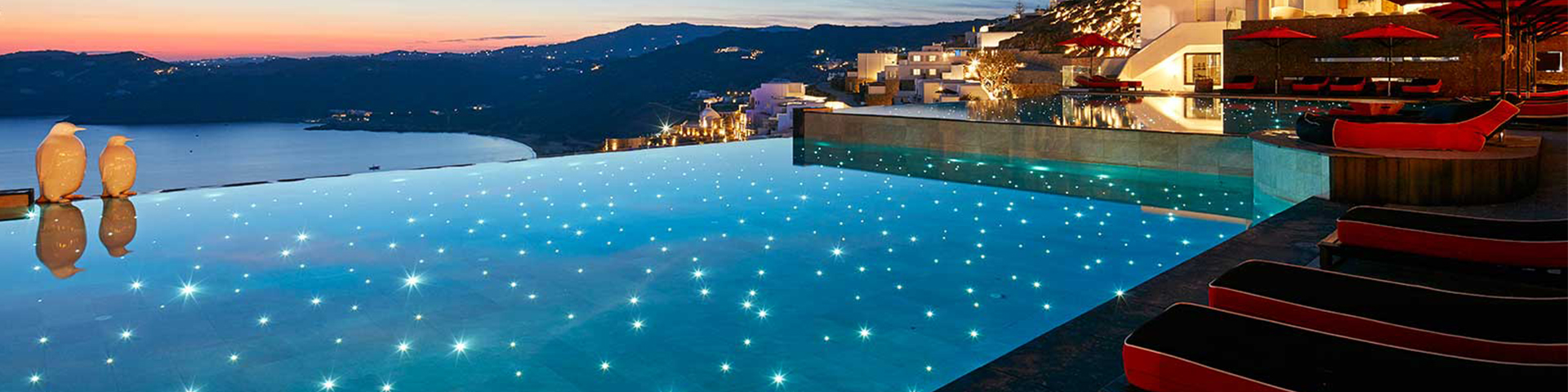

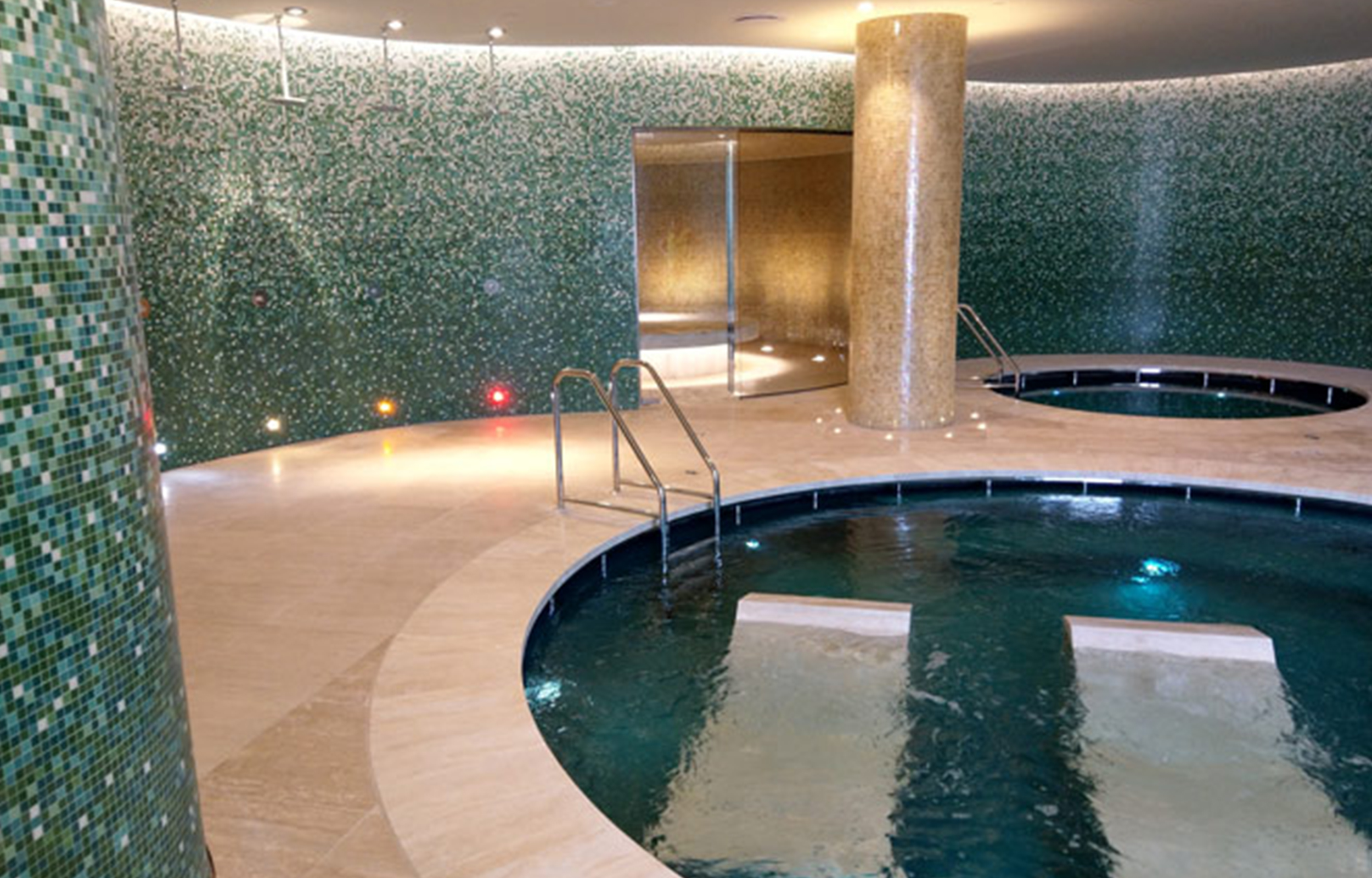

The end glow fiber transmits the light from the illuminator to the far end with no electricity or heat in the fiber cable. Thus it is the perfect choice for you to light up the swimming pools, ponds and pathways with starry effect.

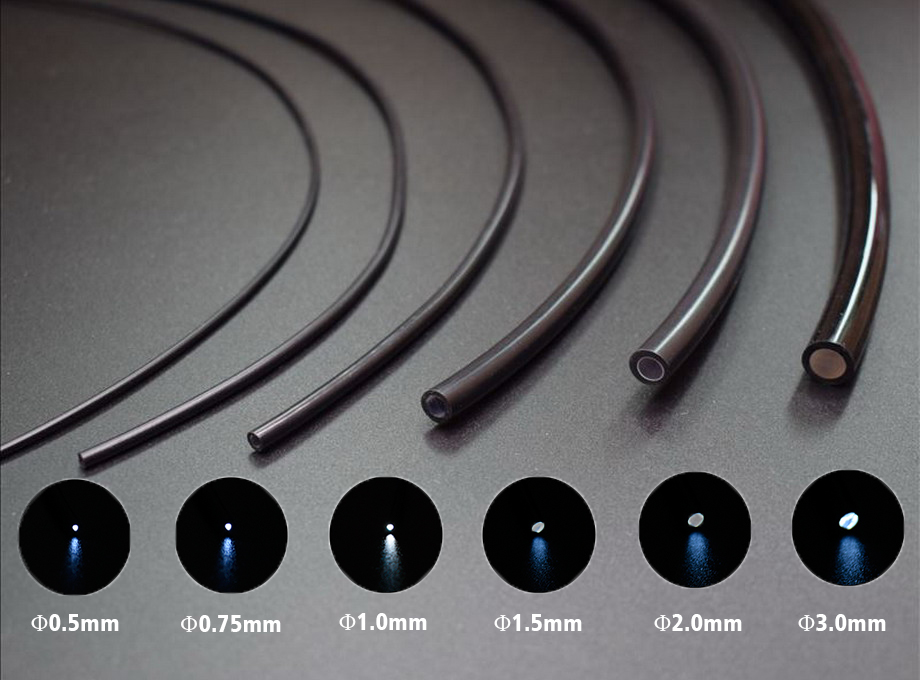

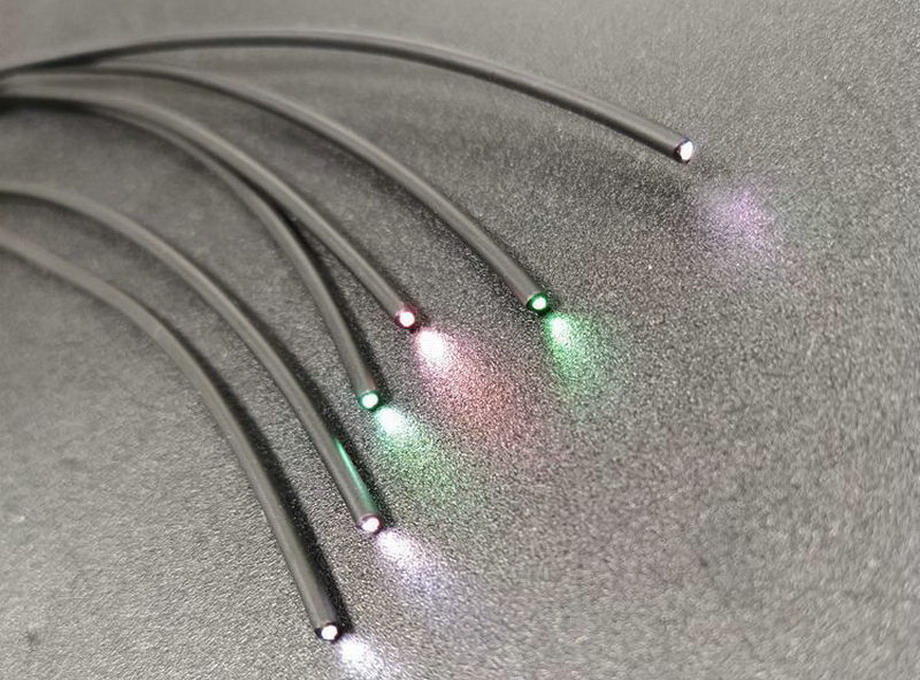

As the fiber only emits the light from the end, together with the power of the light engine, the core diameter and the length of the fiber cable will determine the light intensity of the star point. The longer the fiber cable is, the more powerful light engine and fiber cable of bigger core diameter are needed.
Handle with Care
The optical fiber is easy to break or leave internal defect. Special care needs to be taken for the fiber cable not to be impacted, pushed, pulled, squeezed, pressed, dragged or jittered by brute force, or stepped on by the people during the storage and installation. To place heavy objects on the optical fiber is also strictly prohibited.

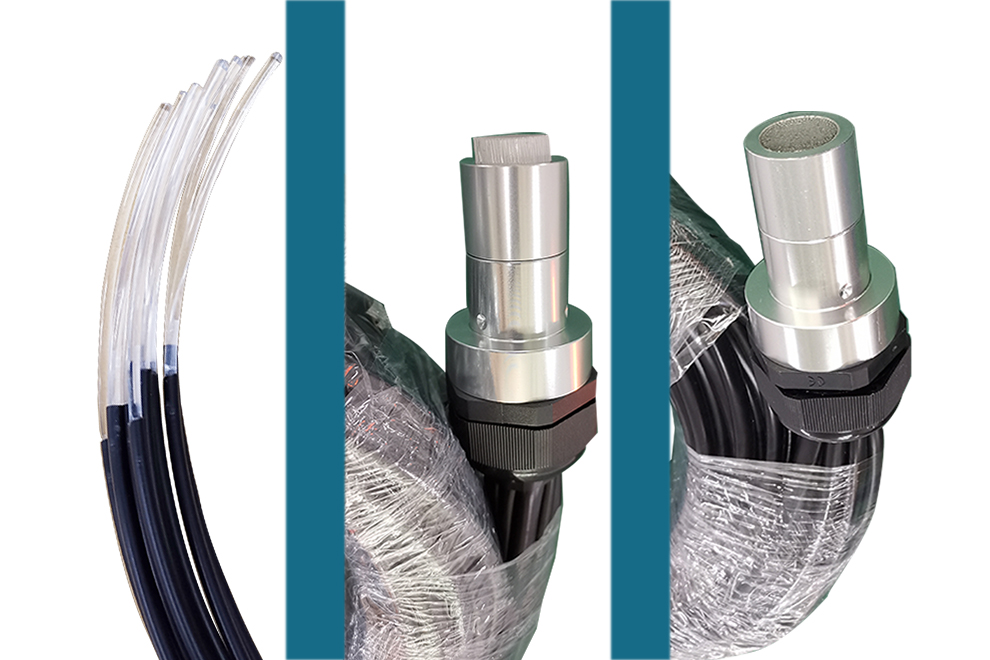

Fiber Connector

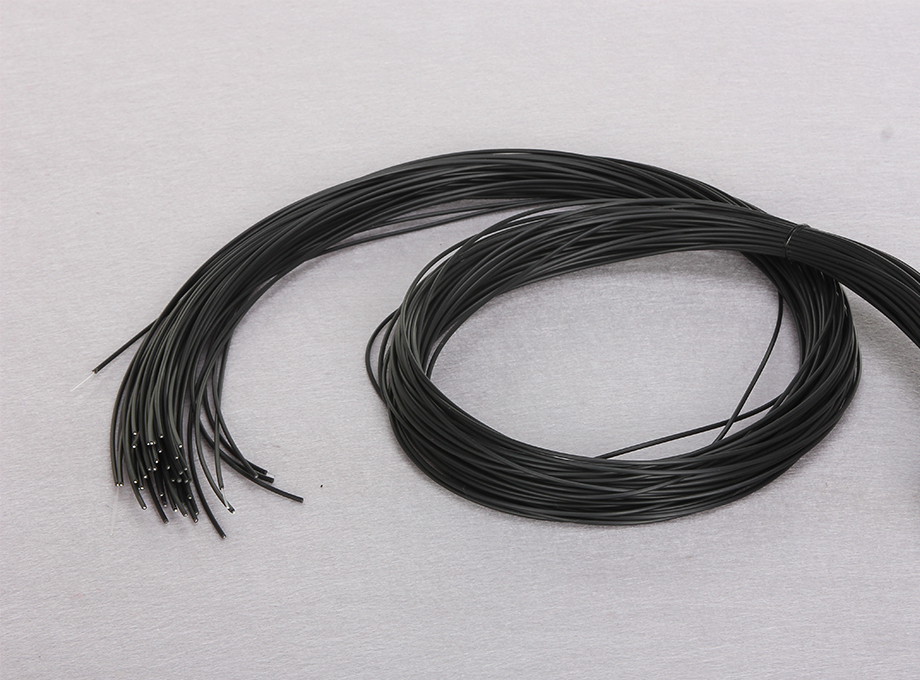

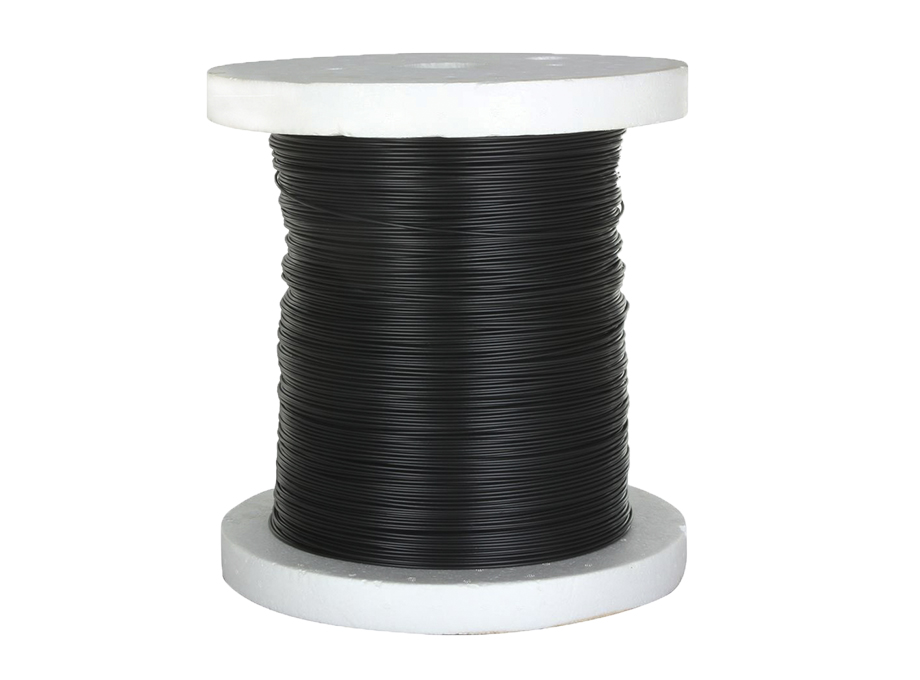

Fiber bundles and spools made to order are available at request. When making the fiber connector on spot, please make sure that the PVC sheath of the fiber strands part in the common end needs to peel off.

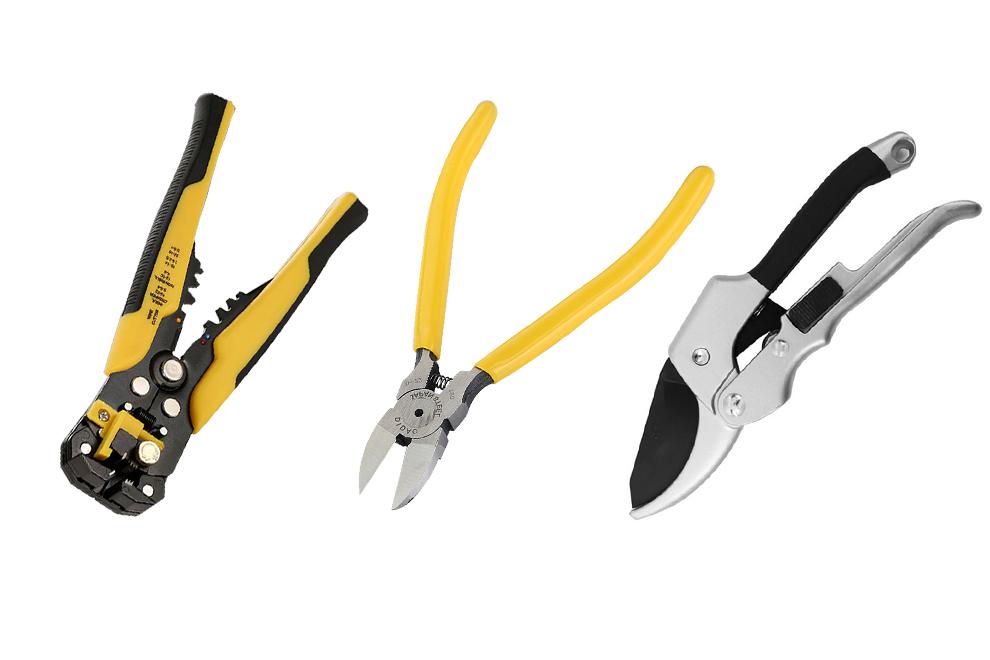

Cable Cutters
Different wire cutters that are used to peel or cut the sheathed fiber cable.
The left one: To peel off the the sheath,
The middle one: To cut single strand
The right one: To cut the multi-string fiber cable
Specifications:
| Category | Ordering Code | Inner Diameter (mm) | Outer Diameter (mm) | Spool Length (m) | Attenuation (dB/M) | Minimum Bend Radius (mm) |
Sheathed Minar MF End Glow Plastic Optical Fiber | PEOF-0.5/MF | 0.5 | 1.3 | 6000 | ≤0.3 | 10 |
| PEOF-0.75/MF | 0.75 | 1.6 | 5400 | ≤0.3 | 15 | |
| PEOF-1.0/MF | 1.0 | 2.2 | 3000 | ≤0.3 | 25 | |
| PEOF-1.5/MF | 1.5 | 2.5 | 1400 | ≤0.3 | 40 | |
| PEOF-2.0/MF | 2.0 | 3.0 | 1050 | ≤0.3 | 80 | |
| PEOF-2.5/MF | 2.5 | 3.5 | 750 | ≤0.3 | 100 | |
| PEOF-3.0/MF | 3.0 | 4.0 | 450 | ≤0.3 | 100 |
