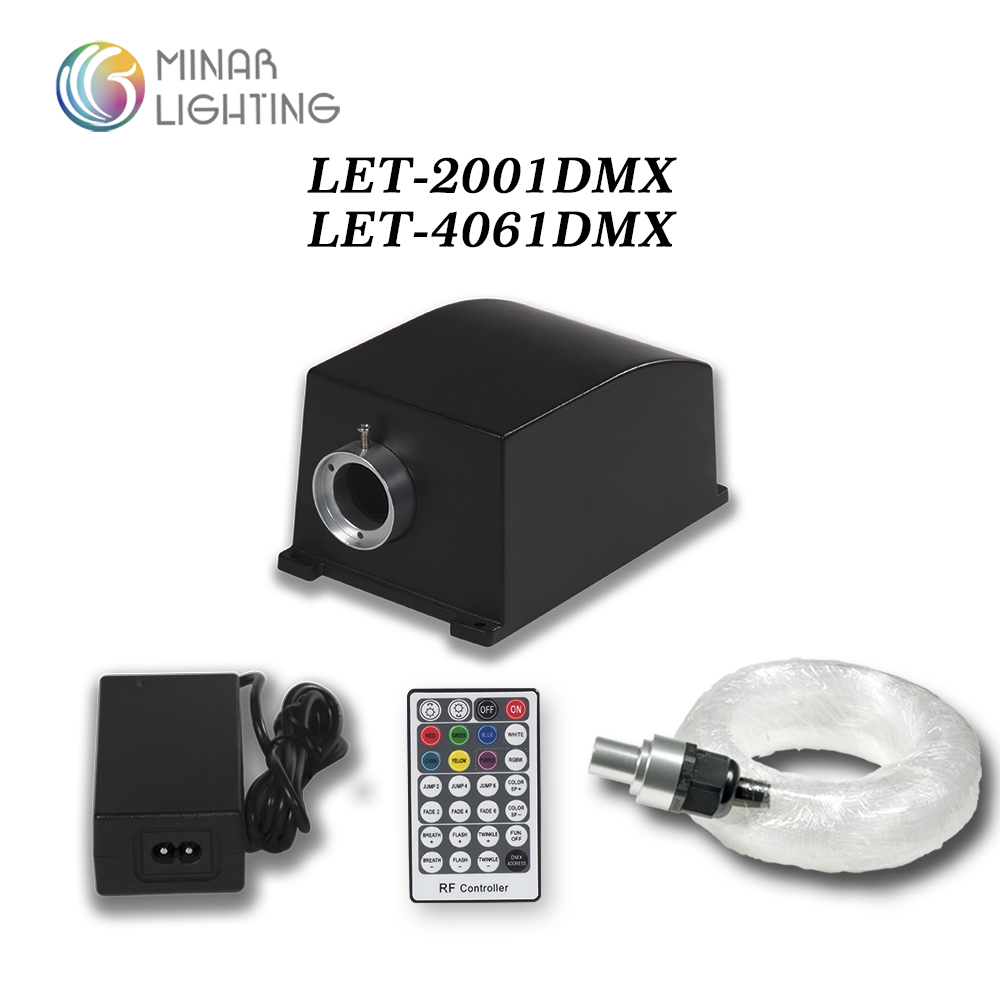

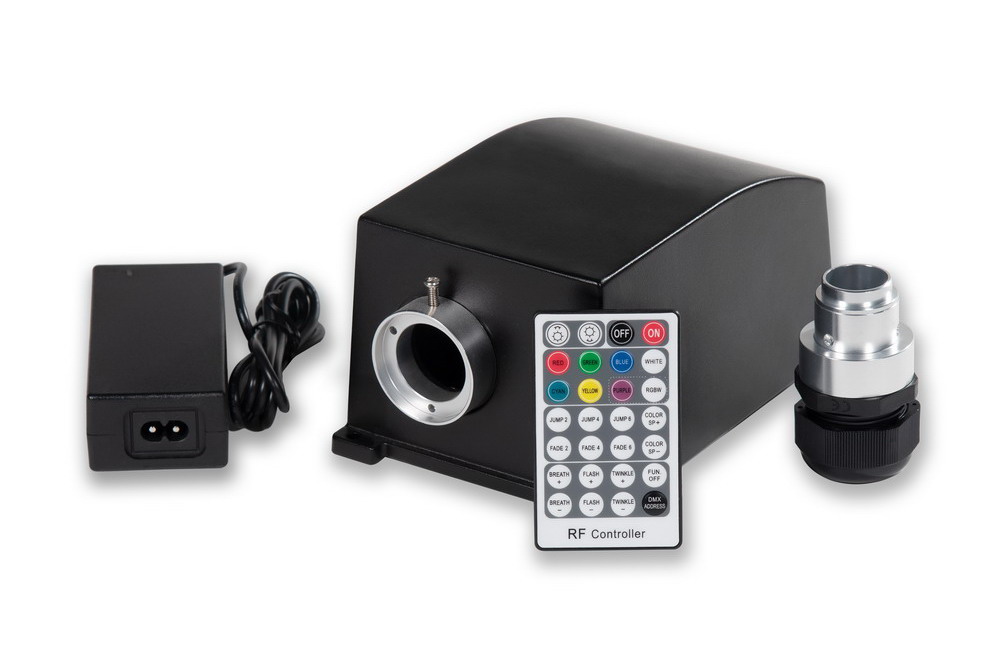

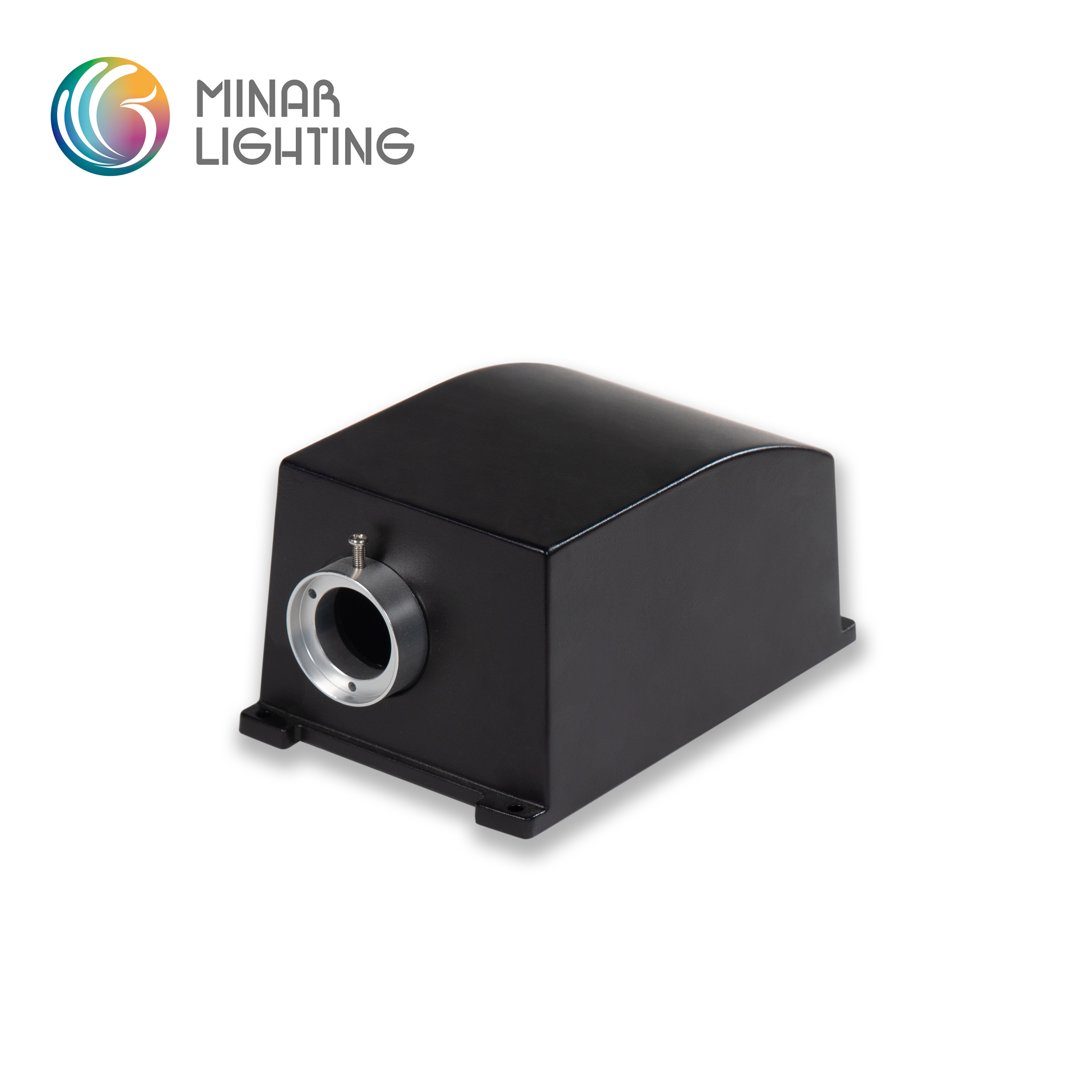

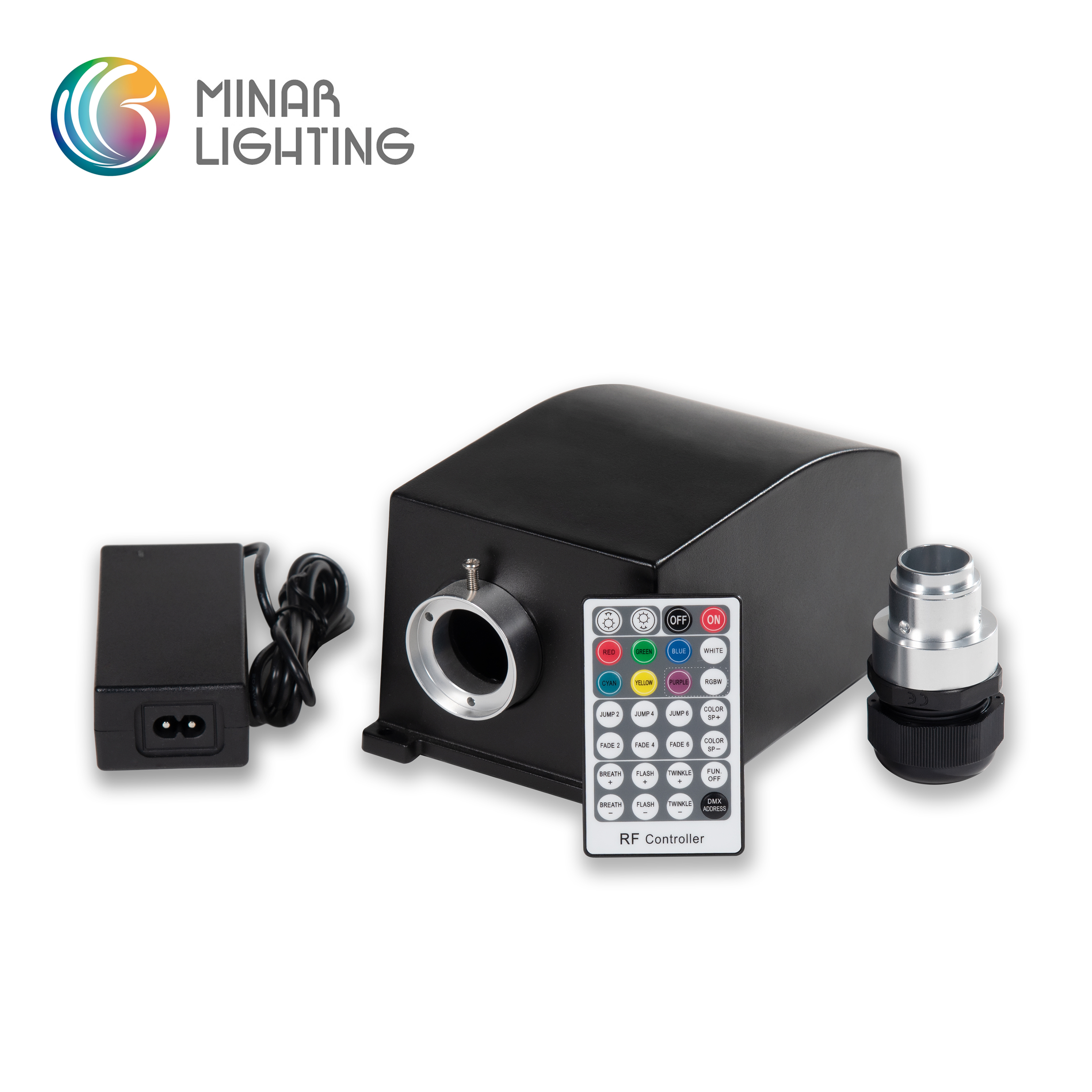

LET-2001DMX

The LET series of fiber optic light engine is newly developed in 2022 to replace the previous LEK-2001/DMX and LEK-351/DMX. Compact in size, but it is more powerful than LEK type. New 28-key remote control is applied to have the visual control of the light engine performance.

DMX Channels:
CH1: Colors,
CH2: Color Wheel/Motor,
CH3: N/A,
CH4: Dimming + Strobe.

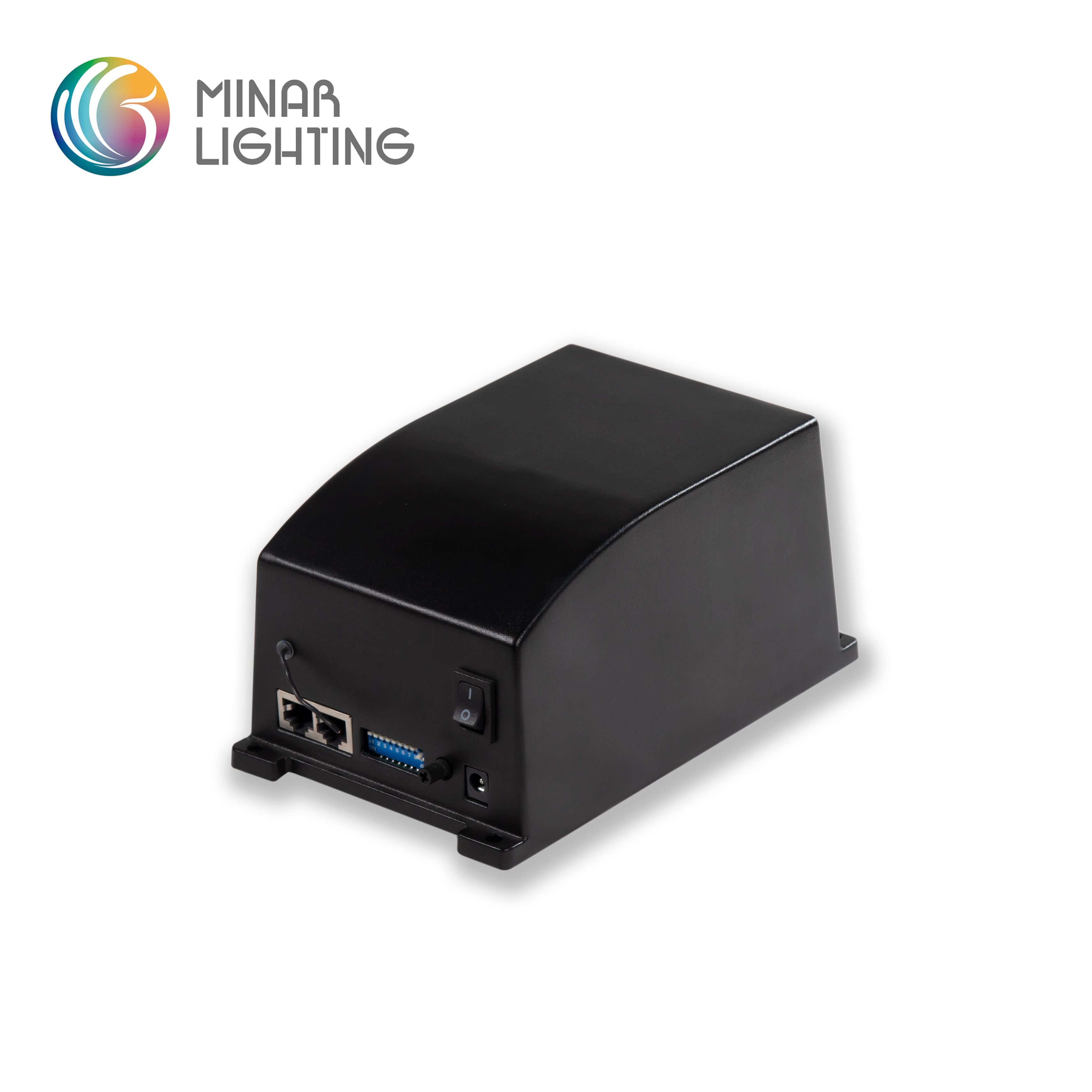

LET-2001DMX has 21 built-in programs, which could be selected by the DIP switches only.

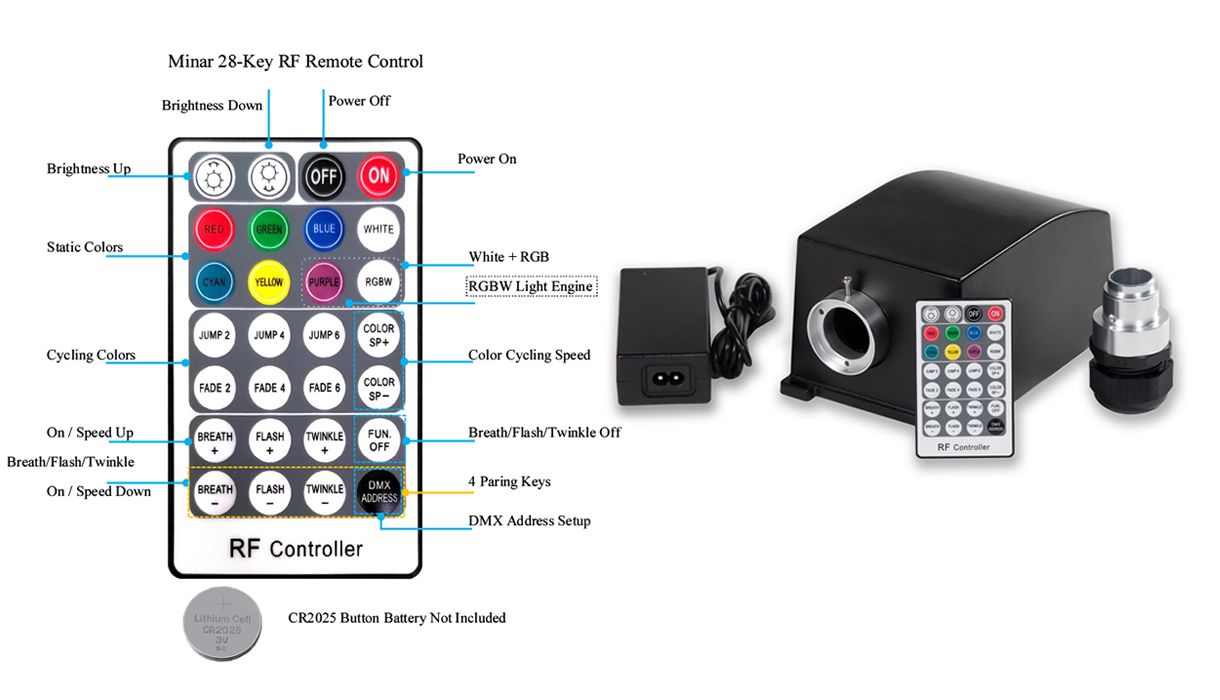

The 28-key remote control has an effective control distance of around 15 meters in an open area and can be used with fiber optic light engines to have a one-to-one, one-to-multi, multi-to-one or multi-to-multi control.

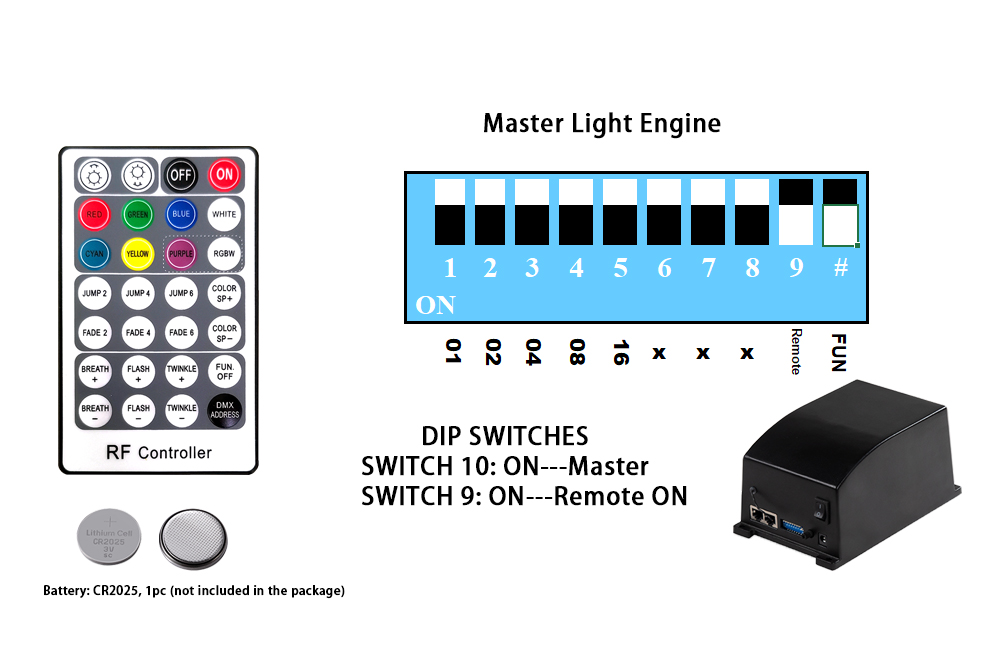

DIP Switch 10 and Switch 9 need to be ON to turn on the remote control function.

Battery: CR2025, 1pc (not included in the package).

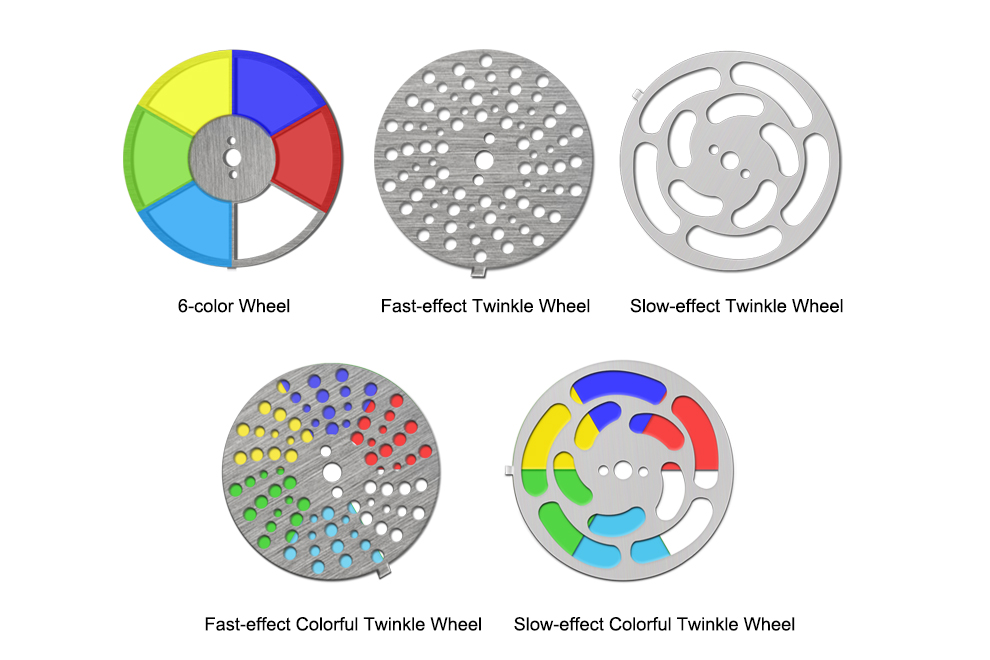

The wheels/discs that could be equipped into LET-2001DMX fiber optic light engine, from left to right and top to bottom:
1. The 6-color wheel,
2. The fast-effect twinkle wheel,
3. The slow-effect twinkle wheel,
4. The colorful fast-effect twinkle wheel,
5. The colorful slow-effect twinkle wheel.
The default wheel is the 6-color disc. Other wheels/discs are available at request, and the customized requirement is also welcome.

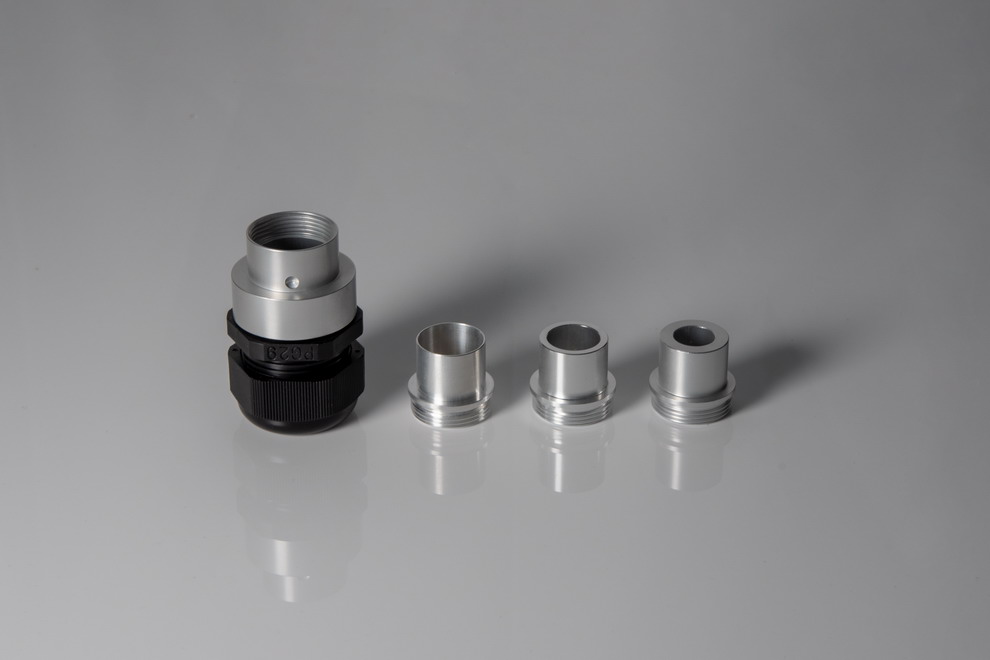

By default Minar provides one piece of 14mm/18mm/22mm 3-in-1 combined fiber connector for the LET and LES series of light engines. These apertures are capable of 250pcs, 450pcs, and 650pcs of 0.75mm fiber tails respectively.

Customized apertures are also welcome!
