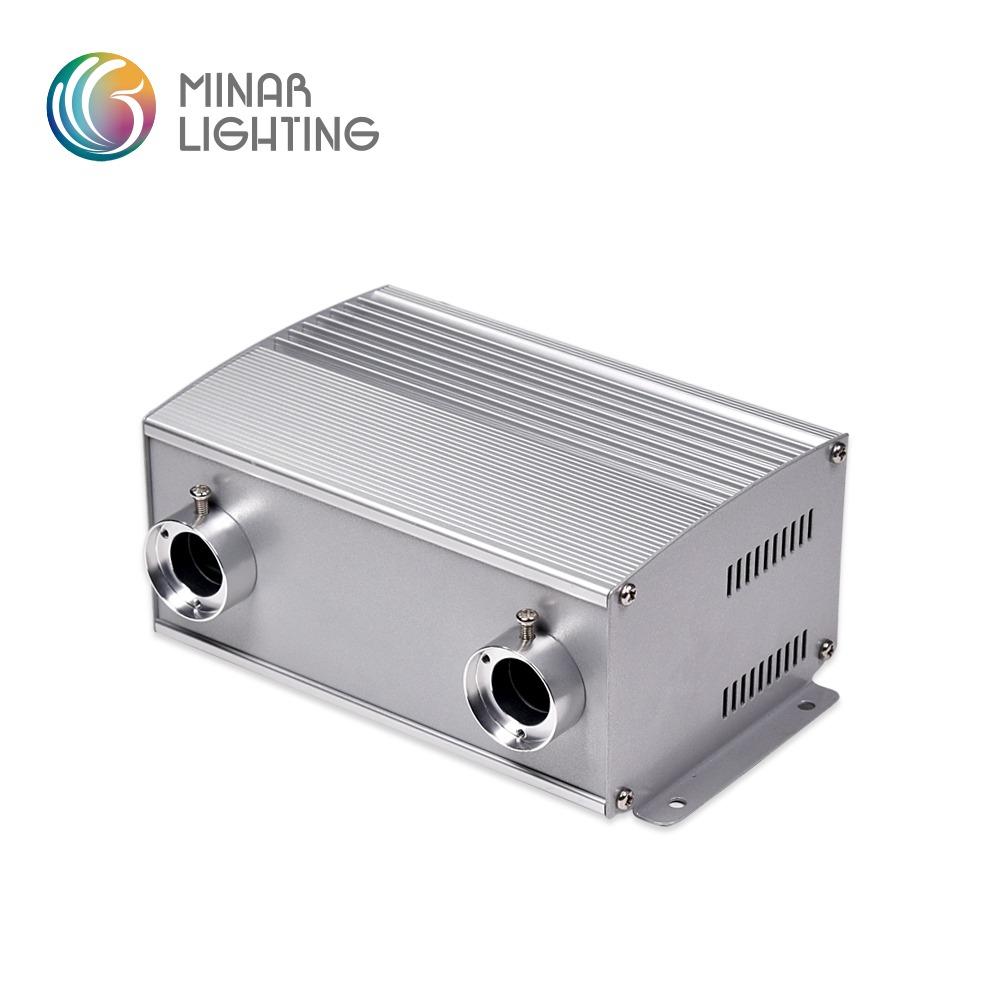

LEP-1002

LEP series of fiber optic light engine consists of two models, both with dual ports. Each port contains one 10W white light Cree LED to provide high brightness of its kind.

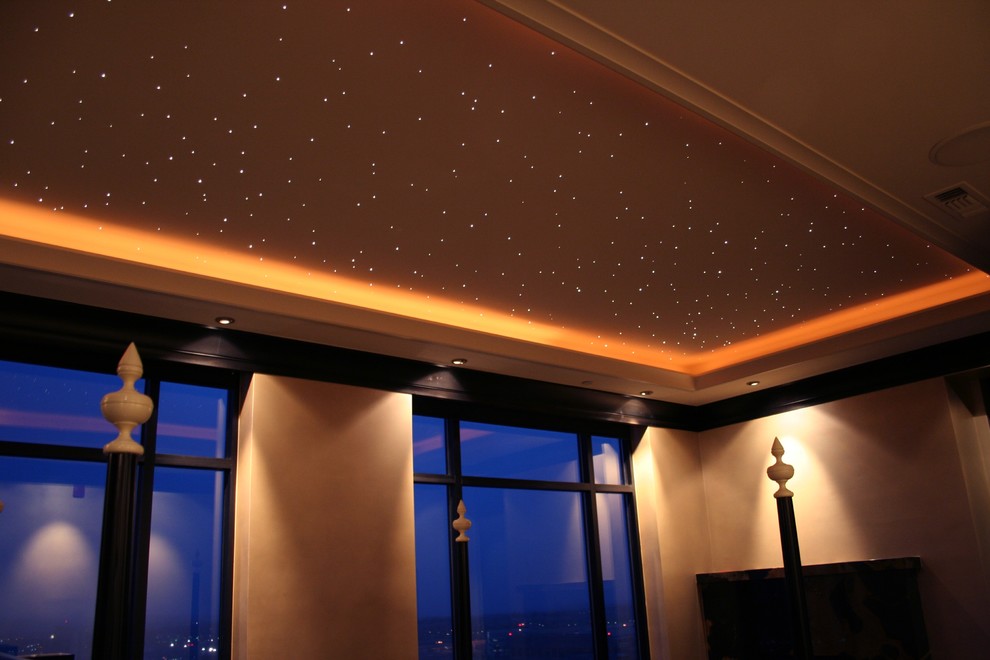

25W LED Light Engine for Star Ceiling

General Information:

1. Model：LEP-1002,

2. Input Voltage: DC 12V,

3. Light Source: White light LED,

4. LED Type: 2*10W, Cree, 3000K/4000K/6000K,

5. Wheel/Disc: 6-color wheel/Twinkle wheel/Colorful twinkle wheel,

6. Control: Remote control/DIP switches,

7. Light Emitting: Static color/Cycling colors,

8. Adjustable color wheel spin speed,

9. Dimmable,

10. No fans, noise free,

11. IP Rating: IP20,

12. Warranty: 2 Years,

13. Packing: Neutral color box.

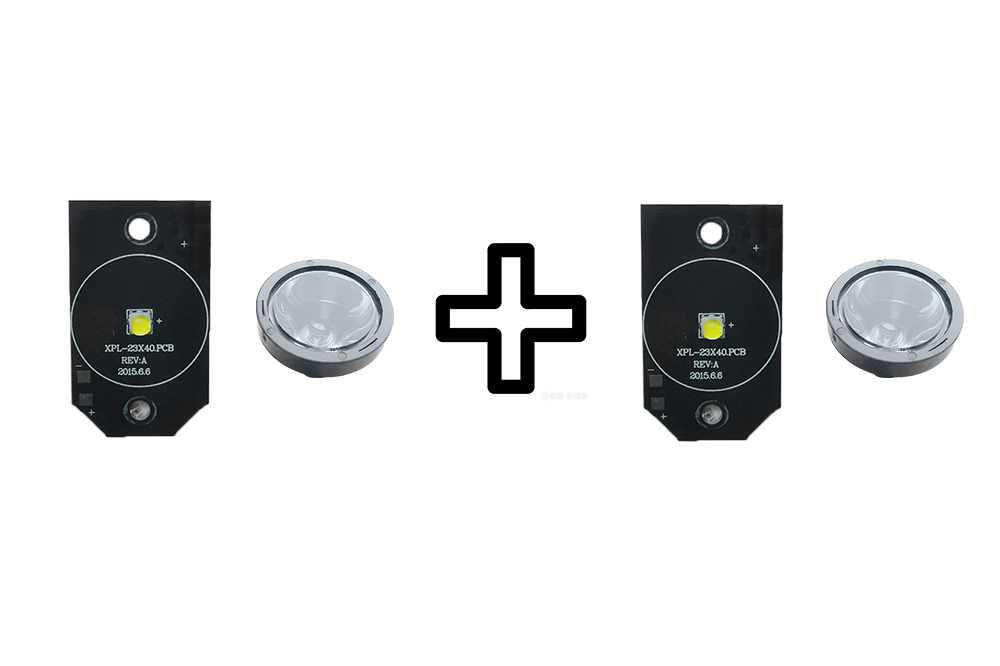

- 10W LED Module

  Both ports of LEP series have applied 10W CREE XPL LED module with lens to provide more power options for clients.

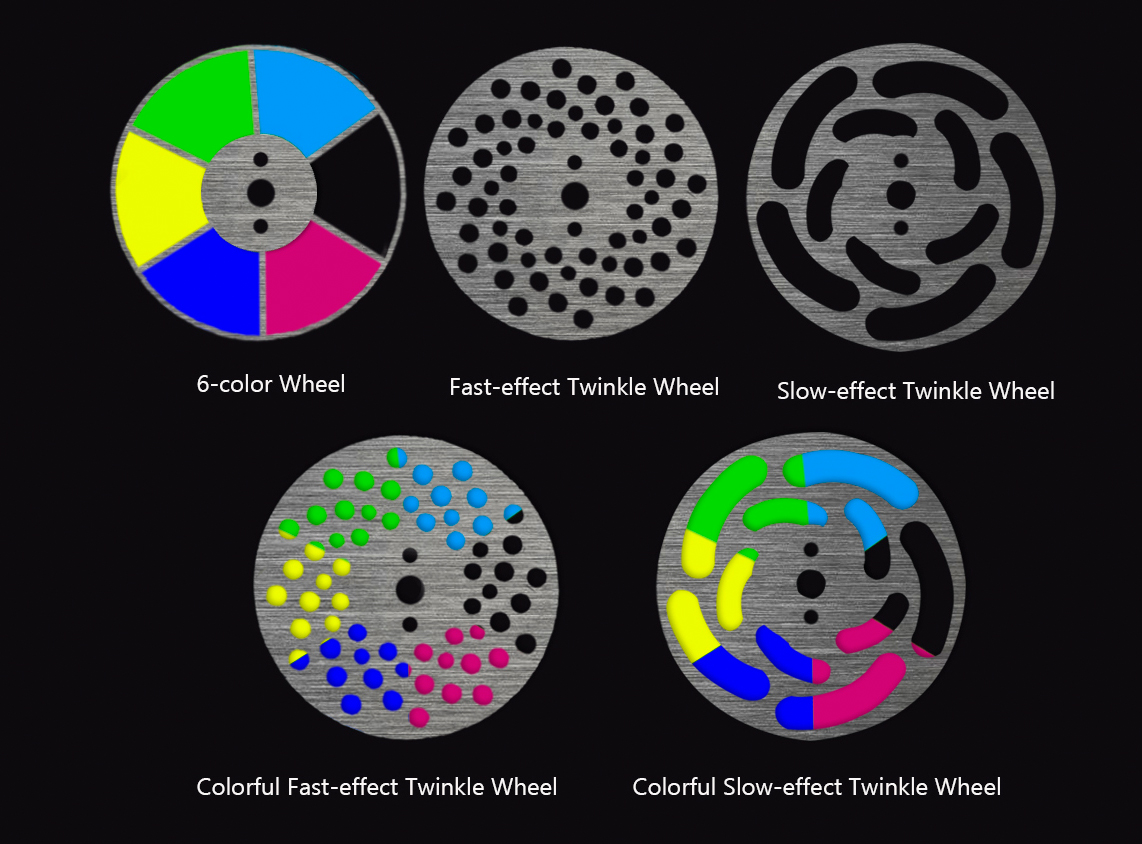

- Wheels/Discs

  By default, two 6-color wheels have been assembled in the light engine.

  The wheels/discs that could be equipped into LEP-1002 fiber optic light engine, from left to right and top to bottom:
  1. 6-color wheel,
  2. Fast-effect twinkle wheel,
  3. Slow-effect twinkle wheel,
  4. Fast-effect colorful twinkle wheel,
  5. Slow-effect colorful twinkle wheel.

  Other wheels/discs are available at request, and customized requirement is also welcome.

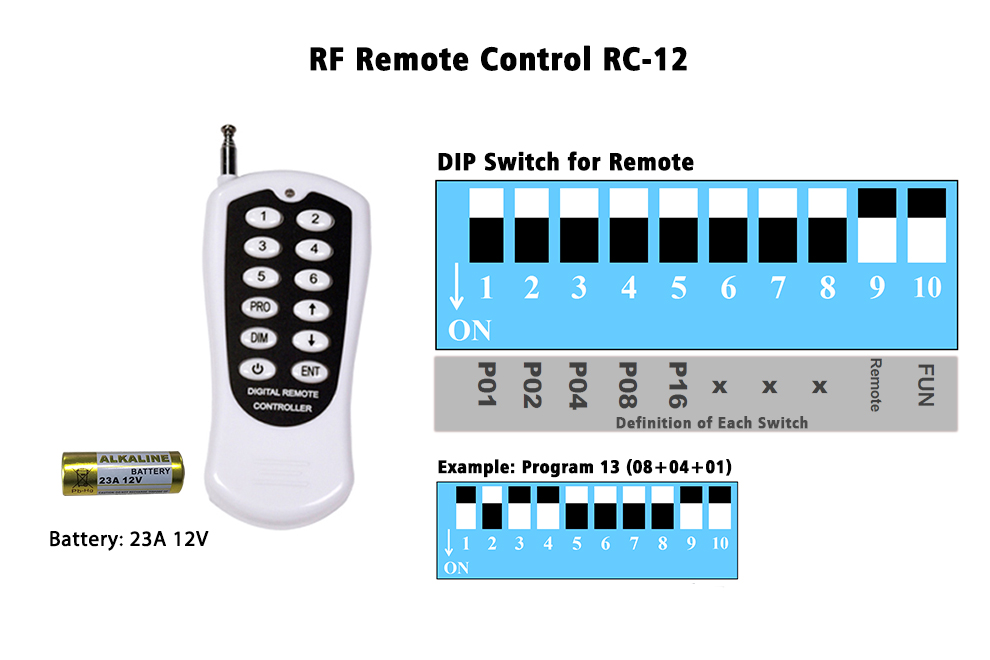

- Remote Control & DIP Switches

  LEP-1002 has 17 built-in programmes, which can be selected by the DIP switches and the remote control (SW9 & SW10 ON).

  The 12-key RF remote control has an effective control distance of around 25 metres in open area. The function of the 12-key remote control (optional):
  1. Switching the machine on and off.
  2. Selecting the built-in programs.
  3. Dimming.

  Battery: 23A 12V, 1pc (not included in the package).

SPECIFICATIONS

Specification:

Item Number

Standard

Aperture

Optional

Aperture

Maximum Fiber Capacity

(0.75mm fiber tails)

Housing

Material

Housing

Color

Dimensions

(mm)

Optional

Remote Control

LEP-1002

14mm

18mm

450pcs*2

Aluminum

Silver

L250XW125XH80

RC-12

Electrical Parameters:

Working Voltage	Power Consumption	Input Voltage	Adapter Power
12V	25W	100V-240V ac	12V/2A

LED Parameters:

LED Power	LED Color	Color Temperature	Color Temperature Options	Luminous Flux (Each Port)	Life Span
2X10W	White	6000K	3000K/4000K	1000lm@6000K	50000h

Control:

1	DIP Switches
2	Remote Control (optional)

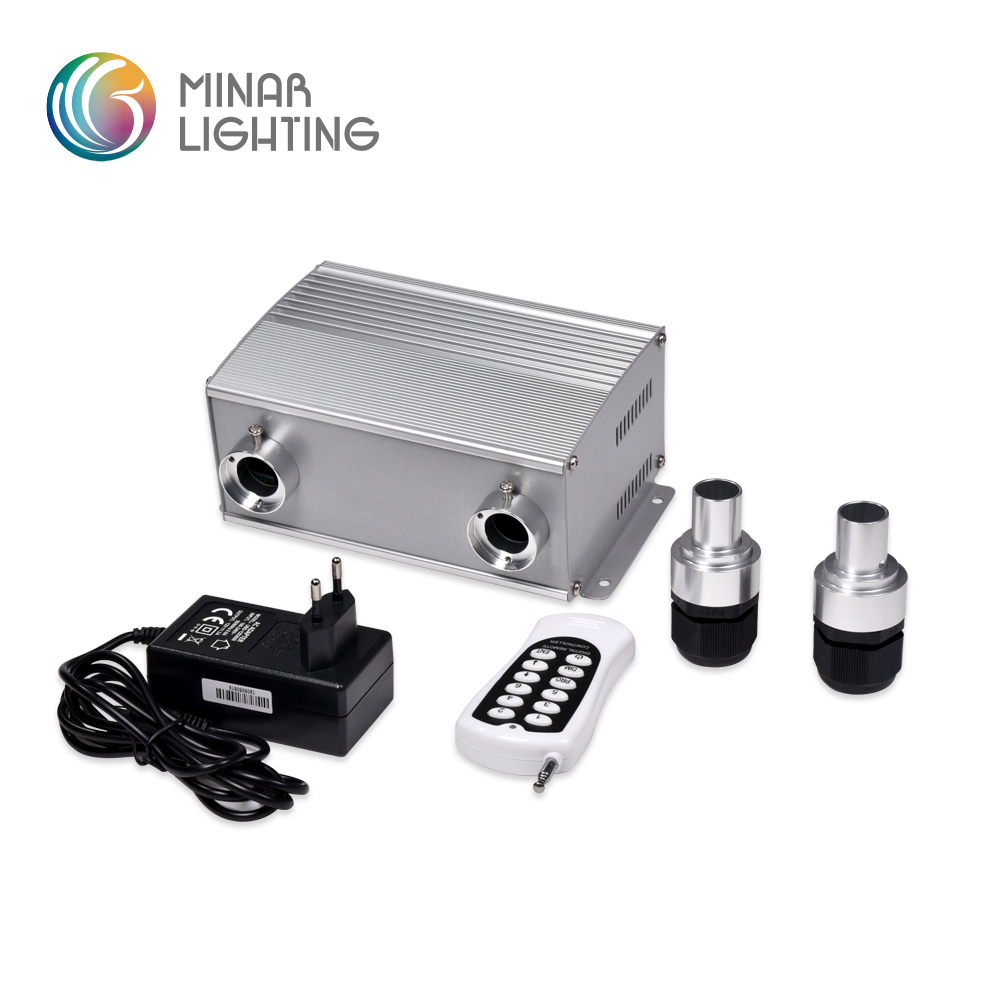

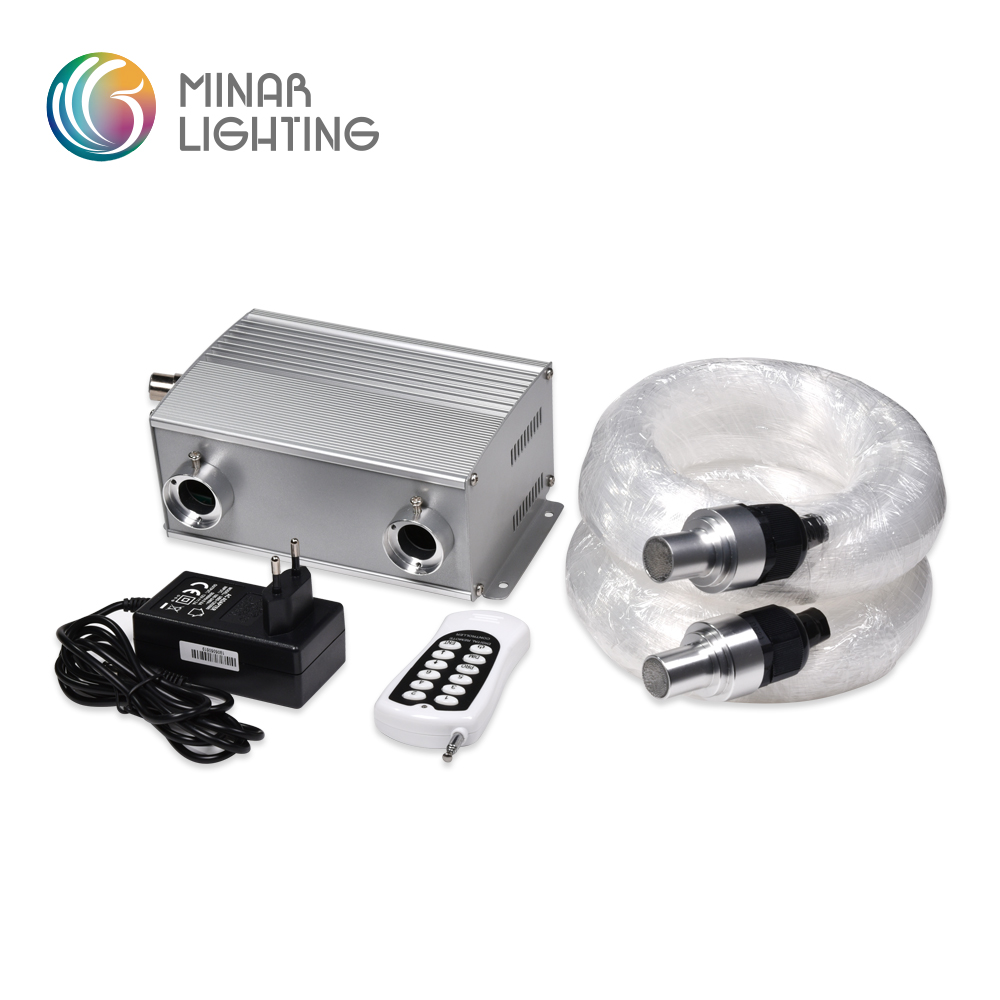

Spare Parts in the Package:

No.	Item	Quantity
1	a 6-color Wheel (built-in)	2
2	14mm Fiber Connector	2
3	AC-DC Adapter	1

Optional Parts:

No.	Item
1	12-Key RF Remote Control
2	Fast-Effect Twinkle Wheel
3	Slow-Effect Twinkle Wheel
4	Colorful Fast-Effect Twinkle Wheel
5	Colorful Slow-Effect Twinkle Wheel
6	18mm Fiber Connector

USER MANUAL

Download the instruction manual/specification
