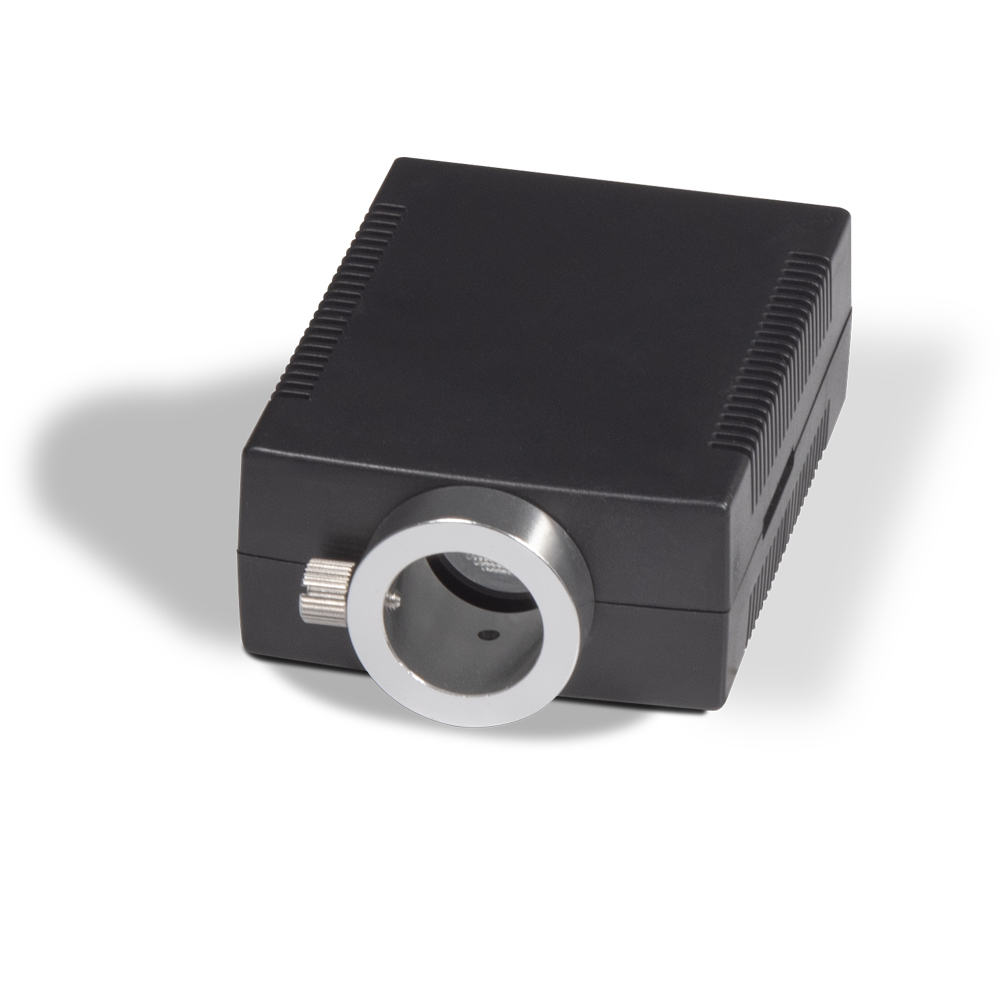

LLE-002

The LLE series of fiber optic light engines uses miniature housings with exquisite workmanship. With no fans or motors inside, the series is noise-free. These novel appearance light engines offer high-cost performance. LLE-002APP especially features mobile Application control. Unlike others, it has no DIP switches.

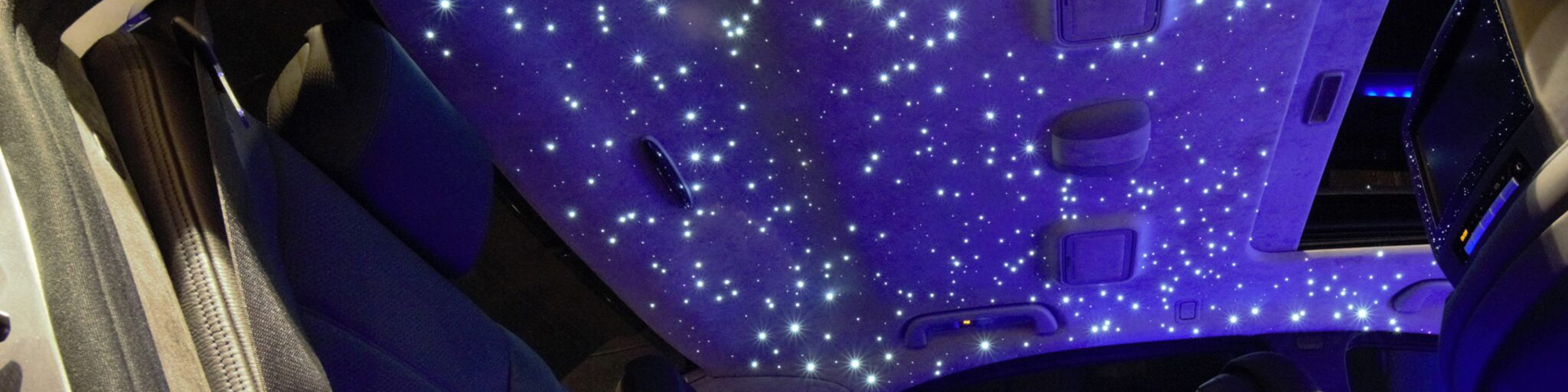

6W LED Light Engine for star ceiling

General Information:

1. Model: LLE-002,

2. Input Voltage: DC 12V,

3. Light Source: Colorful LED,

4. LED Type: RGBW, 4*1W, Cree,

5. Twinkle Disc: N/A,

6. Control: APP/Remote control,

7. Light Emitting: Static color/Cycling colors,

8. Dimmable,

9. No fans or motor, noise-free,

10. IP Rating: IP20,

11. Warranty: 2 Years,

12. Packing: Neutral color box

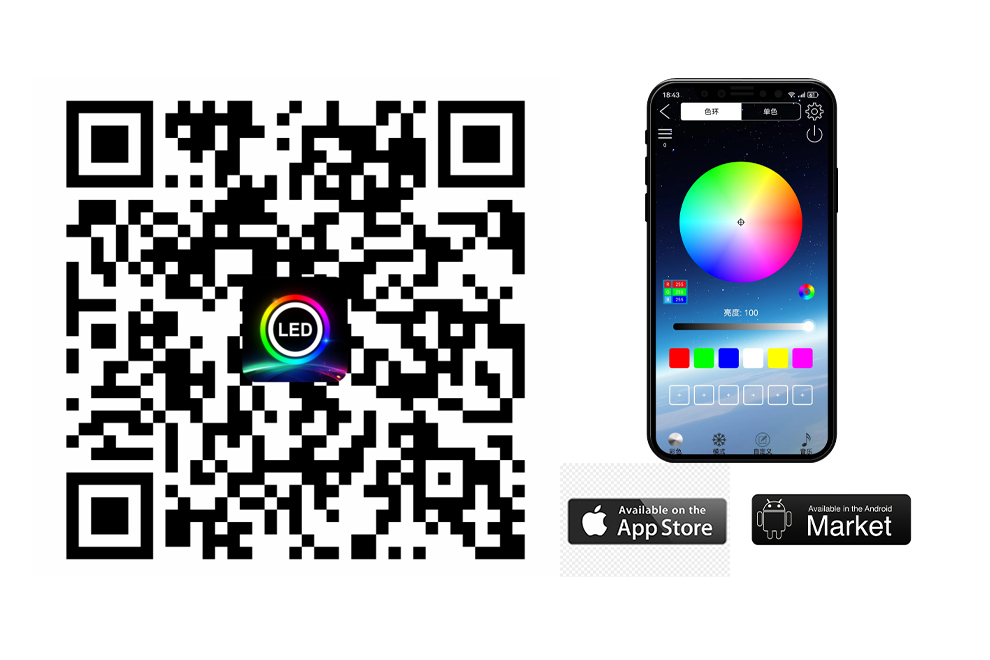

- Mobile App Control

  This light engine can be controlled by a mobile APP, which can be downloaded from the Apple App Store or Android Market. The app can also be downloaded by scanning the left QR code.

  This mobile APP is easy to operate, and APP operation manual is available to download on this page.

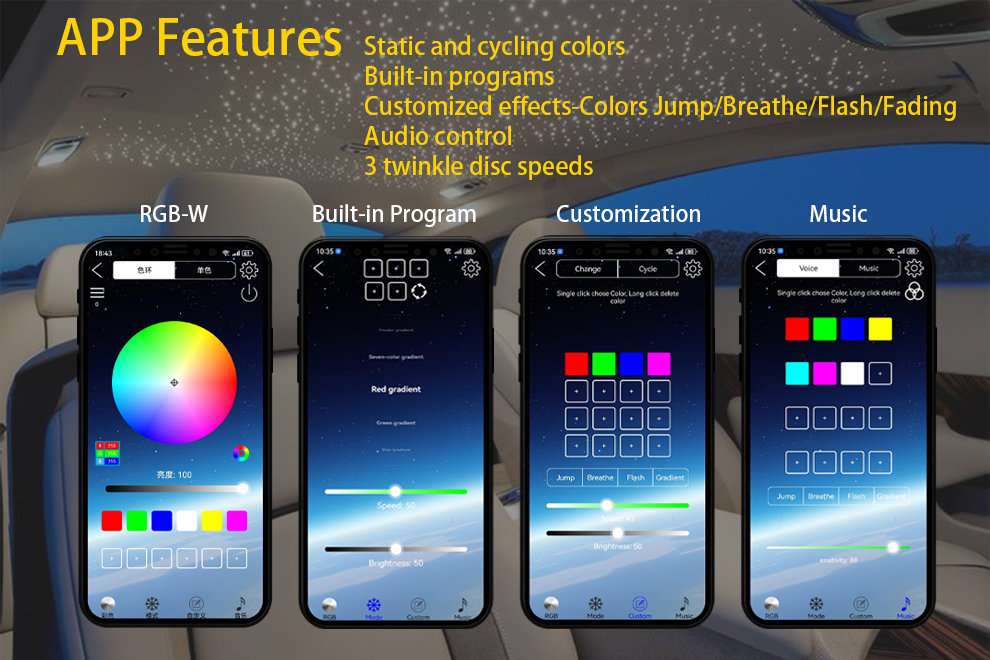

- App Features

  The APP main functions:
  * Static and cycling colors
  * Built-in programs
  * Customized effects - Colors Jump/Breathe/Flash/Fading
  * Sound-control

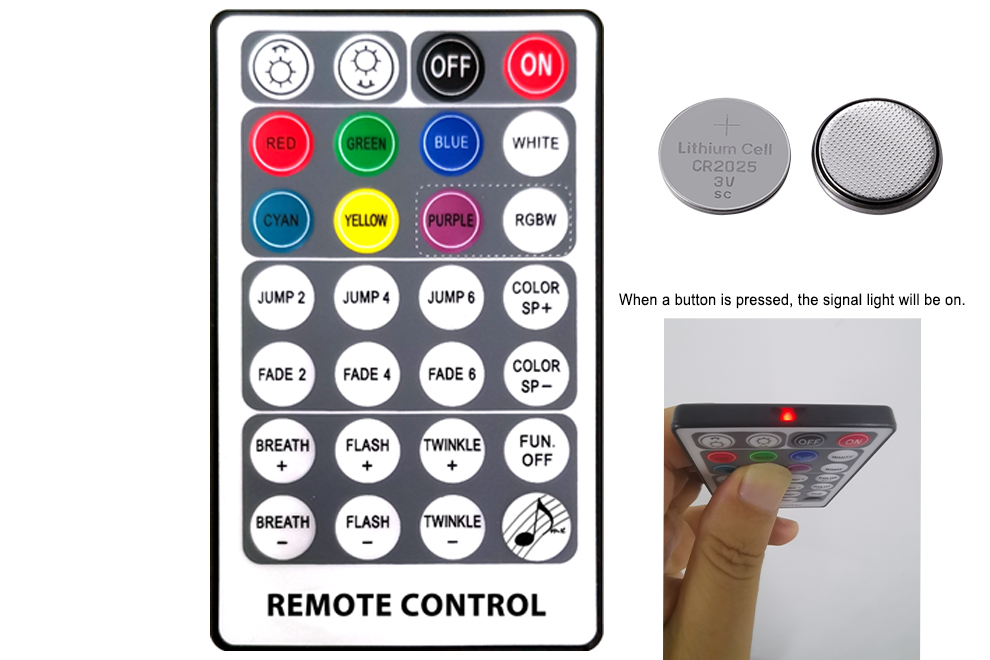

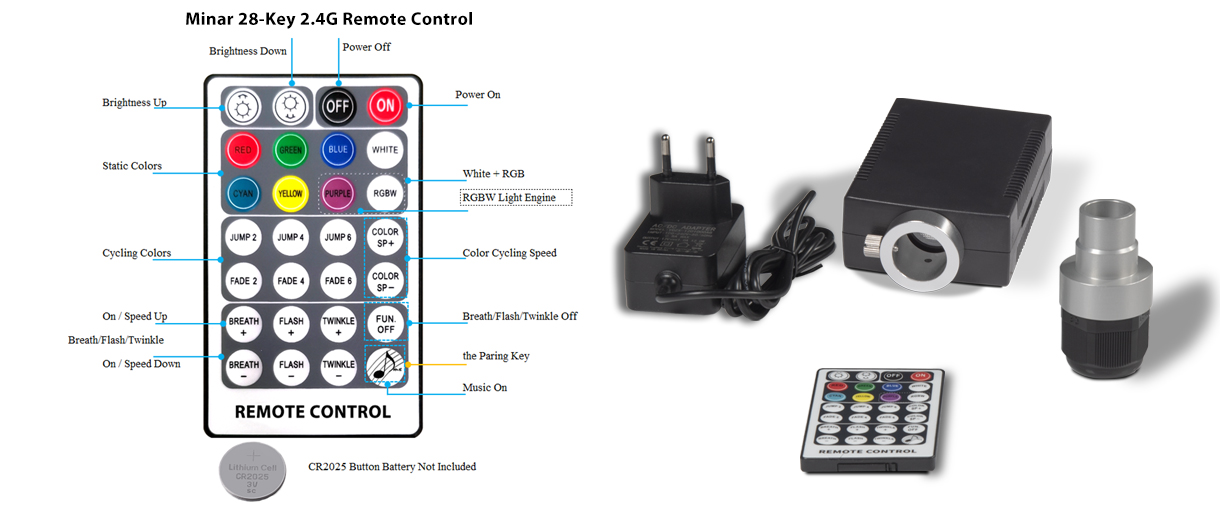

- 2.4G Remote Control RC-28M

  The 28-button remote control for the low-voltage APP control light engine is different from that for the non-APP control RGBW light engine. This remote control has the audio-on buttons.

  The matching operation of RC-28M with the APP light engine is also different from the regular 28-button remote control, RC-28. Please check the details on the User Manual of the APP light engines.

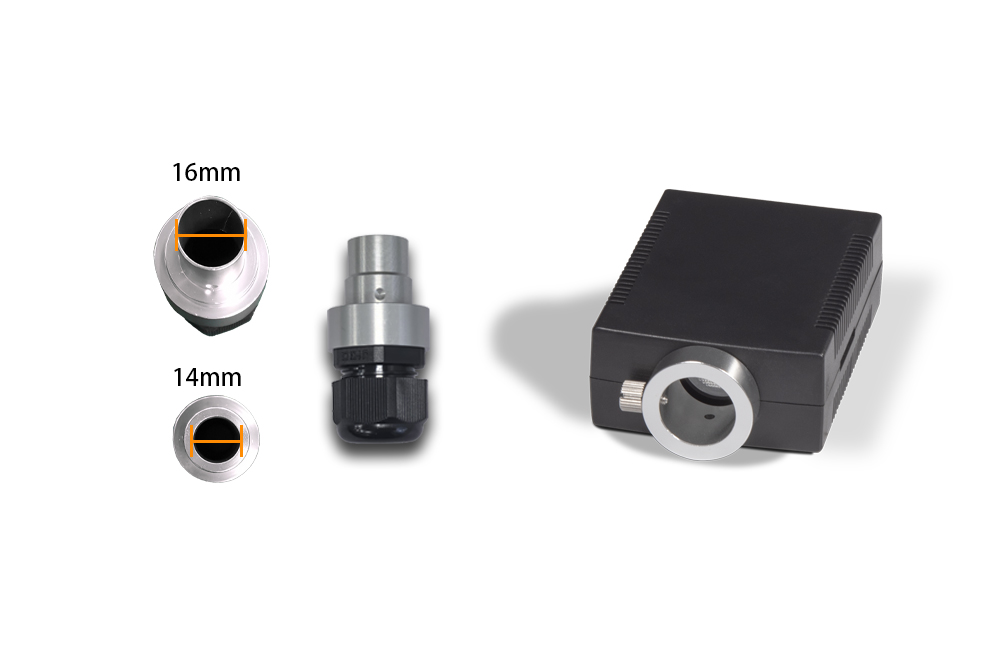

- Fiber Connector/Common End

  The structure of the light engine's flange, which holds the fiber connector, differs from that of other light engines. Its surface is flat instead of having a slim edge.

  By default, the aperture of the fiber connector for LLE-002 is 16mm. At request, 14mm is available. The non-App control low-voltage light engines have a 14mm or 18mm fiber connector aperture.

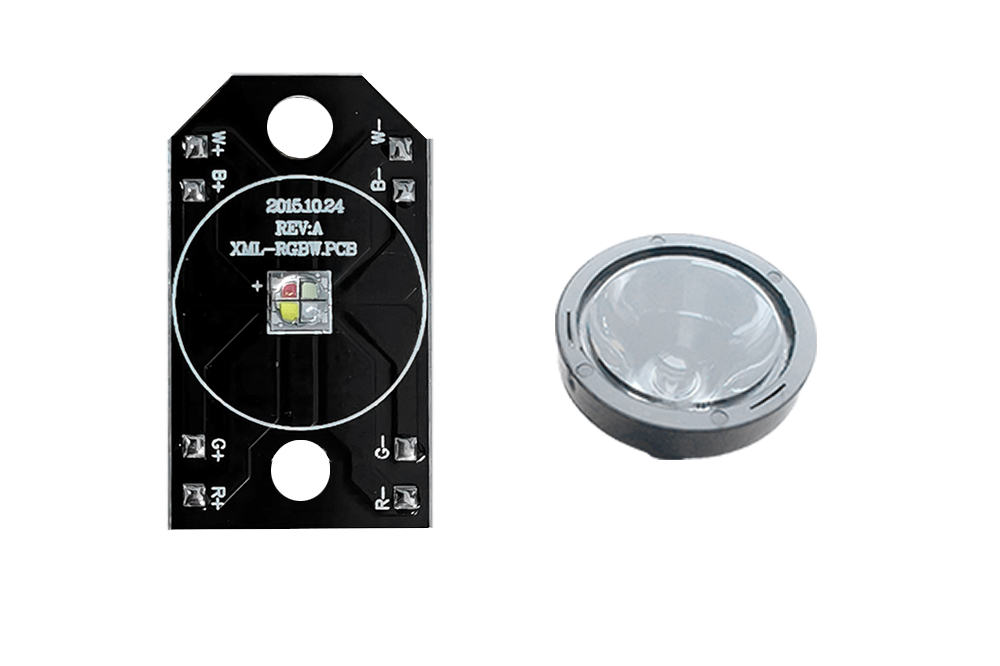

- RGBW + Lens

  1. The light engine has no motors or fans inside, so it does not produce any noise when working.
  2. The four-color LED module brings the starry ceiling a fantastic stimulating effect.
- Built-in Programs

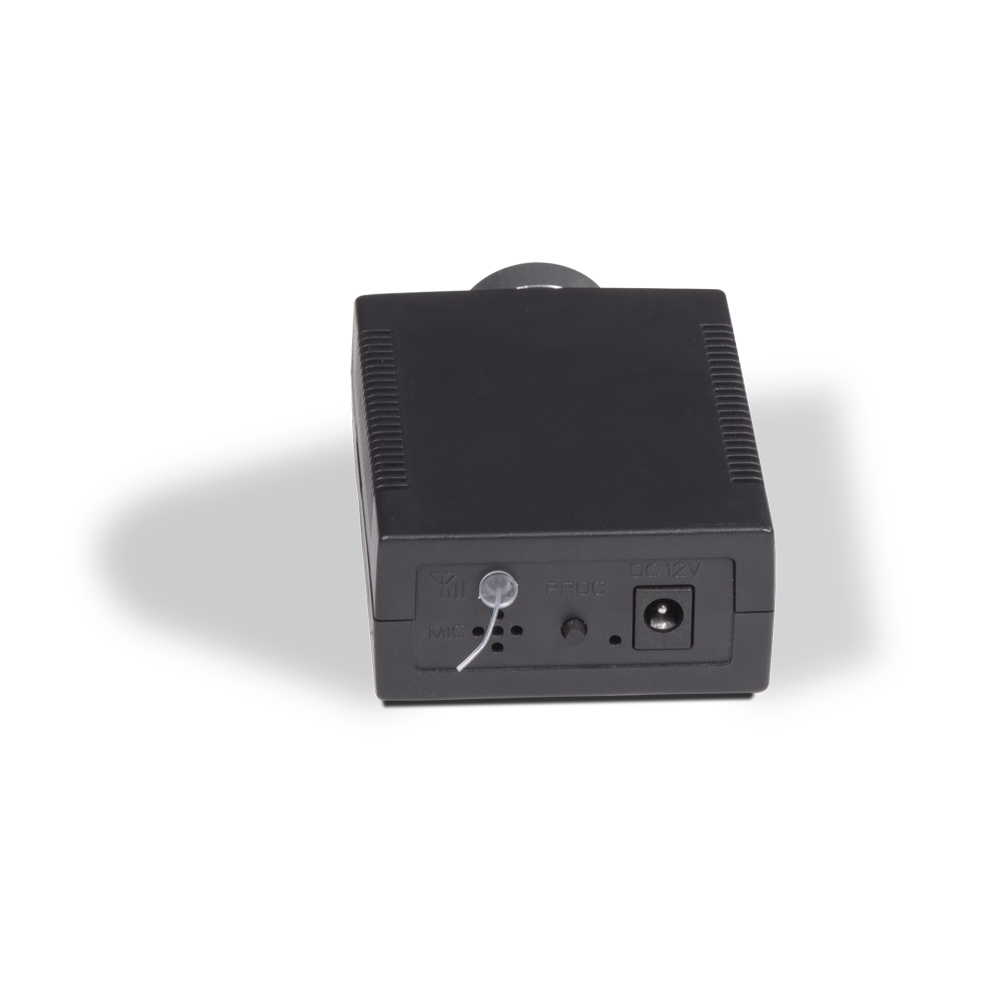

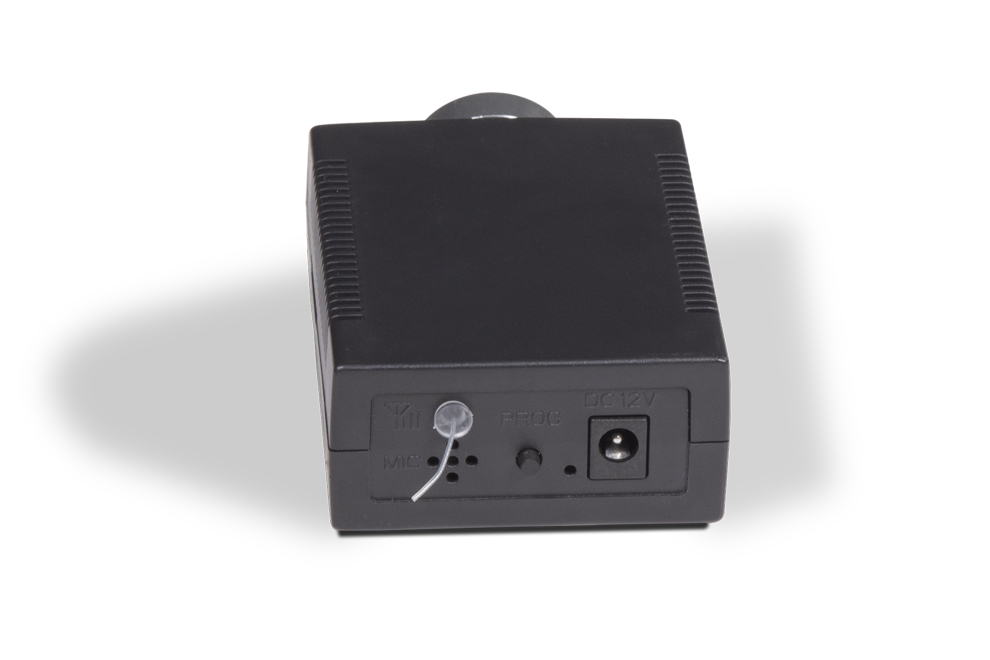

  The light engine has 11 built-in programs. Push the knob on the back panel to change the built-in program in sequence.

SPECIFICATIONS

Specifications:

Item Number

Standard

Aperture

Optional

Aperture

Maximum Fiber Capacity

(0.75mm fiber tails)

Housing

Material

Housing

Color

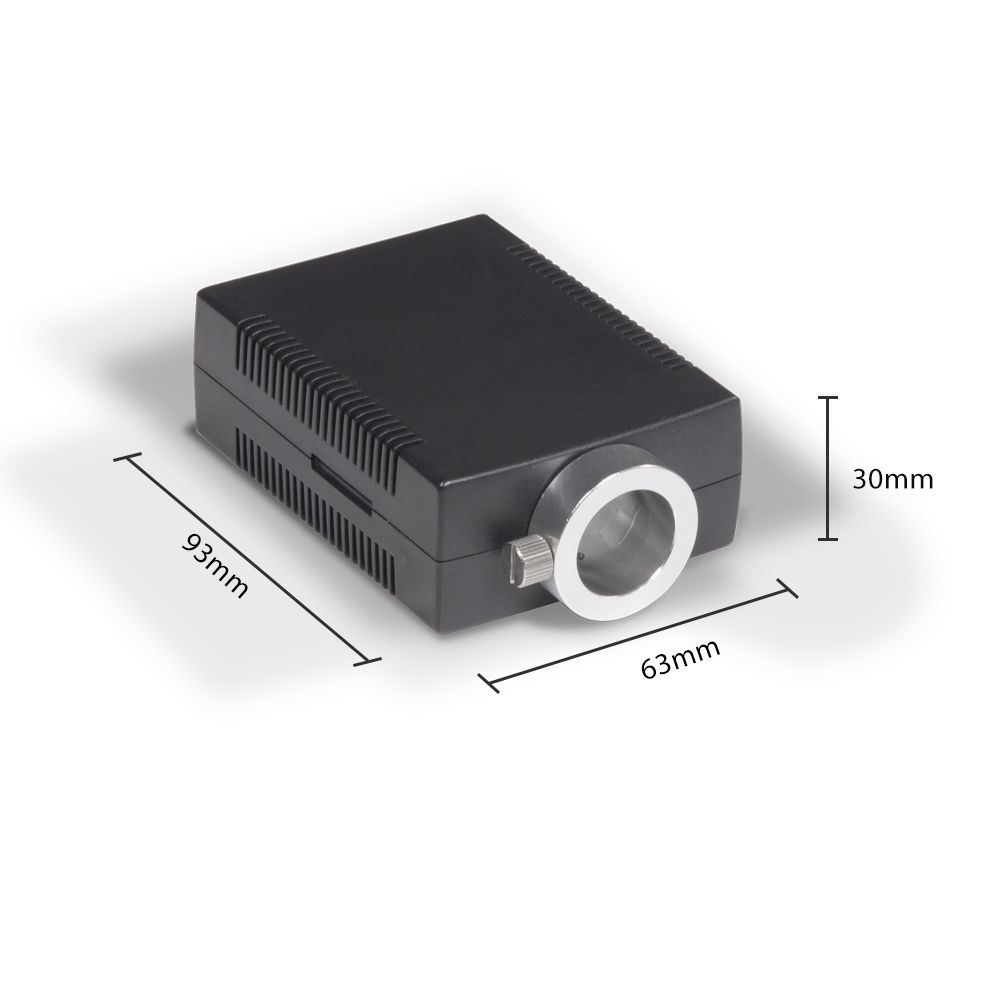

Dimensions

(mm)

Optional

Remote Control

LLE-002

16mm

14mm

350pcs

Plastic

Black

L93XW63XH30

RC-28M

Electrical Parameters:

Working Voltage	Power Consumption	Input Voltage	Adapter Power
12V	6W	100V-240V ac	12V/1A

LED Parameters:

LED Power	LED Color	Color Temperature	Color Temperature Options	Luminous Flux	Life Span
4X1W	RGBW	W: 6000K	W: 3000K	N/A	50000h

Effects

RGBW Color Mixing	Yes
Twinkle	N/A

Control:

1	APP
2	Remote Control
3	Knob

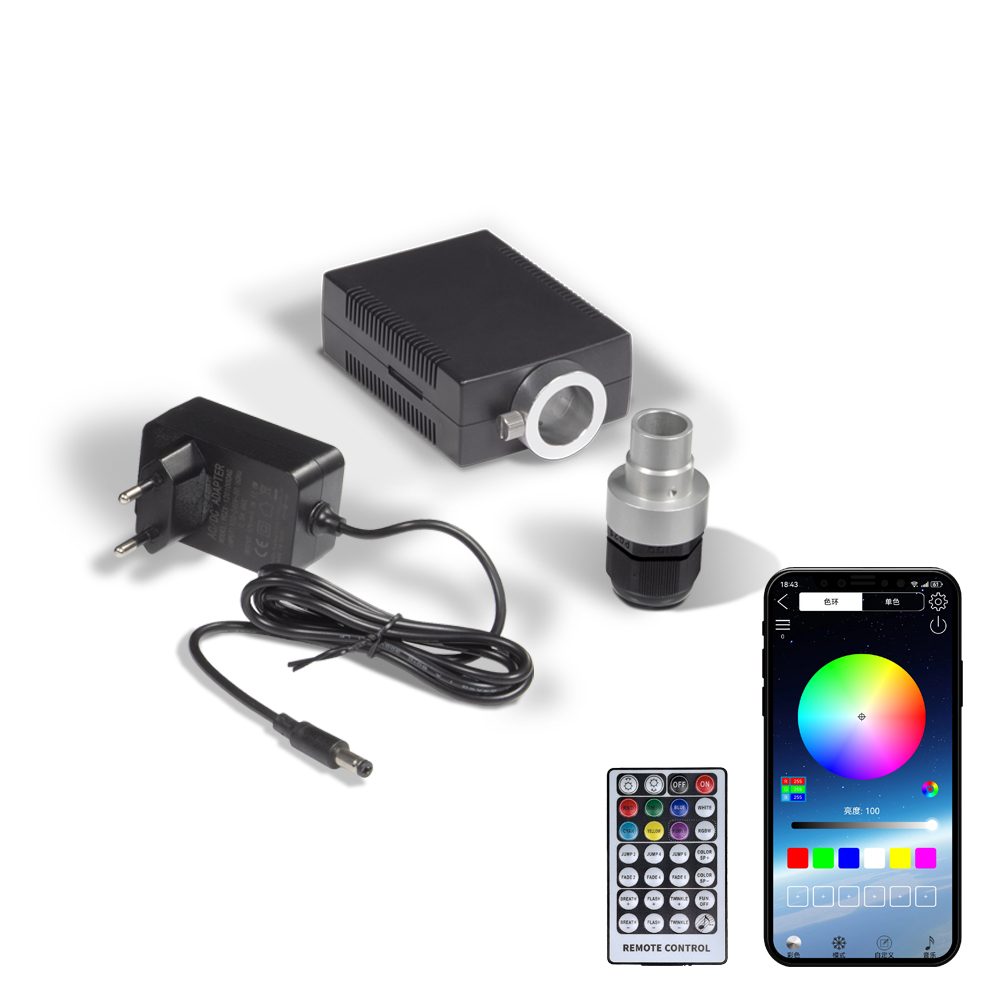

Spare Parts in the Package:

No.	Item	Quantity
1	16mm Fiber Connector	1
2	AC-DC Adapter	1

Optional Parts:

No.	Item
1	28-Key 2.4G Remote Control
2	14mm Fiber Connector
