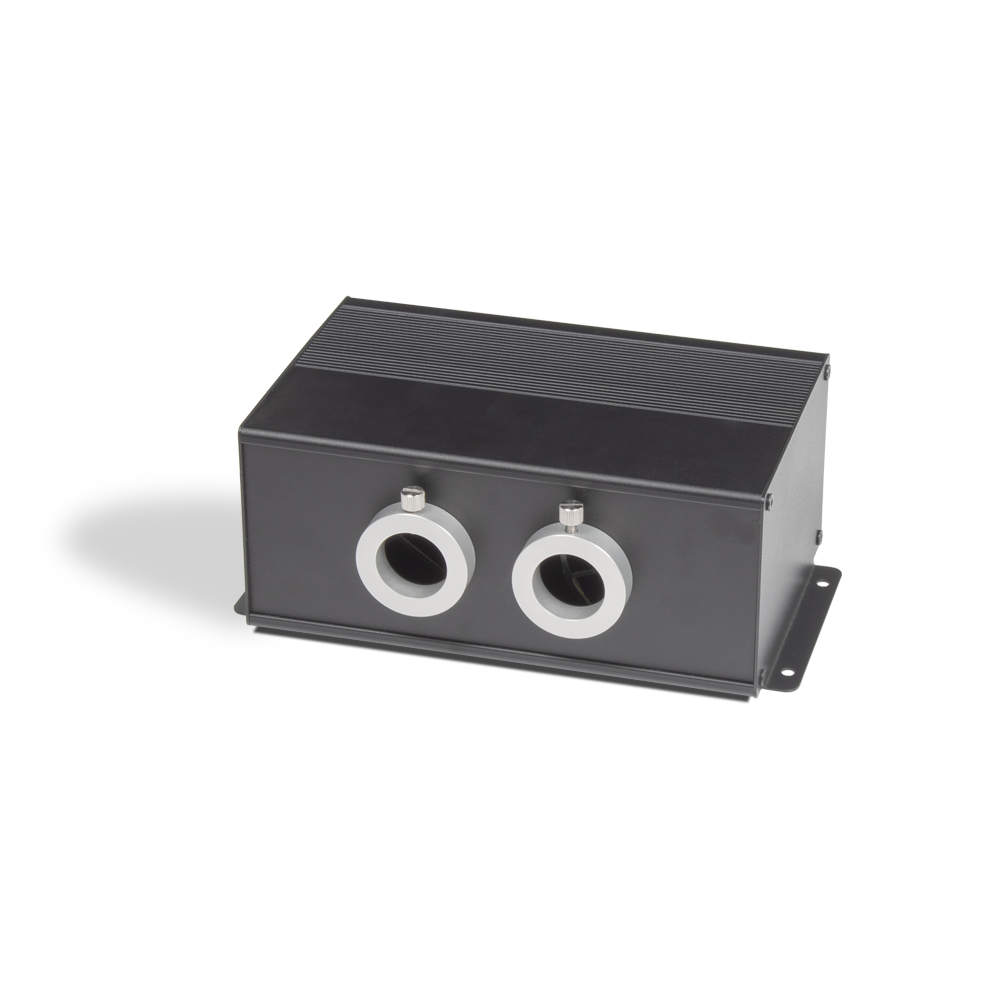

LEF-432BDMX

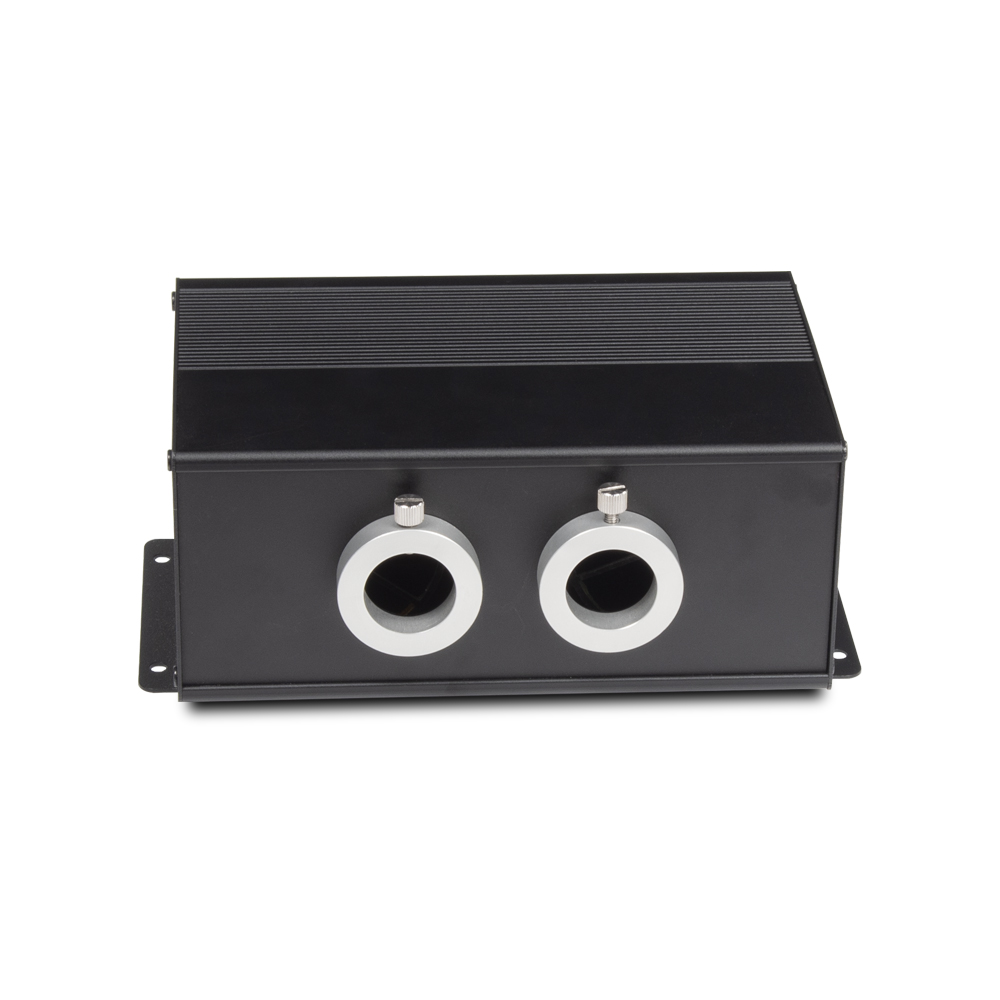

The new LEF series of low-voltage fiber optic light engines contains two DMX512 models. Both have dual ports and dual motors. They are equipped with either a 6-color wheel or a twinkle wheel. Compared to the old model, the new LEF light engines have added APP control, and the port diameter has increased to 20mm for more fiber tails.

27W LED Light Engine for Star Ceiling

General Information:

1. Model: LEF-432BDMX,

2. Input Voltage: DC 12V,

3. Light Source: Colorful LED,

4. LED Type: RGBW, 2*4*3W, Cree,

5. Dual ports: Work in a synchronous way,

6. Wheel/Disc: Twinkle effect,

7. Control: APP/DMX512/Remote control/DIP switches,

8. Light Emitting: Static color/Cycling colors,

9. Dimmable,

10. No fans, noise-free,

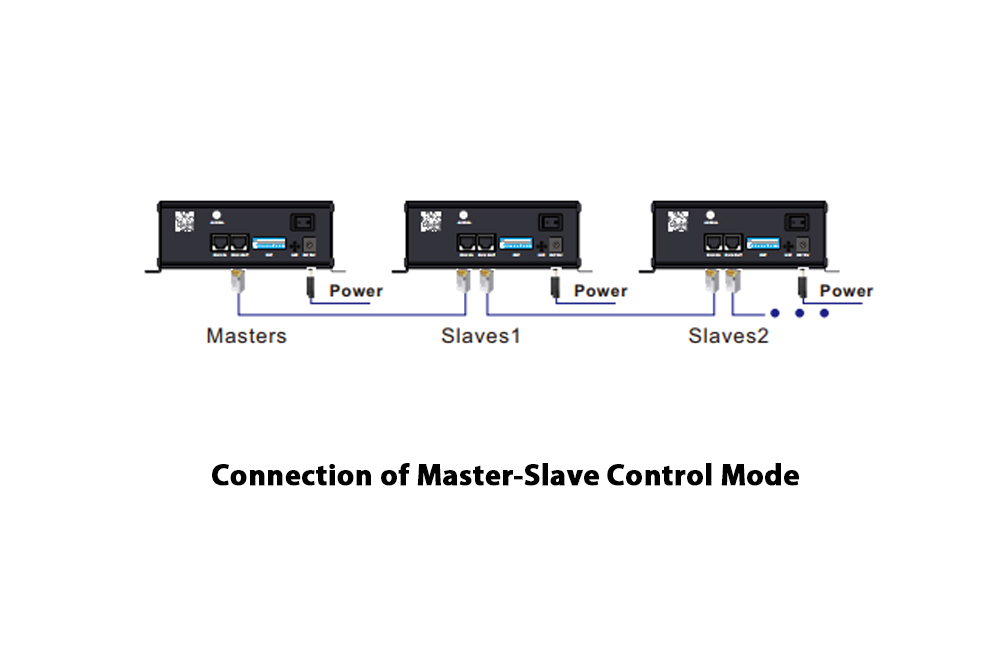

11. DMX512 protocol: DMX512 console or master-slave control

12. IP Rating: IP20,

13. Warranty: 2 Years,

14. Packing: Neutral color box.

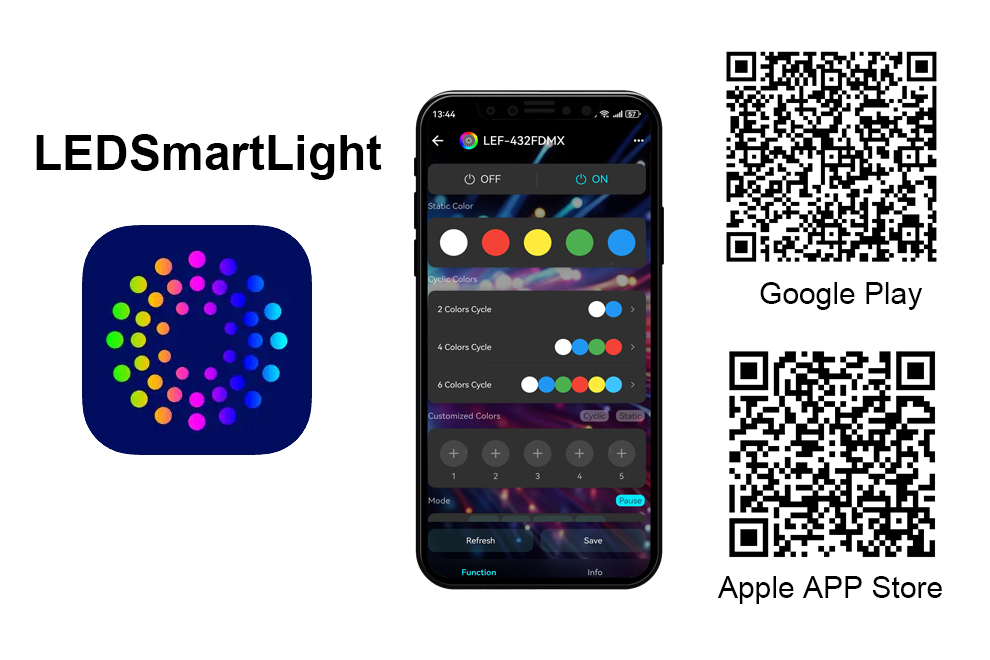

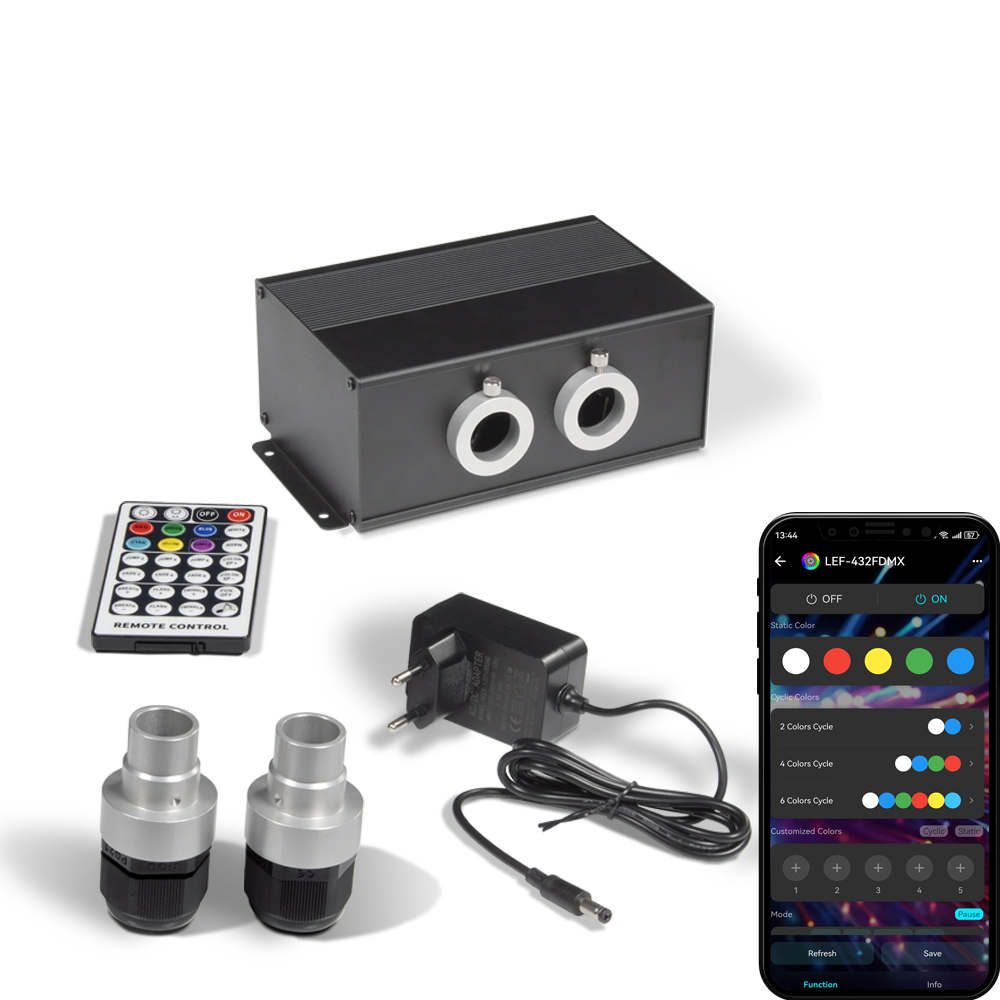

- Mobile App Control---LEDSmartLight

  This light engine can be controlled by a mobile APP, LEDSmartLight, which can be downloaded from the Apple App Store or Google Play. The app can also be downloaded by scanning the left QR code.

  This mobile APP is developed by Minar Illumination and is different from the existing ones in the market. It features easy operation.

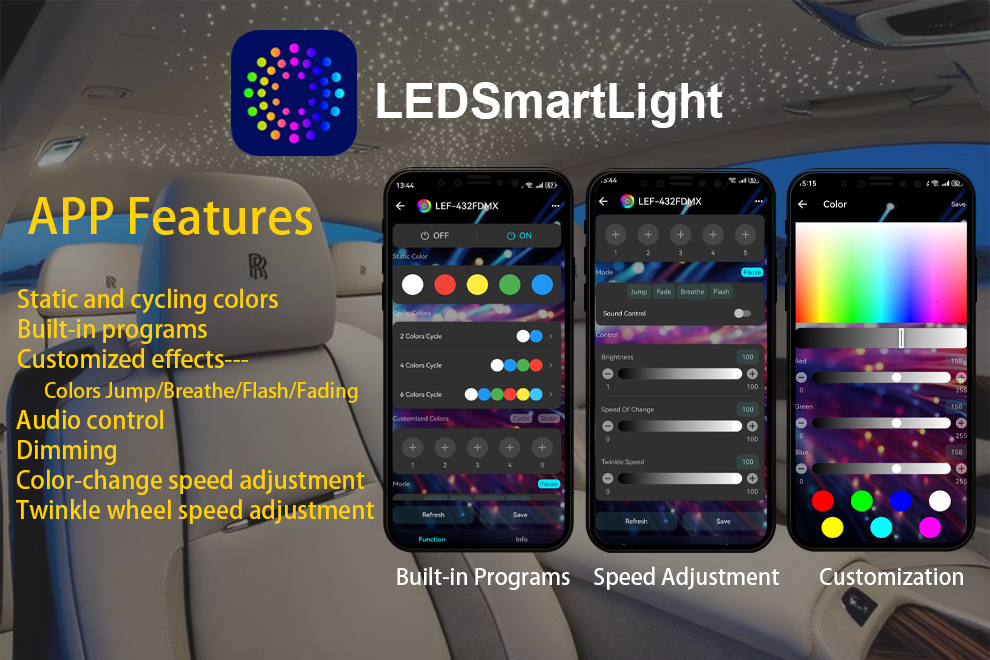

- App Features---LEDSmartLight

  The APP main functions:
  * Static and cycling colors
  * Built-in programs
  * Customized effects - Colors Jump/Breathe/Flash/Fading
  * Audio control
  * Dimming
  * Color-change speed adjustment
  * Twinkle wheel speed adjustment

  Remarks: 1. The control interface will not show up until the APP has connected to a light engine via Bluetooth. 2. Color customization is for light engines of RGBW models only.

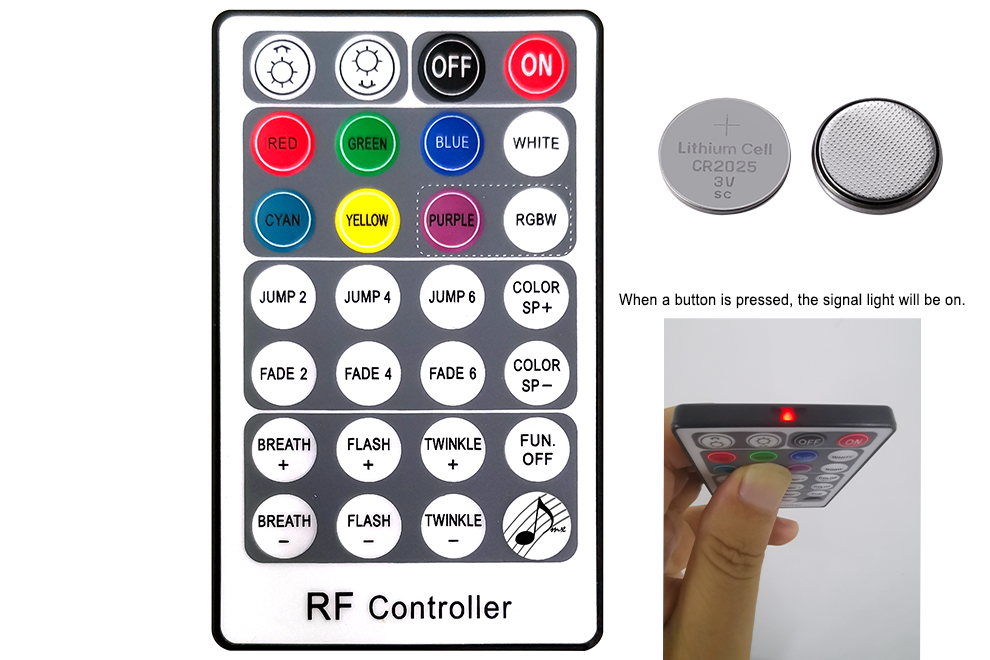

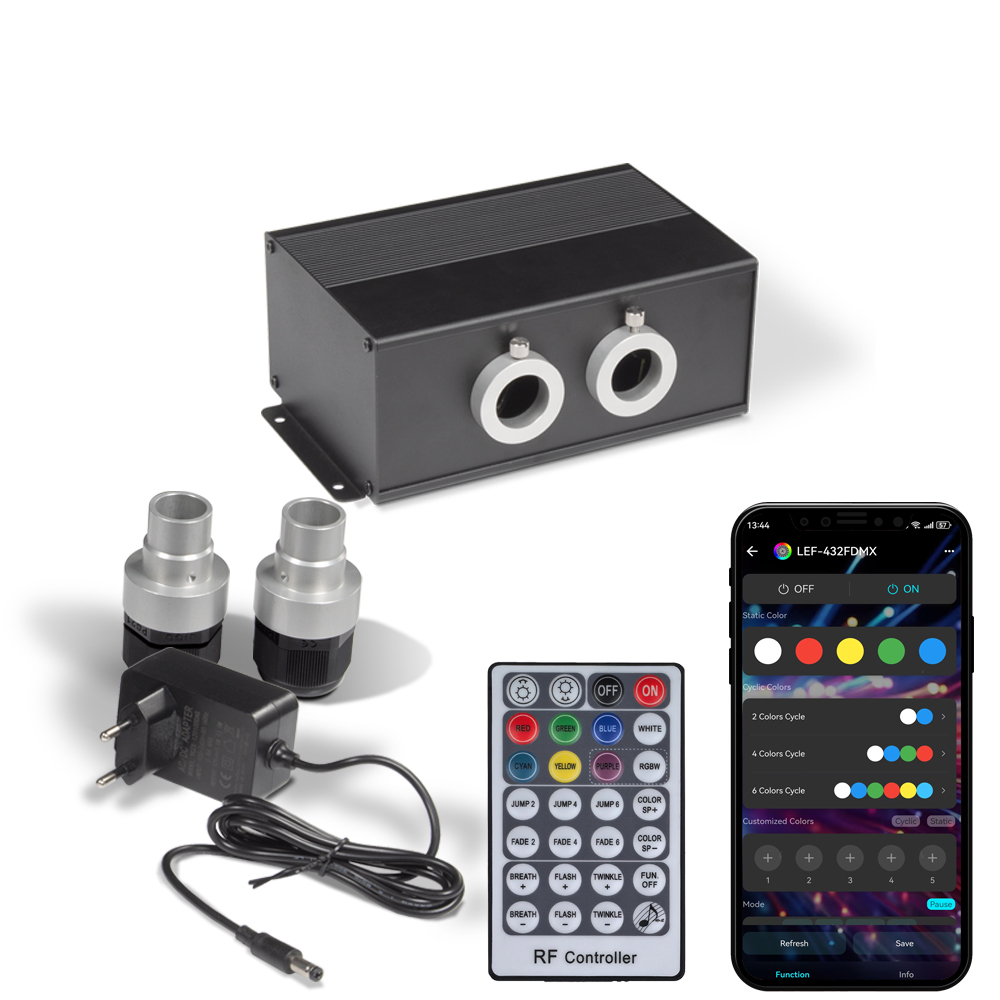

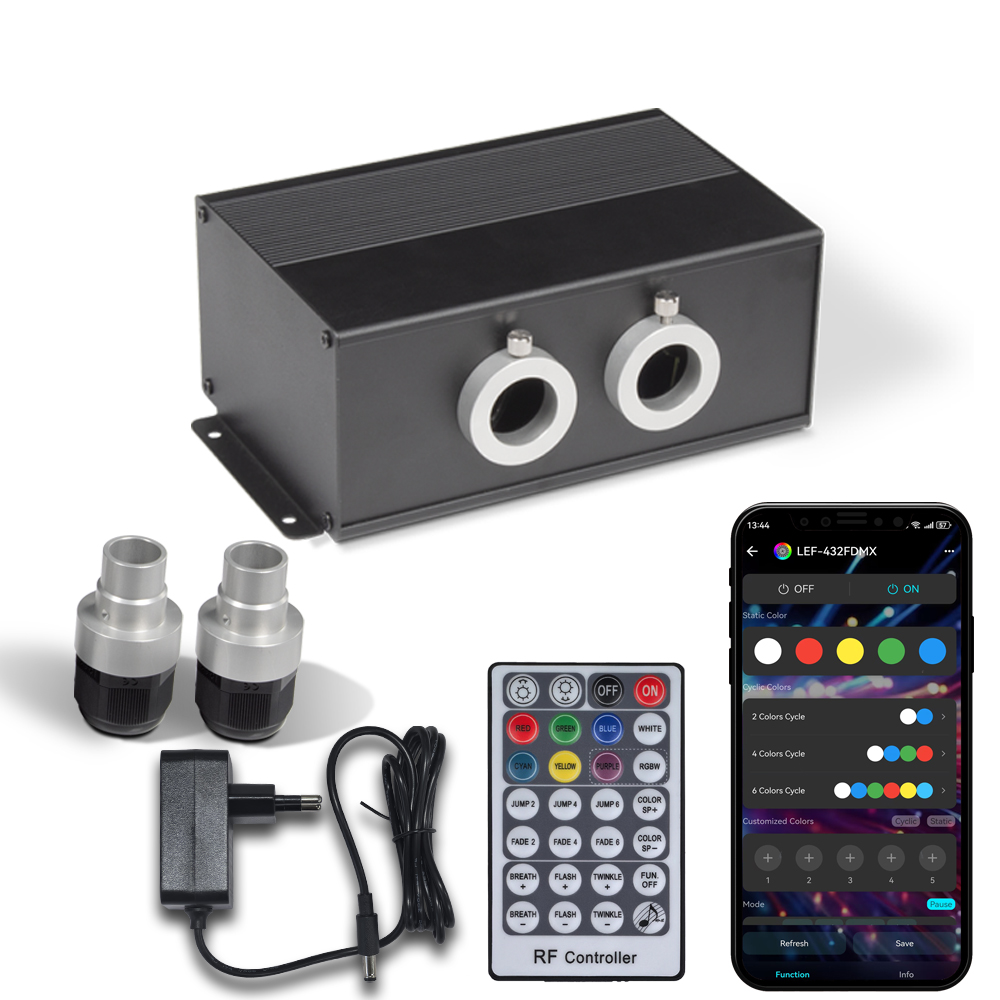

- RF Remote Control RC-28M

  The 28-button remote control for the low-voltage APP control light engine differs from that for the non-APP control RGBW light engine. This remote control has the audio-on buttons.

  The matching operation of RC-28M with the APP light engine is also different from the regular 28-button remote control, RC-28.

  Remarks: RC-28M is available in two models, the RF version and 2.4G version, which are not interchangeable. It depends on which APP applies to the machine. Please check the details in the User Manual for the APP light engines.

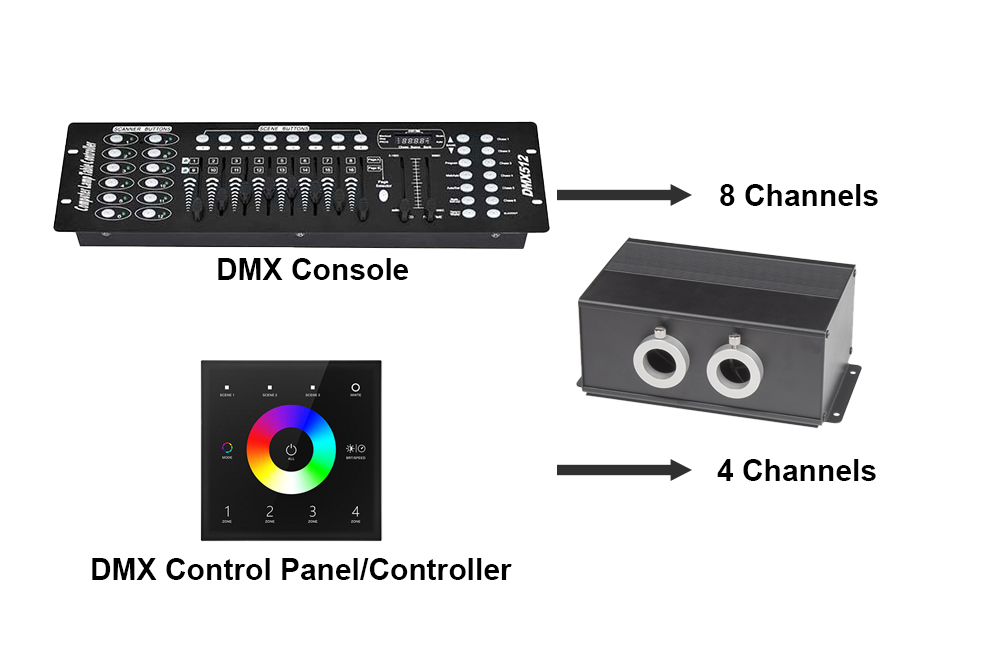

- DMX channels: 8CH vs 4CH

  By default, LEF-432DMX has 8 DMX channels for colors and speed/dimming/flashing control via a DMX console. In case it is connected to a DMX controller/DMX control panel, the light engine needs to come out with 4 DMX channels of RGBW only.

  Please contact the sales for 4 DMX channels version if you need it.

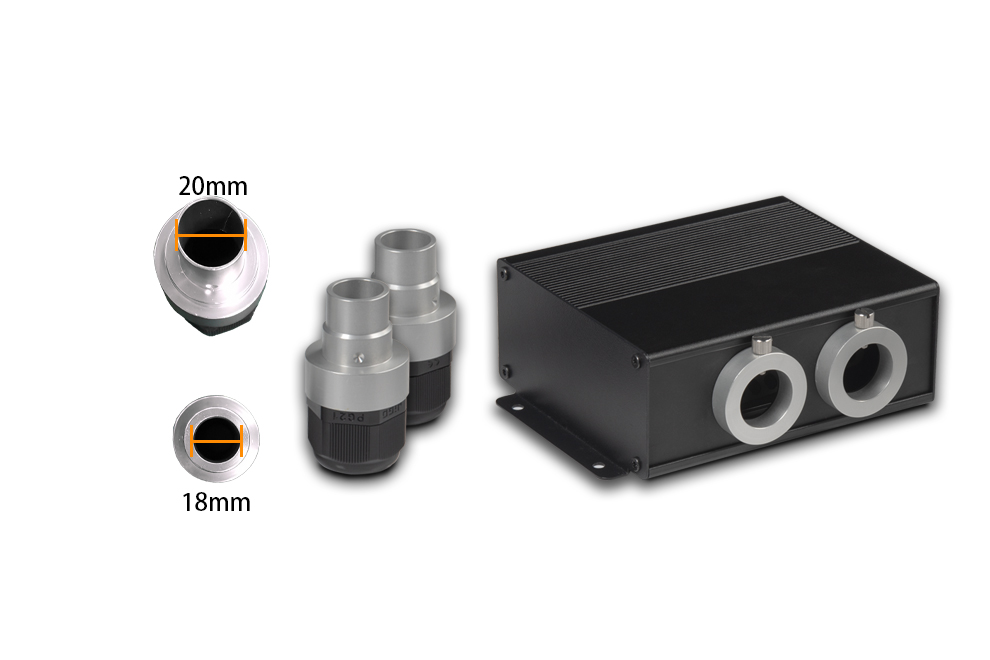

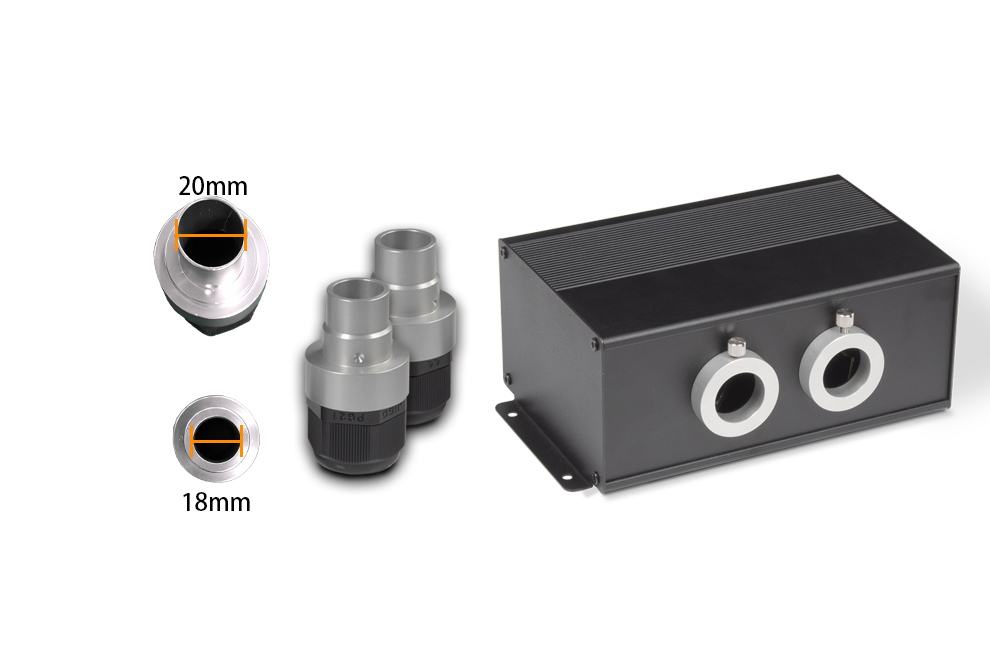

- Fiber Connector/Common End

  The structure of the light engine's ferrule which holds the fiber connector is different from that of other light engines. Its surface is flat instead of having a slim edge.

  By default, the aperture of the fiber connector for the low-voltage APP light engine is 18mm. At request, 20mm is available. For the non-App control low-voltage light engines, their fiber connector aperture is 14mm or 18mm.

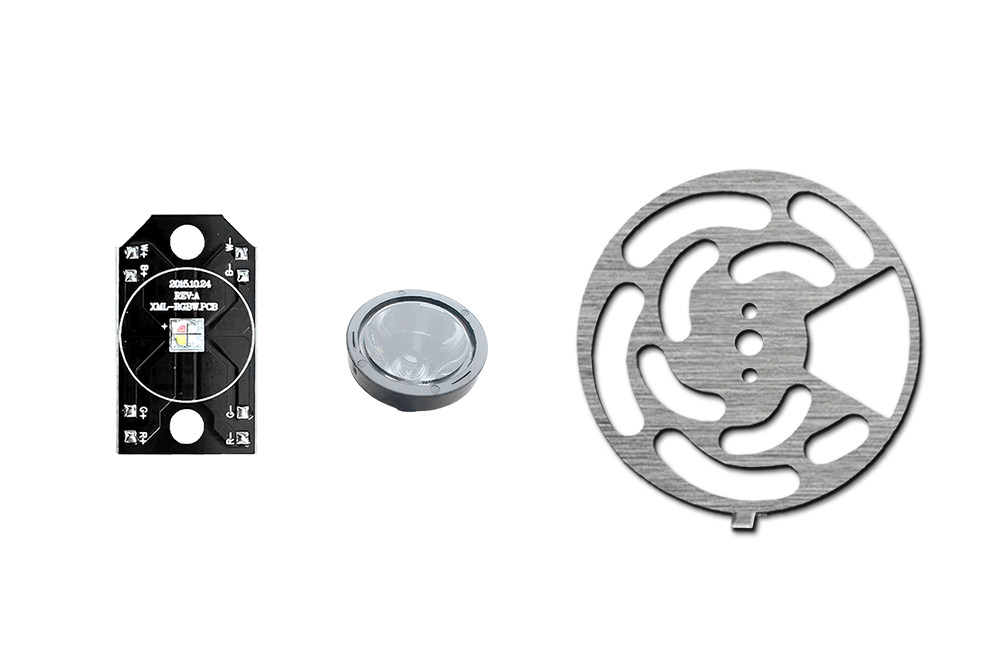

- RGBW + Lens

  1. The light engine has no fans inside, so it does not produce noise when working.

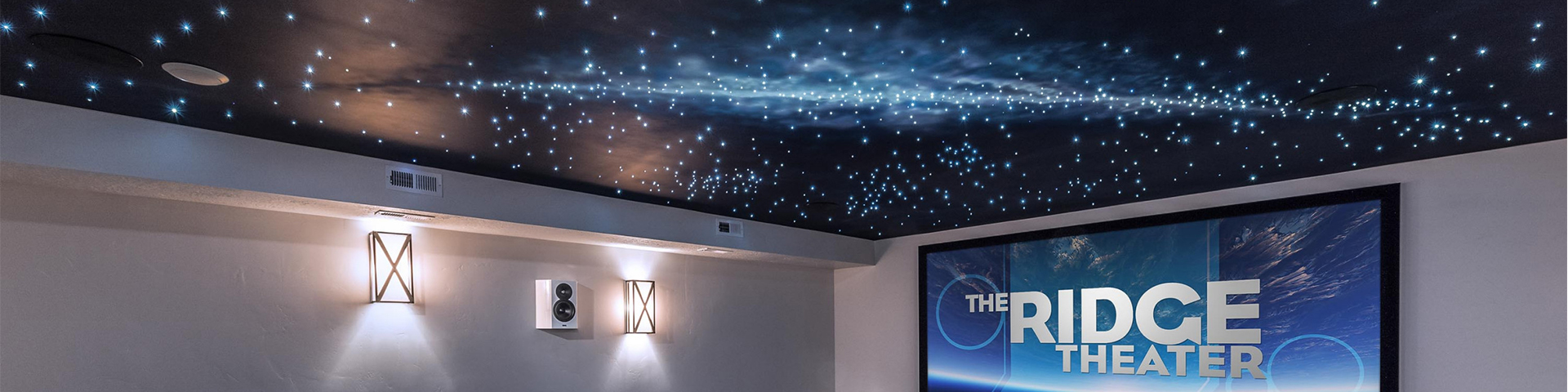

  2. The four-color LED module brings the starry ceiling a fantastic stimulating effect.

SPECIFICATIONS

Specification:

Item Number

Standard

Aperture

Optional

Aperture

Maximum Fiber Capacity

(0.75mm fiber tails)

Housing

Material

Housing

Color

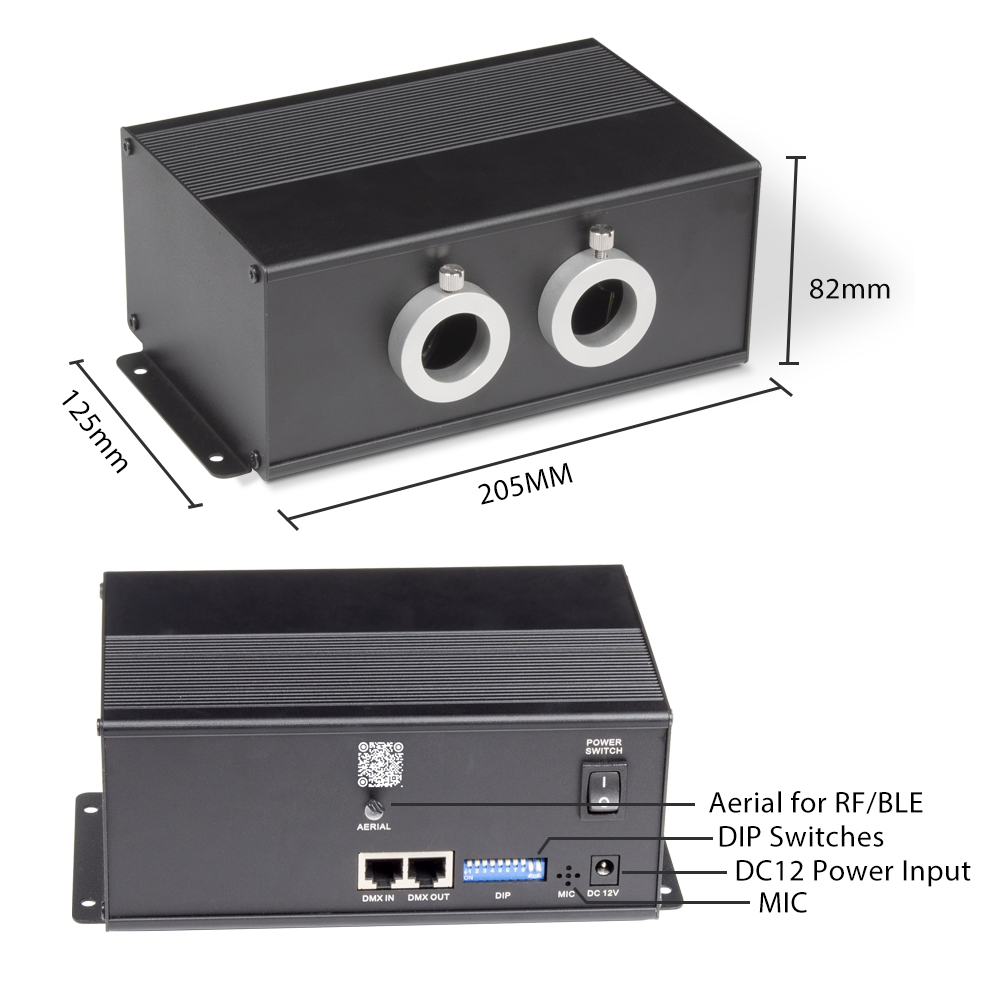

Dimensions

(mm)

Optional

Remote Control

LEF-432DMX

18mm

20mm

540pcs*2

Aluminum

Silver

L205XW125XH82

RC-12

Electrical Parameters:

Working Voltage	Power Consumption	Input Voltage	Adapter Power
12V	27W	100V-240V ac	12V/2A

LED Parameters:

LED Power	LED Color	Color Temperature	Color Temperature Options	Luminous Flux	Life Span
2-4X3W	RGBW	W: 6000K	W: 3000K	N/A	50000h

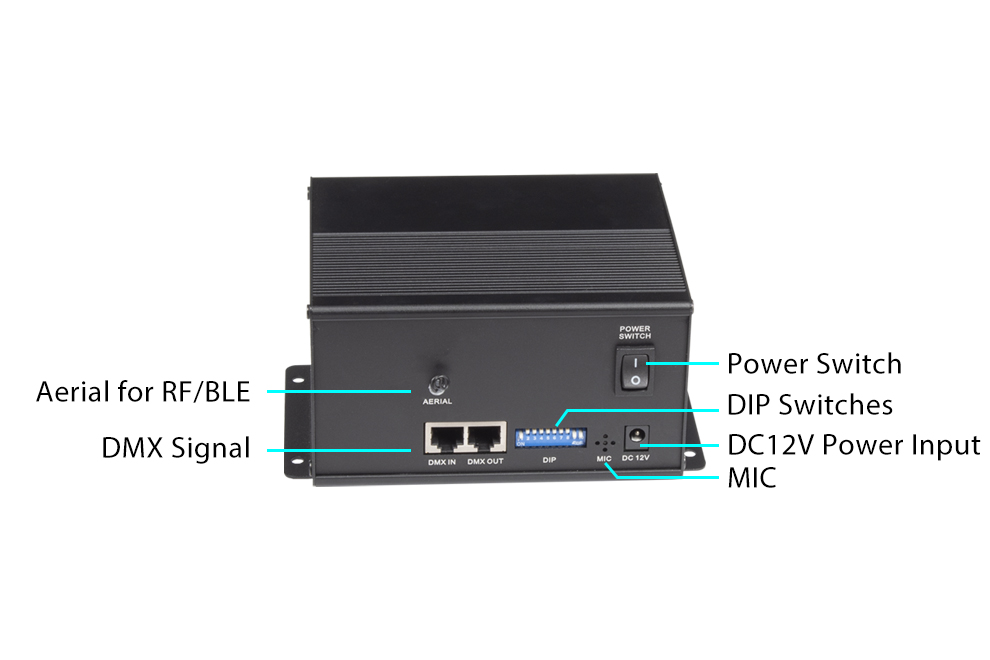

Control:

1	APP control

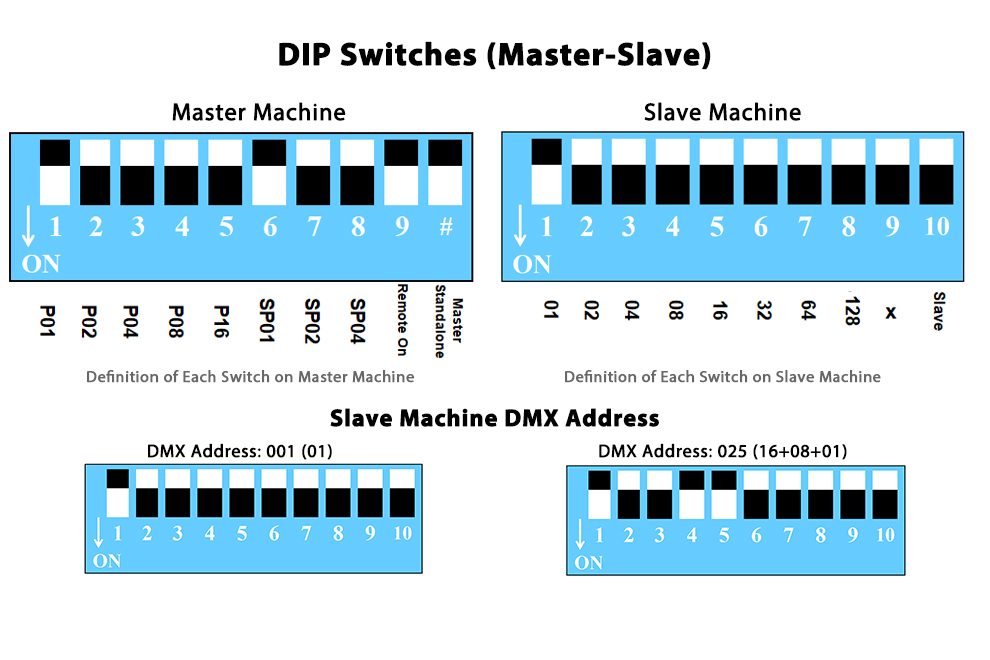

2	DIP Switches
3	Remote Control (optional)
4	Master-Slave
5	DMX Console/Controller

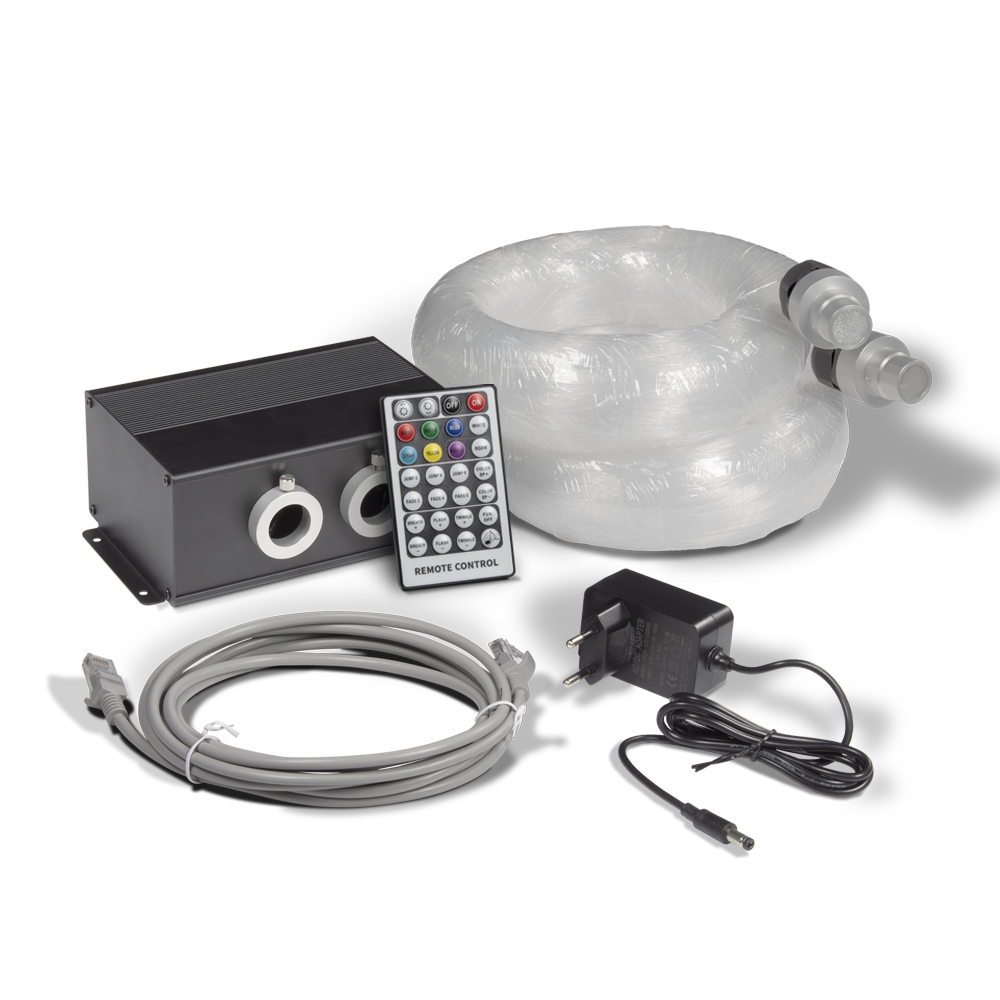

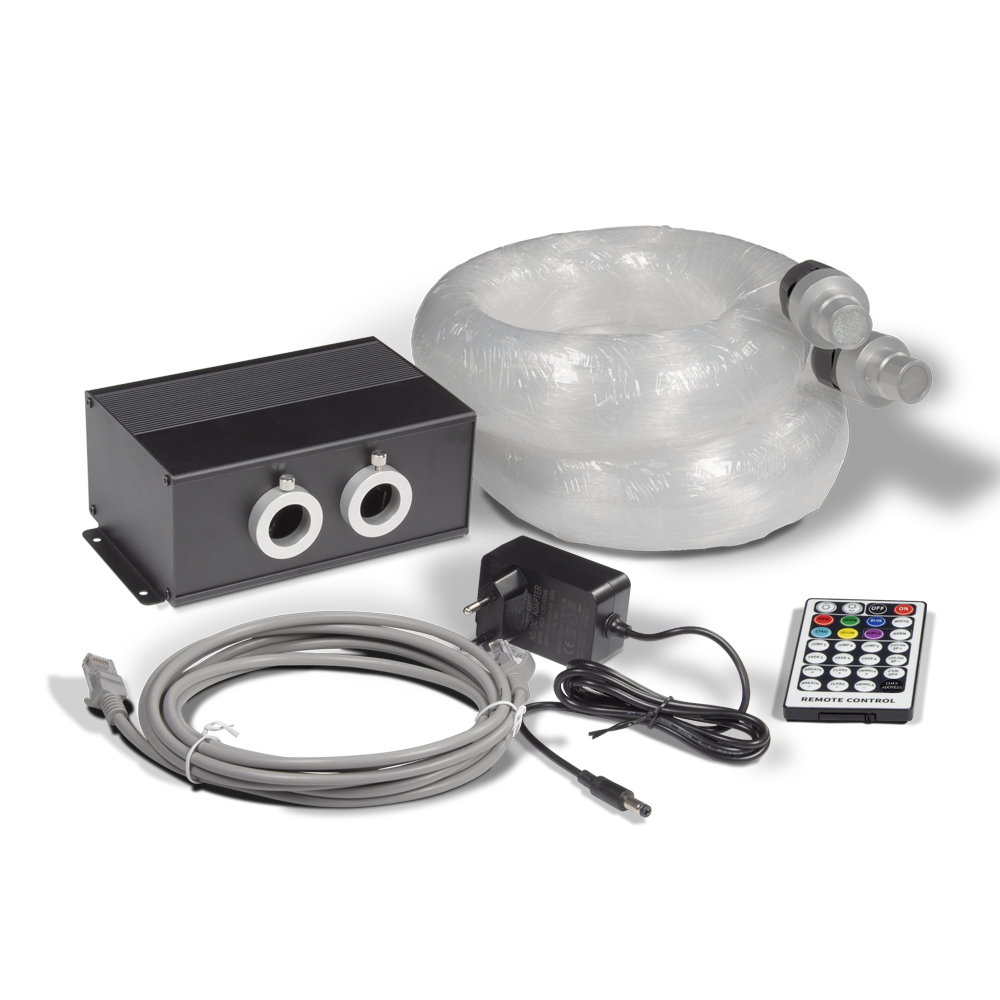

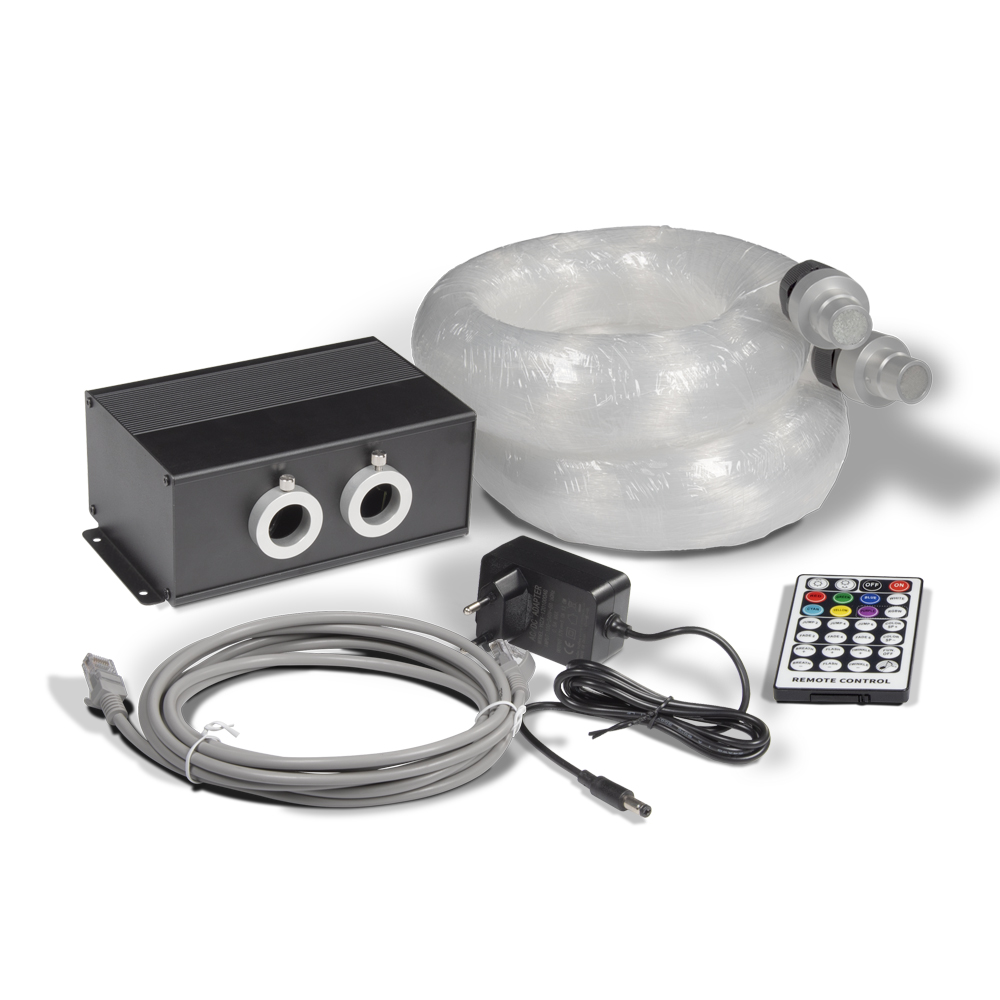

Spare Parts in the Package:

No.	Item	Quantity
1	Slow-Effect Twinkle Wheel (built-in)	2
2	18mm Fiber Connector	2
3	AC-DC Adapter	1
4	DMX512 Signal Cable	1

Optional Parts:

No.	Item
1	28-Key RF Remote Control
2	Fast-Effect Twinkle Wheels
3	20mm Fiber Connectors
