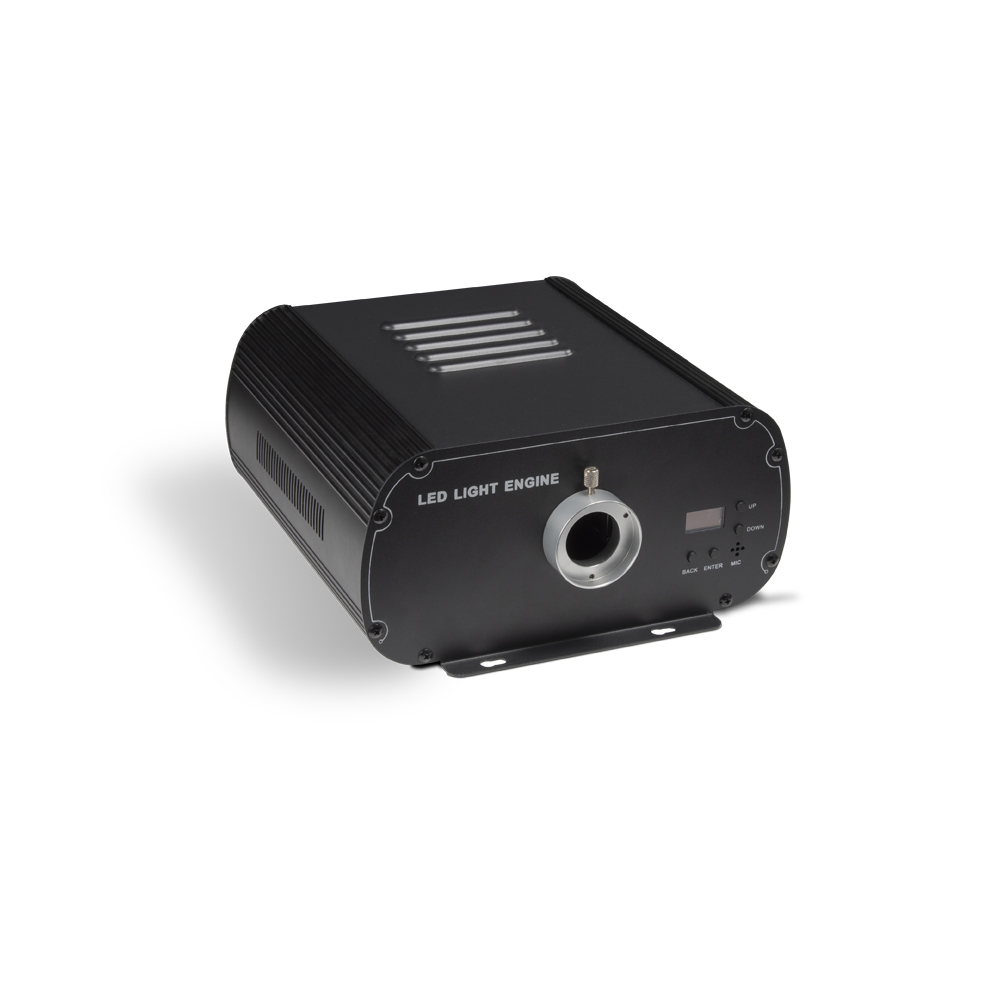

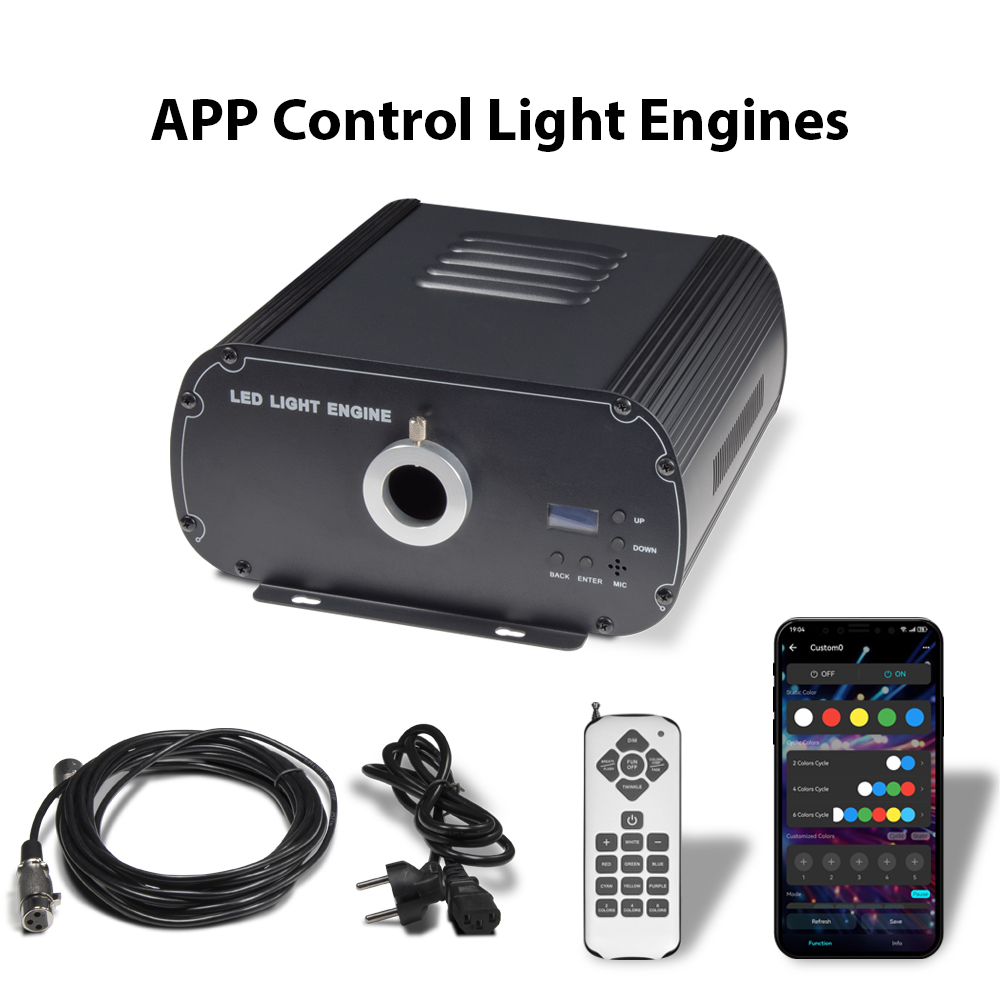

LEI-4361DMX/APP

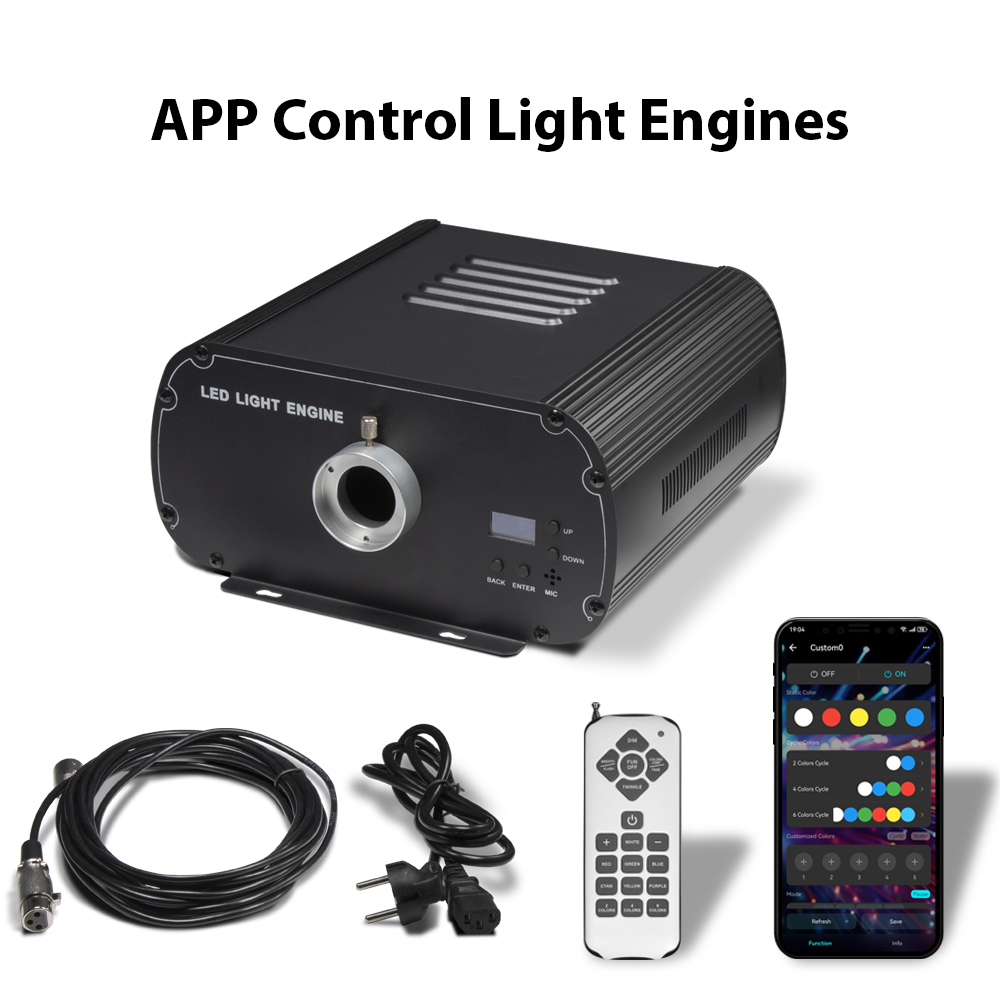

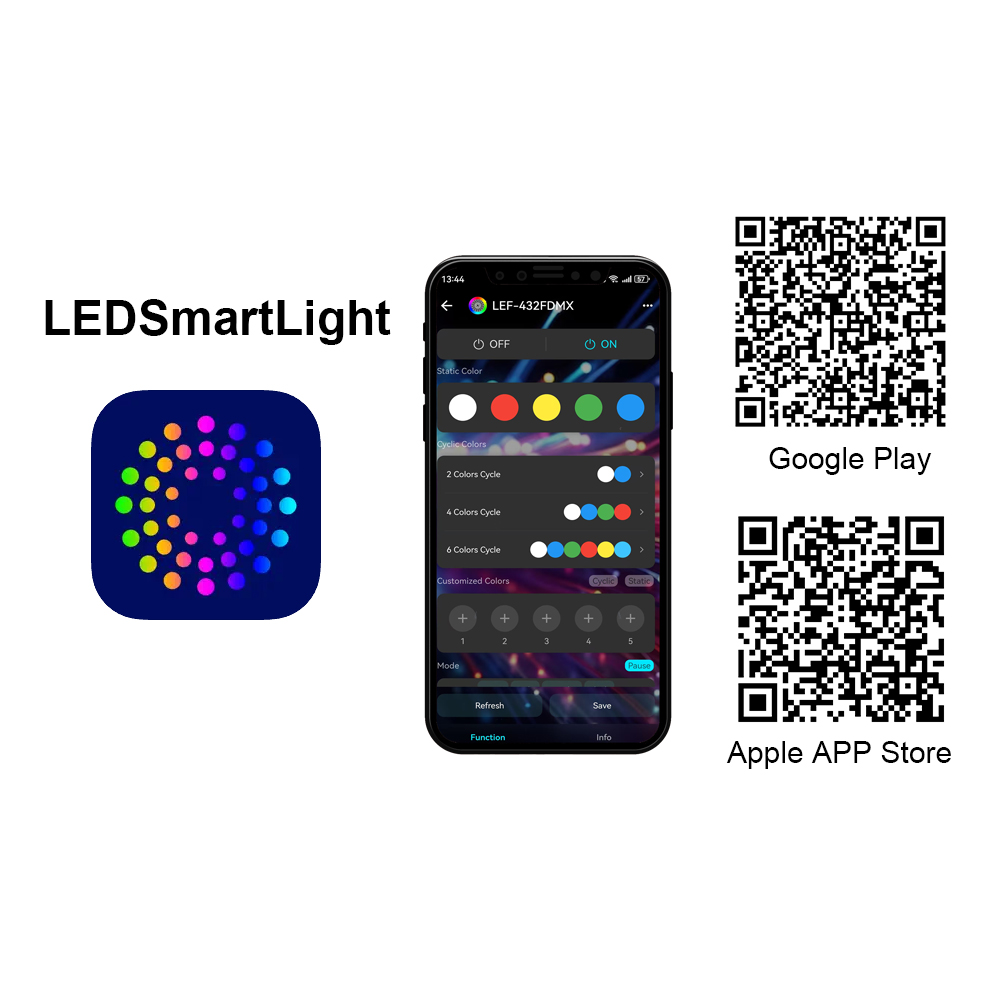

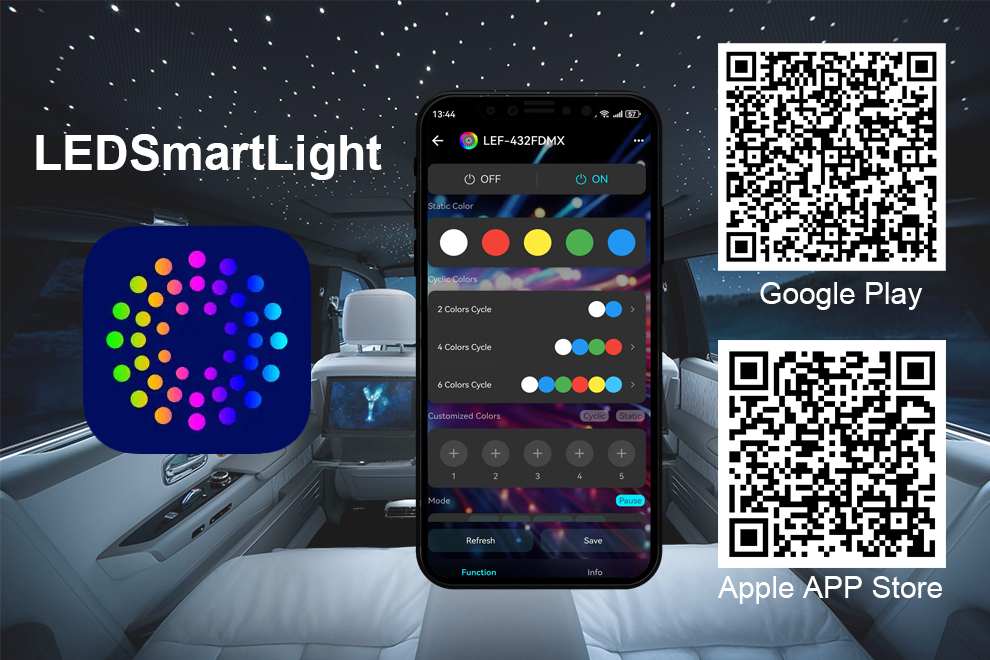

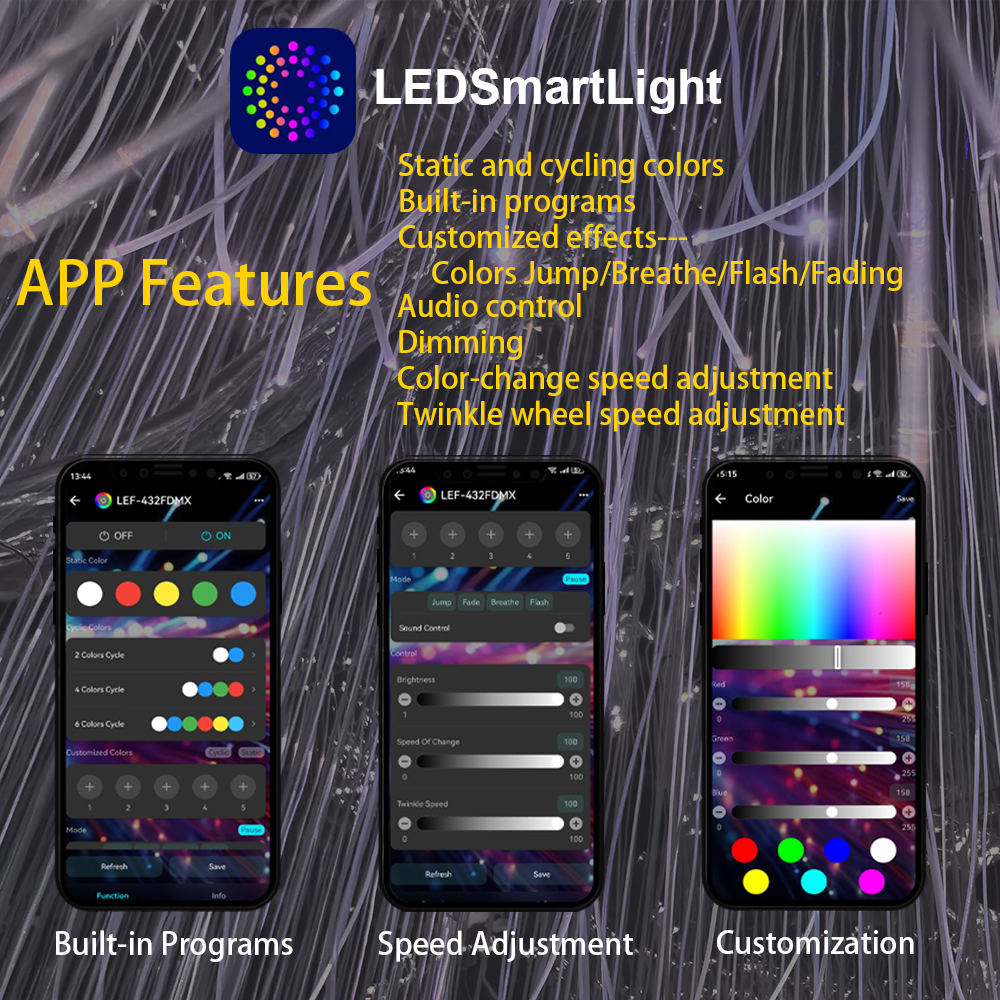

This light engine can be controlled by a mobile APP, LEDSmartLight, which can be downloaded from the Apple App Store or Google Play. The app can also be downloaded by scanning the left QR code.

This mobile APP is developed by Minar Illumination and is different from the existing ones in the market. It features easy operation.

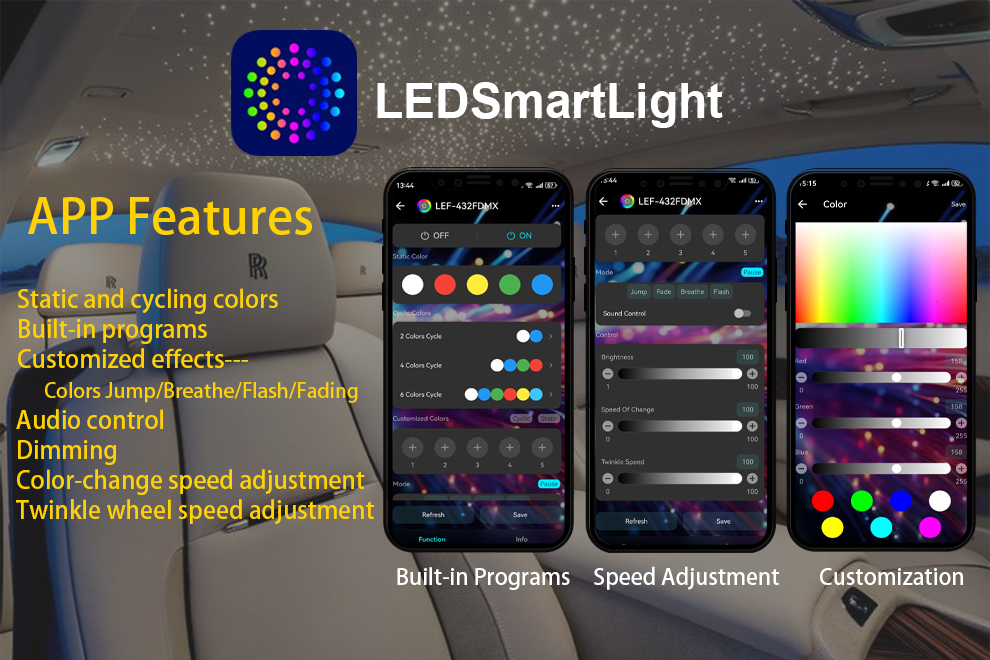

The APP main functions:
* Static and cycling colors
* Built-in programs
* Customized effects - Colors Jump/Breathe/Flash/Fading
* Audio control
* Dimming
* Color-change speed adjustment
* Twinkle wheel speed adjustment

Remarks: 1. The control interface will not show up until the APP has connected to a light engine via Bluetooth. 2. Color customization is for light engines of RGBW models only.

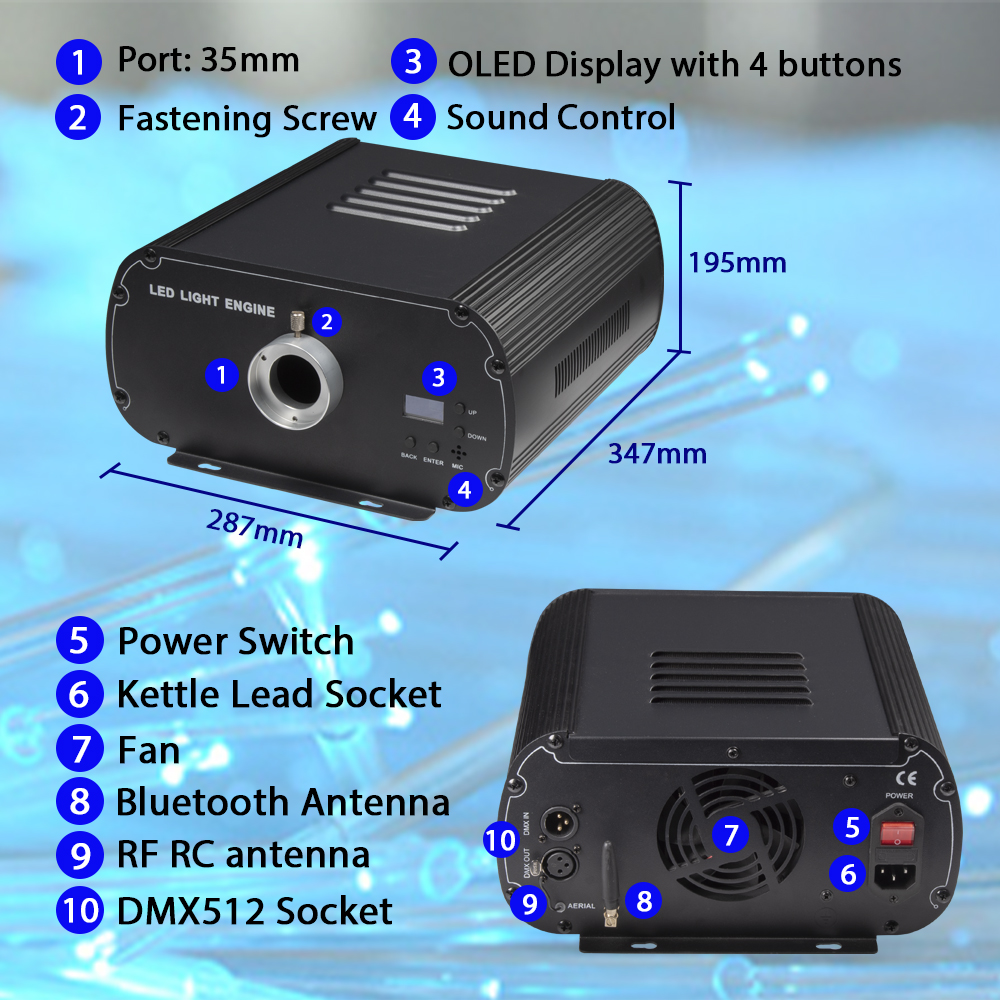

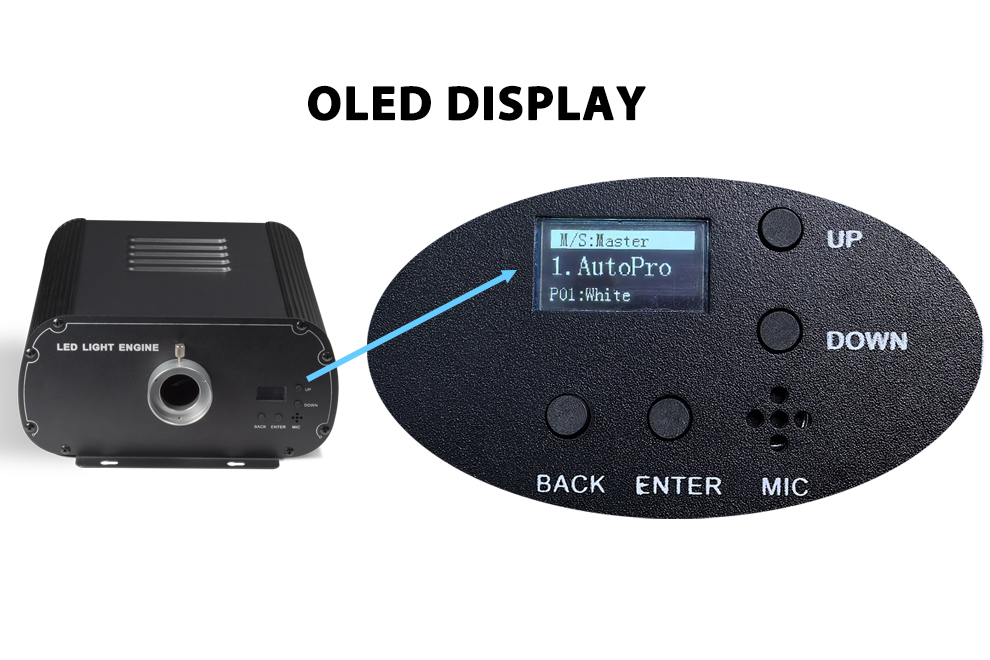

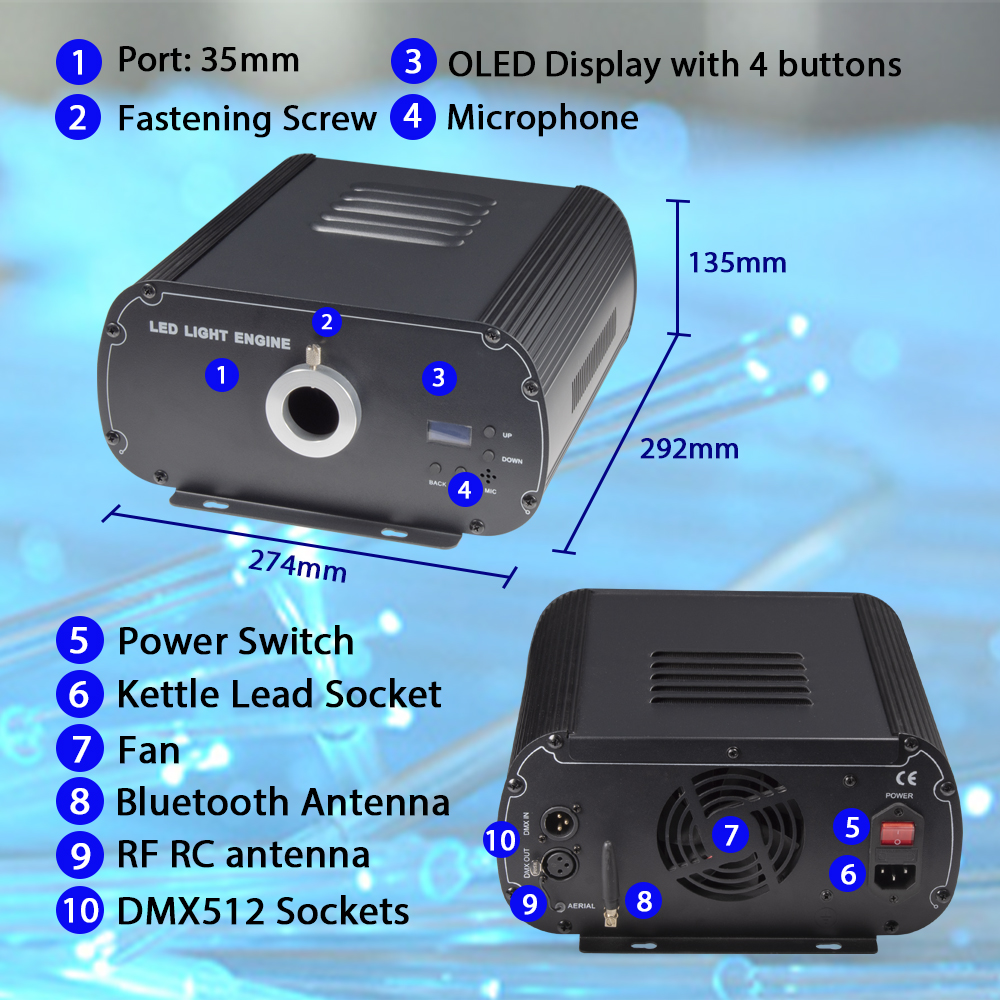

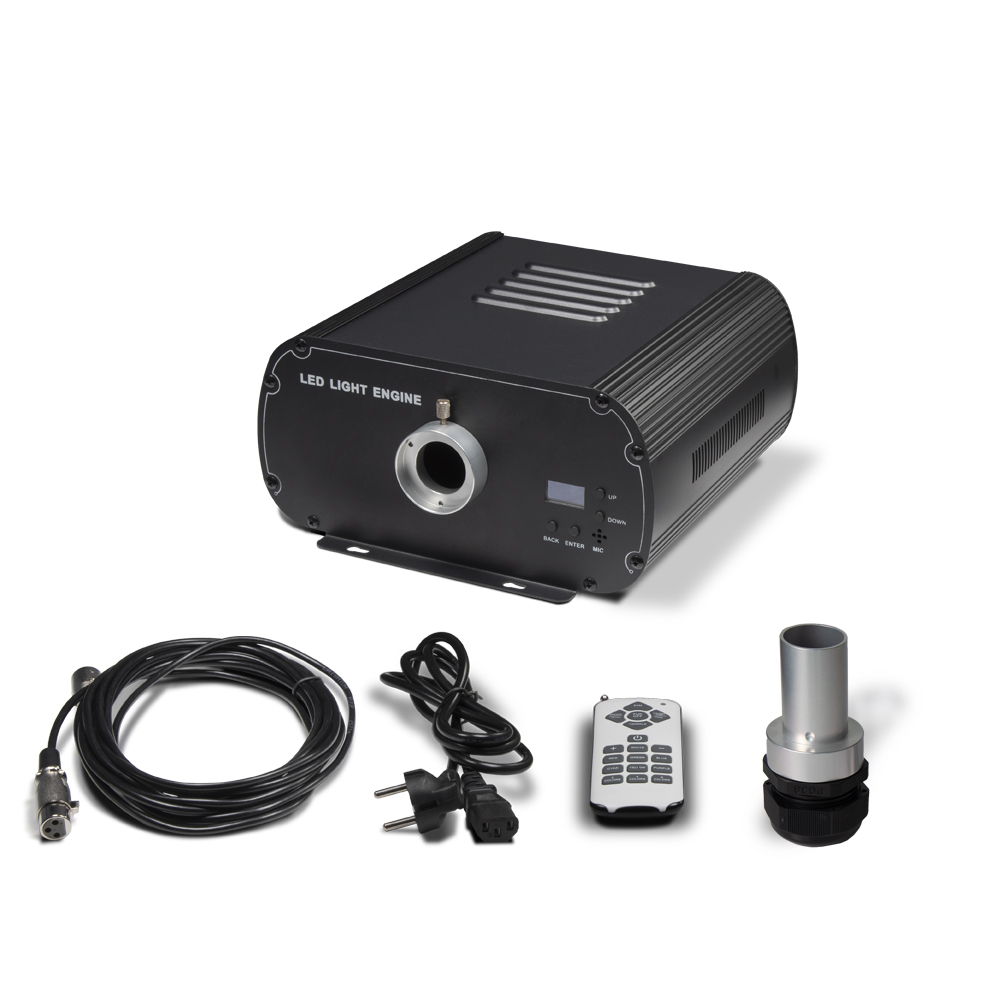

The new light engine has applied an OLED display instead of the original digital LED display to show the operation information.

You can also switch the control command directly on the OLED display to control the light engine.

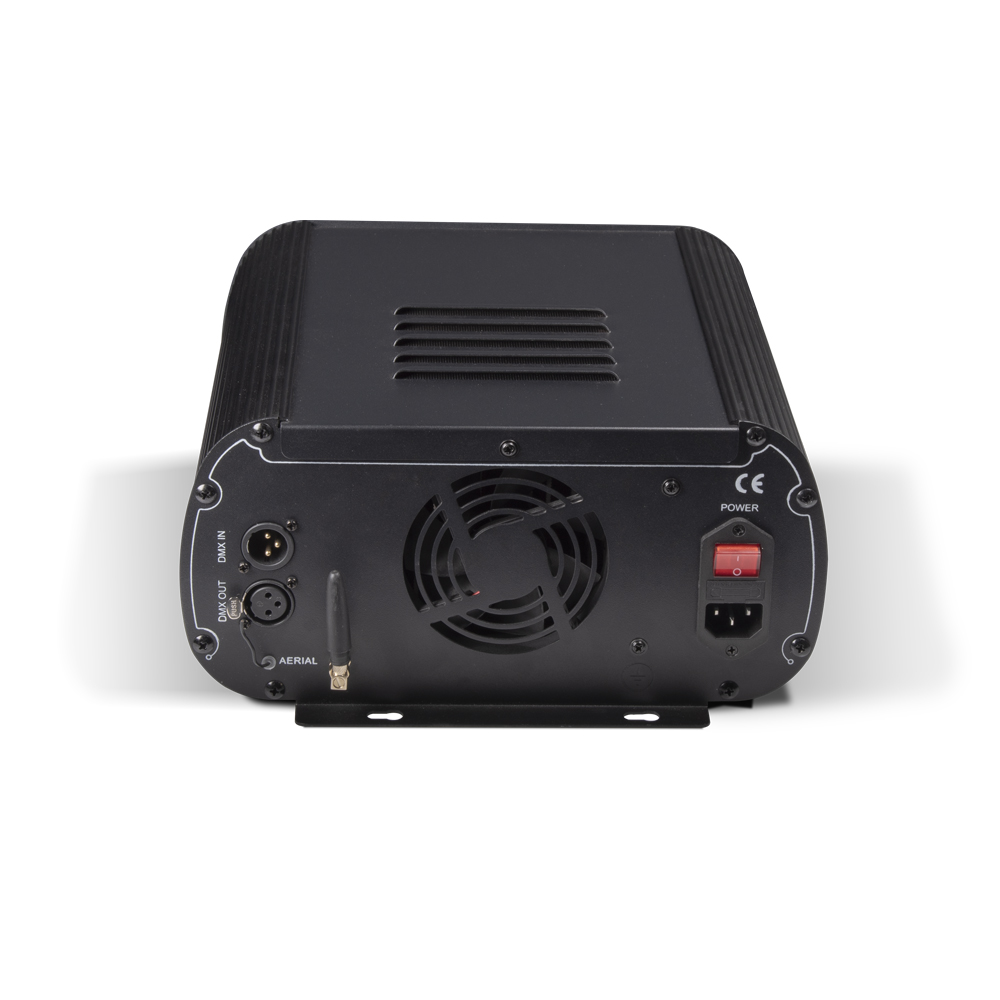

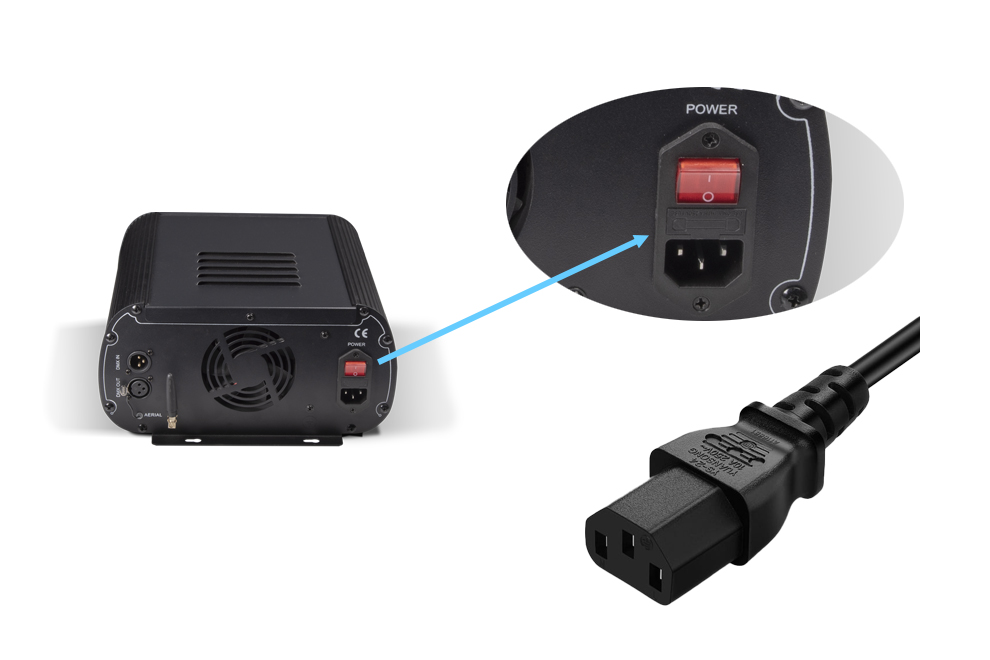

The new light engine has applied a kettle lead for its power input. Also known as an IEC cable, a kettle lead will ensure the light engine's standardised and safe connection to the power.

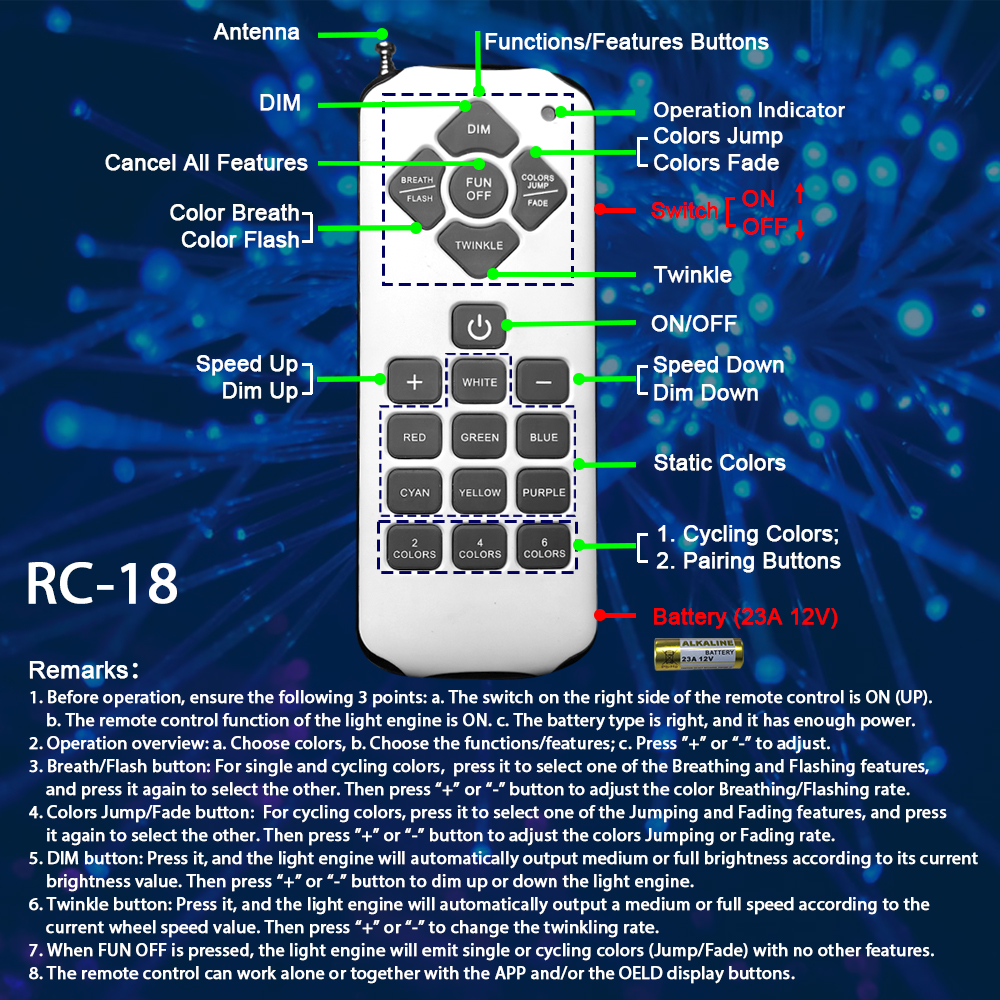

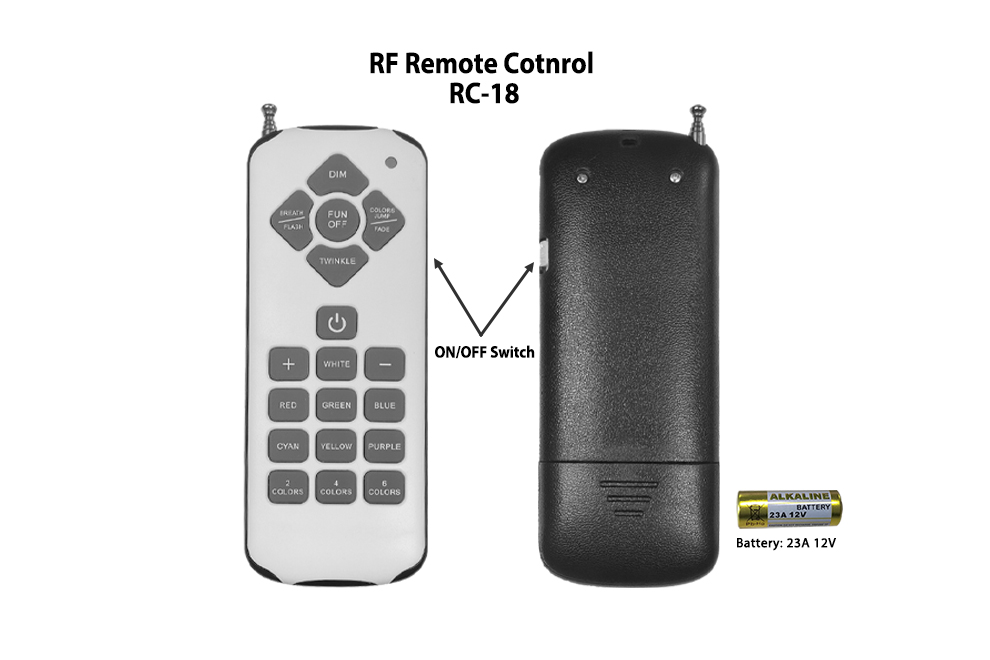

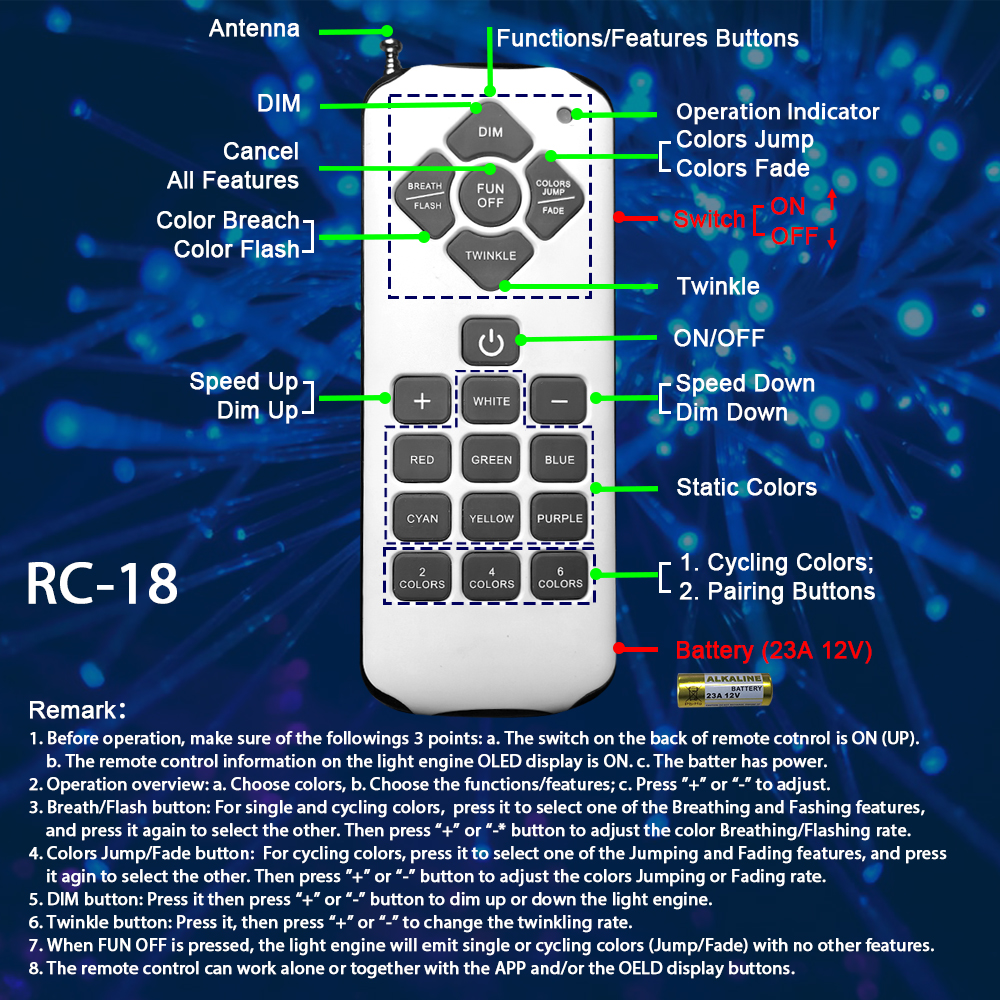

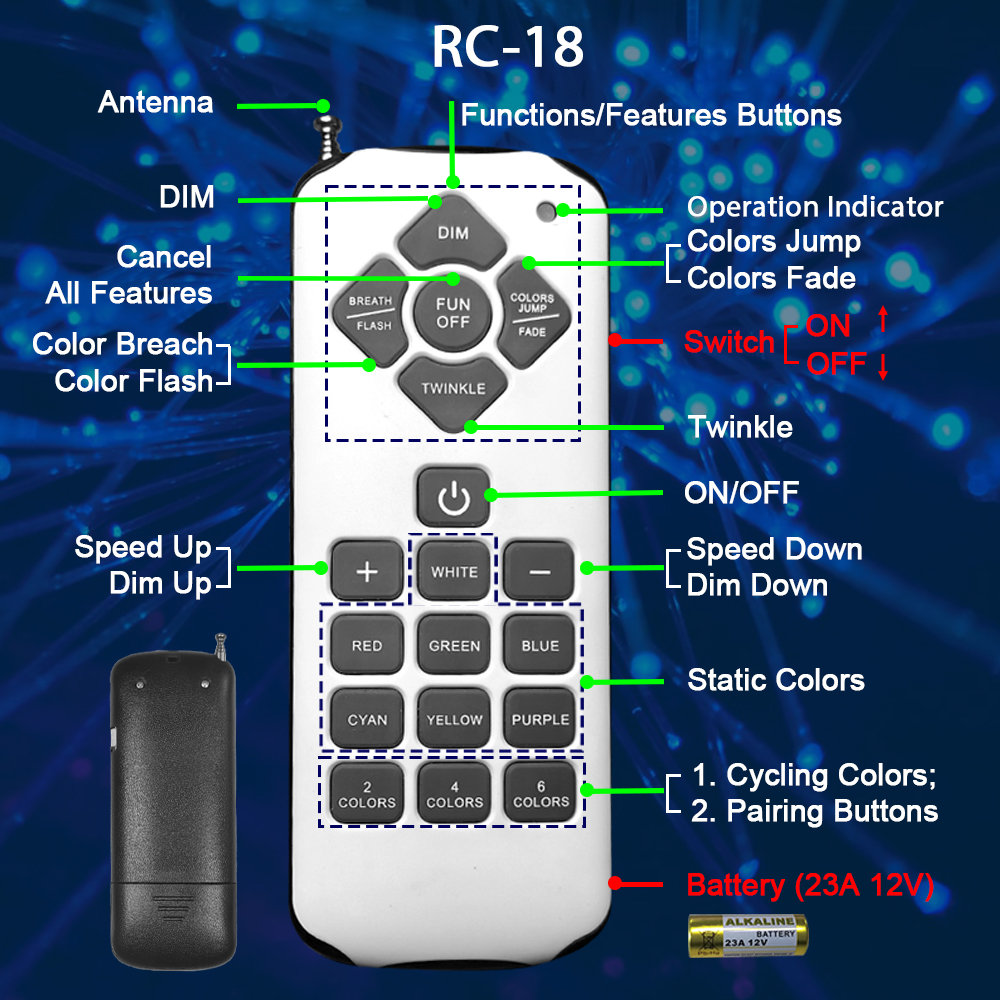

The line voltage light engines apply a new 18-button remote control.

Please make sure that the remote control settings on the on-board display is ON.

The battery model is 23A 12V. Each remote control needs one piece of the battery. Please note that the battery is not included in the shipment.

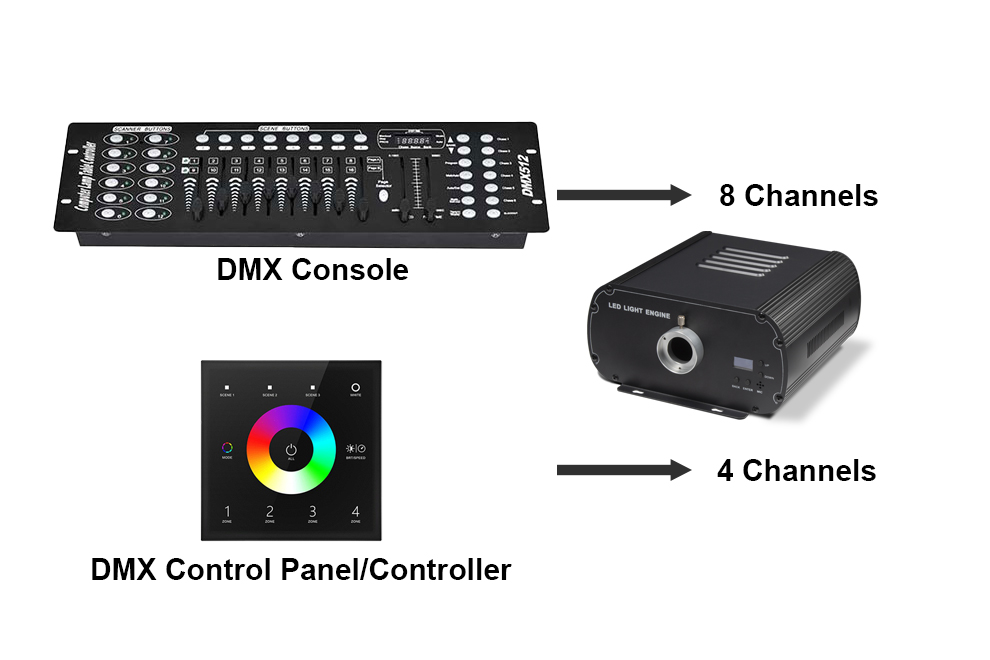

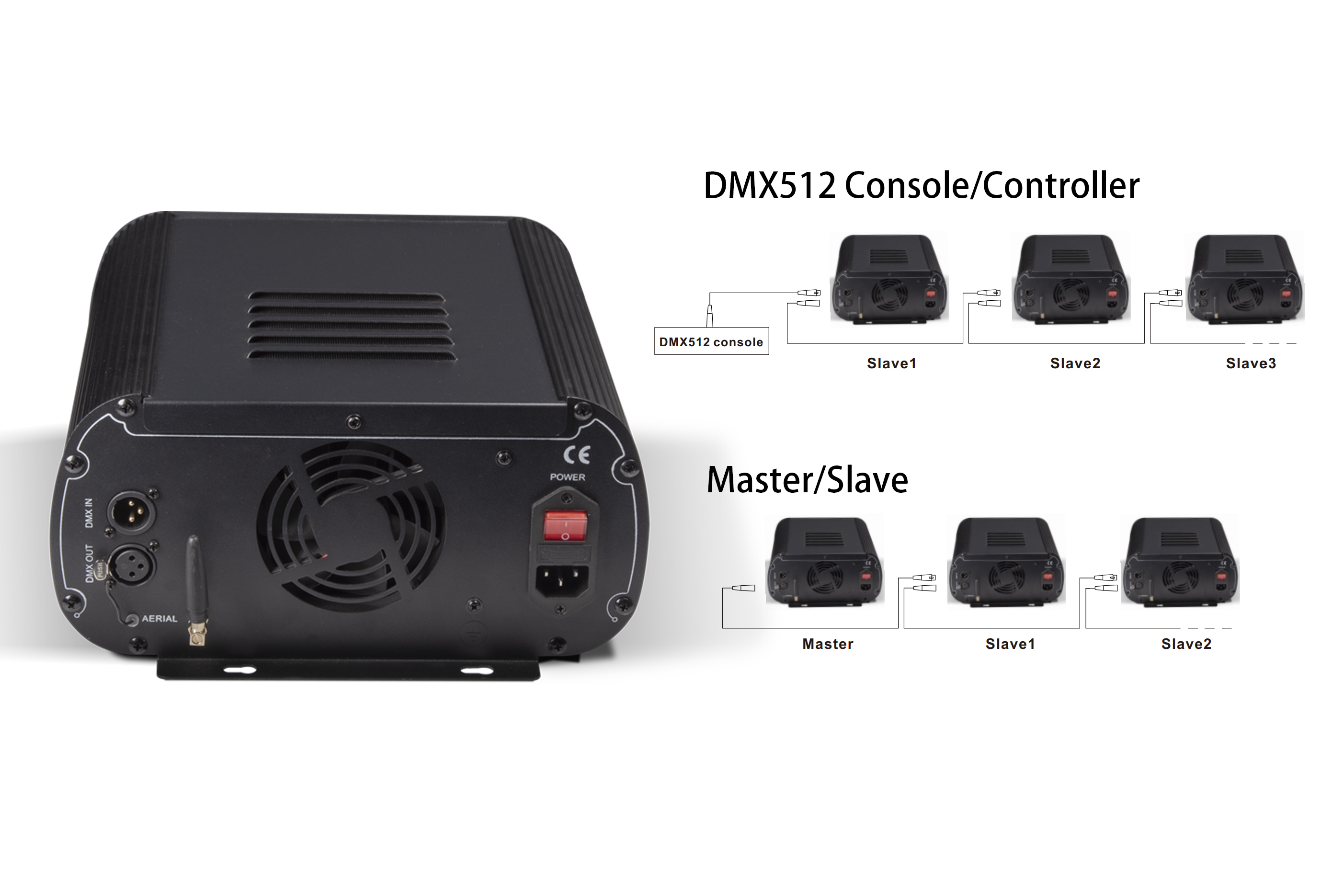

By default, the light engine, LEI-4361DMX, has 8 DMX channels for colors and speed/dimming/flashing control via a DMX console.

In case it is connected to a DMX controller/DMX control panel, the light engine needs to come out with 4 DMX channels of RGBW only. The DMX channel numbers can be switched on the OLED display.

When the light engine works as a slave, the twinke wheel speed can be controlled by:
1. 8CH: the DMX console;
2. 1CH/4CH/5CH: a. the OLED display, 2. the remote control, 3. the mobile APP.

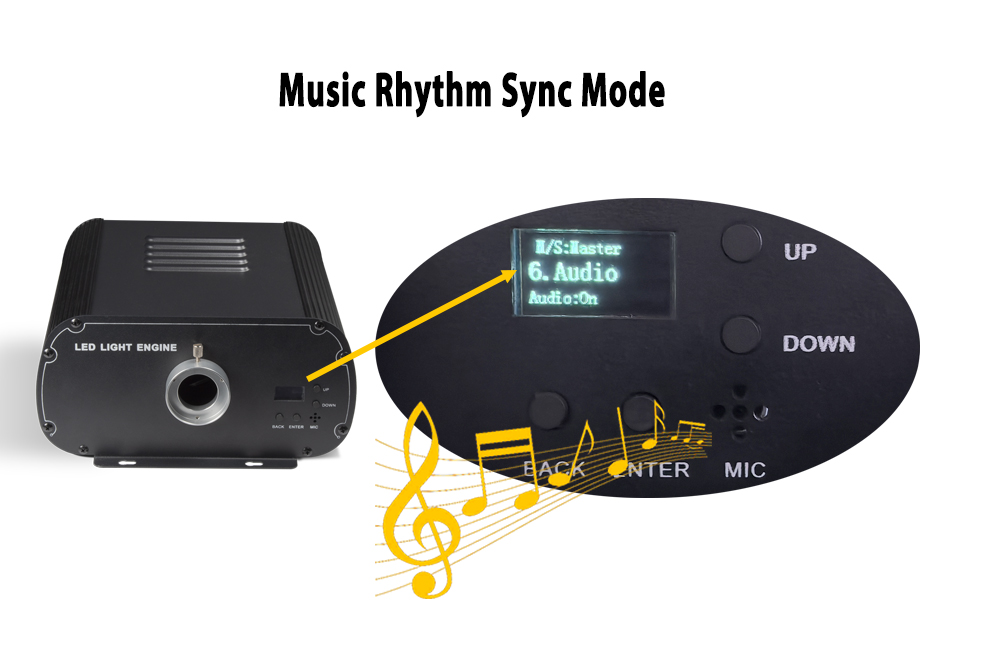

The light engine has the music rhythm sync mode.

By default, the audio function is turned off. Please activate the audio function via the APP or on the on-board display.

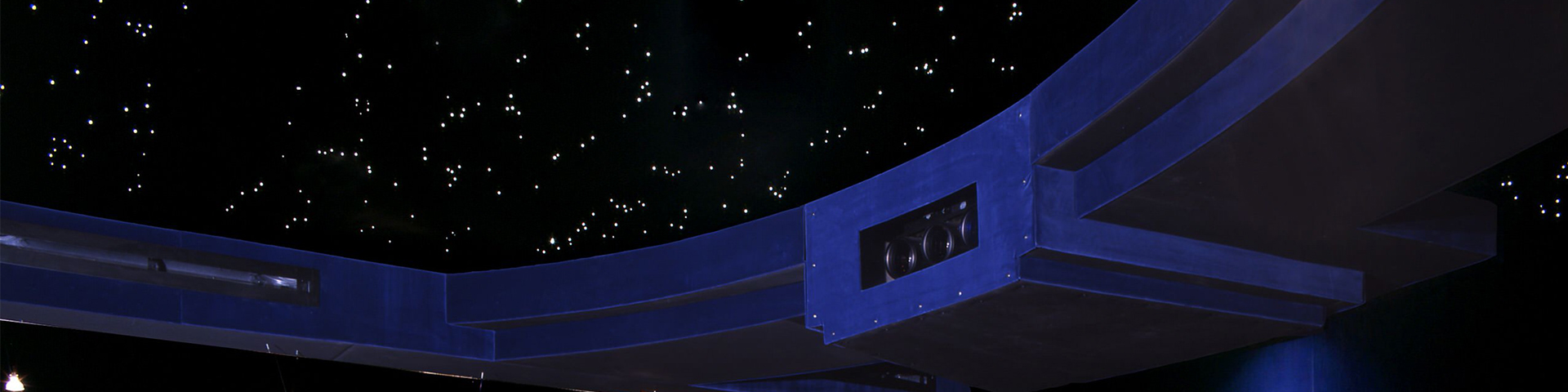

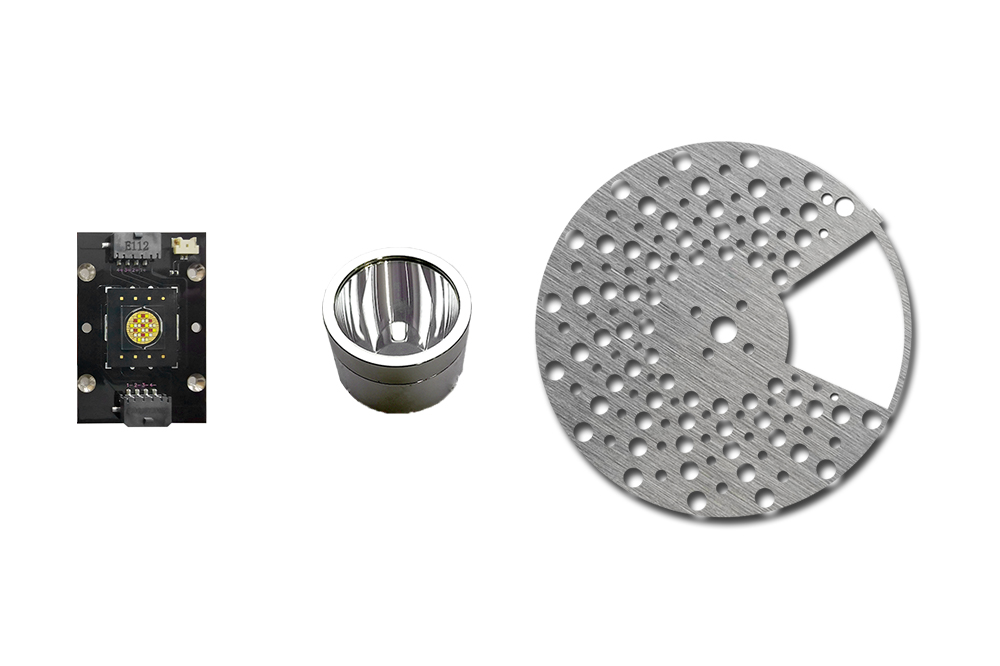

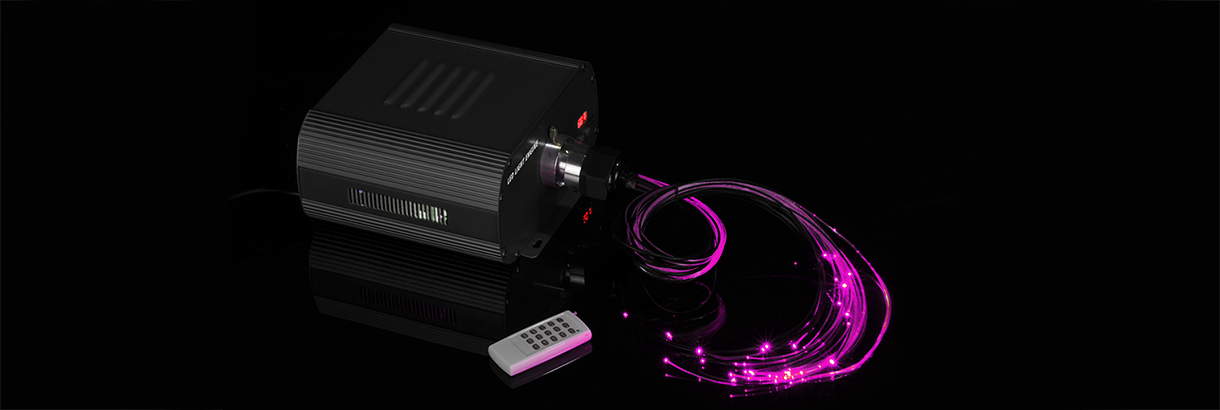

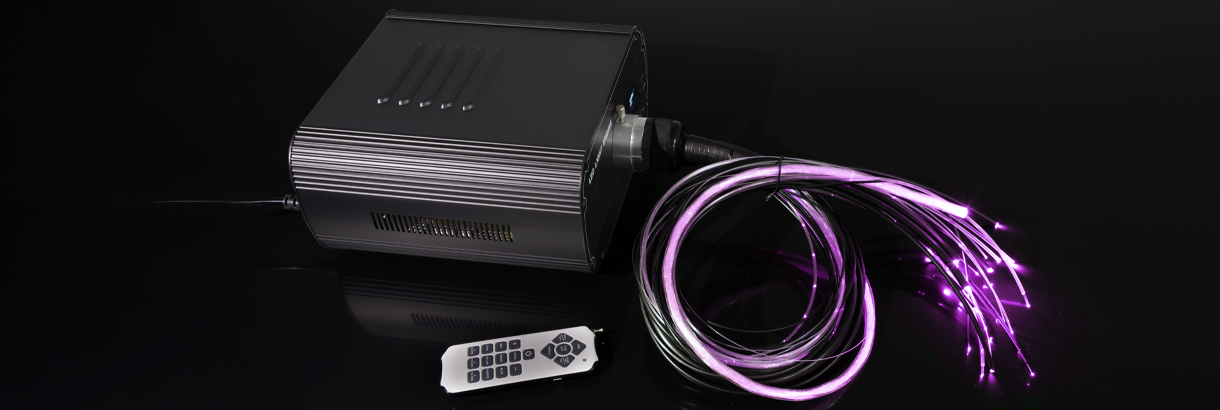

The best combination of fiber optic light engines for star ceilings is a four-color RGBW LED module and a twinkle disc. This group brings the starry ceiling a fantastic stimulating effect.

LEI-4361DMX is the enhanced version of LEI-4121DMX and LEI-4241DMX. When the fiber cable is over 25 meters long, LEI-4361DMX will be a better choice.

By default Minar provides one piece of 20mm/24mm/28mm 3-in-1 combined fiber connector for each line voltage light engine. These apertures are capable of 540pcs, 770pcs, and 1050pcs of 0.75mm fiber tails respectively. 30mm fiber connector is also available at request.

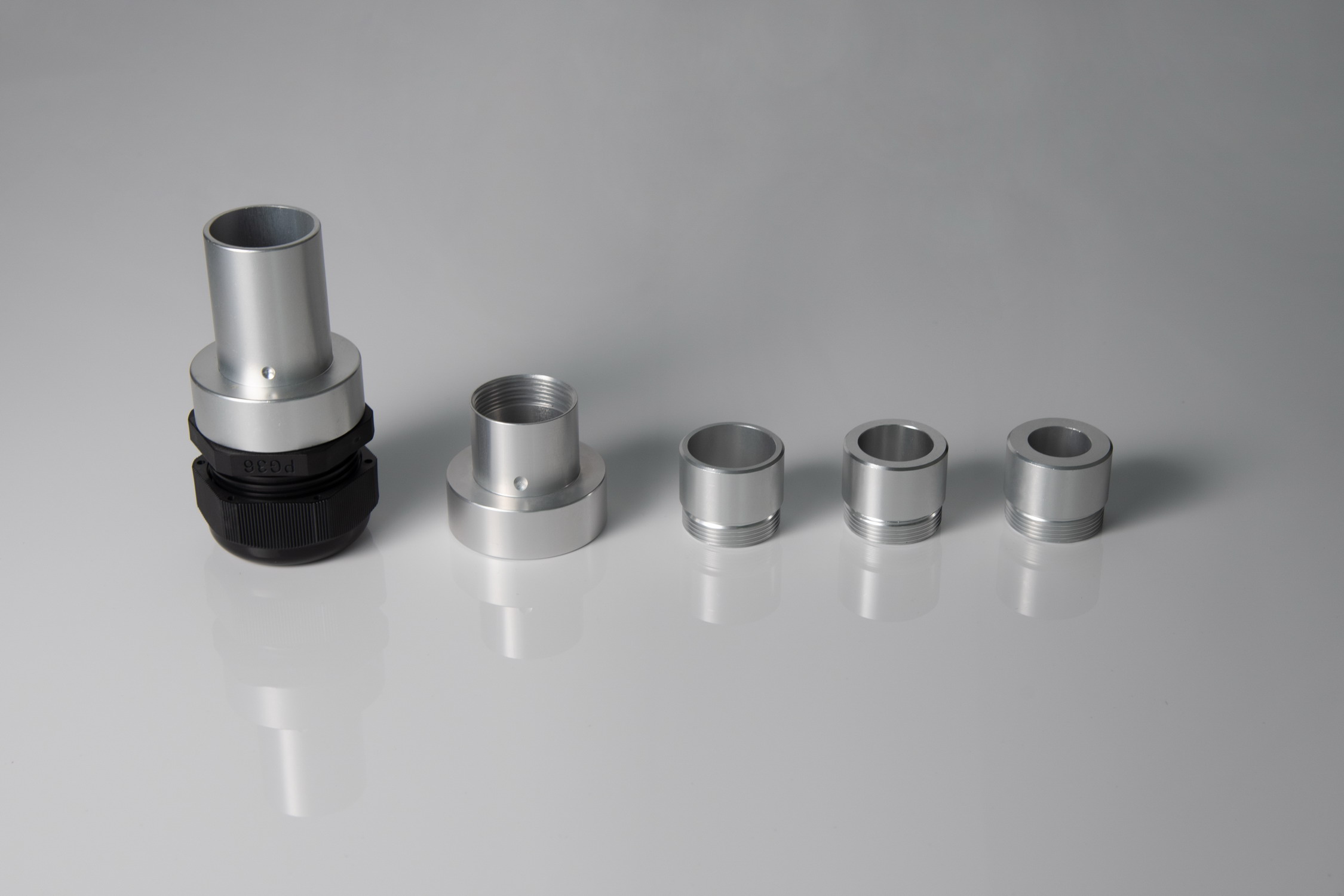

From left to right, the fiber connector: 30mm, 28mm, 24mm, and 20mm. Customized apertures are also welcome!
