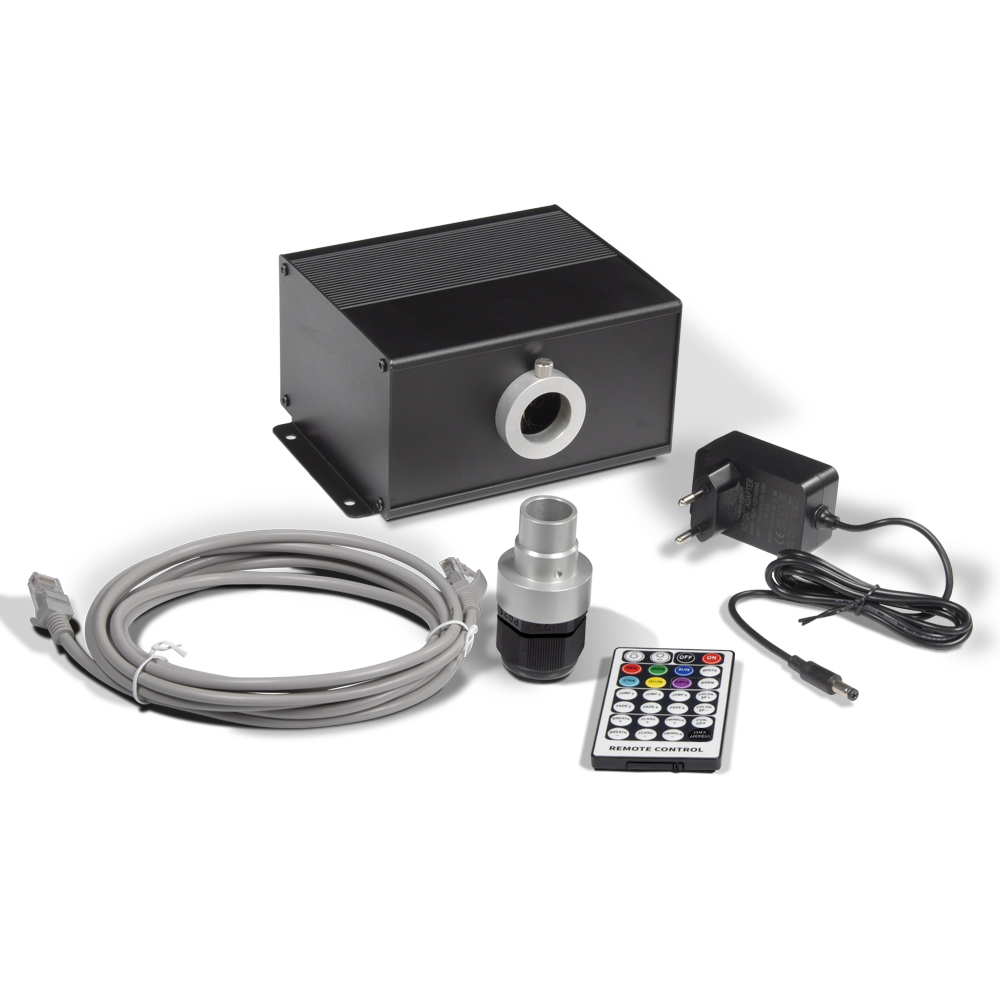

LEG-501BDMX

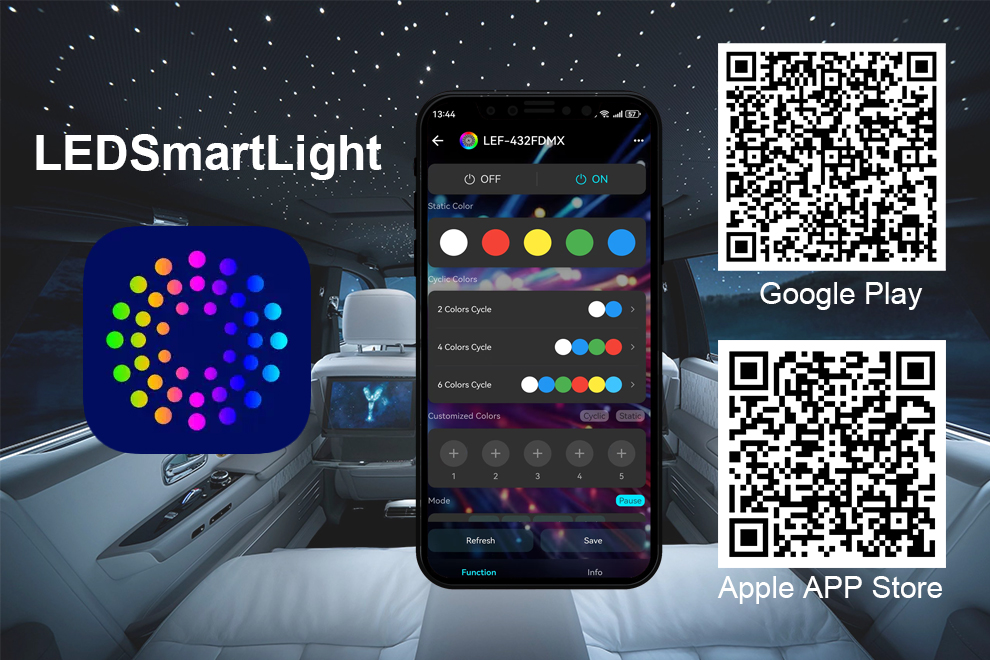

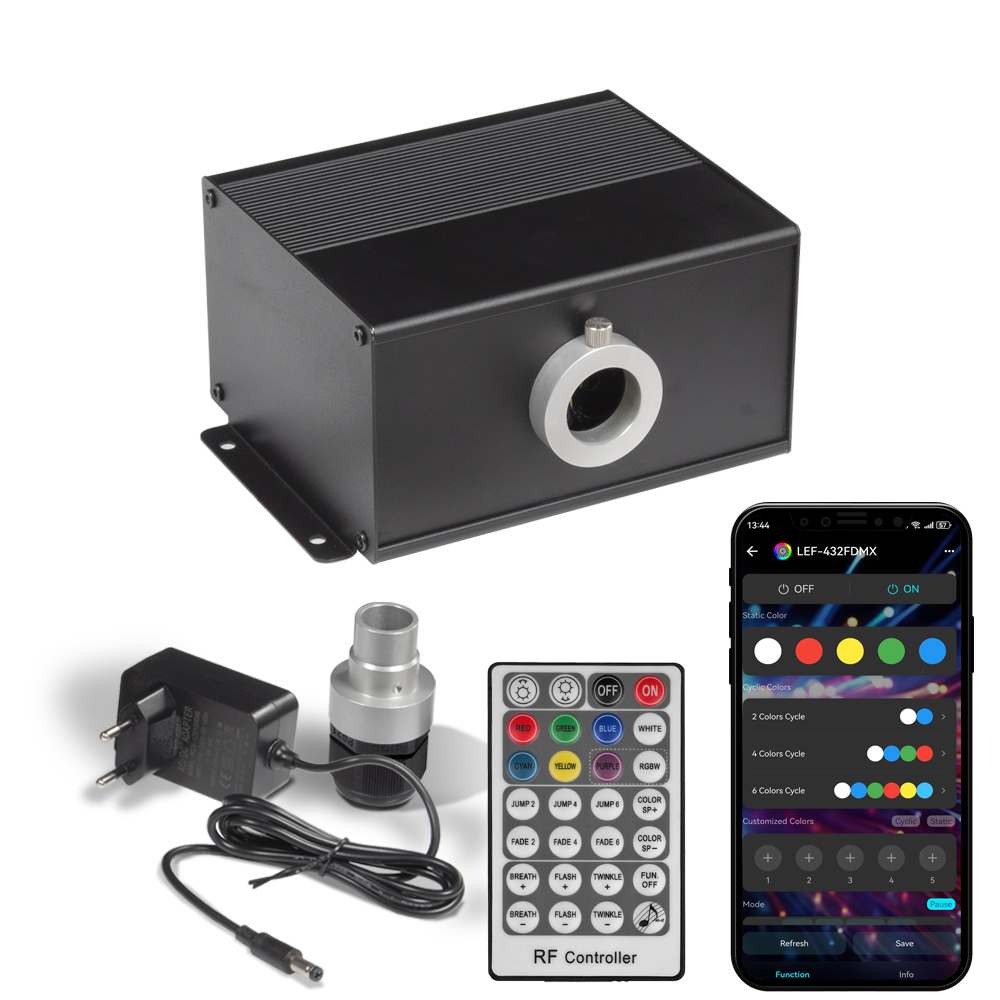

This light engine can be controlled by a mobile APP, LEDSmartLight, which can be downloaded from the Apple App Store or Google Play. The app can also be downloaded by scanning the left QR code.

This mobile APP is developed by Minar Illumination and is different from the existing ones in the market. It features easy operation.

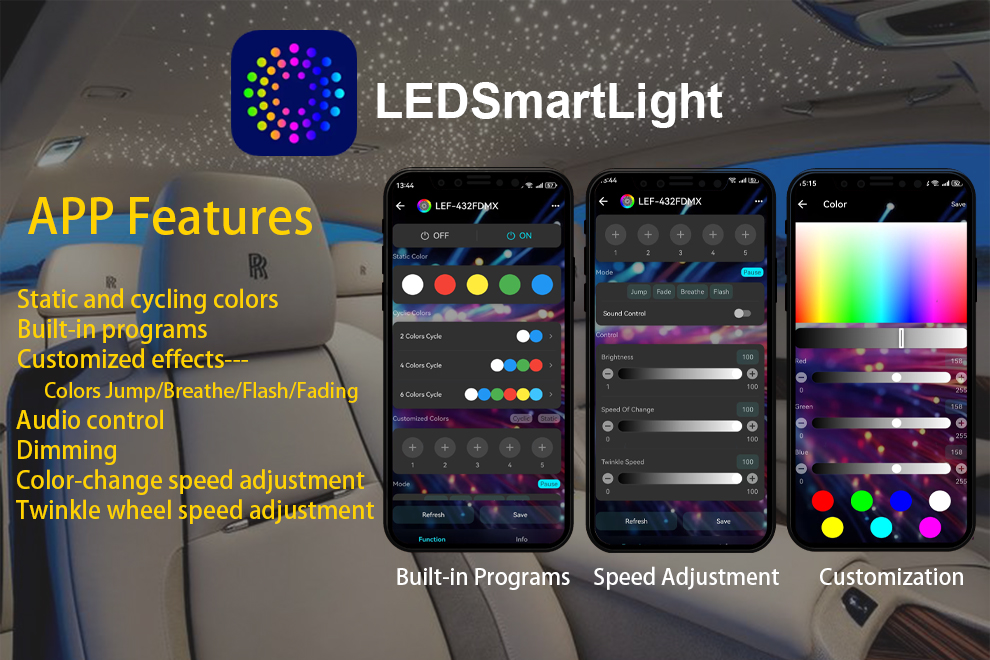

The APP's main functions:
* Static and cycling colors
* Built-in programs
* Customized effects - Colors Jump/Breathe/Flash/Fading
* Audio control
* Dimming
* Color-change speed adjustment
* Twinkle wheel speed adjustment

Remarks: 1. The control interface will not show up until the APP has connected to a light engine via Bluetooth. 2. Color customization is for light engines of RGBW models only.

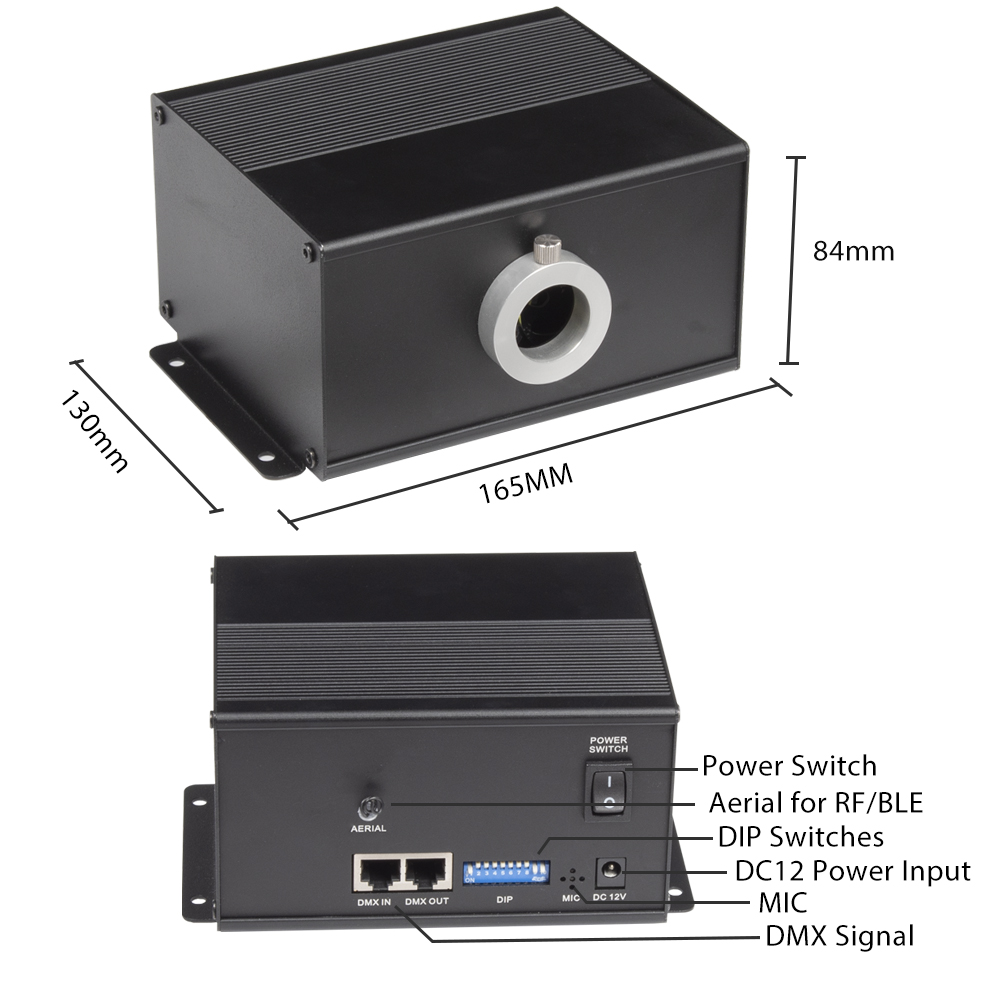

New Housing in May 2025 for new features.

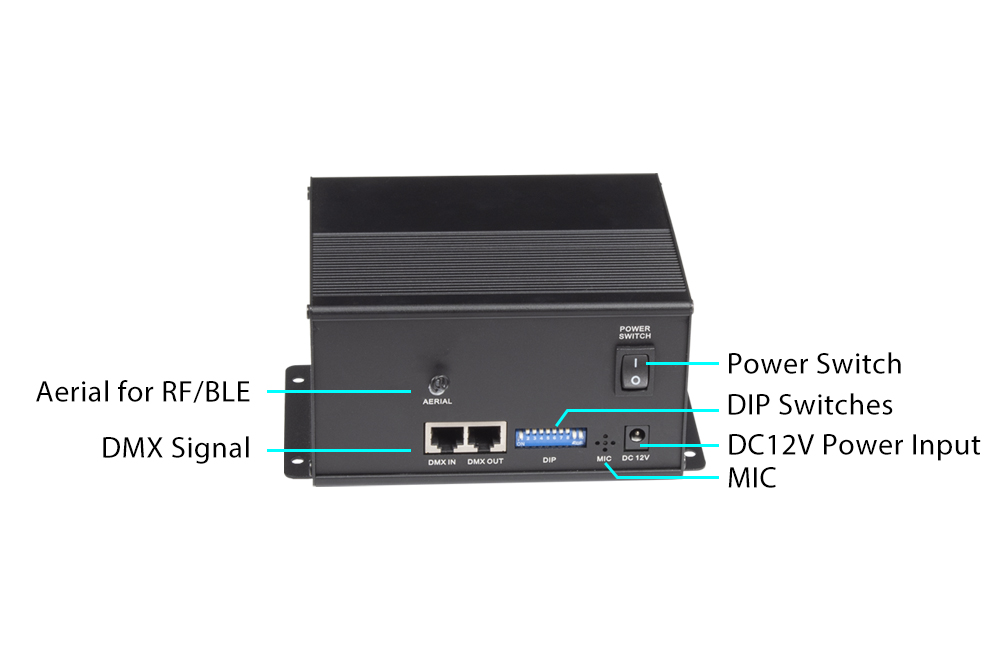

New Features:
1. XLR connectors for DMX512 signal are changed to RJ45 socket.
2. DIP Switches are moved to the back panel.
3. A microphone is added to the back panel.

Functions Cancelled in the New Housing:
The onboard dimmer. The dimming function can be realized by a remote control.

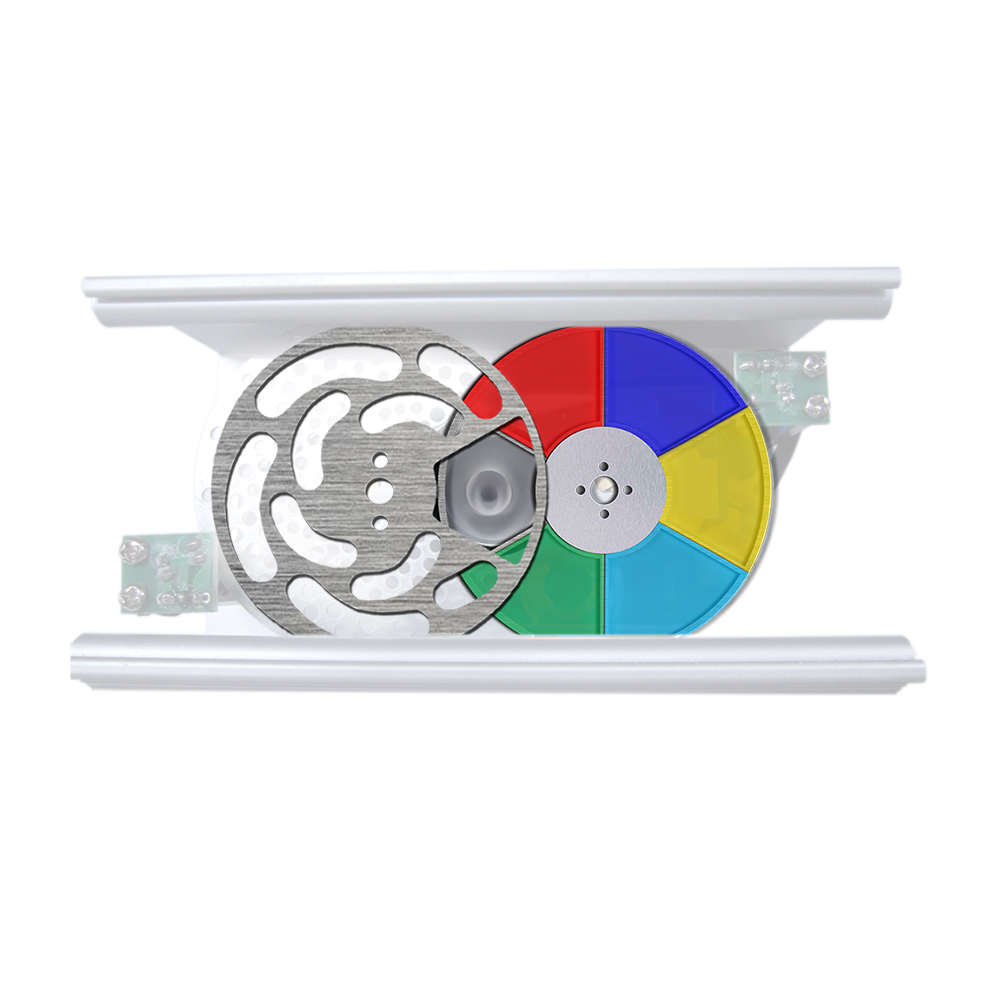

1. LEG-501BDMX, a single-port dual-wheel light engine, provides a variety of color change options: static color, cycling colors, static color twinkle, and cycling colors twinkle. Both wheels could be controlled separately.
2. Multiple fiber optic light engines can work in a group to perform synchronous or progressive effects.

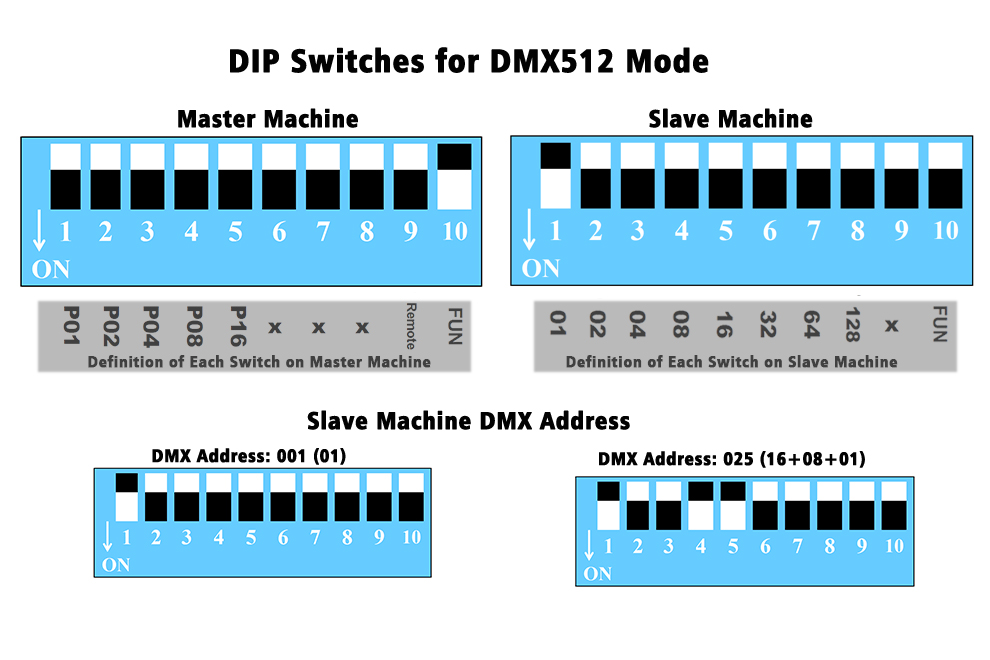

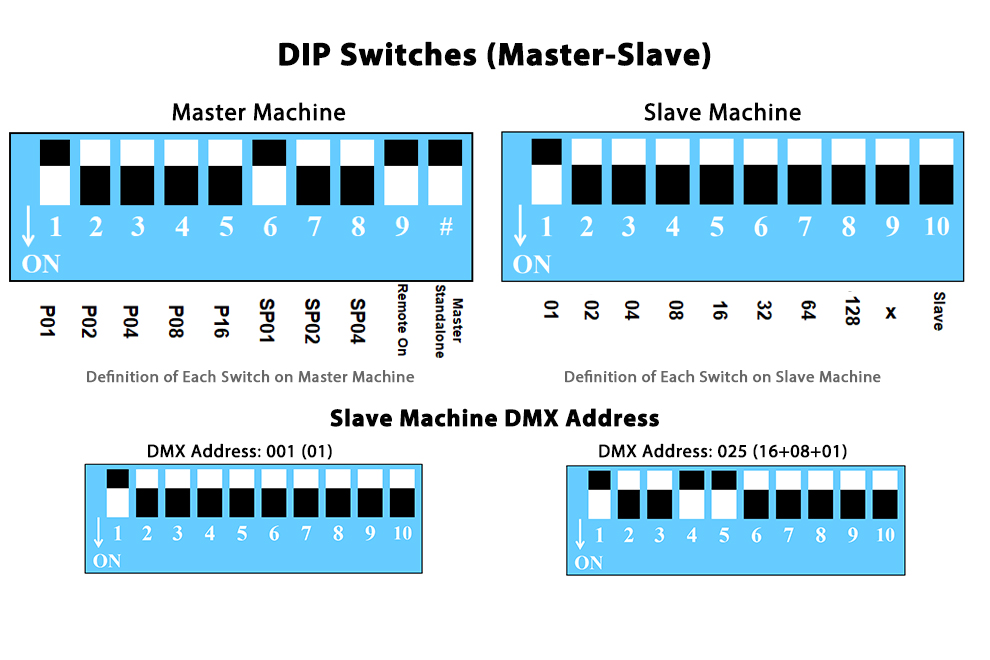

The DIP Switches on the light engines are applied to control the following:
1. SW10: To set up a Master or a Slave light engine,
2. SW9 of a master light engine: On/off for the remote control and Bluetooth for the APP control function,
3. SW1-5 of a master light engine: Built-in programs,
4. SW6-8 of a master light engine: Twinkle wheel speed,
5. SW1-9 of slave light engine: DMX addresses

A DMX light engine always works either as a master or a slave machine.
a. When a DMX light engine works alone, it should always be set up as a master machine.

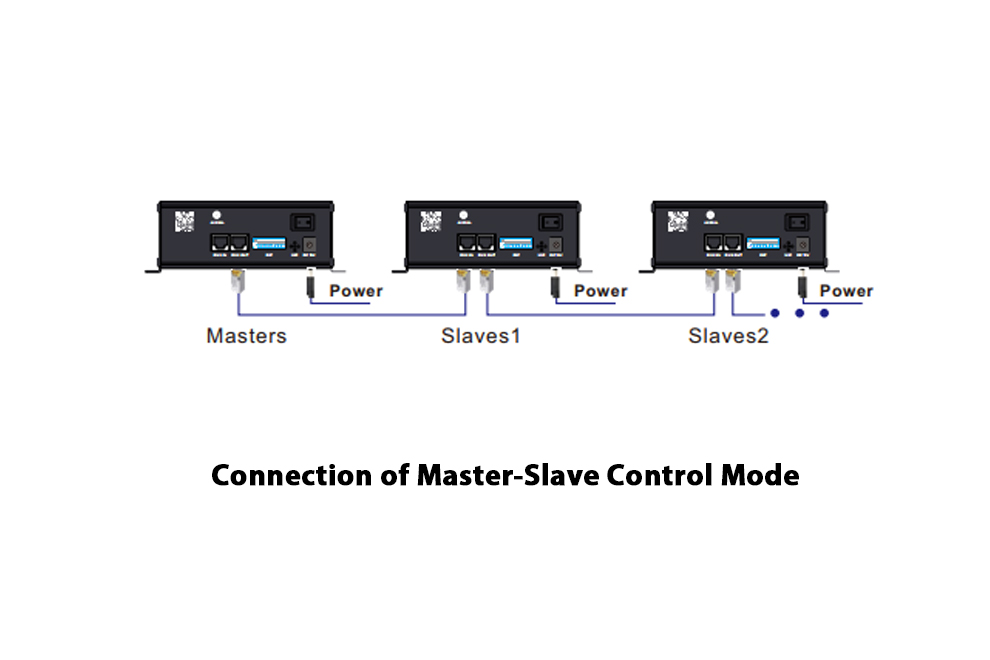

b. A group of the same DMX models can run the master-slave control mode to have synchronized effects.
c. By default, all DMX light engines are set as Slaves before shipment,

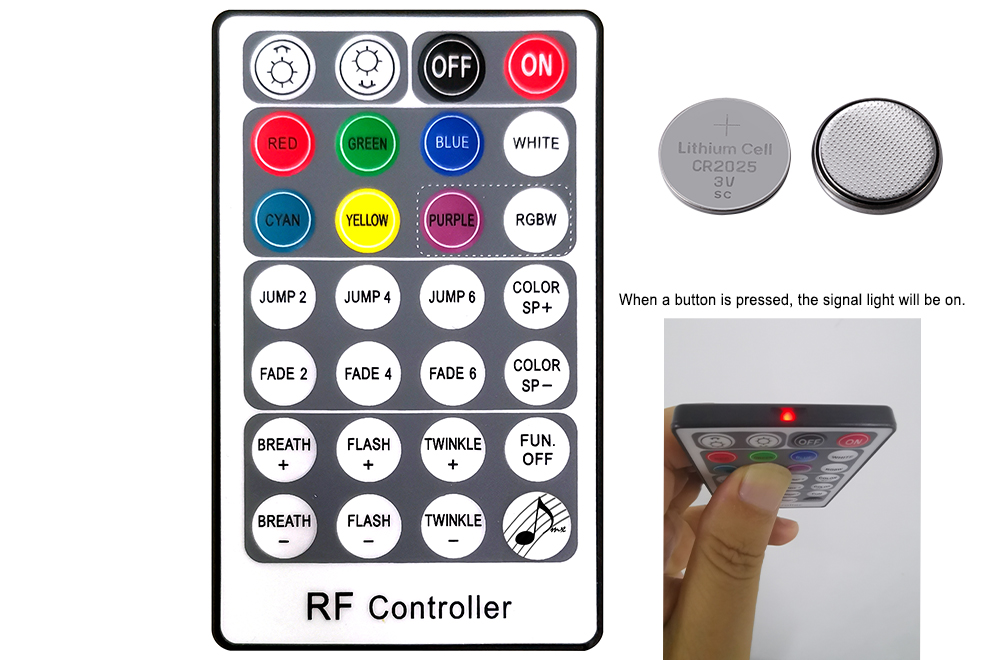

The 28-button remote control has three models: RC-28, RC-28TW, and RC-28-2.4G. Three models are not interchangeable. Please refer to the User Manual of the light engines for details.
RC-28: For LET/LES series and the 12V LED light engines with the APP: LEDSmartLight.
RC-28TW: For the tunable white LED light engines.
RC-28-2.4G: For LLE-002, LLE-004 and LLE-005 with the APP: LED LAMP.

The matching operation of RC-28 with the light engines differs from that of the other 28-button remote control, RC-28-2.4G. Please refer to the User Manual for detailed information.

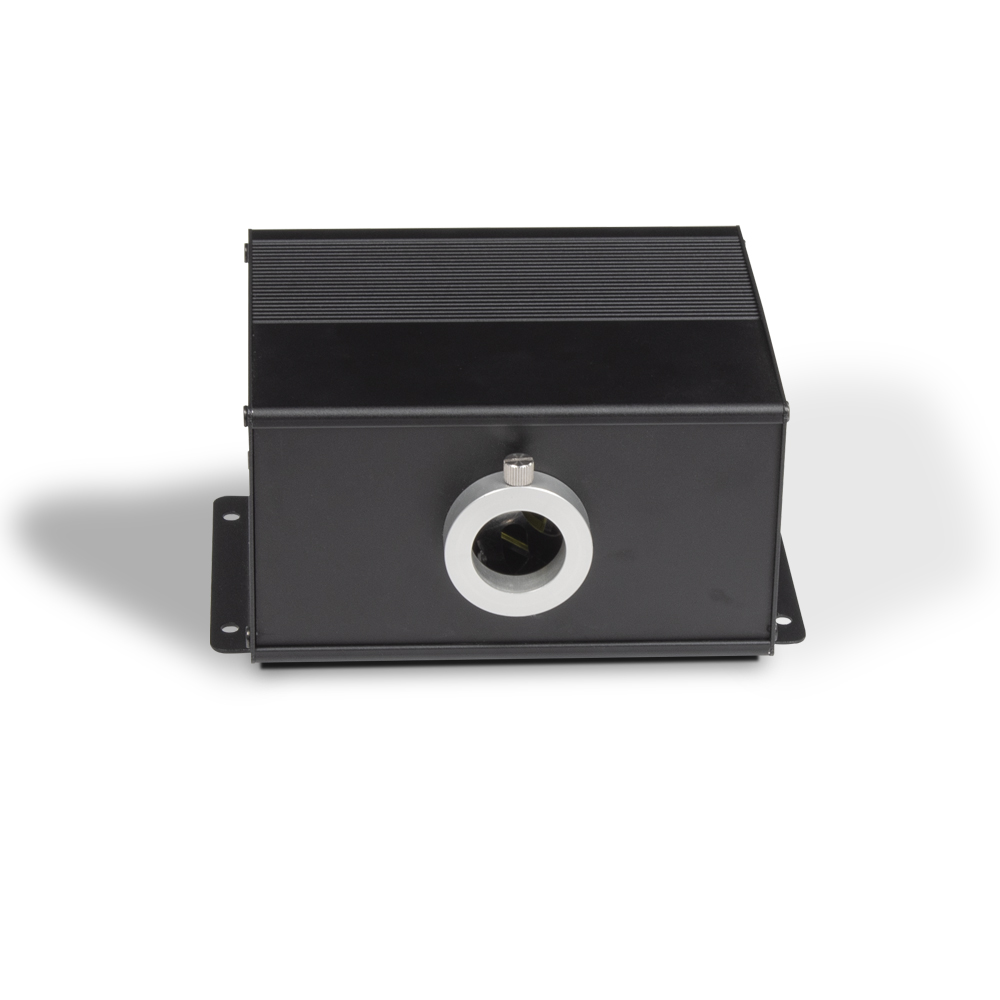

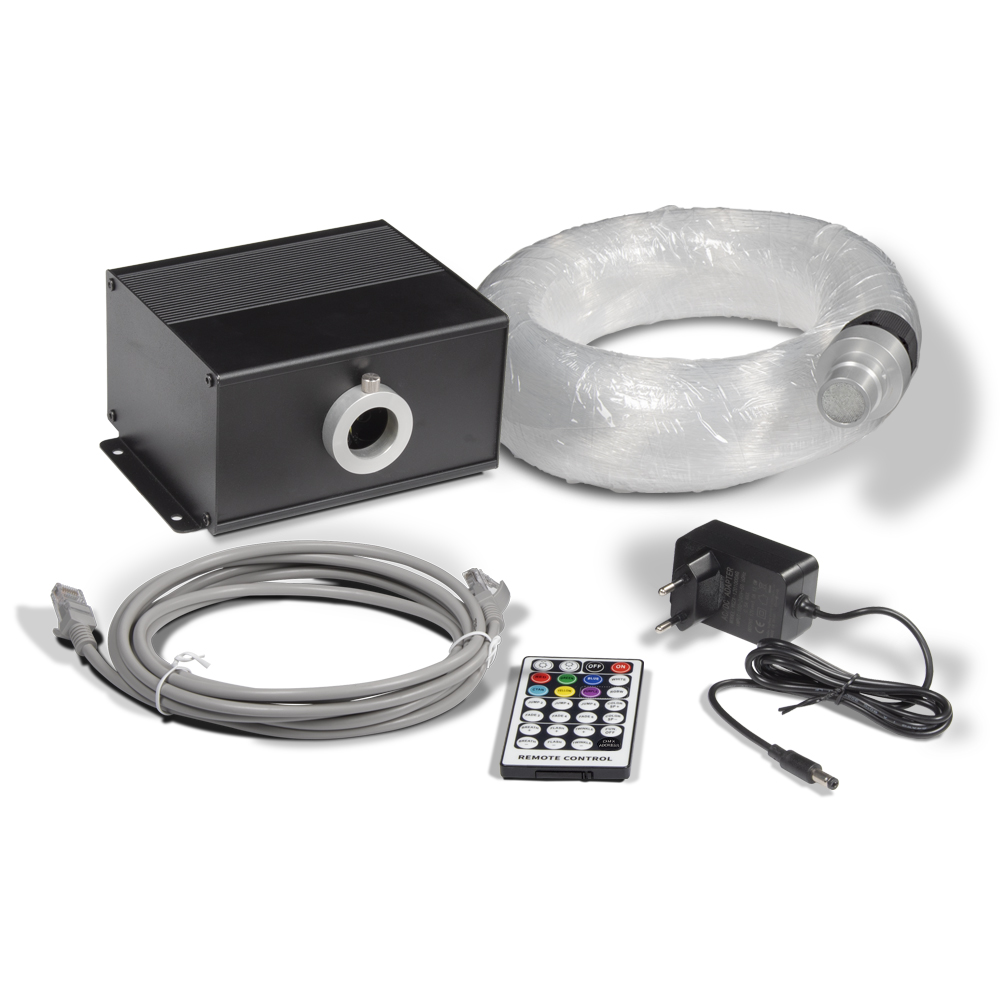

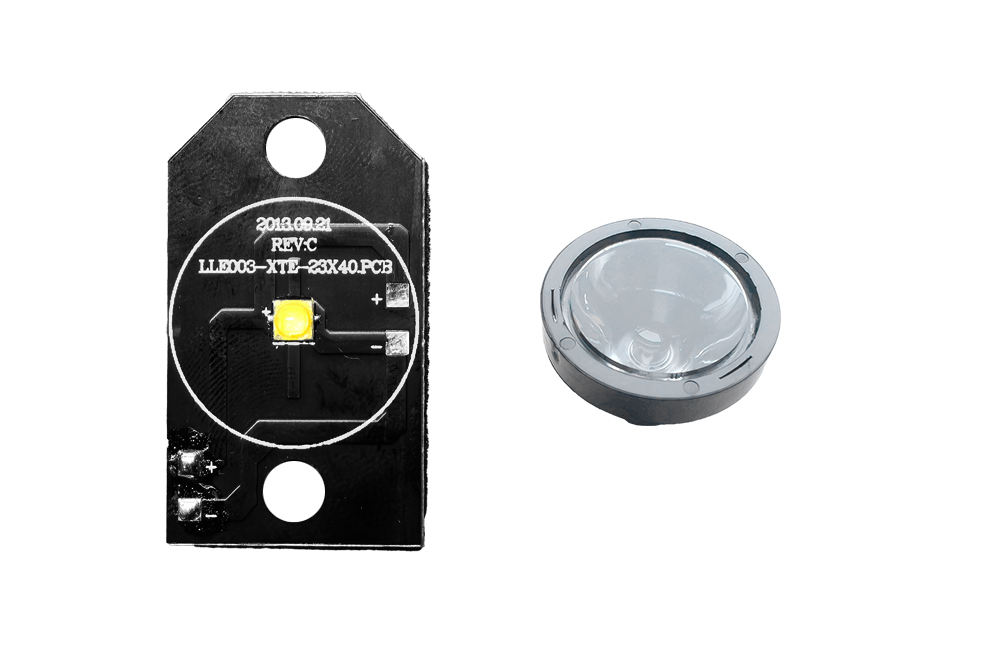

LLG-501BDMX fiber optic light engine applies one piece of 5W CREE XTE LED module. Together with the lens, the light engine can drive the end glow fiber cable of 6-10 meters long.

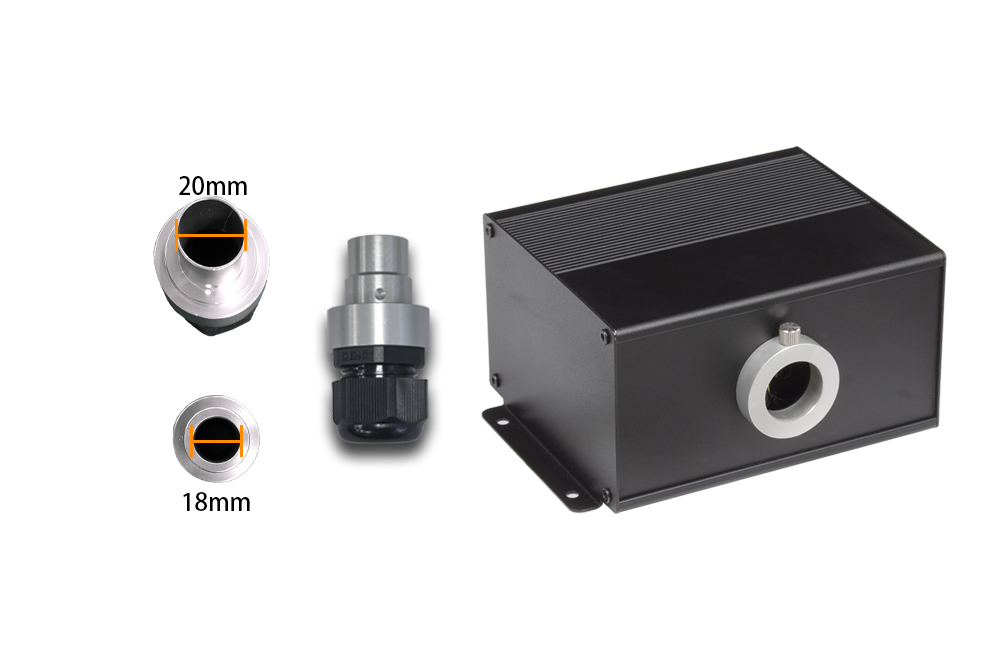

The structure of the light engine's ferrule, which holds the fiber connector, is different from that of other light engines. Its surface is flat instead of having a slim edge. By default, the aperture of the fiber connector for the low-voltage APP light engine is 18mm. At request, 20mm is available.

For the non-App control low-voltage light engines, their fiber connector aperture is 14mm or 18mm.
