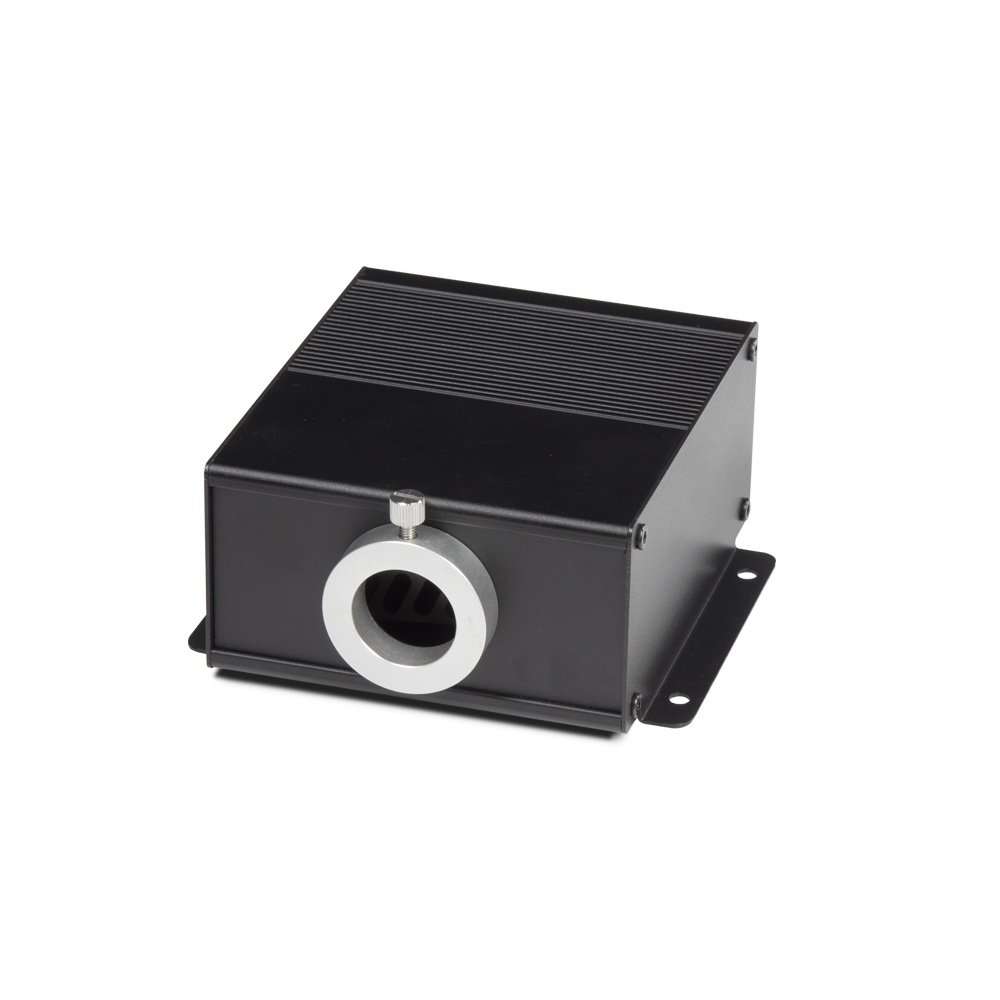

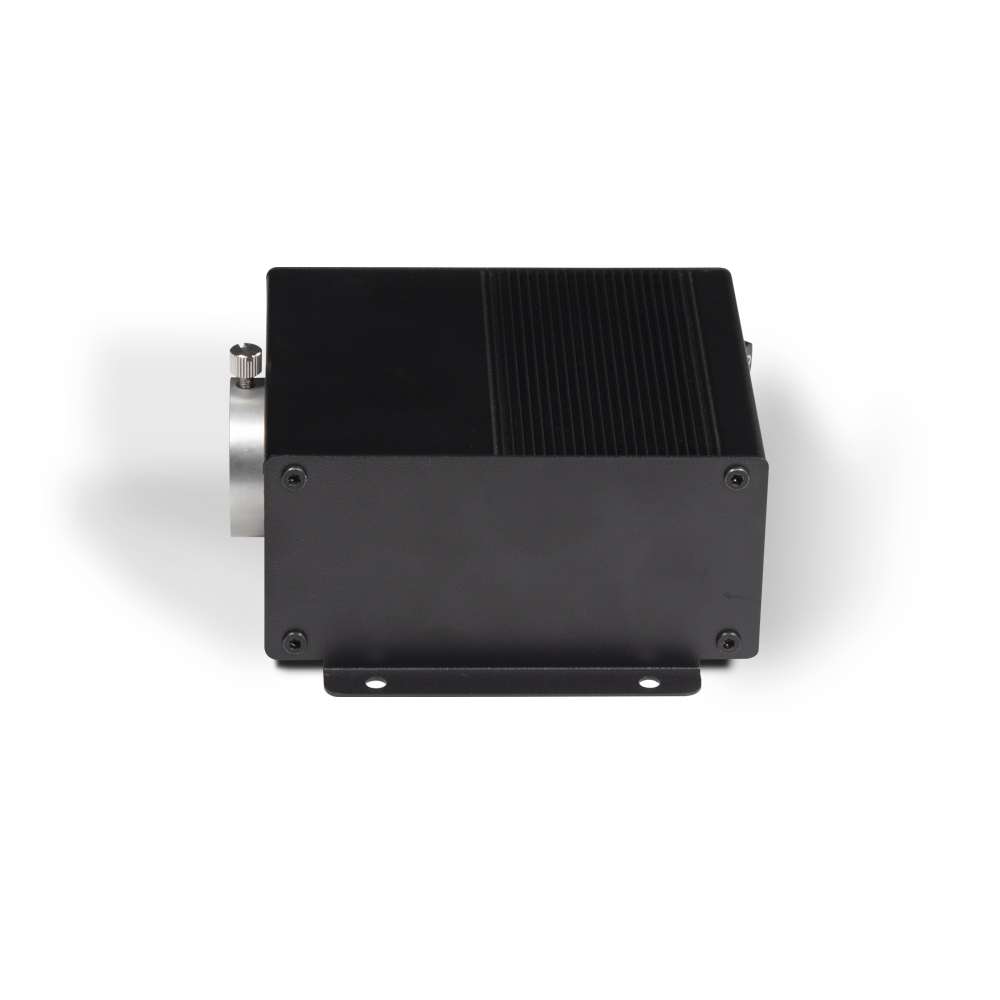

LEC-431DMX

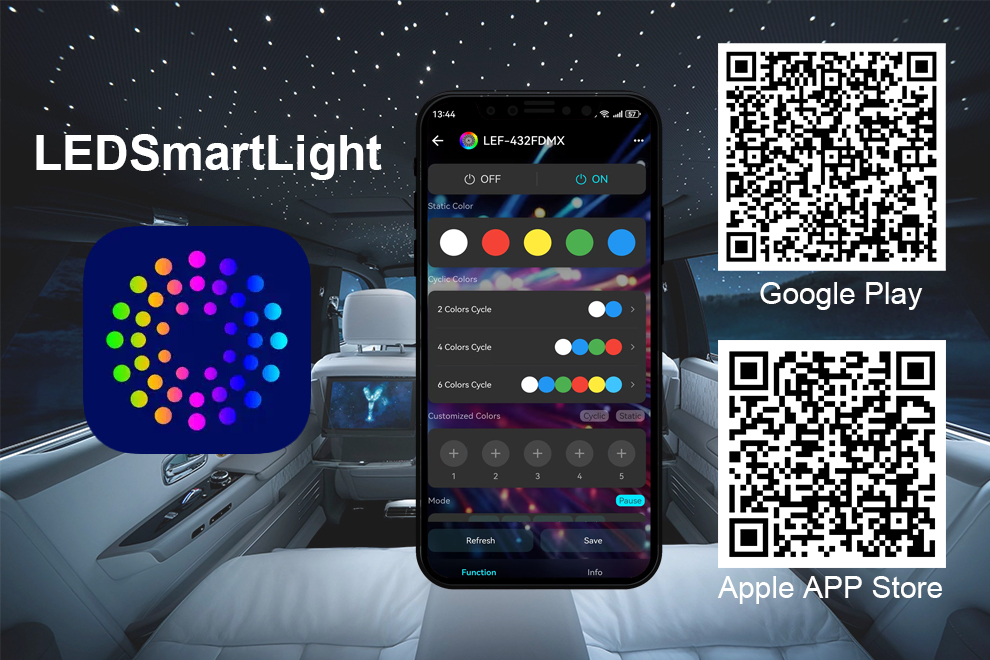

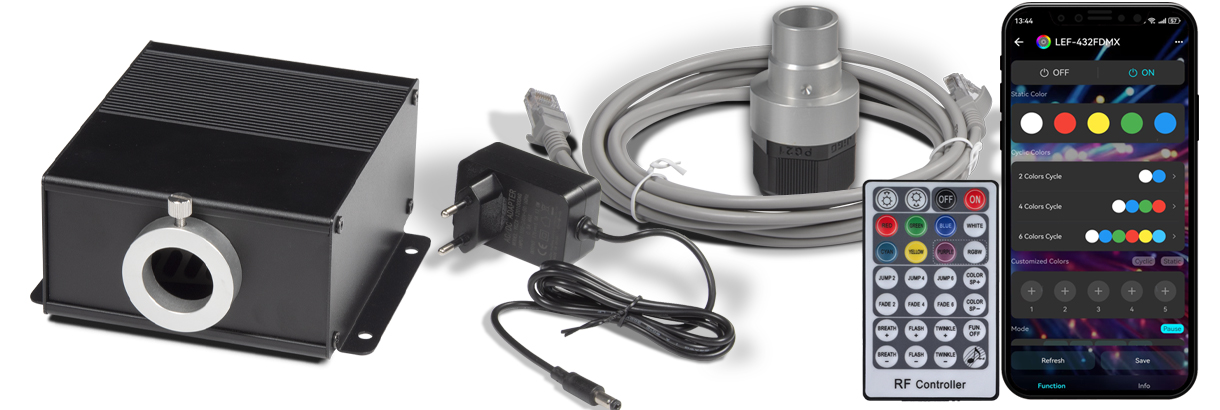

This light engine can be controlled by a mobile APP, LEDSmartLight, which can be downloaded from the Apple App Store or Google Play. The app can also be downloaded by scanning the left QR code.

This mobile APP is developed by Minar Illumination and is different from the existing ones in the market. It features easy operation.

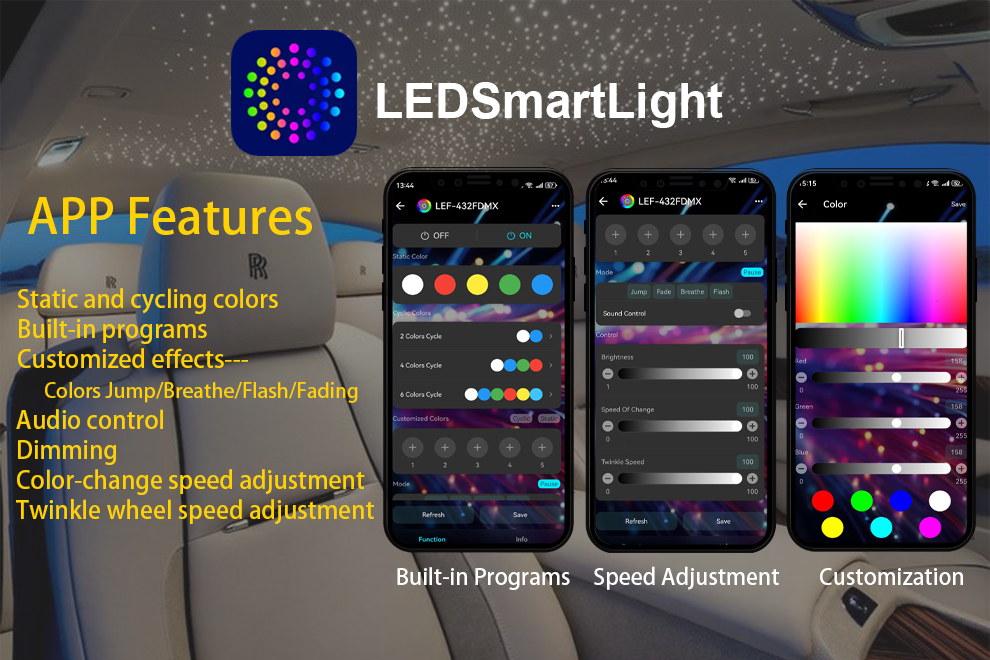

The APP's main functions:
* Static and cycling colors
* Built-in programs
* Customized effects - Colors Jump/Breathe/Flash/Fading
* Audio control
* Dimming
* Color-change speed adjustment
* Twinkle wheel speed adjustment

Remarks: 1. The control interface will not show up until the APP has connected to a light engine via Bluetooth. 2. Color customization is for light engines of RGBW models only.

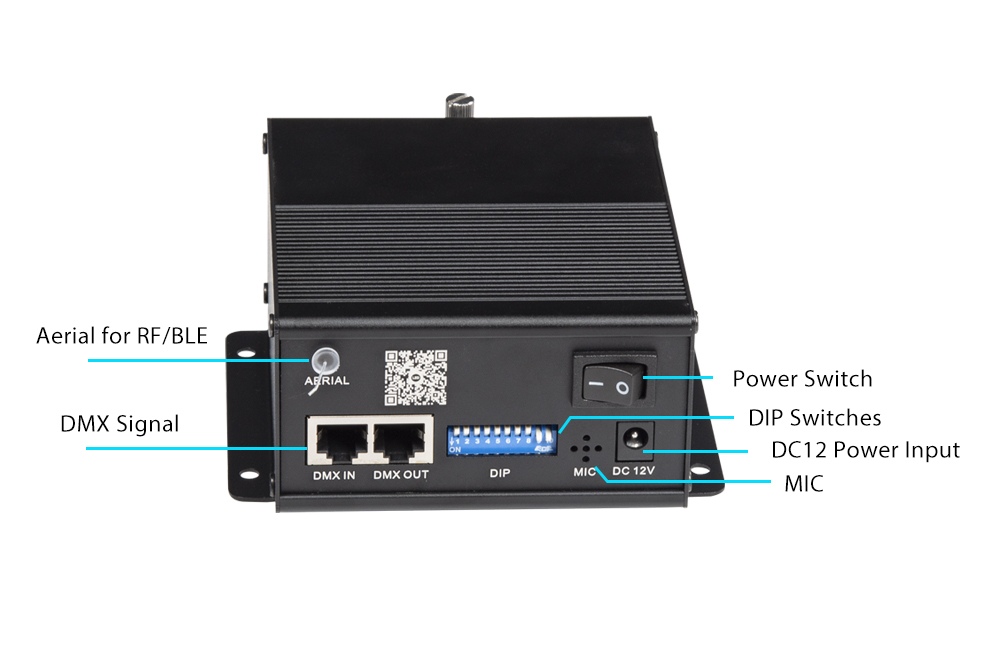

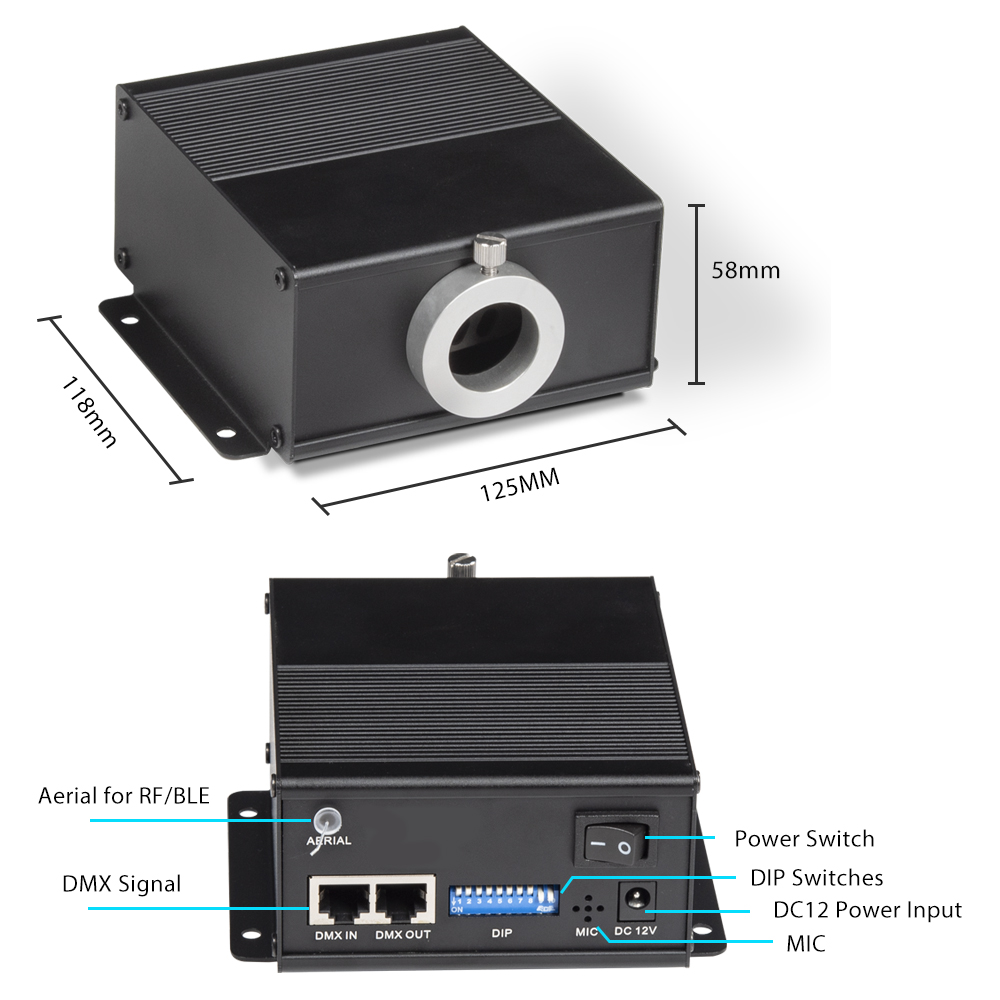

New Housing in May 2025 for new features.

New Features:

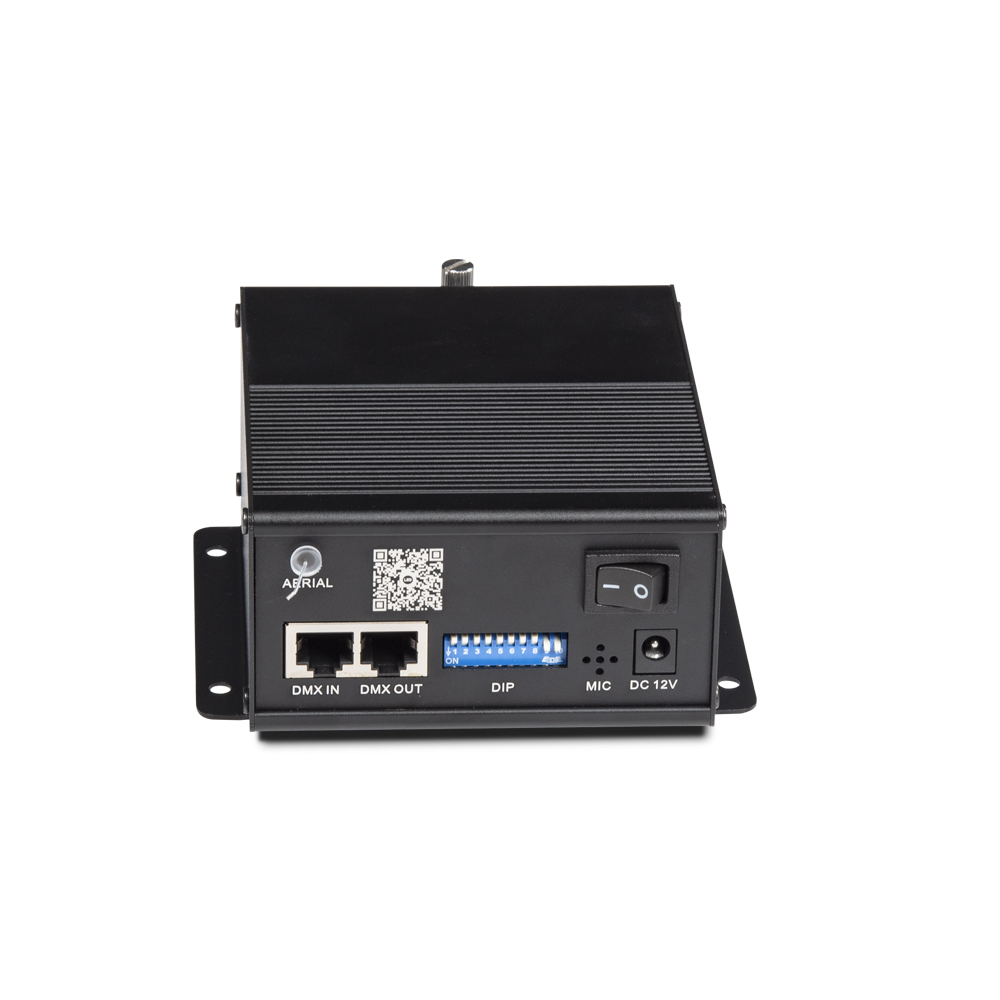

1. XLR connectors for DMX512 signal are changed to RJ45 socket.
2. DIP Switches are moved to the back panel.
3. A microphone is added to the back panel.

Functions Cancelled in the New Housing:
The onboard dimmer. The dimming function can be realized by a remote control.

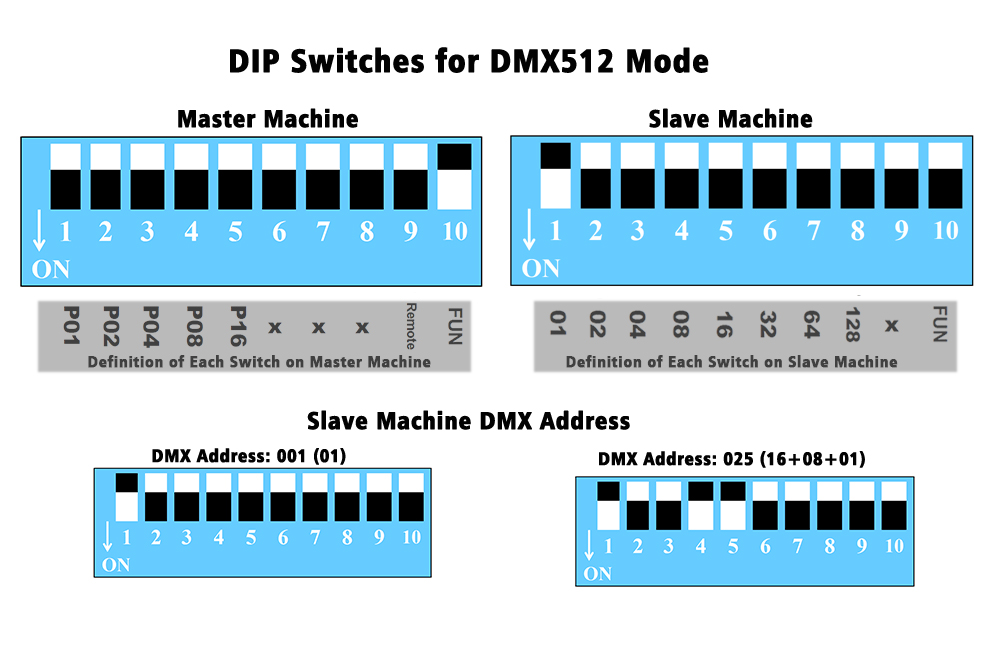

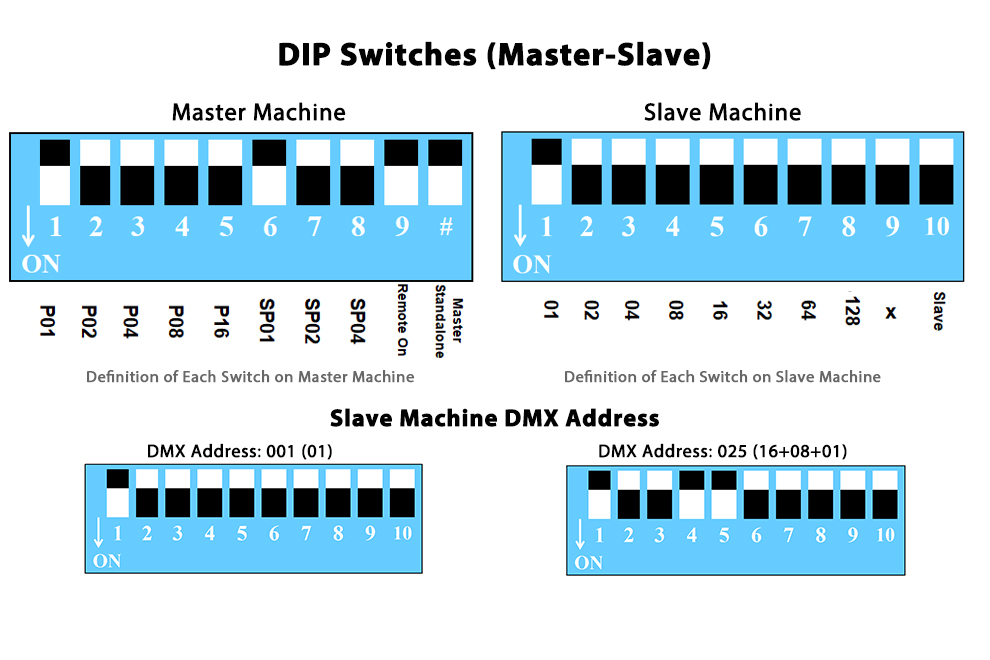

1. SW10: To set up a Master or a Slave light engine,
2. SW9 of a master light engine: On/off for the remote control and Bluetooth for the APP control function,
3. SW1-5 of a master light engine: Built-in programs,
4. SW6-8 of a master light engine: Twinkle wheel speed,
5. SW1-9 of a slave light engine: DMX addresses

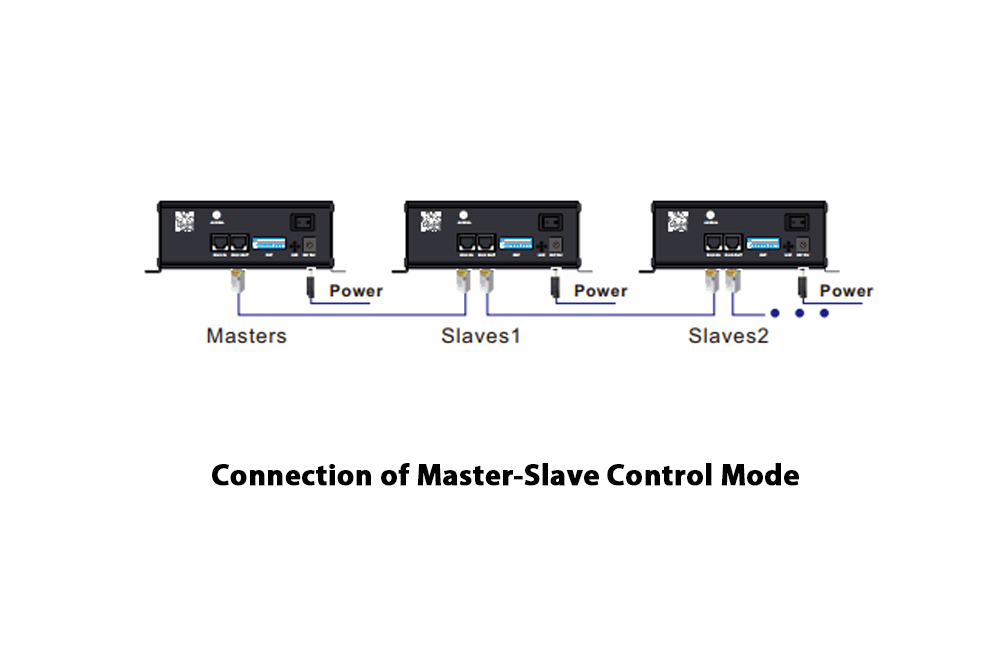

A DMX light engine always works either as a master or a slave machine.
a. When a DMX light engine works alone, it should always be set up as a master machine.
b. A group of the same DMX models can run the master-slave control mode to have a synchronous effect.
c. By default, all DMX light engines are set as Slaves before shipment,

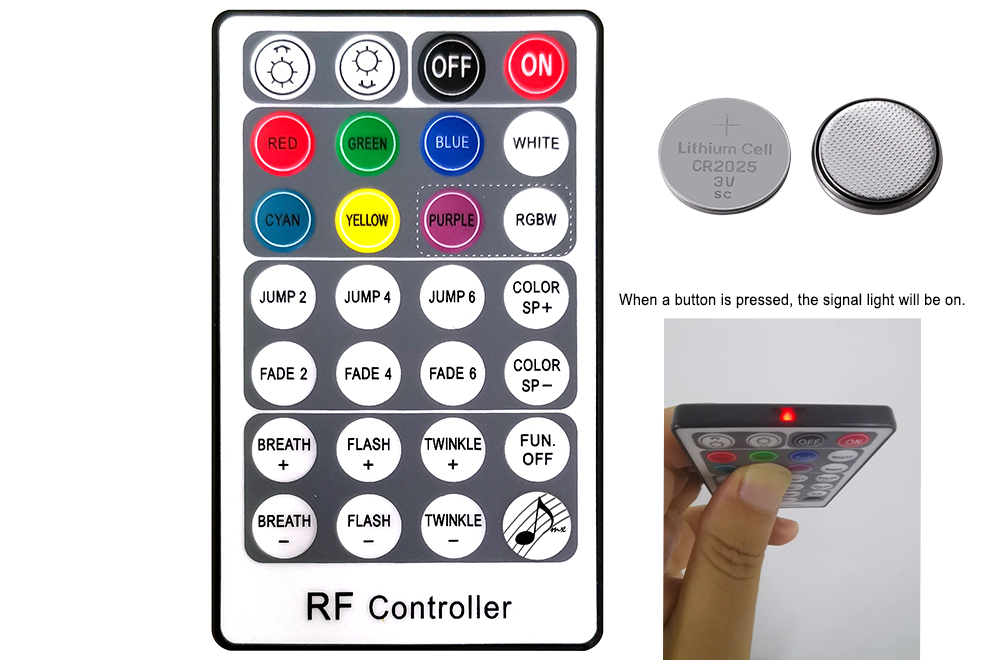

The 28-button remote control has three models: RC-28, RC-28TW, and RC-28-2.4G. Three models are not interchangeable. Please refer to the User Manual of the light engines for details.
RC-28: For LET/LES series and the 12V LED light engines with the APP: LEDSmartLight.
RC-28TW: For the tunable white LED light engines.
RC-28-2.4G: For LLE-002, LLE-004 and LLE-005 with the APP: LED LAMP.

The matching operation of RC-28 with the light engines differs from that of the other 28-button remote control, RC-28-2.4G. Please refer to the User Manual for detailed information.

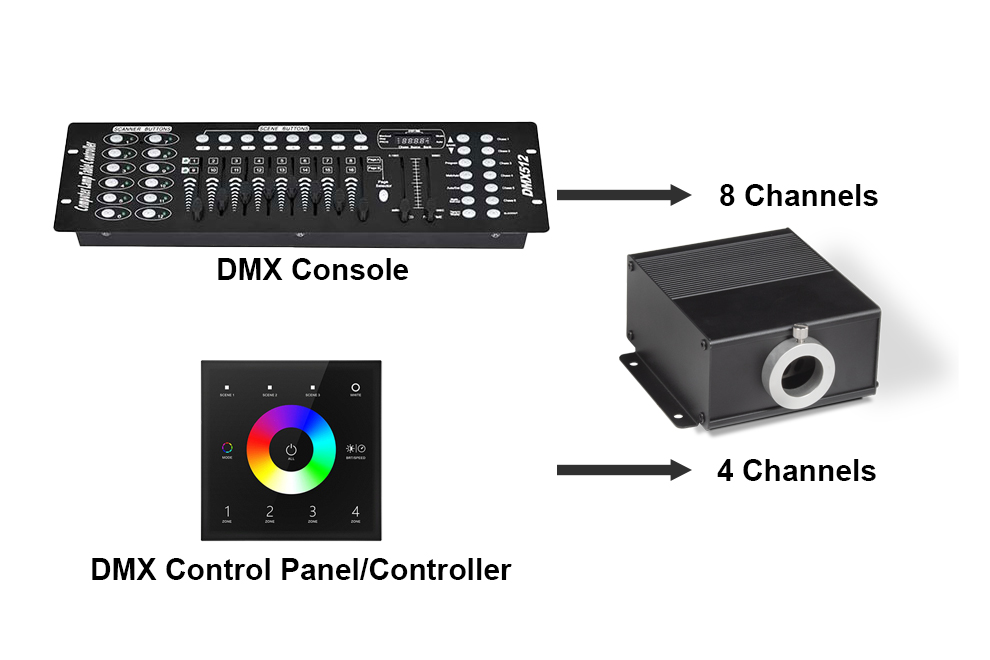

By default, LEC-431DMX has 8 DMX channels for colors and speed/dimming/flashing control via a DMX console. In case it is connected to a DMX controller/DMX control panel, the light engine needs to come out with 4 DMX channels of RGBW only.

Please contact the sales for the 4 DMX channels version if you need it.

1. The light engine has no fans inside, so it does not produce noise when working.

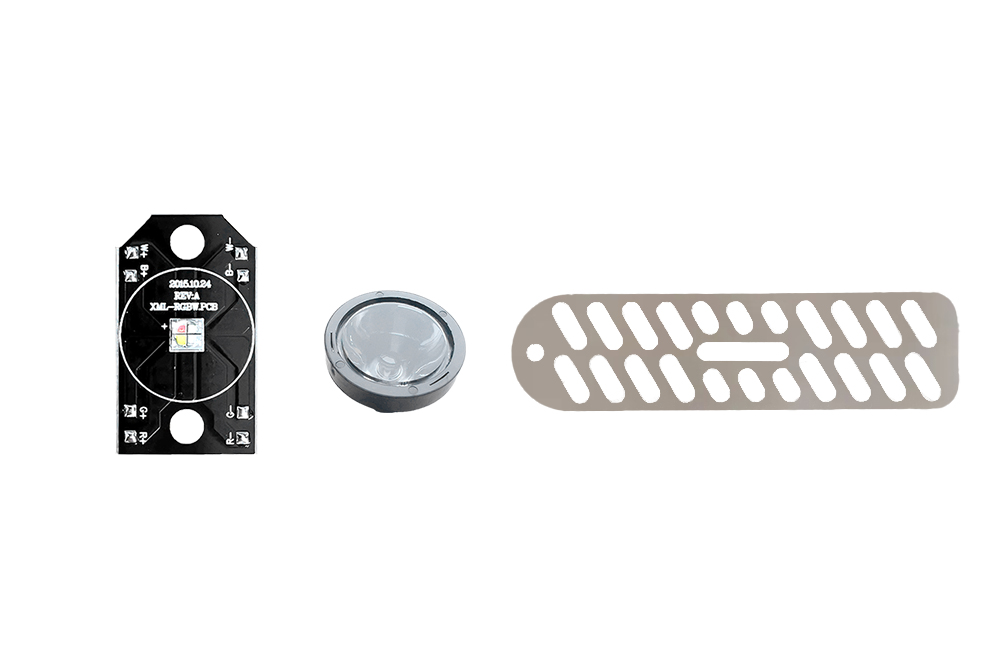

2. The four-color LED module brings the starry ceiling a fantastic and stimulating effect.

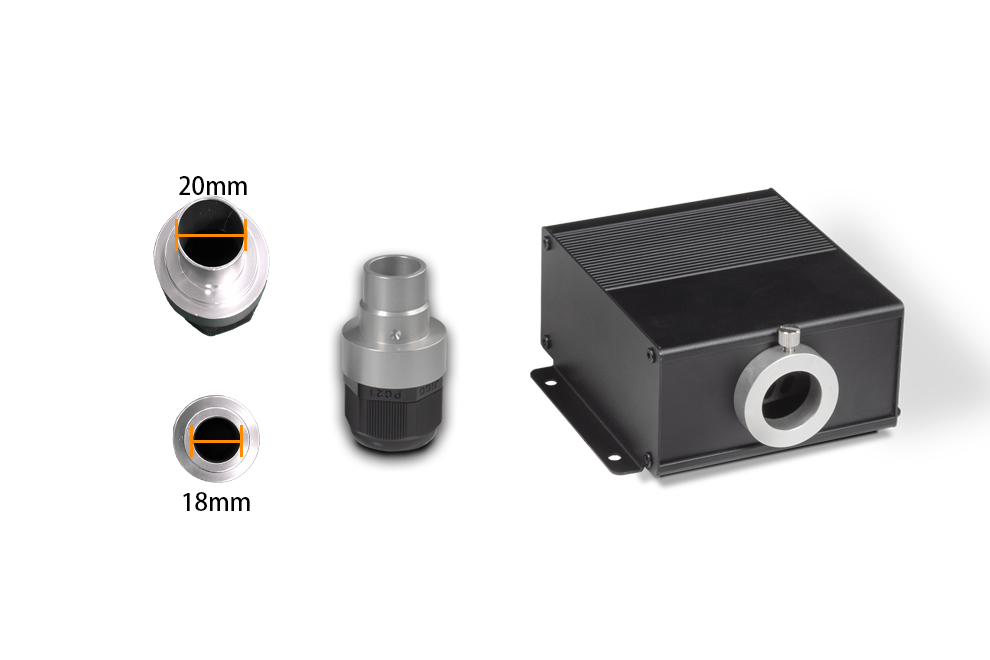

The structure of the light engine's ferrule, which holds the fiber connector, is different from that of other light engines. Its surface is flat instead of having a slim edge.

By default, the aperture of the fiber connector for the low-voltage APP light engine is 18mm. At request, 20mm is available. For the non-App control low-voltage light engines, their fiber connector aperture is 14mm or 18mm.
