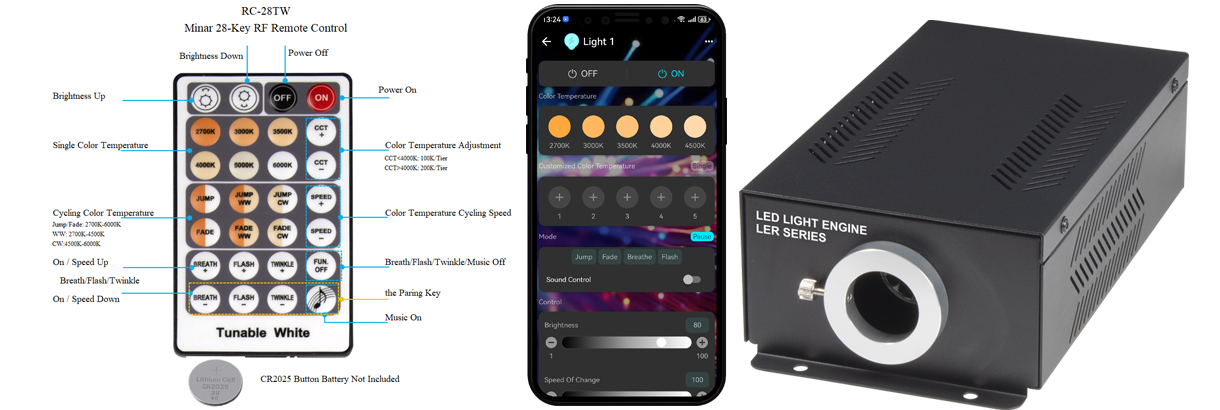

LER-3001TWDMX

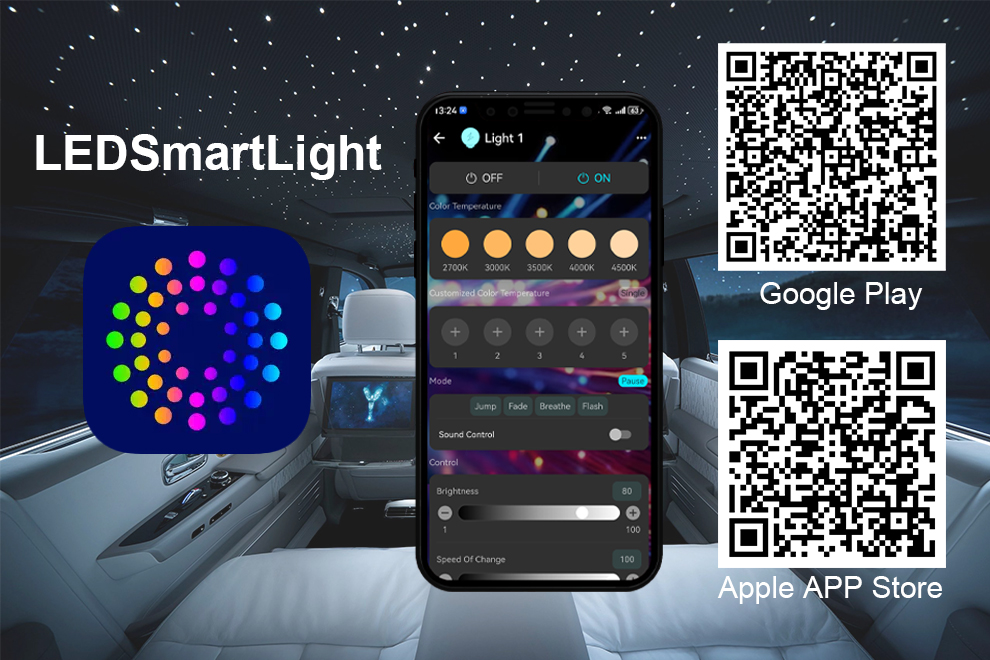

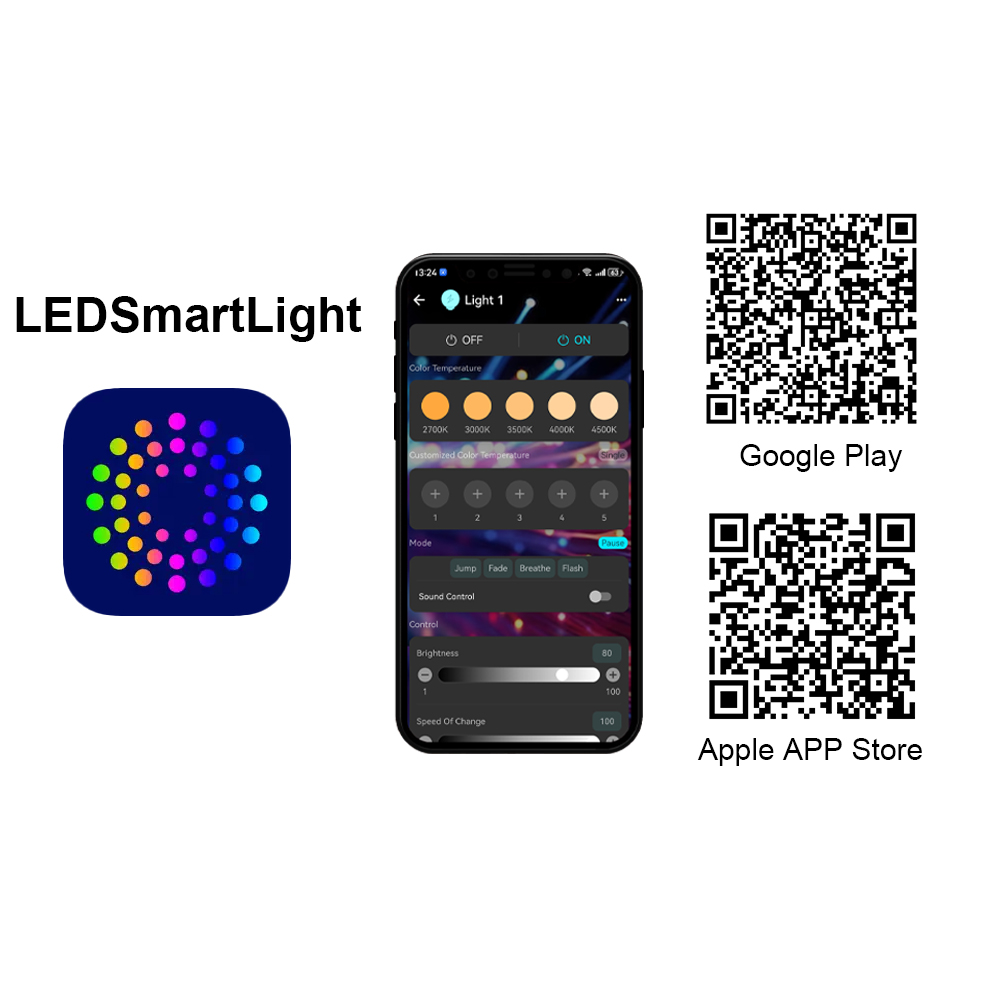

This light engine can be controlled by a mobile APP, LEDSmartLight, which can be downloaded from the Apple App Store or Google Play. The app can also be downloaded by scanning the left QR code.

This mobile APP is developed by Minar Illumination and is different from the existing ones in the market. It features easy operation.

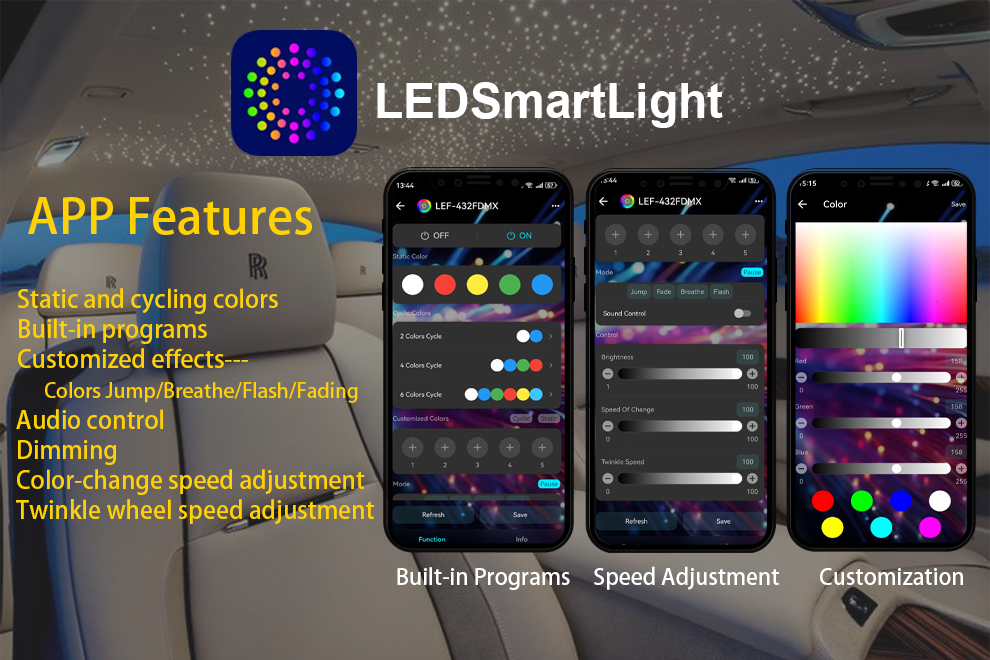

The APP main functions:
* Static and cycling color temperature
* Built-in programs
* Customized effects - Color Temperature Jump/Breathe/Flash/Fading
* Audio control
* Dimming
* Color temperature change speed adjustment

Remarks: 1. The control interface will not show up until the APP has connected to a light engine via Bluetooth. 2. Color temperature customization is for light engines of tunable white models only.

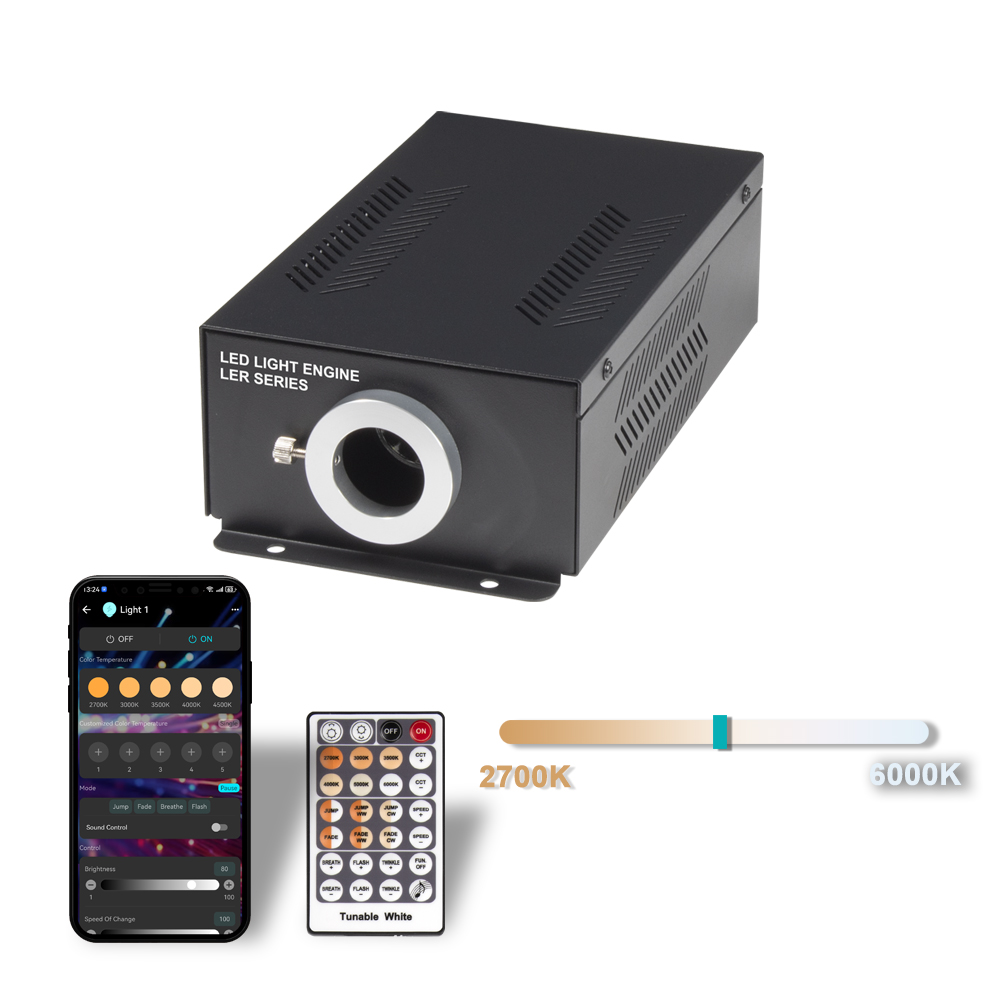

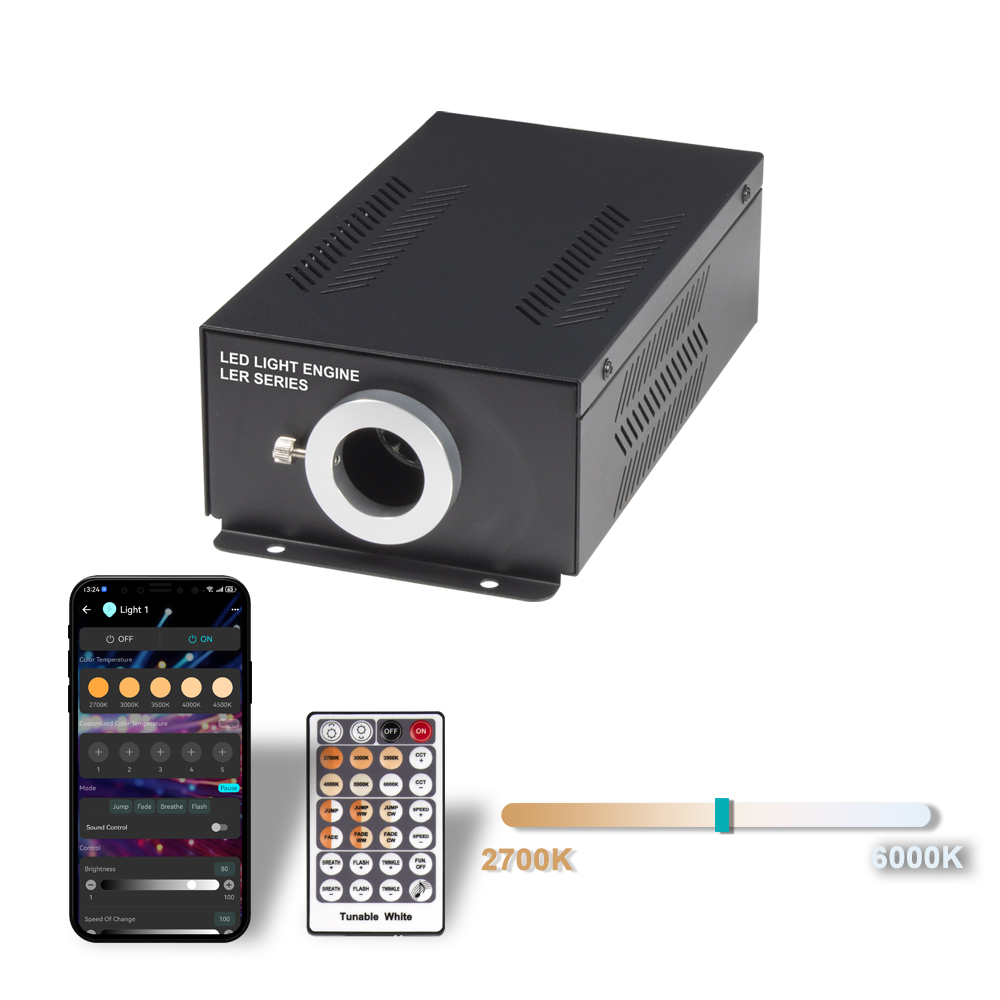

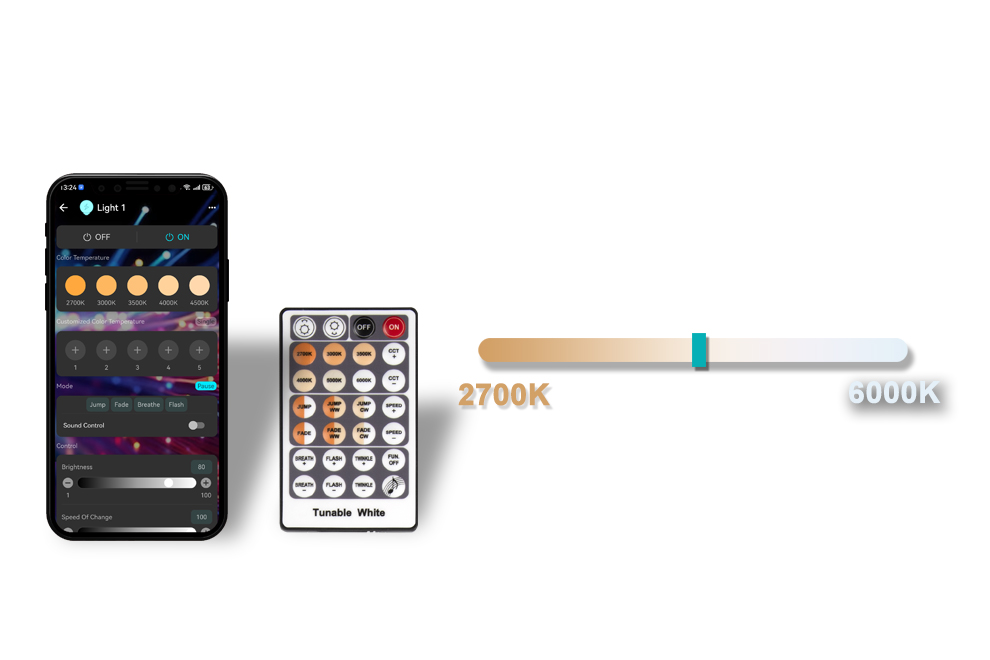

This tunable white light engine has an adjustable color temperature range from 2700K to 6000K. The color temperature can be adjusted by the OLED display, remote control, or the mobile APP.

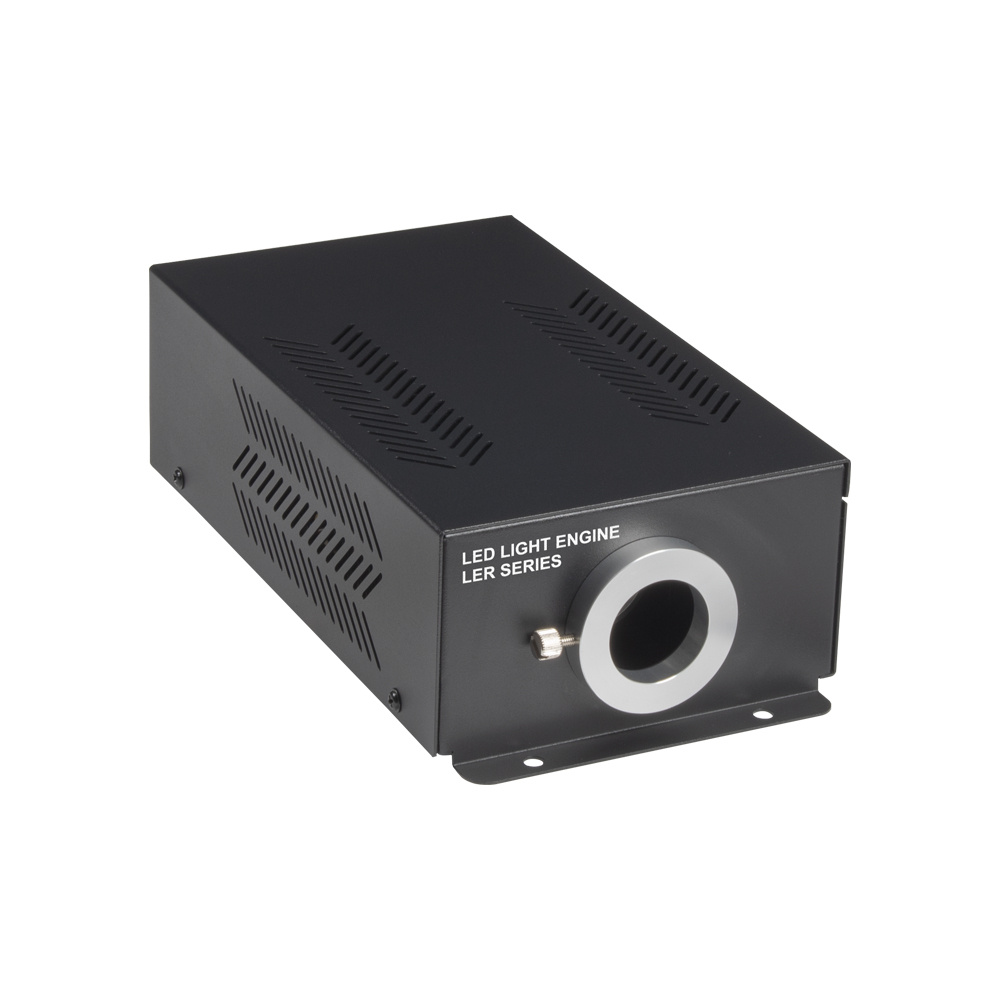

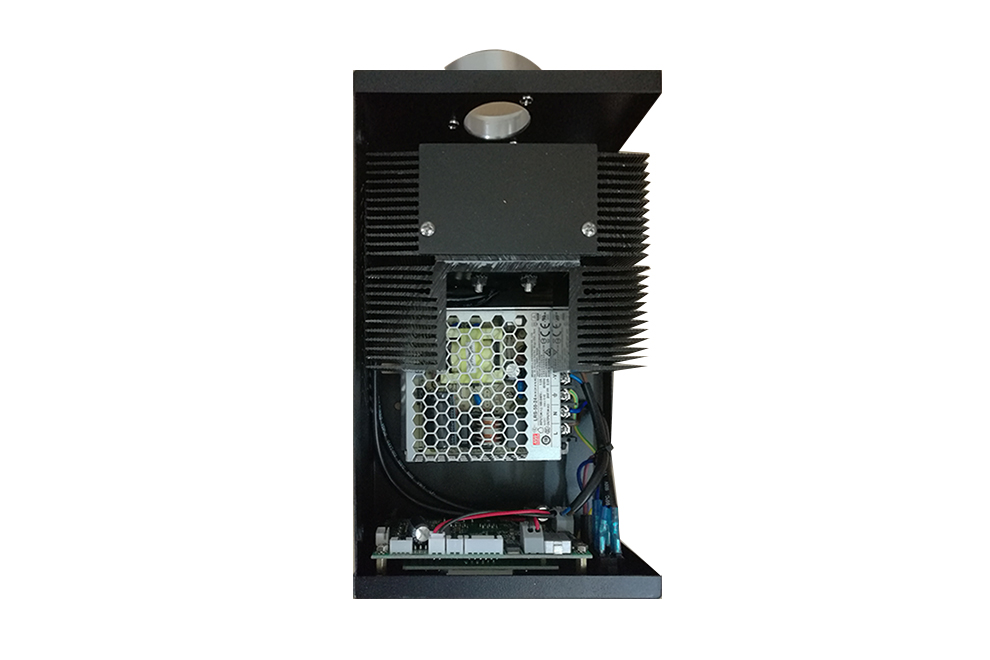

Different from other line voltage light engines, the LER series of light engines does not contain any fans or motors. They are completely quiet during operation.

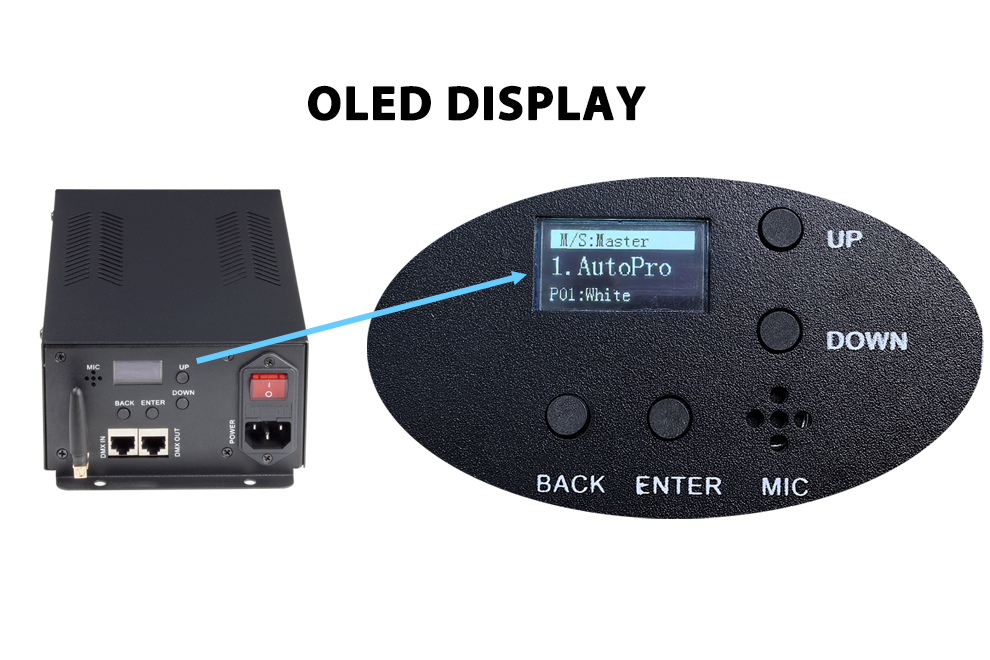

The new light engine has replaced the original digital LED display with an OLED display to display operational information.

You can also switch the control command directly on the OLED display to control the light engine.

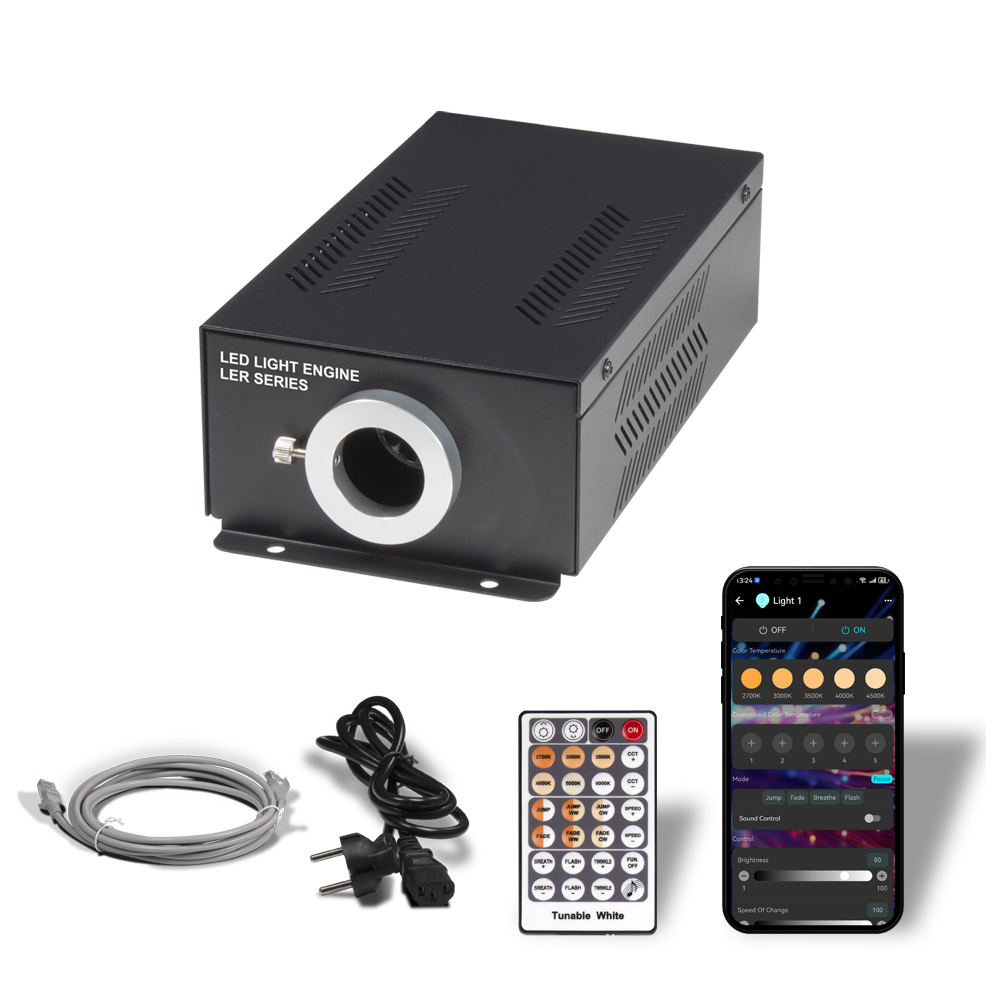

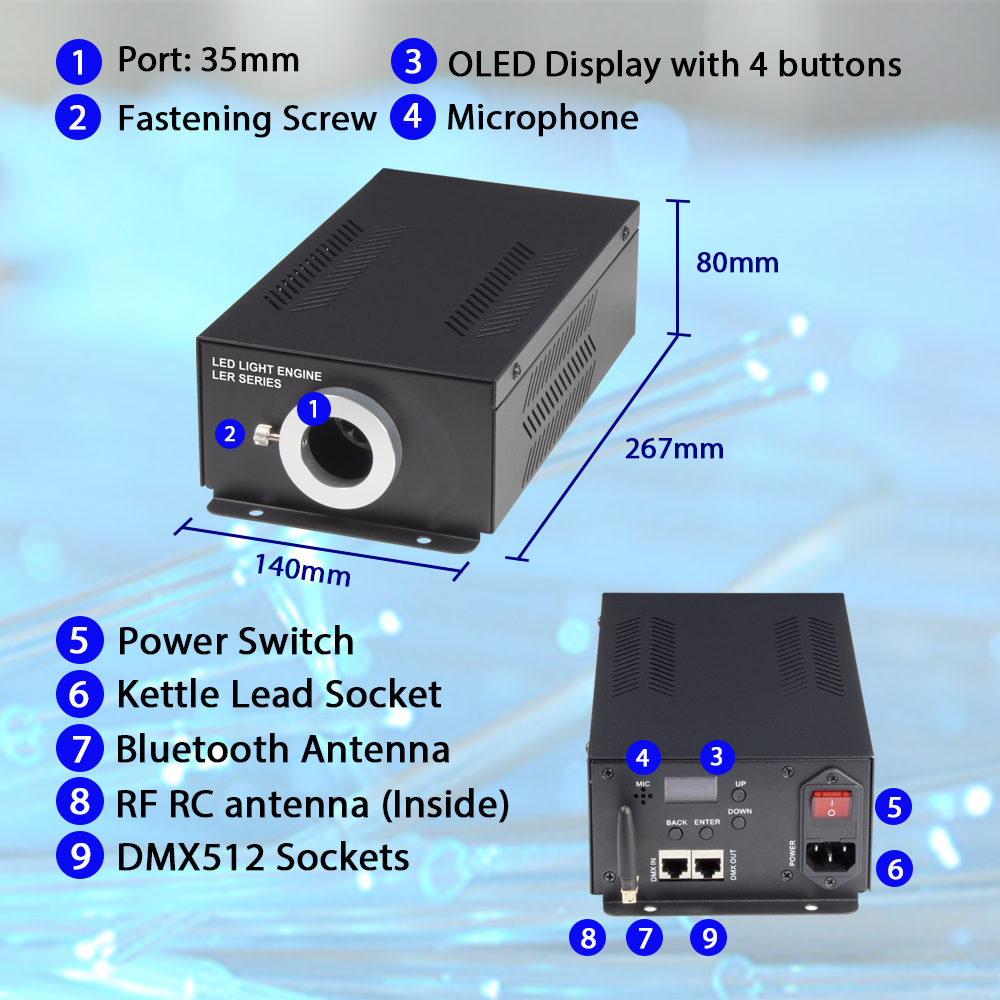

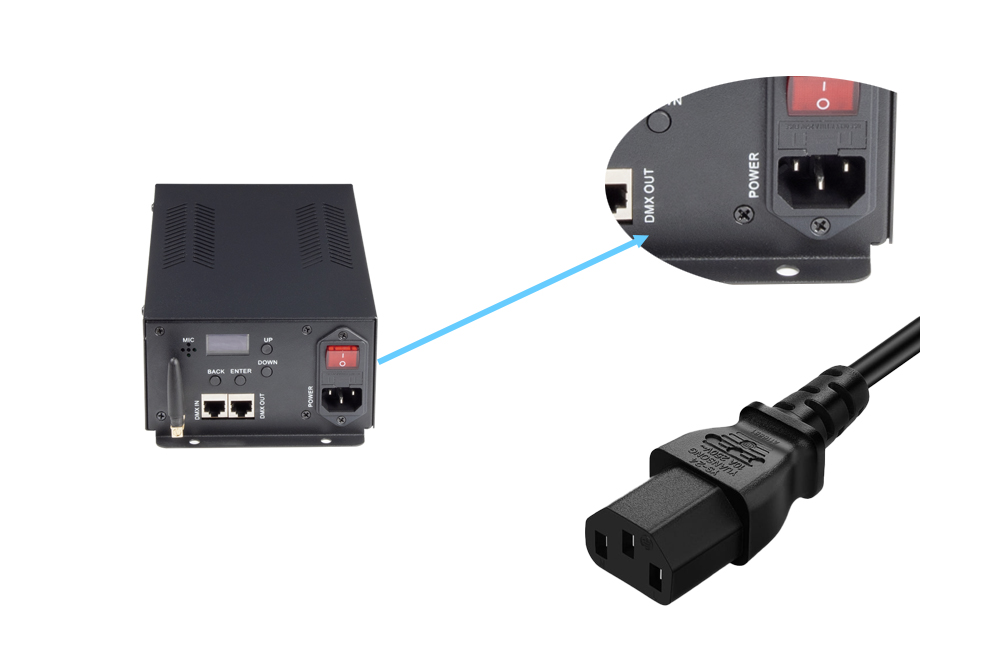

The new light engine has applied a kettle lead for its power input. Also known as an IEC cable, a kettle lead will ensure the light engine's standardised and safe connection to the power.

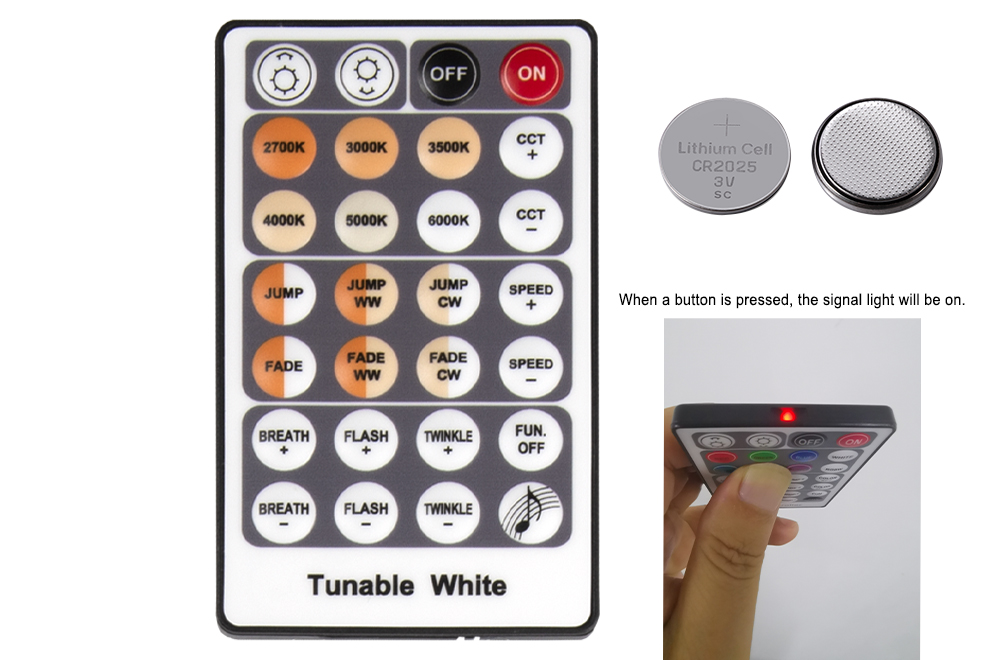

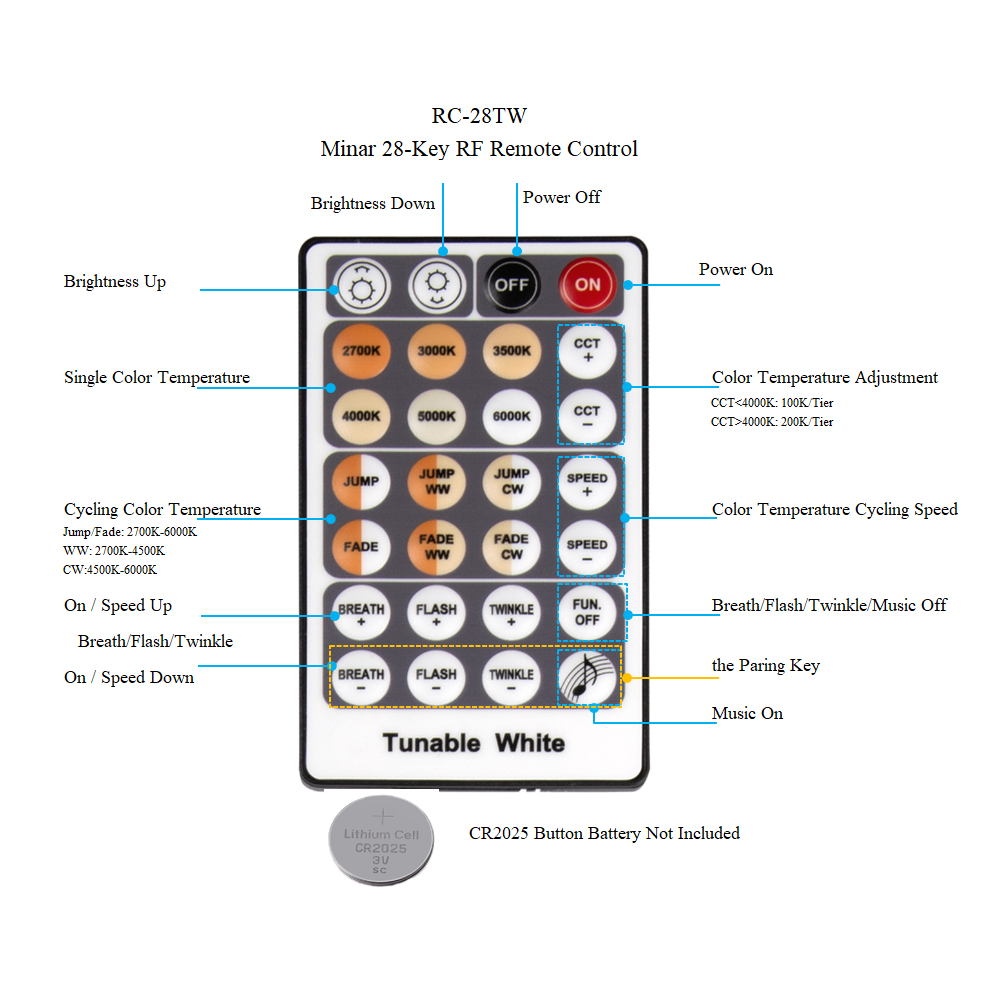

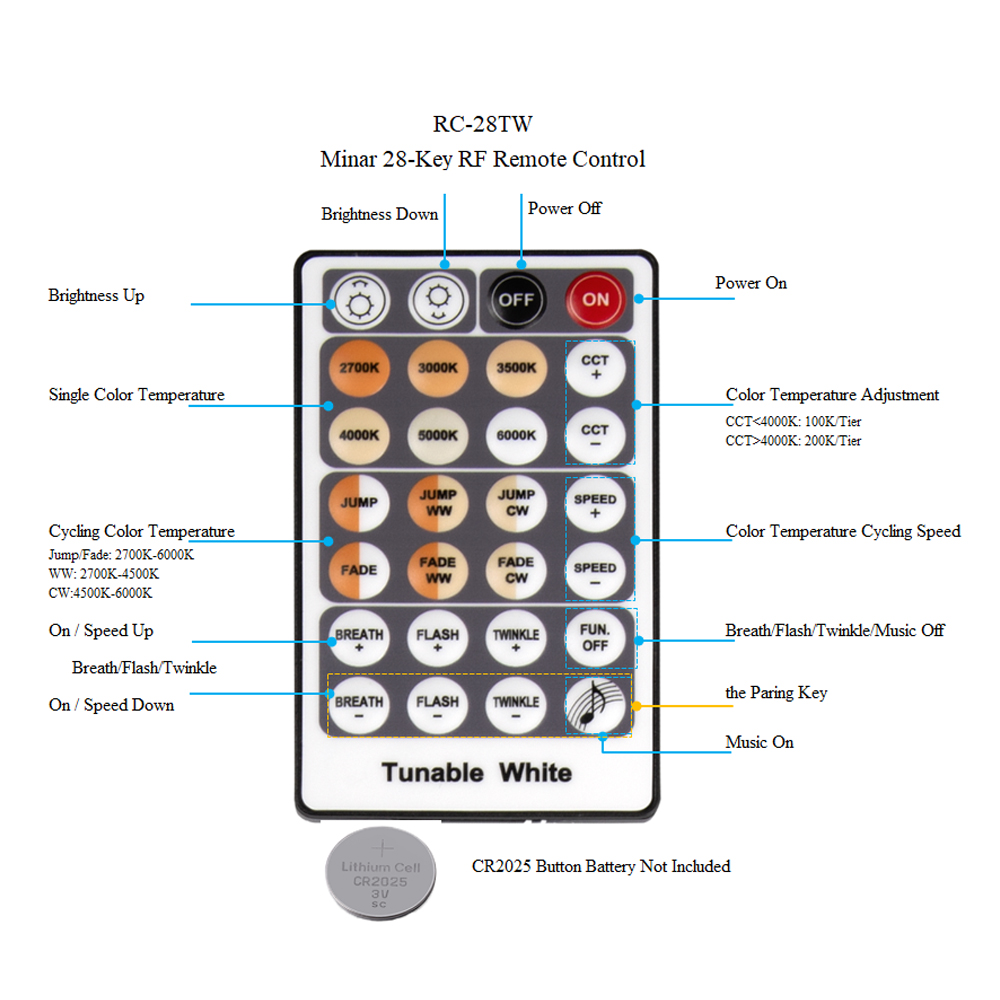

The tunable white light engines apply a new 28-button remote control. Please make sure that the remote control settings on the onboard display is ON. Please note that the battery is not included in the shipment.

The remote control supports cycling changes of the color temperature, such as from 2700K to 4500K, 4500K to 6000K, and 2700K to 6000K.

Please note that the remote contol needs to pair with the light engine before work.

By default, Minar provides one piece of a 20mm/24mm/28mm 3-in-1 combined fiber connector for each line voltage light engine. These apertures are capable of 540pcs, 770pcs, and 1050pcs of 0.75mm fiber tails, respectively. 30mm fiber connector is also available upon request.

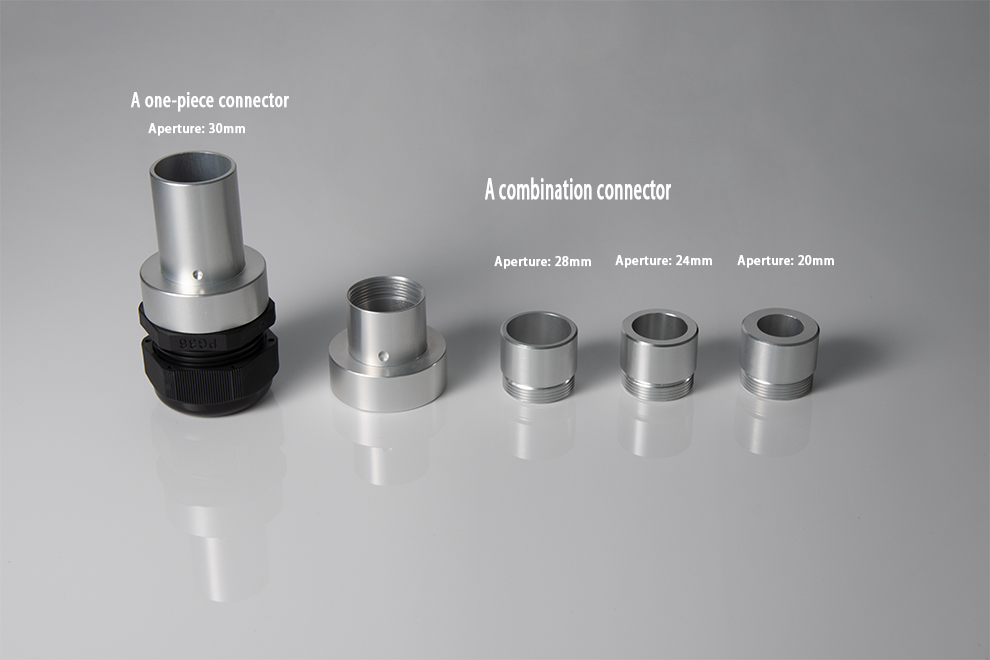

From left to right, the fiber connectors: 30mm, 28mm, 24mm, and 20mm. Customized apertures are also welcome!

The aperture here refers to the inner diameter of the fiber connectors.

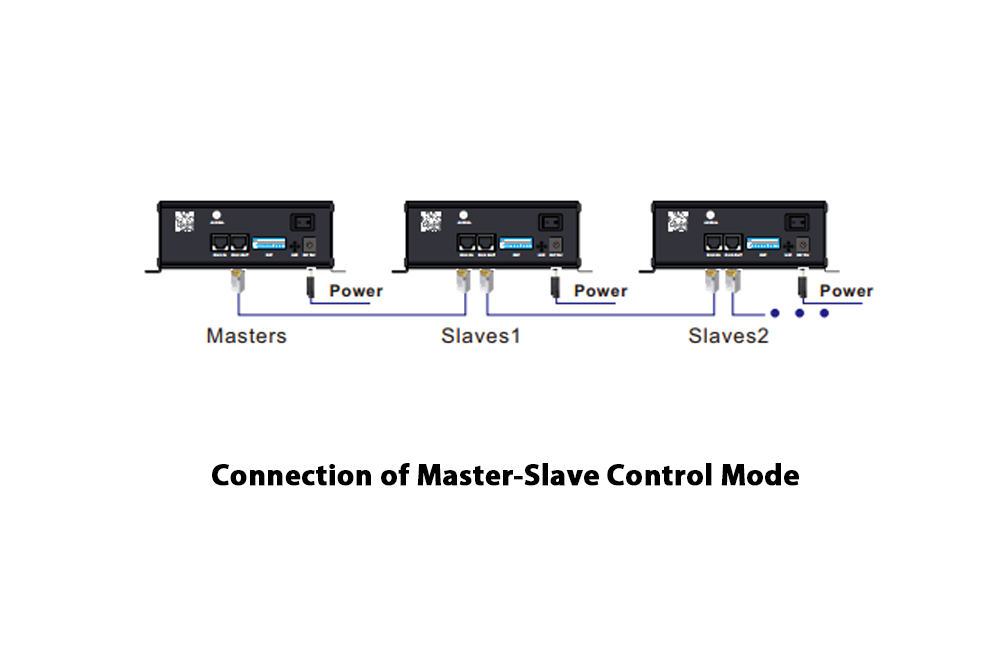

Multiple units of the DMX512 light engines can be connected as a group via DMX signal cables to run the master-slave control mode. In master-slave control mode, there will be one and only one master light engine, and all the rest will be set as slave machines. The master runs the built-in program with or without the remote control, and all slave machines will automatically follow to have a synchronous or progressive effect.
