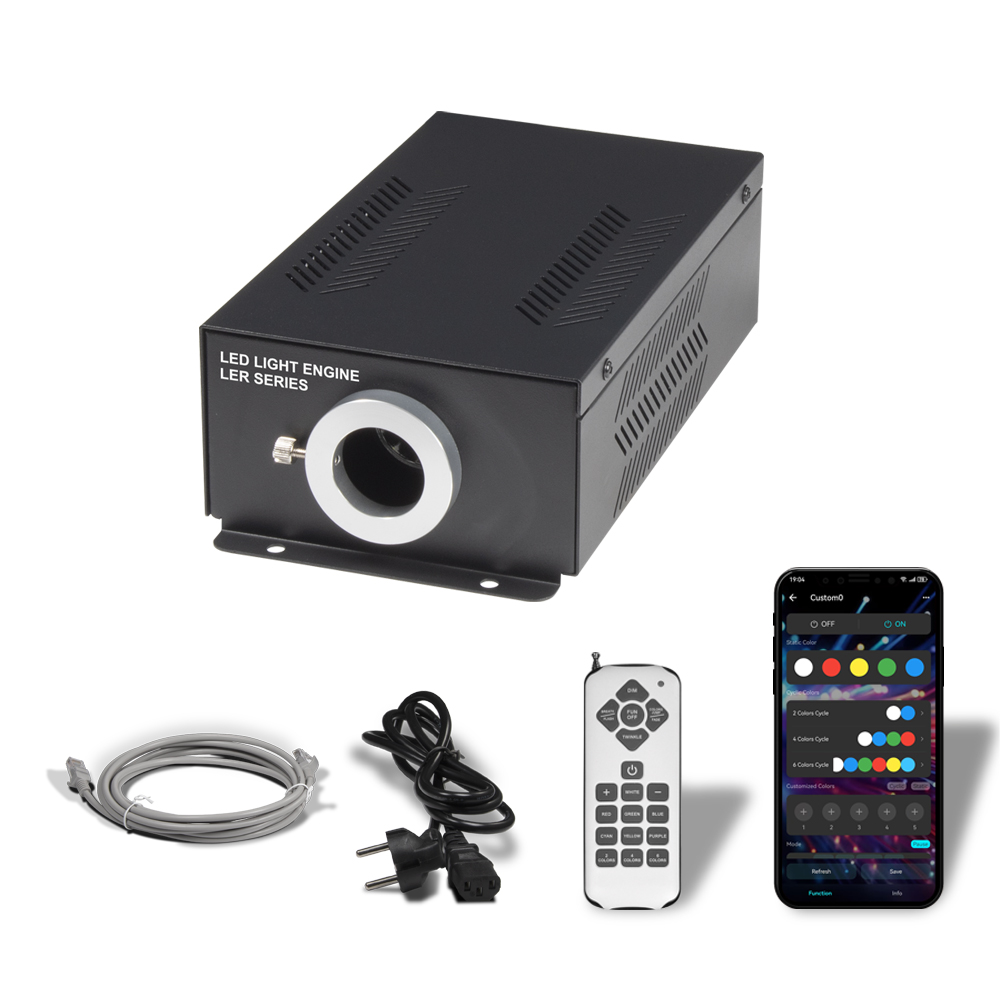

LER-4121DMX

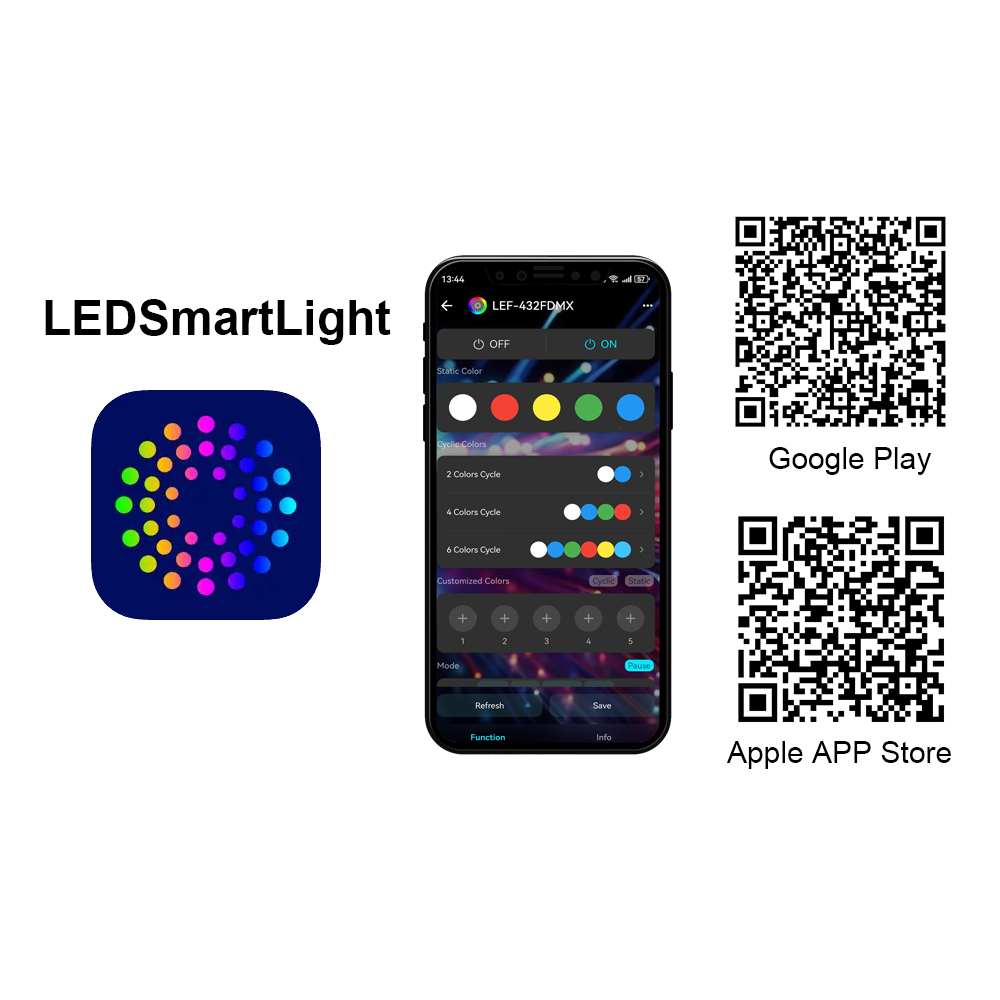

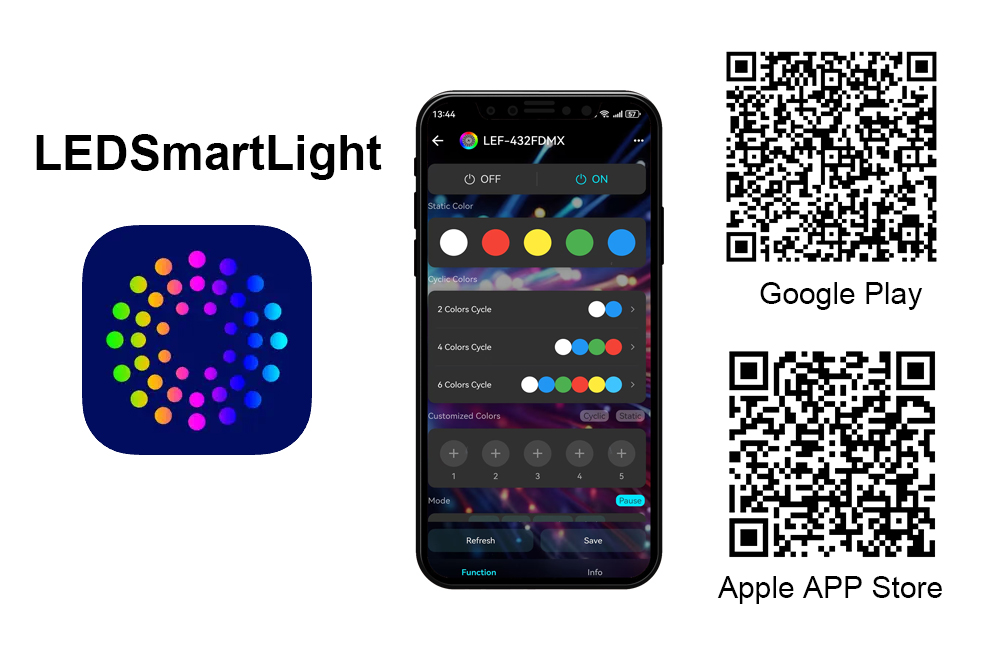

This light engine can be controlled by a mobile APP, LEDSmartLight, which can be downloaded from the Apple App Store or Google Play. The app can also be downloaded by scanning the left QR code.

This mobile APP is developed by Minar Illumination and is different from the existing ones in the market. It features easy operation.

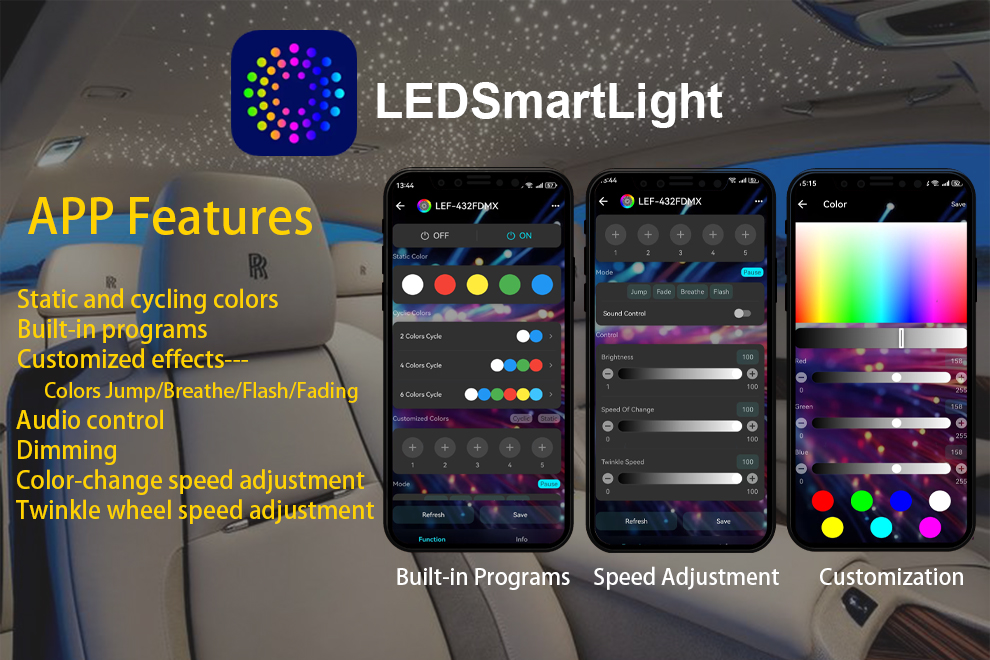

The APP main functions:
* Static and cycling colors
* Built-in programs
* Customized effects - Colors Jump/Breathe/Flash/Fading
* Audio control
* Dimming
* Color-change speed adjustment

Remarks: 1. The control interface will not show up until the APP has connected to a light engine via Bluetooth. 2. Color customization is for light engines of RGBW models only.

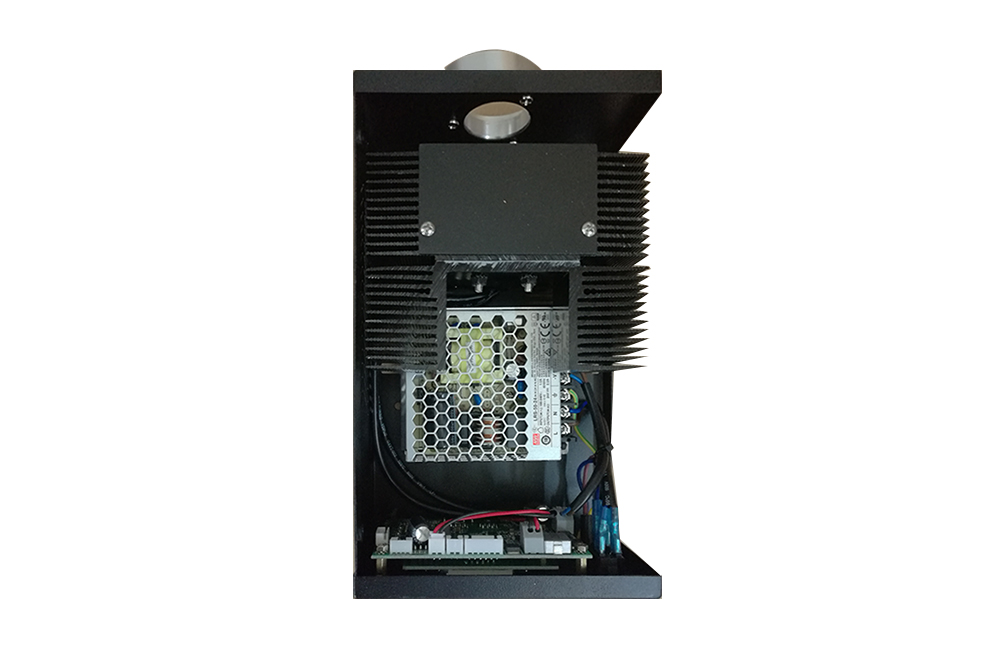

Different from other line-voltage light engines, both LER-3001DMX and LER-4121DMX do not contain any fans or motors. They are completely quiet during operation.

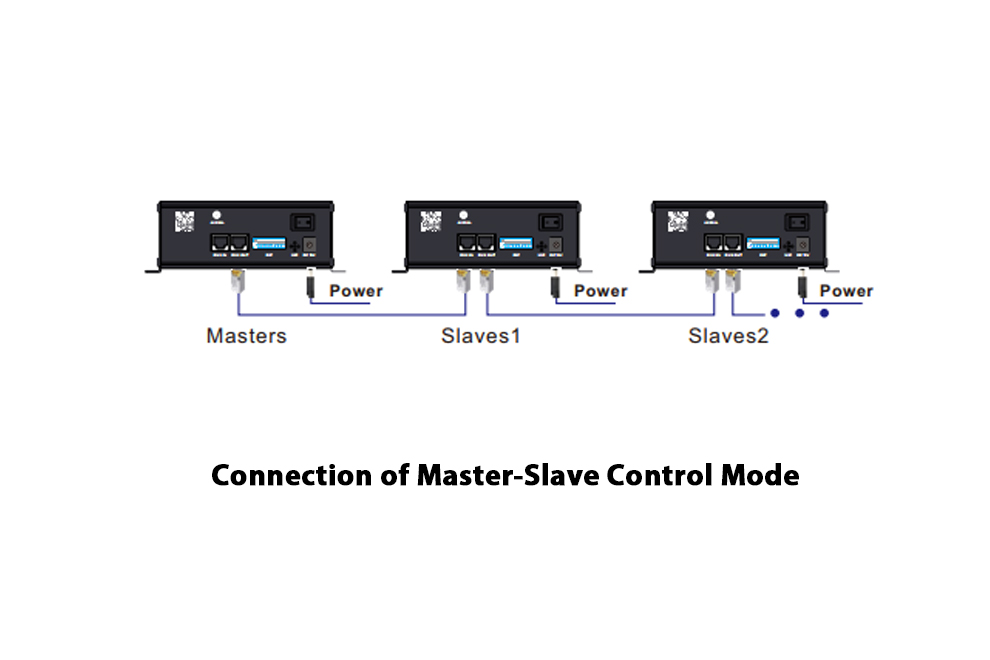

Multiple units of the DMX512 light engines can be connected as a group via DMX signal cables to run the master-slave control mode. In master-slave control mode, there will be one and only one master light engine, and all the rest will be set as slave machines. The master runs the built-in program with or without the remote control, and all slave machines will automatically follow to have a synchronous or progressive effect.

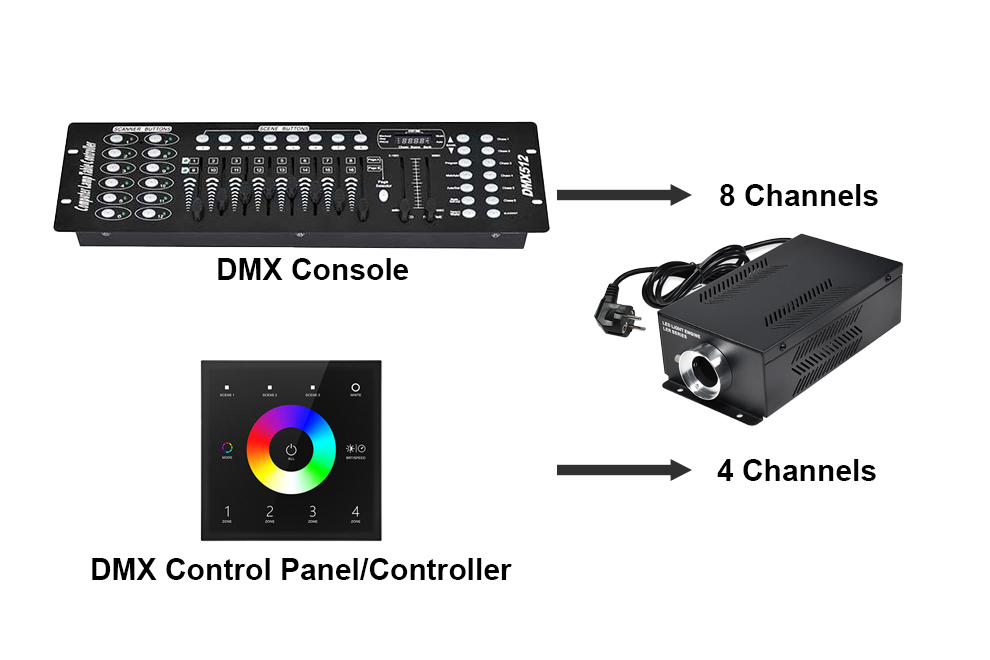

By default, the light engine, LER-4121DMX, has 8 DMX channels for colors and lighting features via a DMX console.

In case it is connected to a DMX controller/DMX control panel, the light engine needs to come with 4 DMX channels of RGBW only.

The DMX channel numbers can be switched on the OLED display.

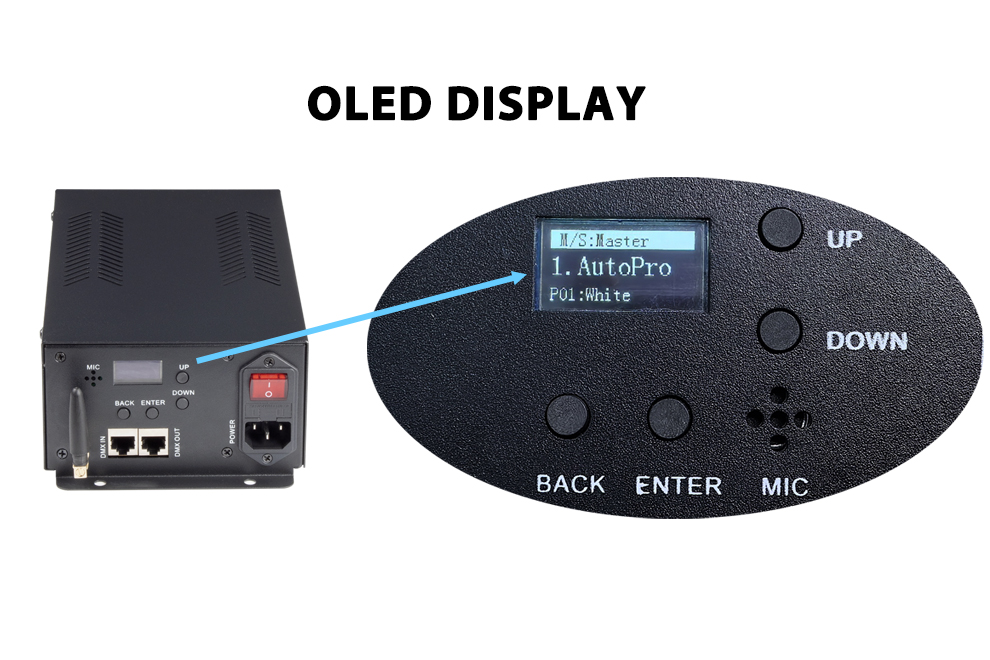

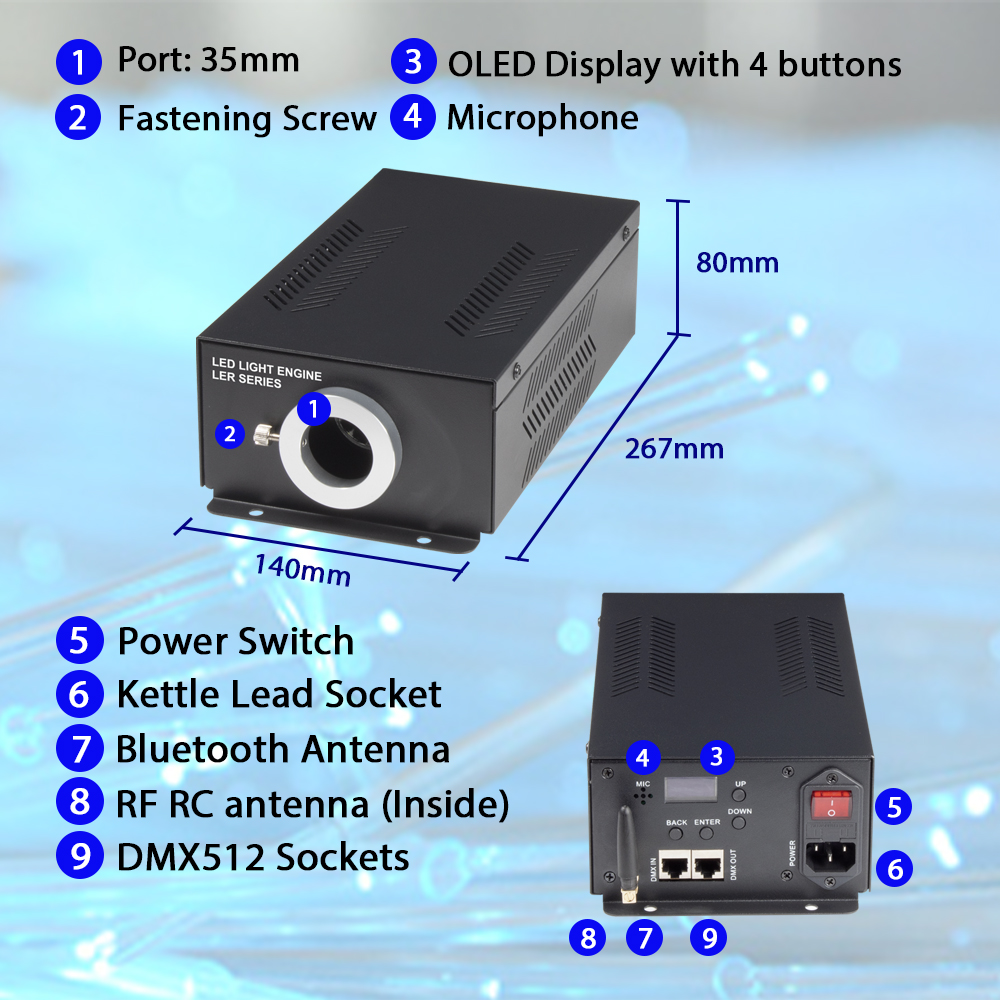

The new light engine has replaced the original digital LED display with an OLED display to display operational information.

You can switch the control command directly on the OLED display to control the light engine.

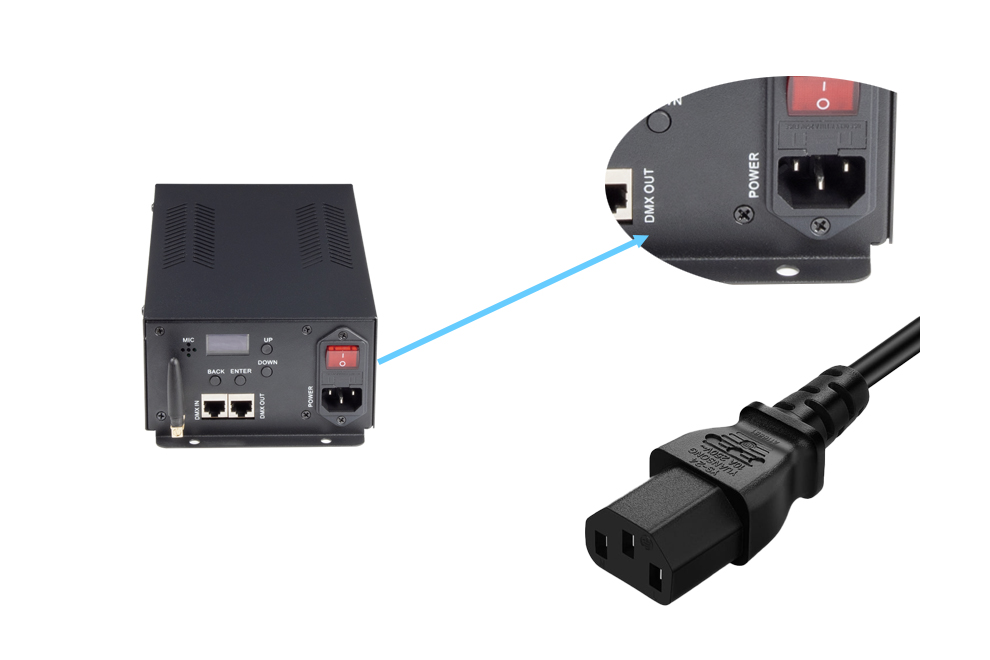

The new light engine has applied a kettle lead for its power input. Also known as an IEC cable, a kettle lead will ensure the light engine's standardised and safe connection to the power.

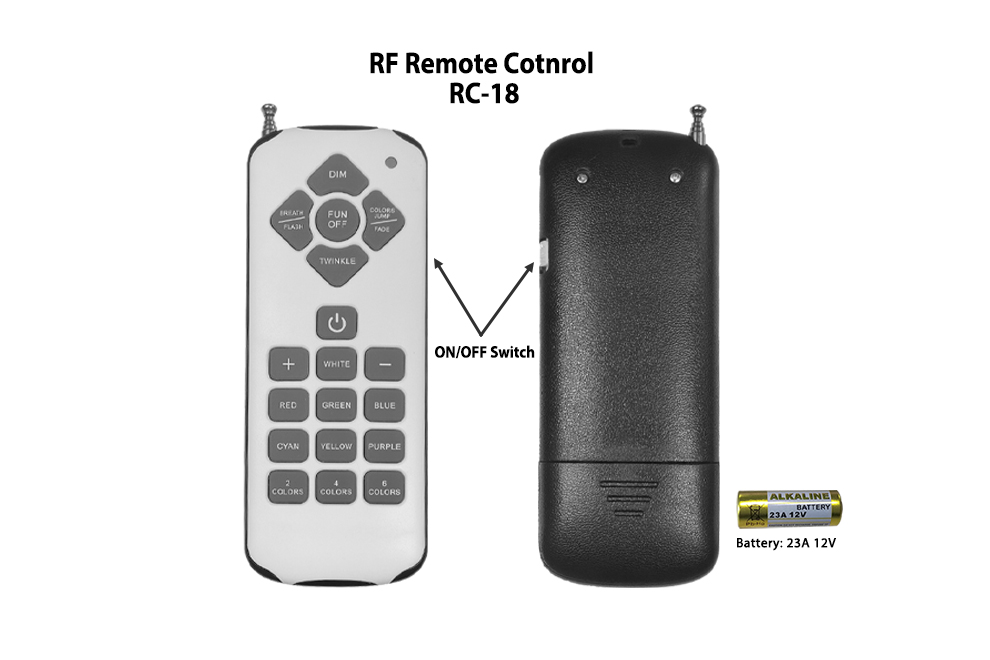

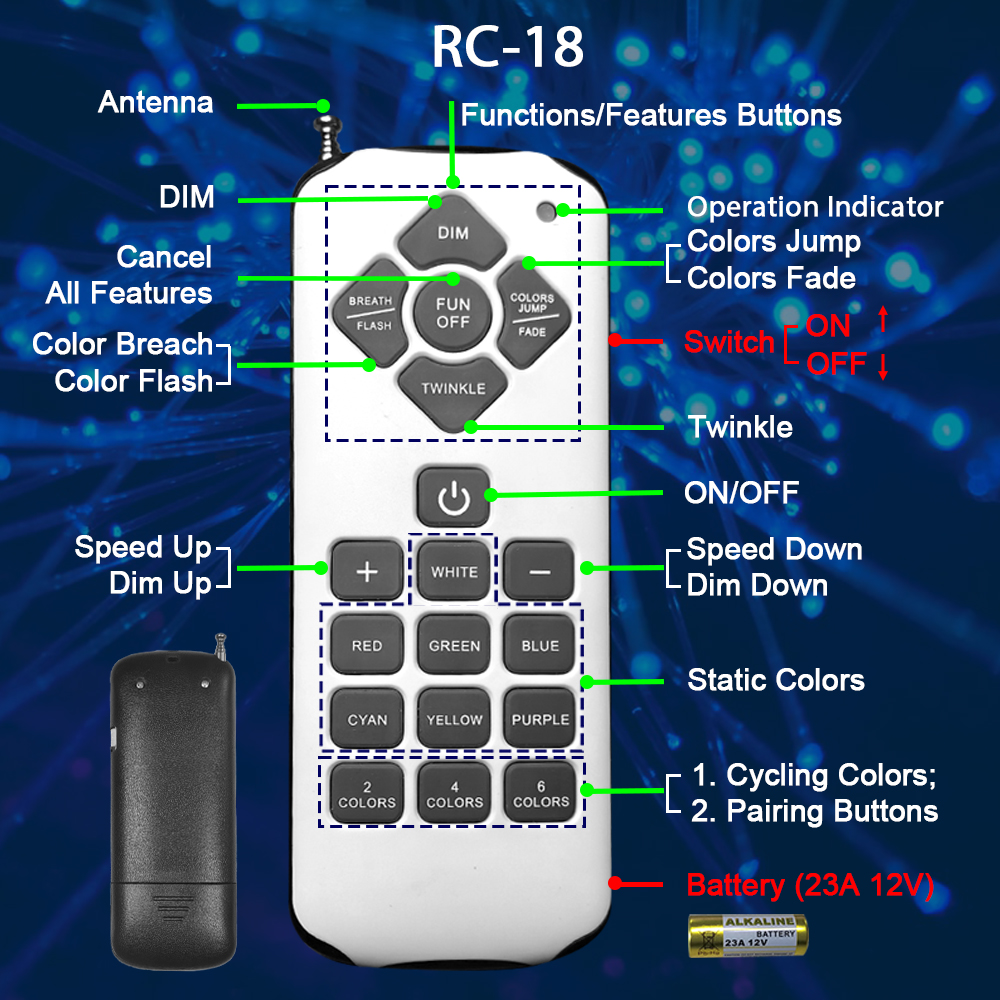

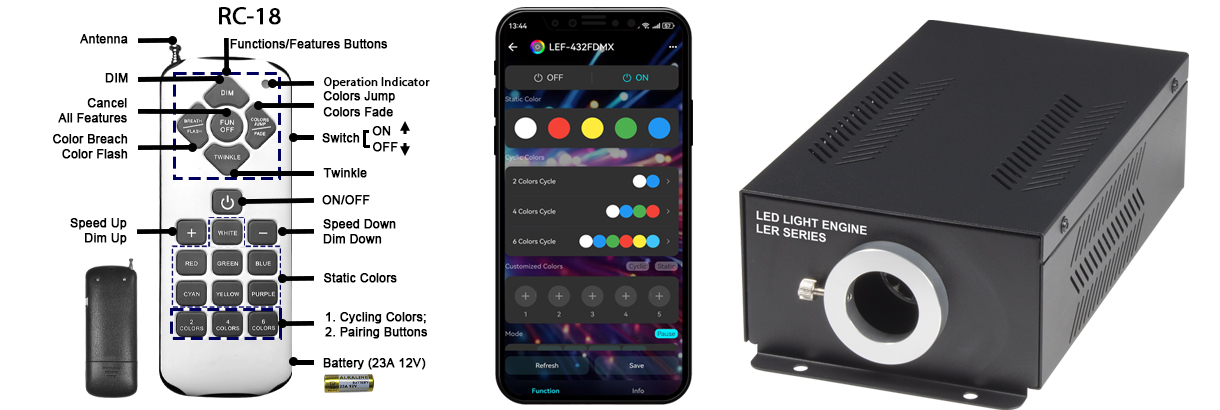

The line voltage light engines apply a new 18-button remote control.

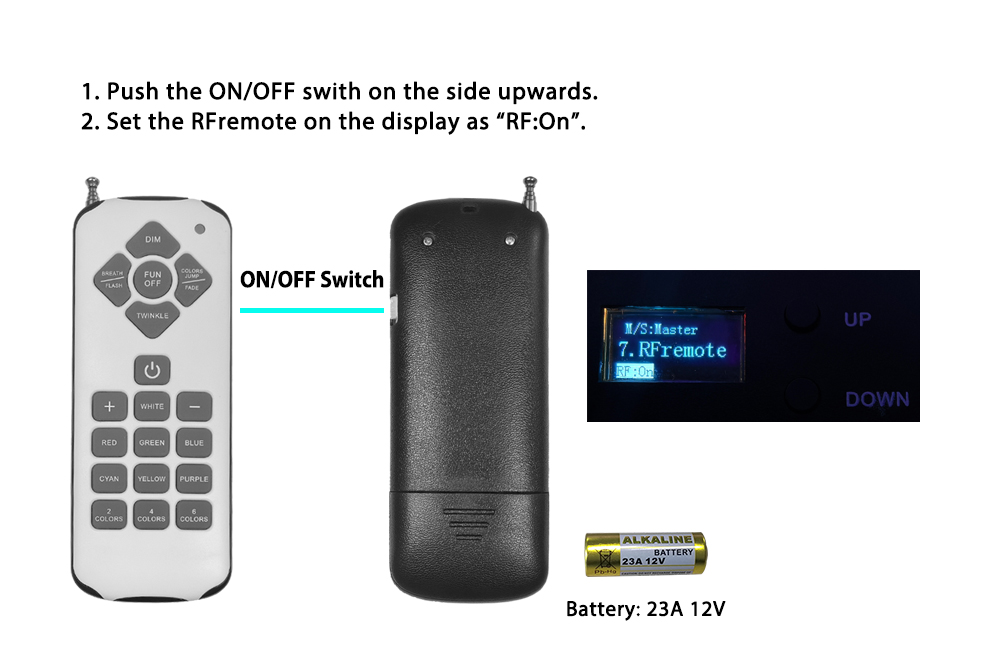

Please make sure that the remote control settings on the on-board display is ON.

The battery model is 23A 12V. Each remote control needs one battery. Please note that the battery is not included in the shipment.

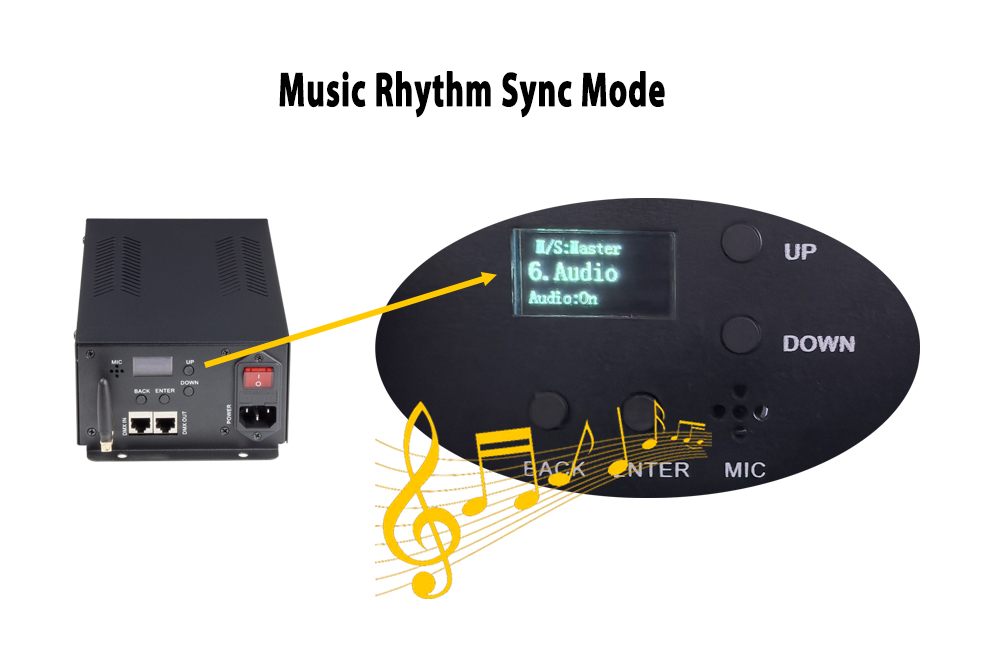

The light engine has the music rhythm sync mode.

By default, the audio function is turned off. Please activate the audio function via the APP or on the onboard display.

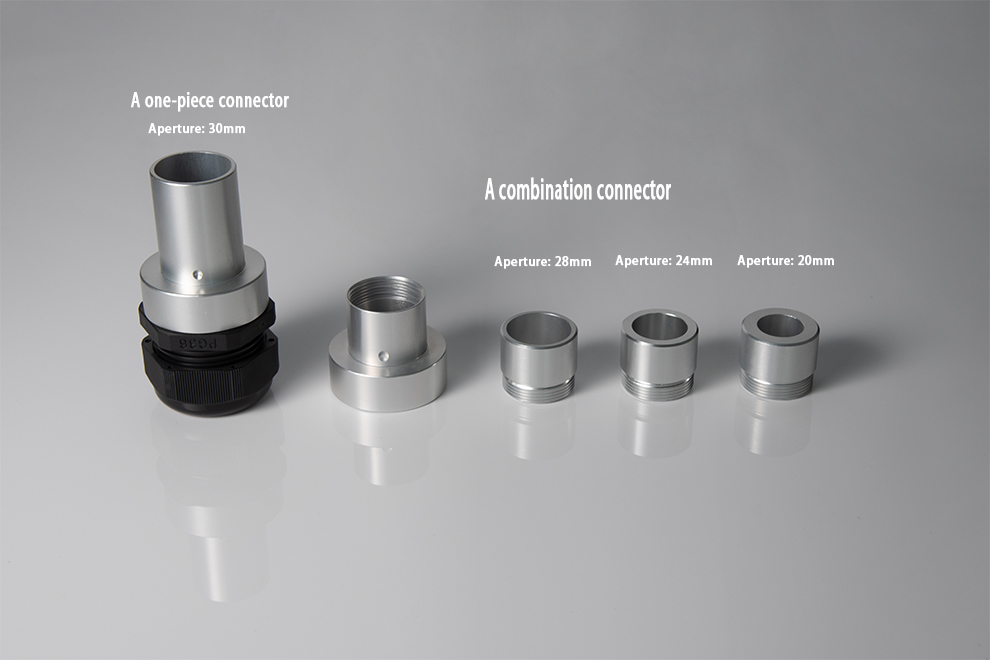

By default, Minar provides one piece of 20mm/24mm/28mm 3-in-1 combined fiber connector for each line voltage light engine. These apertures are capable of 540pcs, 770pcs, and 1050pcs of 0.75mm fiber tails respectively. 30mm fiber connector is also available upon request.

From left to right, the fiber connectors: 30mm, 28mm, 24mm, and 20mm. Customized apertures are also welcome!
