LLE-001

LLE series of fiber optic light engines applies miniature housing with exquisite workmanship. With no fans inside, the series features noise-free, a novel appearance, and high cost performance.

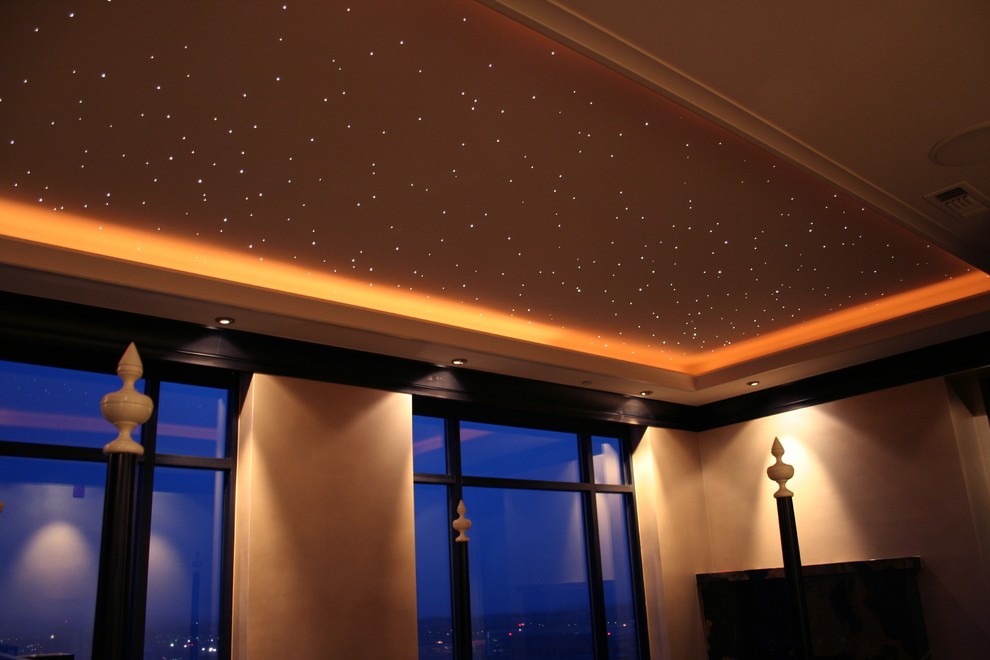

3W LED Light Engine for star ceiling

General Information:

1. Model: LLE-001,

2. Input Voltage: DC 12V,

3. Light Source: White light LED,

4. LED Type: 3W, Cree, 3000K/4000K/6000K,

5. Color Disc: N/A,

6. Control: Remote control,

7. Light Emitting: White,

8. Dimmable,

9. No fans or motor, noise-free,

10. IP Rating: IP20,

11. Warranty: 2 Years,

12. Packing: Neutral color box

Starting from September 2023, its remote control will be white RC-04.

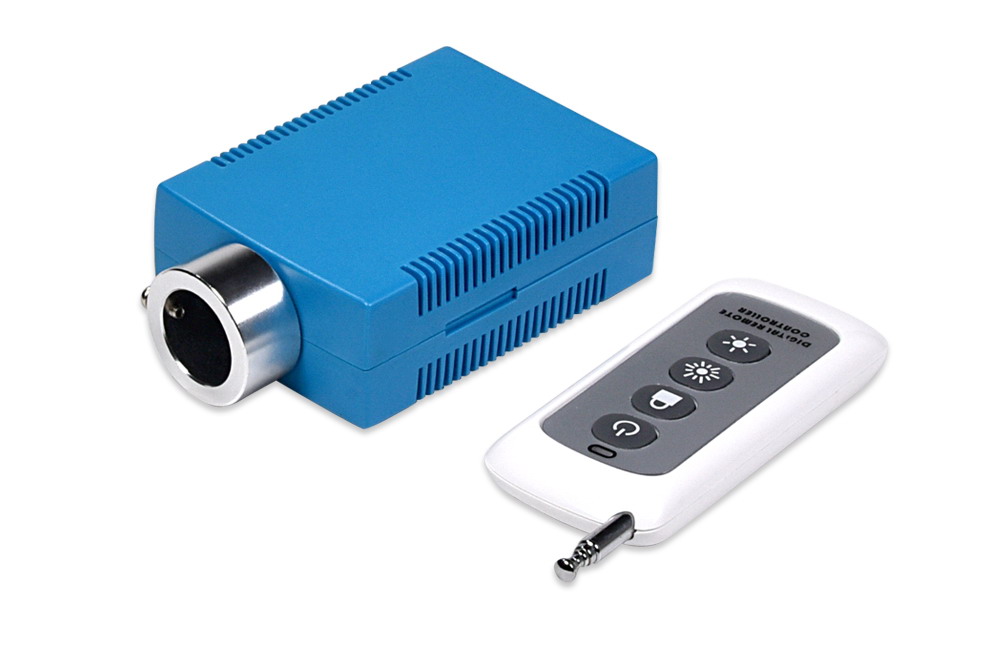

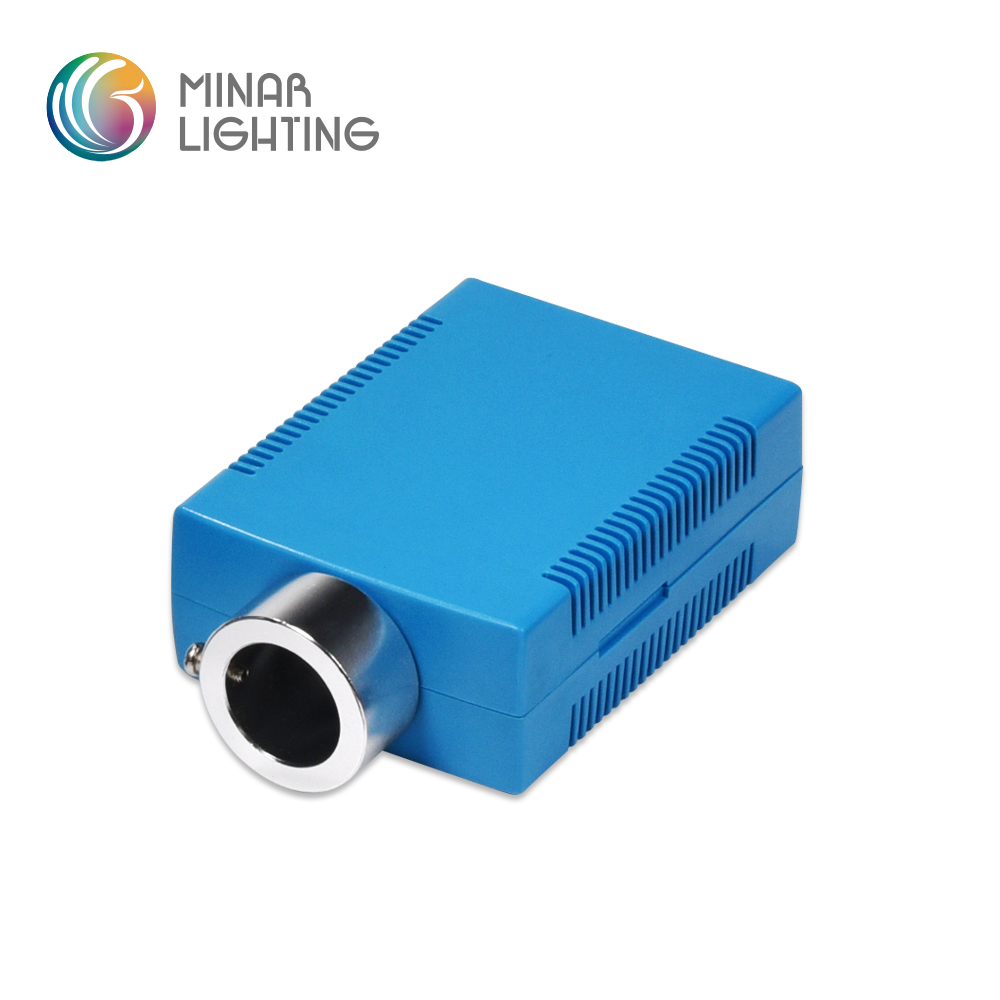

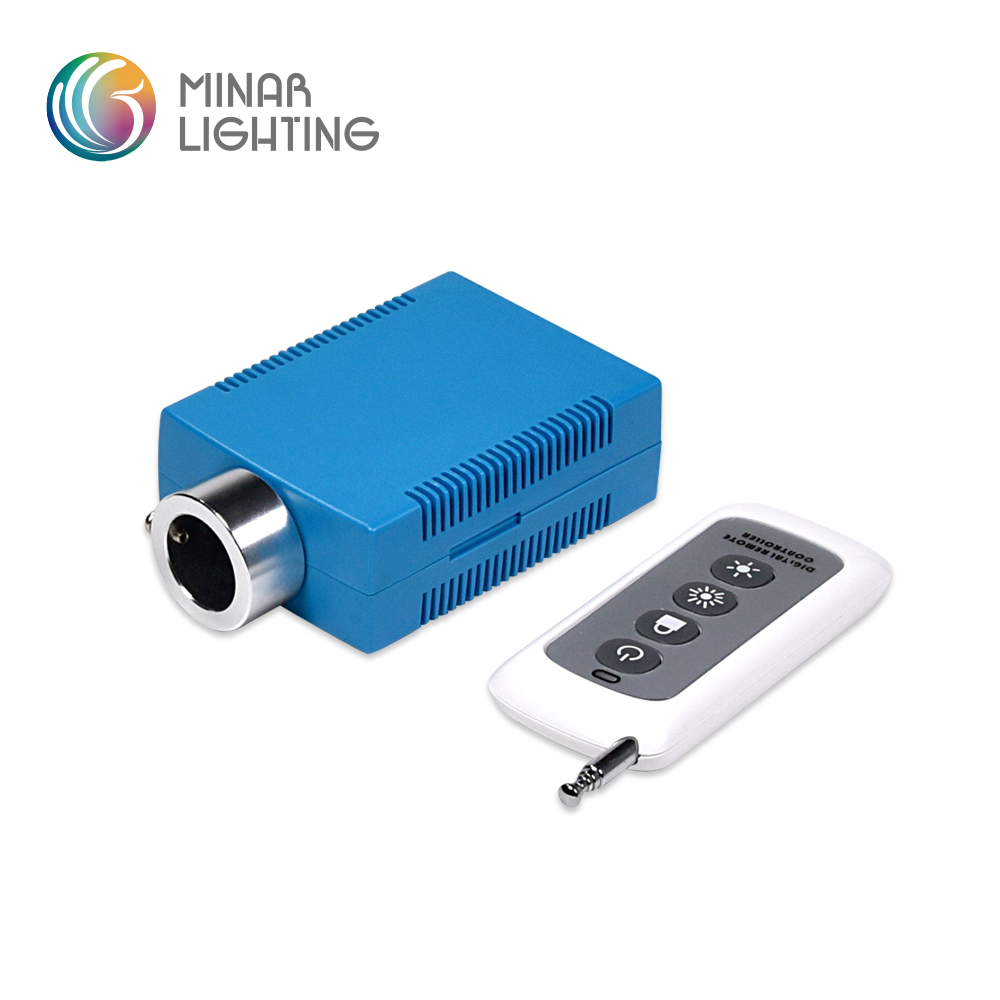

- Novel Appearance and Noise Free

  With a length and width of just 93mm and 63mm respectively, it is particularly suitable for areas where installation size is restricted.

  The machine has no motors or fans, and operates without any noise.

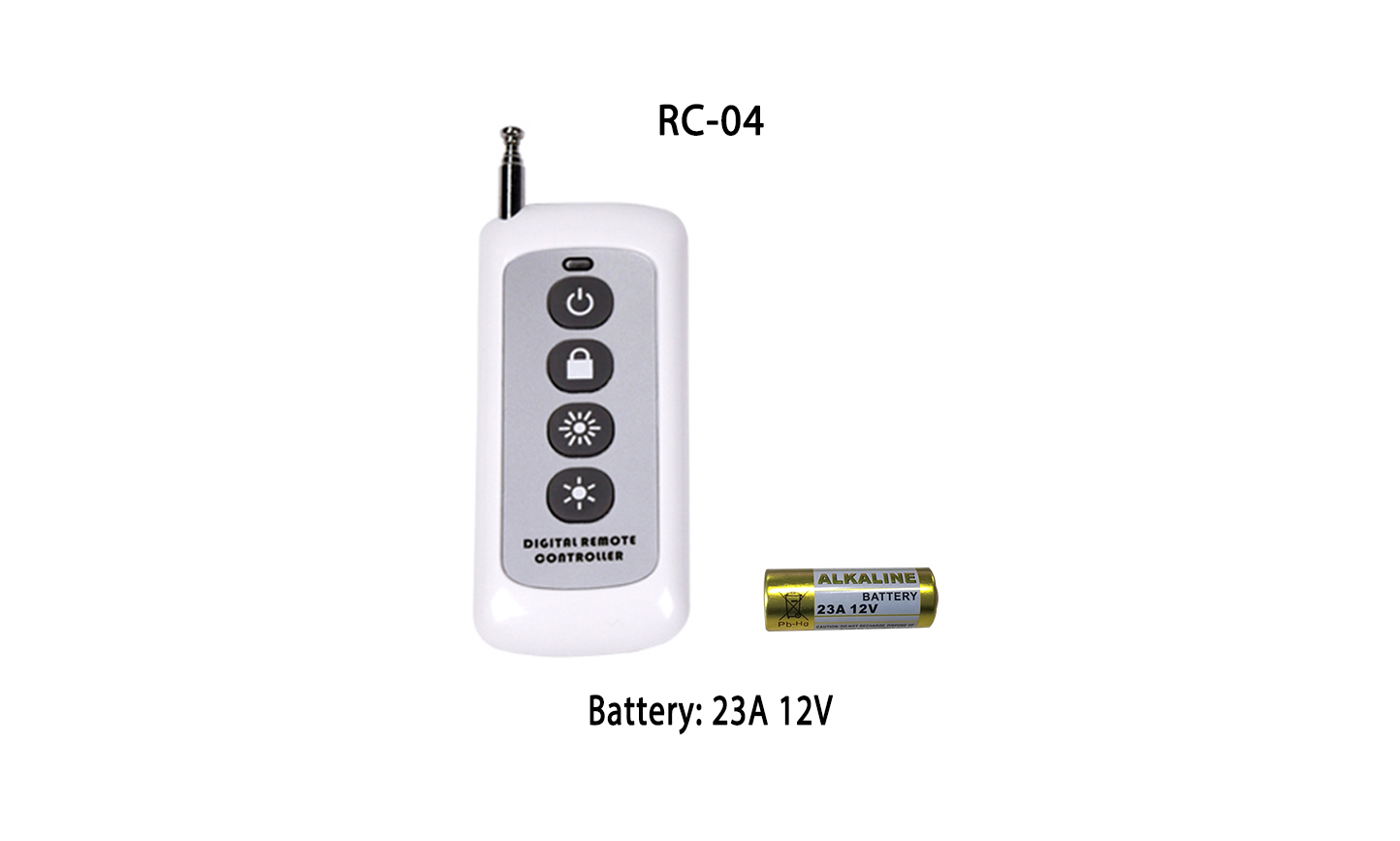

- 4-Key RF Remote Control

  The 4-key RF remote control has an effective control distance of around 25 metres in open area.

  The function of the 4-key remote control (Optional):
  1. Turn on the light engine,
  2. Turn off the light engine,
  3. Fix the emitting color,
  4. Dimming

  Battery: 23A 12V, 1pc (not included in the package)

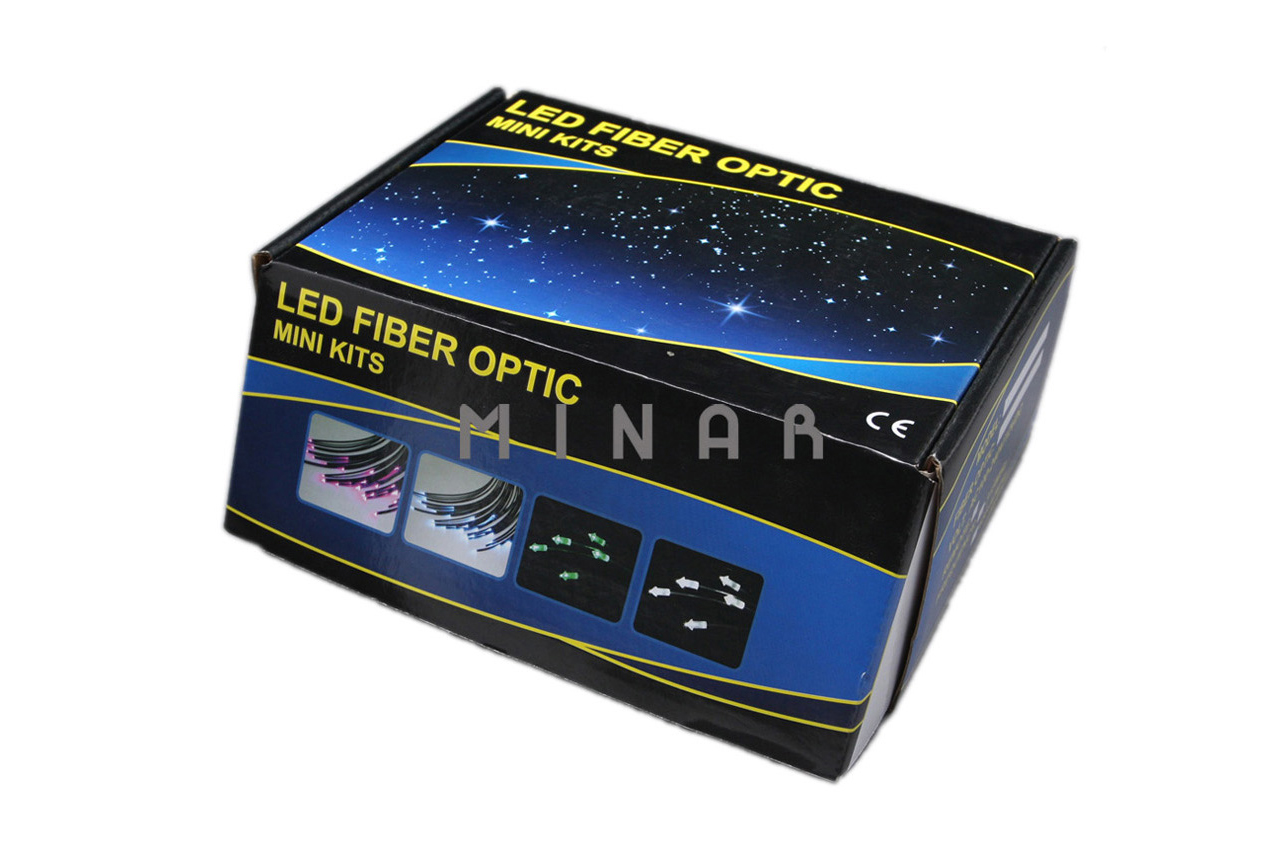

- Neutral Color Box

  Low voltage fiber optic light engines are generally packaged in neutral color boxes. One unit of LLE-001 is packed in a small color box. 20 color boxes or 30 color boxes are packed in an export carton.

SPECIFICATIONS

Specification:

Item Number

Standard

Aperture

Optional

Aperture

Maximum Fiber Capacity

(0.75mm fiber tails)

Housing

Material

Housing

Color

Dimensions

(mm)

Optional

Remote Control

LLE-001

14mm

18mm

450pcs

Plastic

Blue

L93XW63XH30

RC-04

Electrical Parameters:

Working Voltage	Power Consumption	Input Voltage	Adapter Power
12V	5W	100V-240V ac	12V/1A

LED Parameters:

LED Power	LED Color	Color Temperature	Colour Temperature Options	Luminous Flux	Life Span
3W	White	6000K	3000K/4000K	300lm @ 6000K	50000h

Control:

1	Push buttons
2	Remote Control (optional)

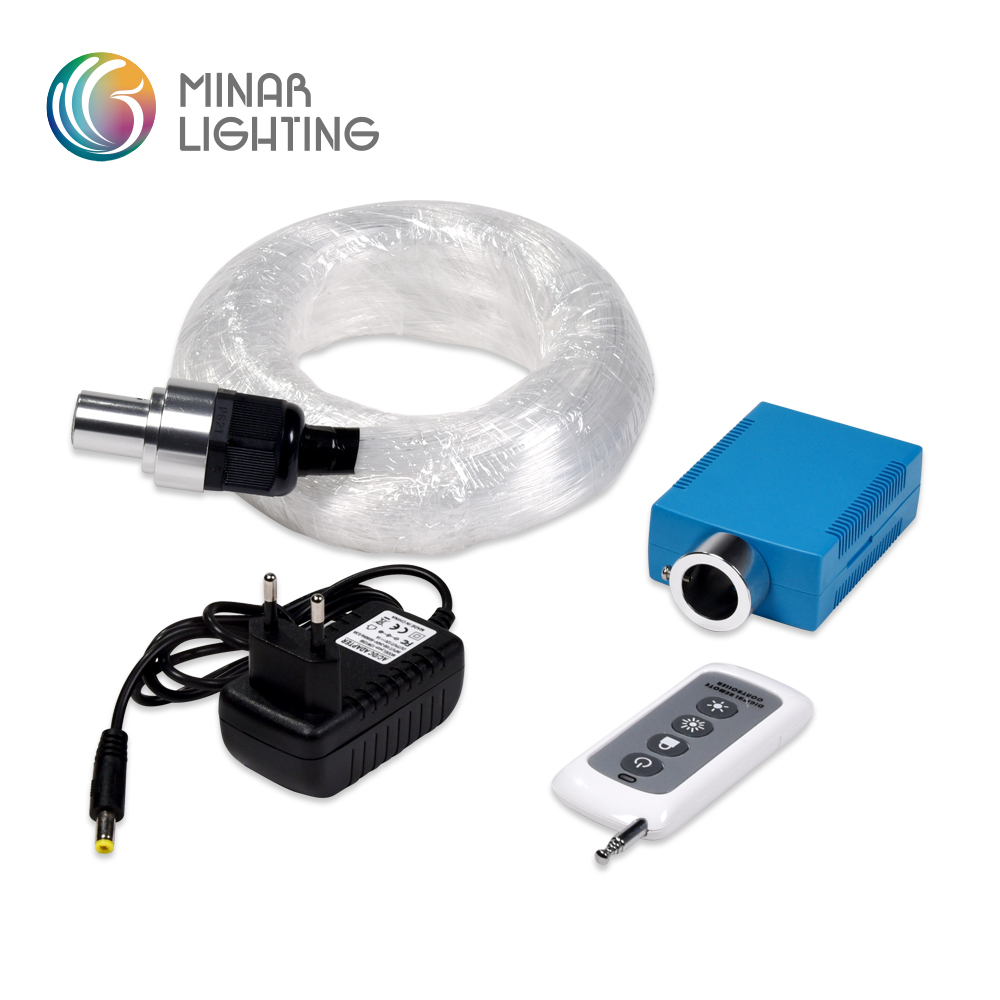

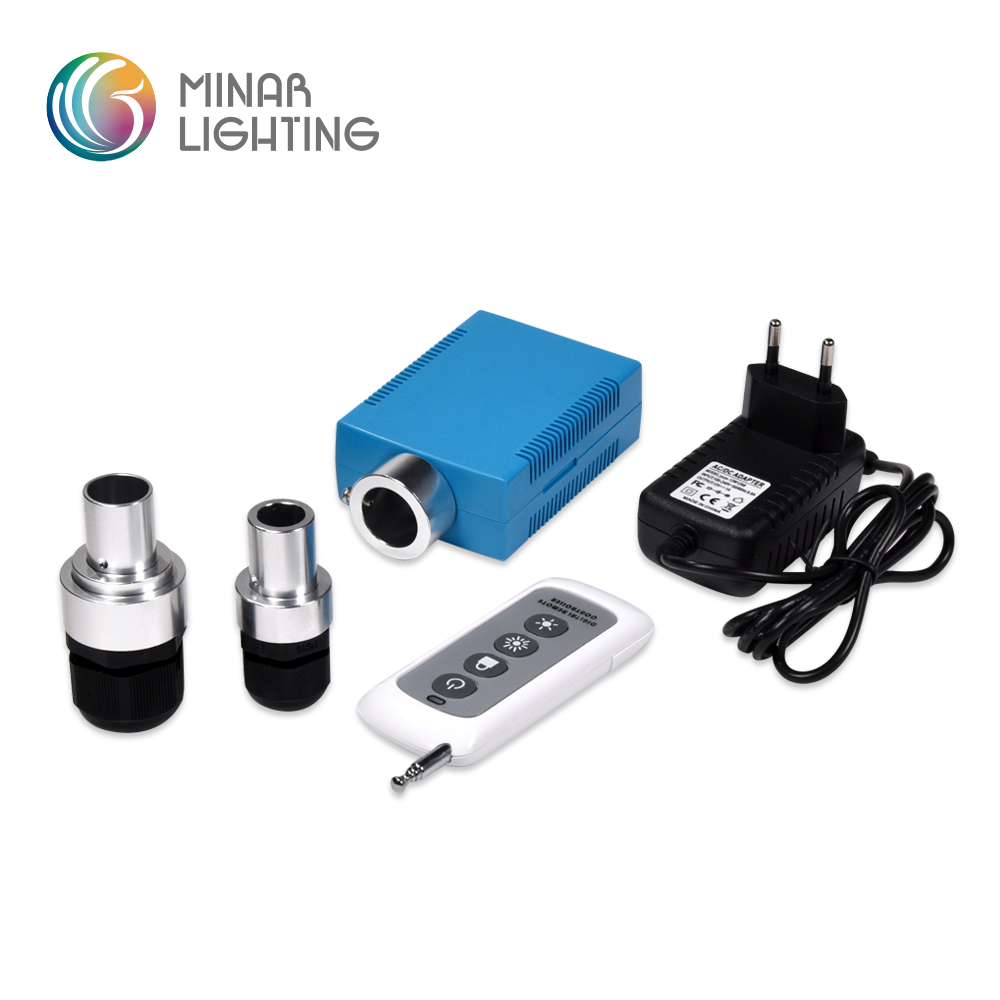

Spare Parts in the Package:

No.	Item	Quantity
1	14mm Fiber Connector	1
2	AC-DC Adapter	1

Optional Parts:

No.	Item
1	18mm Fiber Connector
2	4-Key RF Remote Control
