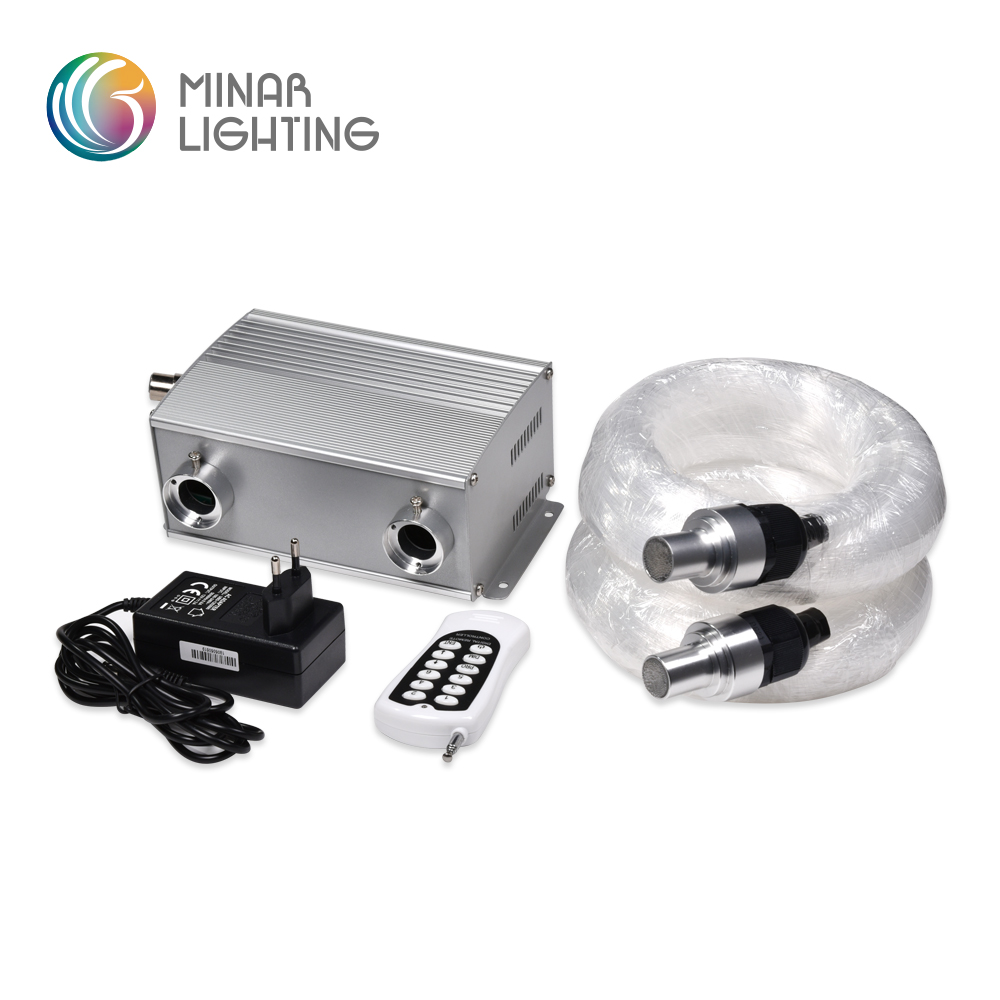

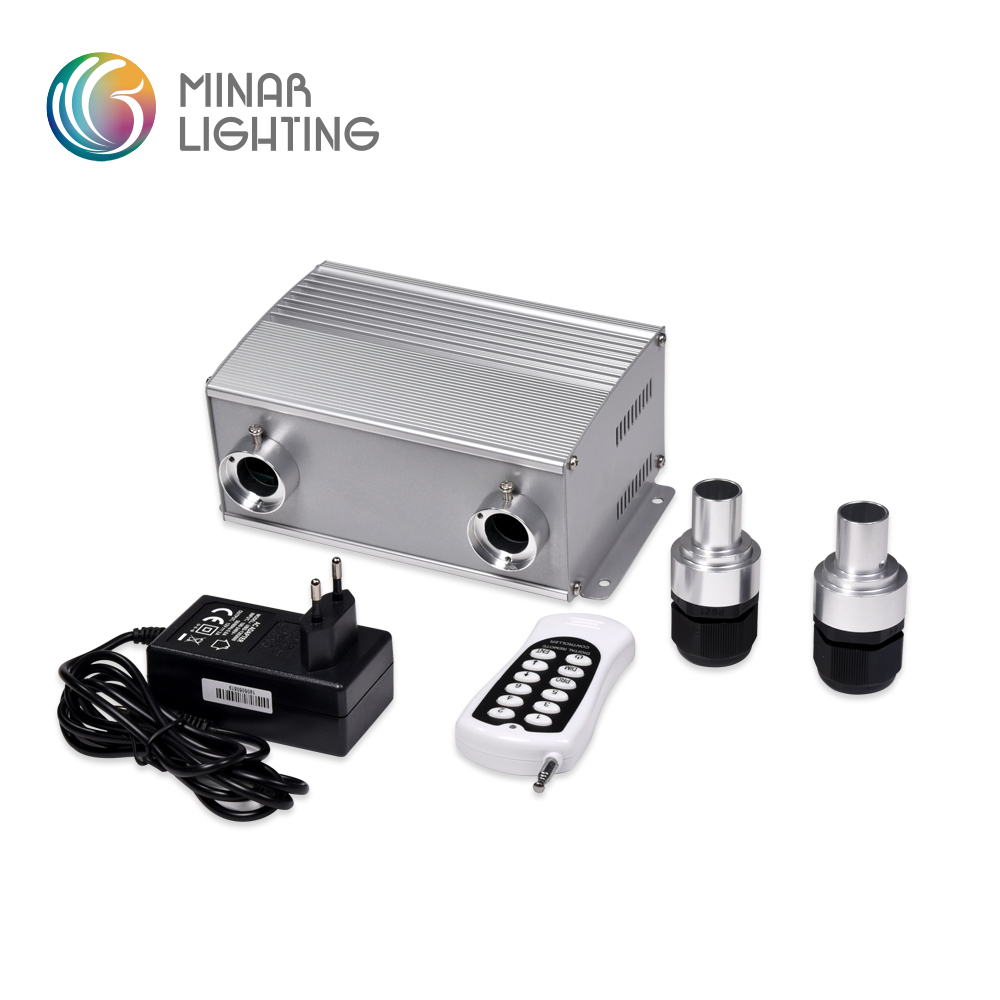

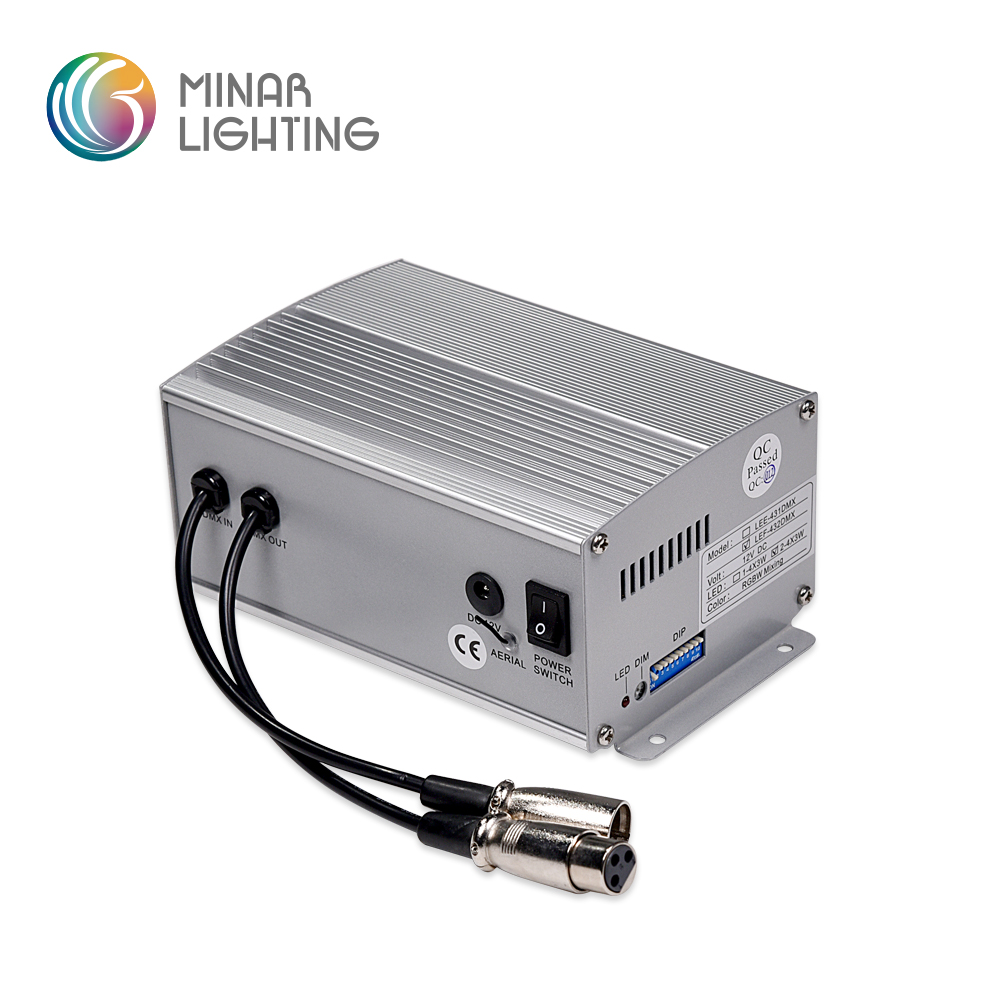

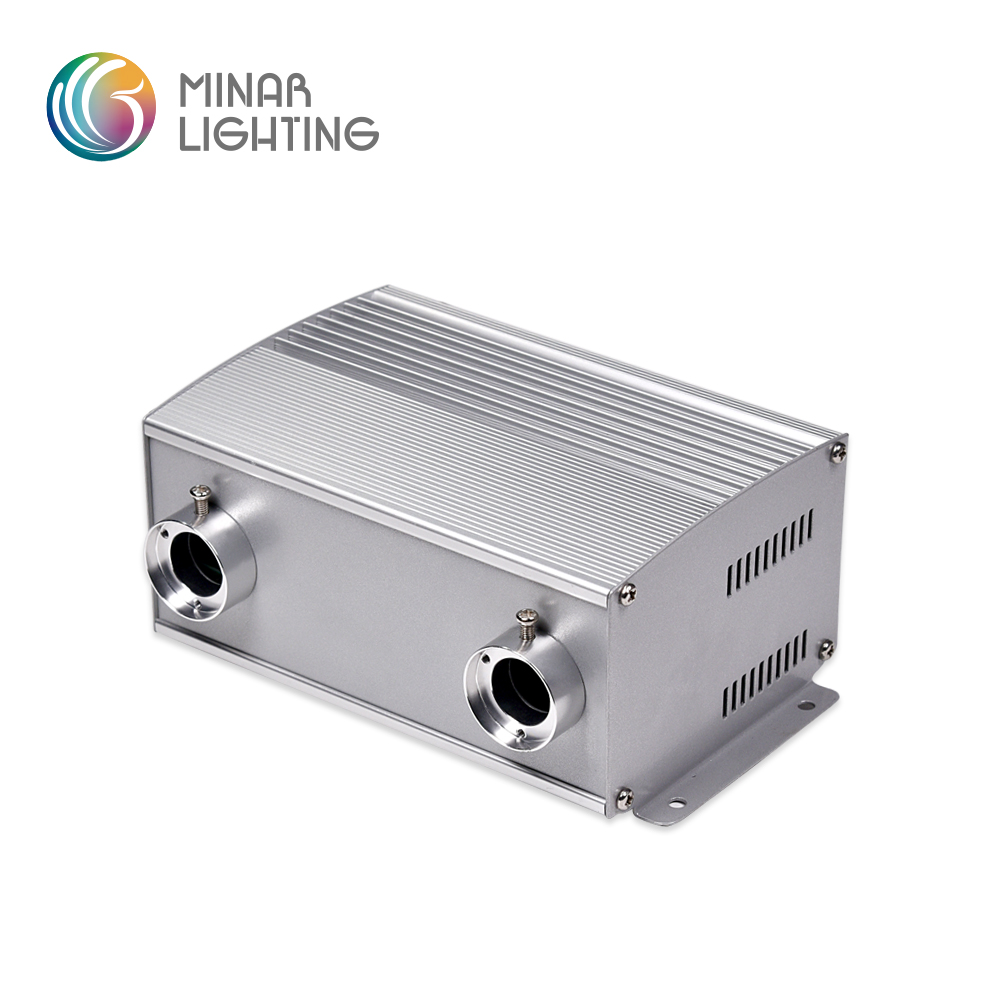

LEF-502DMX

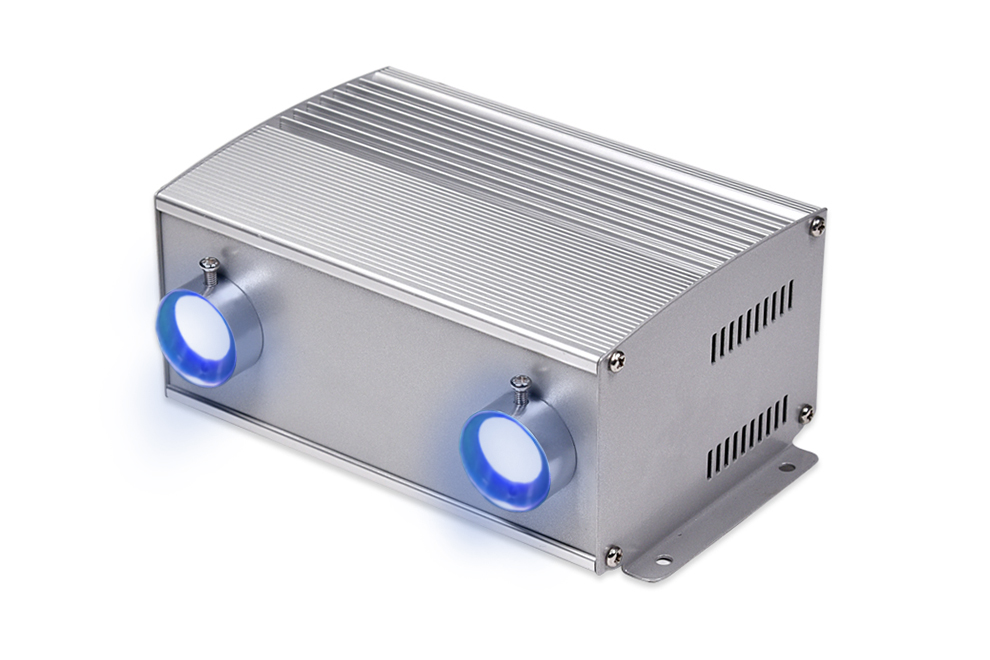

Like other dual-port light engines, such as LEB-432, LEB-432DMX, and LEF-432DMX, the dual ports of LEF-502DMX always display the same color and brightness in operation.

Each port has a 6-color wheel inside. A single port could have an aperture of 14mm or 18mm. By 18mm, a port can accommodate 450pcs of 0.75mm or 250pcs of 1.0mm fiber tails. In total one unit of LEF-502DMX could hold up to 900pcs of 0.75mm fiber tails.

By default, two 6-color wheels have been assembled in the light engine.

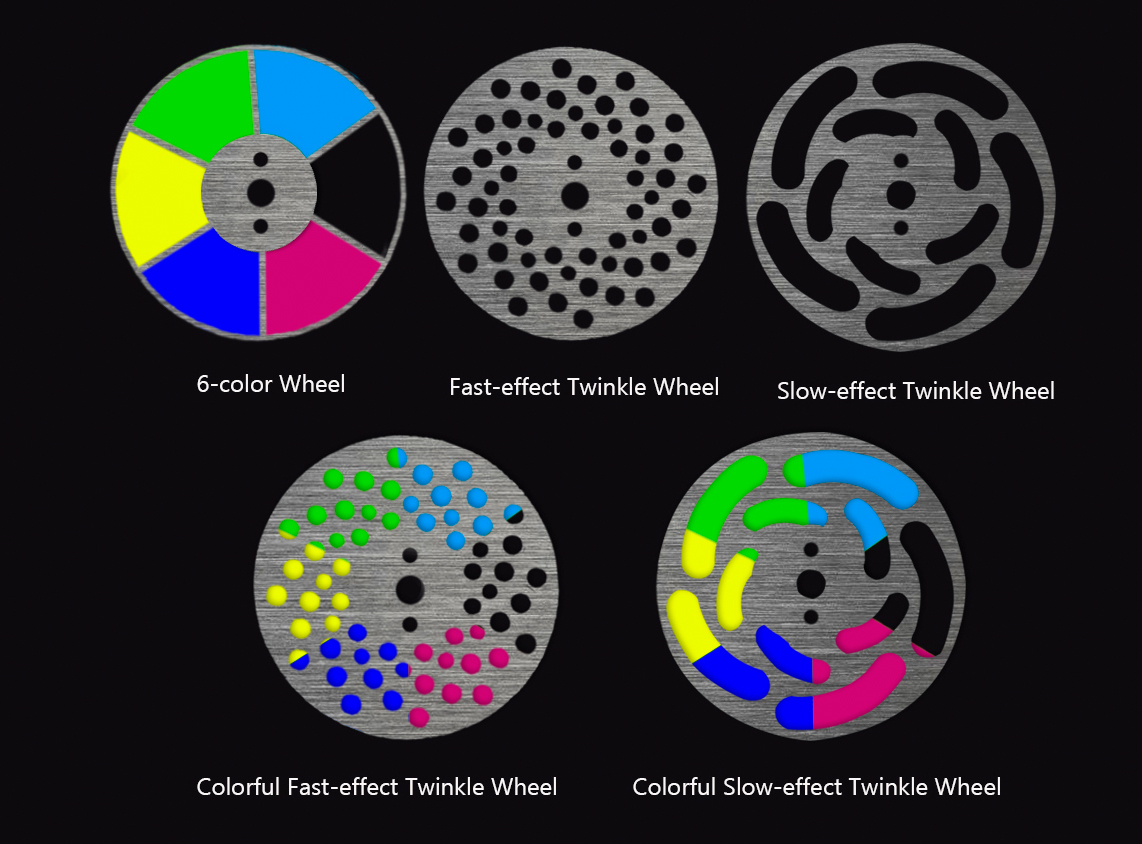

The wheels/discs that could be equipped into LEF-502DMX fiber optic light engine, from left to right and top to bottom:
1. 6-color wheel,
2. Fast-effect twinkle wheel,
3. Slow-effect twinkle wheel,
4. Fast-effect colorful twinkle wheel,
5. Slow-effect colorful twinkle wheel.

Other wheels/discs are available at request, and customized requirement is also welcome.

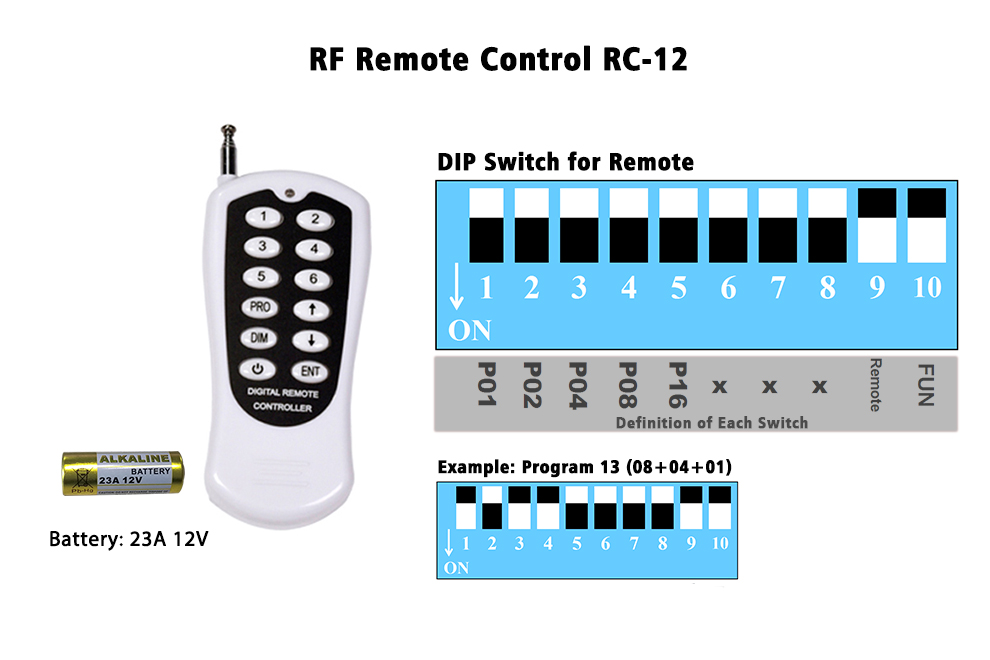

LEF-502DMX has 17 built-in programmes, which can be selected by the DIP switches and the remote control (SW9 & SW10 ON).

The 12-key RF remote control has an effective control distance of around 25 metres in open area. The function of the 12-key remote control (optional):
1、Switching the machine on and off.
2、Selecting the built-in programs.
3、Dimming.

Battery: 23A 12V, 1pc (not included in the package).

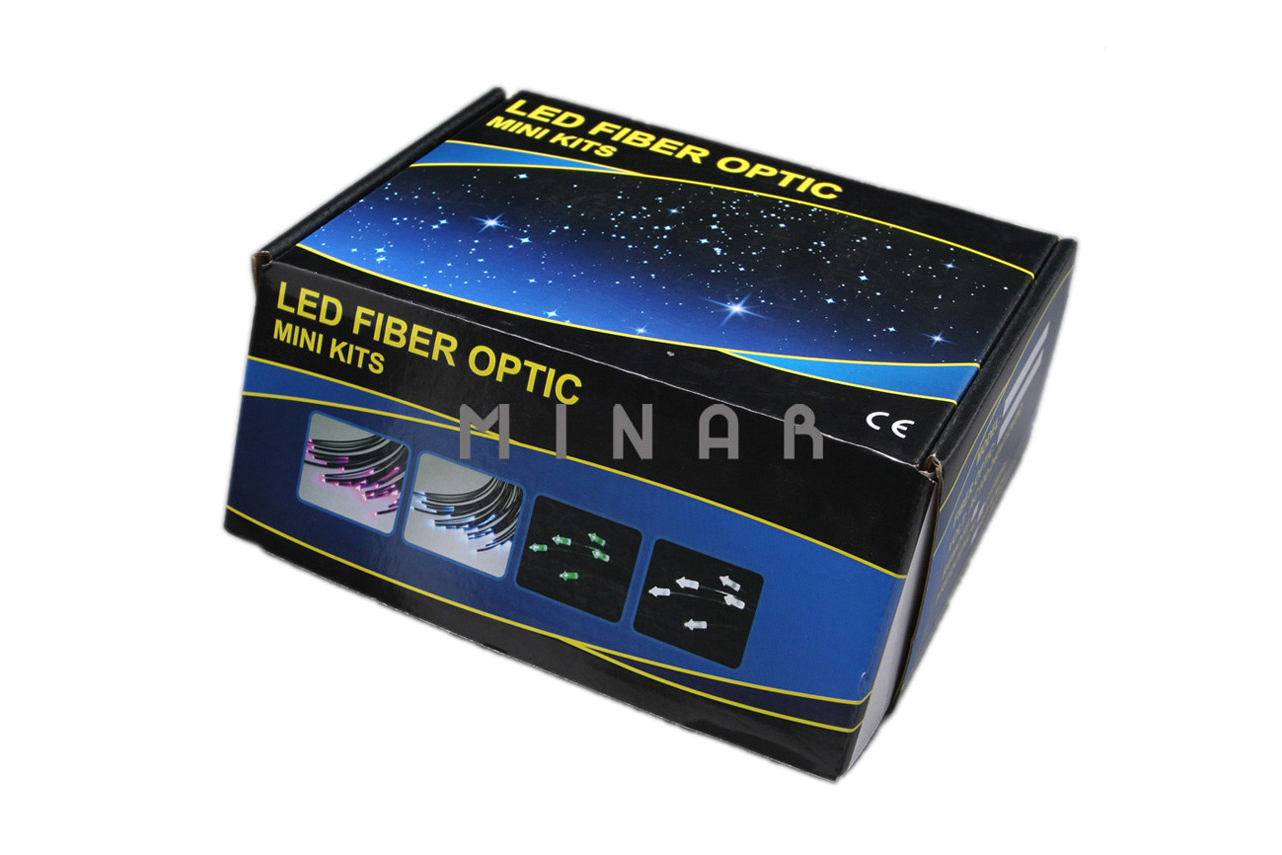

Low voltage fiber optic light engines are generally packaged in neutral color boxes. One unit of the fiber optic machine is packed in a color box. 8 to 10 color boxes are packed in an export carton.
