LEJ-4001DMX

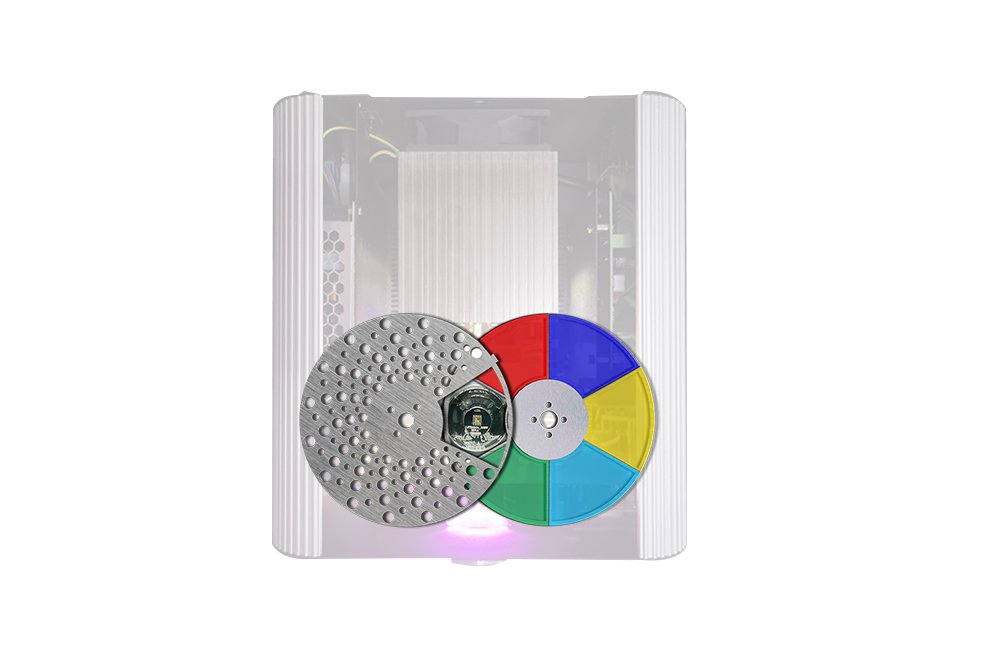

1. LEJ-4001DMX, a single-port dual-wheel light engine, provides a variety of color change options: static color, cycling colors, static color twinkle, cycling colors twinkle. Both wheels could be controlled separately.
2. Multiple fiber optic light engines can work in a group to perform synchronous or progressive effect.

DMX Channels:
CH1: Color,
CH2: Speed,
CH3: Twinkle,
CH4: Dimmer,
CH5: Strobe.

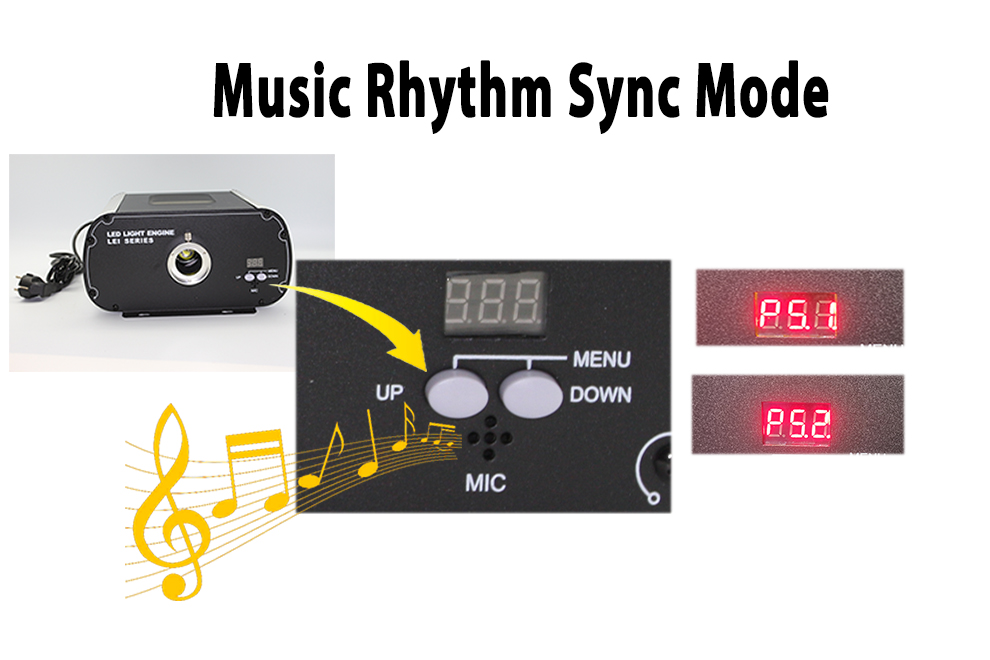

Both LEJ-4001DMX and LEJ-8001DMX have the music rhythm sync mode. Please note that the built-in program of the light engine should be either PS.1 or PS.2 to have this mode.

Both white buttons on the front panel are used to set the parameters of the DMX light engine, such as the program, the remote control ON/OFF, the brightness, the wheel spin speed, the DMX address, etc. Please refer to the User Manual for details.

DMX version of the line Voltage LED light engine could use 15-key RF remote control to have different programs, dimming and wheel speed adjustment. LEJ-4001DMX has 14 built-in programmes, which can be selected using buttons+display or the remote control.

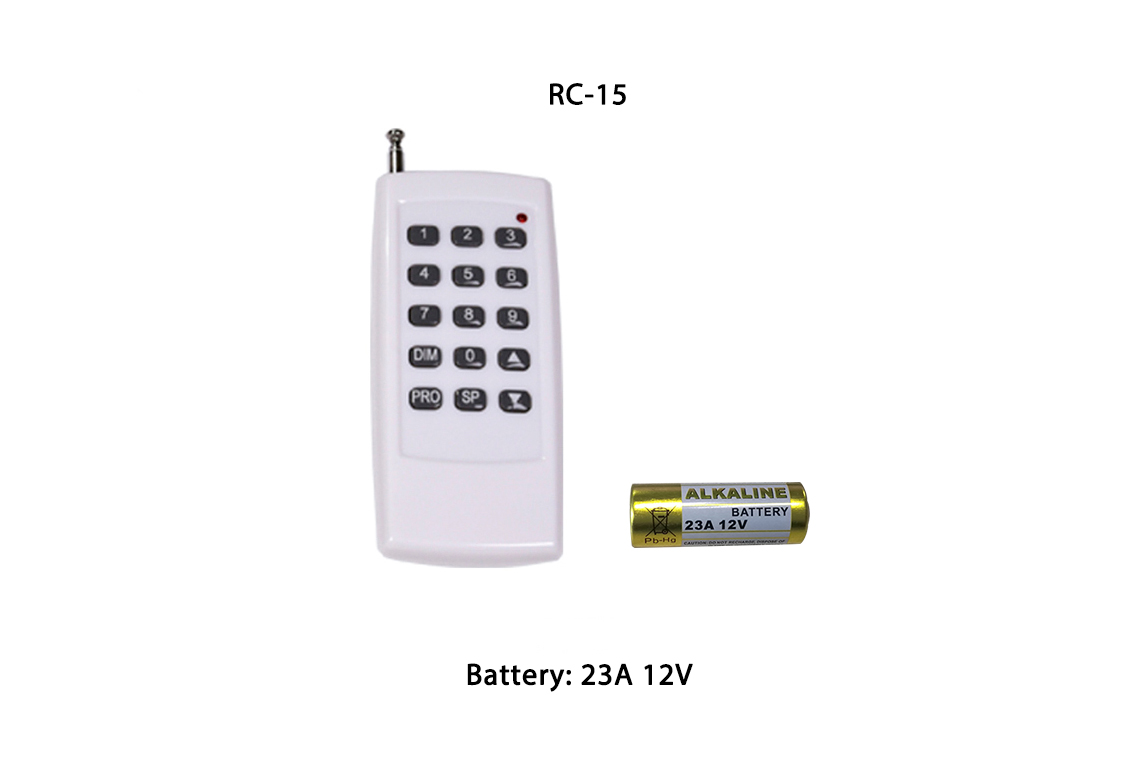

The 15-key RF remote control has an effective control distance of around 25 metres in open area. The function of the 15-key remote control (optional):
1. Select the built-in programs,
2. Dimming,
3. Adjust the wheel speed.

Battery: 23A 12V, 1pc (not included in the package).
