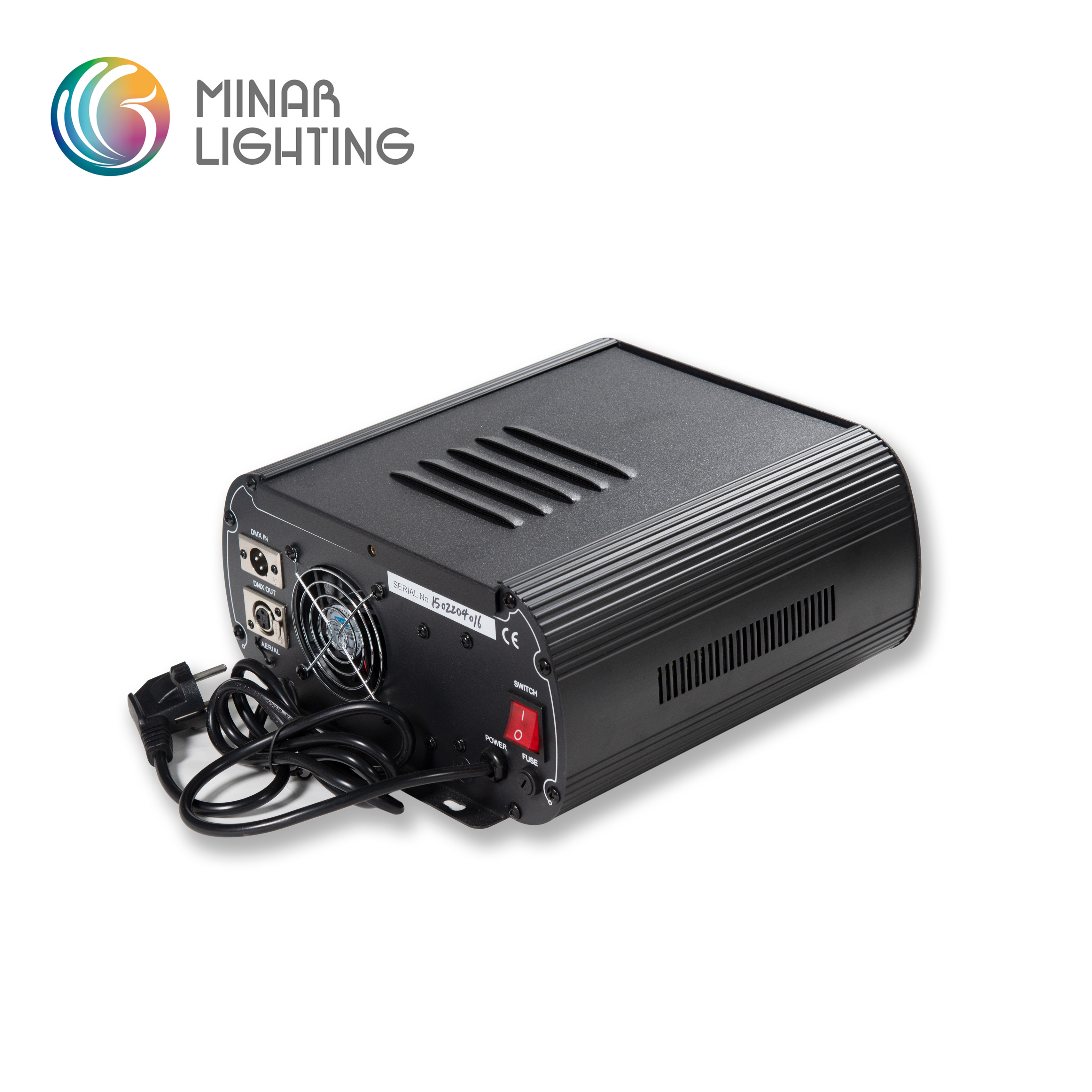

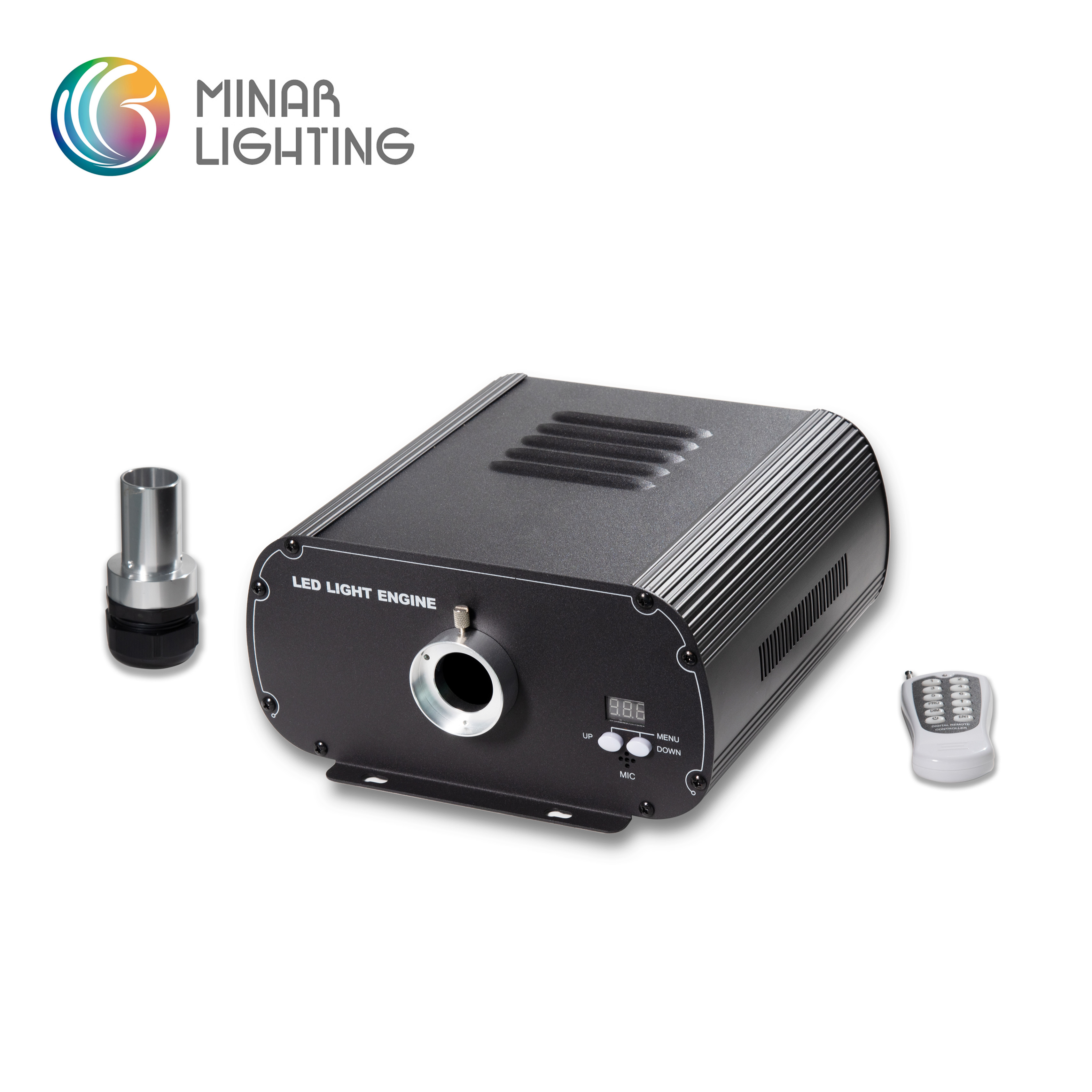

LEI-4361DMX

LEI series contains multiple line voltage LED models with power consumption from 50W to 160W. All models have either a 6-color wheel or a twinkle wheel. The maximum aperture of LEI series is 30mm, which is capble for 1250pcs of 0.75mm, or 650pcs of 1.0mm fiber strands.

160W LED Light Engine for Large-Scale Ceilings

General Information:

1. Model: LEI-4361DMX,

2. Input Voltage: AC 100-240V,

3. Light Source: Colorful LED,

4. LED Type: RGBW, 4*36W,

5. Wheel/Disc: Twinkle wheel,

6. Control: Remote control/Buttons and display/DMX512/Audio,

7. Light Emitting: Static color/Cycling colors,

8. Twinkle Effect: Yes

9. Adjustable wheel spin speed,

10. Dimmable,

11. DMX512 protocol: DMX512 signal or master-slave control,

12. IP Rating: IP20,

13. Warranty: 2 Years,

14. Packing: Neutral export carton.

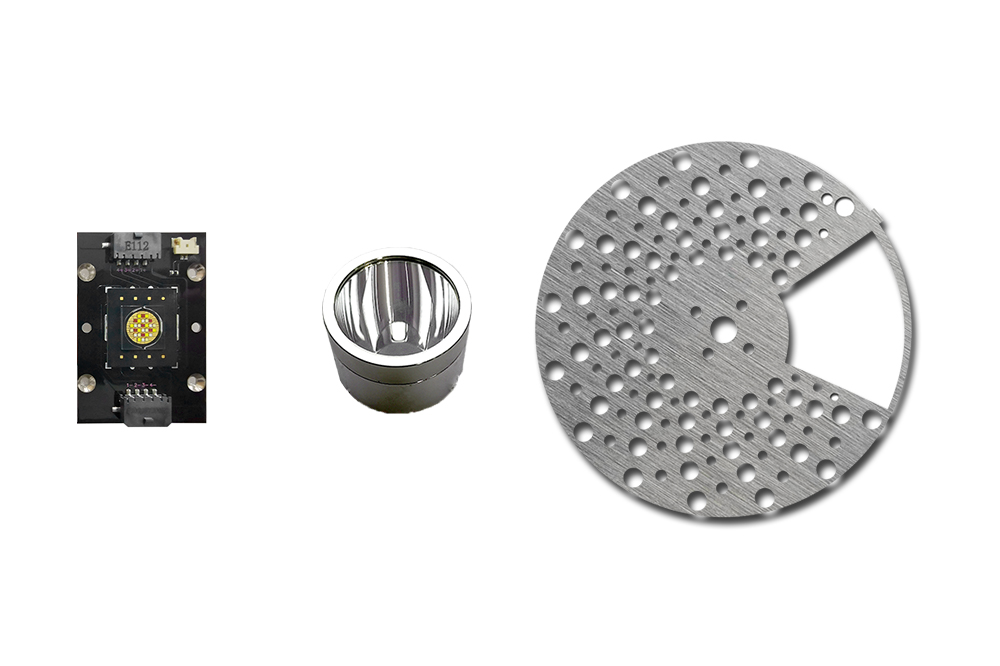

- 160W RGBW + Twinkle Disc

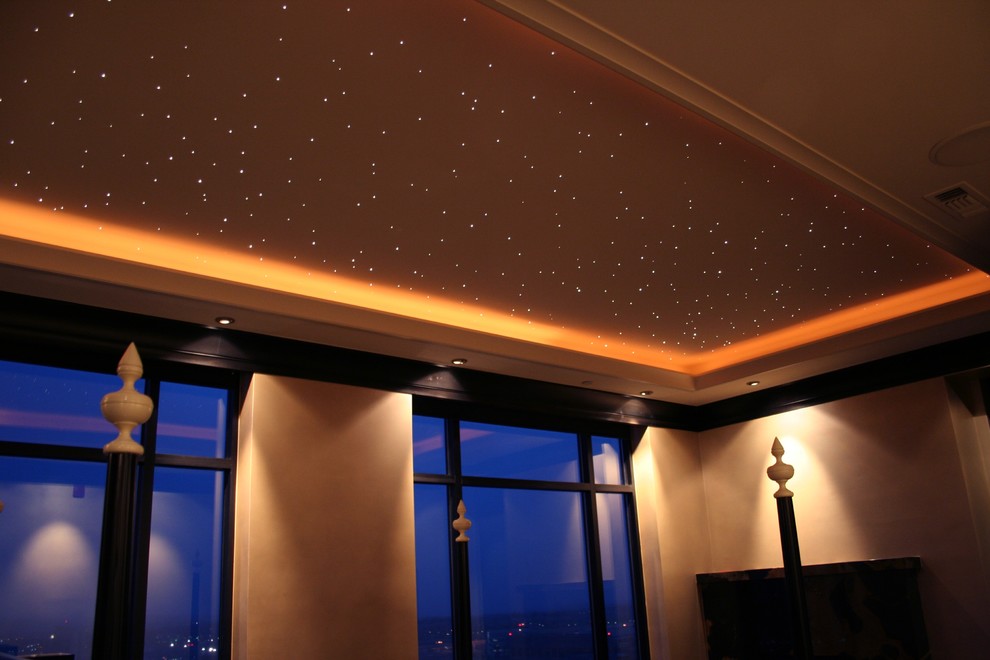

  The best combination in fiber optic light engine for star ceiling: four-color RGBW LED module and the twinkle disc. This group brings the starry ceiling a fantastic simulating effect.

  LEI-4361DMX is the enhanced version of LEI-4121DMX and LEI-4241DMX. When the fiber cable is over 25 meters long, LEI-4361DMX will be a better choice.
- Fiber Connector

  By default Minar provides one piece of 20mm/24mm/28mm 3-in-1 combined fiber connector for each line voltage light engine. These apertures are capable of 540pcs, 770pcs, and 1050pcs of 0.75mm fiber tails respectively. 30mm fiber connector is also available at request.

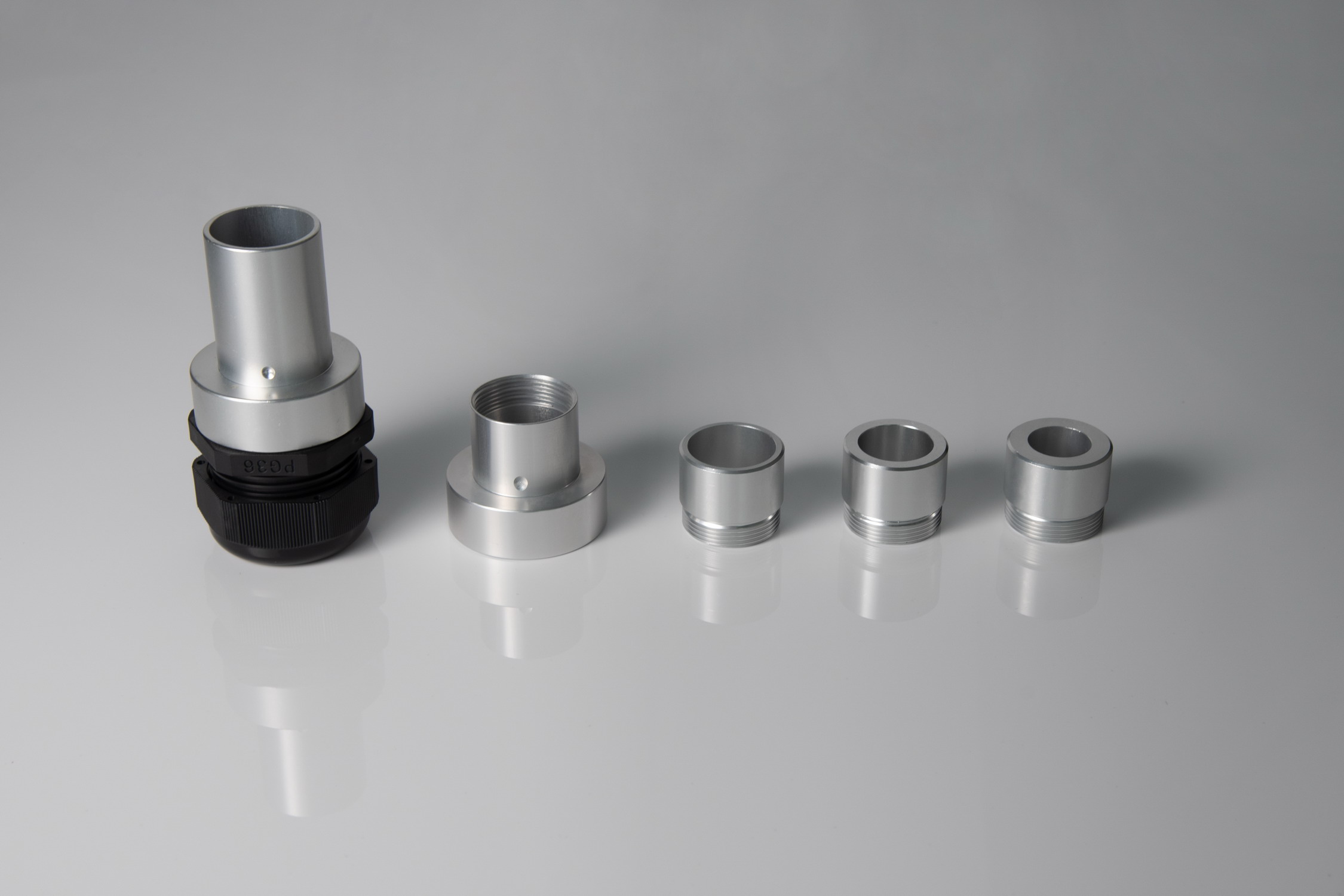

  From left to the right, the fiber connector: 30mm, 28mm, 24mm, and 20mm.

  Customized apertures are also welcome!

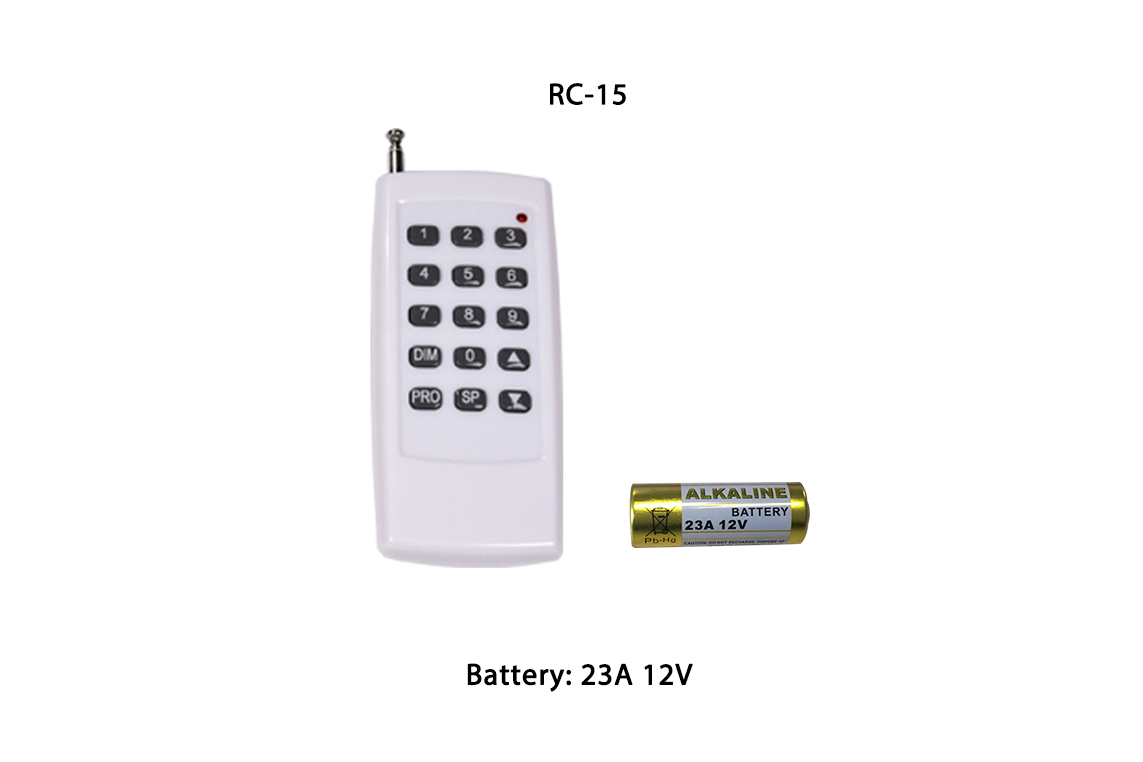

- 15-Key RF Remote Control

  DMX version of the line Voltage LED light engine could use 15-key RF remote control to have different programs, dimming and wheel speed adjustment. LEI-4361DMX/WP has 24 built-in programmes, which can be selected using buttons+display or the remote control.

  The 15-key RF remote control has an effective control distance of around 25 metres in open area. The function of the 15-key remote control (optional):
  1. Select the built-in programs,
  2. Dimming,
  3. Adjust the wheel speed.

  Battery: 23A 12V, 1pc (not included in the package).

SPECIFICATIONS

Specification:

Item Number

Standard

Aperture

Optional

Aperture

Maximum Fiber Capacity

(0.75mm fiber tails)

Housing

Material

Housing

Color

Dimensions

(mm)

Optional

Remote Control

LEI-4361DMX

20/24/28mm

30mm

1250pcs

Aluminum

Black

L291XW264XH135

RC-15

Electrical Parameters:

Input Voltage	Power Consumption
100V-240V ac	160W

LED Parameters:

LED Power	LED Color	Color Temperature	Colour Temperature Options	Luminous Flux	Life Span
4X36W	RGBW	W: 6000K	N/A	N/A	50000h

Control:

1	Buttons + Display
2	Remote Control (optional)
3	Master-Slave

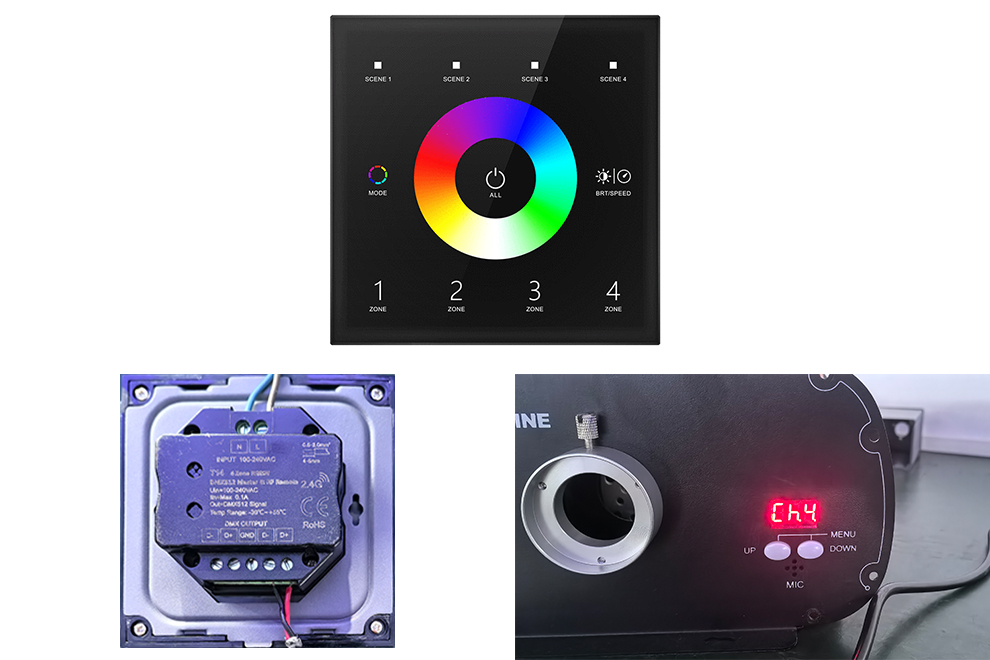

4	DMX512 Console

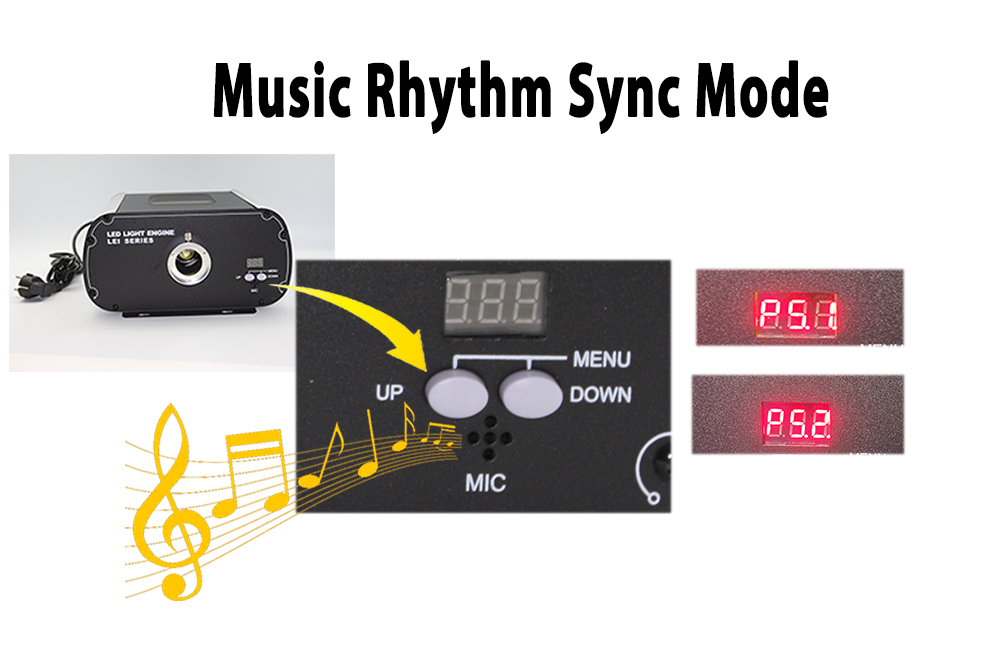

5	Audio

Spare Parts in the Package:

No.	Item	Quantity
1	Twinkle Wheel (built-in)	1
2	20/24/28mm Fiber Connector	1
3	DMX Signal Cable	1
4	Fuse	1

Optional Parts:

No.	Item
1	15-Key RF Remote Control
2	30mm Fiber Connector

LEI with Fiber bundle-3-PP.jpg

Datasheet Download

LEI-4361说明书-2023-7-26.pdf

Video of Twinkle Effect Demo

Twinkle Effect.mp4

USER MANUAL

Download the instruction manual/specification
