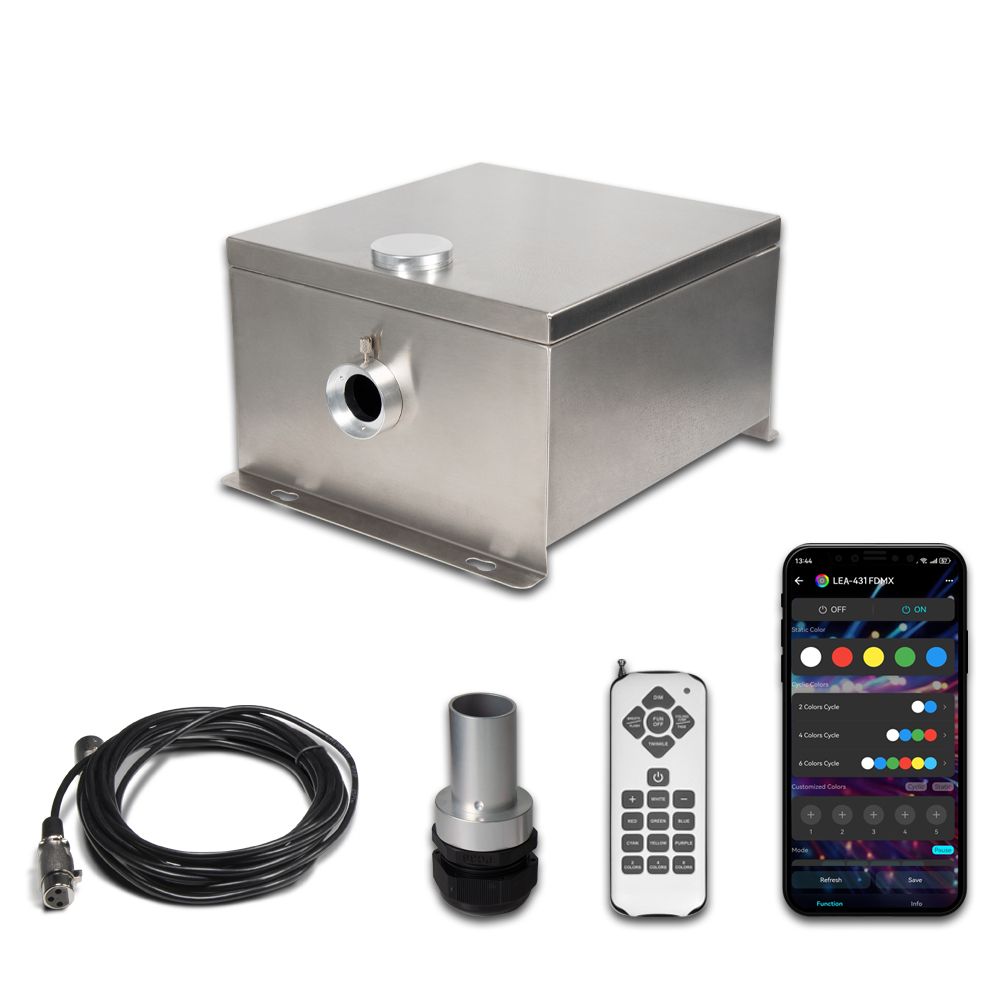

LEI-8001DMX/WP

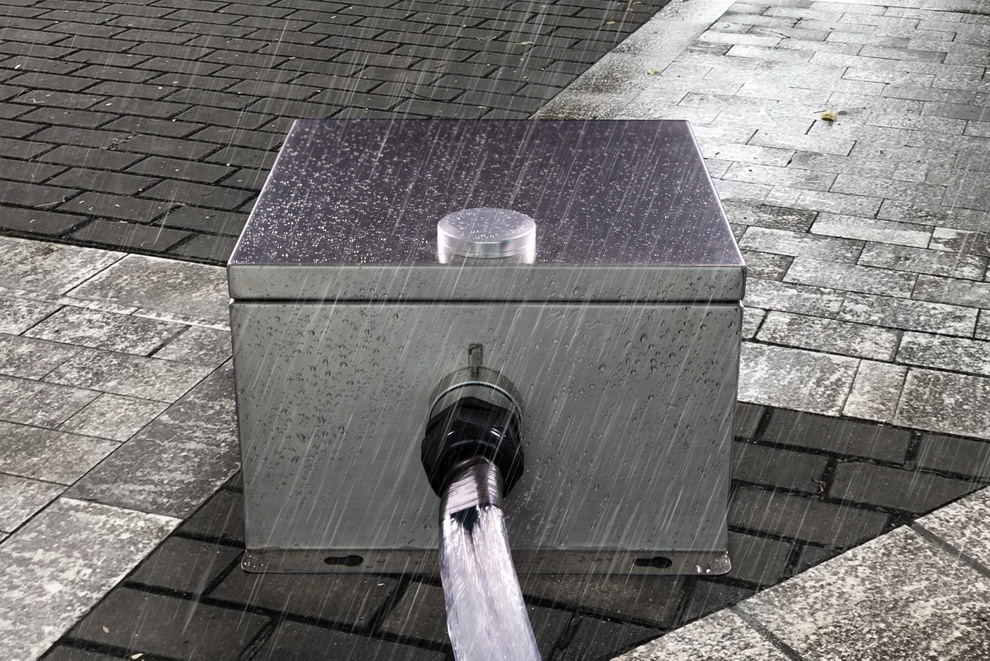

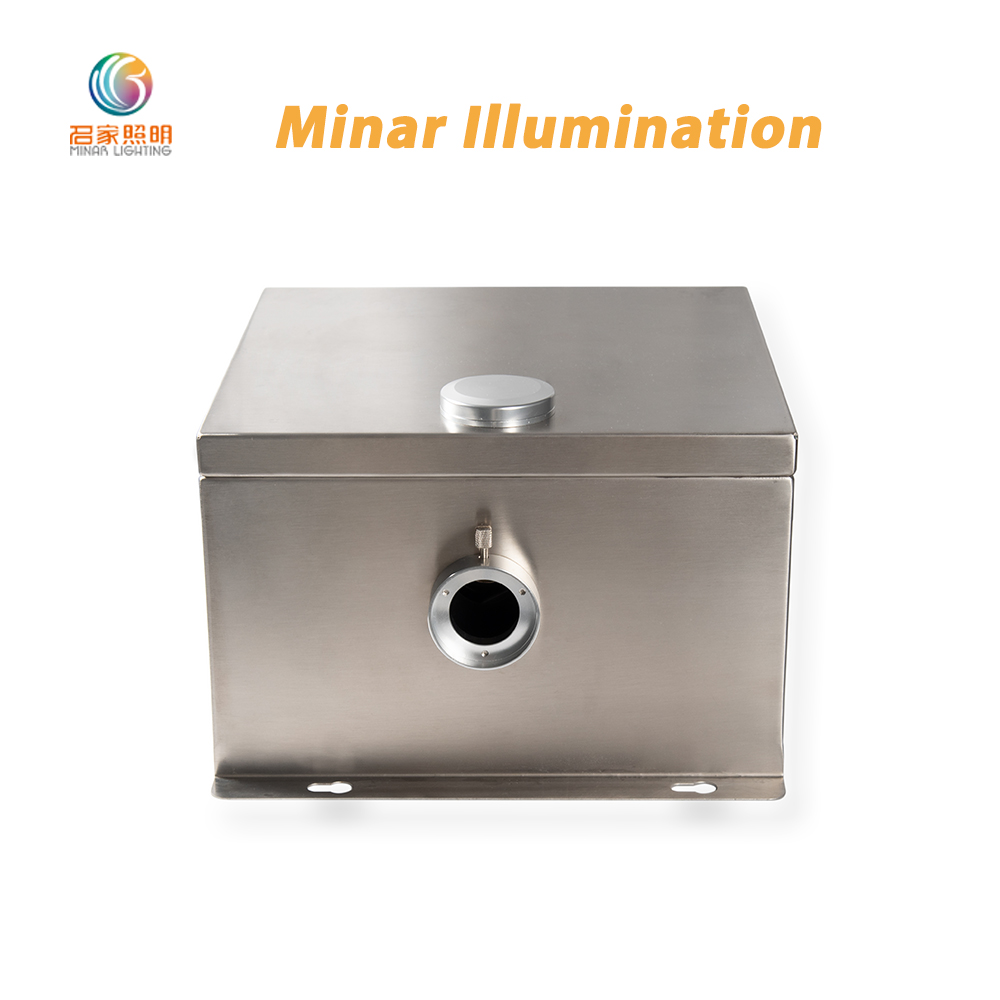

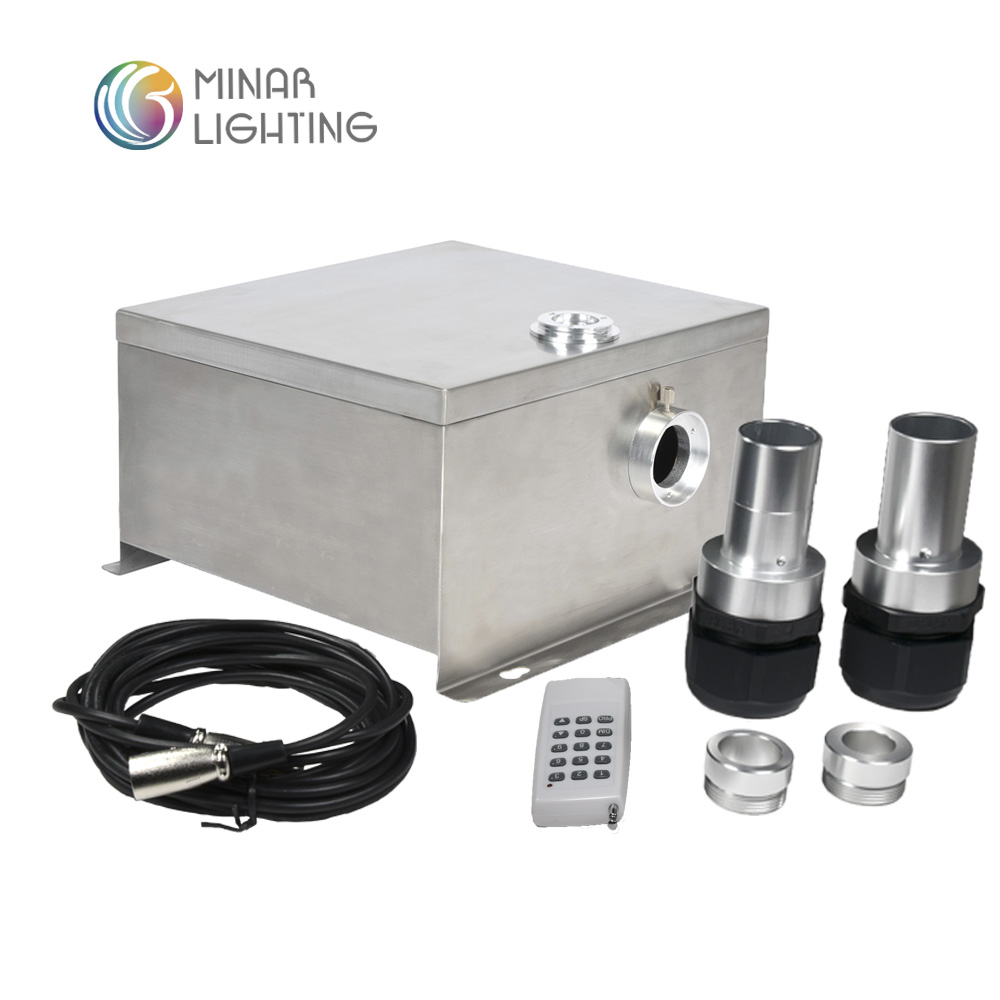

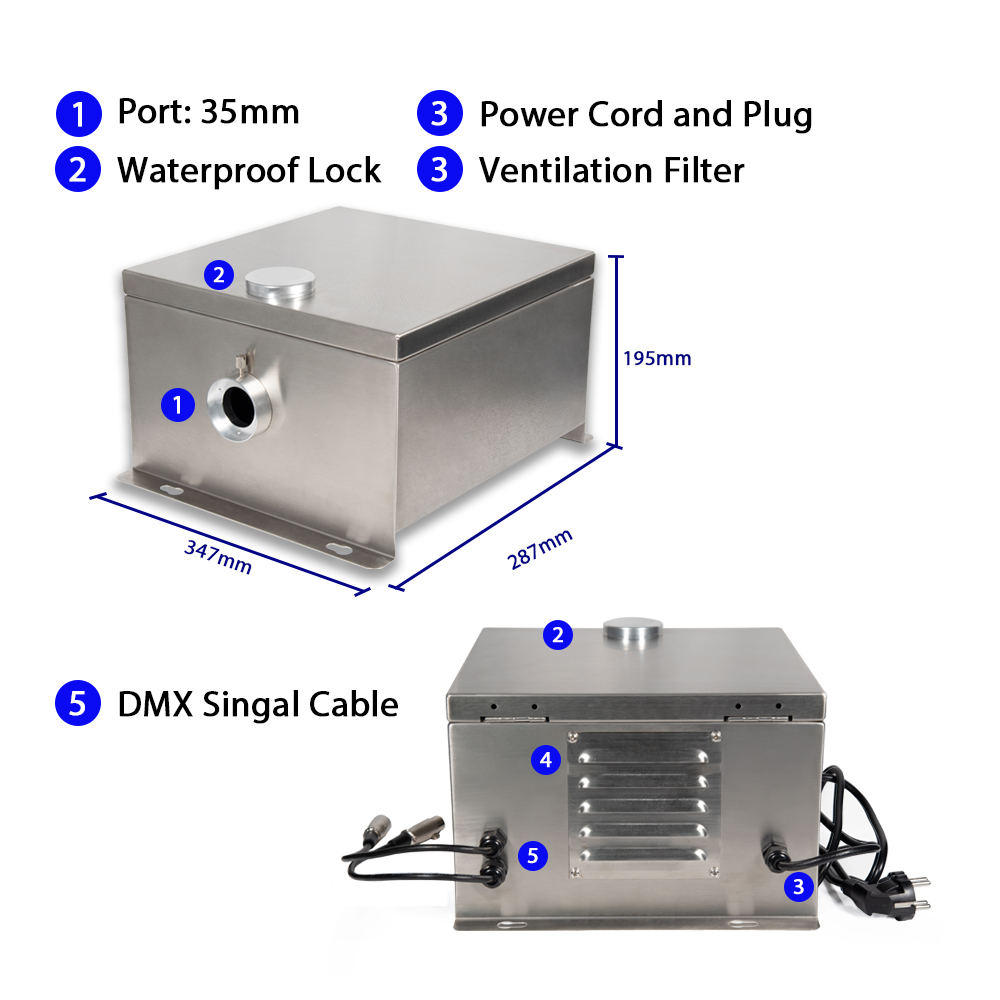

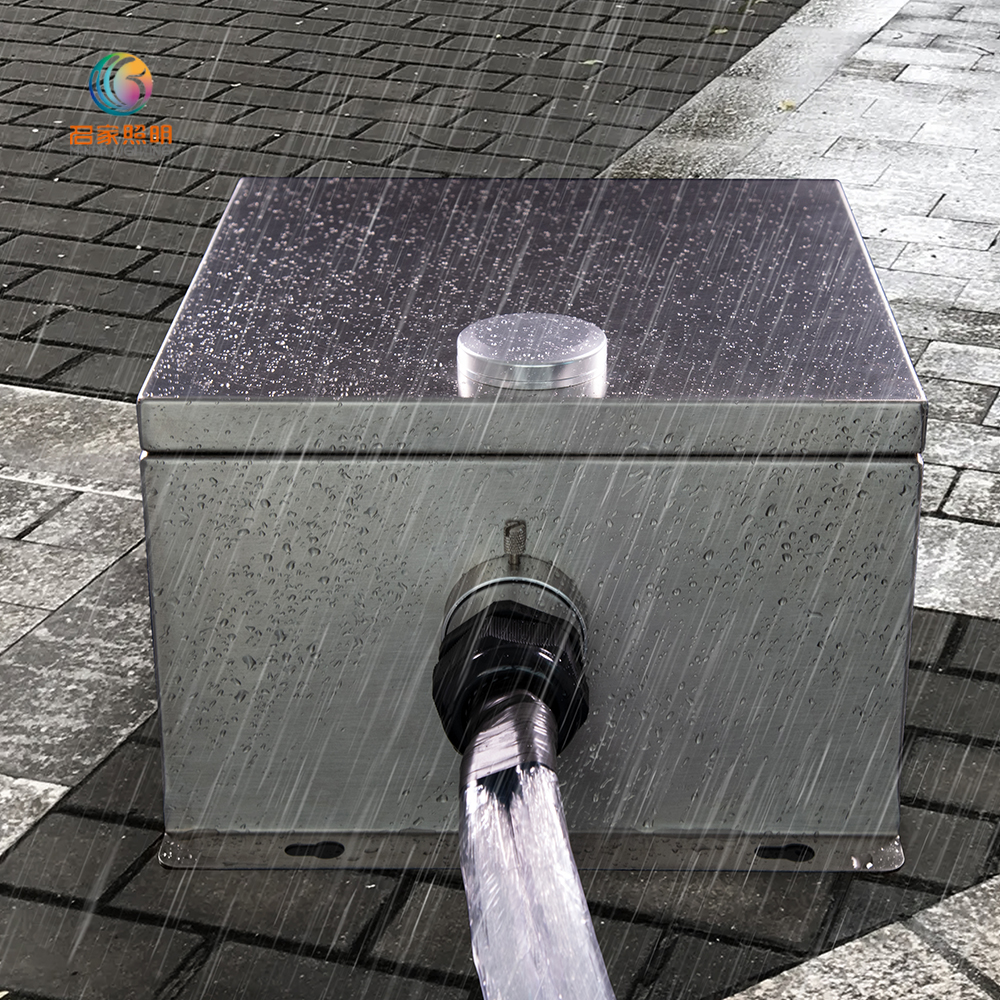

LEI series of outdoor LED light engines has applied stainless steel SS-304 as its housing material to achieve the IP Rating of IP43. This enables the light engine to be placed in the pump room or even directly in the outdoors.

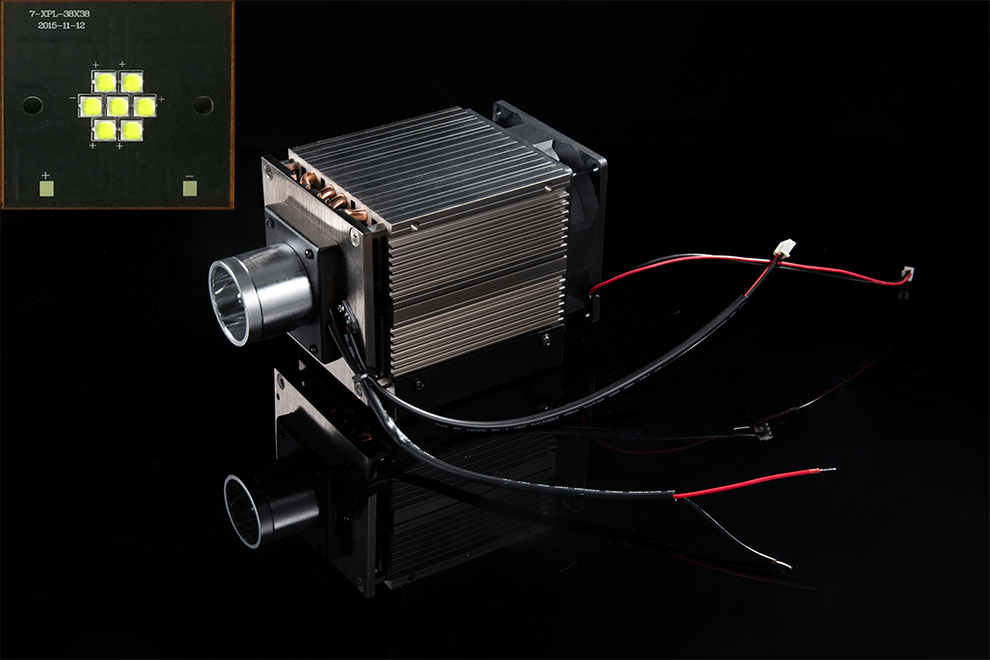

7 pieces of Cree XPL LED module applied as its light source, LEI-8001DMX/WP is the best replacement of 150W metal halide light engine for perimeter lighting and long-distance ceiling star lighting in wet area light.

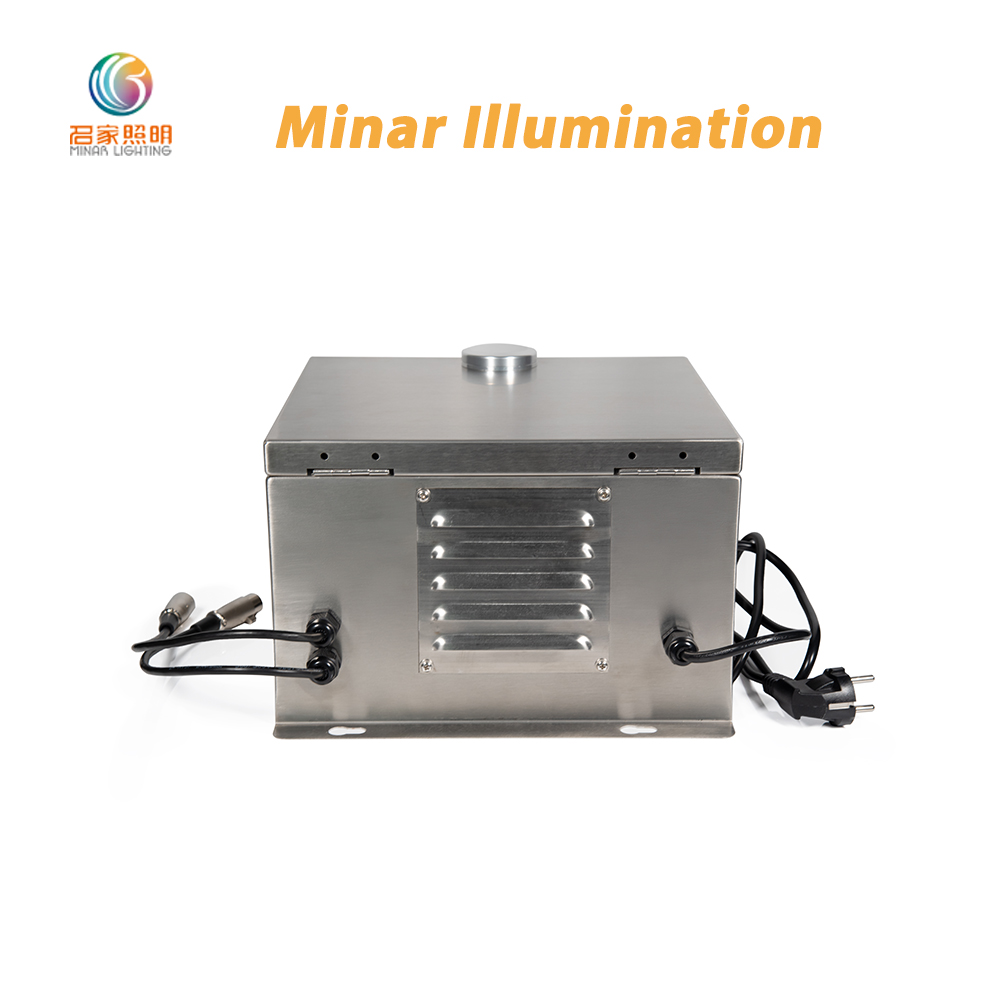

Specially designed heat-sink and the temperature detector will ensure the light engine have a superior performance.

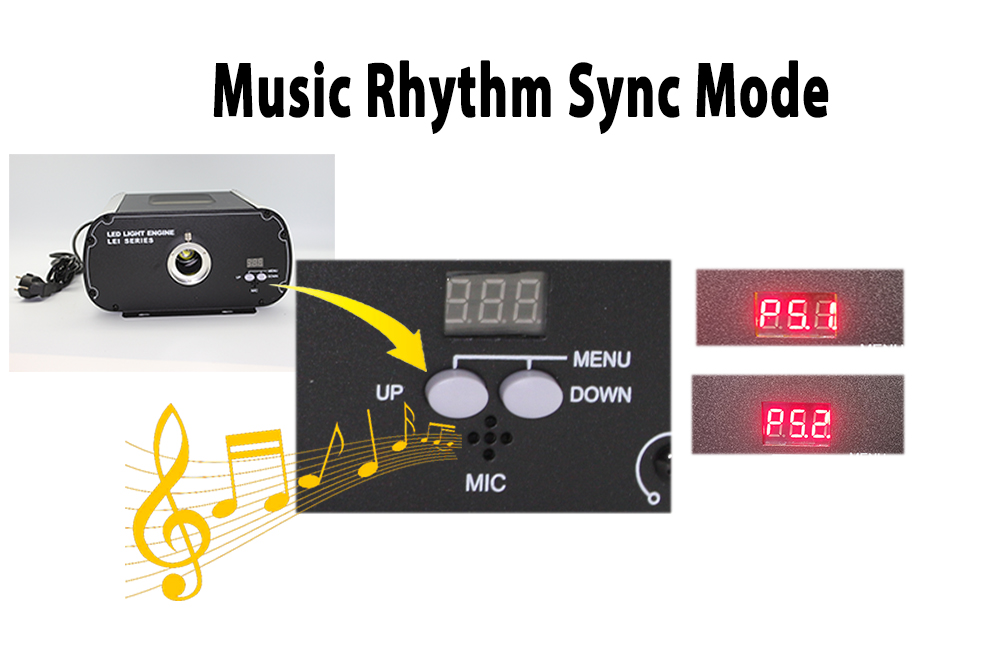

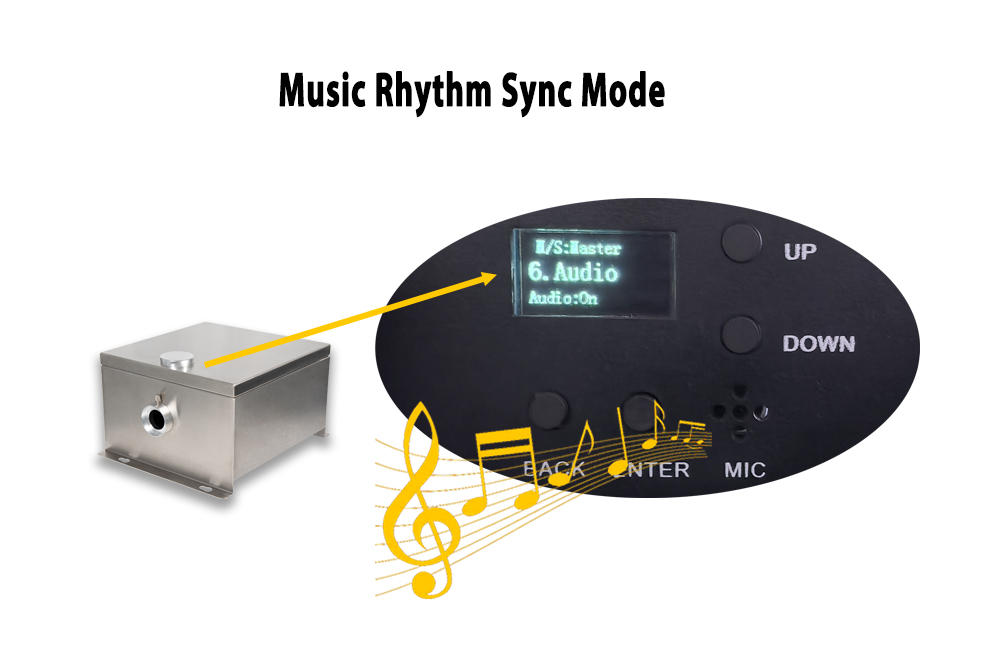

LEI-4001DMX/WP, LEI-8001DMX/WP and LEI-15001DMX/WP have the music rhythm sync mode. Please note that the built-in program of the light engine should be either PS.1 or PS.2 to have this mode.

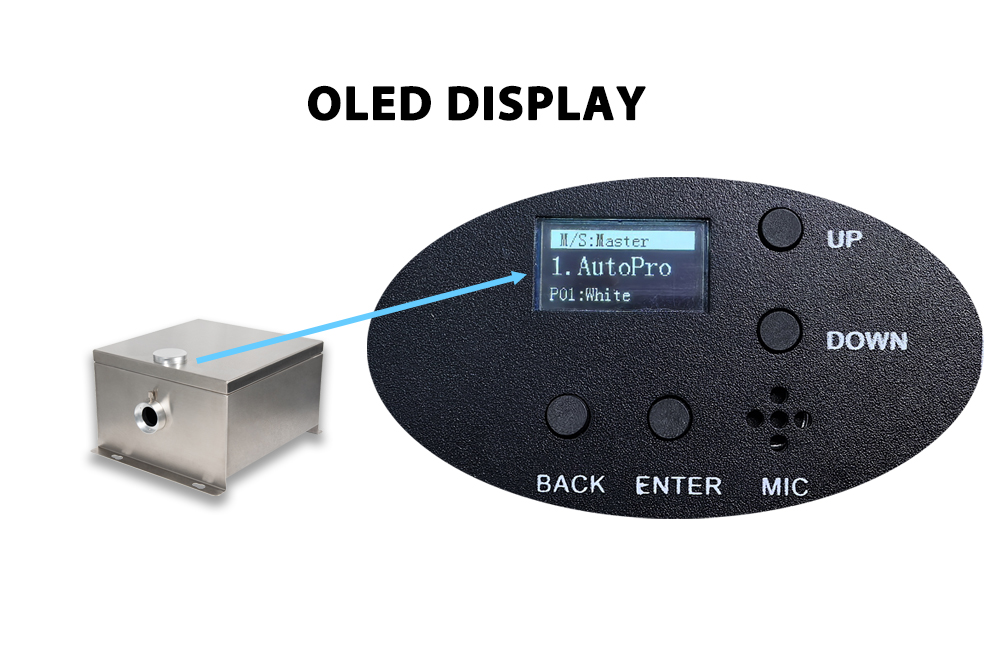

Both white buttons on the front panel are used to set the parameters of the DMX light engine, such as the program, the remote control ON/OFF, the brightness, the wheel spin speed, the DMX address, etc. Please refer to the User Manual for details.

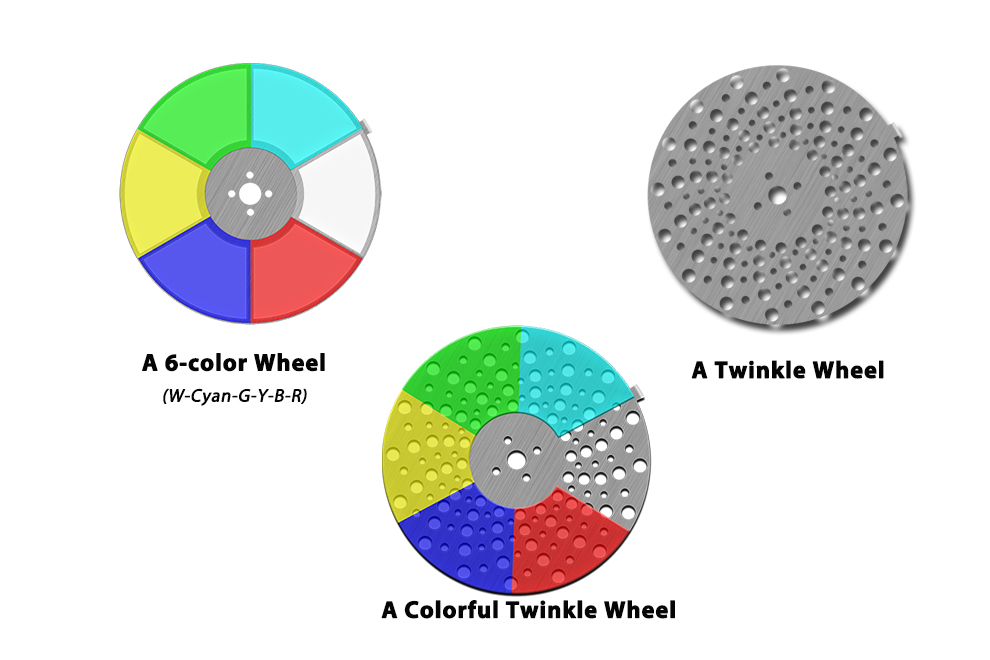

The wheels/discs that could be equipped into LEI-8001DMX/WP fiber optic light engine, from left to right and top to bottom:
1. The 6-color wheel,
2. The twinkle wheel,
3. The colorful twinkle wheel.
The default wheel is the 6-color disc. Other wheels/discs are available at request, and the customized requirement is also welcome.

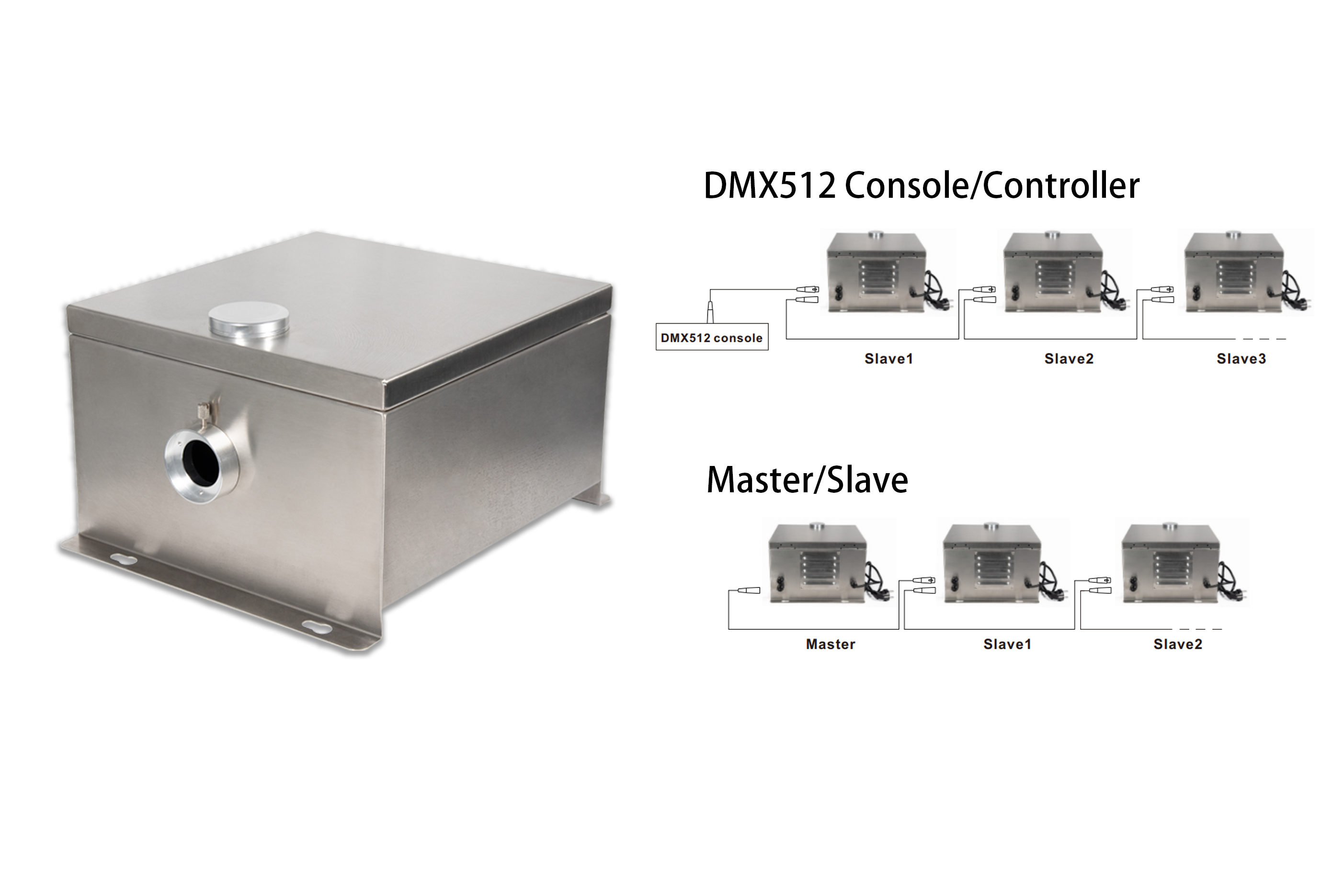

DMX version of the line Voltage LED light engine could use 15-key RF remote control to have different programs, dimming and wheel speed adjustment. LEI-8001DMX/WP has 14 built-in programmes, which can be selected using buttons+display or the remote control.

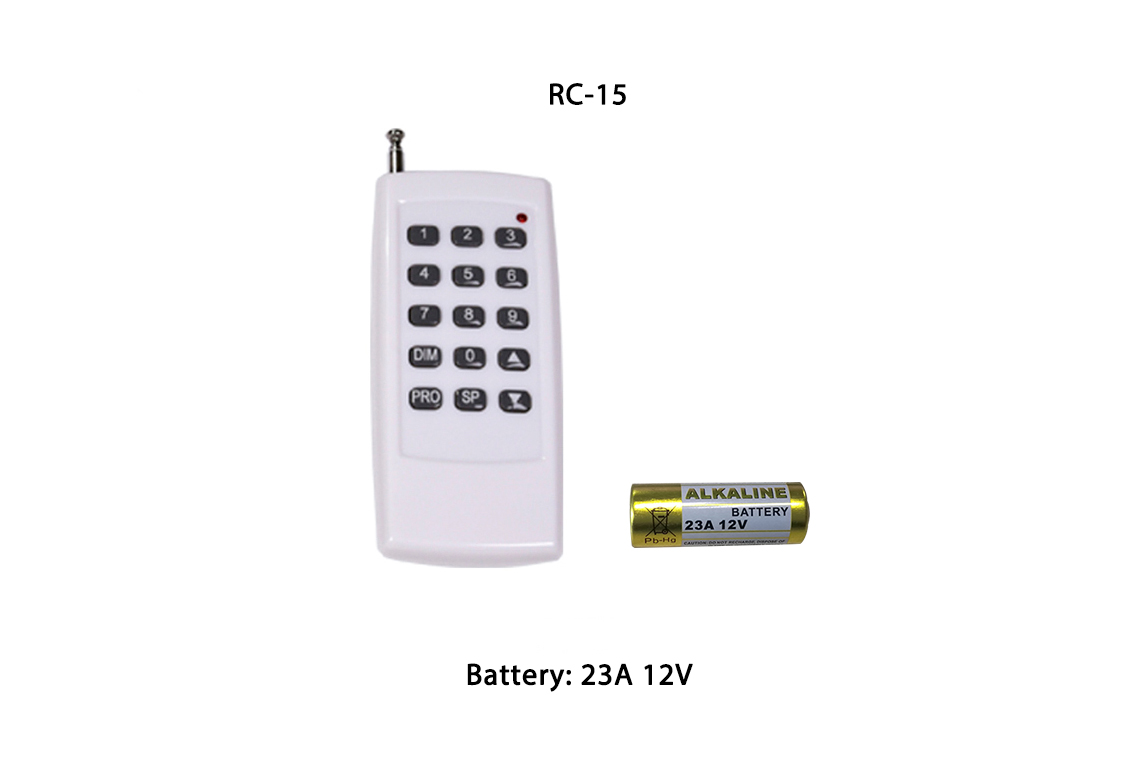

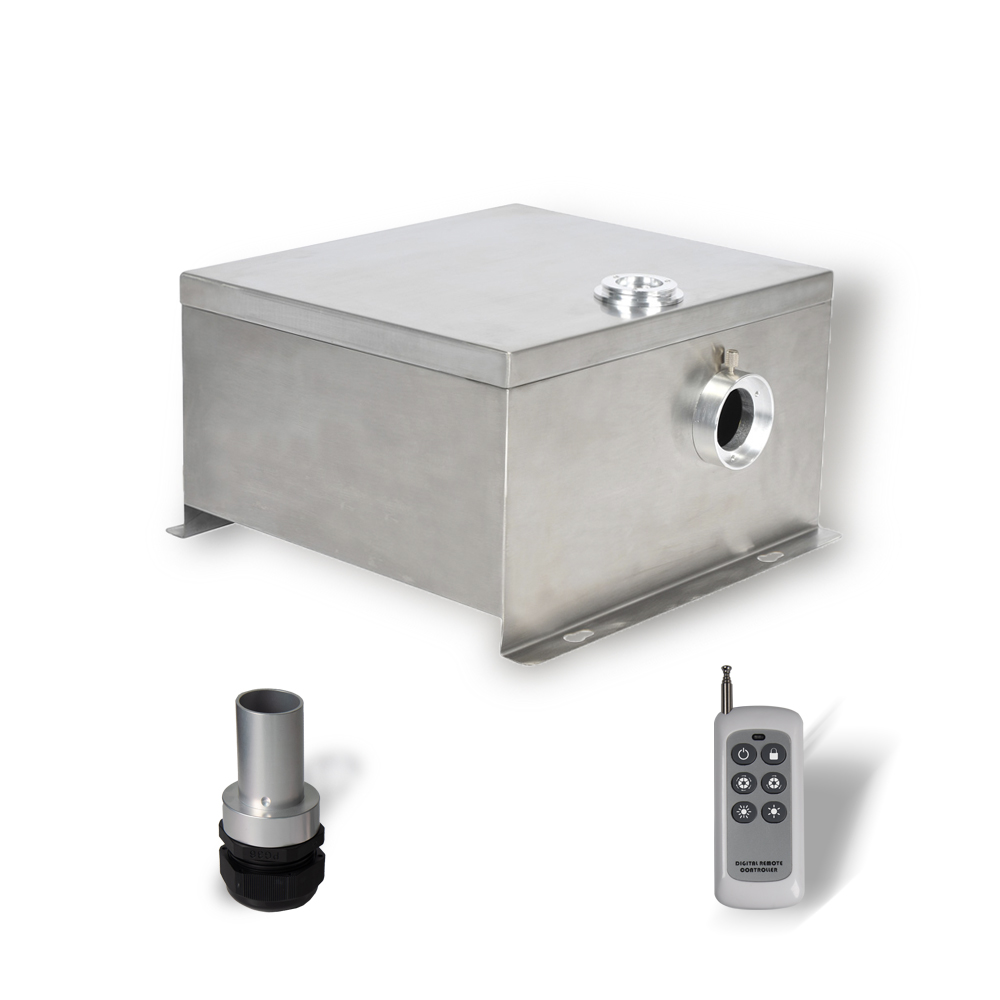

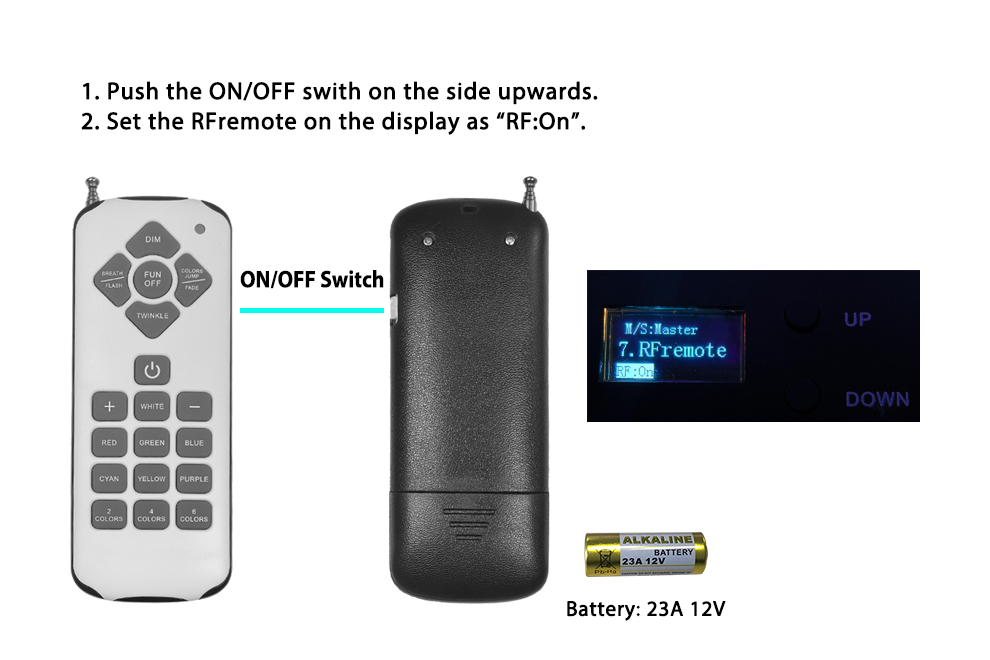

The 15-key RF remote control has an effective control distance of around 25 metres in open area. The function of the 15-key remote control (Optional):
1. Select the built-in programs,
2. Dimming,
3. Adjust the wheel speed.

Battery: 23A 12V, 1pc (not included in the package).

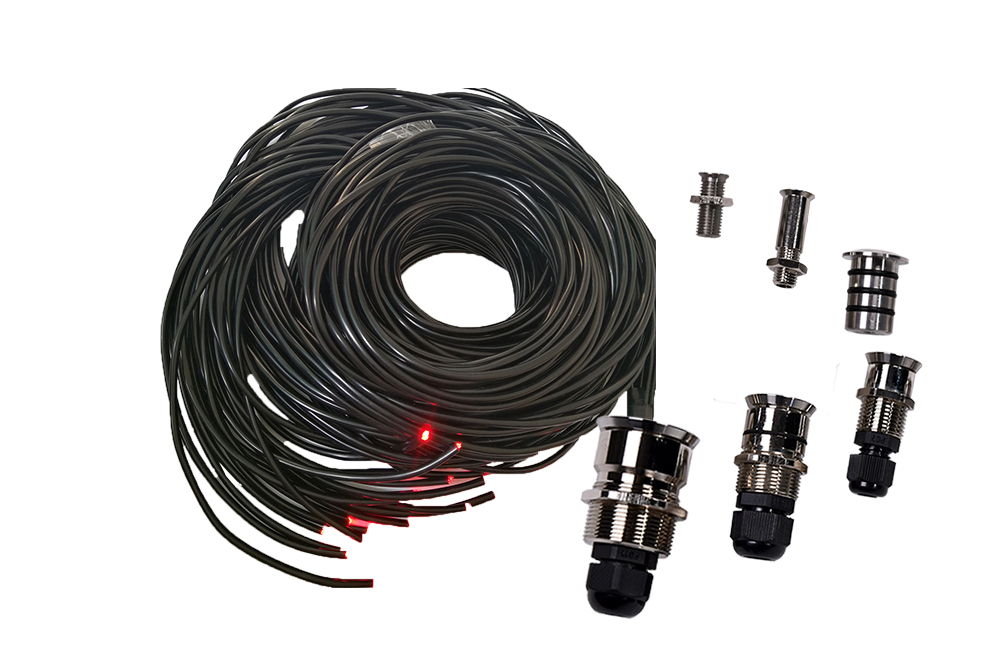

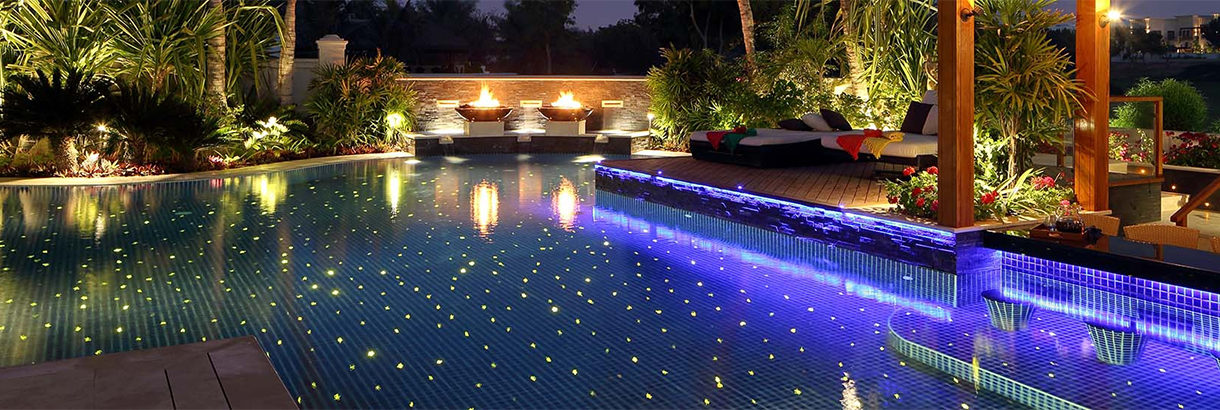

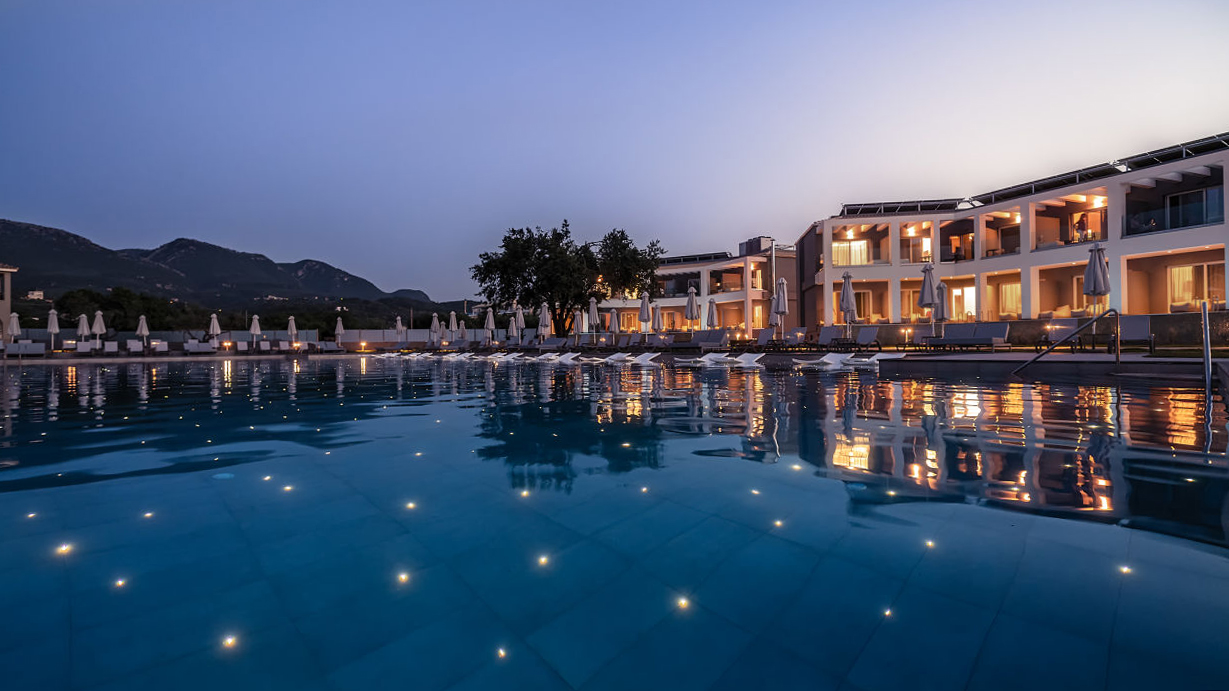

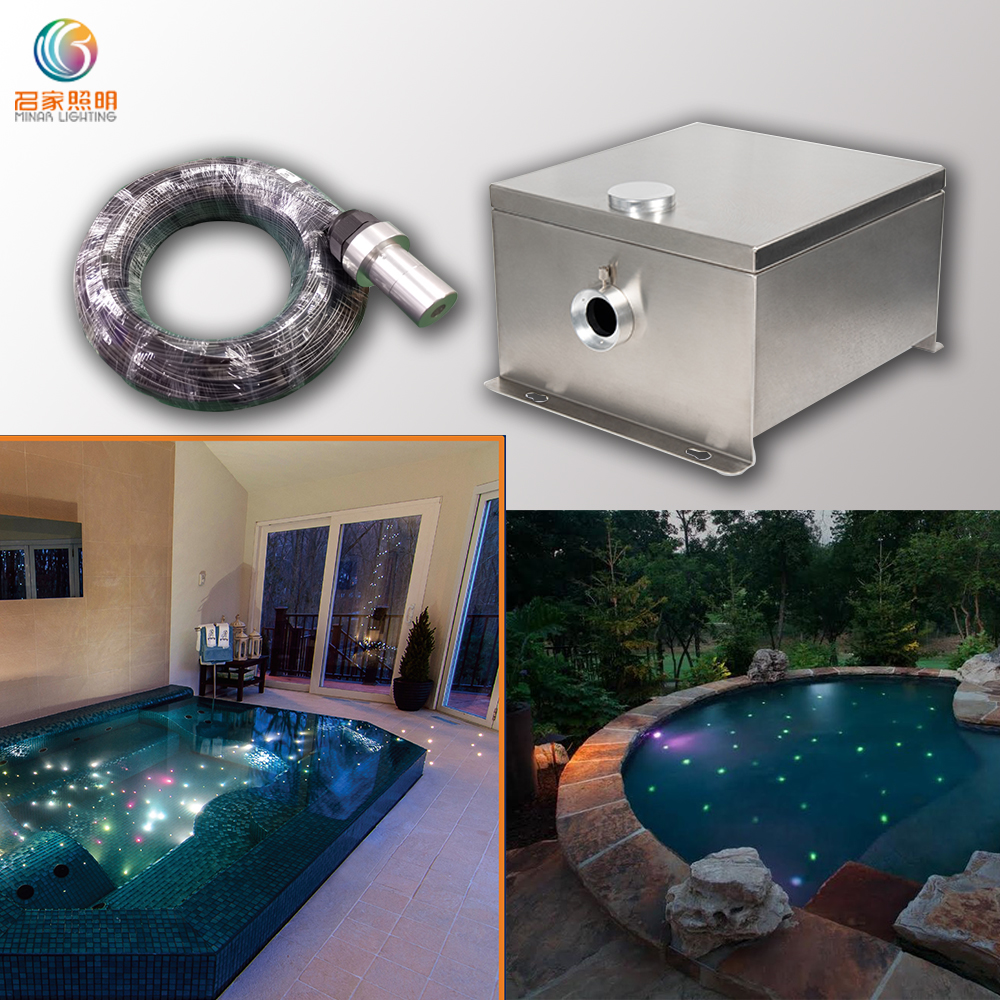

For wet area lighting, the end glow fiber cable with black PVC sheath and the buried end fittings are recommended for star effect.

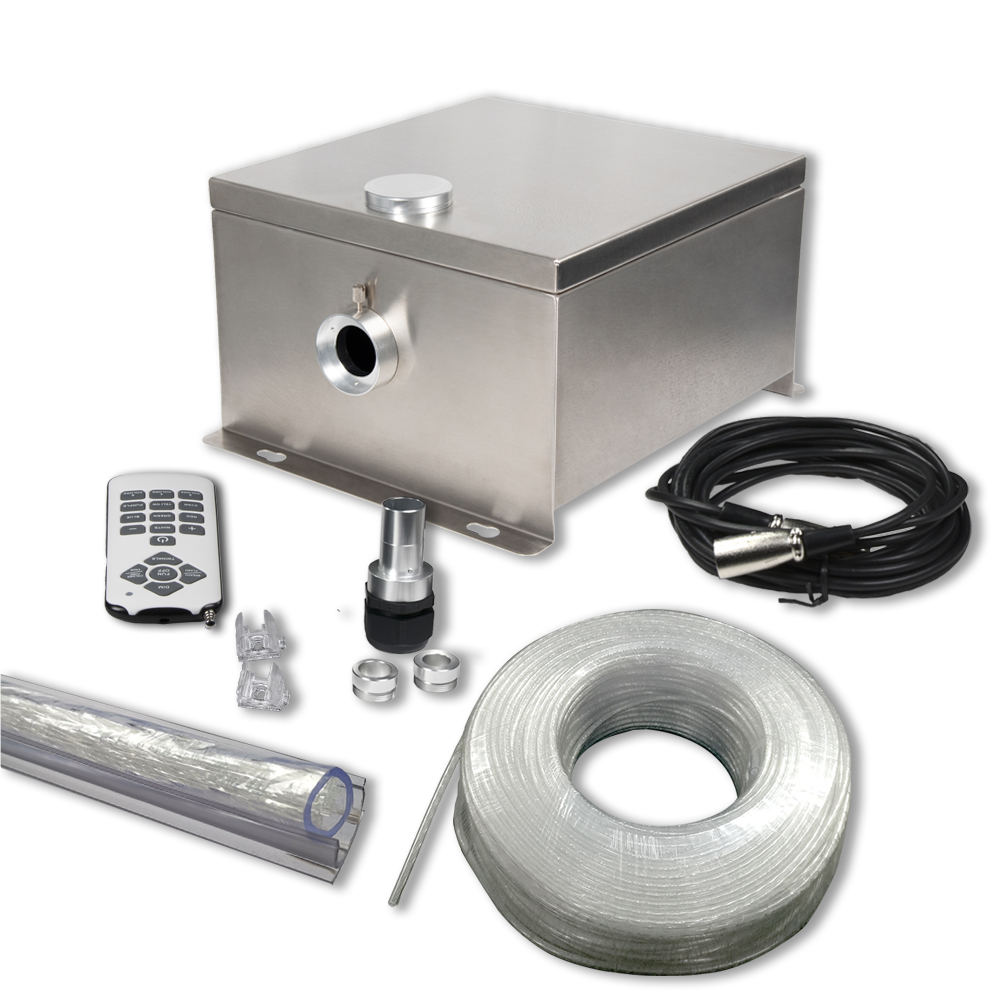

In the perimeter light, we also have the stranded side glow multi-string fiber cable and the PVC cable tracks.

Please refer to the fiber cable and end fittings on this website for details.
