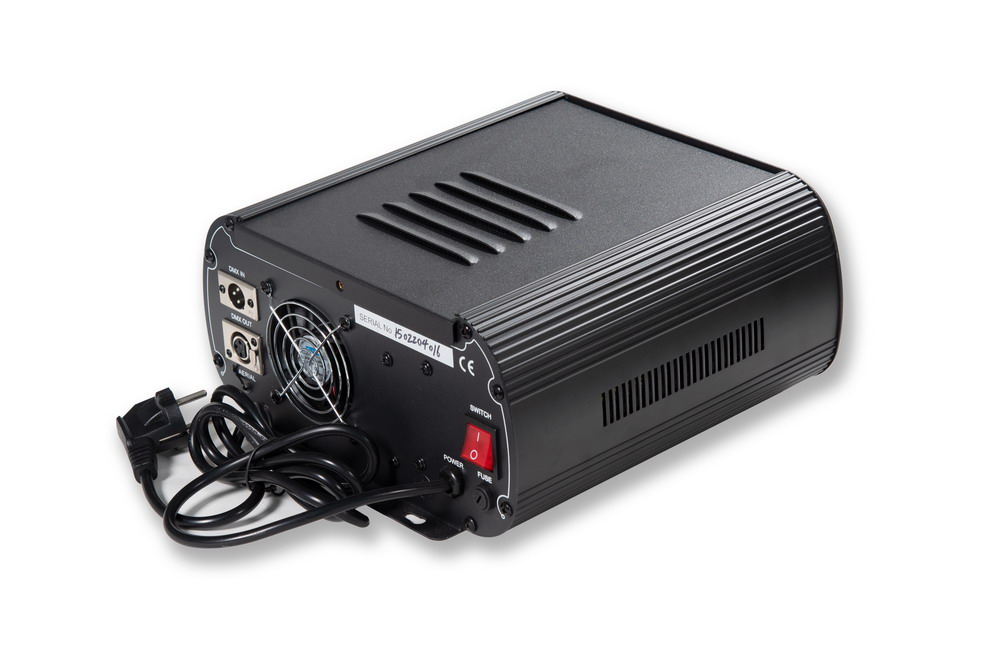

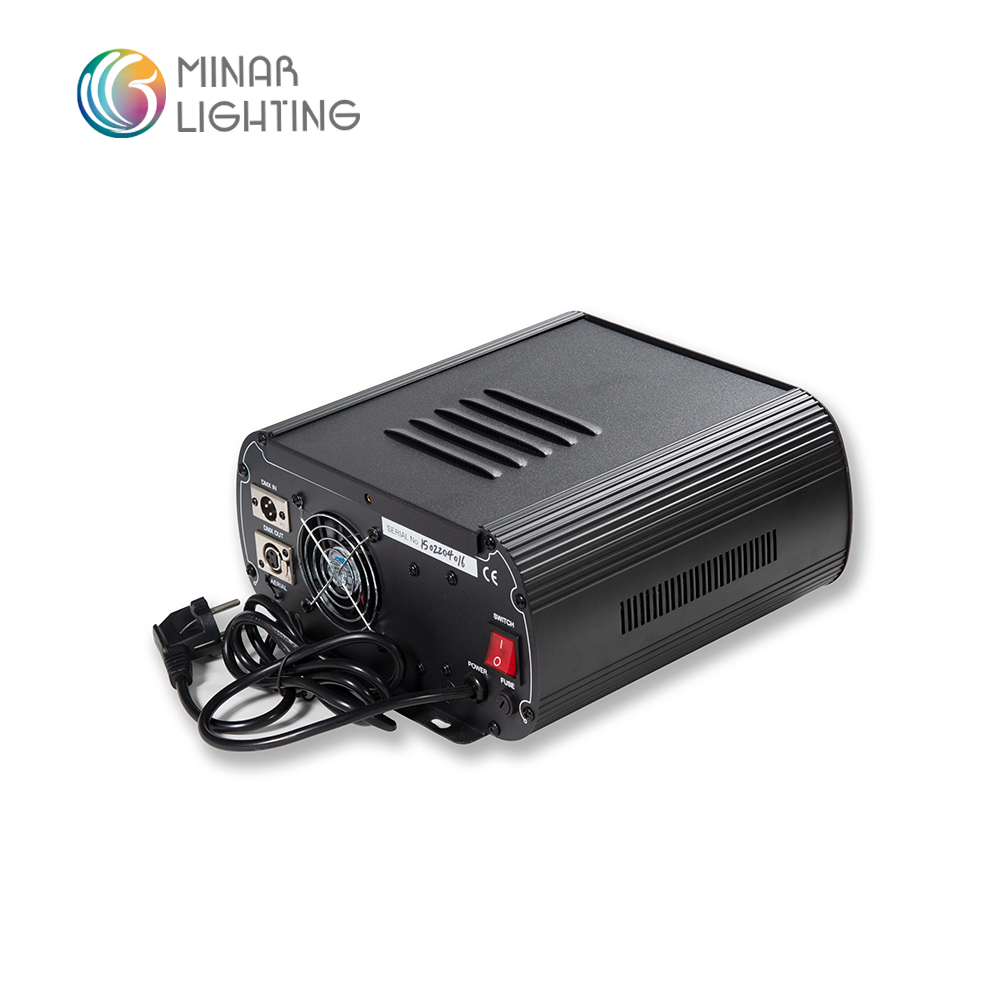

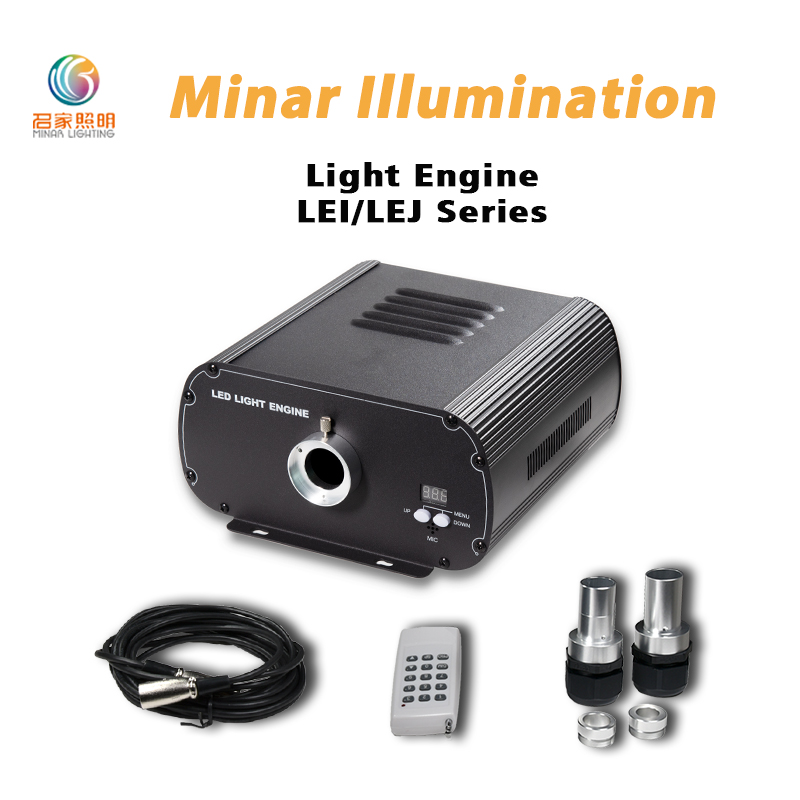

LEI-15001DMX

This is one of the most powerful LED modules in fiber optic light engines. It can enlight end light fiber cable as far as 35 meters with effective brightness.

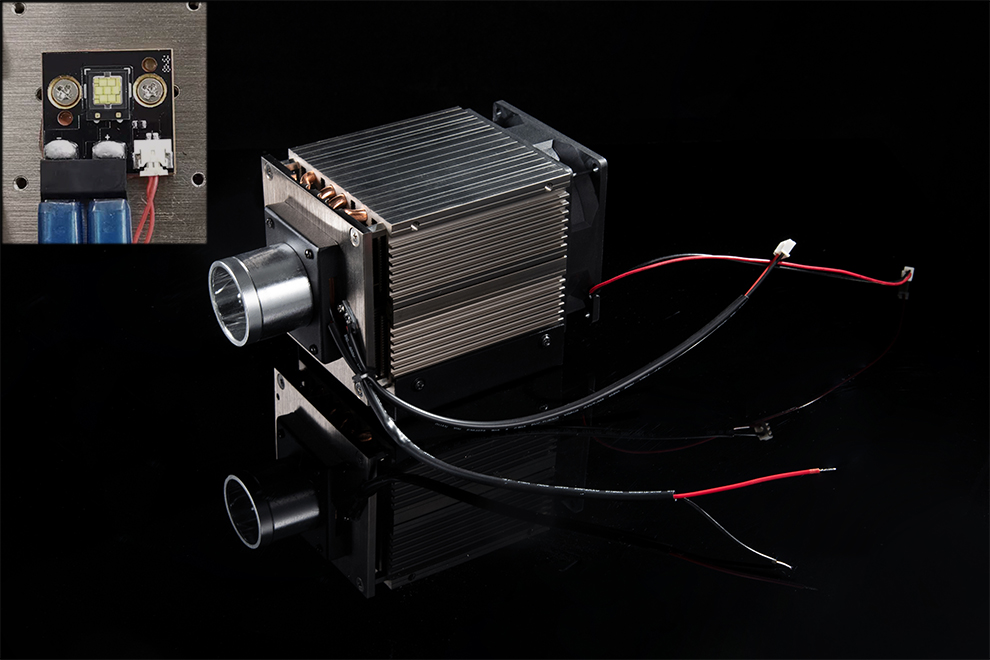

The specially designed heat sink and the temperature detector will ensure the light engine has a superior performance.

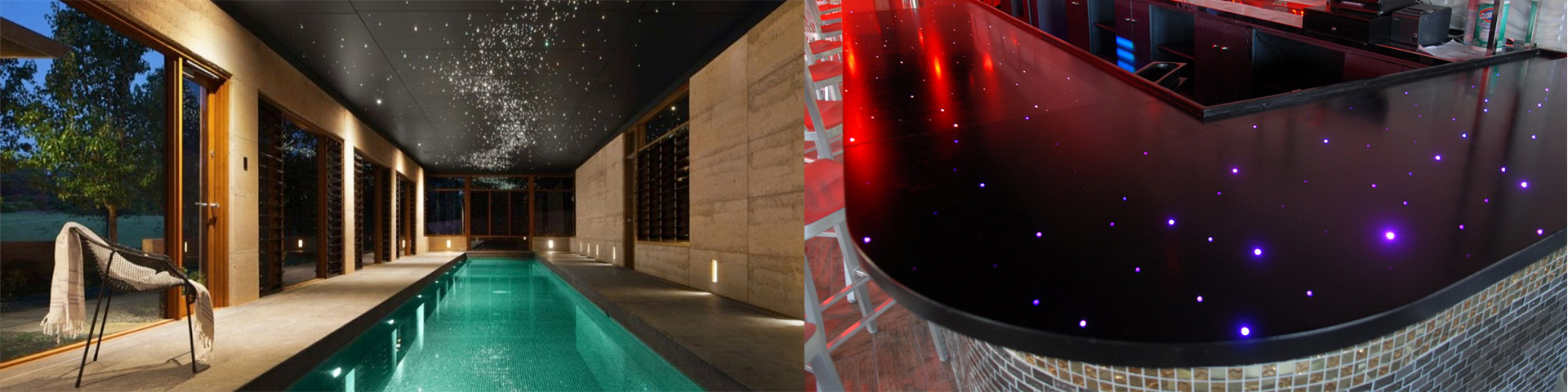

It is the ideal light engine for perimeter lighting using side glow fiber cable and large-scale starry lighting at swimming pools and parks.

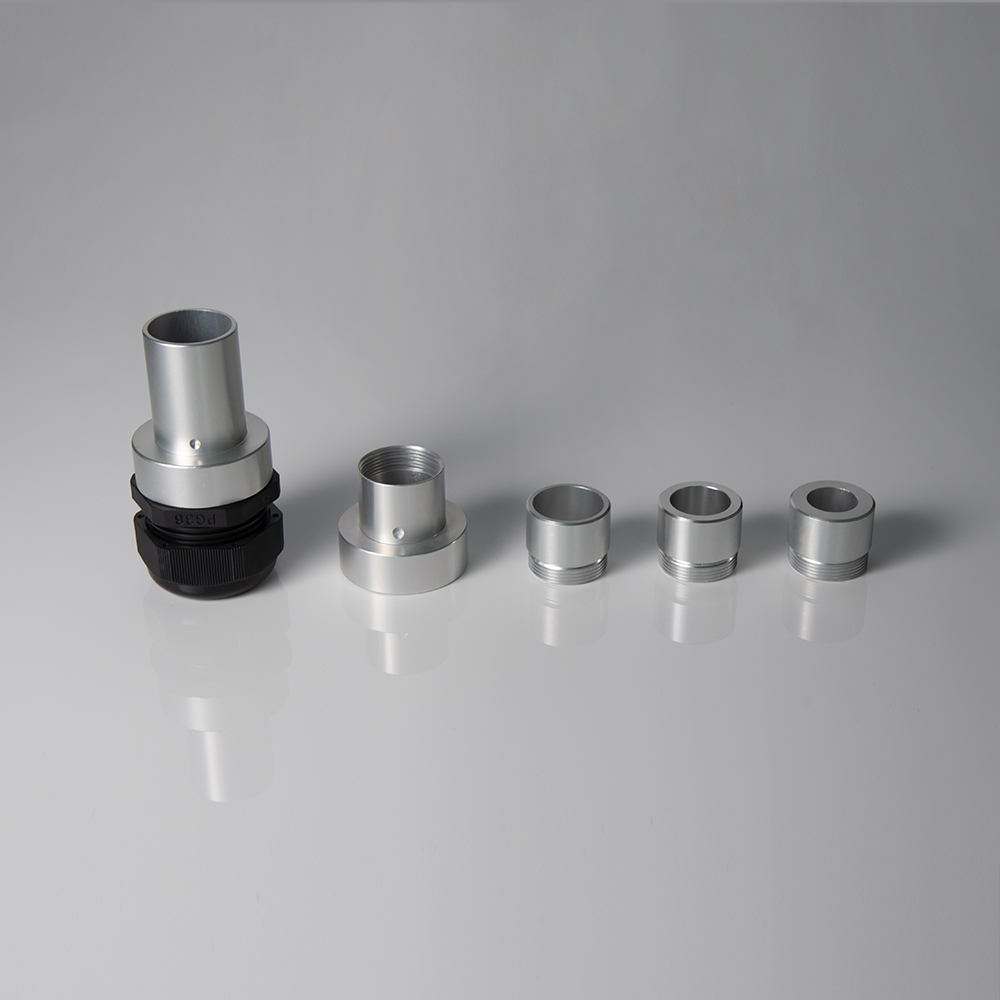

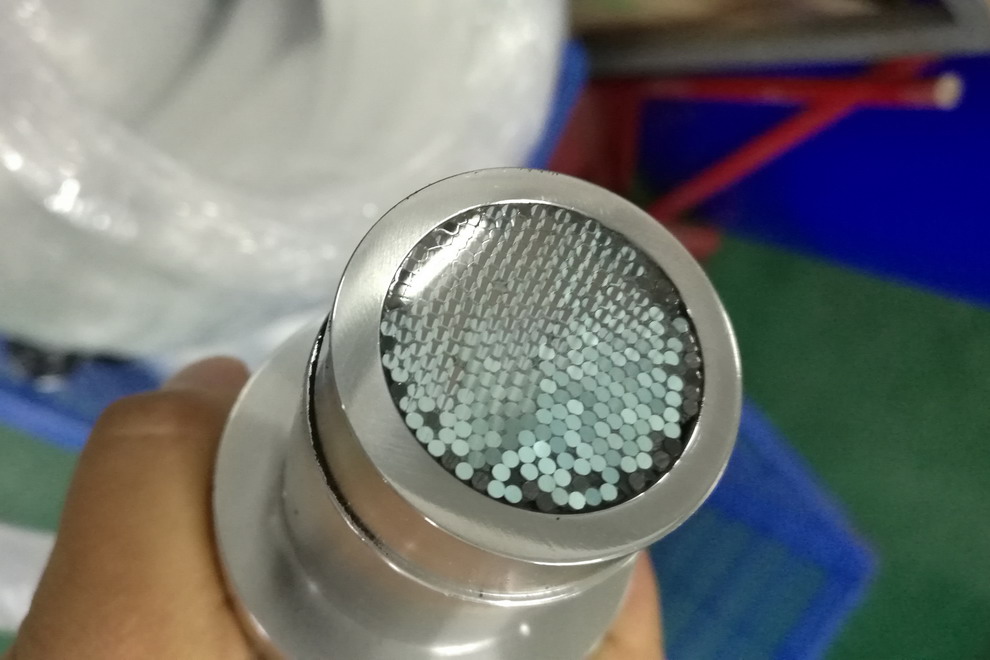

It is recommended to polish the fiber connector for the light engine of LEI-15001 and LEI-15001DMX. The light engine is so powerful that the regular fiber tails in the connector may absorb too much heat to get burned. With the polished fiber connector, both LEI-15001 and LEI-15001DMX will have the best performance.

Multiple units of the DMX512 light engines can be connected as a group via DMX signal cables to run the master-slave control mode. In master-slave control mode, there will be one and only one master light engine, and all the rest will be set as slave machines. The master runs the built-in program with or without the remote control, and all slave machines will automatically follow to have a synchronous or progressive effect.

5 DMX Channels
1. CH1: Color,
2. CH2: Speed,
3. CH3: N/A,
4. CH4: Dimmer,
5. CH5: Strobe.

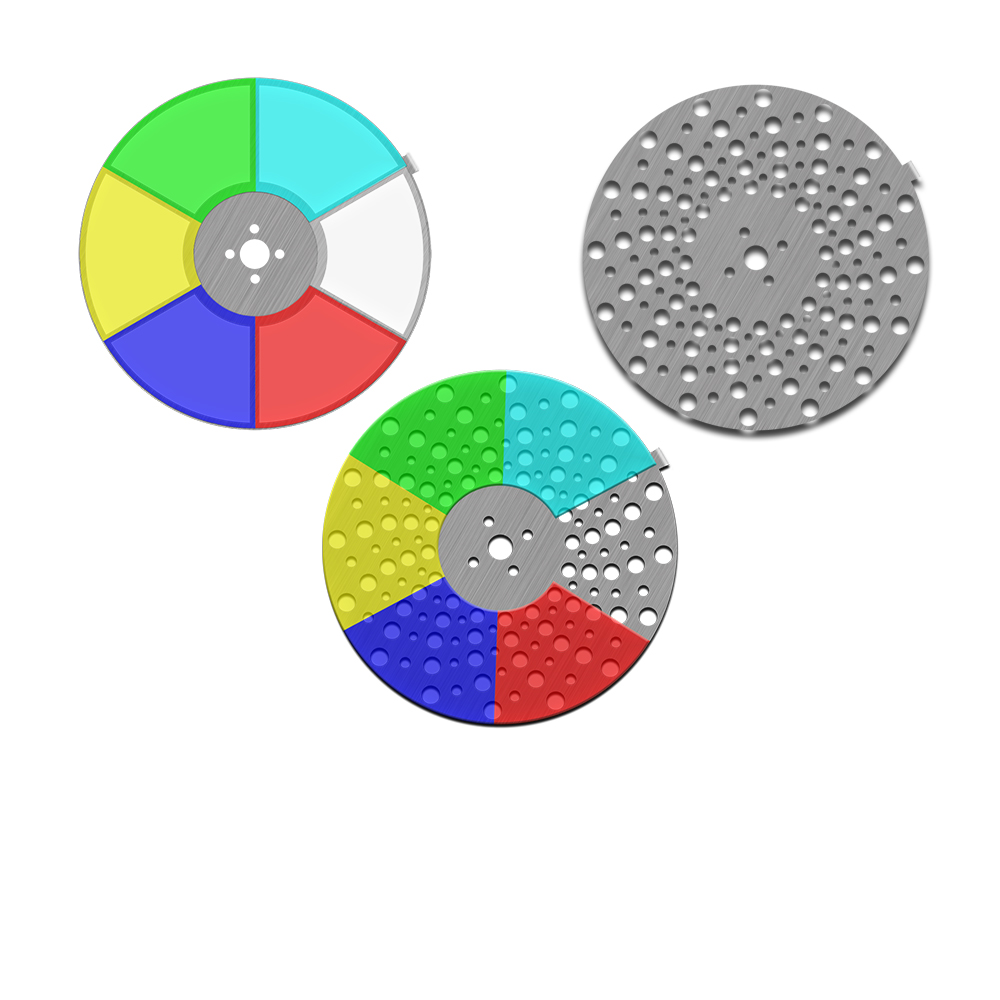

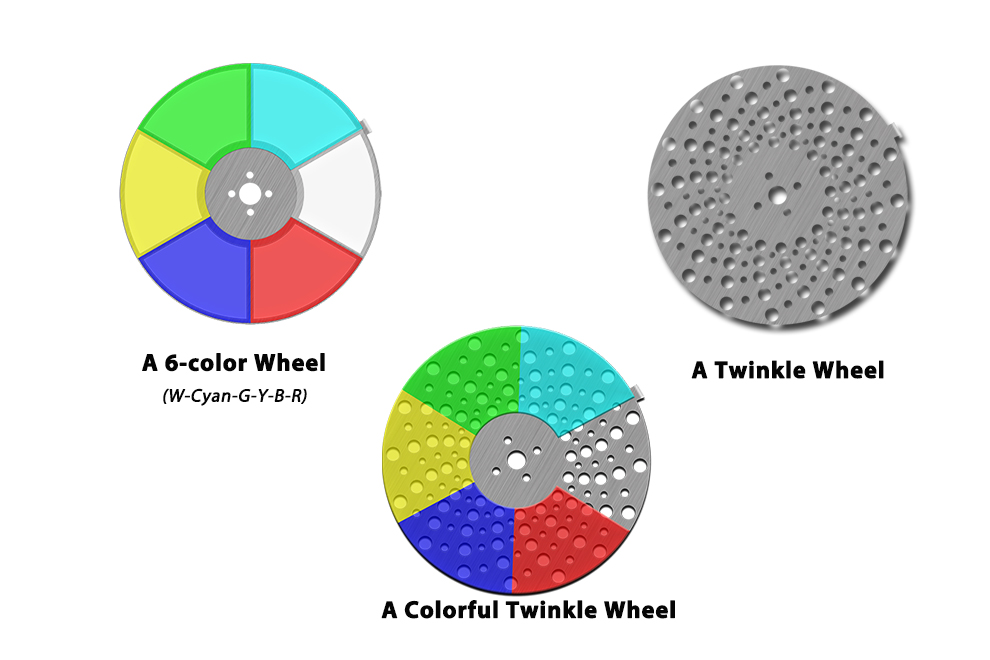

The wheels/discs that could be equipped into LEI-15001DMX fiber optic light engine, from left to right and top to bottom:
1. The 6-color wheel,
2. The twinkle wheel,
3. The colorful twinkle wheel.
The default wheel is the 6-color disc. Other wheels/discs are available at request, and the customized requirement is also welcome.

DMX version of the line Voltage LED light engine could use a 15-key RF remote control to have different programs, dimming, and wheel speed adjustment. LEI-15001DMX has 14 built-in programs, which can be selected using buttons+display or the remote control.

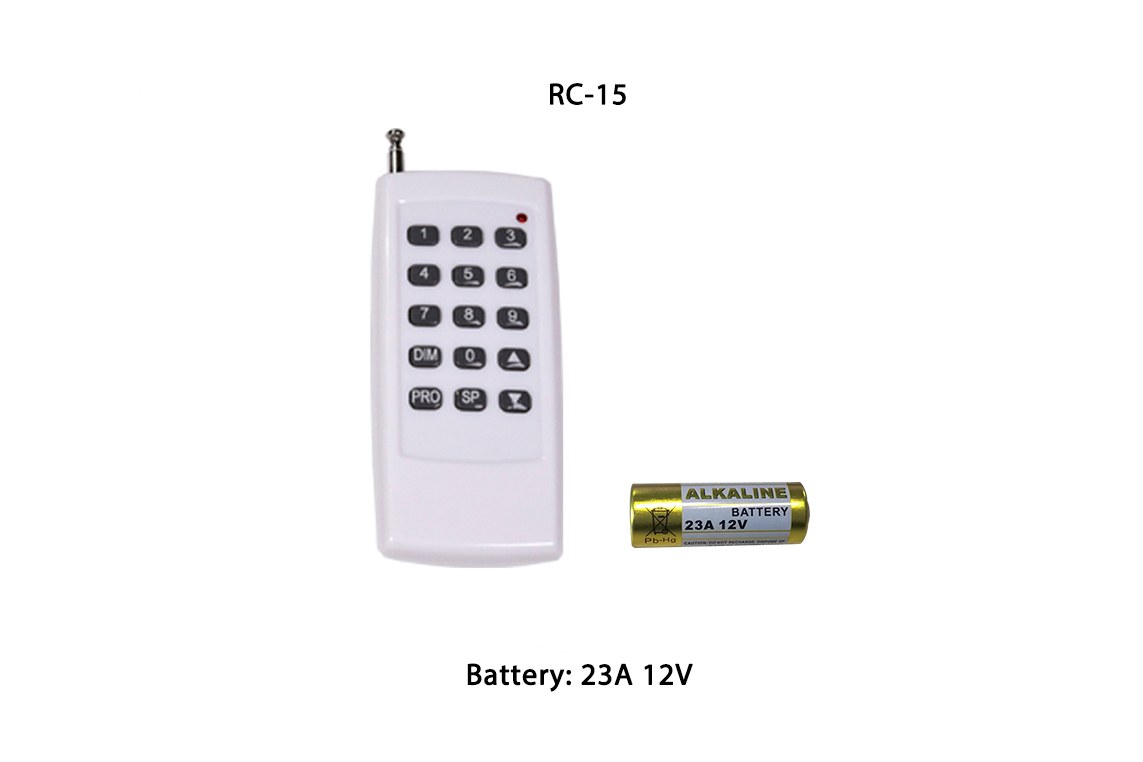

The 15-key RF remote control has an effective control distance of around 25 meters in an open area. The function of the 15-key remote control (optional):
1. Select the built-in programs,
2. Dimming,
3. Adjust the wheel speed.

Battery: 23A 12V, 1pc (not included in the package).
