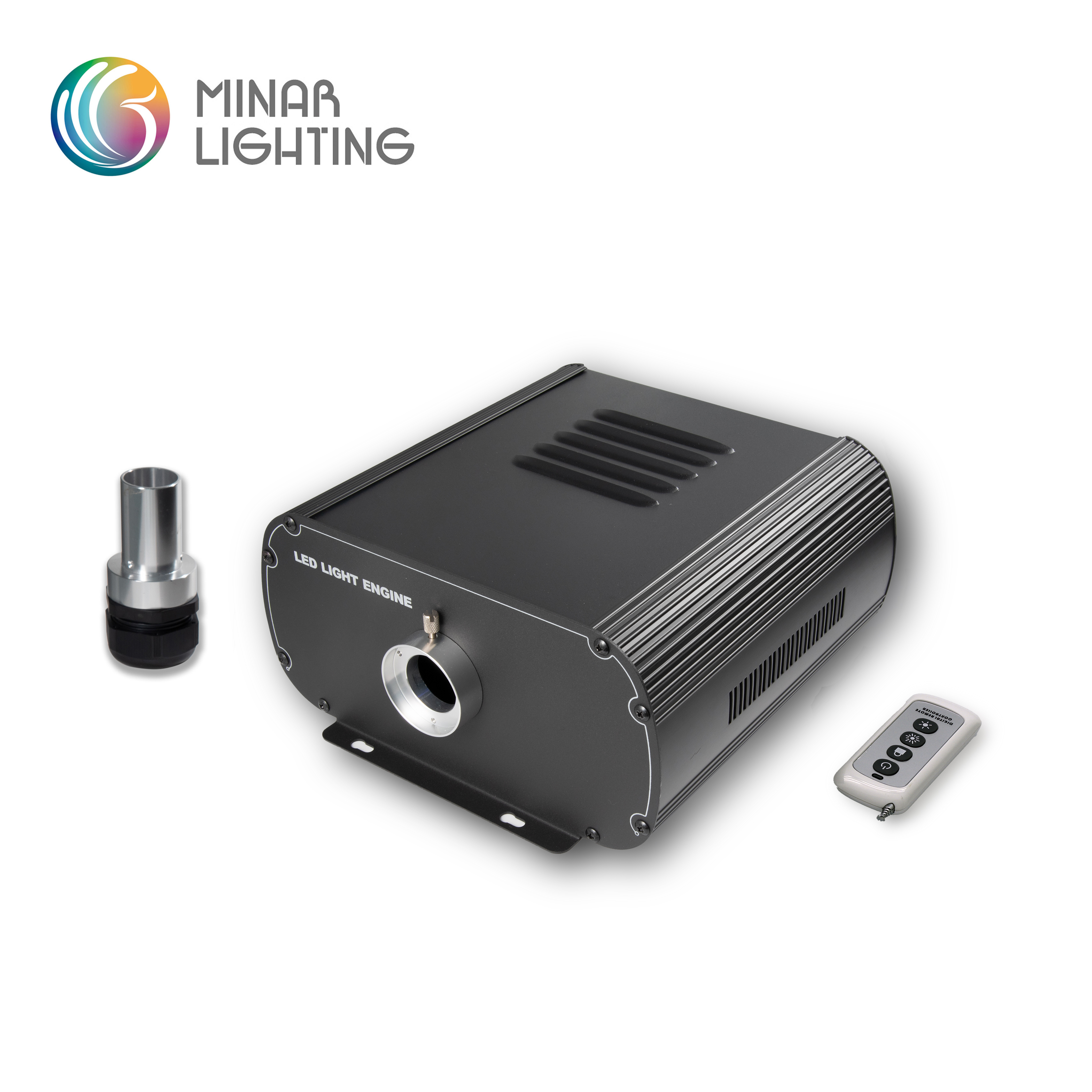

LEI-15001

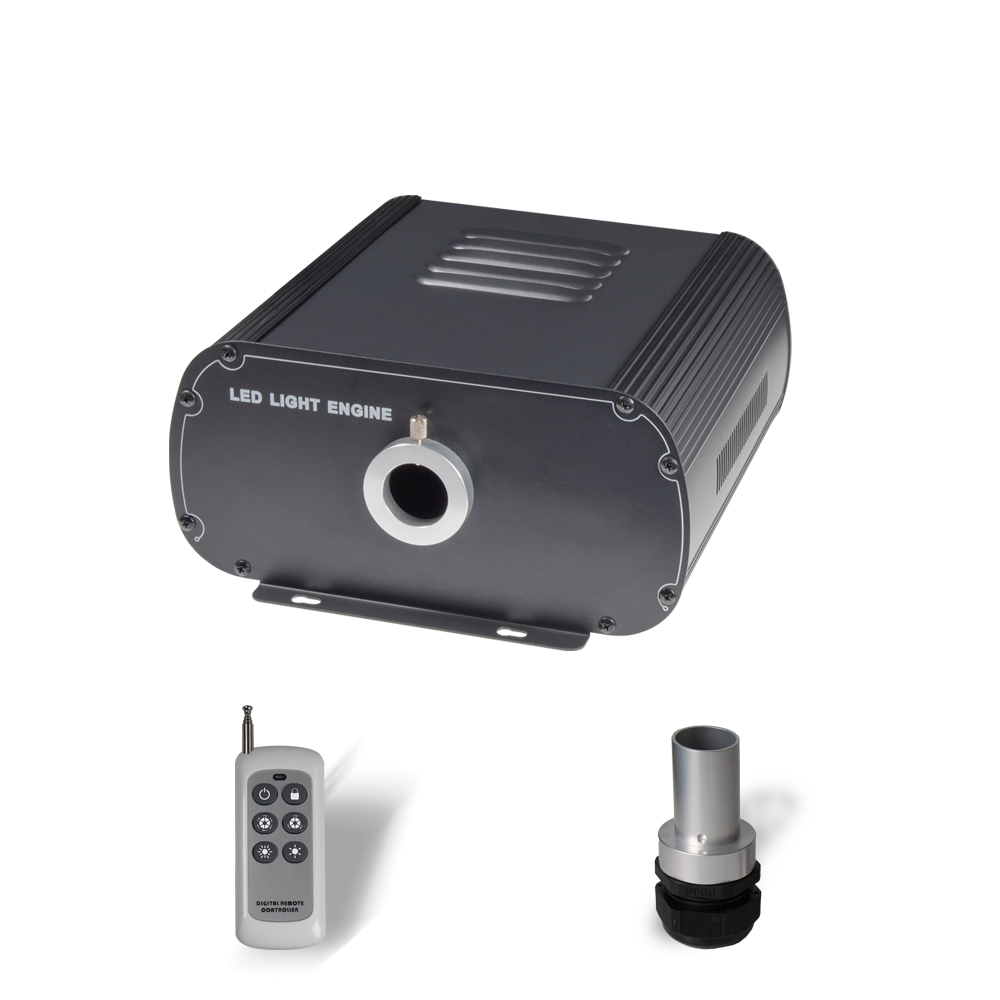

By default Minar provides one piece of 20mm/24mm/28mm 3-in-1 combined fiber connector for each line voltage light engine. These apertures are capable of 540pcs, 770pcs, and 1050pcs of 0.75mm fiber tails respectively. 30mm fiber connector is also available at request.

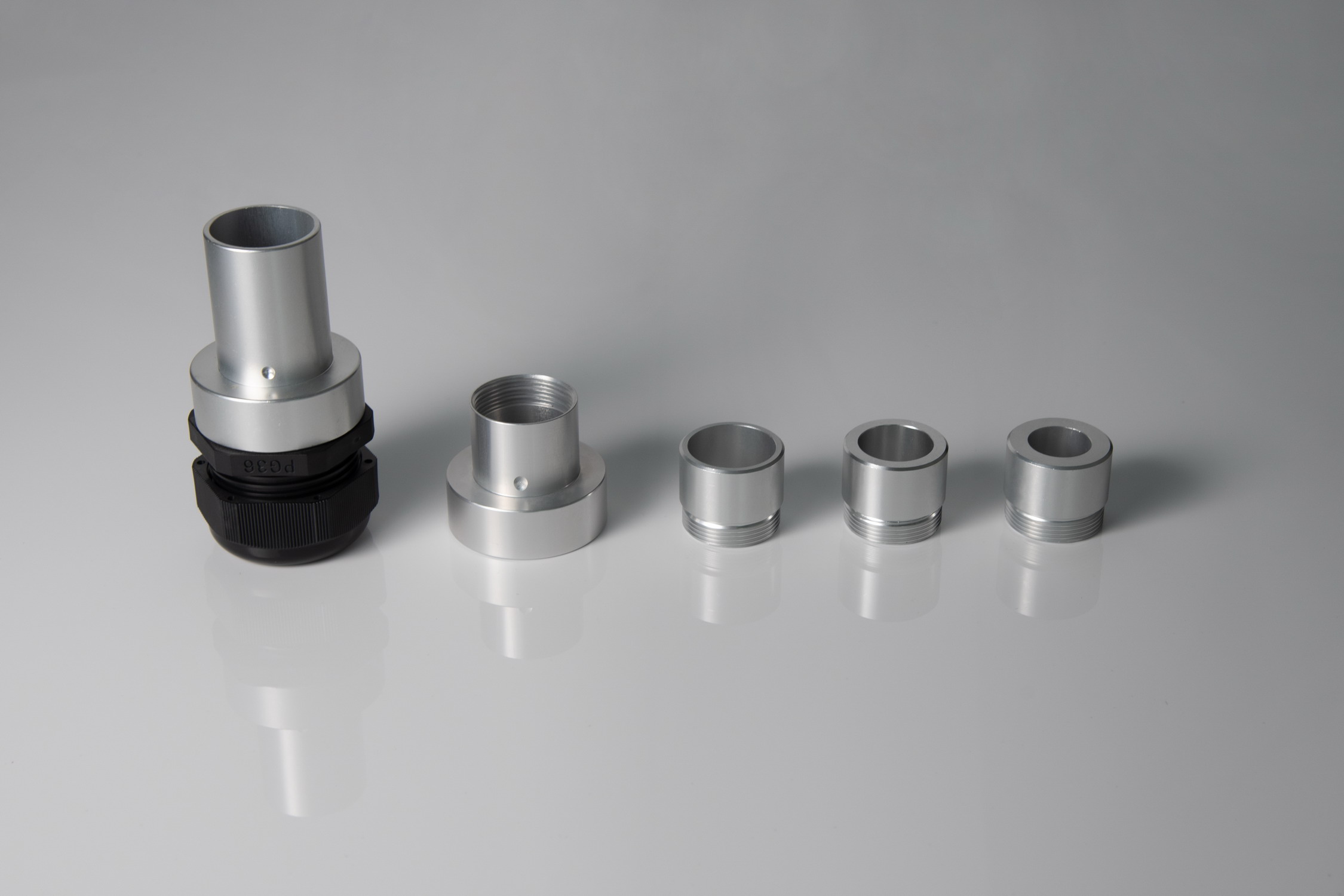

From left to the right, the fiber connector: 30mm, 28mm, 24mm, and 20mm.

Customized apertures are also welcome!

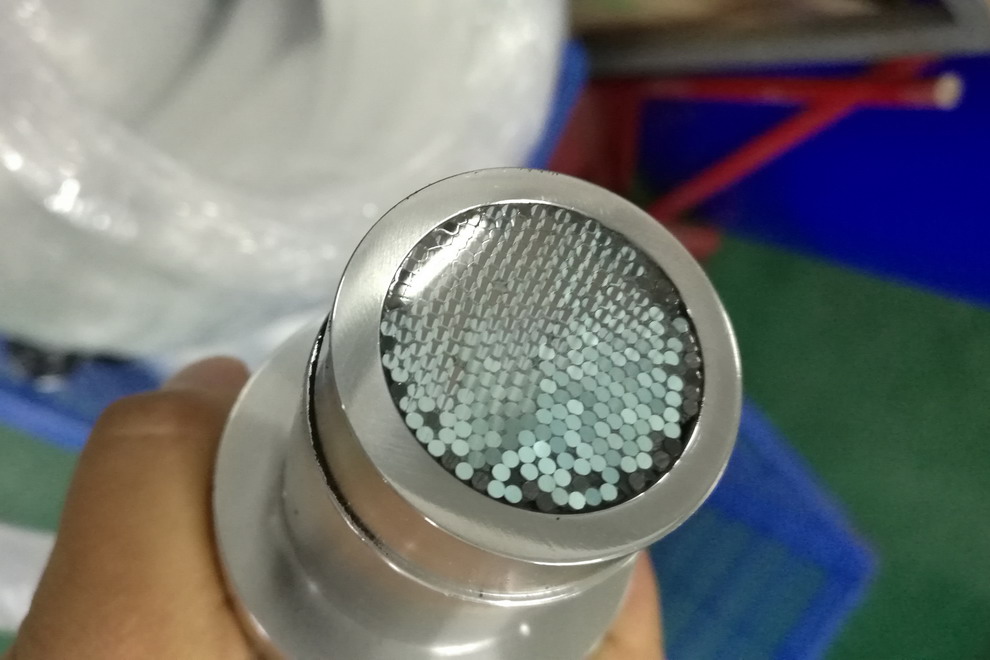

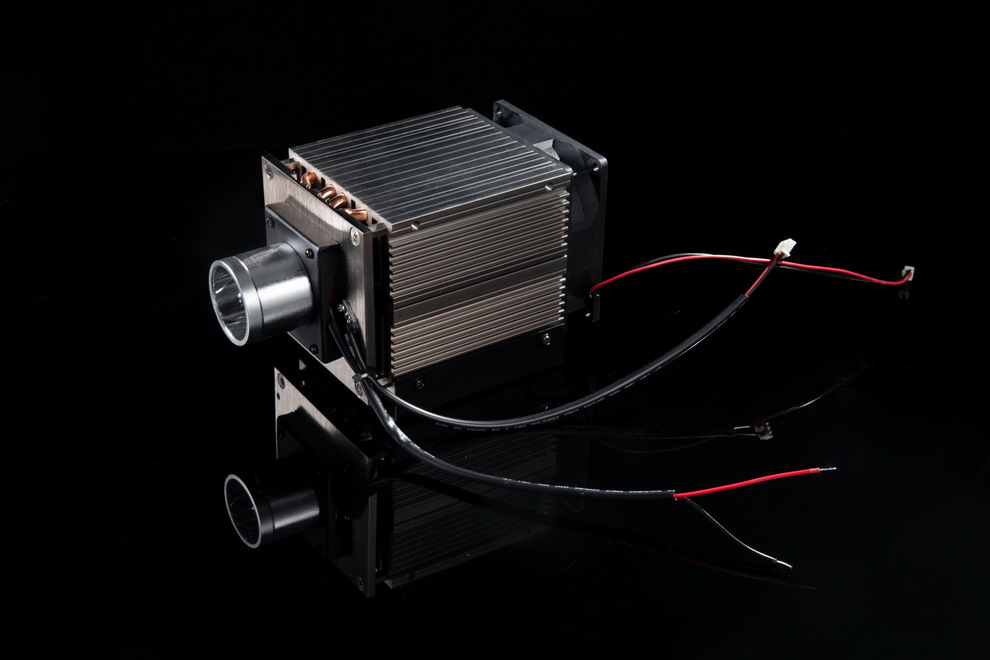

It is recommended to polish the fiber connector for the light engine of LEI-15001 and LEI-15001DMX. The light engine is so powerful that the regular fiber tails in the connector may absorb too much heat to get burned. With the polished fiber connector, both LEI-15001 and LEI-15001DMX will have the best performance.

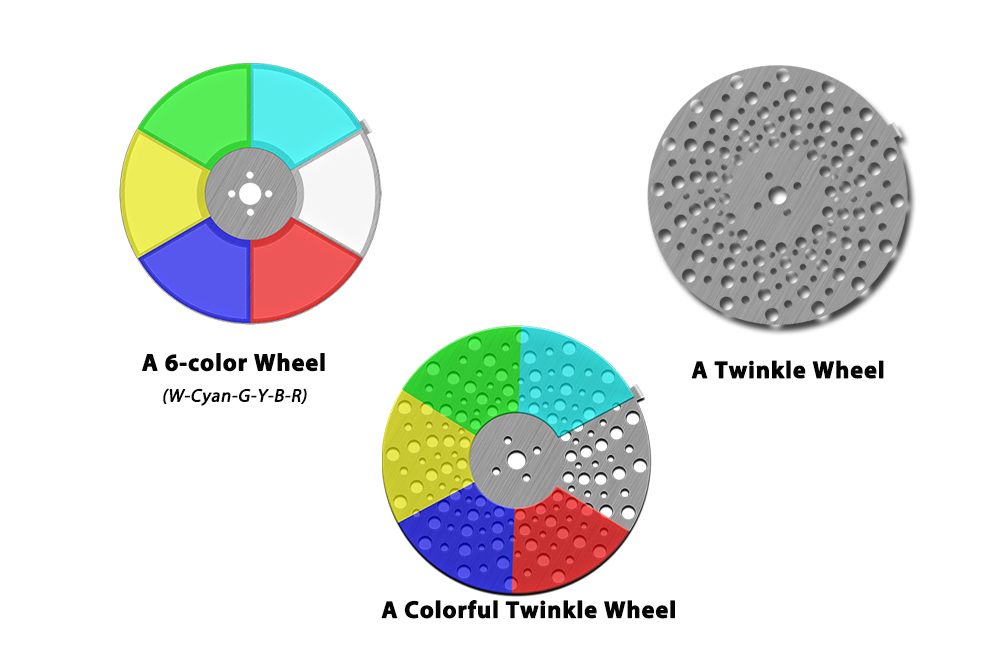

The wheels/discs that could be equipped into LEI-15001 fiber optic light engine, from left to right and top to bottom:
1. The 6-color wheel,
2. The twinkle wheel,
3. The colorful twinkle wheel.
The default wheel is the 6-color disc. Other wheels/discs are available at request, and the customized requirement is welcome.

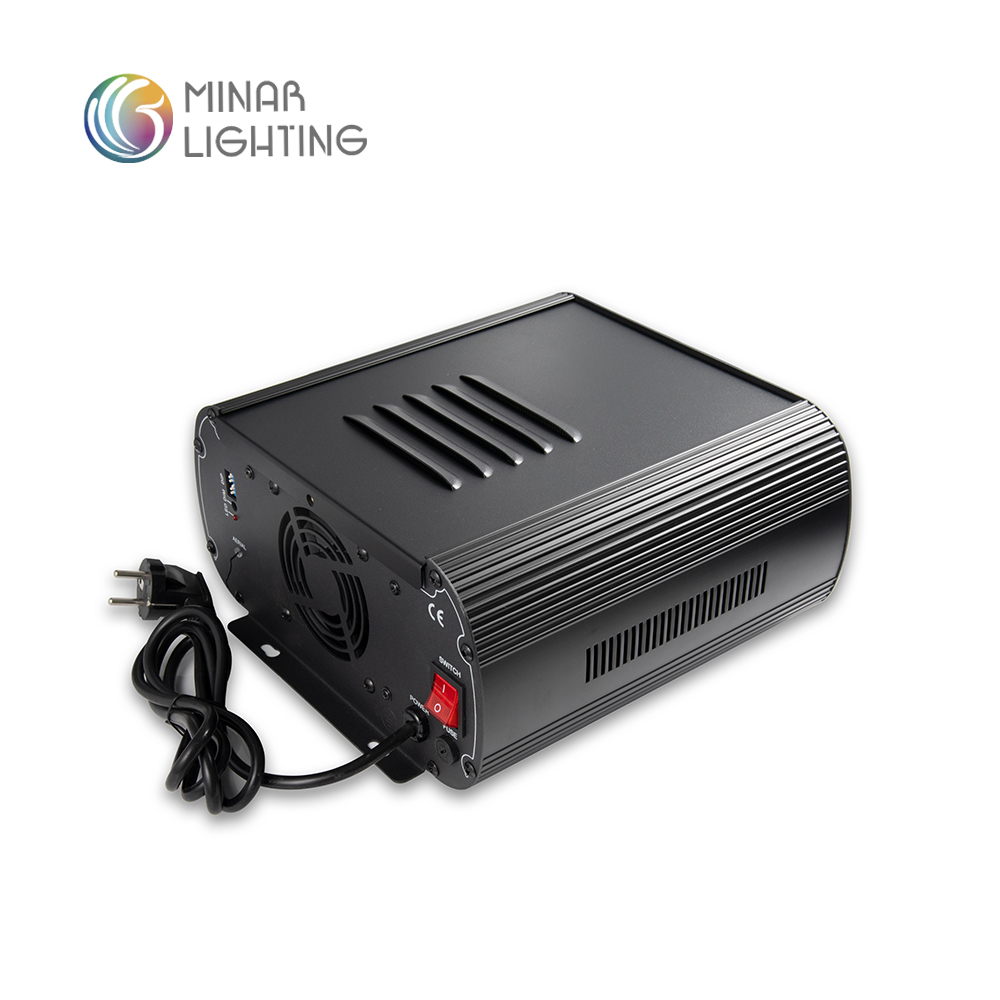

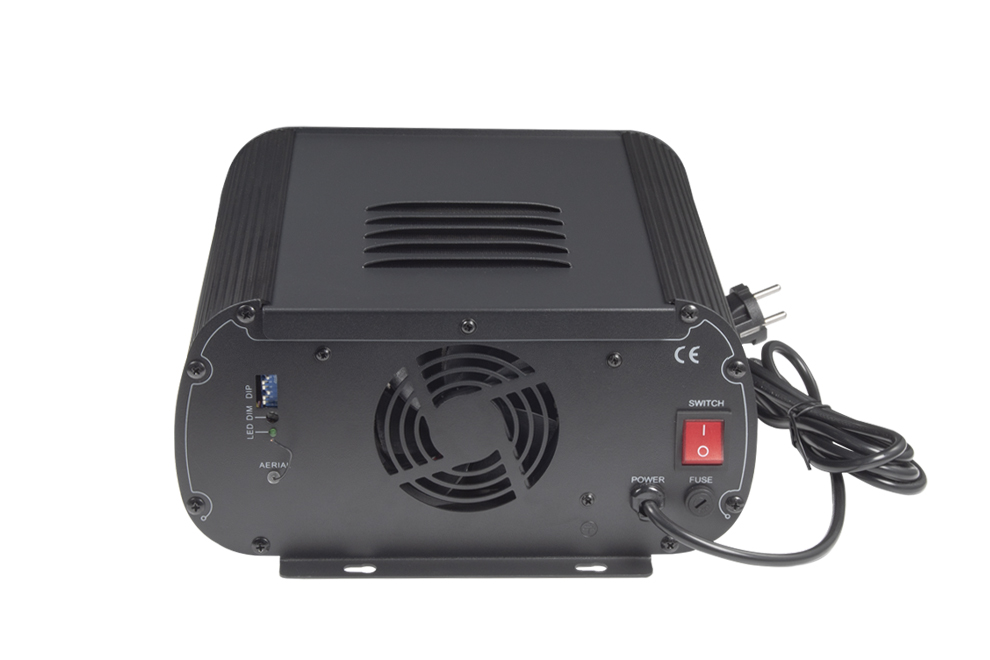

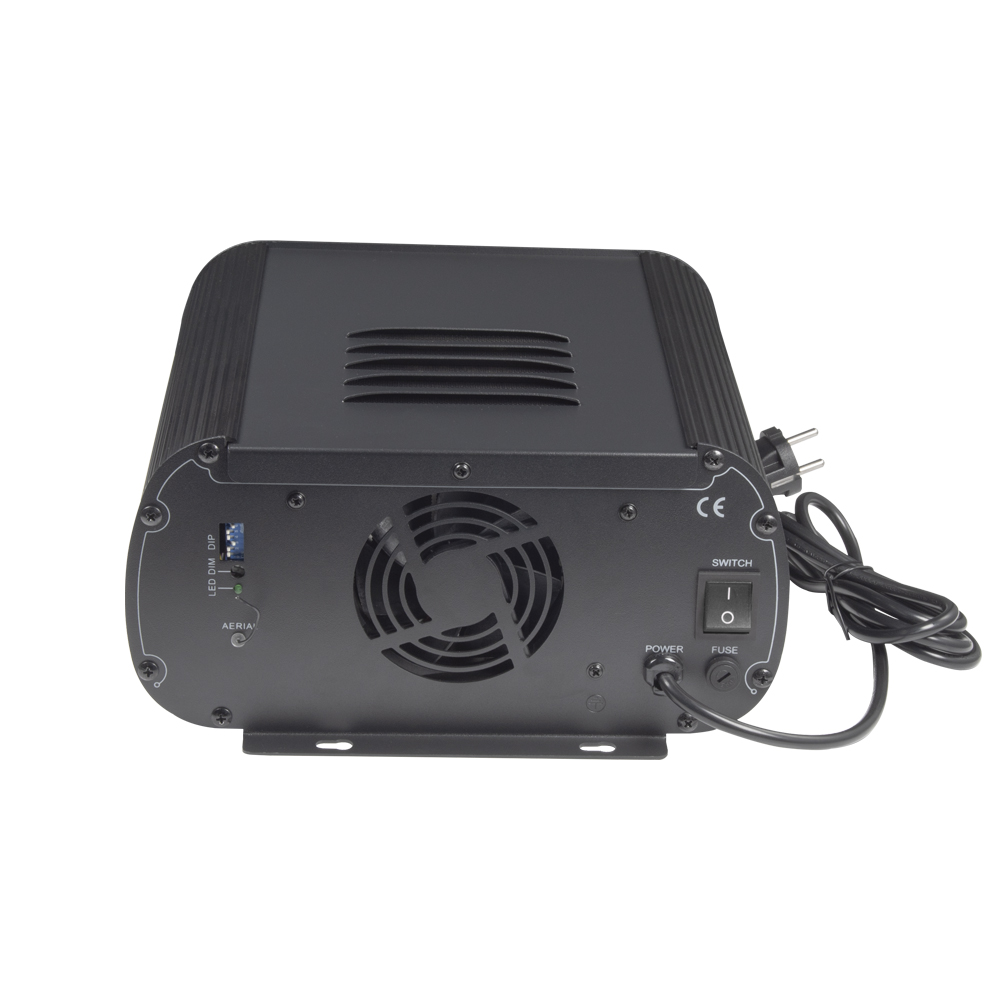

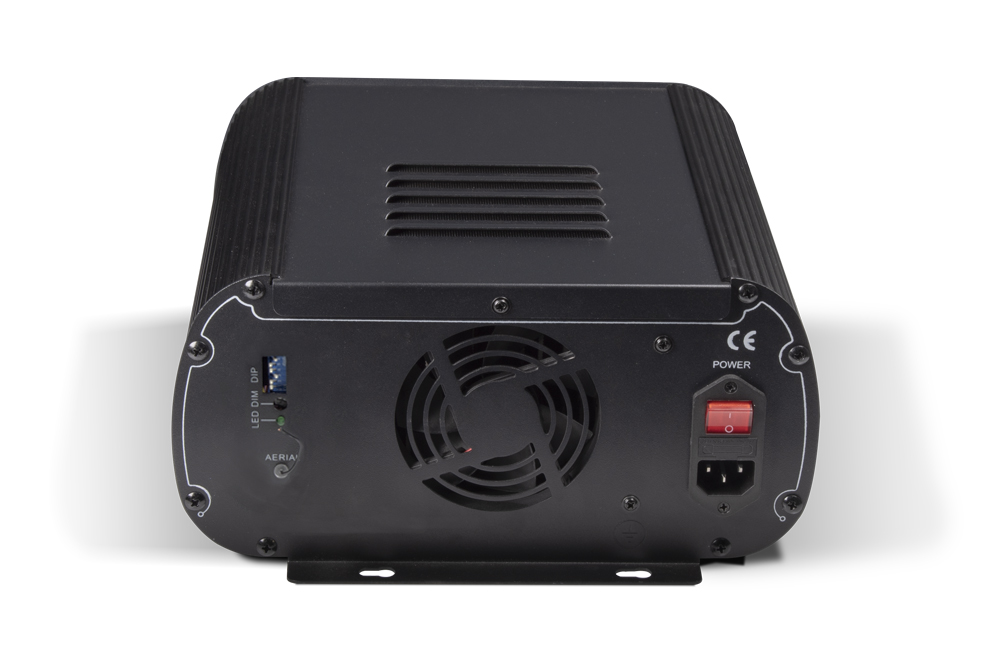

LEI-15001 has 8 built-in programmes, which can be selected by the DIP switches that are on the back panel of the light engine.

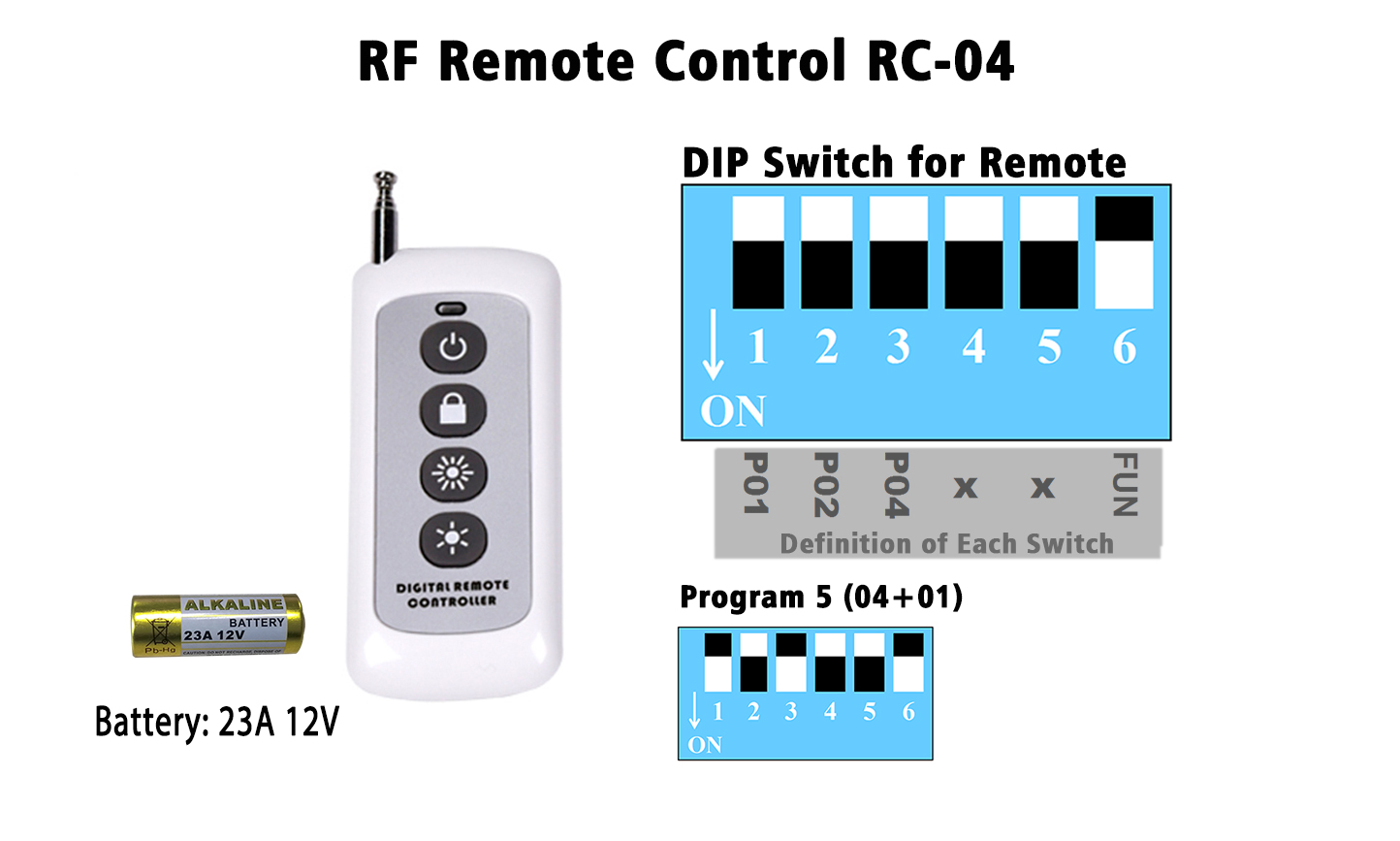

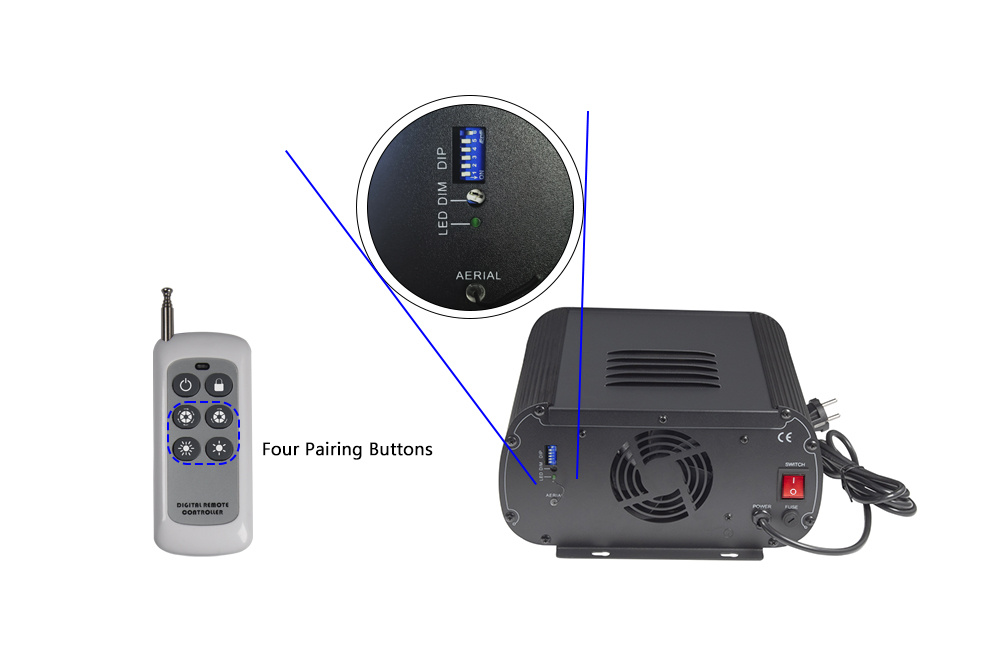

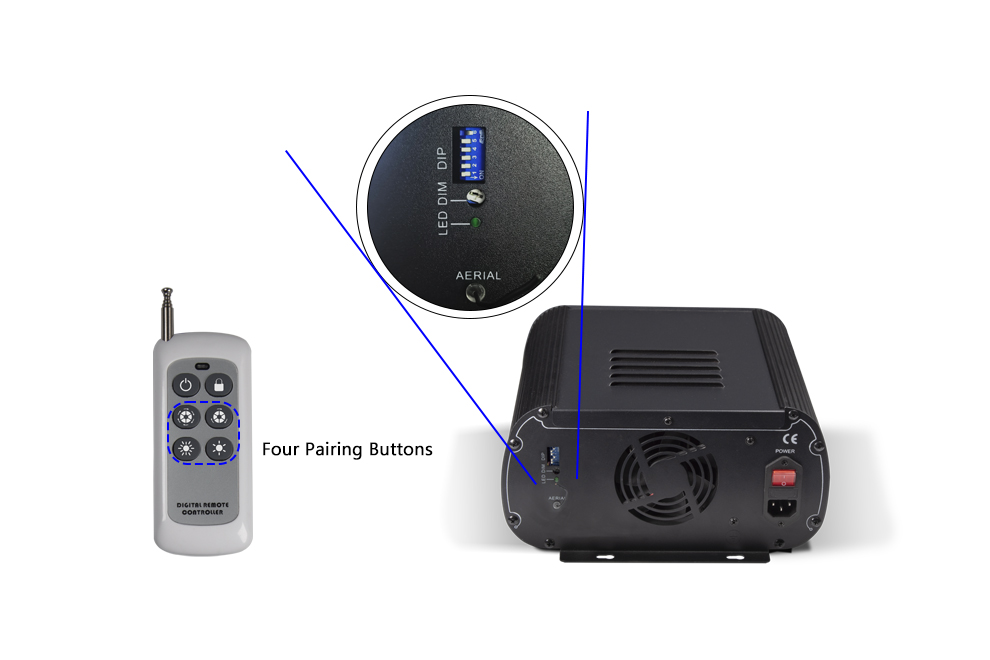

The 4-key RF remote control has an effective control distance of around 25 metres in open area. The function of the 4-key remote control (SW6 ON):
1. Turn on the light engine,
2. Turn off the light engine,
3. Fix the emitting color,
4. Dimming.

Battery: 23A 12V, 1pc (not included in the package).
