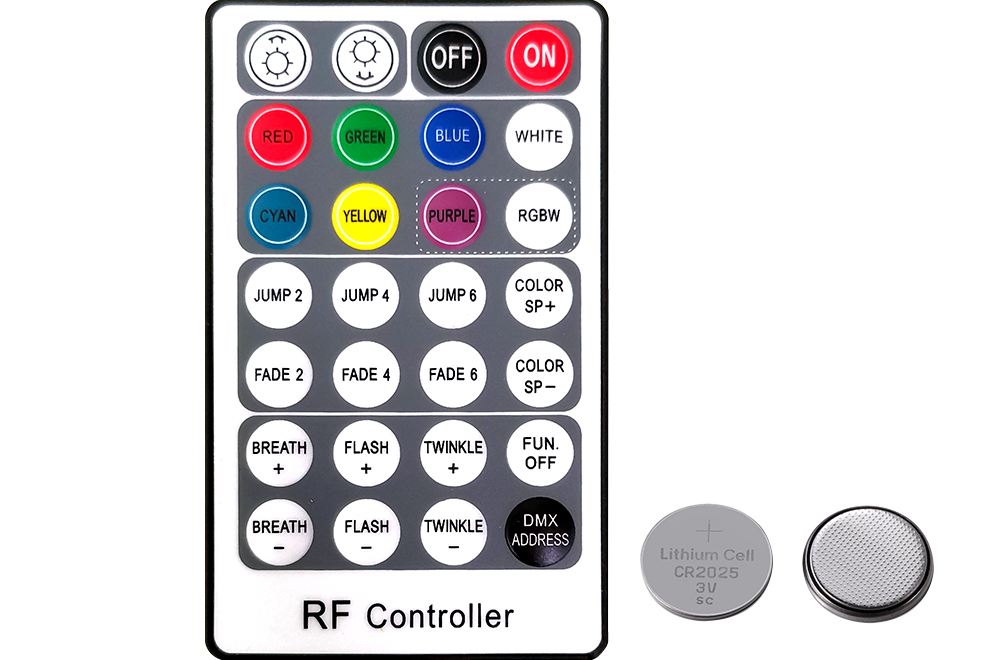

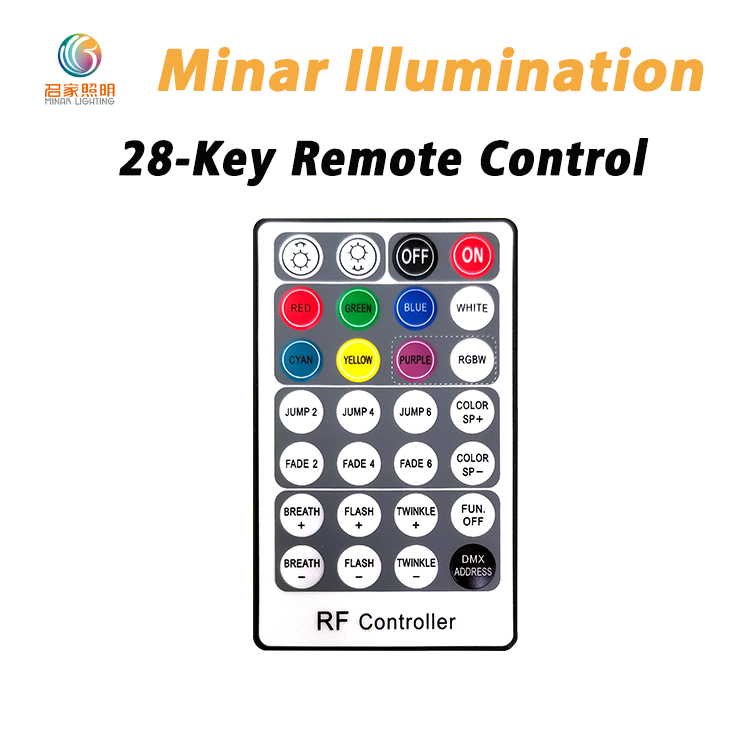

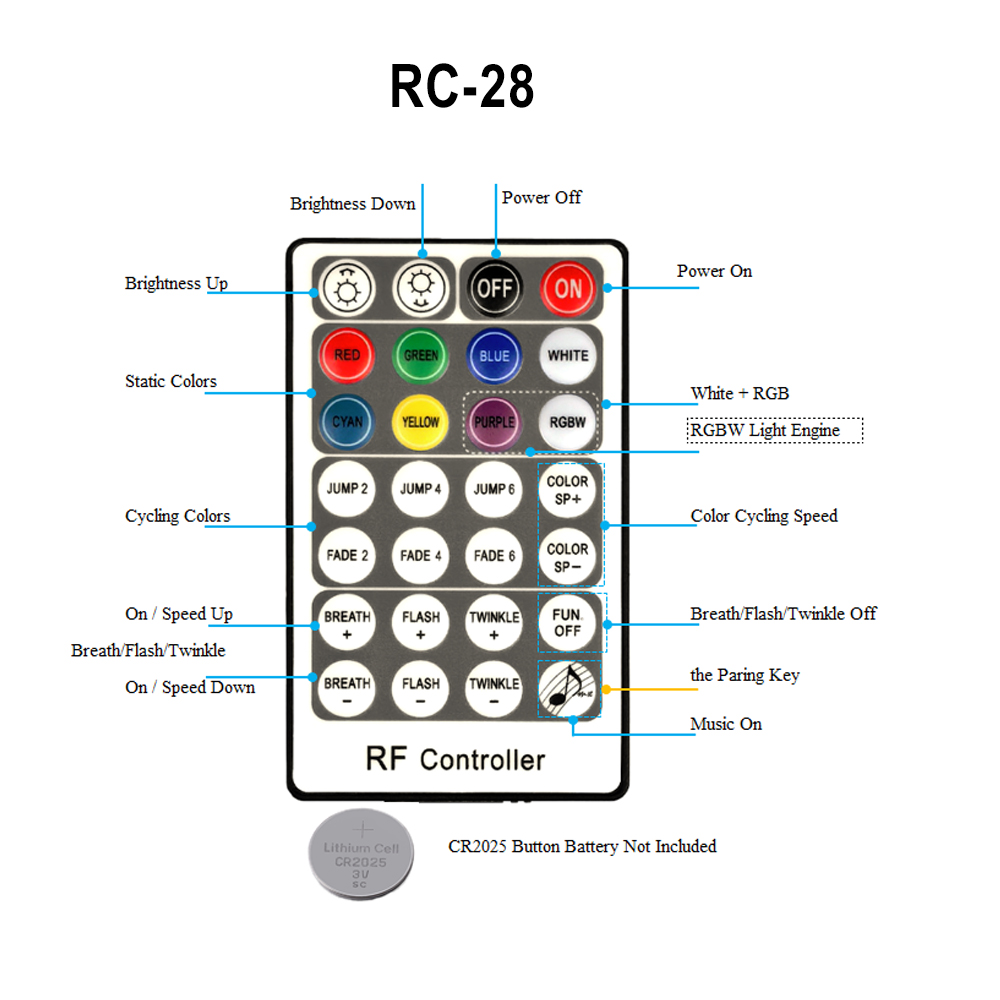

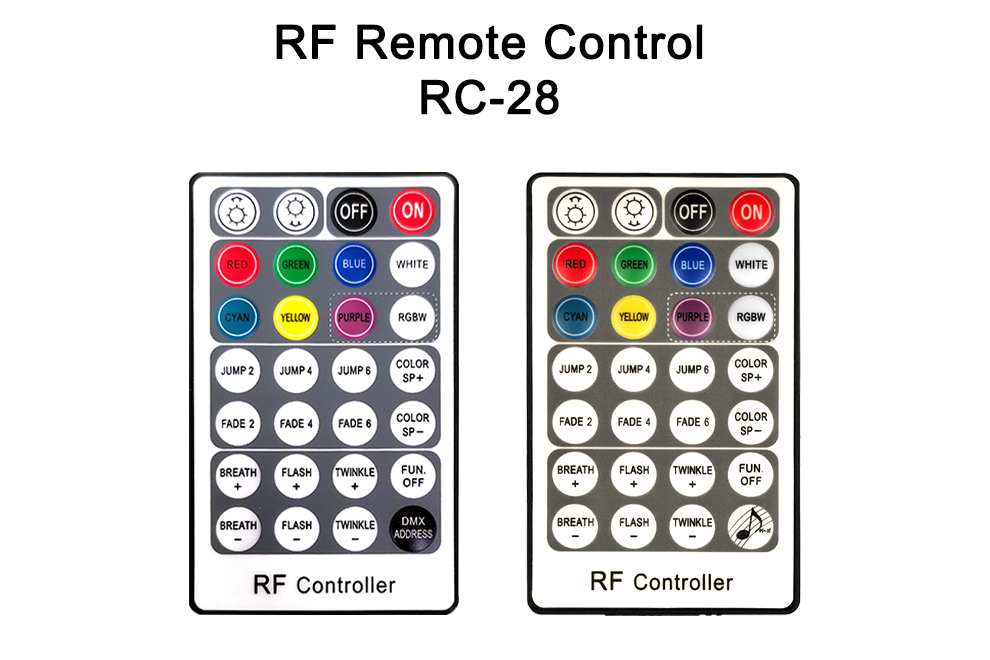

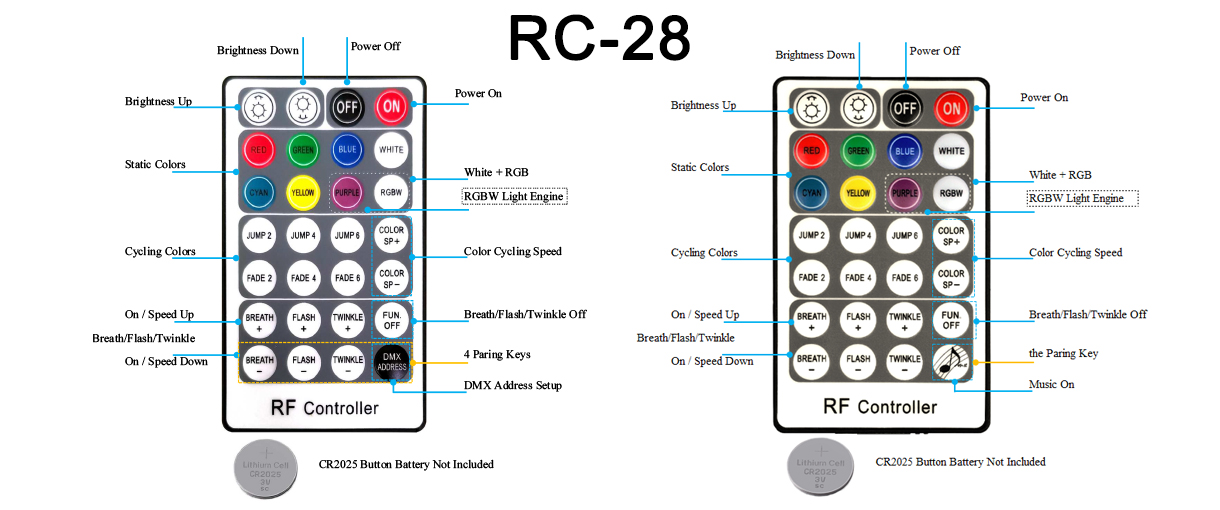

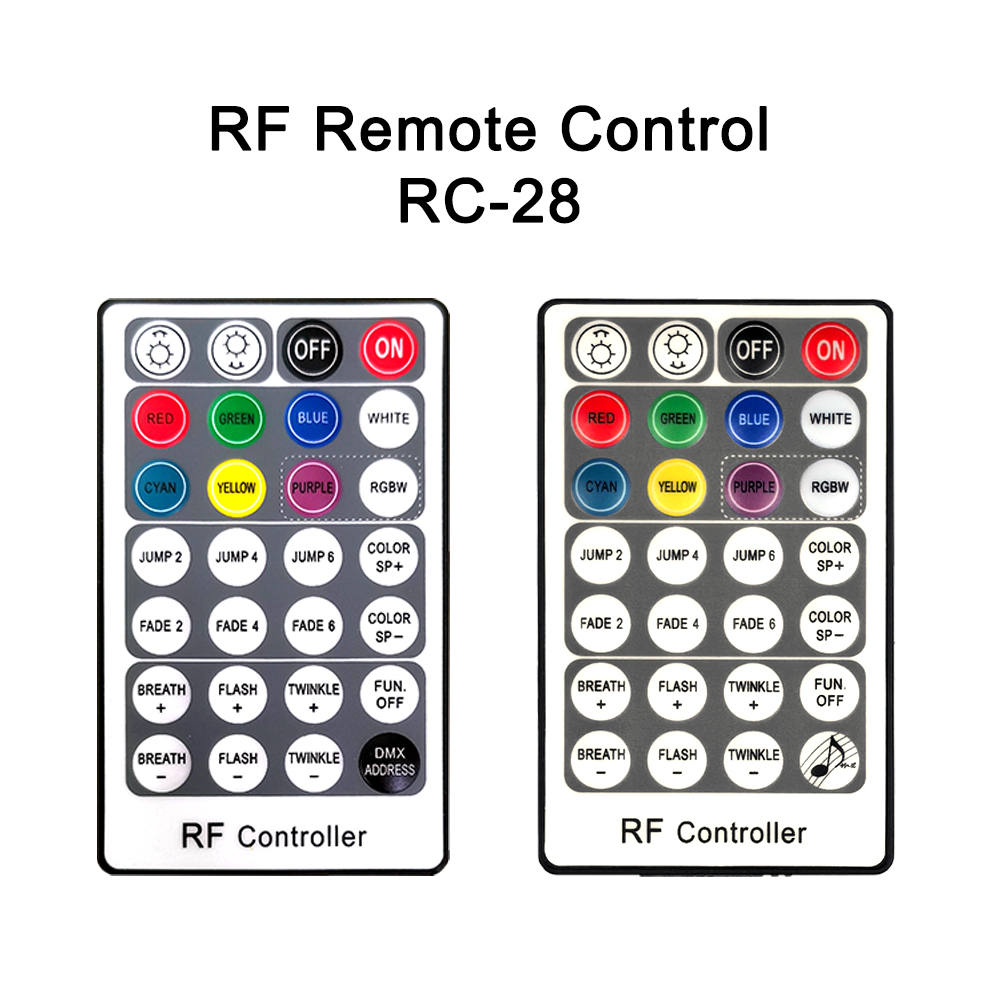

Specification:
Item Number | Number of Keys | Type | Frequency | Battery | Dimensions | Net Weight |
RC-28 | 28 | RF | 433MHz | CR2025, 1pc | L85XW52XH7mm | 20g |
Control Distance: 15 meters in an open area
Turn on Remote Control Function
Different light engines have different ways to turn on the remote control function. For low-voltage light engines, usually it is the DIP switches to turn on and off the remote control. For details, please refer to the User Manual of the light engines.

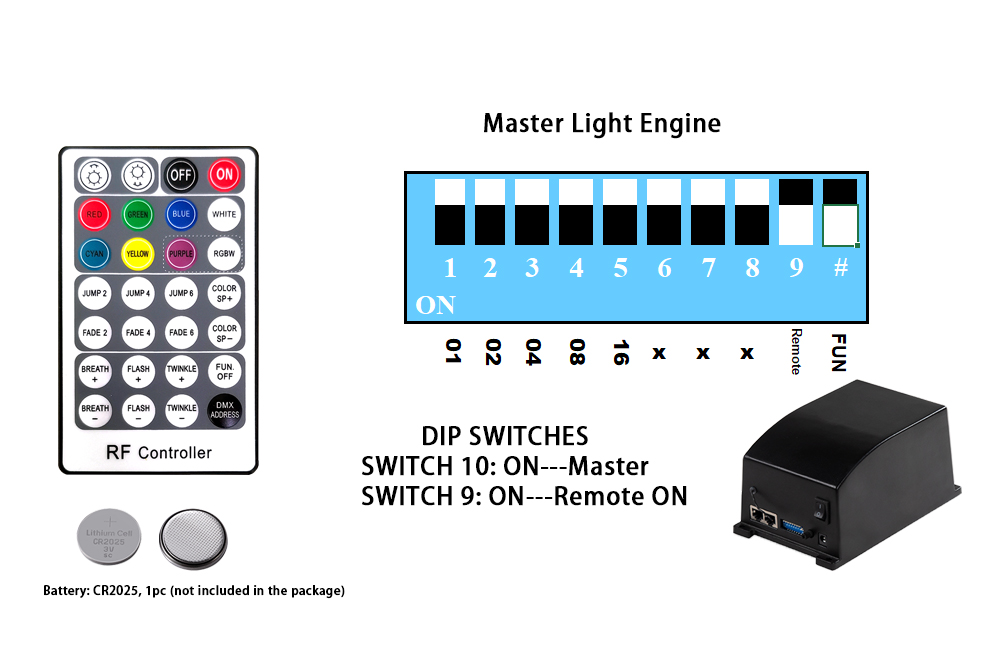

For example, the left picture is the DIP switches of LET series of light engines. When Switch 10 and Switch 9 are on, LET-2001DMX/LET-4061DMX is of a master light engine and the remote control function is ON.

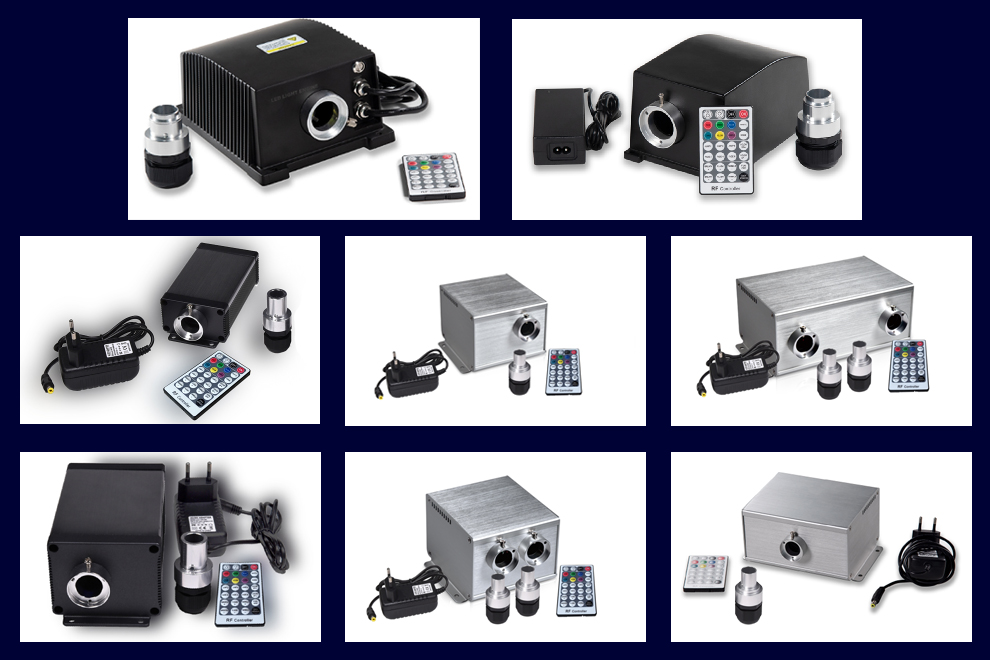

Light Engines
The following light engines are developed with 28-key remote control:
1. LEA-501-A, LEA-502-A, LEA-501DMX-A
2. LLE-002-A

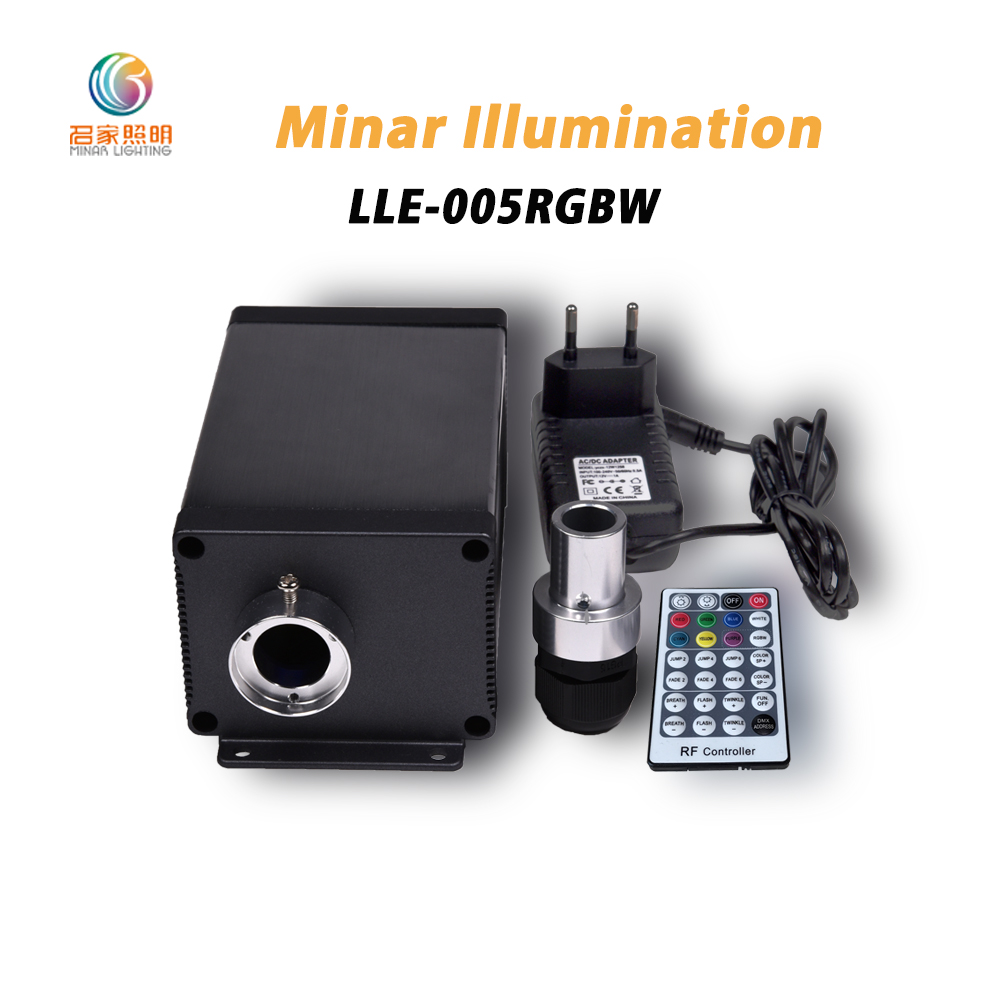

3. LLE-004RGBW, LLE-005RGBW
4. LEE-1001-A, LEE-1001DMX-A
5. LEF-502DMX-1A LEF-1002DMX-A
6. LEG-501DMX, LEG-1001DMX

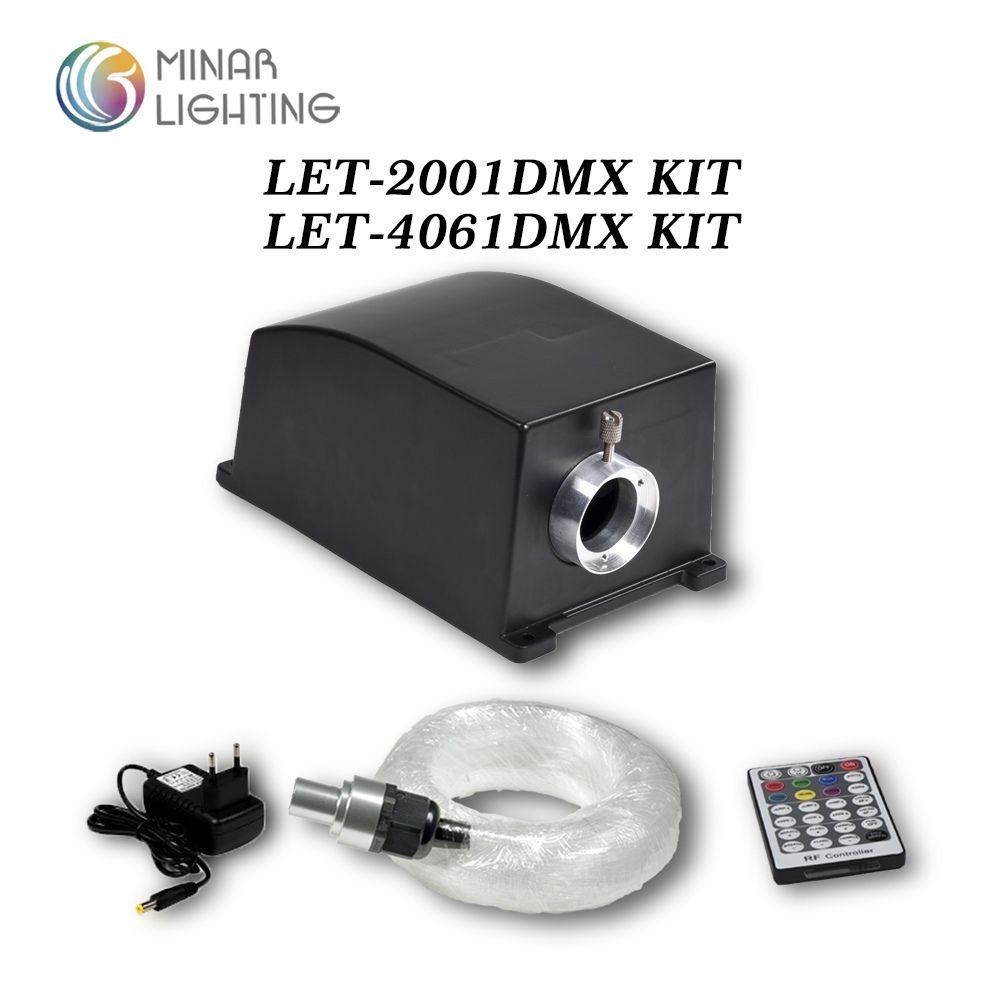

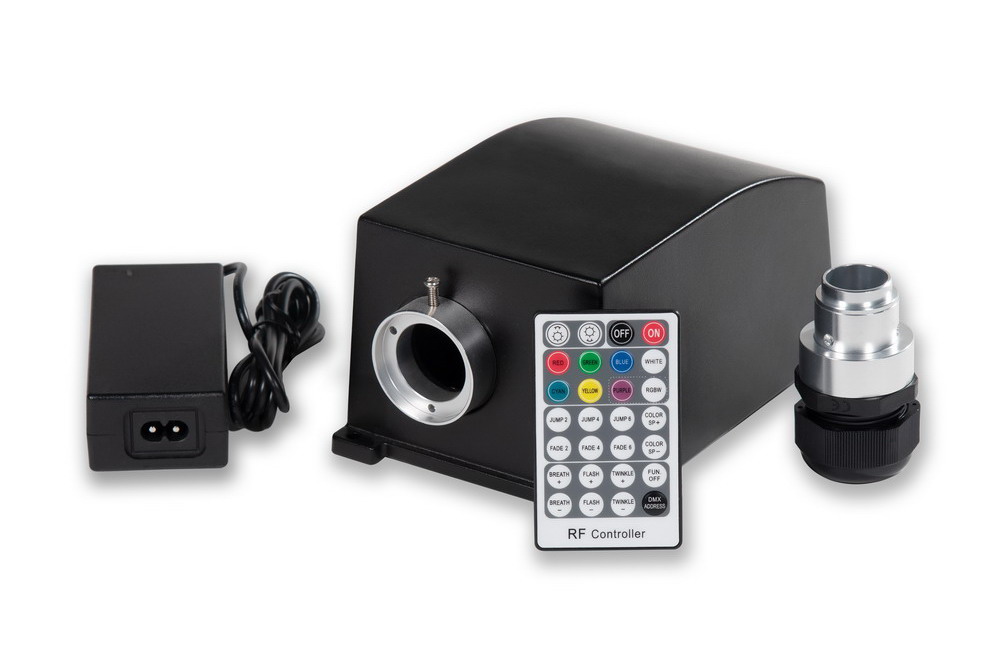

7. LET-2001DMX, LET-4061DMX
8. LES-2001DMX/WP, LES-4061DMX/WP

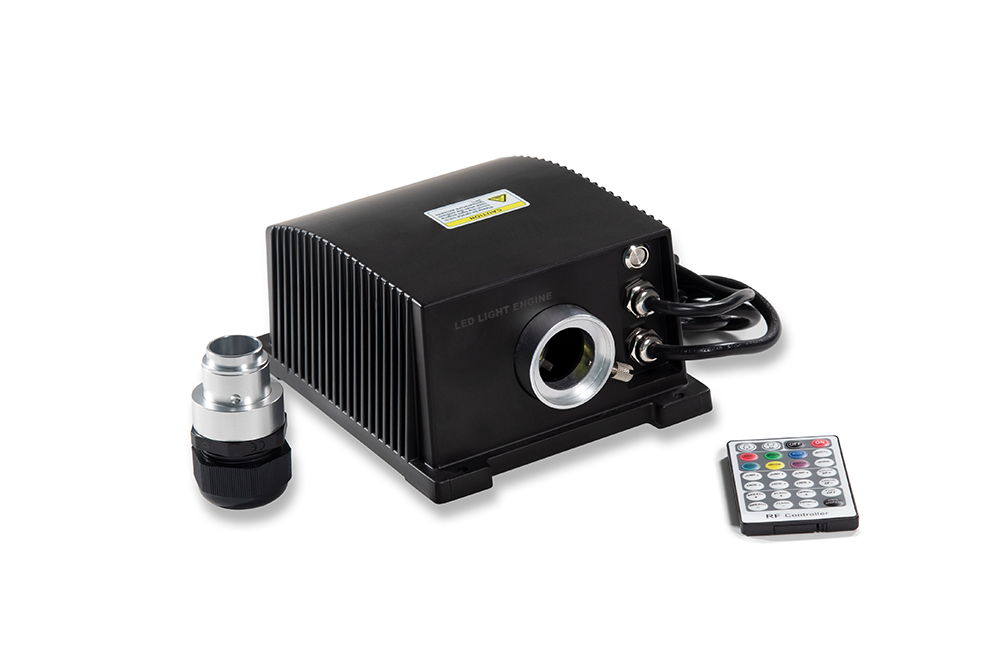

LES Series of Light Engine
For both IP65 waterproof light engines, LES-2001DMX/WP and LES-4061DMX/WP, the 28-key remote control, RC-28, is a must for operation.
For other light engines, the 28-key remote control is recommended for use.
Remote Control Matching
The 28-key remote control needs to match the light engine before use. For details, please read the User Manual of the light engine or check with the sales.
Battery
The battery is not included in all our remote controls, as both air and sea shipments do not allow any cargo containing it. Please source them in the local market.
Battery Model
Lithium Cell
CR2025
3V
Specification:
Item Number | Number of Keys | Type | Frequency | Battery | Dimensions | Net Weight |
RC-28 | 28 | RF | 433MHz | CR2025, 1pc | L85XW52XH7mm | 20g |
Control Distance: 15 meters in an open area
