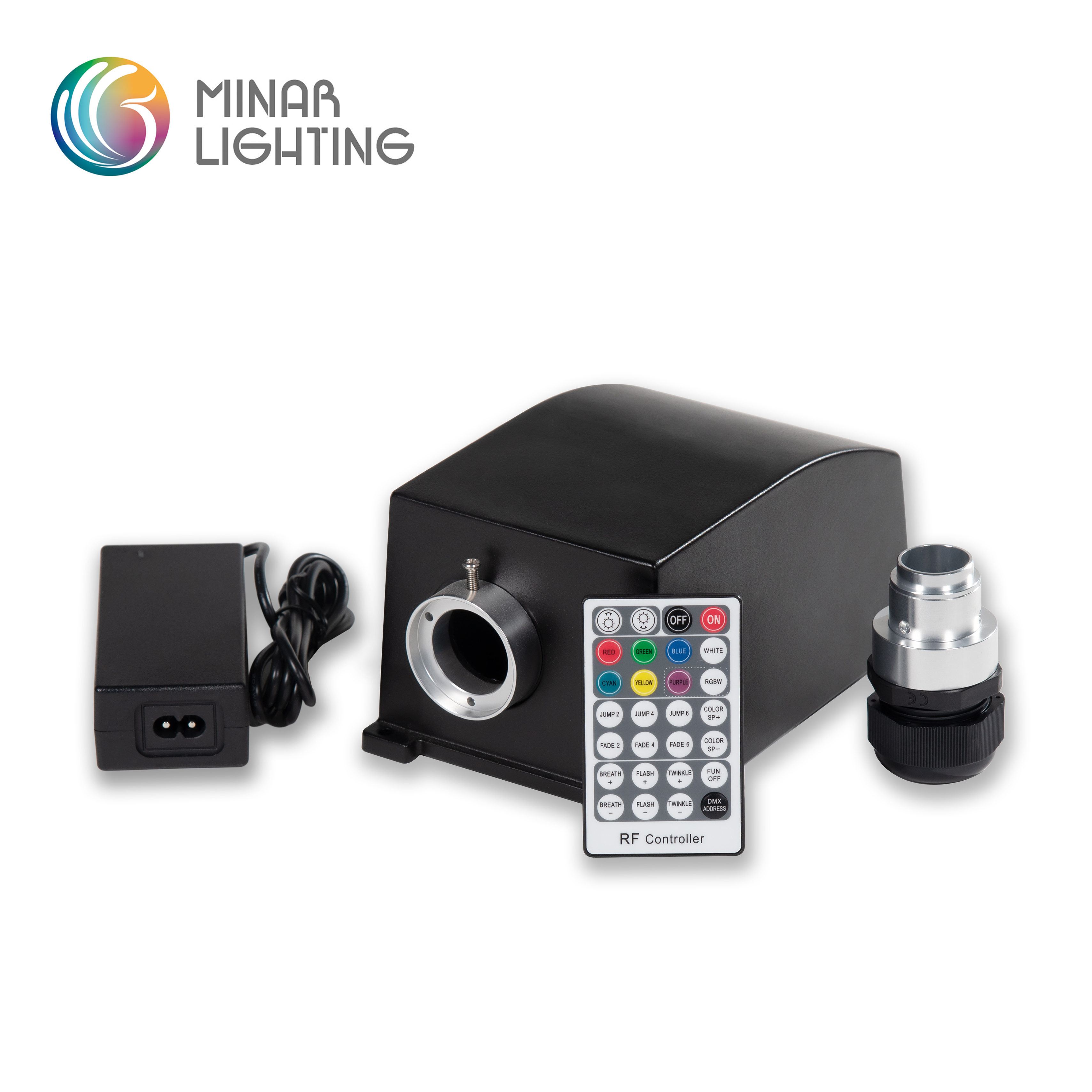

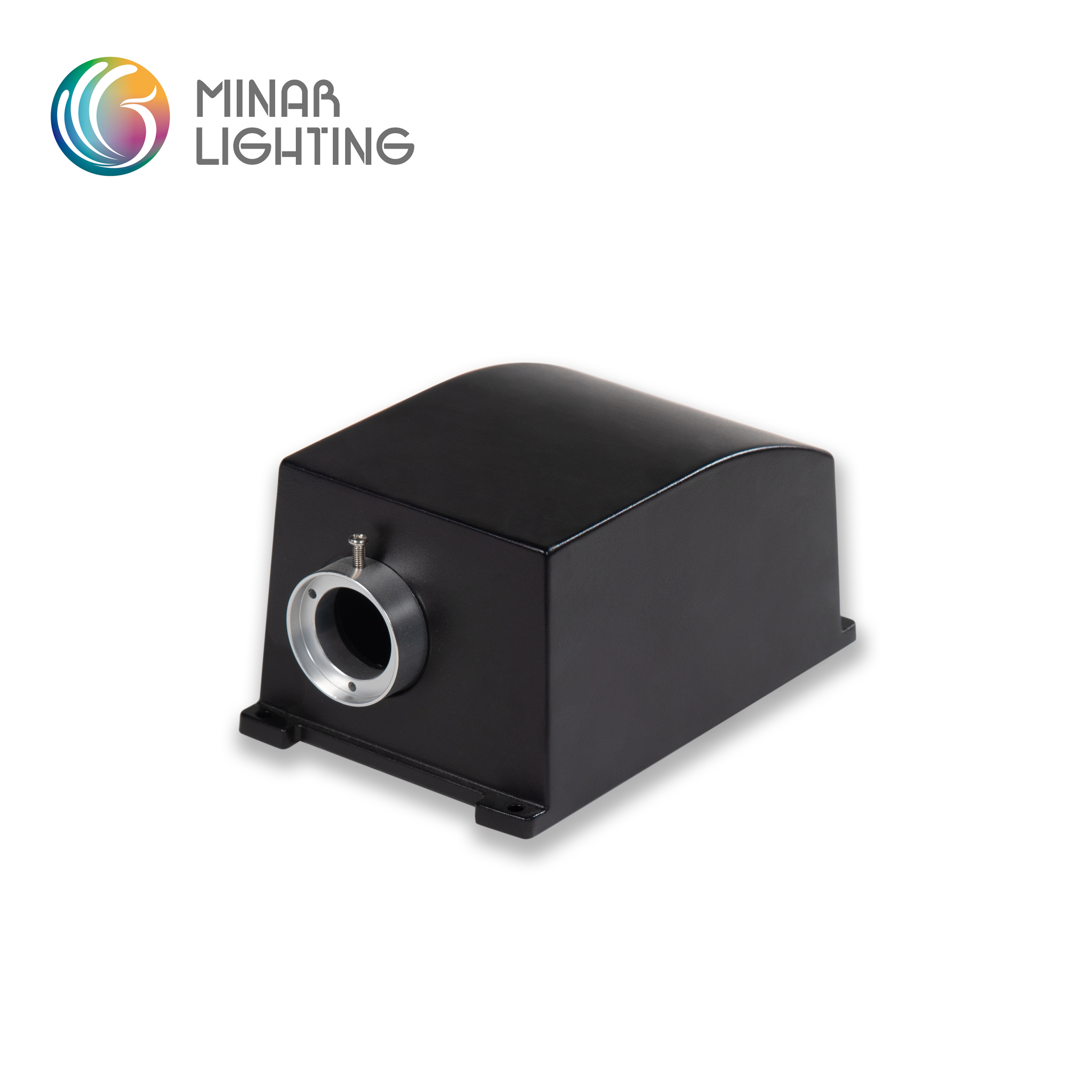

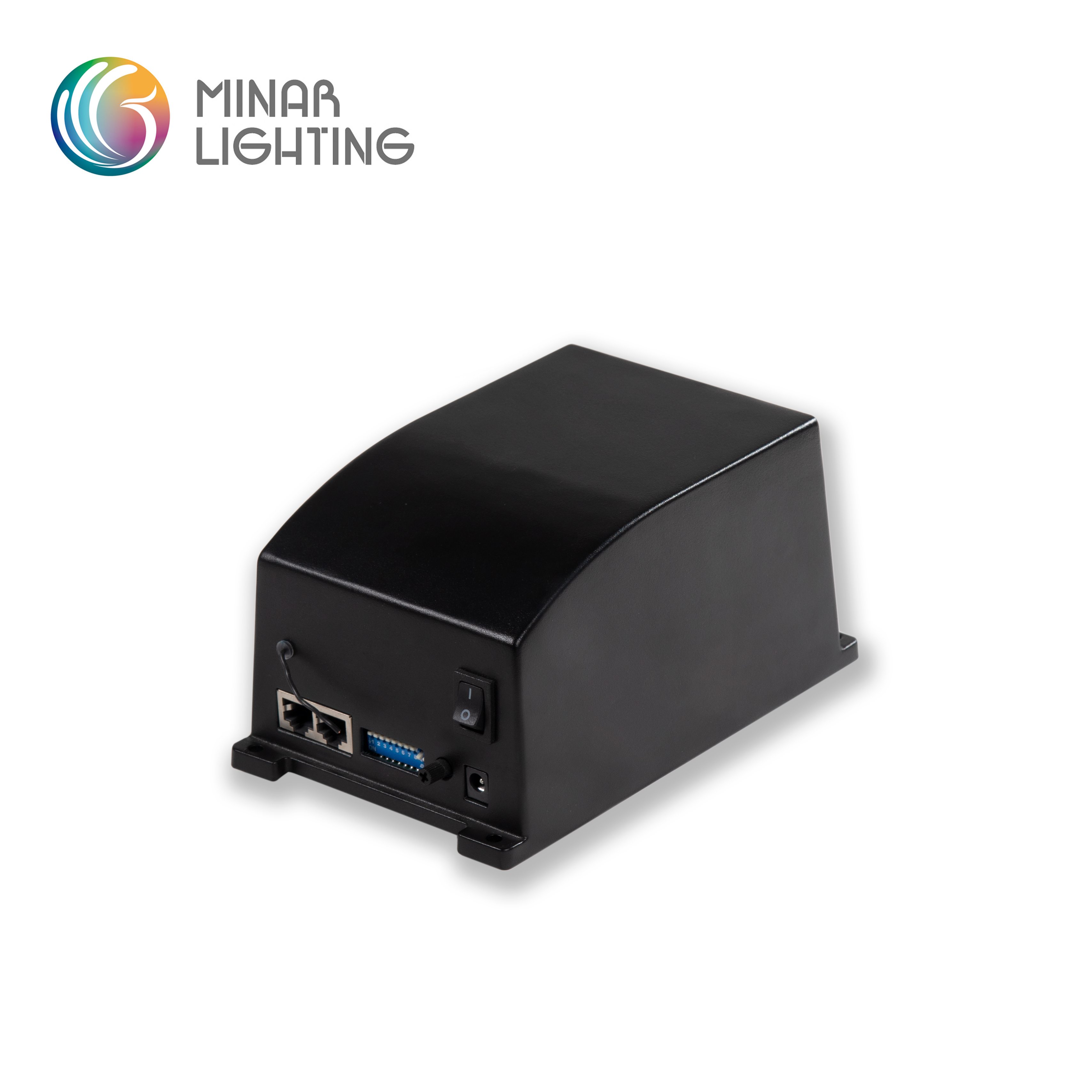

LET-4061DMX

LET series of LED fiber optic light engine: The input voltage is 12V with white light or RGBW colorful LED module as its light source. Both models are of DMX512 type with a built-in 6-color or twinkle disc. It is recommended to always have the remote control for the light engine.

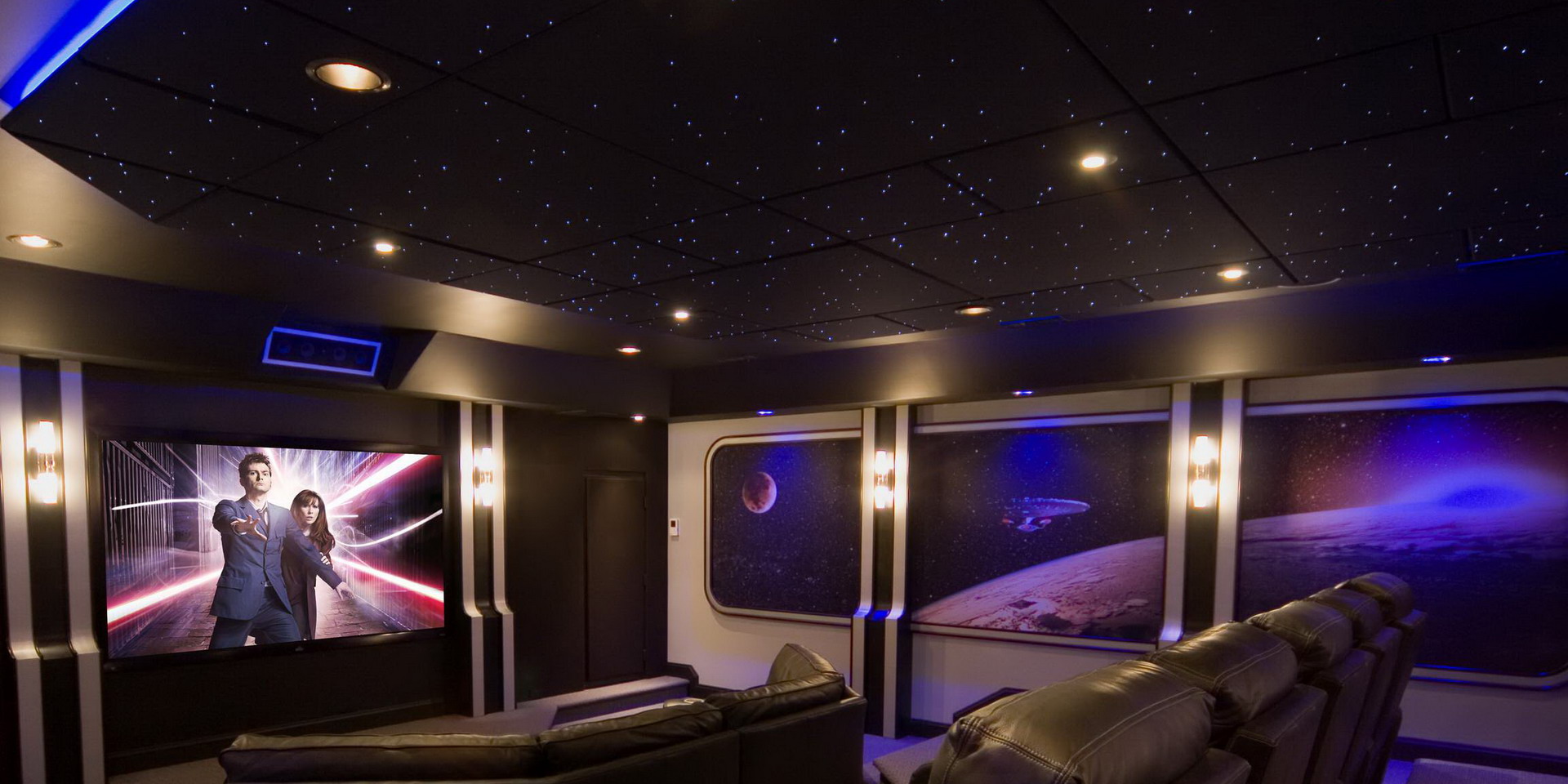

30W LED Light Engine for Star Ceiling

General Information:

1. Model: LET-4061DMX,

2. Input Voltage: DC 12V,

3. Light Source: Colorful LED,

4. LED Type: RGBW, 4*6W,

5. Wheel/Disc: Twinkle effect,

6. Control: DMX512/Remote control/DIP switches,

7. Light Emitting: Static color/Cycling colors,

8. Adjustable twinkle wheel spin speed,

9. Dimmable,

10. No fans, noise-free,

11. DMX512 protocol: DMX512 console or master-slave control

12. IP Rating: IP20,

13. Warranty: 2 Years,

14. Packing: Neutral color box.

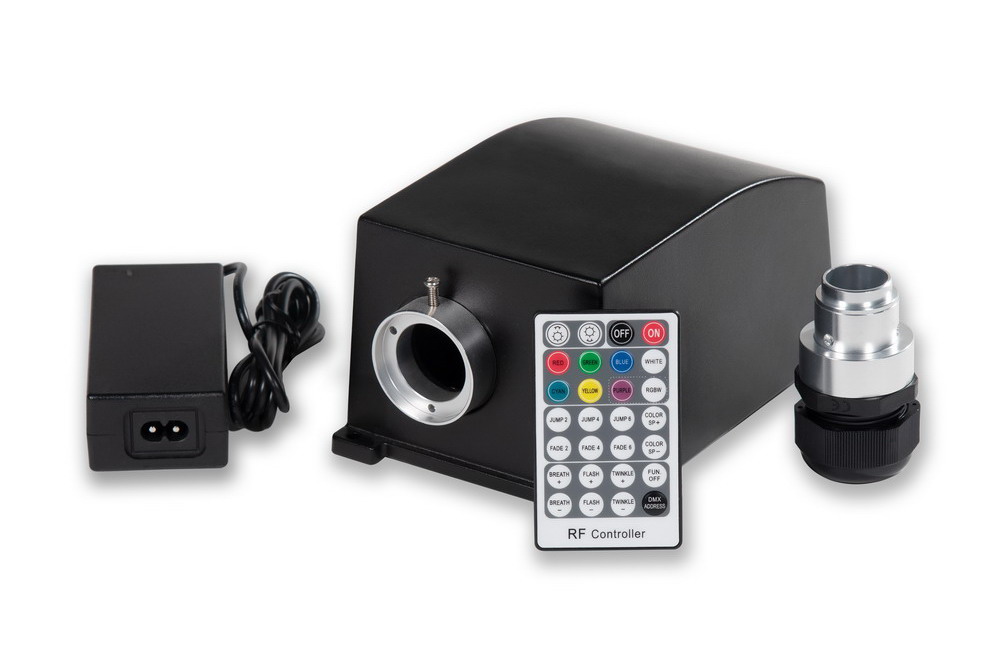

- New DMX Light Engine

  The LET series of fiber optic light engine is newly developed in 2022 to replace the previous LEK-2001/DMX and LEK-351/DMX. Compact in size, but it is more powerful than LEK type. New 28-key remote control is applied to have the visual control of the light engine performance.

  DMX Channels:
  CH1: RED,
  CH2: Green,
  CH3: Blue,
  CH4: White,
  CH5: Speed of twinkle wheel.

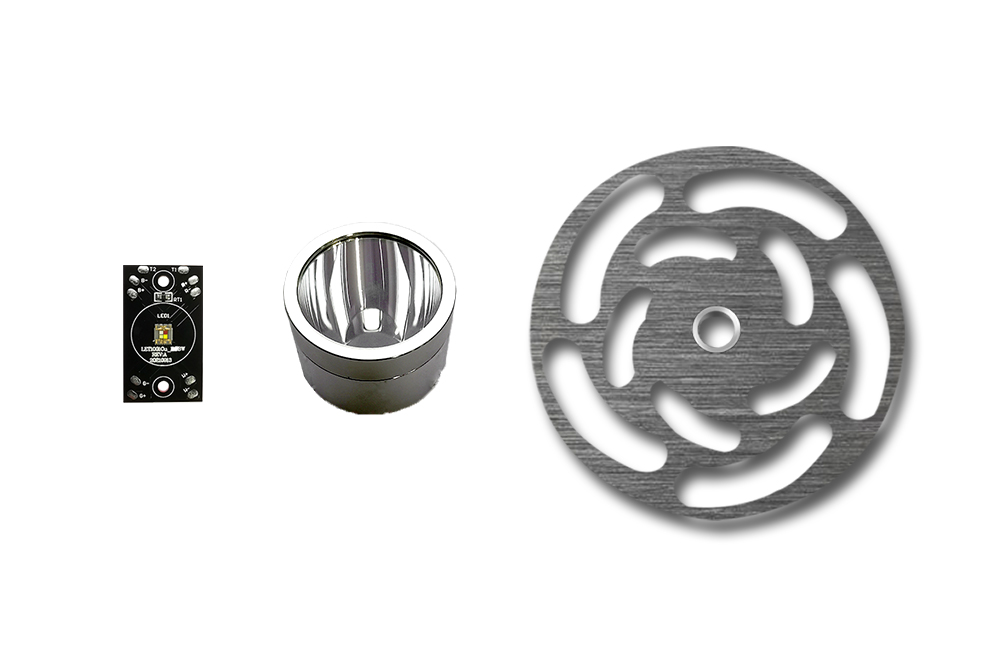

- RGBW + Twinkle Disc

  The choice of 24W LED modules, together with the reflective cup, delivers the super brightness of a small fibre optic machine.

  The combination of four-color RGBW LED module and the twinkle disc brings the starry ceiling a fantastic simulating effect.

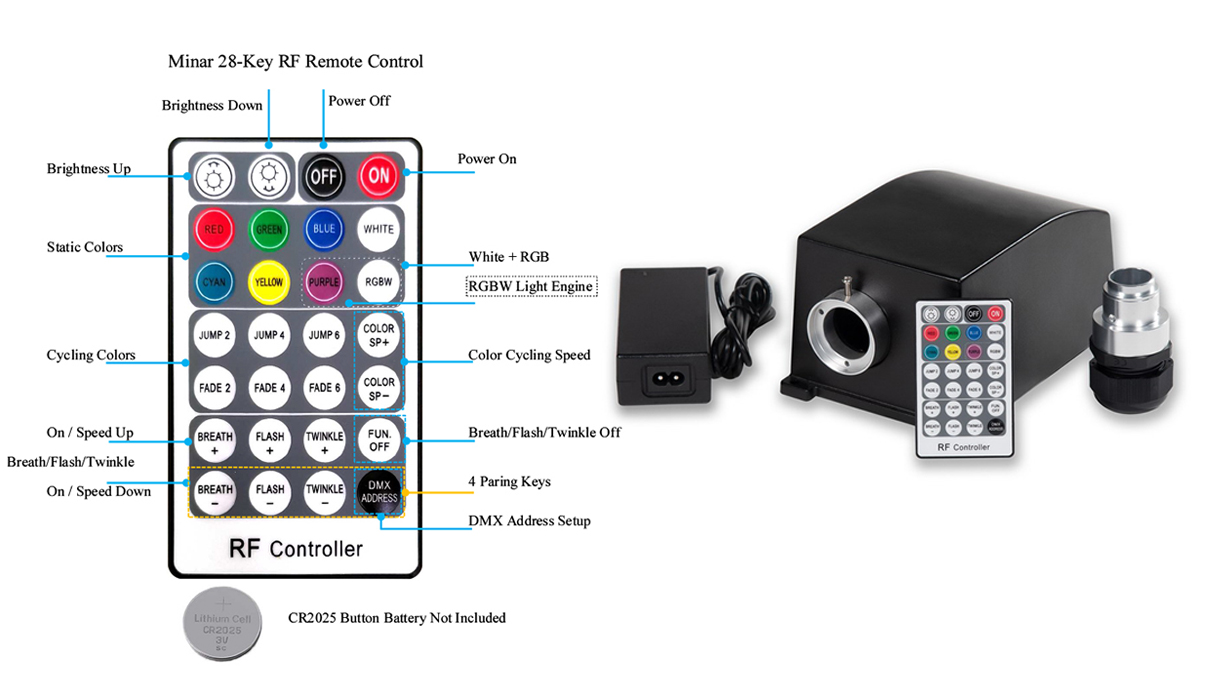

- Built-in Program & 28-Key RF Remote Control

  LET-4061DMX has 19 built-in programs, which could be selected by the DIP switches only.

  The 28-key remote control has an effective control distance of around 15 meters in an open area and can be used with fiber optic light engines to have a one-to-one, one-to-multi, multi-to-one, or multi-to-multi control.

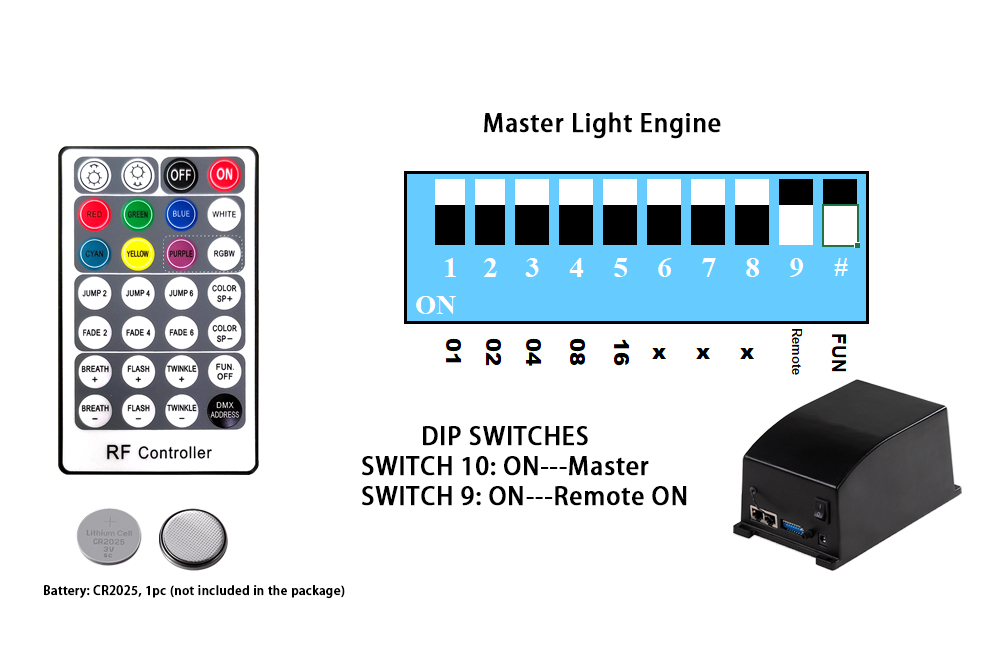

  DIP Switch 10 and Switch 9 need to be ON to turn on the remote control function.

  Battery: CR2025, 1pc (not included in the package).

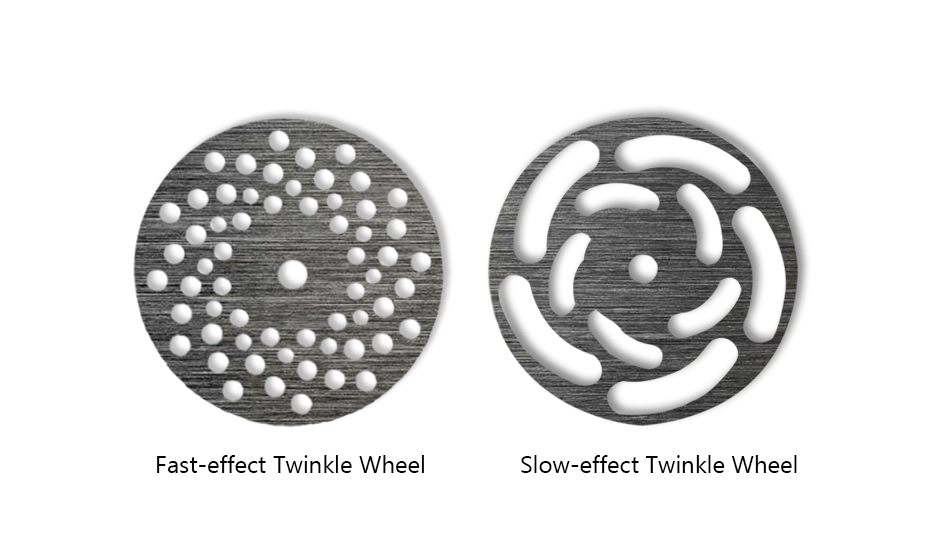

- Optional Twinkle Wheel

  The wheels/discs that could be equipped into LET-4061DMX fiber optic light engine, from left to right:
  1. The fast-effect twinkle wheel,
  2. The slow-effect twinkle wheel.

SPECIFICATIONS

Specification:

Item Number

Standard

Aperture

Optional

Aperture

Maximum Fiber Capacity

(0.75mm fiber tails)

Housing

Material

Housing

Color

Dimensions

(mm)

Optional

Remote Control

LET-4061DMX

14mm/18mm/22mm

N/A

650pcs

Aluminum

Black

L182XW115XH90

RC-28

Electrical Parameters:

Working Voltage	Power Consumption	Input Voltage	Adapter Power
12V	30W	100V-240V ac	12V/4A

LED Parameters:

LED Power	LED Color	Color Temperature	Colour Temperature Options	Luminous Flux	Life Span
4X6W	RGBW	W: 6000K	N/A	N/A	50000h

Control:

1	DIP Switches
2	Remote Control (optional)
3	Master-Slave
4	DMX Control

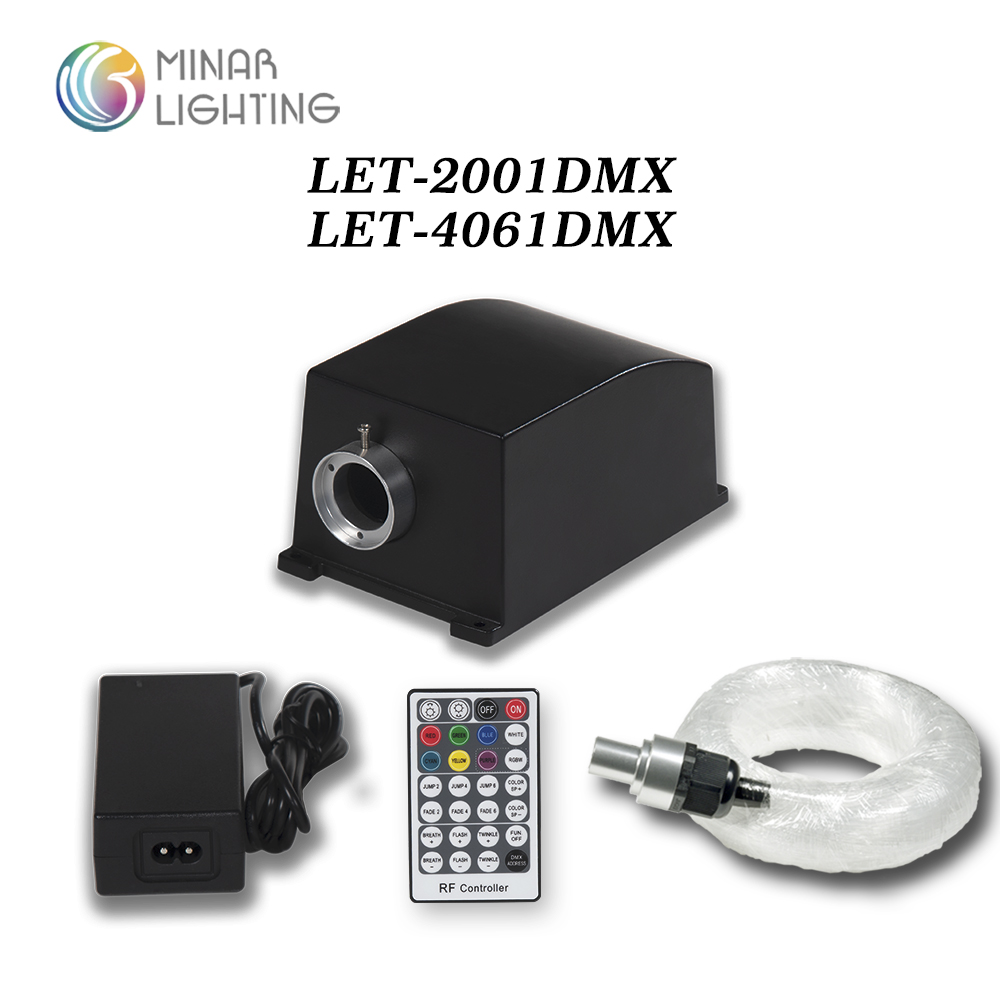

Spare Parts in the Package:

No.	Item	Quantity
1	Fast-Effect Twinkle Wheel (built-in)	1
2	14/18/22mm 3-in-1 Fiber Connector	1
3	AC-DC adapter	1
4	DMX512 Signal Cable	1

Optional Parts:

No.

Item

28-Key RF Remote Control

Slow-Effect Twinkle Wheel

RC-28 1220-700.jpg

Video of Twinkle Effect Demo

Twinkle Effect.mp4

USER MANUAL

Download the instruction manual/specification
