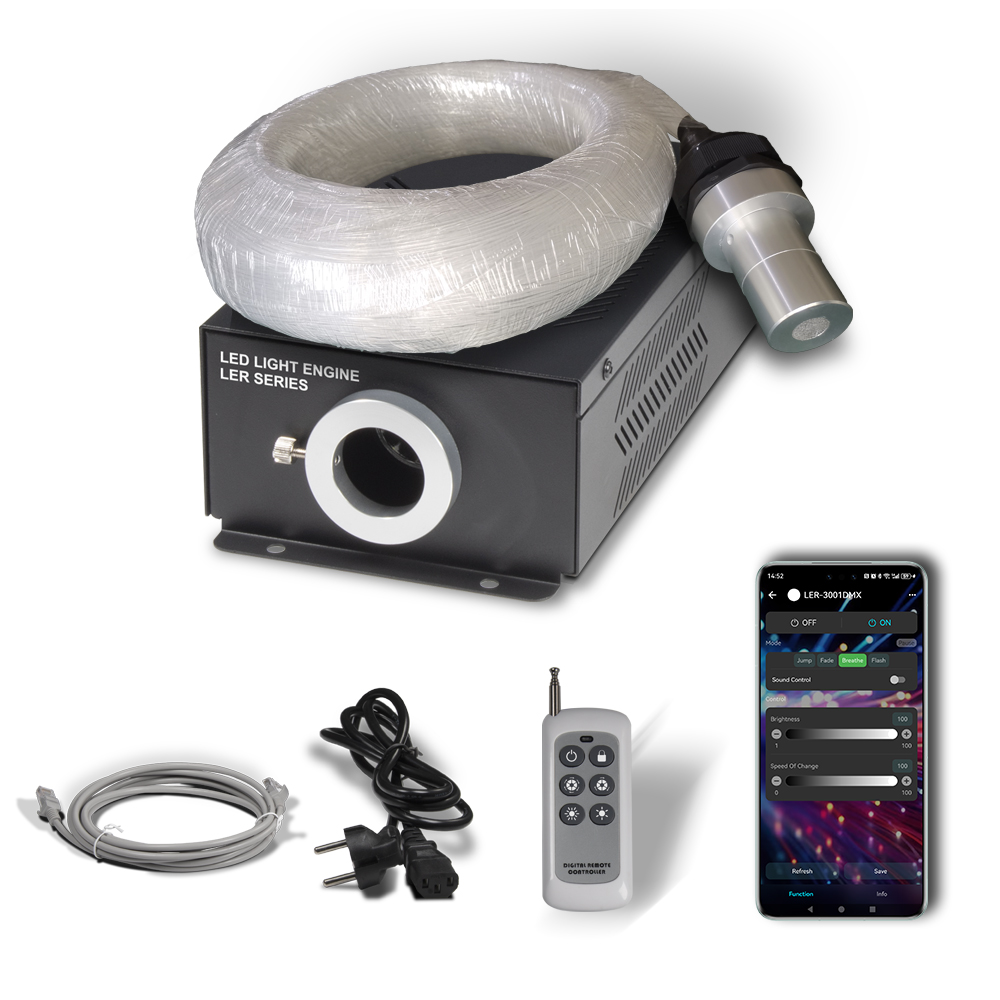

LER-3001DMX

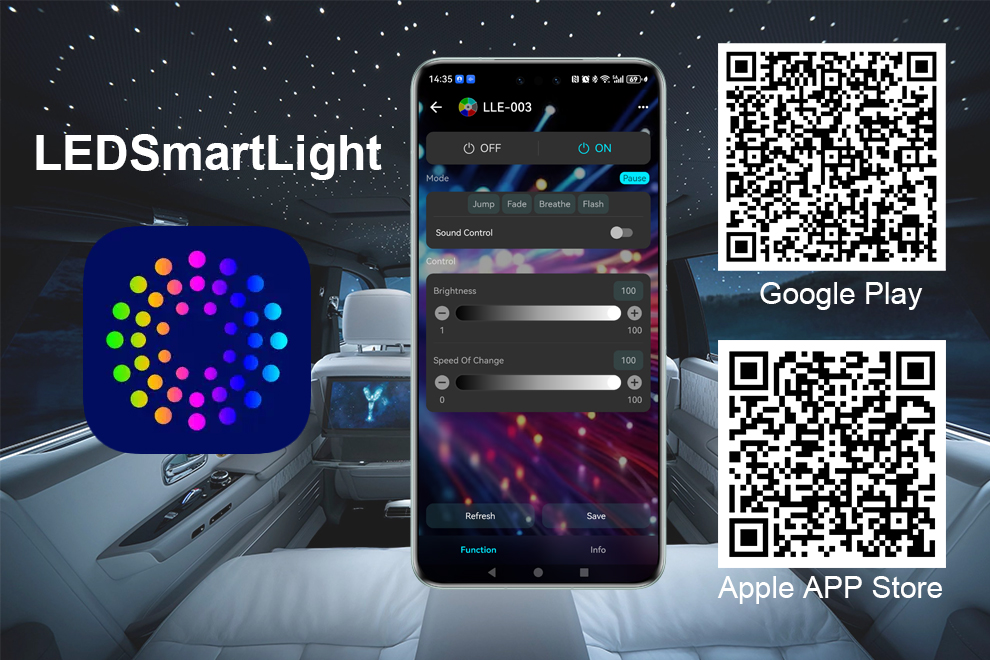

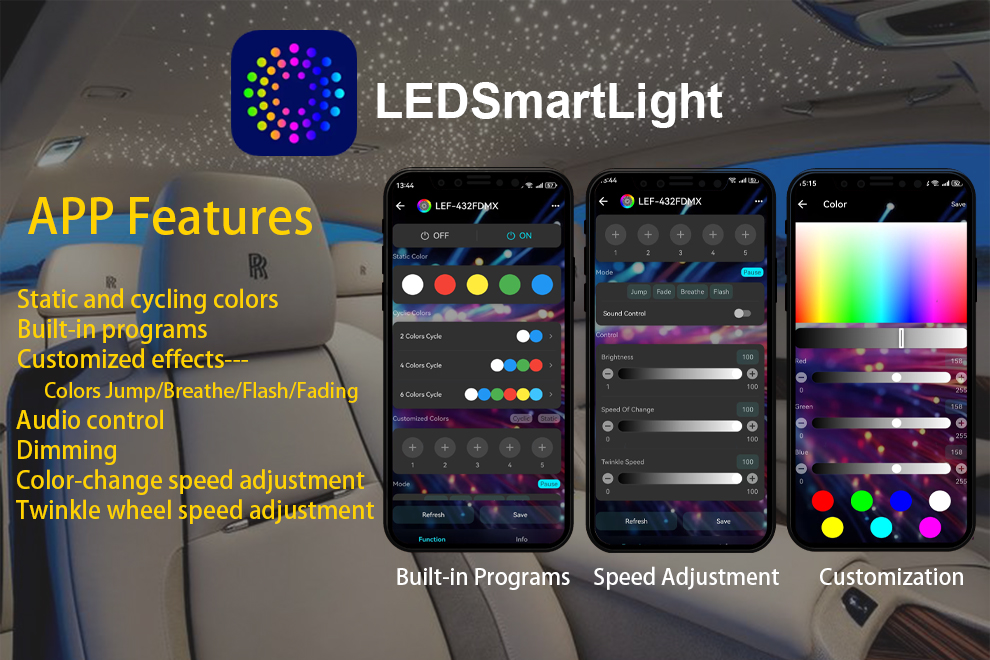

This light engine can be controlled by a mobile APP, LEDSmartLight, which can be downloaded from the Apple App Store or Google Play. The app can also be downloaded by scanning the left QR code.

This mobile APP is developed by Minar Illumination and is different from the existing ones in the market. It features easy operation.

The APP's main functions:
* Static and cycling colors
* Built-in programs
* Customized effects - Colors Jump/Breathe/Flash/Fading
* Audio control
* Dimming
* Color-change speed adjustment
* Twinkle wheel speed adjustment

Remarks: 1. The control interface will not show up until the APP has connected to a light engine via Bluetooth. 2. Color customization is for light engines of RGBW models only.

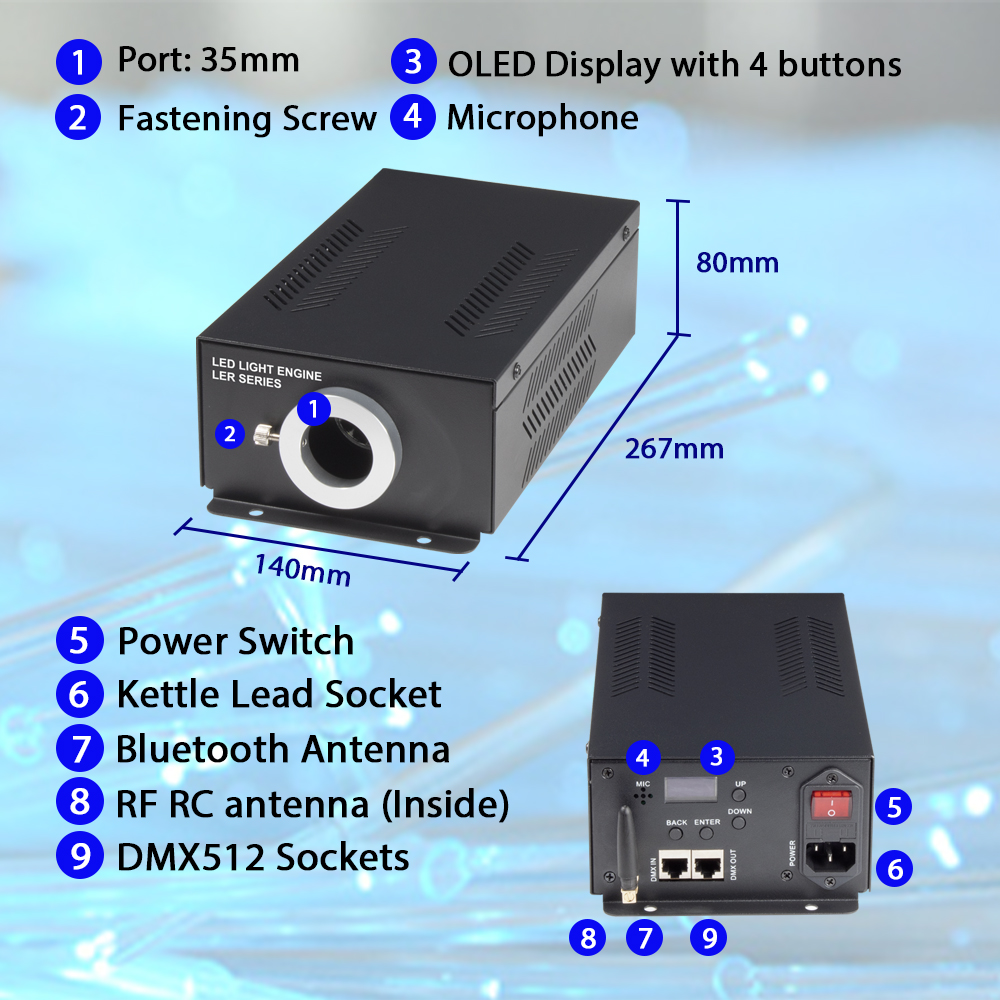

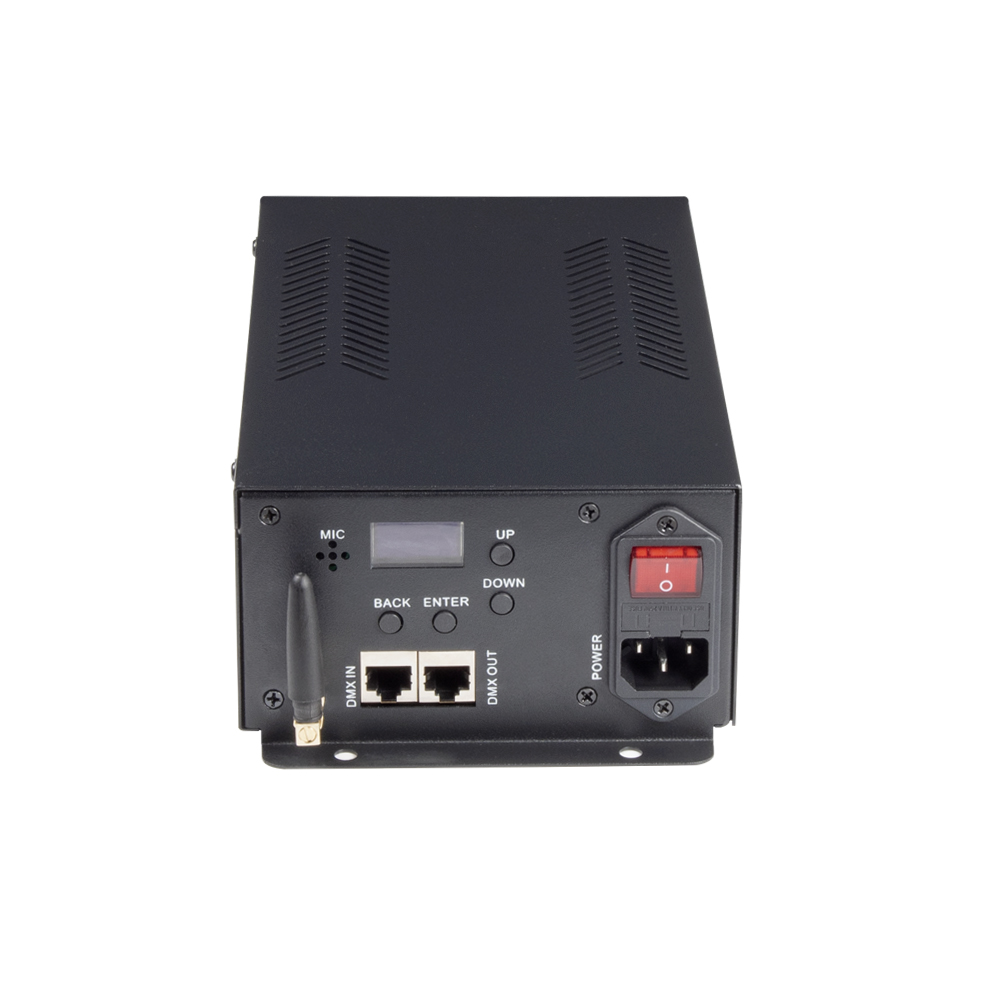

The new LER series has the following new features in the housing:
1. The slim edge on the port ferrule has been removed.
2. An OLED display has replaced the original 7-segment display.
3. A Kettle Lead has been applied.
4. A microphone has been added.

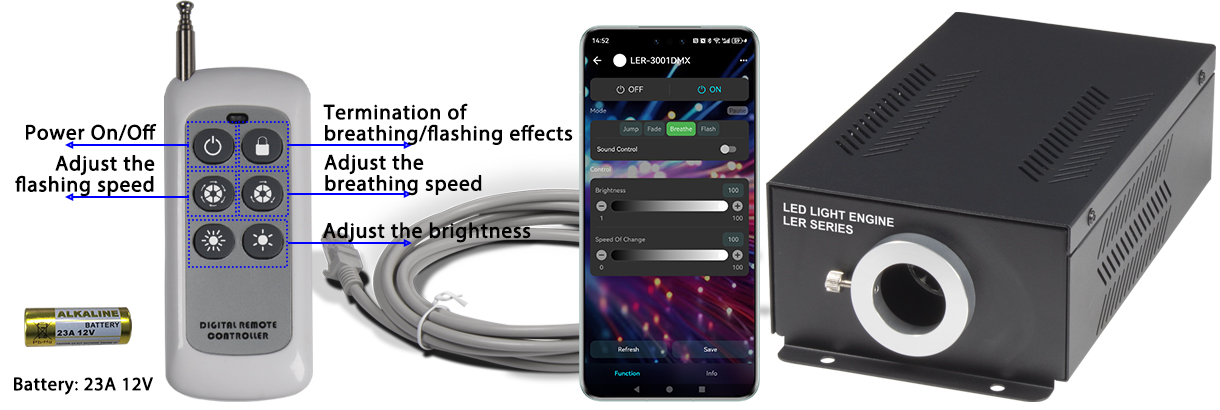

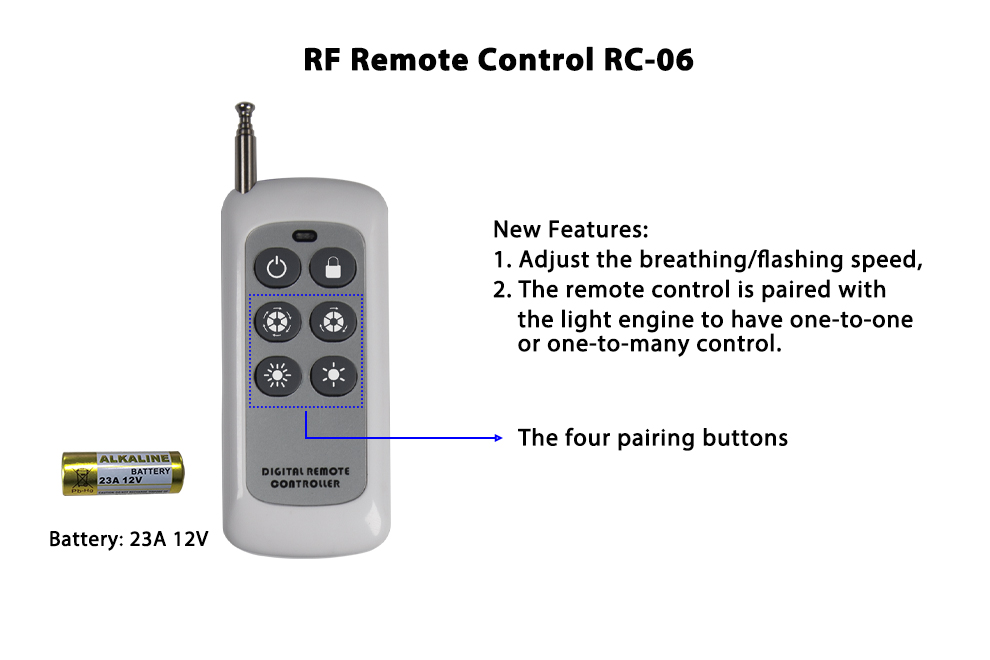

A new 6-button remote control has been applied with the following functions:
1. Turn on/off the light engine,
2. Adjust the breathing speed,
3. Adjust the flashing speed,
4. Dimming.
5. Pair with the light engine to enable one-to-one or one-to-many control.

Remarks:
1. Control distance: 25 meters in an open area.
2. Battery: 23A 12V, 1pc (not included in the package).

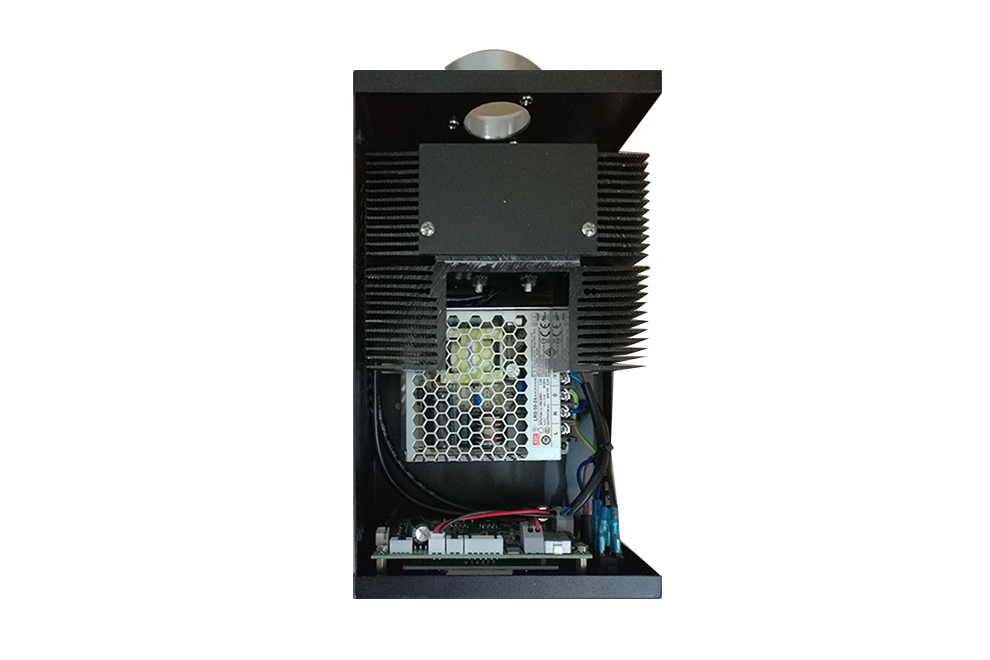

Different from other line voltage light engines, the LER series of light engines does not contain any fans or motors. They are completely quiet during operation.

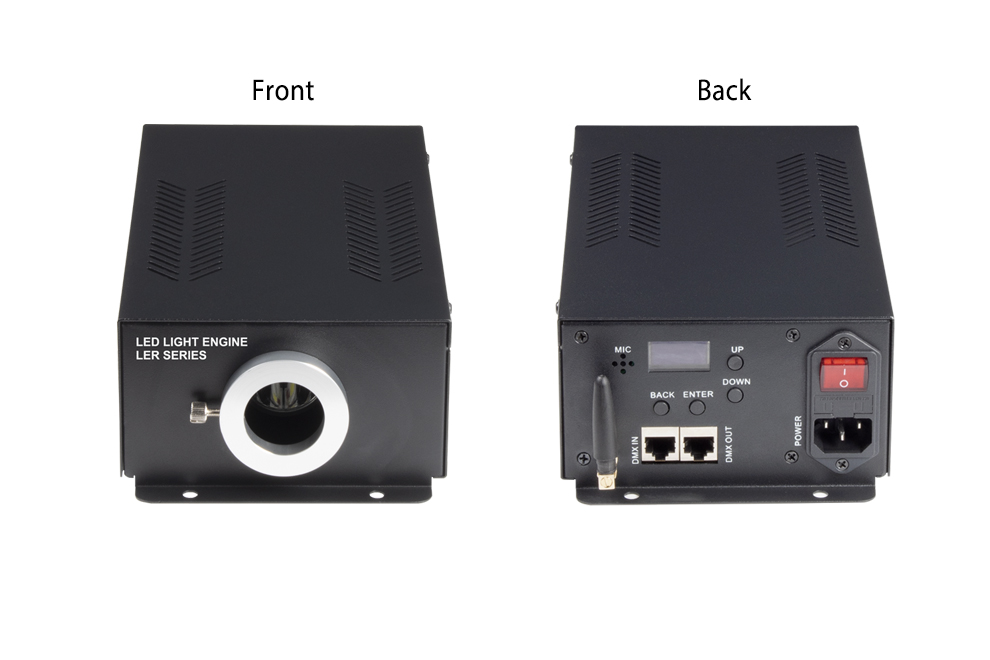

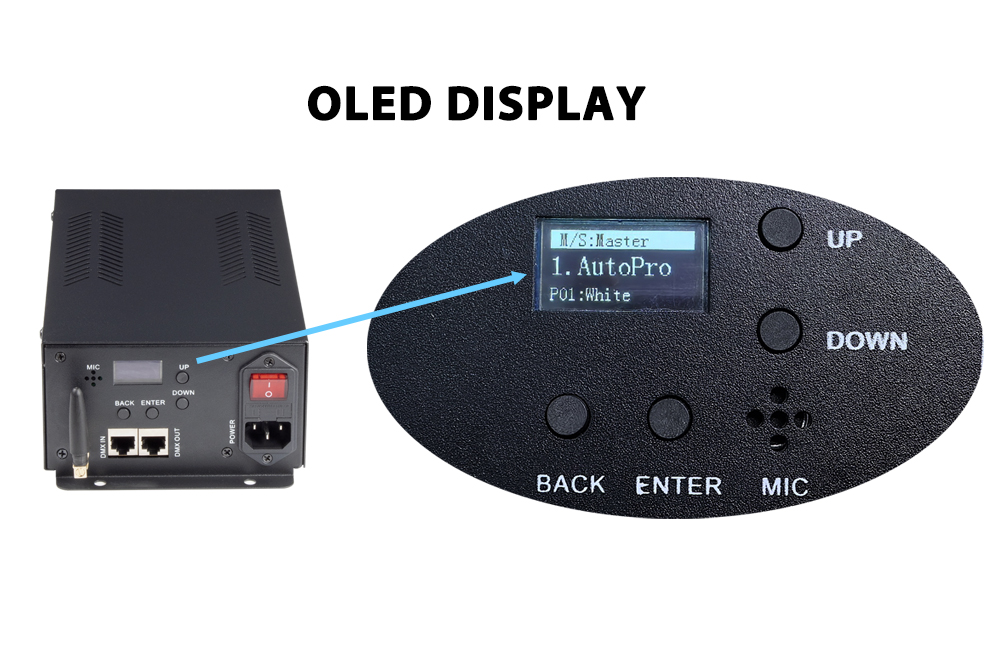

The new light engine has replaced the original digital LED display with an OLED display to display operational information.

You can also switch the control command directly on the OLED display to control the light engine.

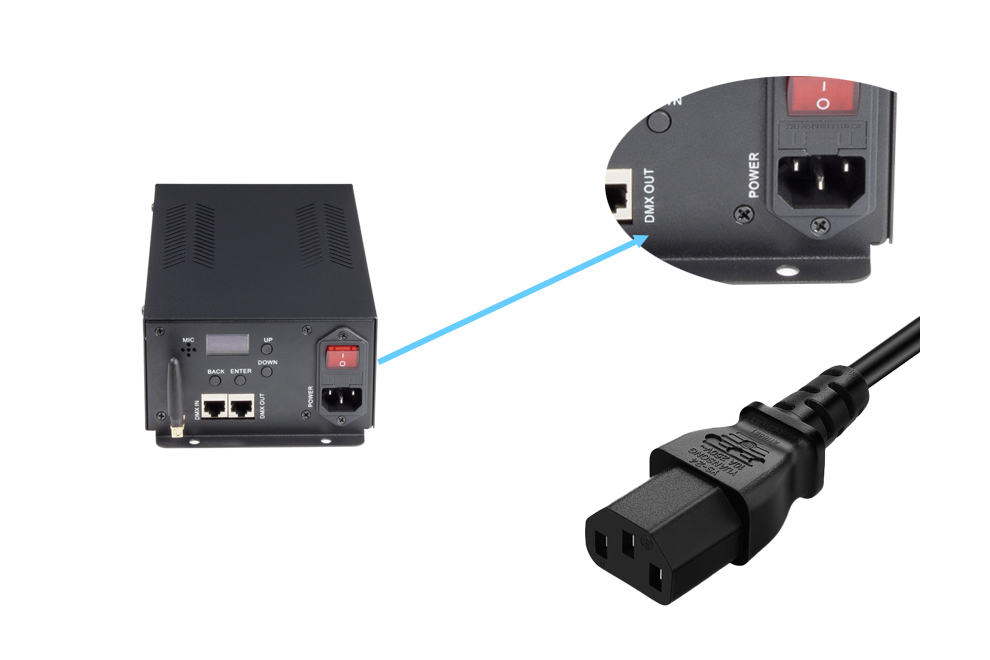

The new light engine has applied a kettle lead for its power input. Also known as an IEC cable, a kettle lead will ensure the light engine's standardised and safe connection to the power.

By default, Minar provides one piece of a 20mm/24mm/28mm 3-in-1 combined fiber connector for each line voltage light engine. These apertures are capable of 540pcs, 770pcs, and 1050pcs of 0.75mm fiber tails, respectively. 30mm fiber connector is also available upon request.

From left to right, the fiber connectors: 30mm, 28mm, 24mm, and 20mm. Customized apertures are also welcome!

The aperture here refers to the inner diameter of the fiber connectors.

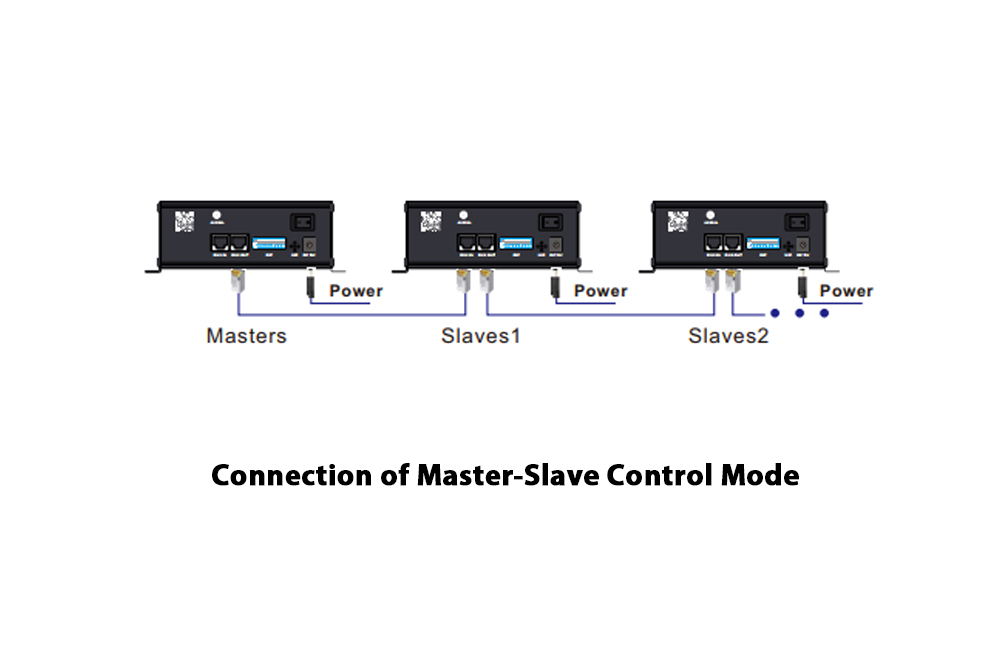

Multiple units of the DMX512 light engines can be connected as a group via DMX signal cables to run the master-slave control mode. In master-slave control mode, there will be one and only one master light engine, and all the rest will be set as slave machines. The master runs the built-in program with or without the remote control, and all slave machines will automatically follow to have a synchronous or progressive effect.
