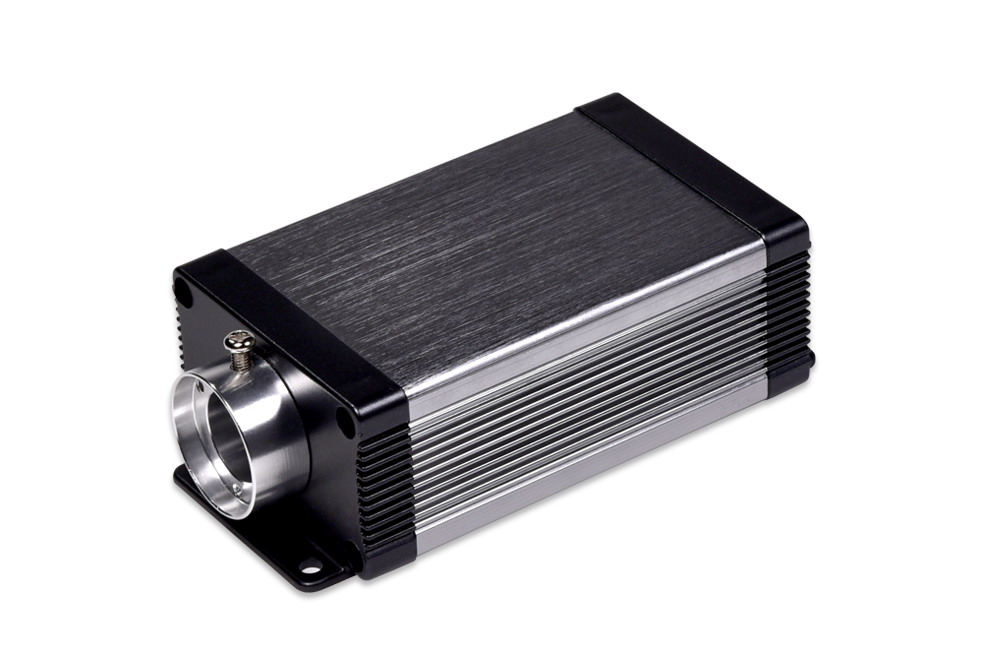

LLE-004

LLE series of fiber optic light engine applies miniature housing with exquisite workmanship. With no fans inside, the series features noise free, novel appearance and high cost performance.

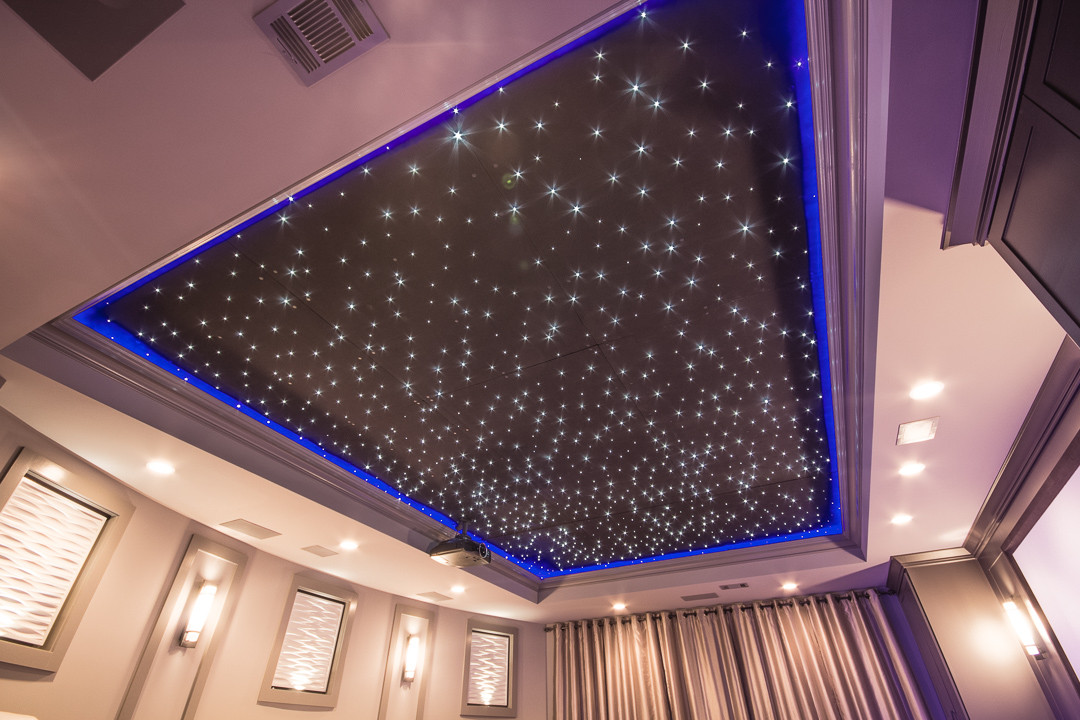

8W LED Light Engine for star ceiling

General Information:

1. Model: LLE-004,

2. Input Voltage: DC 12V,

3. Light Source: Colorful LED,

4. LED Type: RGB, 3*2W, Cree,

5. Twinkle Disc: N/A,

6. Control: Remote control/DIP switches,

7. Light Emitting: Static color/Cycling colors,

8. Dimmable,

9. No fans or motor, noise free,

10. IP Rating: IP20,

11. Warranty: 2 Years,

12. Packing: Neutral color box.

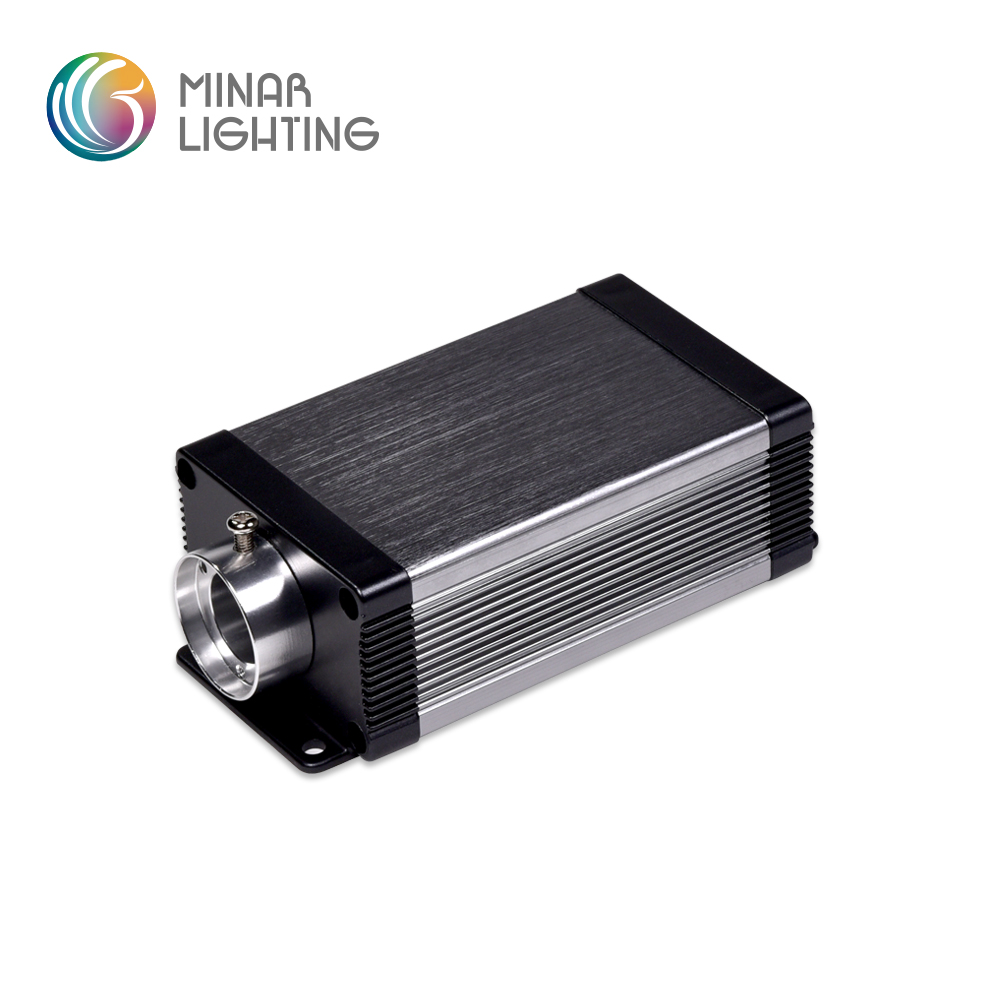

- Novel Appearance and Noise Free

  With a length and width of just 133mm and 71mm respectively, it is particularly suitable for areas where installation size is restricted.

  The machine has no motors or fans, and operates without any noise.

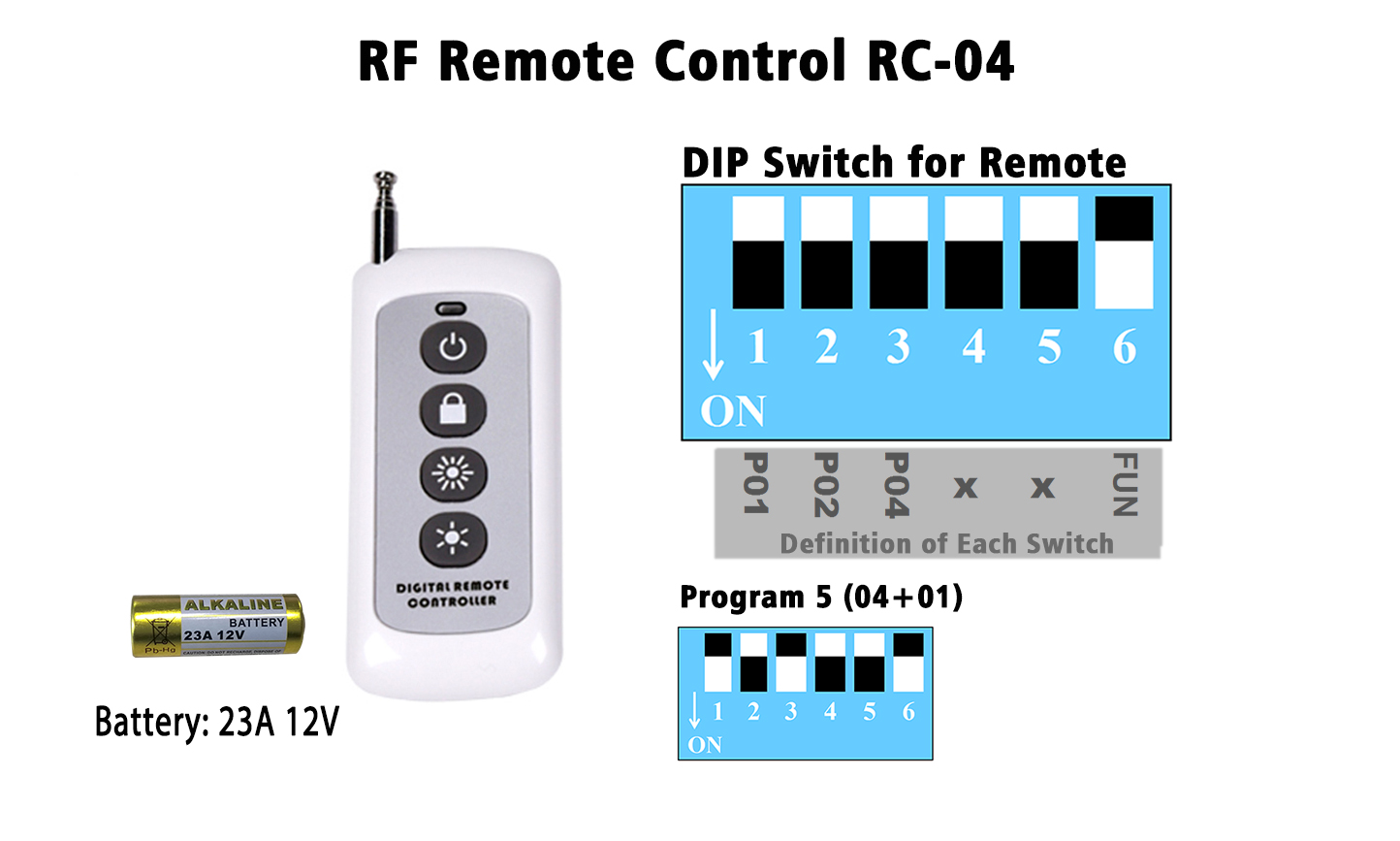

- Remote Control & DIP Switches

  LLE-004 has 16 built-in programmes, which can be selected by the DIP switches.

  The 4-key RF remote control has an effective control distance of around 25 metres in open area. The function of the 4-key remote control (SW6 ON):
  1. Turn on the light engine,
  2. Turn off the light engine,
  3. Fix the emitting color,
  4. Dimming.

  Battery: 23A 12V, 1pc (not included in the package).

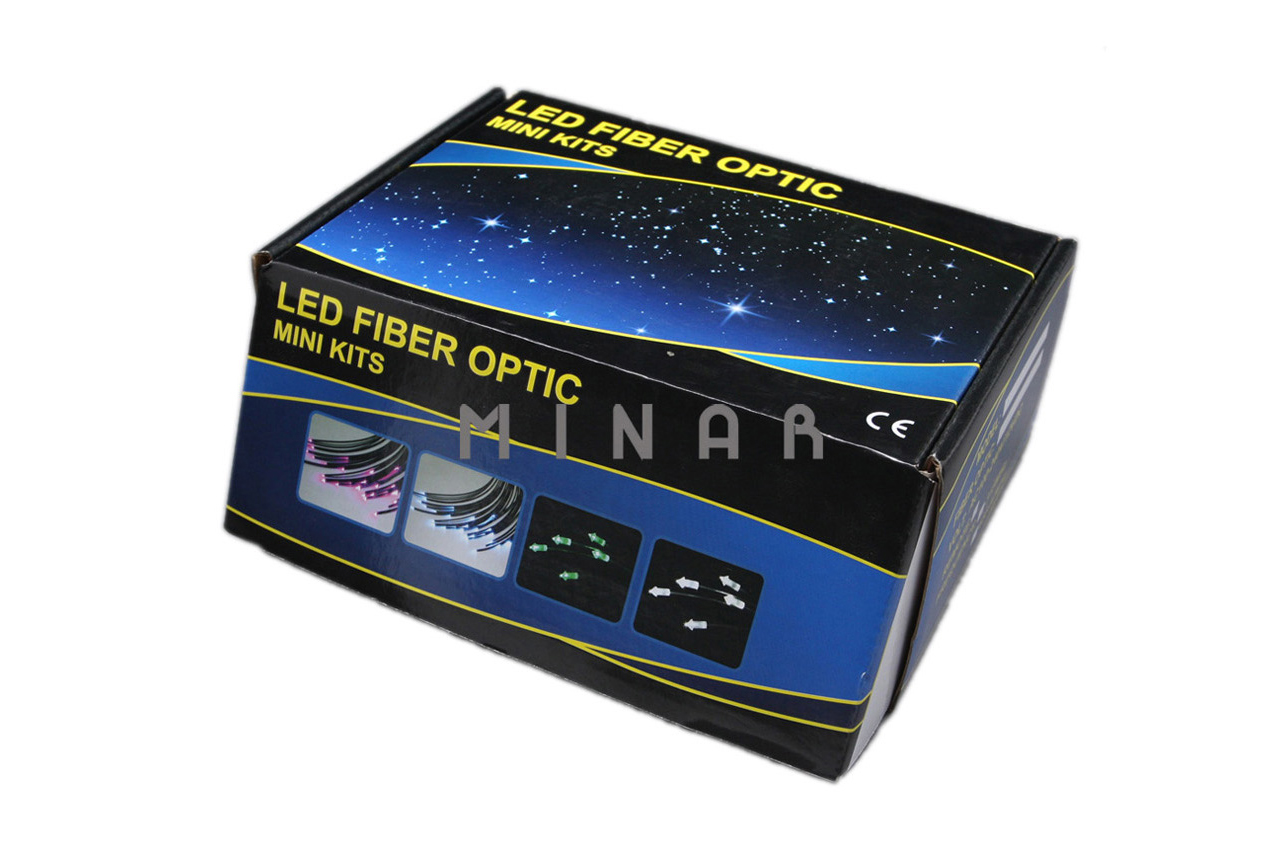

- Neutral Color Box

  Low voltage fiber optic light engines are generally packaged in neutral color boxes. One unit of the fiber optic machine is packed in a color box. 8 to 10 color boxes are packed in an export carton.

SPECIFICATIONS

Specification:

Item Number

Standard

Aperture

Optional

Aperture

Maximum Fiber Capacity

(0.75mm fiber tails)

Housing

Material

Housing

Color

Dimensions

(mm)

Optional

Remote Control

LLE-004

14mm

18mm

450pcs

Aluminum

Grey

L133XW71XH46

RC-04

Electrical Parameters:

Working Voltage	Power Consumption	Input Voltage	Adapter Power
12V	8W	100V-240V ac	12V/1A

LED Parameters:

LED Power	LED Color	Color Temperature	Colour Temperature Options	Luminous Flux	Life Span
3X2W	RGB	N/A	N/A	N/A	50000h

Control:

1	DIP Switches
2	Remote Control (optional)

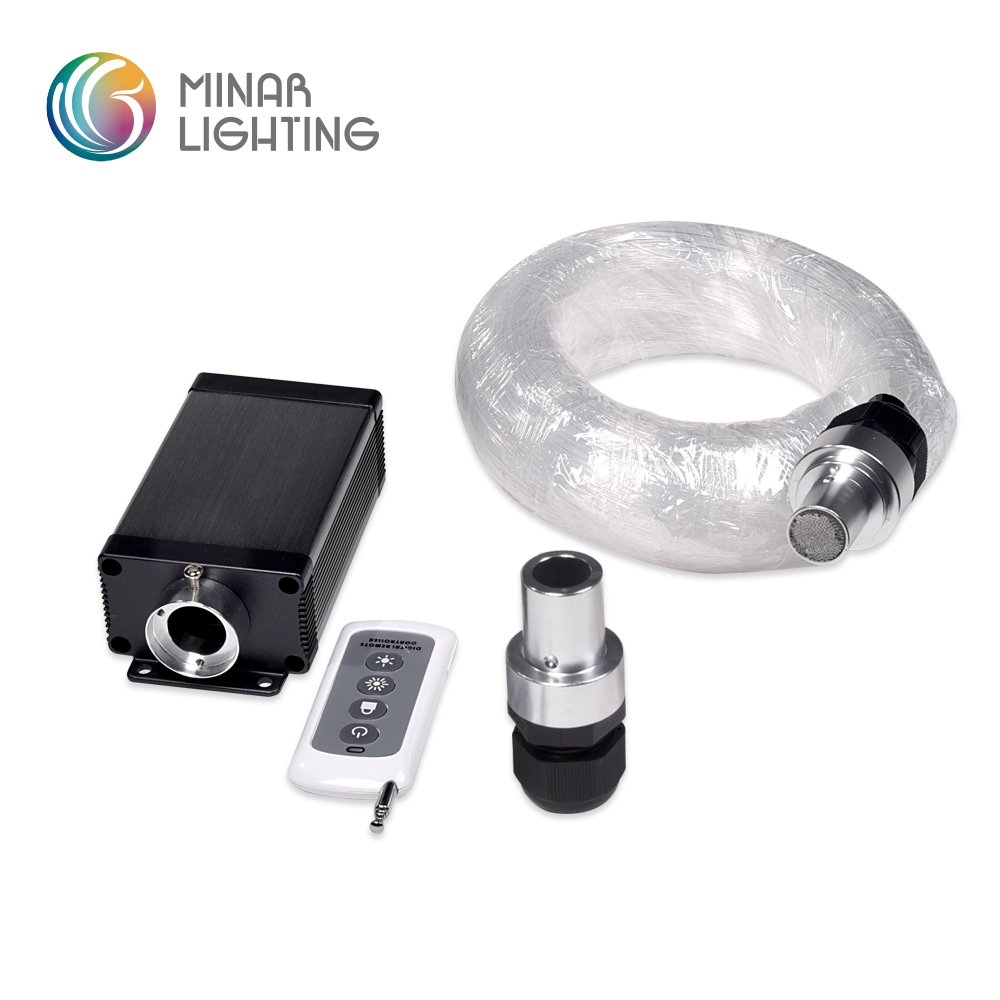

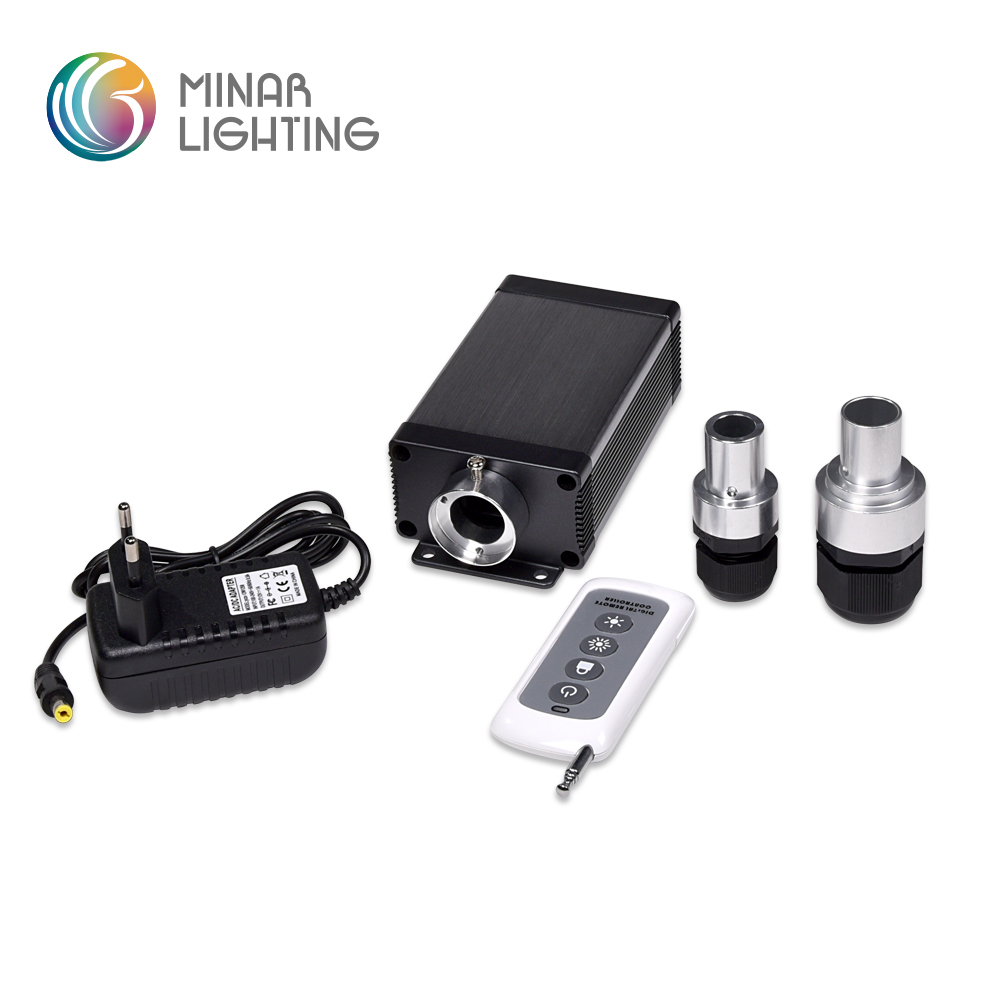

Spare Parts in the Package:

No.	Item	Quantity
1	14mm Fiber Connector	1
2	AC-DC Adapter	1

Optional Parts:

No.	Item
1	4-Key RF Remote Control
2	18mm Fiber Connector

USER MANUAL

Download the instruction manual/specification
