LLE-006

The LLE series of fiber optic light engines features miniature housings with exquisite workmanship. With no fans inside, the series is noise-free, has a novel appearance, and offers a high cost-performance ratio.

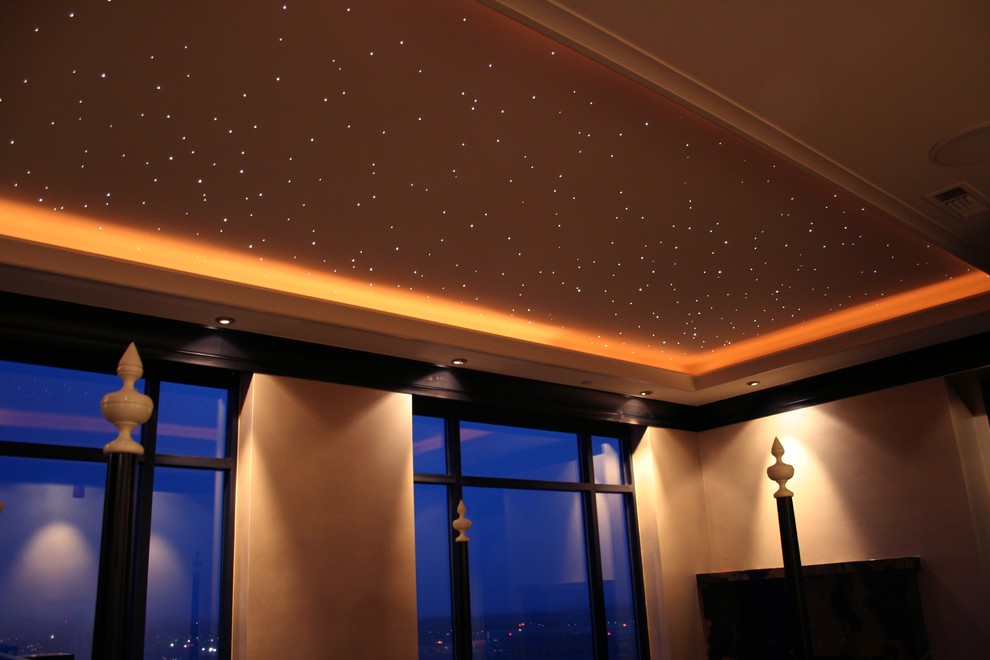

7W LED Light Engine for star ceiling

General Information:

1. Model: LLE-006,

2. Input Voltage: DC 12V,

3. Light Source: Colorful LED,

4. LED Type: RGB, 3*2W, Cree,

5. Twinkle Disc: N/A,

6. Control: Remote control,

7. Light Emitting: Cycling colors,

8. Non-dimmable,

9. No fans or motor, noise-free,

10. IP Rating: IP20,

11. Warranty: 2 Years,

12. Packing: Neutral color box.

- Novel Appearance and Noise Free

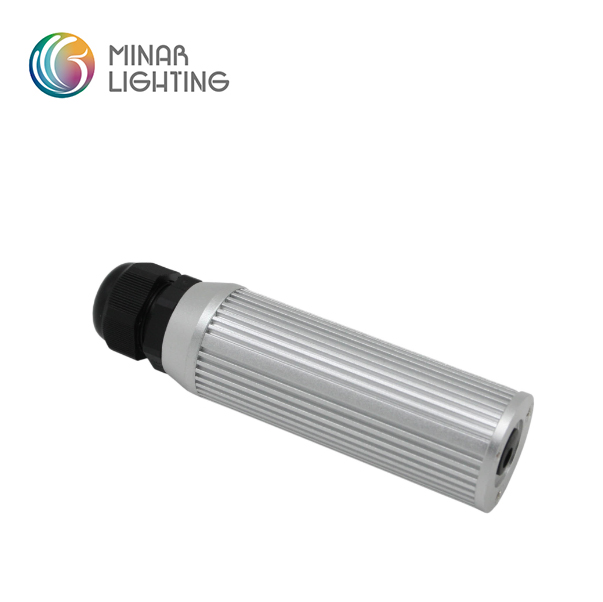

  The cylindrical shape, 35 mm in diameter and 130 mm in length, is particularly suitable for areas with restricted installation volumes.

  The machine has no motors or fans, and operates without any noise.

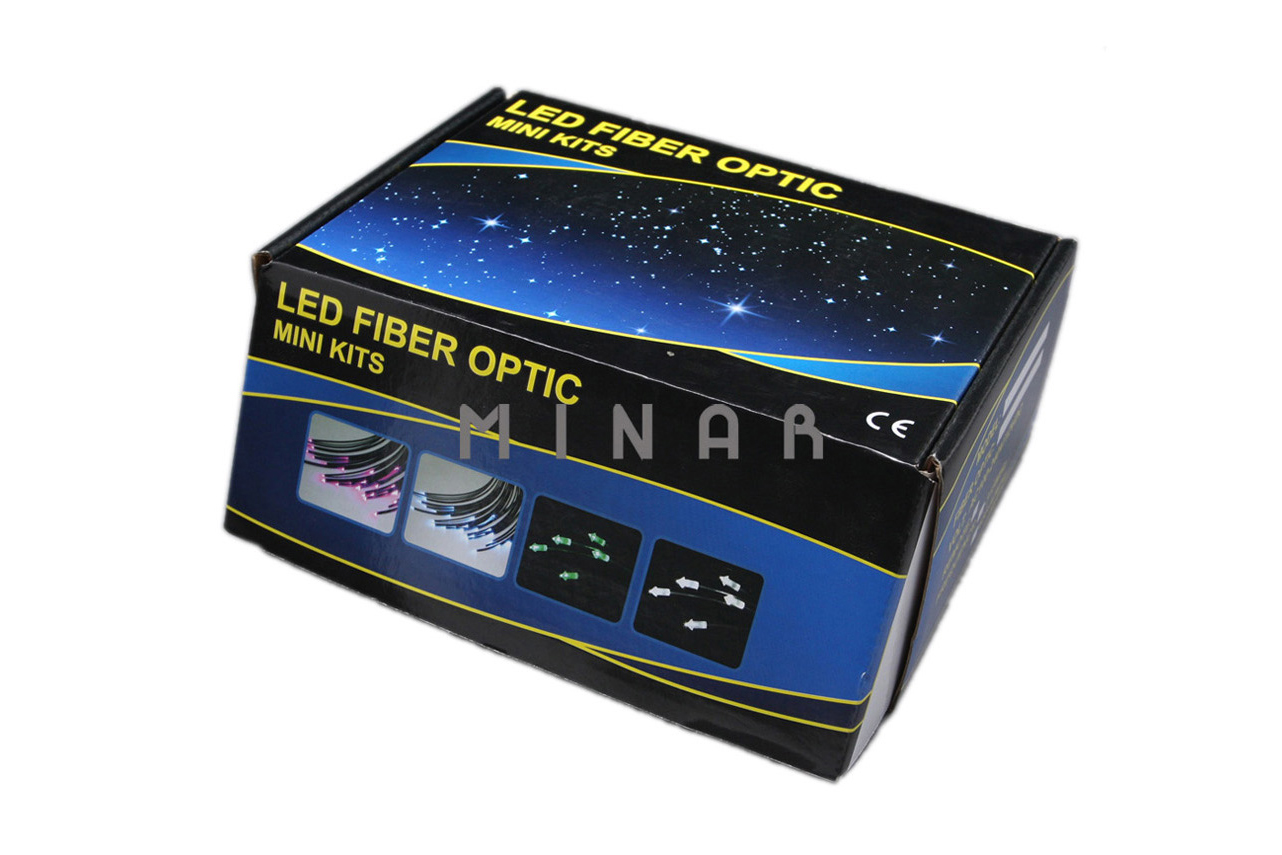

- Neutral Color Box

  Low voltage fiber optic light engines are generally packaged in neutral color boxes. One fiber optic machine is packed in a separate color box. 20 color boxes or 30 color boxes are packed in an export carton.

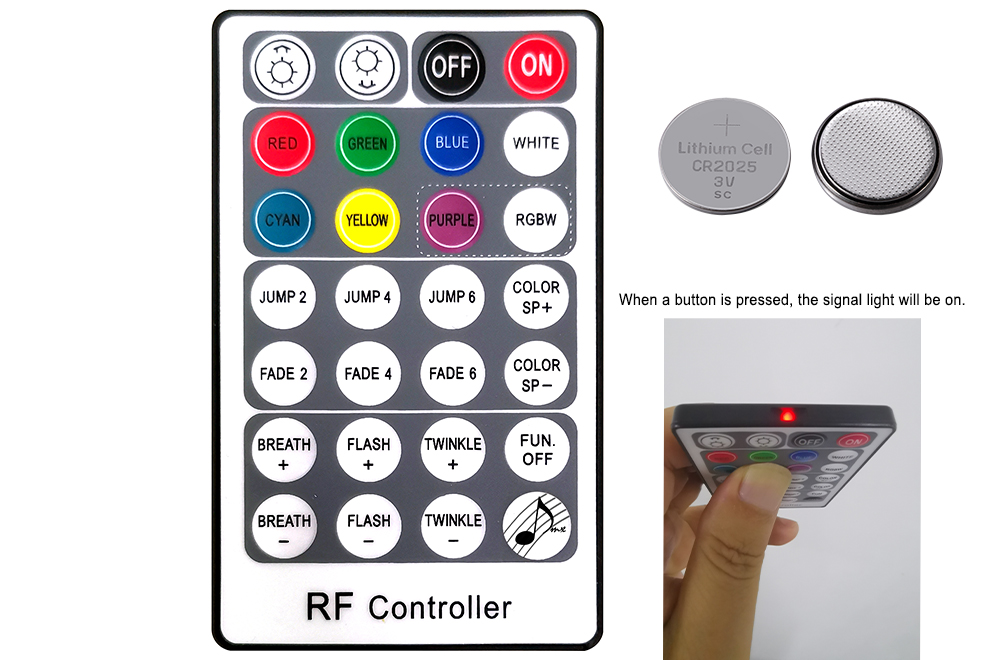

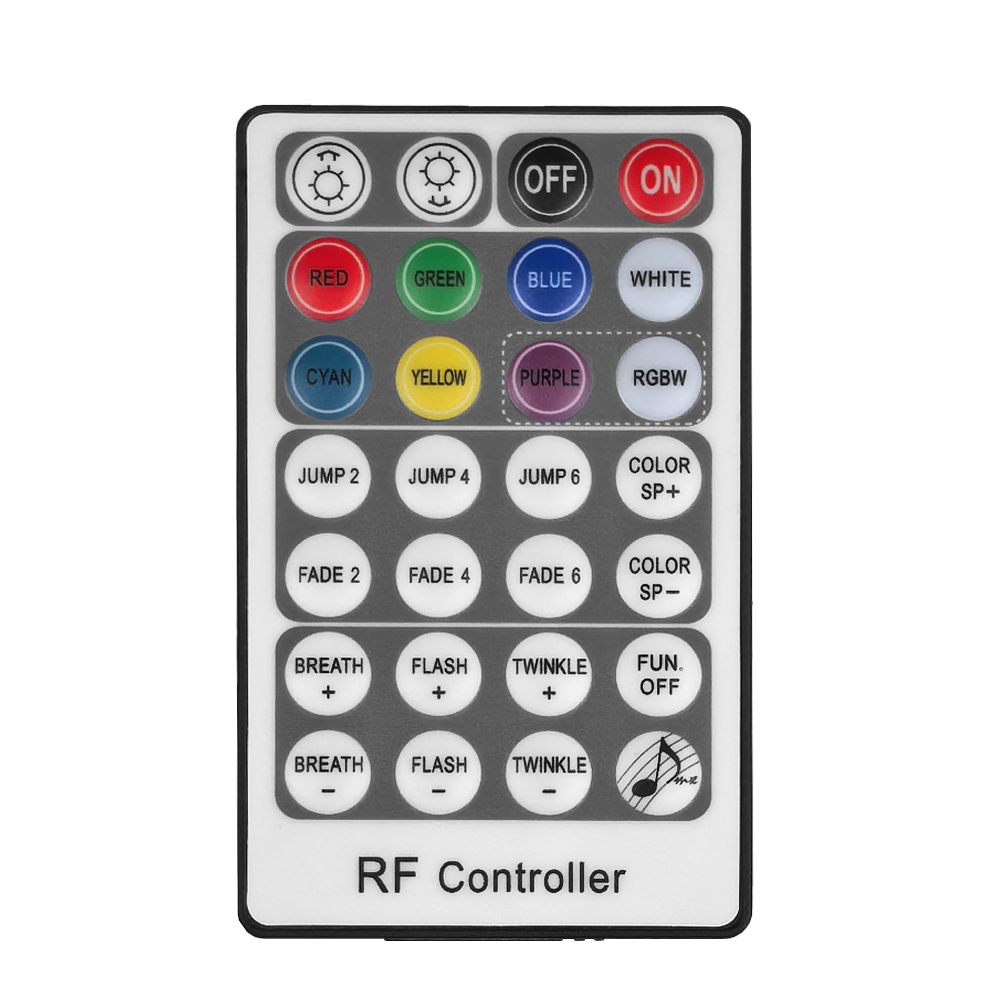

- RF Remote Control RC-28

  Please refer to the User Manual of the light engines for details.
  RC-28: For LET/LES series and the 12V LED light engines with the APP: LEDSmartLight.
  RC-28TW: For the tunable white LED light engines.
  RC-28-2.4G: For LLE-002, LLE-004 and LLE-005 with the APP: LED LAMP.

  The matching operation of RC-28 with the light engines differs from that of the other 28-button remote control, RC-28-2.4G. Please refer to the User Manual for detailed information.

SPECIFICATIONS

Specification:

Item Number

Standard

Aperture

Optional

Aperture

Maximum Fiber Capacity

(0.75mm fiber tails)

Housing

Material

Housing

Color

Dimensions

(mm)

Optional

Remote Control

LLE-006

14mm

N/A

250pcs

Aluminum

Silver

Φ35X130

RC-28

Electrical Parameters:

Working Voltage	Power Consumption	Input Voltage	Adapter Power	Input Current
12V	7W	100V-240V ac	12V/1A	500mA

LED Parameters:

LED Power	LED Color	Color Temperature	Colour Temperature Options	Luminous Flux	Life Span
3X2W	RGB	N/A	N/A	N/A	50000h

Control:

1	Remote Control (optional)

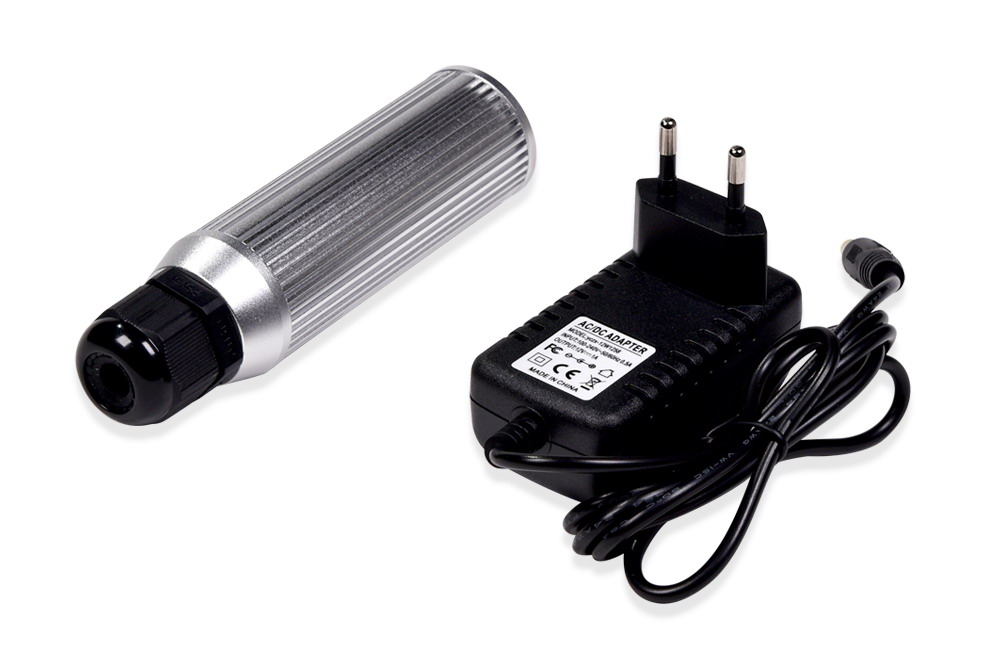

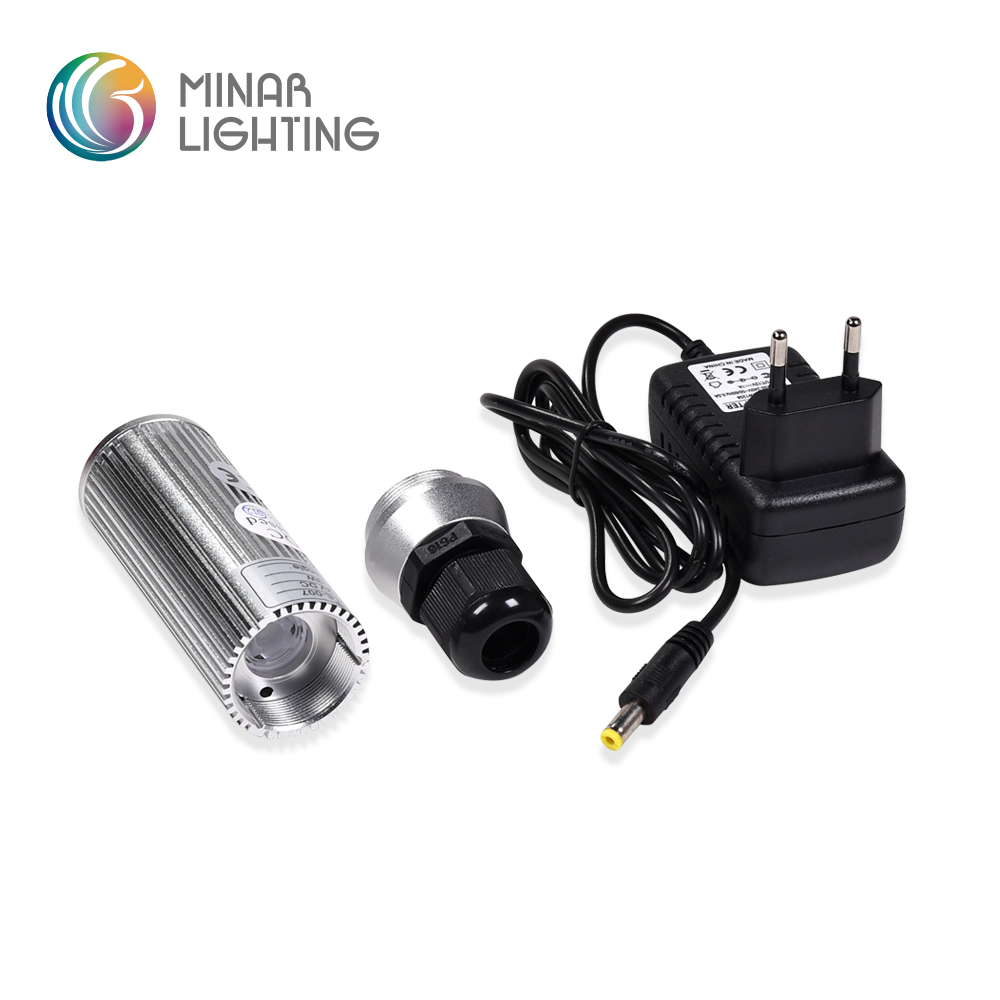

Spare Parts in the Package:

No.	Item	Quantity
1	14mm Fiber Connector	1
2	AC-DC Adapter	1

Optional Parts:

No.	Item
1	Remote Control: RC-28
