Specification:
Item Number | Standard Aperture | Optional Aperture | Maximum Fiber Capacity (0.75mm fiber tails) | Housing Material | Housing Color | Dimensions (mm) | Gross Weight (kgs) | Optional Remote Control |

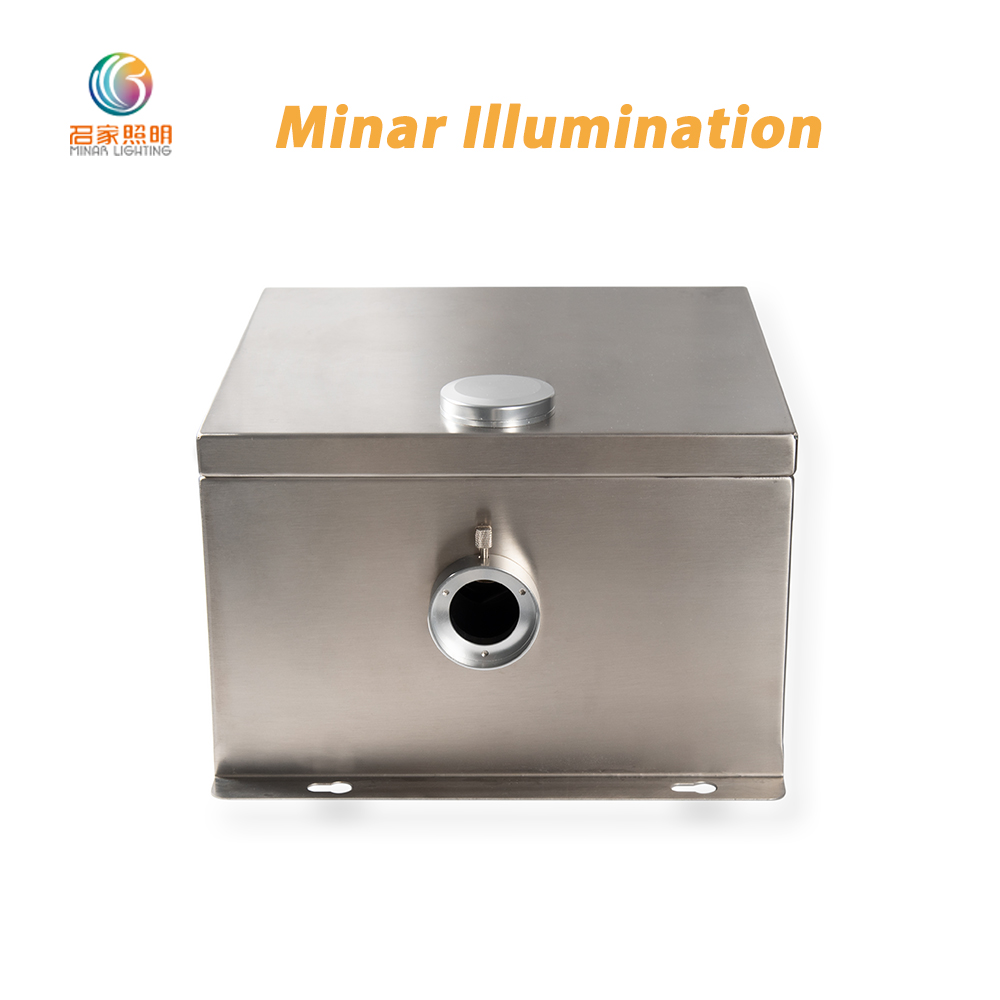

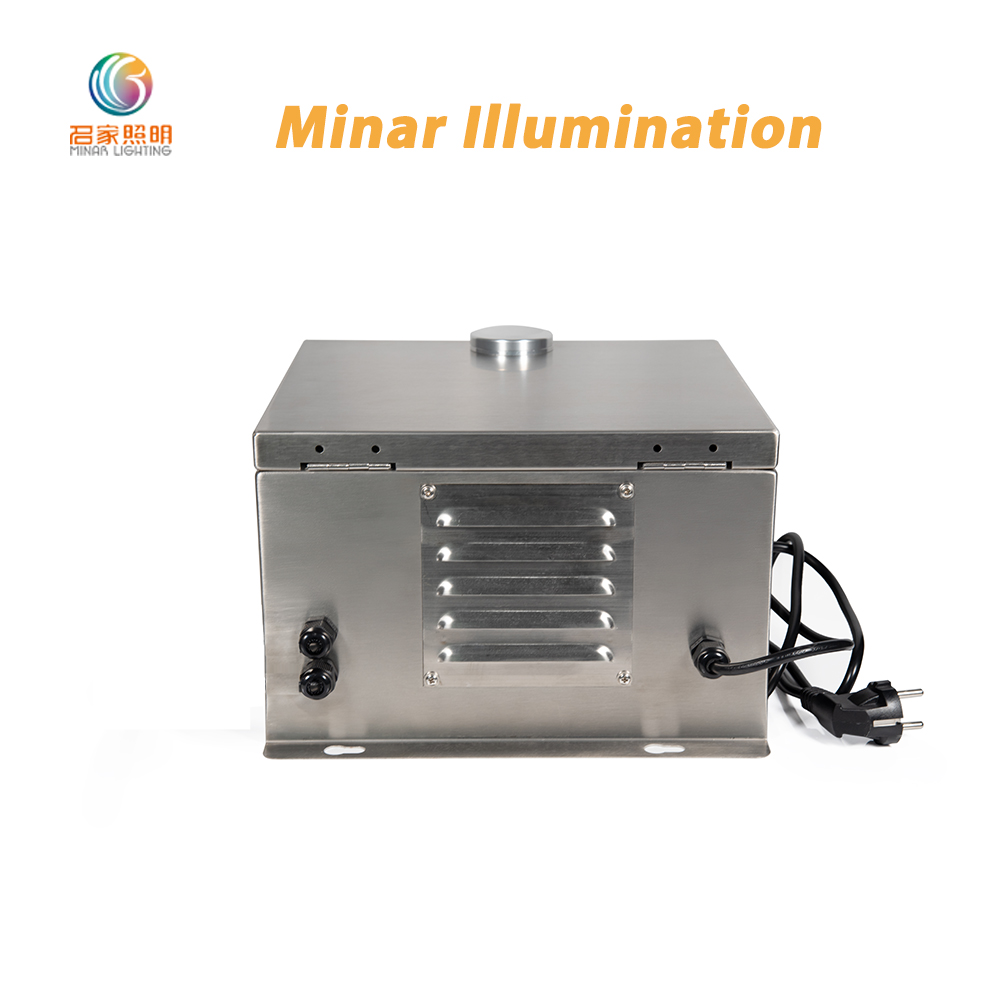

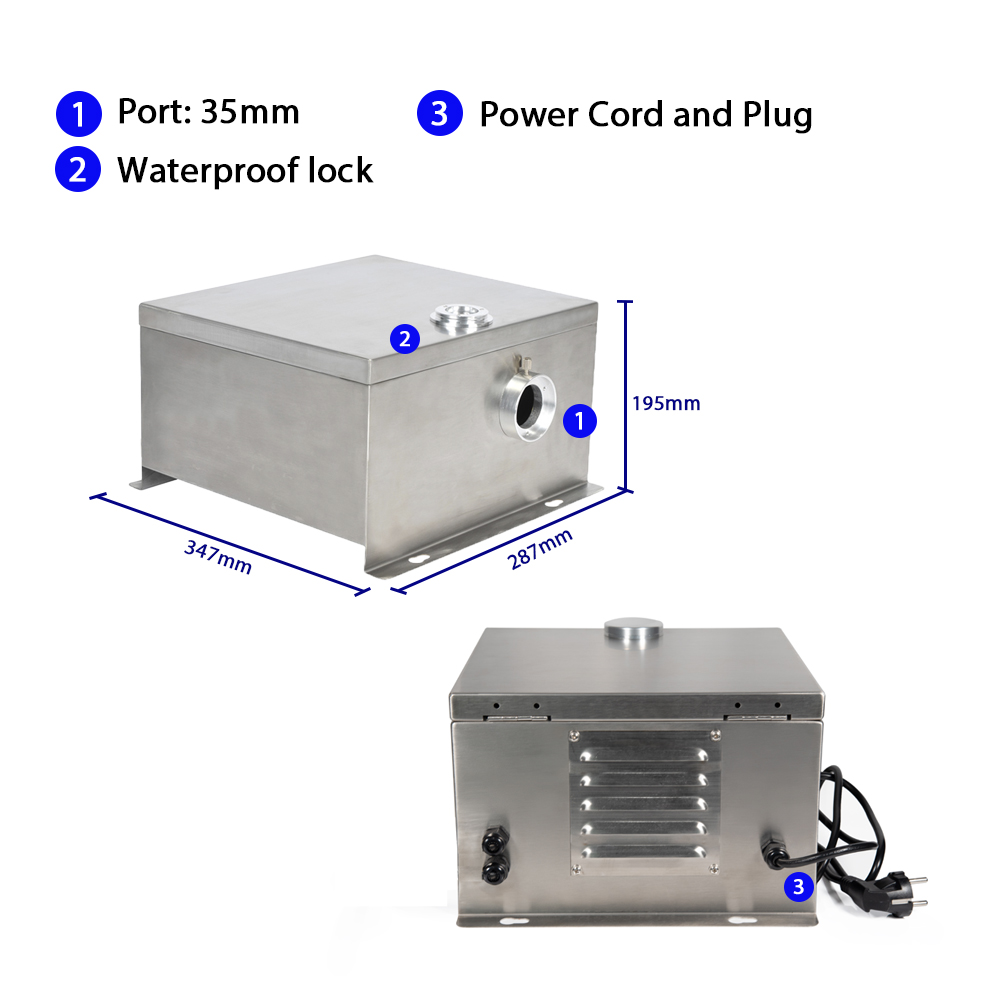

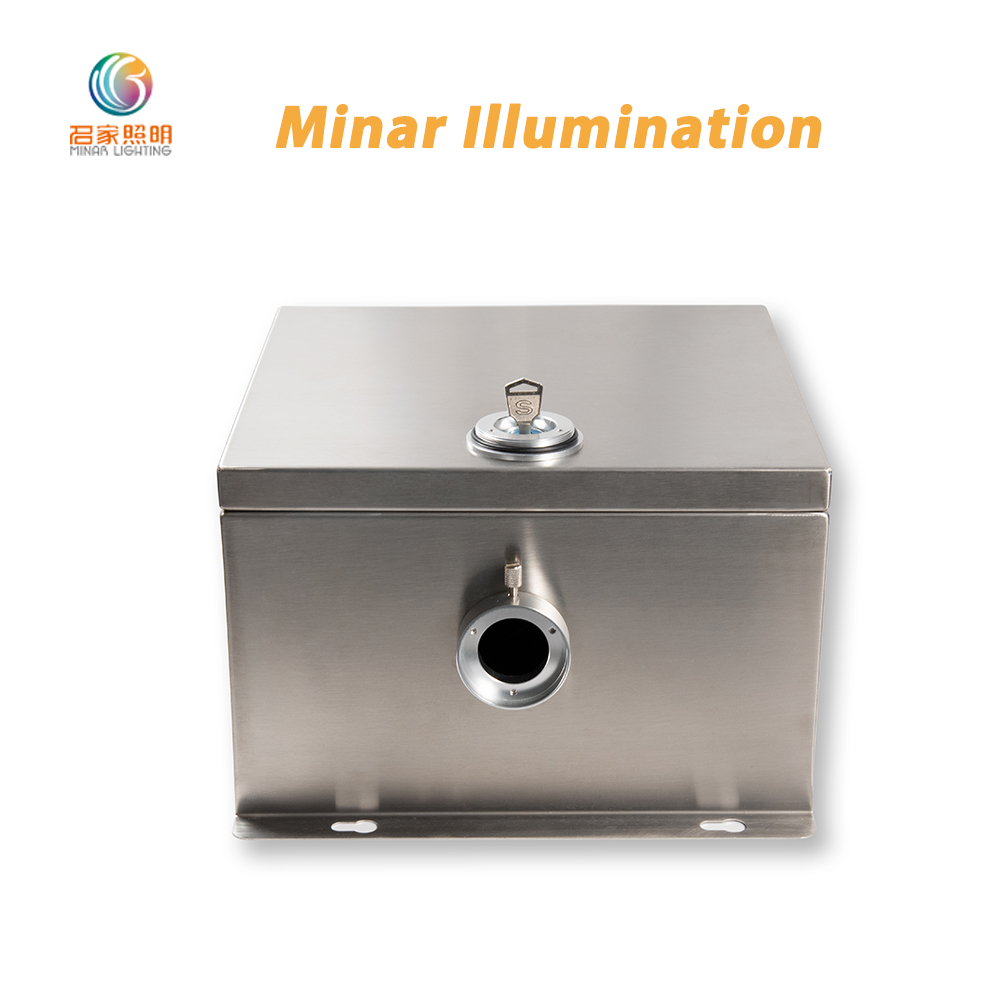

LEI-15001/WP | 20/24/28mm | 30mm | 1250pcs | Stainless Steel | Silver | L347XW287XH195 | 8.0 | RC-04 |
Electrical Parameters:
Input Voltage | Power Consumption |
100V-240V ac | 130W |

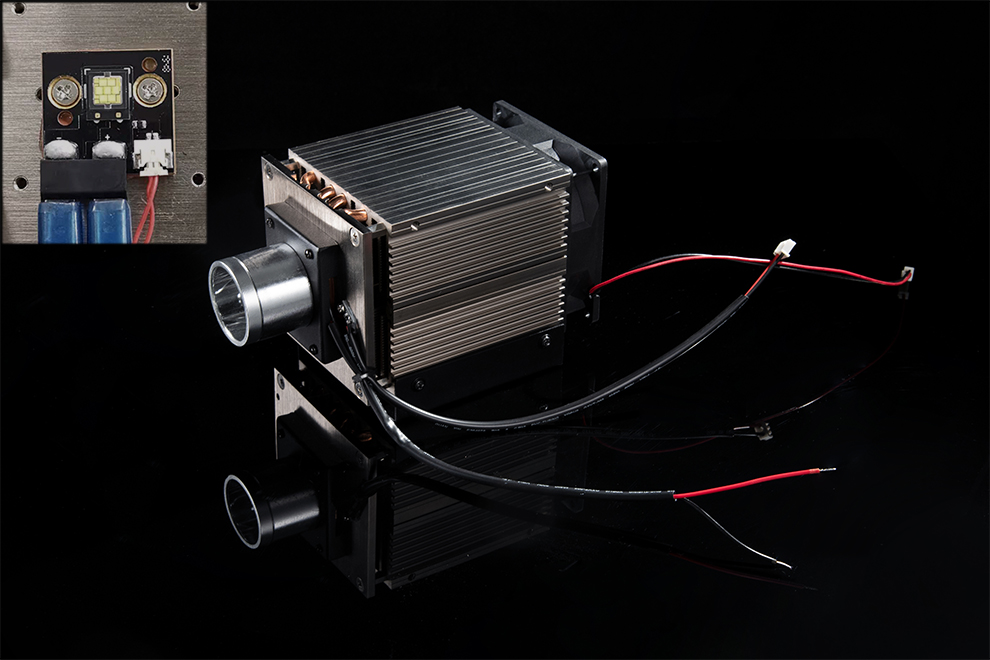

LED Parameters:
LED Power | LED Color | Color Temperature | Colour Temperature Options | Luminous Flux | Life Span |
100W | White | 6000K | 3000K | 11000lm @ 6000K | 50000h |
Control:
1 | DIP Switches |
2 | Remote Control (optional) |

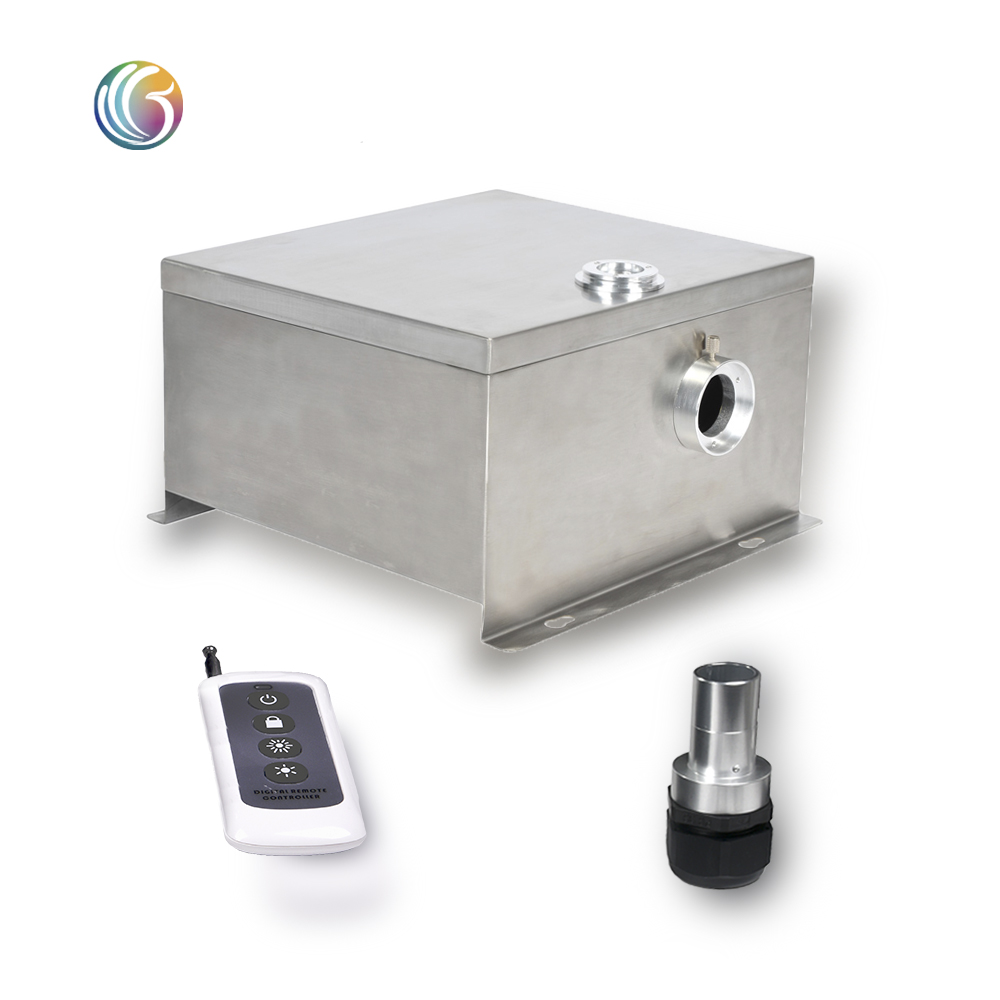

Spare Parts in the Package:
No. | Item | Quantity |

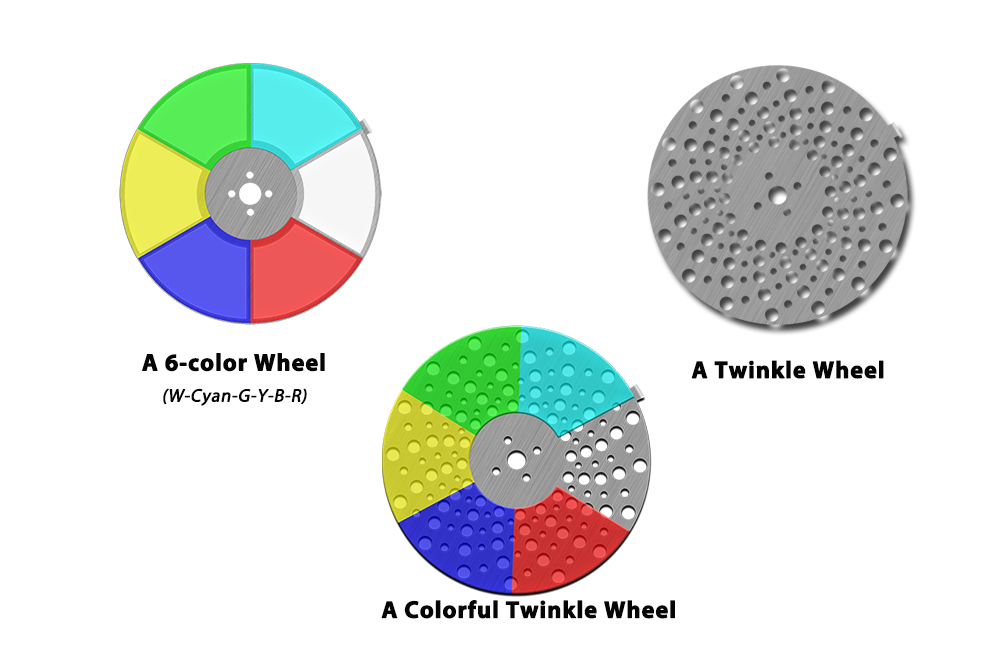

1 | a 6-color Wheel (built-in) | 1 |

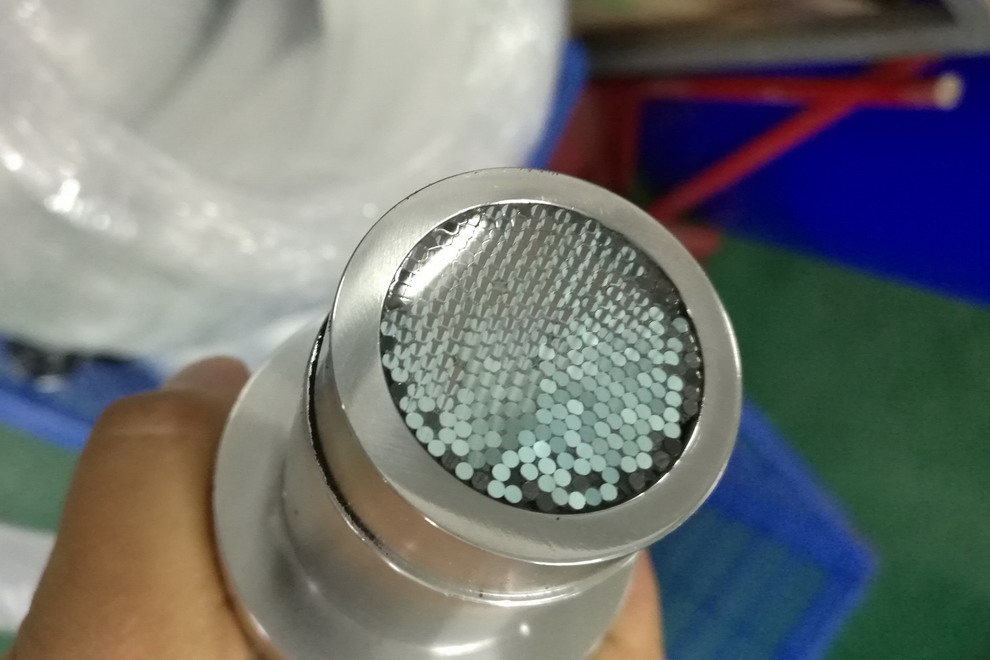

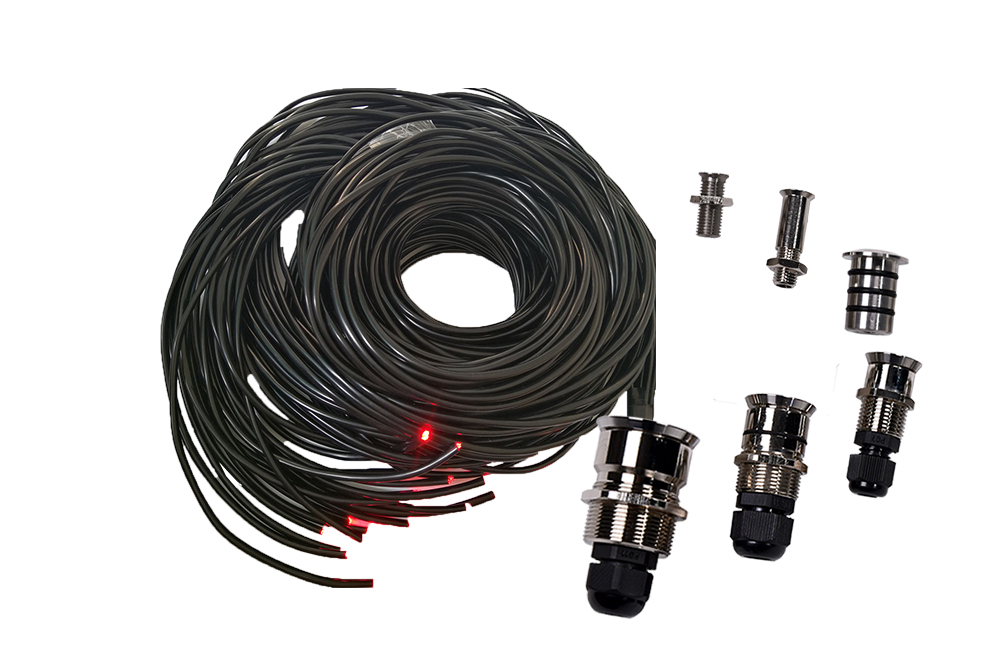

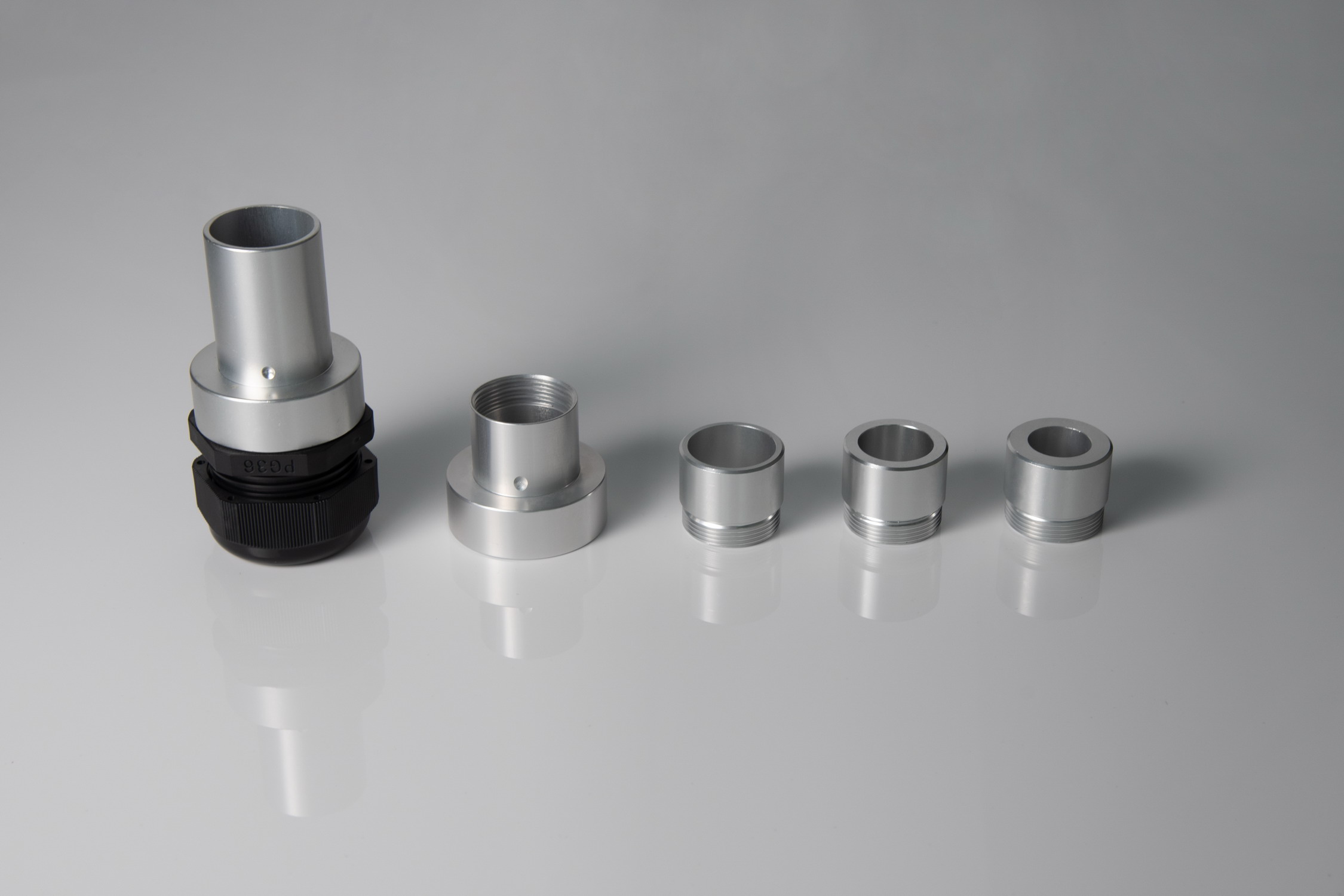

2 | 20/24/28mm 3-in-1 Fiber Connector | 1 |
3 | Fuse | 1 |
4 | Housing Cover Keys | 2 |
Optional Parts:
No. | Item |

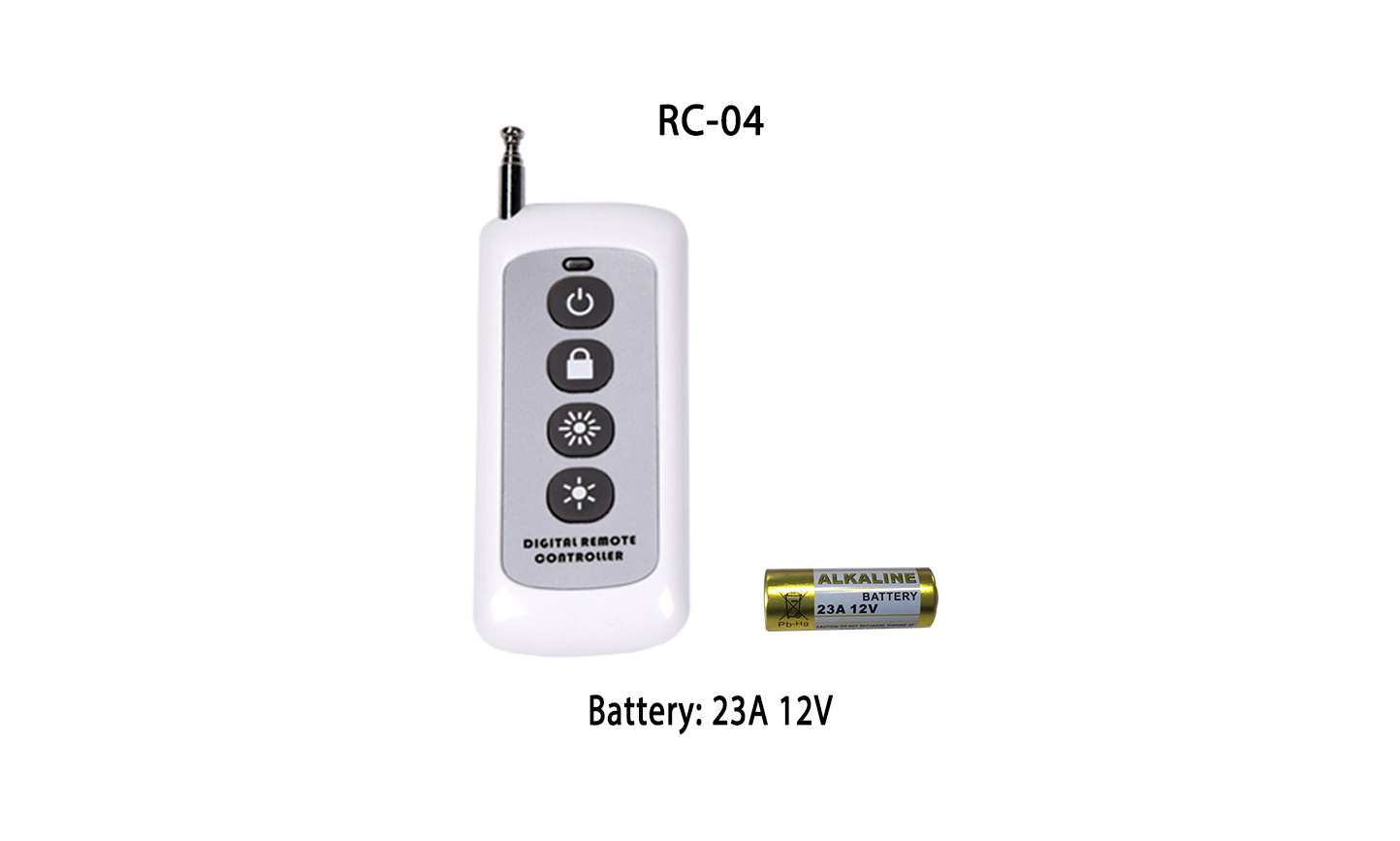

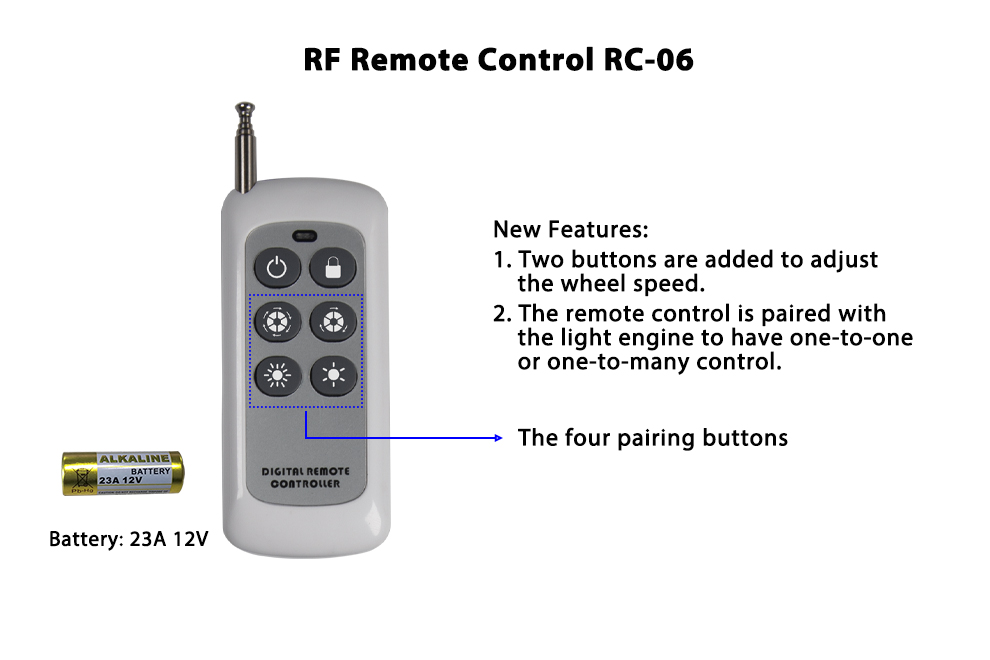

1 | 4-Key RF Remote Control |
2 | Twinkle Wheel |
3 | Colorful Twinkle Wheel |
4 | 30mm Fiber Connector |
