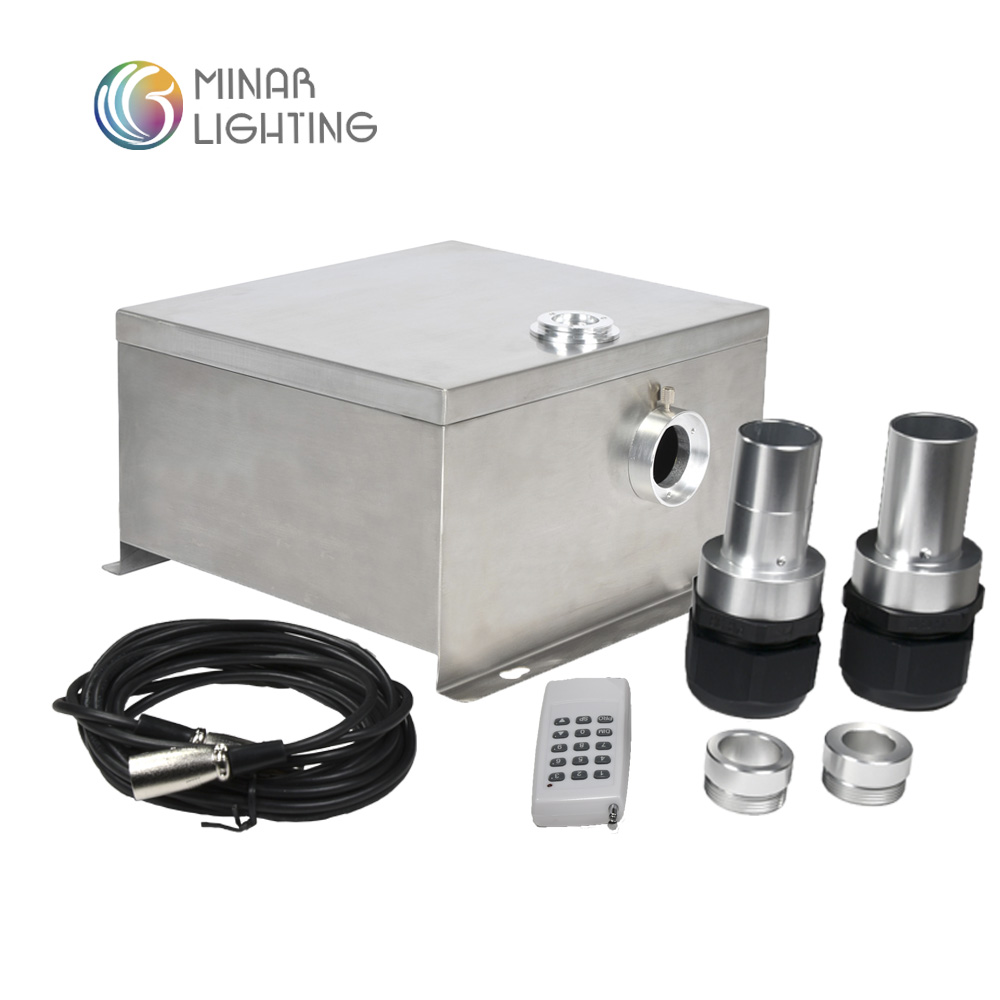

LEI-4121DMX/WP

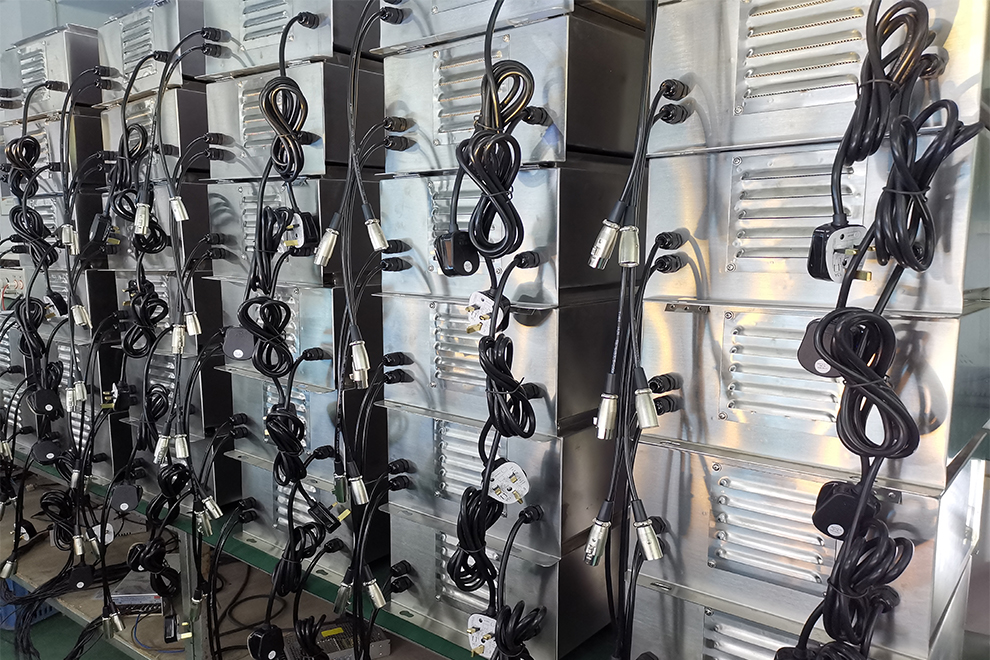

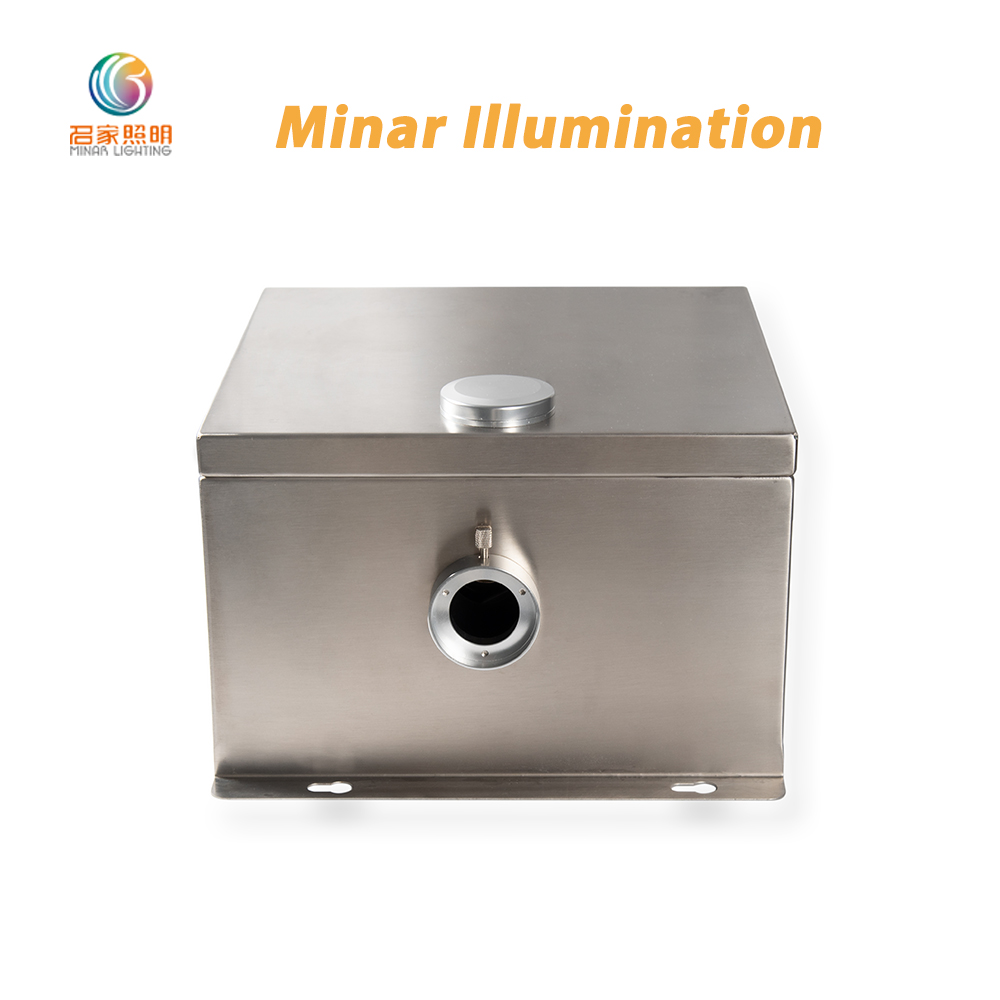

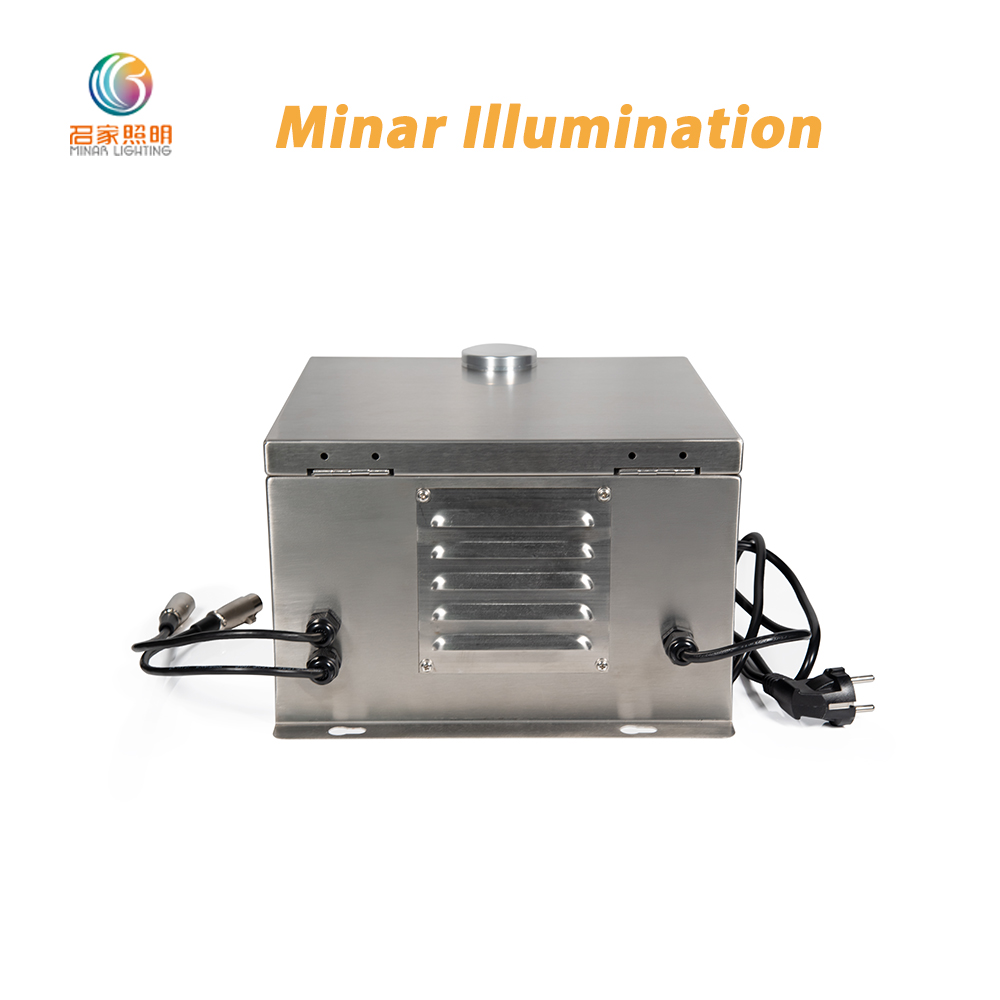

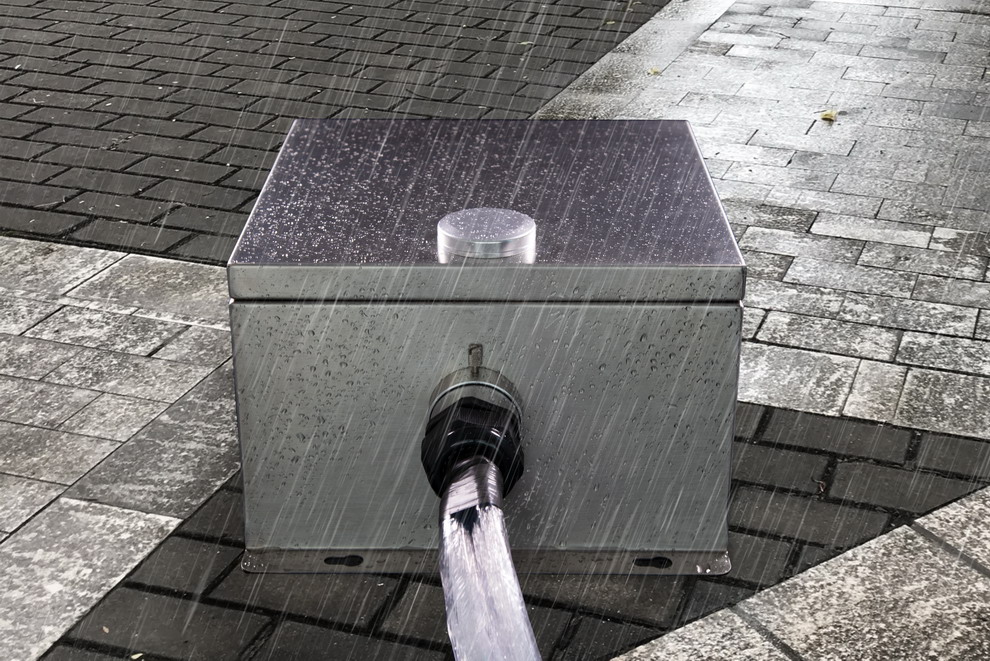

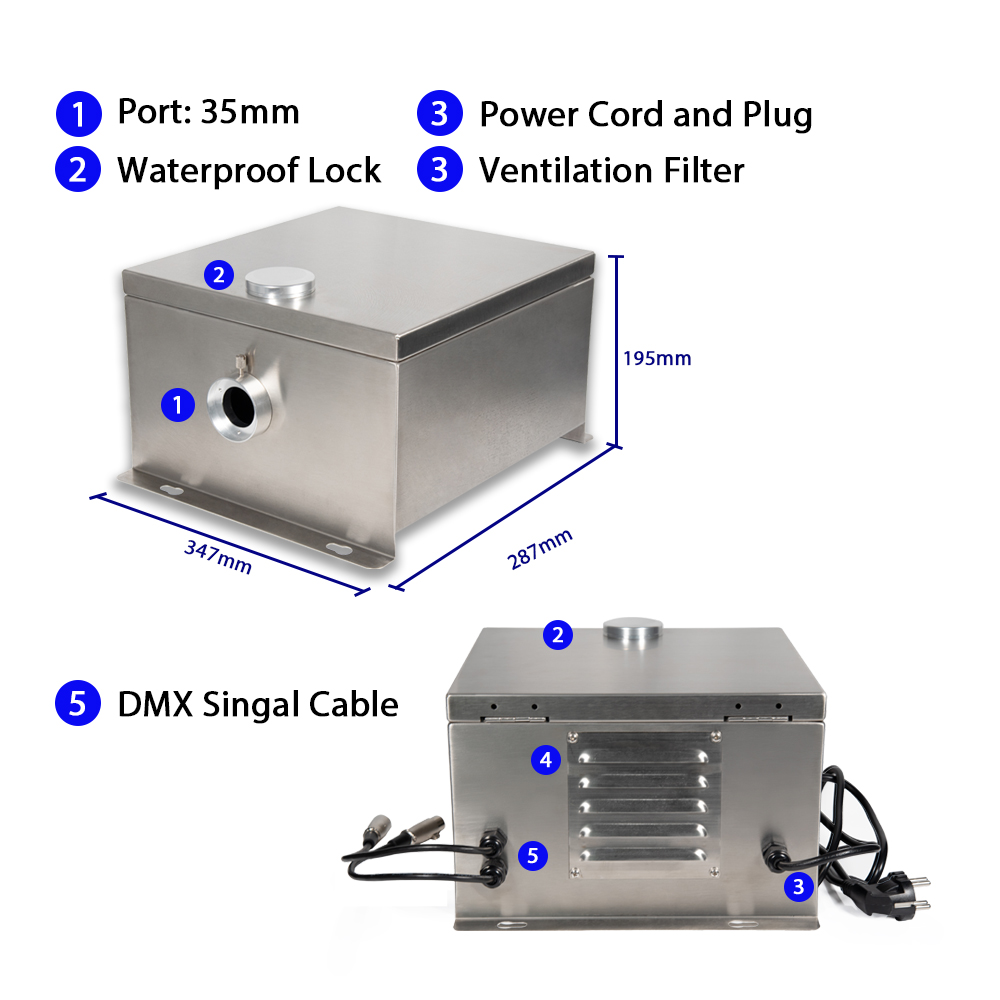

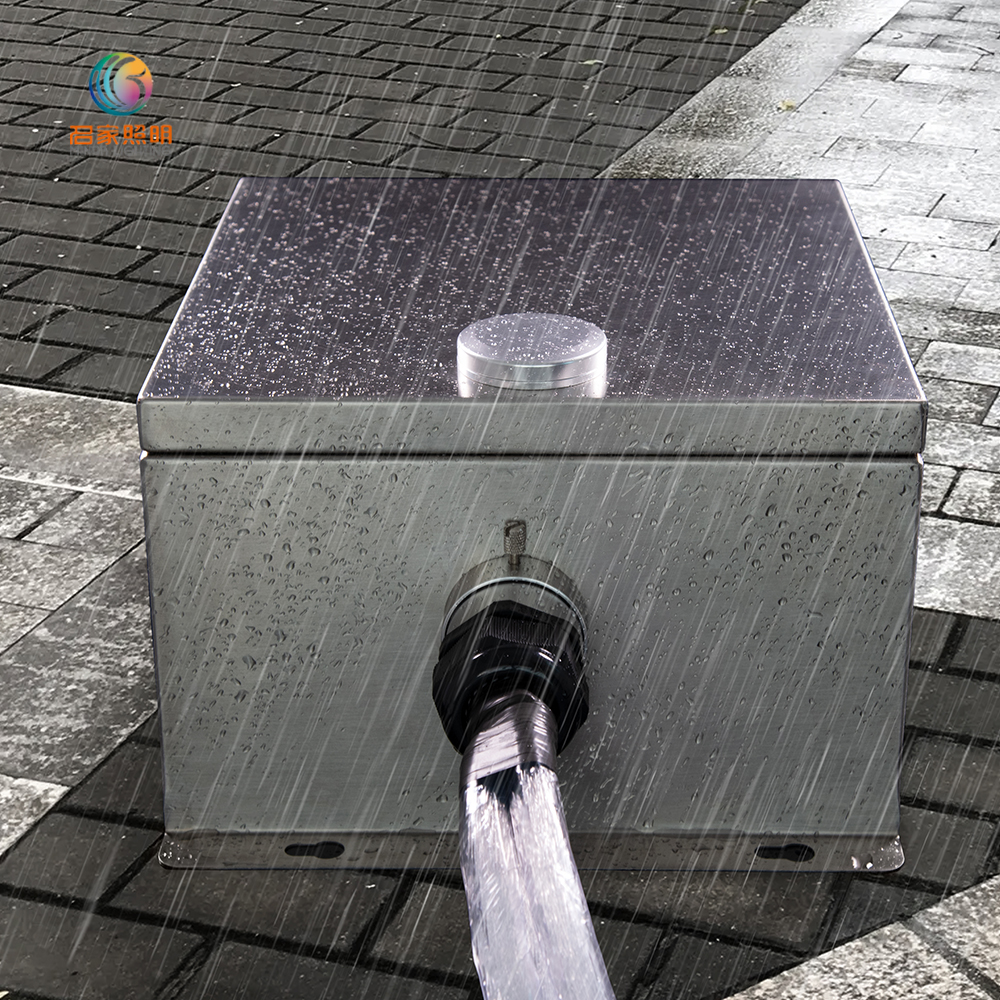

LEI series of outdoor LED light engines has applied stainless steel SS-304 as its housing material to achieve the IP Rating of IP43. This enables the light engine to be placed in the pump room or even directly in the outdoors.

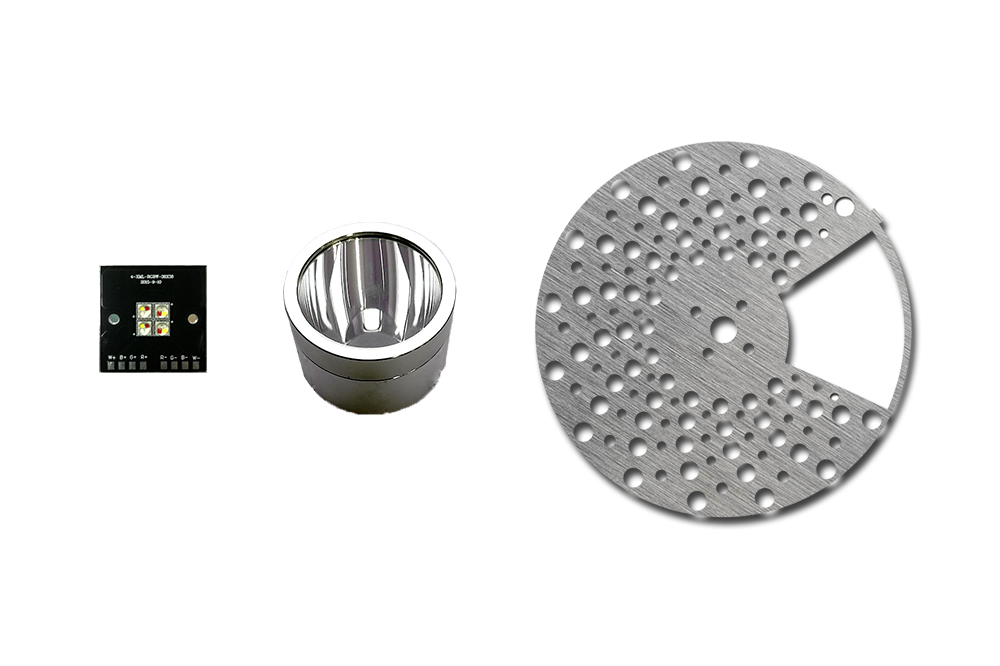

The best combination in fiber optic light engine for star ceiling: four-color RGBW LED module and the twinkle disc. This group brings the starry ceiling a fantastic simulating effect.

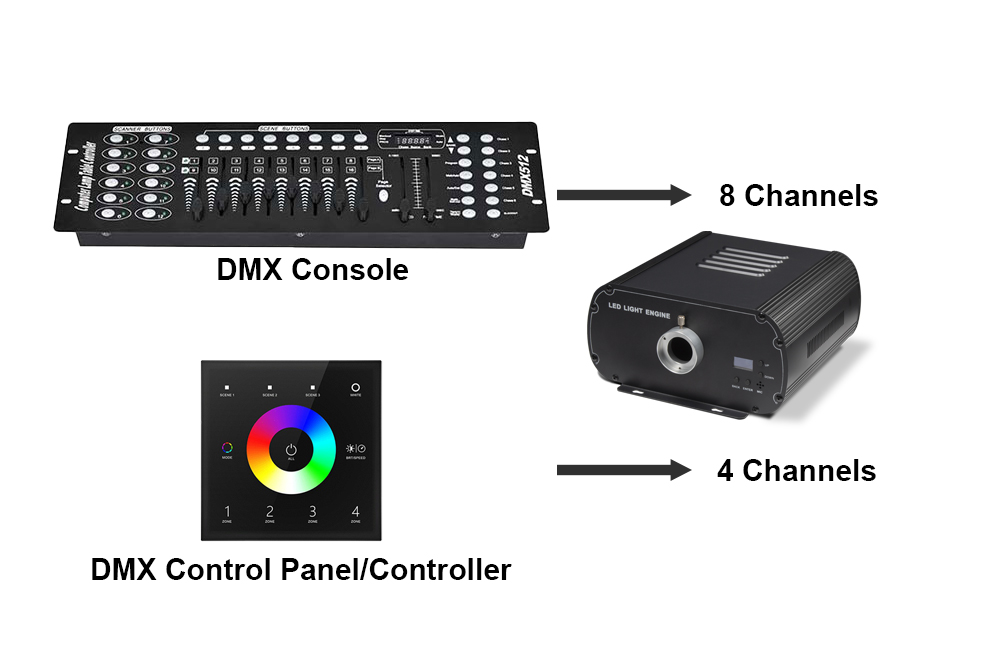

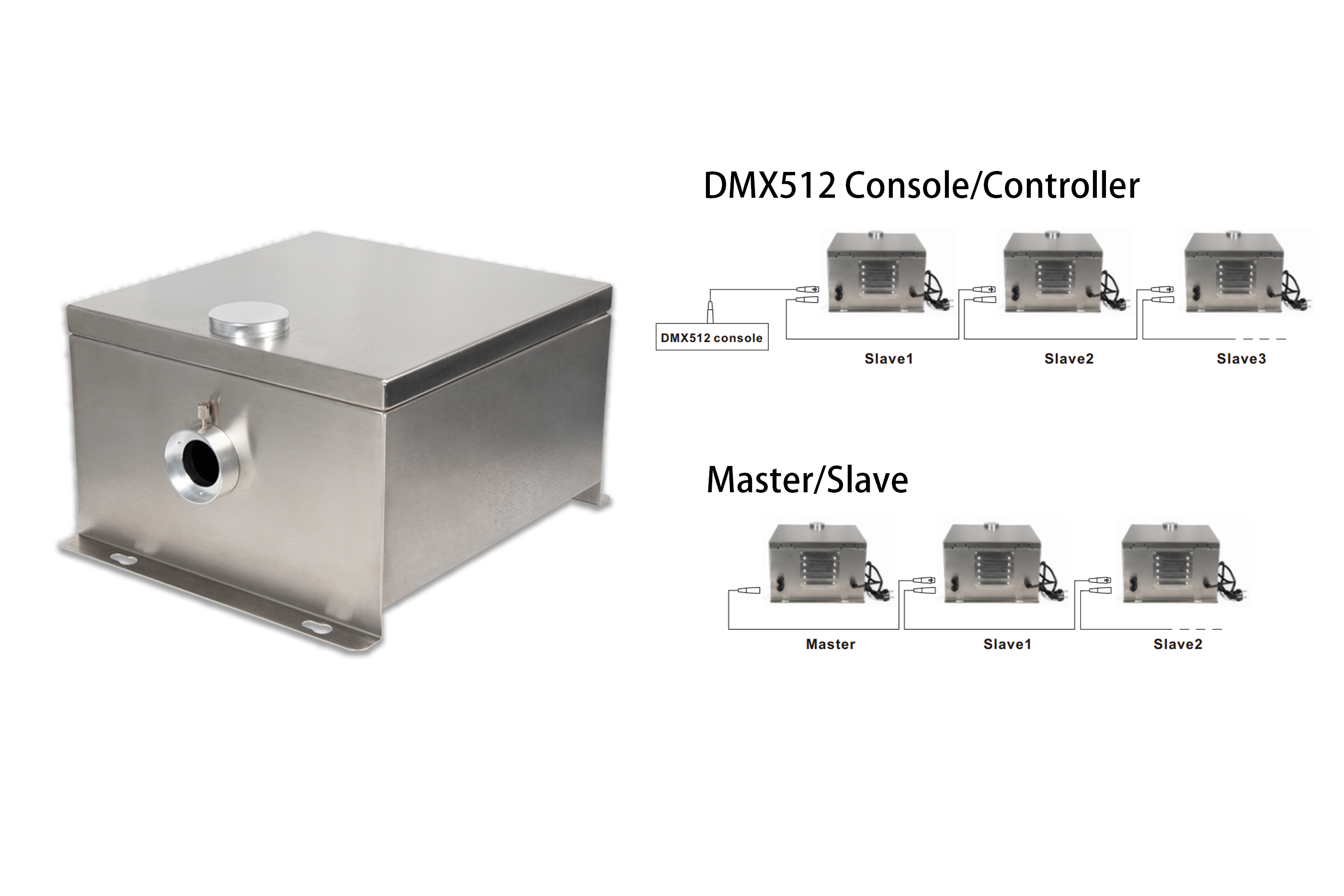

DMX512 Signal and Master-Slave Mode

Multiple units of the DMX512 light engines can be connected as a group via DMX signal cables to run the master-slave control mode. In master-slave control mode, there will be one and only one master light engine, and all the rest will be set as slave machines. The master runs the built-in program with or without the remote control, and all slave machines will automatically follow to have a synchronous or progressive effect.

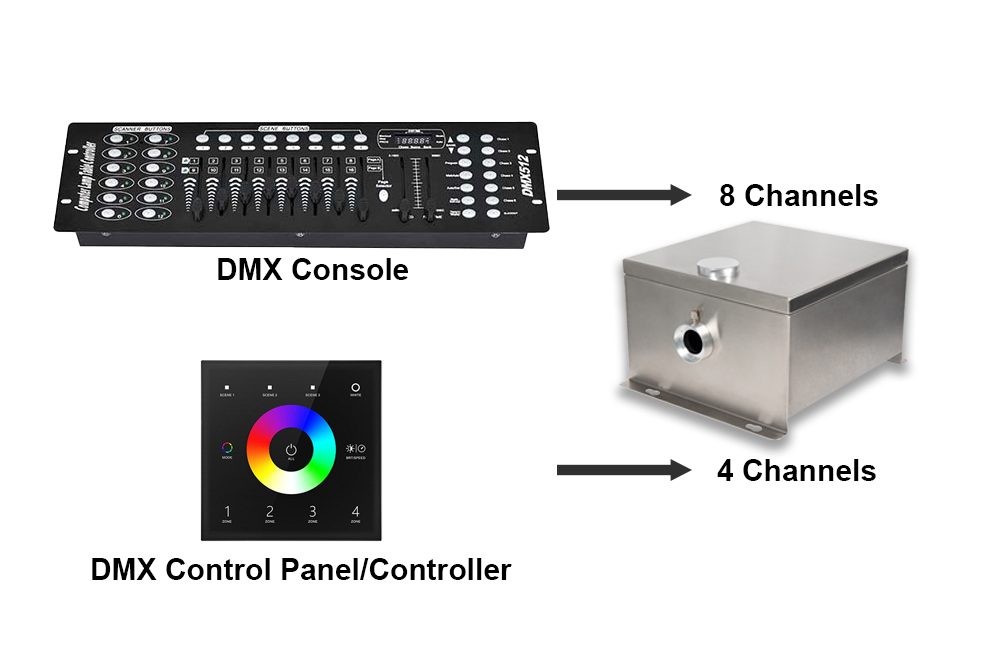

8 DMX Channels
CH1: Red, CH5: Speed,
CH2: Green, CH6: Dimmer,
CH3: Blue, CH7: Strobe,
CH4: Whit, CH8: Twinkle.

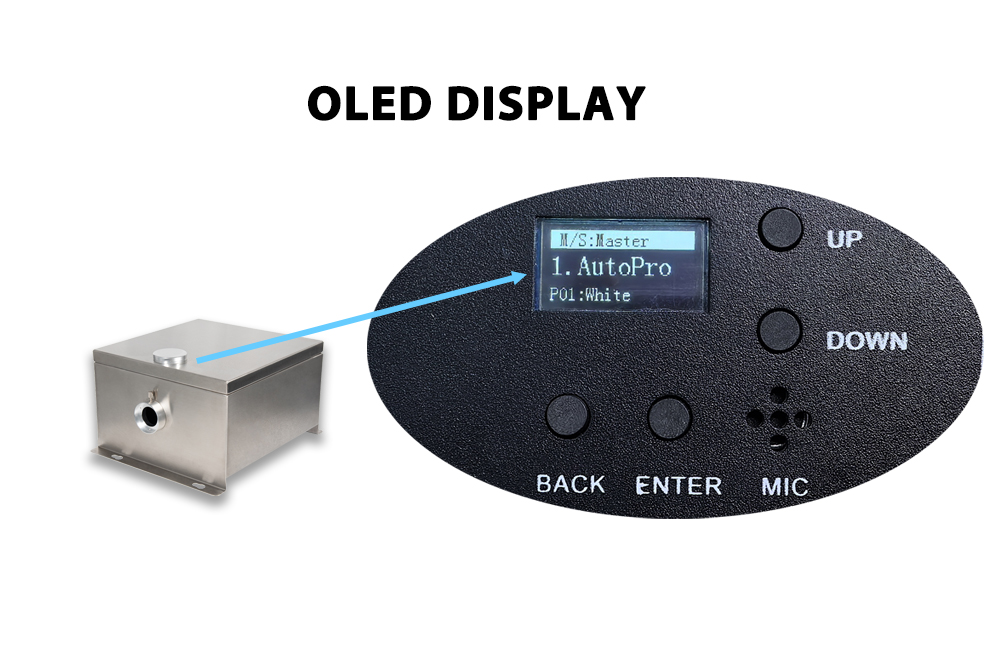

DMX version of the line Voltage LED light engine could use 15-key RF remote control to have different programs, dimming and wheel speed adjustment. LEI-4121DMX/WP has 24 built-in programmes, which can be selected using buttons+display or the remote control.

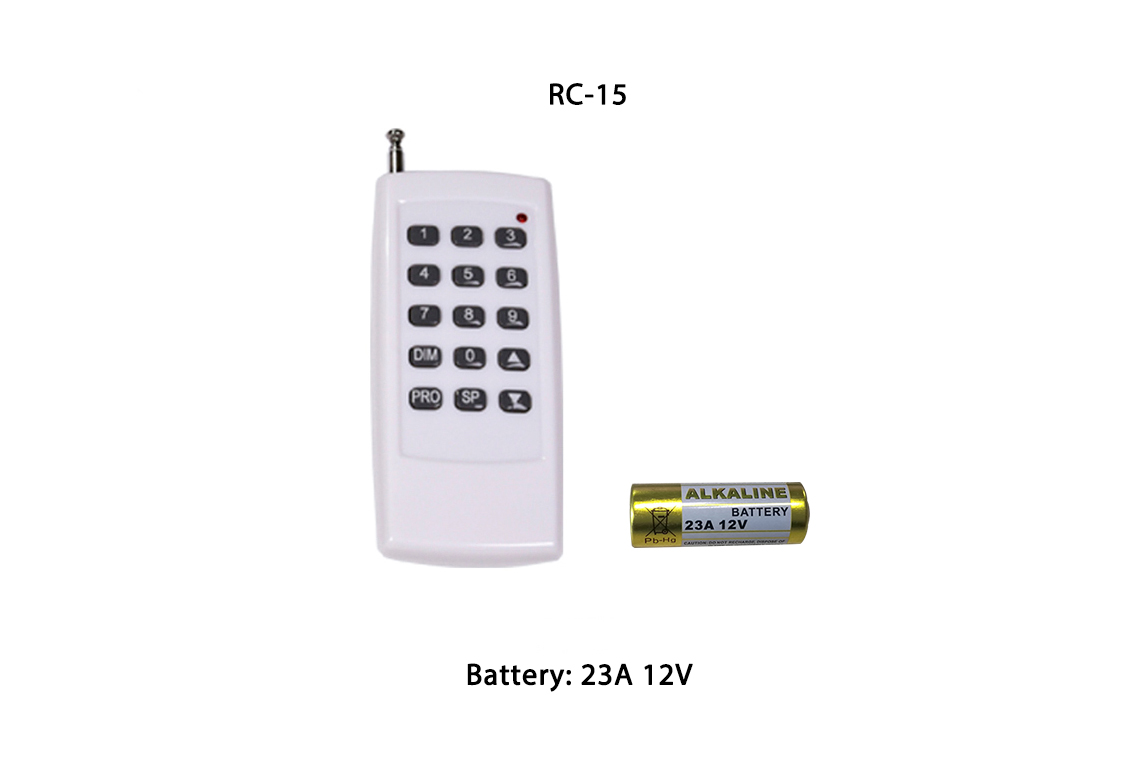

The 15-key RF remote control has an effective control distance of around 25 metres in open area. The function of the 15-key remote control (optional):
1. Select the built-in programs,
2. Dimming,
3. Adjust the wheel speed.

Battery: 23A 12V, 1pc (not included in the package).

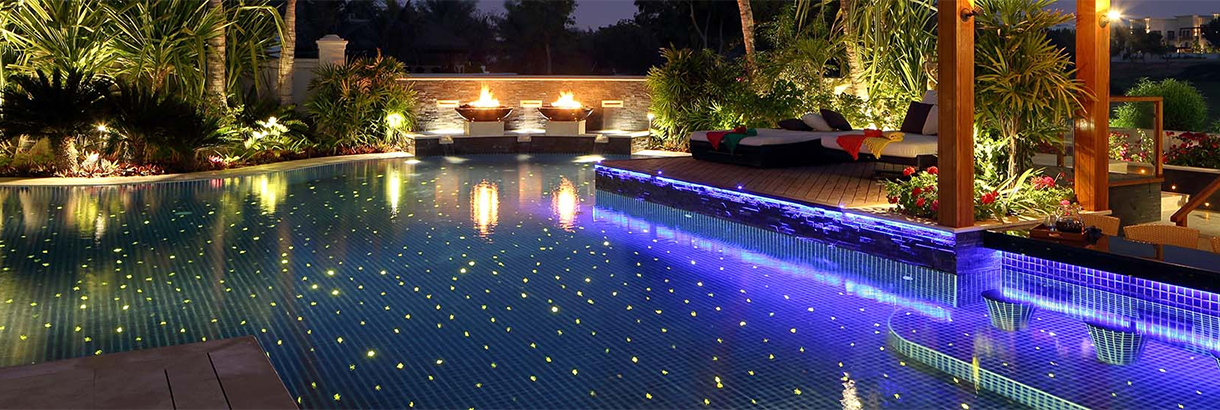

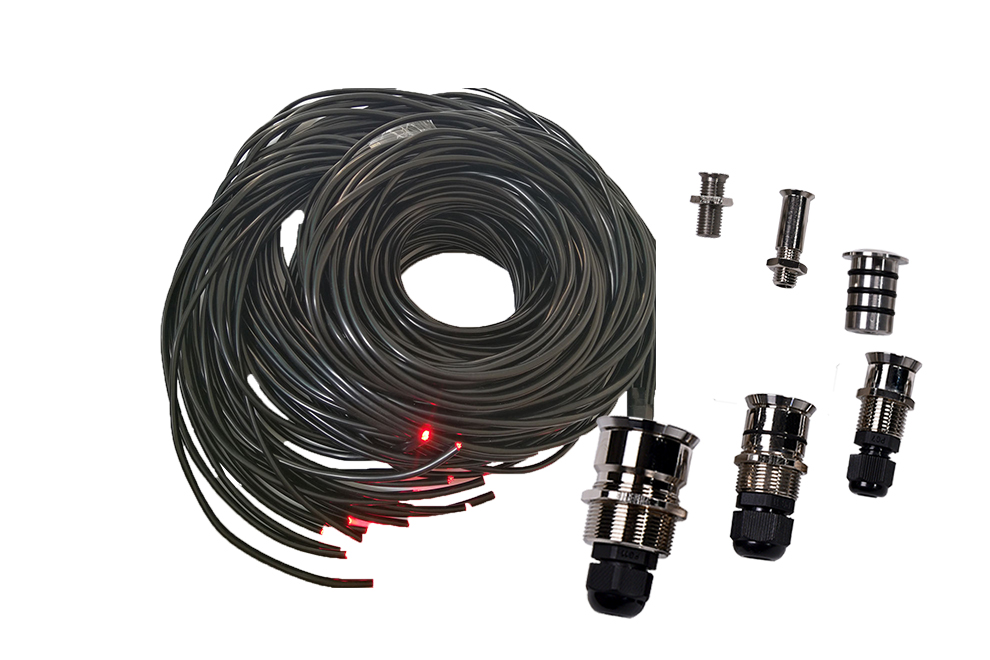

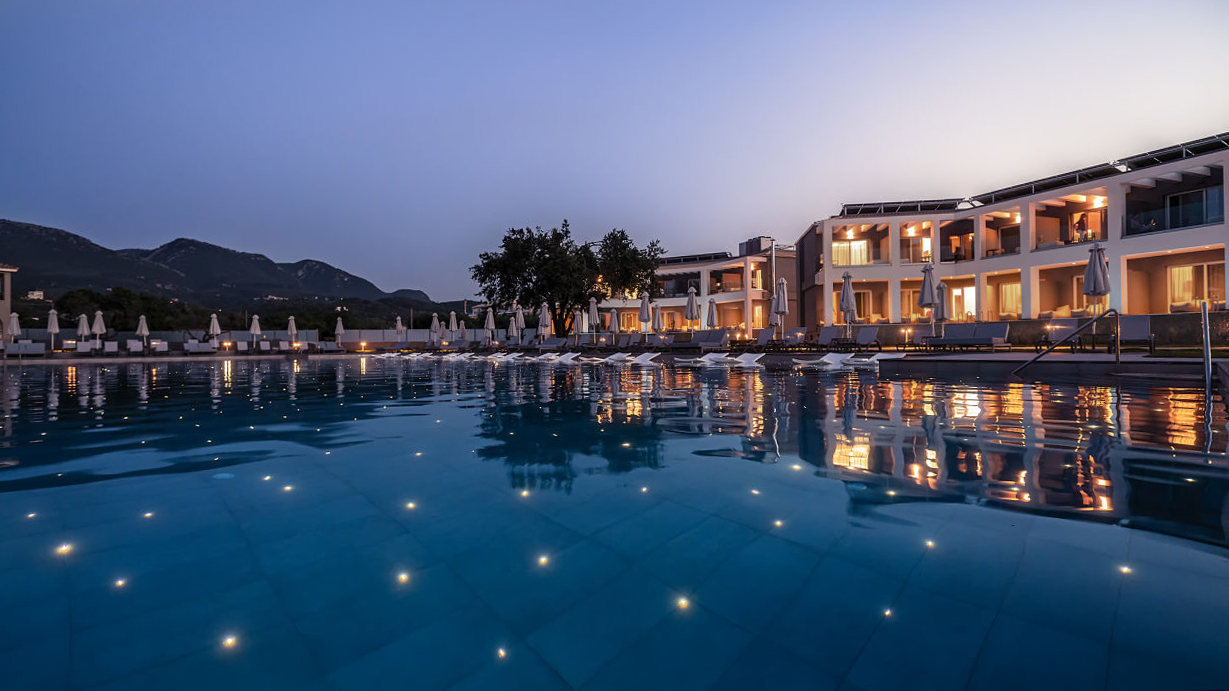

For wet area lighting, the end glow fiber cable with black PVC sheath and the buried end fittings are recommended for star effect.

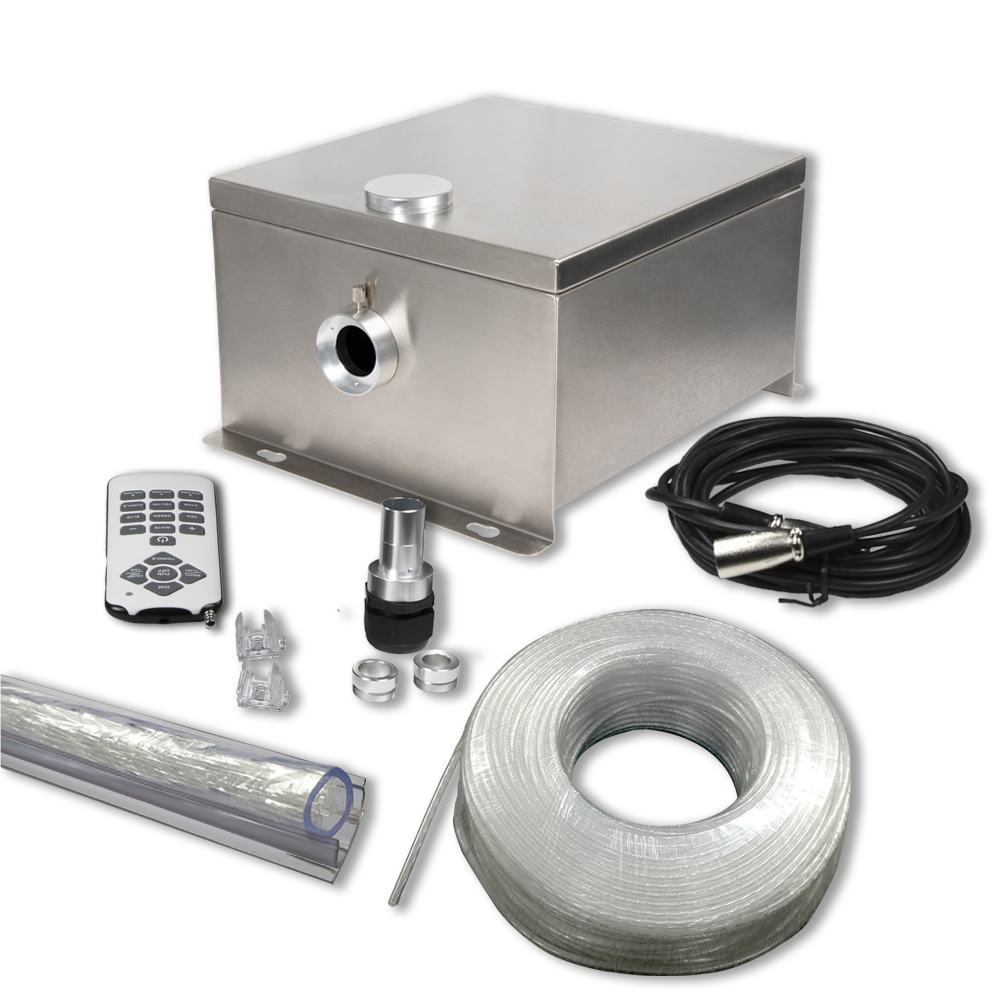

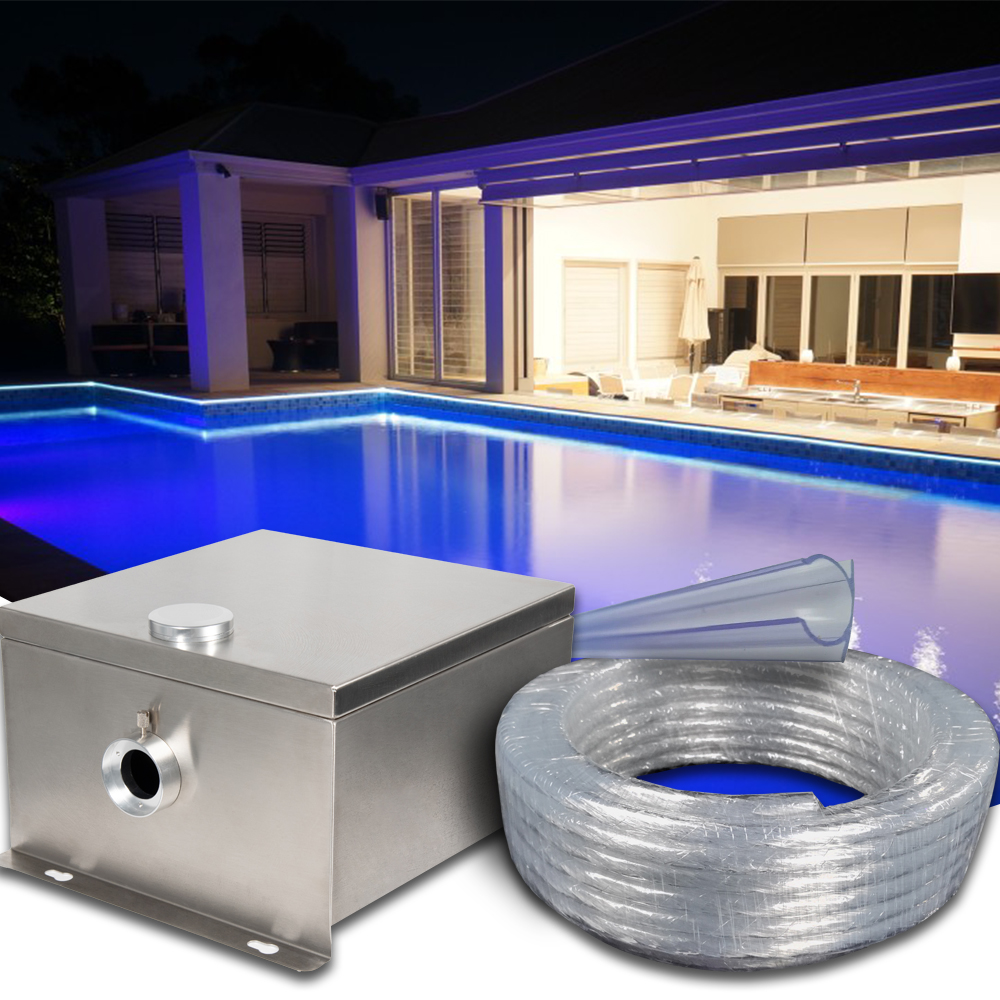

In the perimeter light, we also have the stranded side glow multi-string fiber cable and the PVC cable tracks.

Please refer to the fiber cable and end fittings on this website for details.
