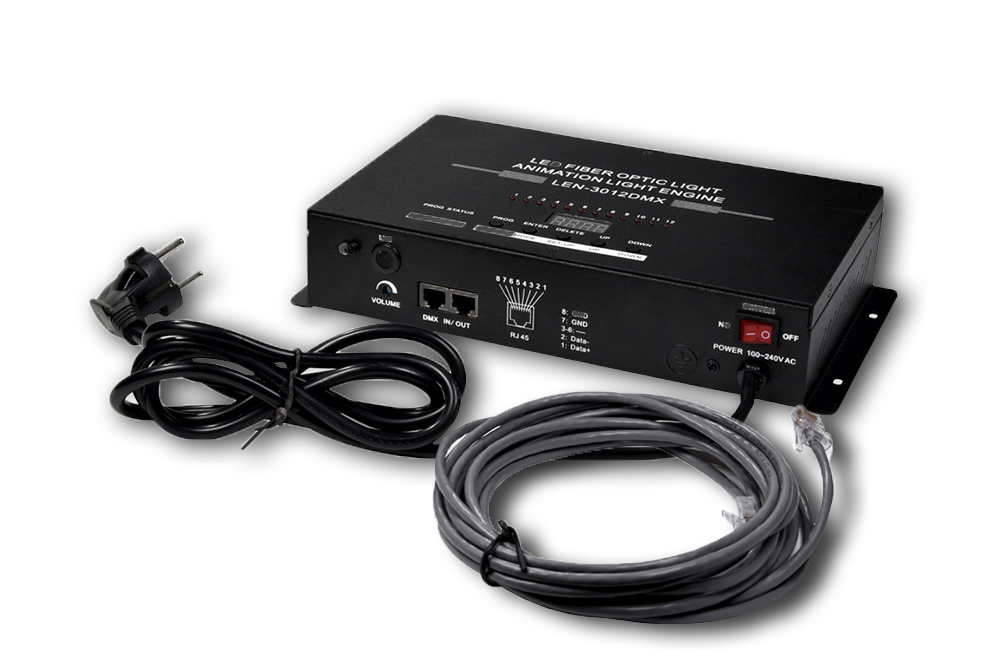

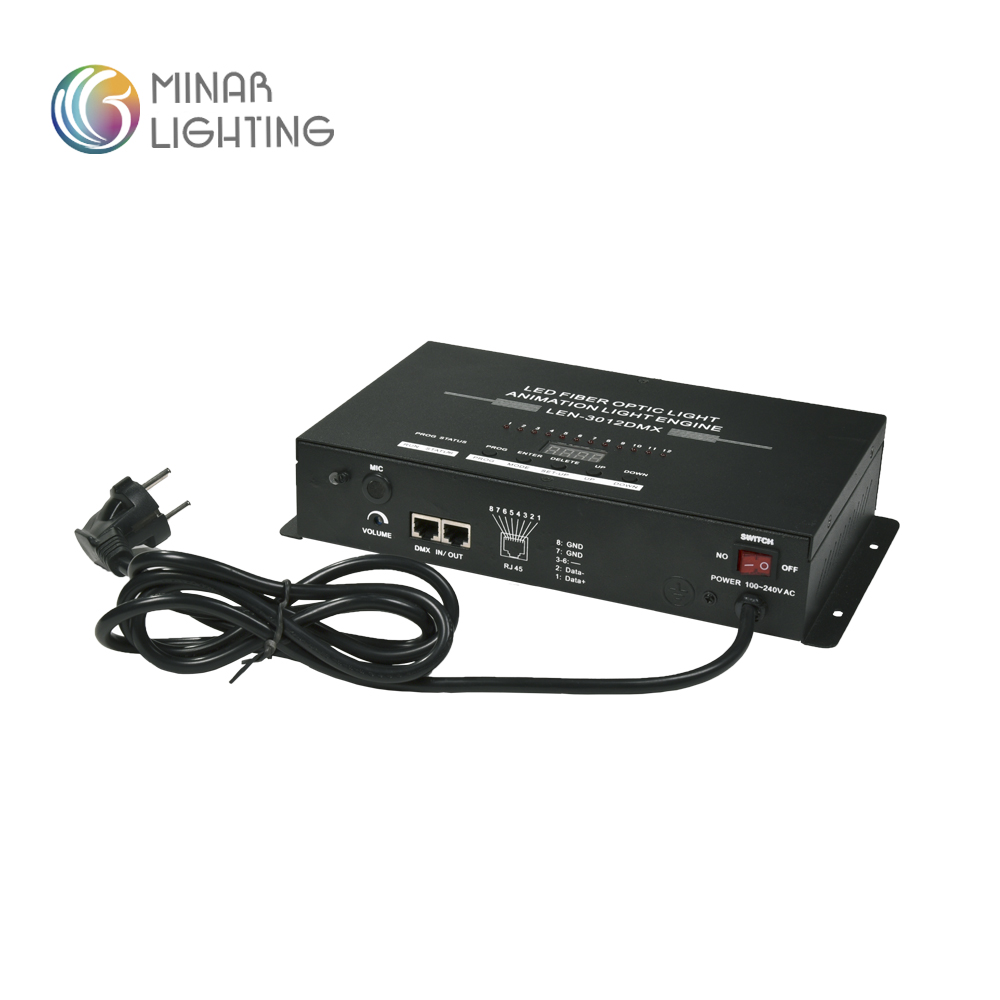

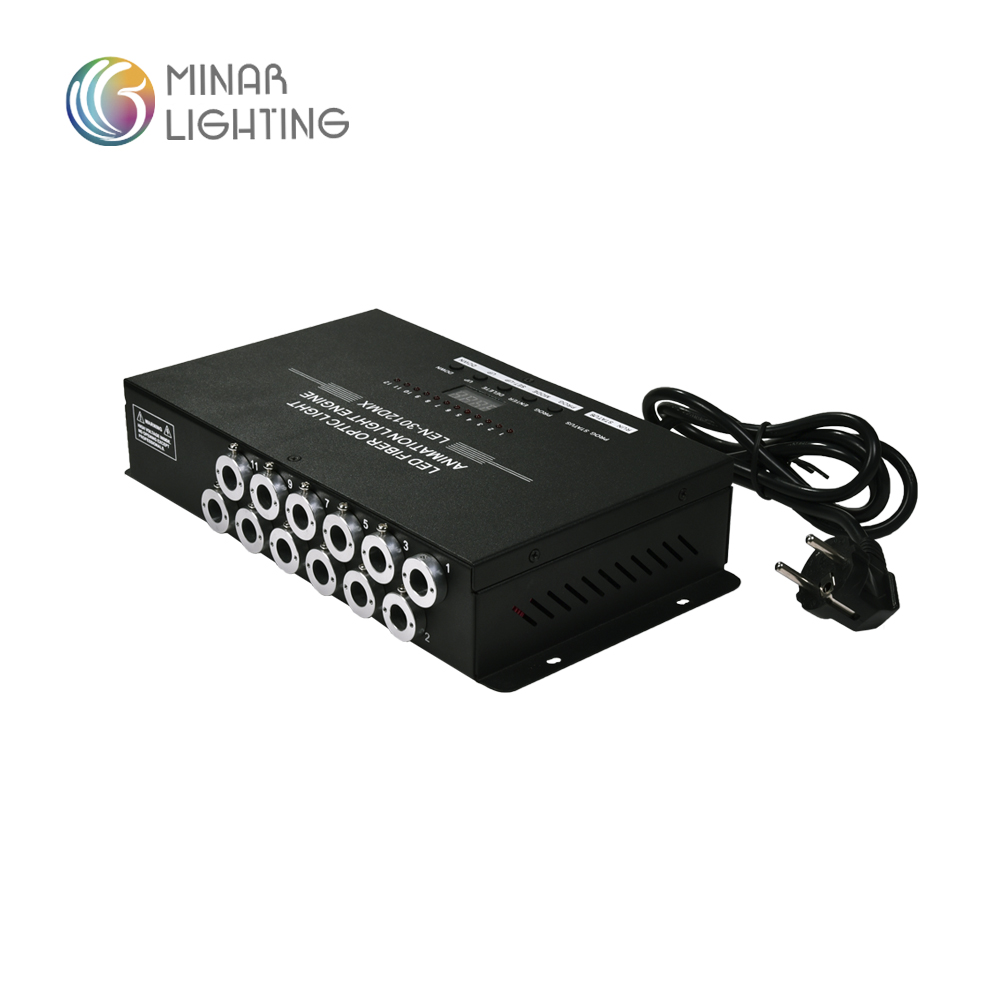

LEN-3012DMX/ANI

LEN-3012DMX is 12-port DMX512 animation light engine for special effects, such as the shooting star, firework, meteor, stars, etc. It is designed for large-scale animation effect with professional fiber optic light experience.

12-port Professional Animation Light Engine

General Information:

1. Model: LEN-3012DMX/ANI

2. Input Voltage: AC 100-240V,

3. Light Source: White light LED, 12pcs,

4. LED Type: 3W, 3000K/4000K/6000K,

5. Wheel/Disc: N/A,

6. Control: Remote control/Buttons and display/DMX512/Audio,

7. Light Emitting: White,

8. Dimmable,

9. No fans or motors, noise free,

10. DMX512 protocol: DMX512 console or master-slave control,

11. IP Rating: IP20,

12. Warranty: 2 Years,

13. Packing: Neutral export carton

- Programs and DMX Channels

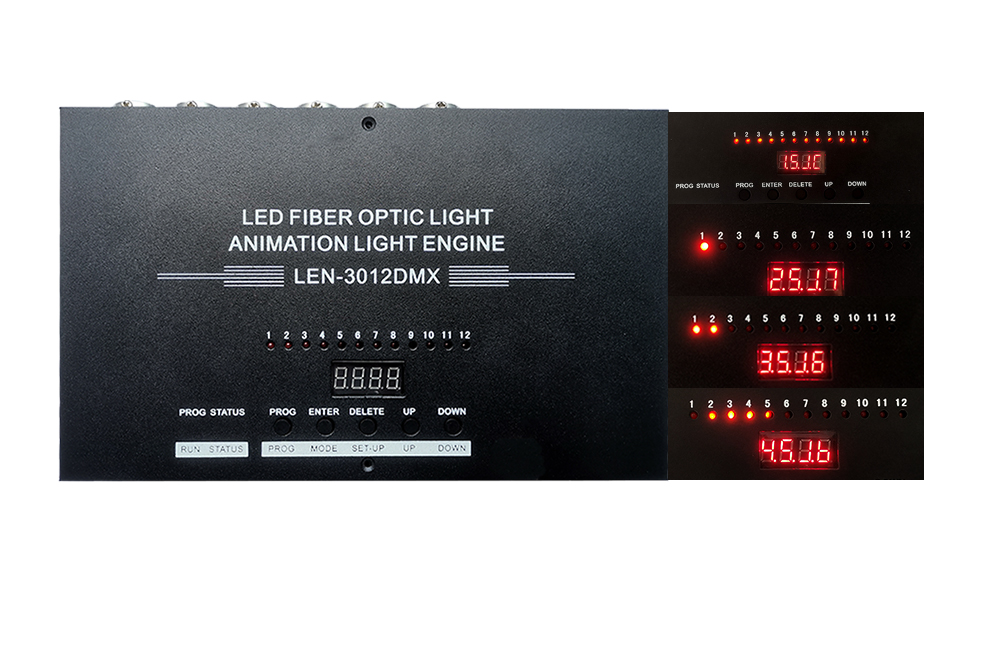

  The light engine has 13 built programs which could be realized by the buttons on the light engine. Each program could adjust its speed, interval period, brightness and the strobe frequency. Program C allows the clients to edit their own program.

  There are 5 DMX channel settings: 6CH, 8CH, 18CH, 48CH and 54CH.

  The light engine also has the music rhythm sync mode. Please check the User Manual for details.
- Master-Slave Control

  There are two operation modes in master-slave control.

  1. Multiple units could be connected in a group when all the slave machies runs the same program as that of the master.

  2. Upto 4 units could be connected in a group when the light engine runs a progressive mode.

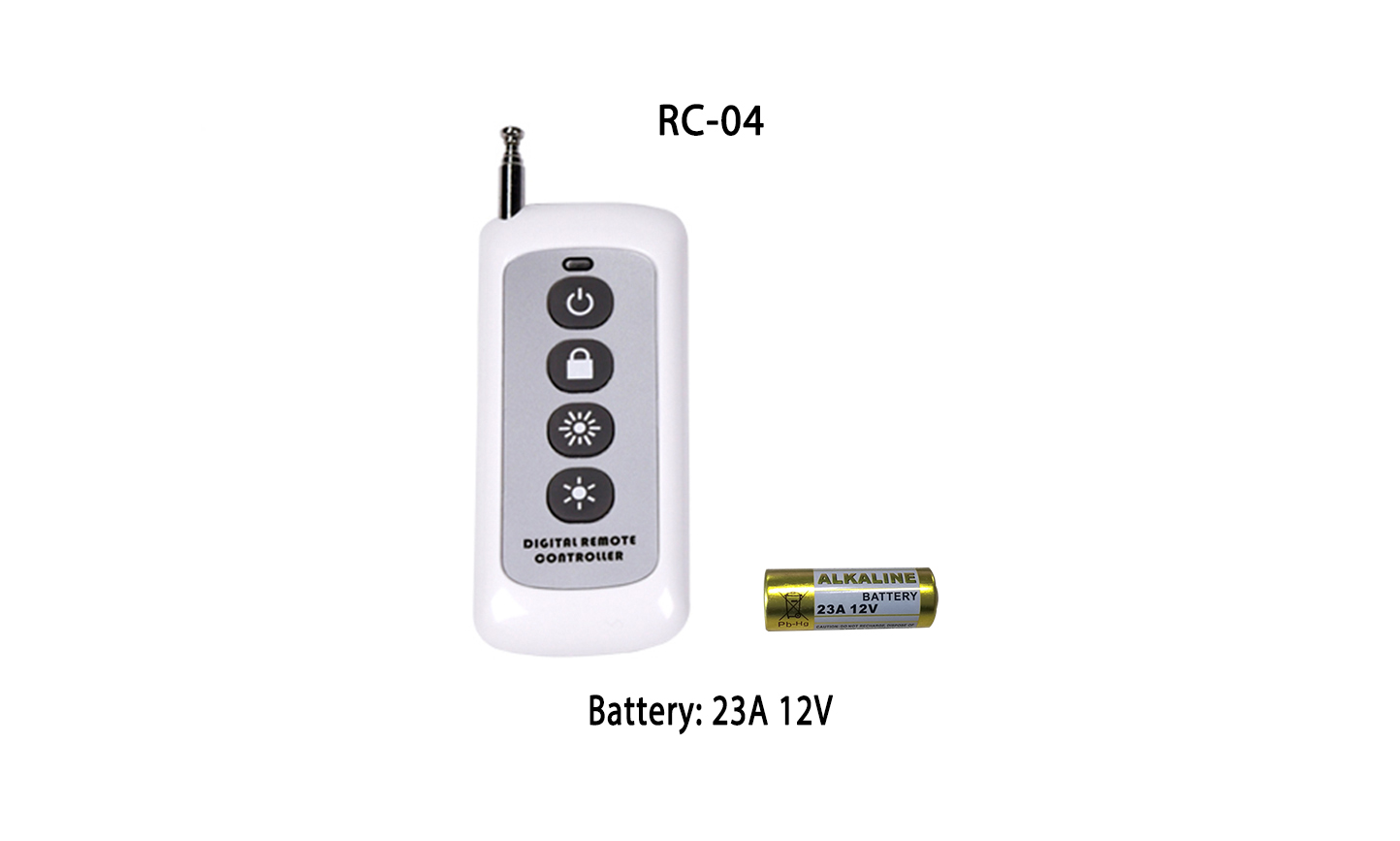

- 4-Key RF Remote Control

  The 4-key RF remote control has an effective control distance of around 25 metres in open area.

  The function of the 4-key remote control (Optional):
  1. Turn on the light engine,
  2. Turn off the light engine,
  3. Fix the emitting color,
  4. Dimming

  Battery: 23A 12V, 1pc (not included in the package)

SPECIFICATIONS

Specification:

Item Number

Standard

Aperture

Optional

Aperture

Maximum Fiber Capacity

(0.75mm fiber tails)

Housing

Material

Housing

Color

Dimension

(mm)

Optional

Remote Control

LEN-3012DMX/ANI

12-Φ6.2

N/A

50pcs/port

Aluminum

Black

L290XW157XH80

RC-04

Electrical parameters:

Input Voltage	Power Consumption
100V-240V ac	40W

LED Parameters:

LED Power	LED Color	Color Temperature	Colour Temperature Options	Luminous Flux/Port	Life Span
3W	White	6000K	3000K/4000K	300lm @ 6000K	50000h

Control:

1	Buttons + Display
2	Remote Control (optional)
3	Master-Slave
4	DMX512 Console

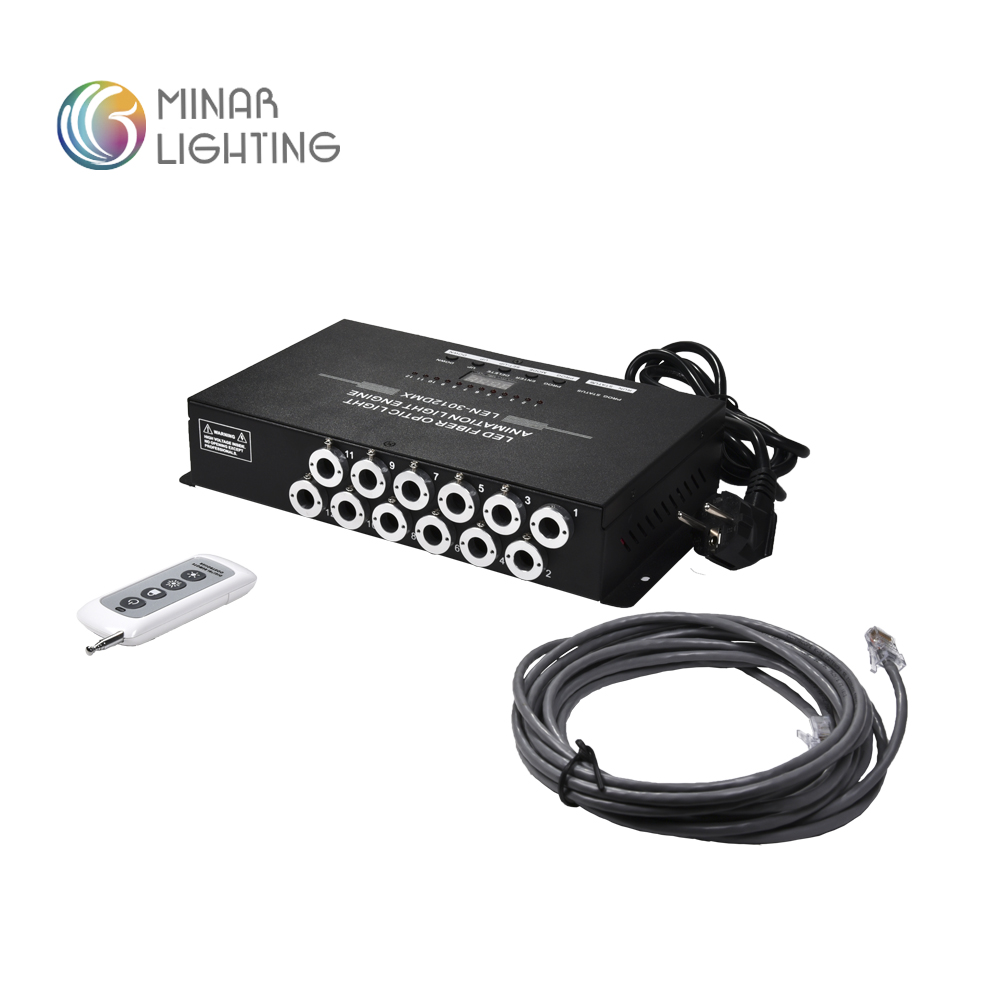

Spare Parts in the Package:

No.	Item	Quantity
1	Fiber Connector	12
2	DMX Singal Cable	1
3	Fuse	1

Optional Parts:

No.	Item
1	4-Key RF Remote Control

Video of Animation Demo

Animation By LEN-3012DMXANI.mp4
