LEA-1001/ANI

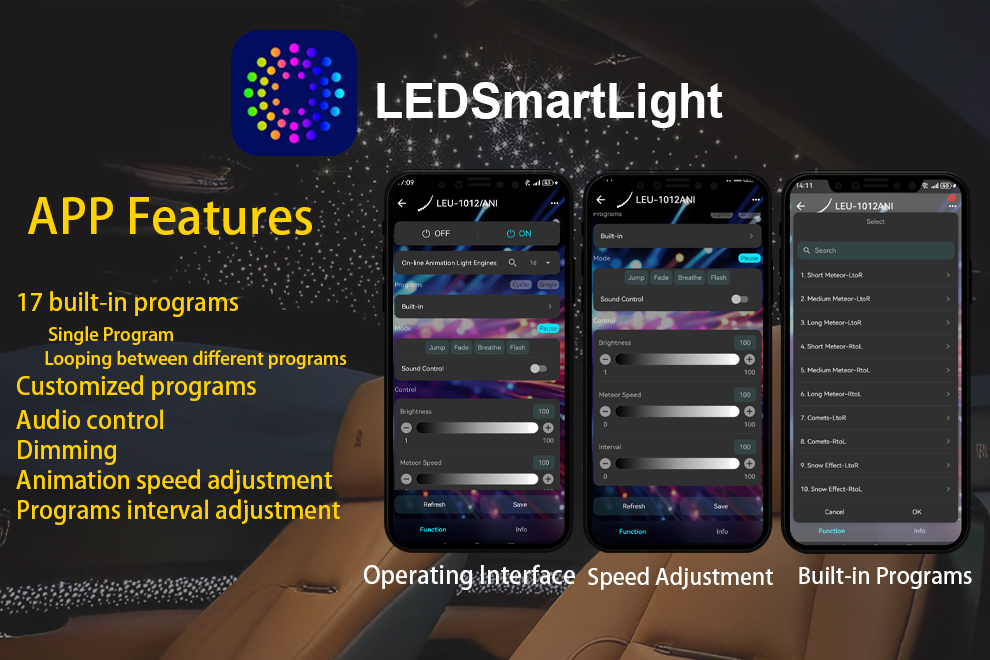

This light engine can be controlled by a mobile APP, LEDSmartLight, which can be downloaded from the Apple App Store or Google Play. The app can also be downloaded by scanning the left QR code.

This mobile APP is developed by Minar Illumination and is different from the existing ones in the market. It features easy operation.

The APP's main functions:
* Static and cycling colors
* Built-in programs
* Customized effects - Colors Jump/Breathe/Flash/Fading
* Audio control
* Dimming
* Color-change speed adjustment
* Twinkle wheel speed adjustment

Remarks: 1. The control interface will not show up until the APP has connected to a light engine via Bluetooth. 2. Color customization is for light engines of RGBW models only.

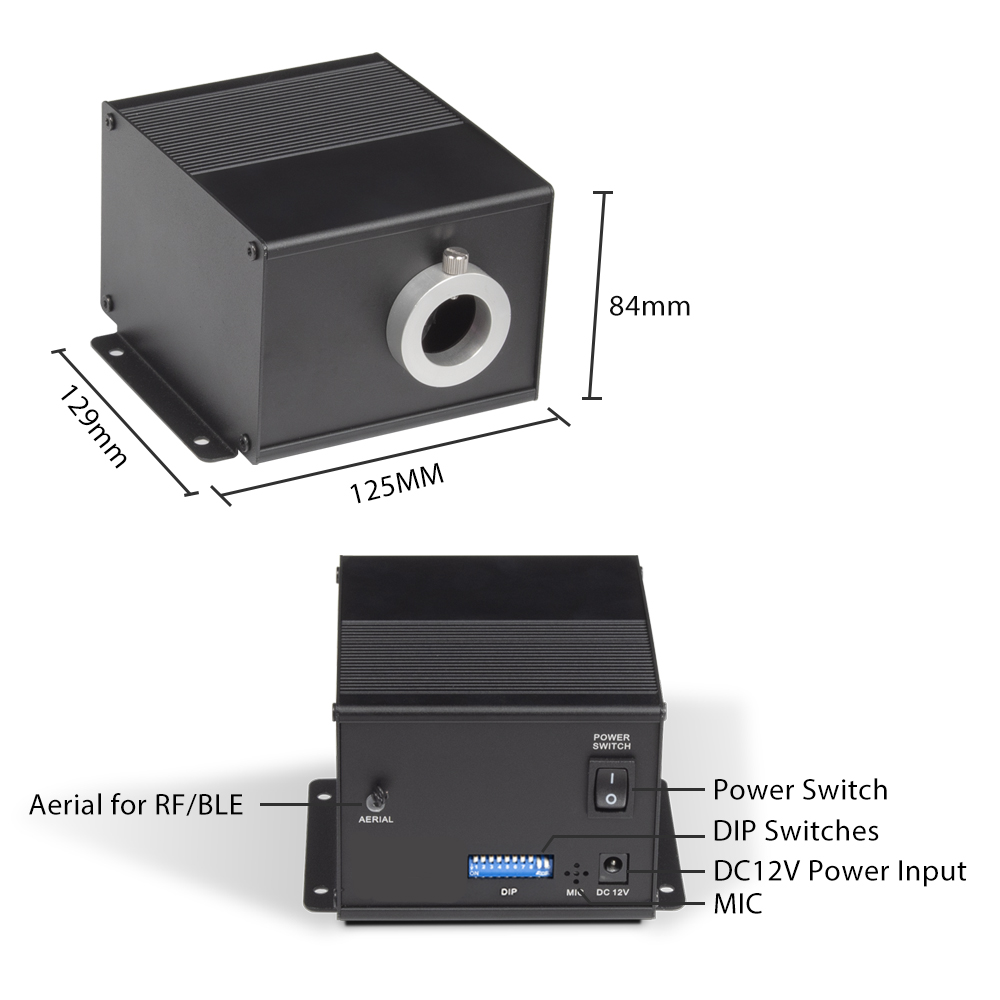

New Housing in May 2025 for new features.

New Features:

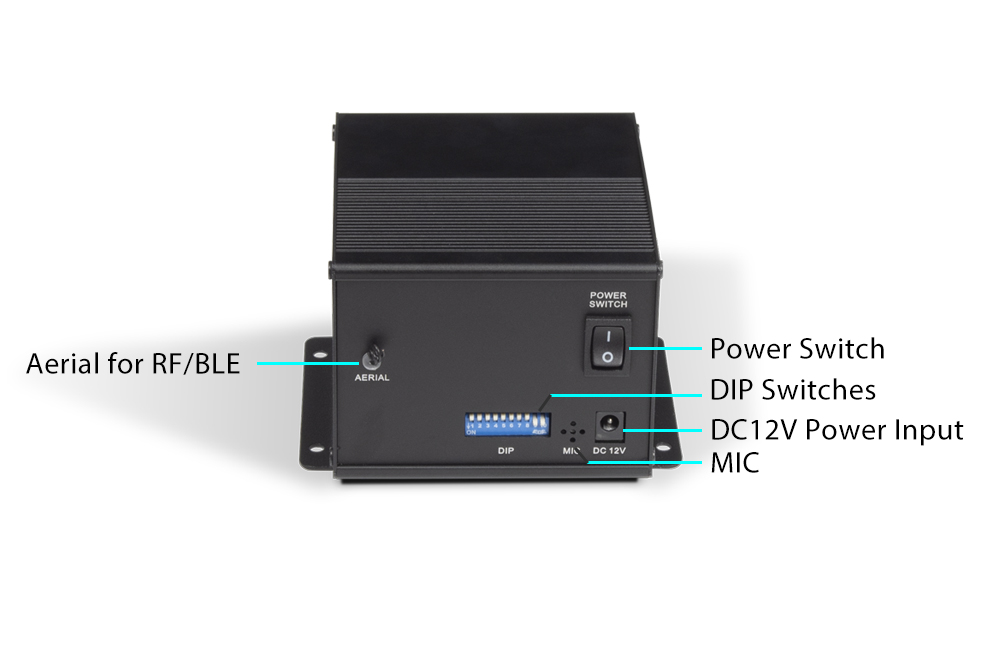

1. DIP switches are moved to the back panel.
2. DIP switches have been improved to 10 switches.
3. A microphone is added to the back panel.

Functions Cancelled in the New Housing:
The onboard dimmer. The dimming function can be realised by a remote control.

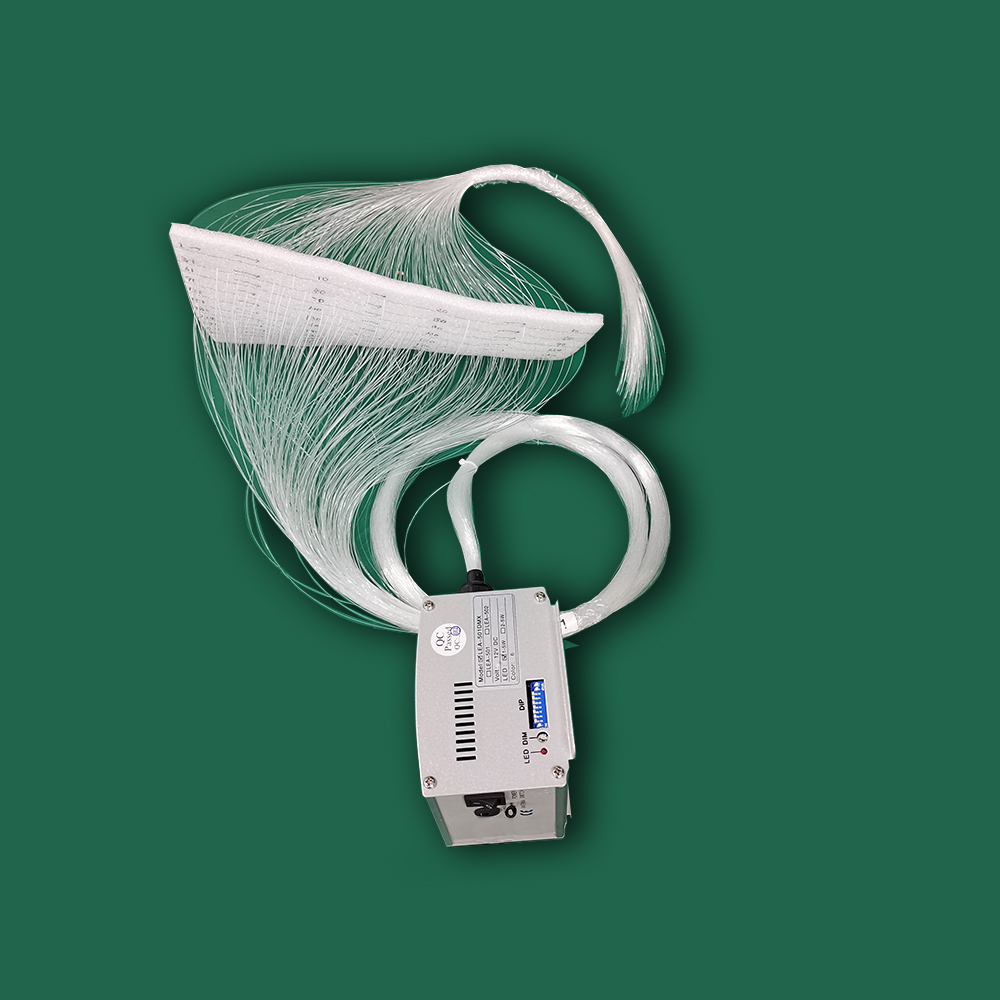

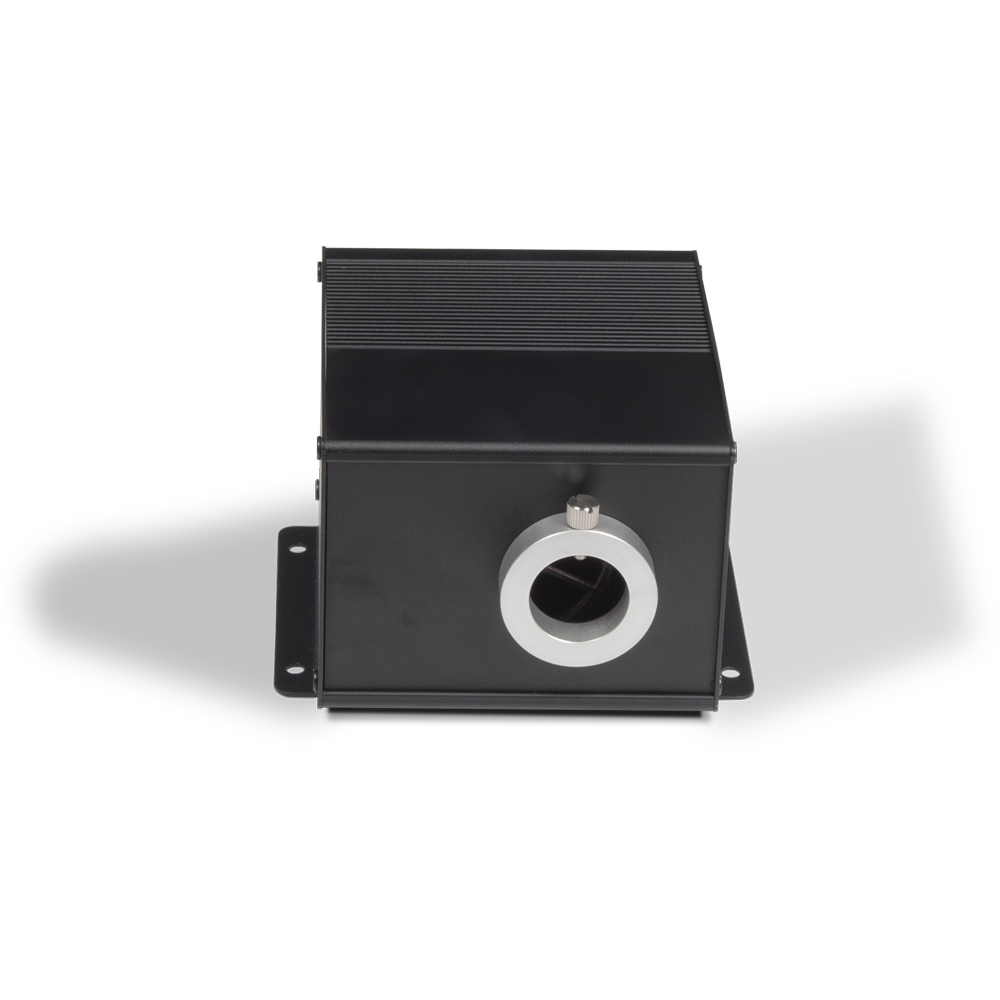

This light engine is specially designed for animation effects, such as shooting stars and fireworks. This light source engine is always equipped with an inseparable fiber optic bundle.

IMPORTANT: Do not move or disassemble the fiber connector/comment end on the light engine.

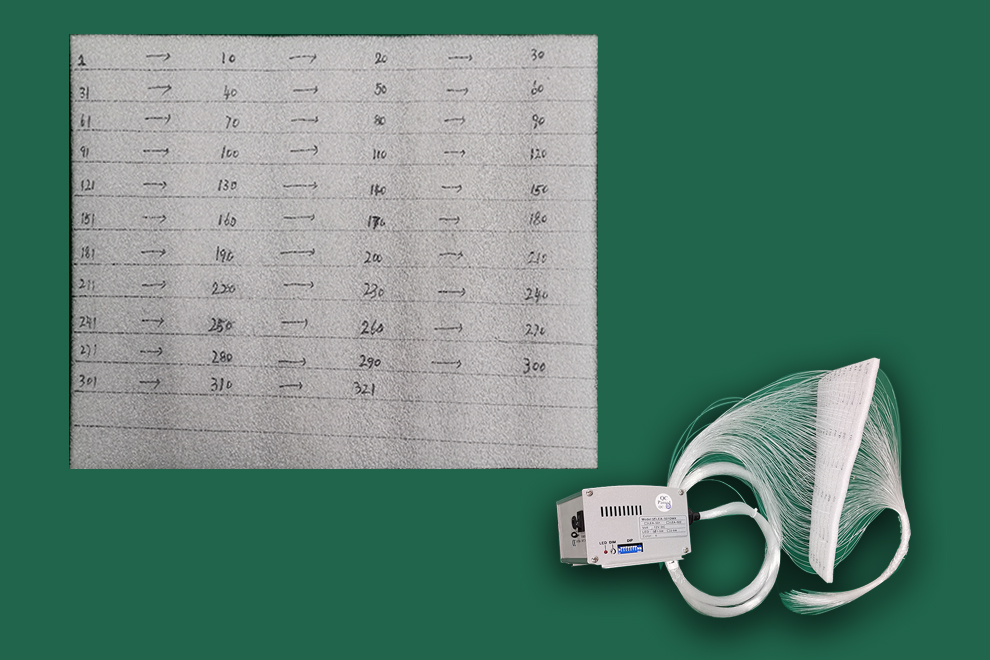

The fiber strands within the bundle are already numbered sequentially as 1, 2, ..., and finally the last one in the workshop. Fiber numbering is used to determine the installation sequence of optical fibers on the ceiling.

IMPORTANT: Incorrect fiber installation sequence on ceilings will result in a failed meteor.

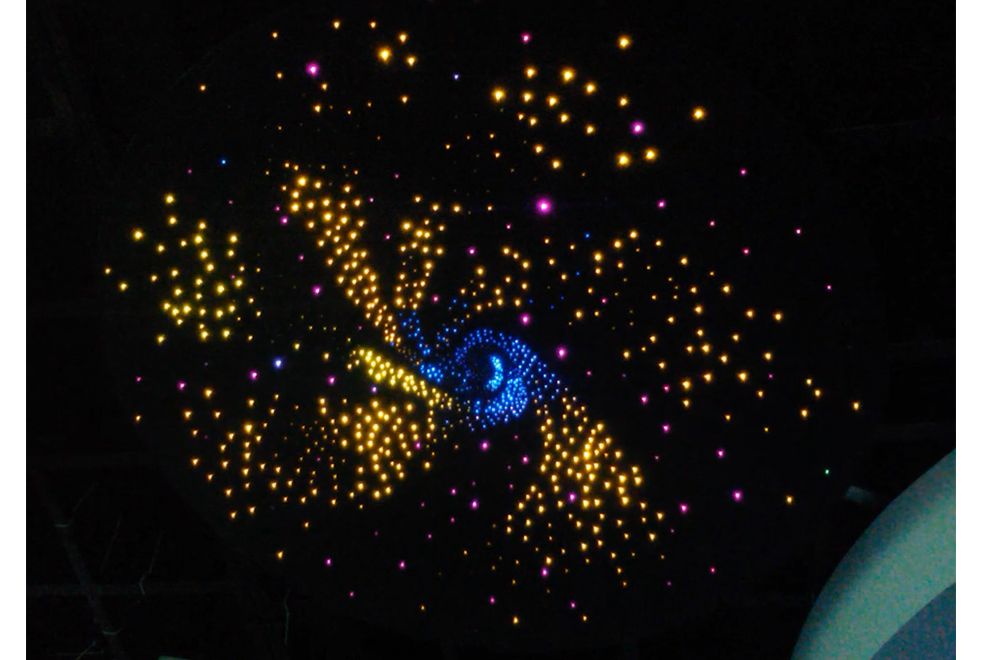

The animation light engine also has a DMX model. 6 units of the DMX version of the animation light engines are applied to complete this 6-leaf Nebula. Each leaf will have cycling colors with the stars lighting from the center to the edge. And 6 leaves will light in turn with the same or different colors.

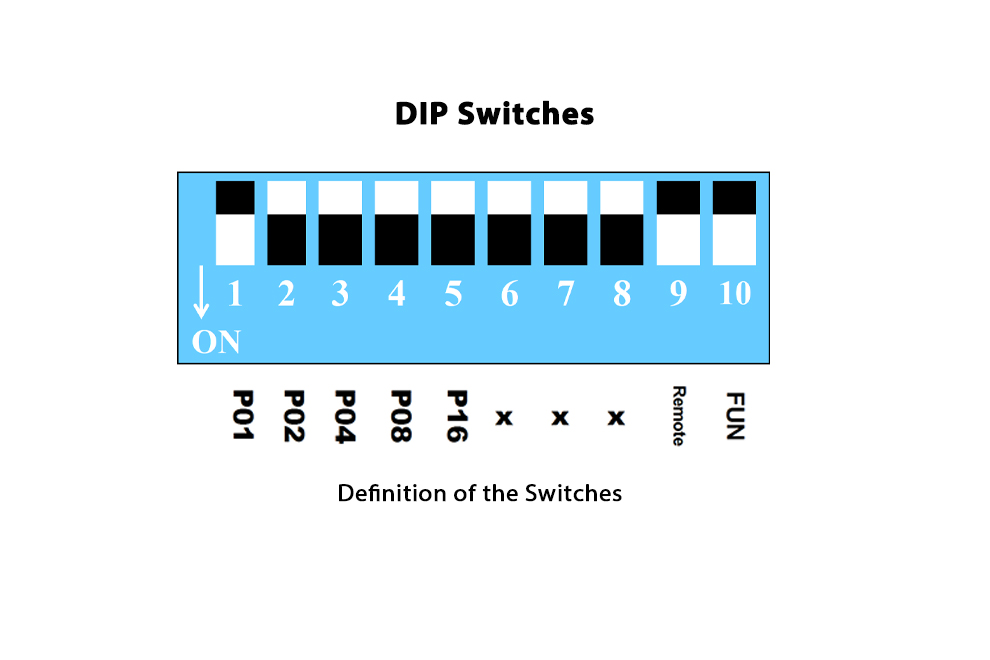

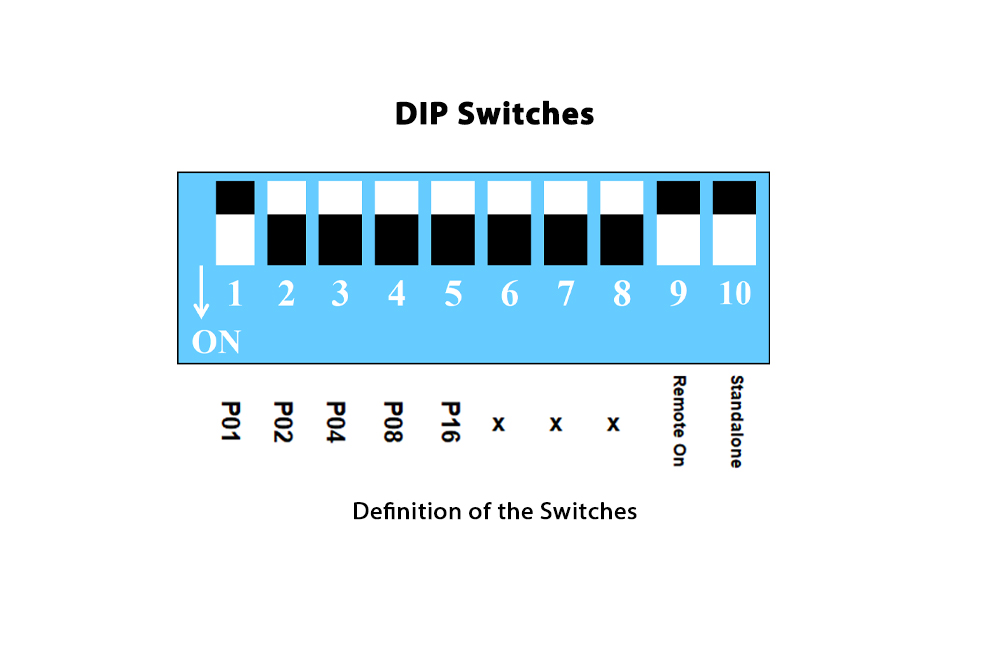

The DIP Switches on the light engines are applied to control the following:
1. SW10: To activate the light engine,
2. SW9: On/off for the remote control and Bluetooth for the APP control function,
3. SW1-5: Built-in programs,
4. SW6-8: Invalid

The current setting of the DIP switches means that the light engine runs Program 1, and the remote control/APP function is ON.

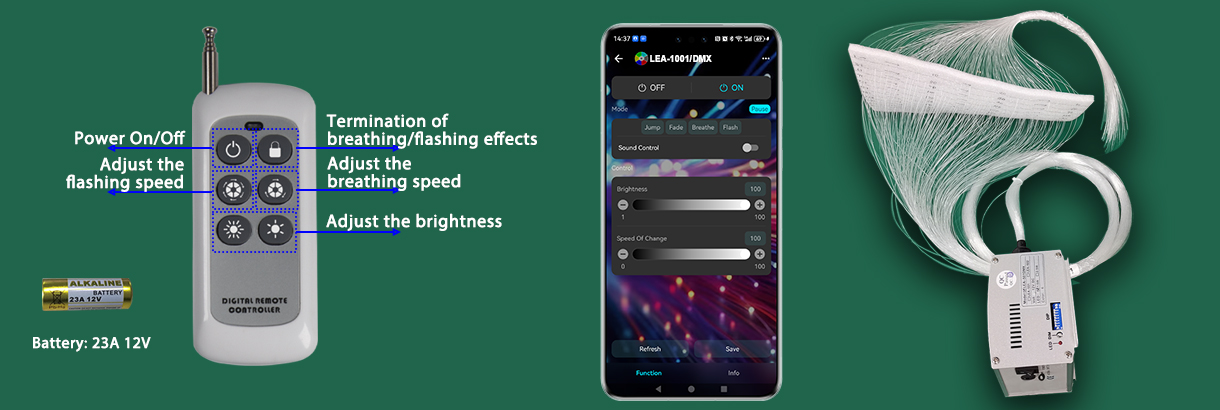

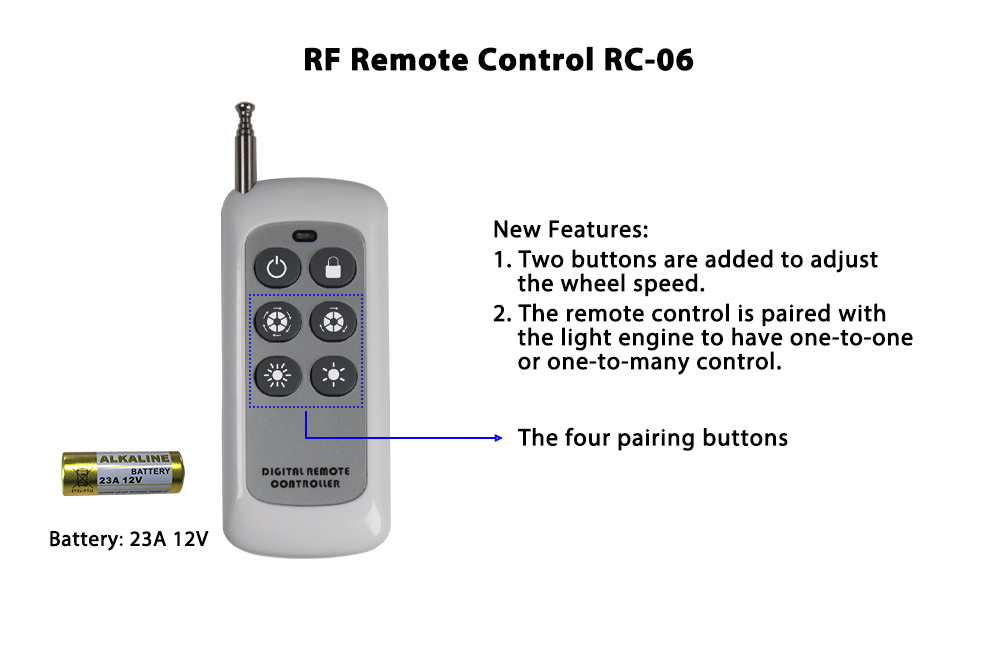

A new 6-button remote control has been applied with the following functions:
1. Turn on/off the light engine,
2. Fix the emitting colour by stopping the wheel,
3. Adjust the wheel speed,
4. Dimming.
5. Pair with the light engine to enable one-to-one or one-to-many control.

Remarks:
1. Control distance: 25 meters in an open area.
2. Battery: 23A 12V, 1pc (not included in the package).
