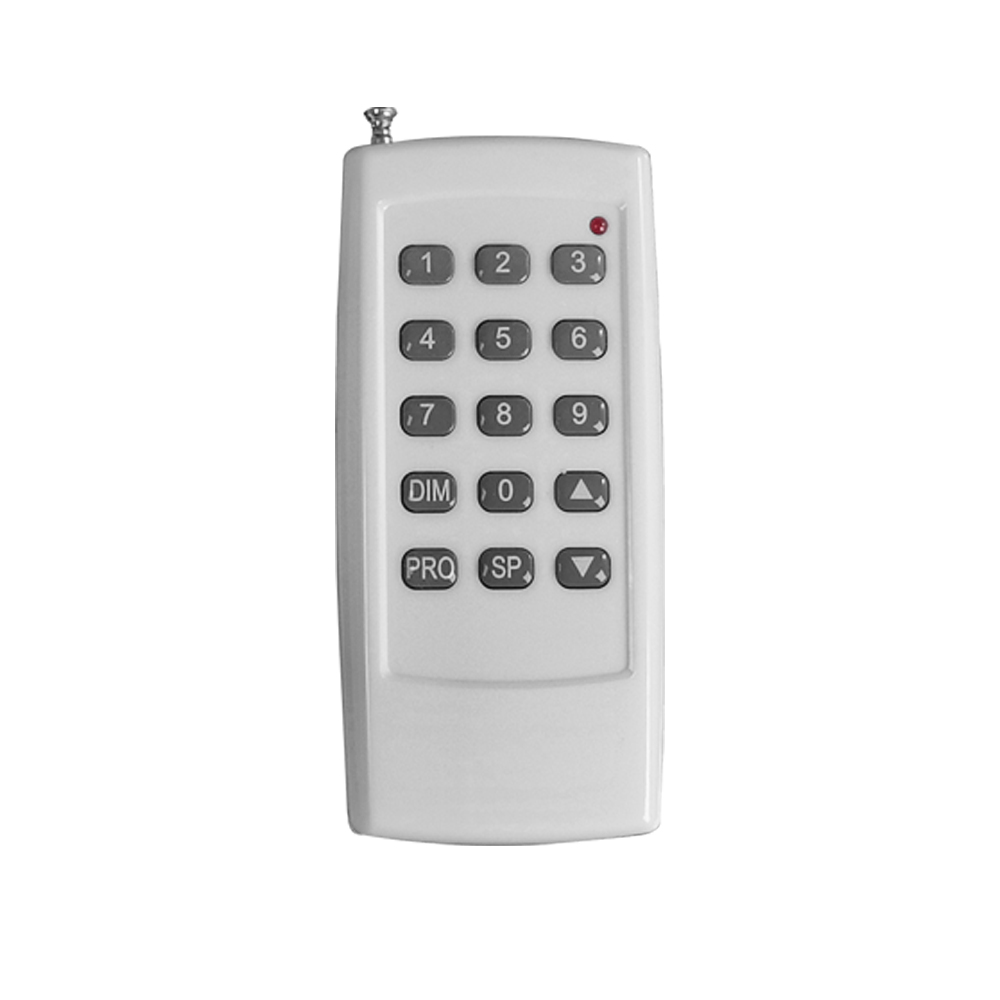

RC-15

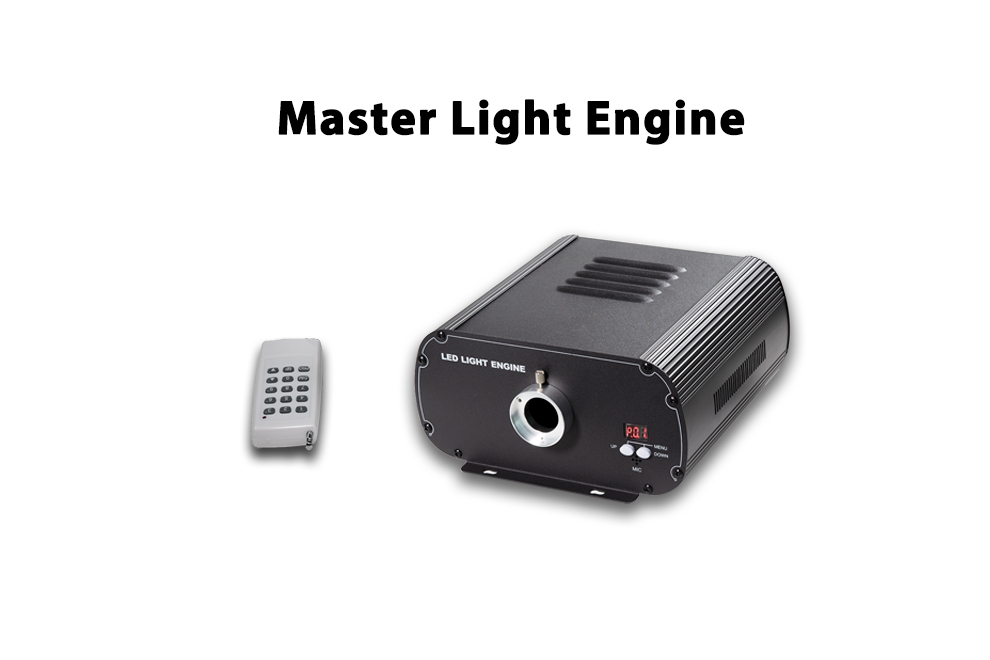

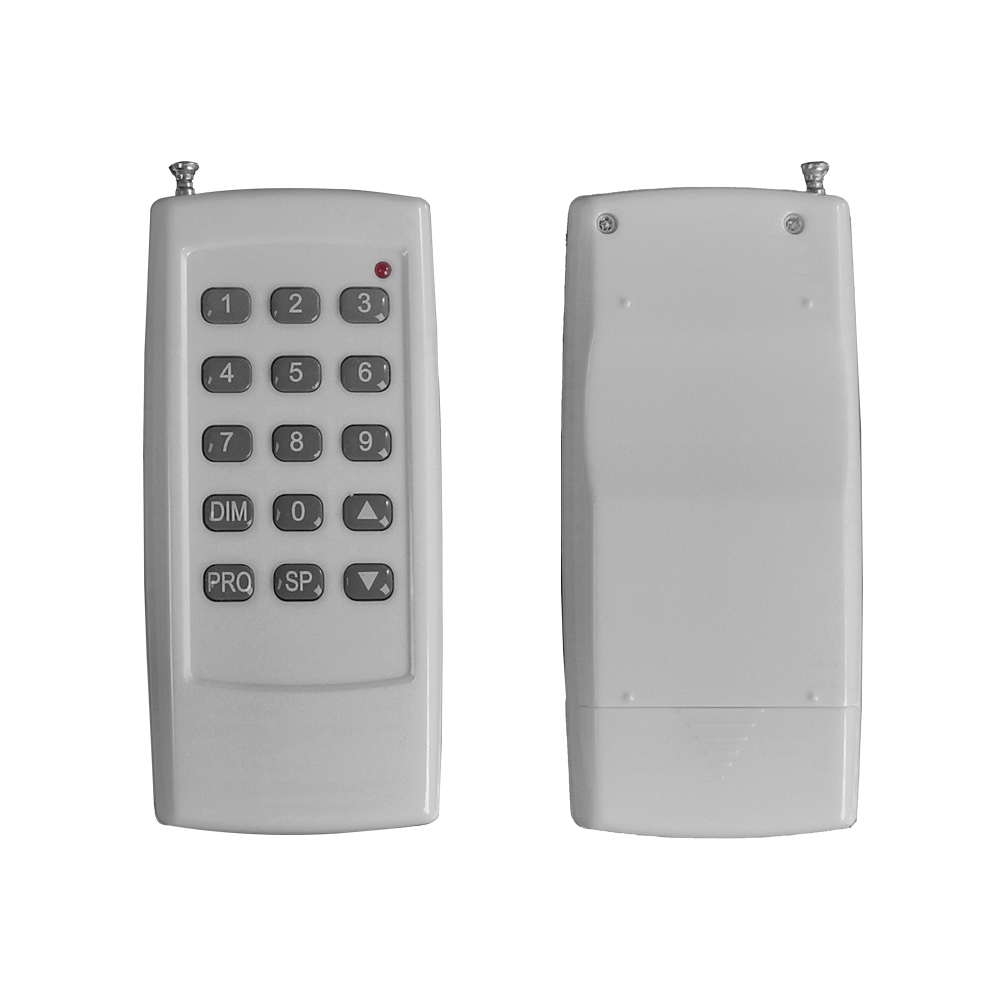

The 15-key remote control, RC-15, only works on the Master light engine.

A DMX512 light engine will always function as a master light engine when operating standalone. In the Master-slave control mode for a group of the same models of DMX light engines, one unit will function as the master, and all the others will operate as slave light engines. Please refer to the User Manual for DMX512 master light engine set-up.

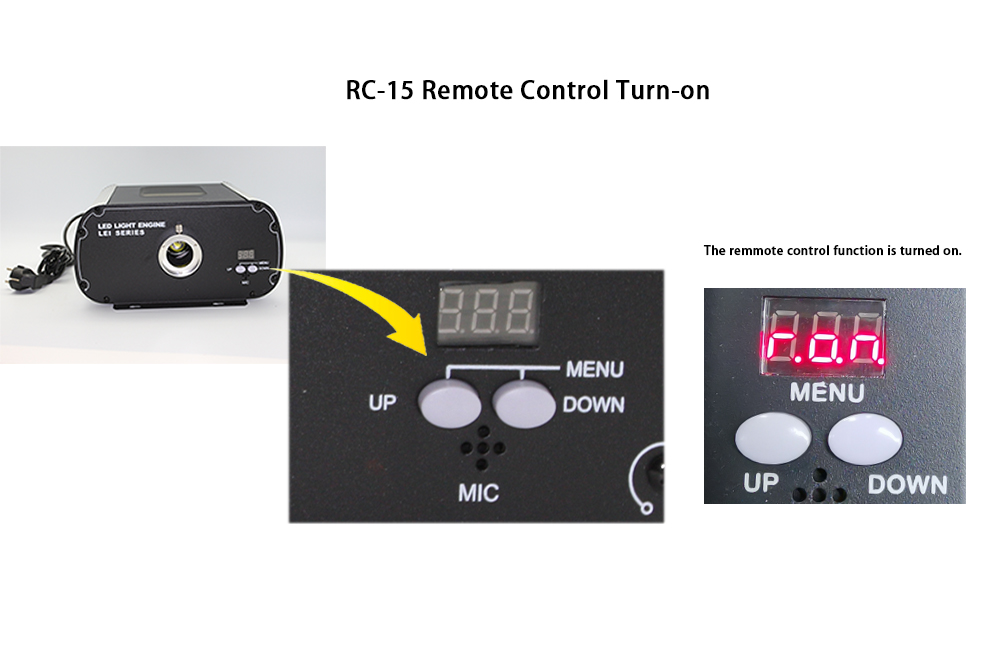

Different light engines have different ways to turn on the remote control function. For line-voltage DMX512 light engines, please operate the digital display to turn on and off the remote control function.

Please refer to the User Manual of the light engine for the remote control setup.

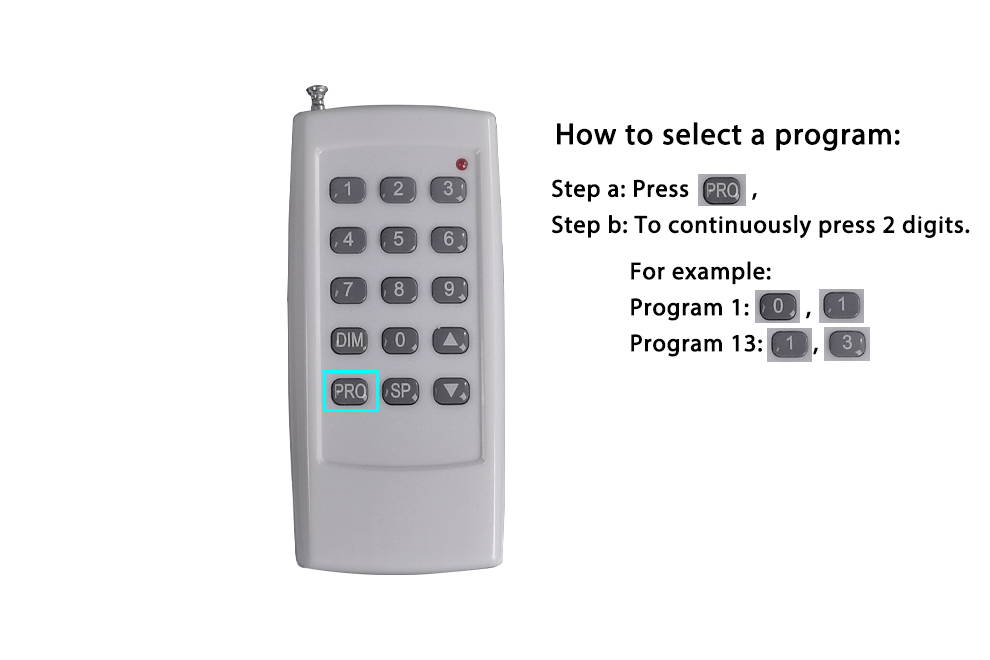

Please follow the steps to select a program on RC-15:
1. Read the User Manual of the light engine and find the number of the built-in programs.
2. Press the button "PRO" on the remote control,
3. Continuously press 2 digits on the remote control. For example, "01", the light engine will emit white color. Please note that the number made of these 2 digits should be no greater than the number of built-in programs.
4. You can also use the arrow buttons on the remote control to scroll.

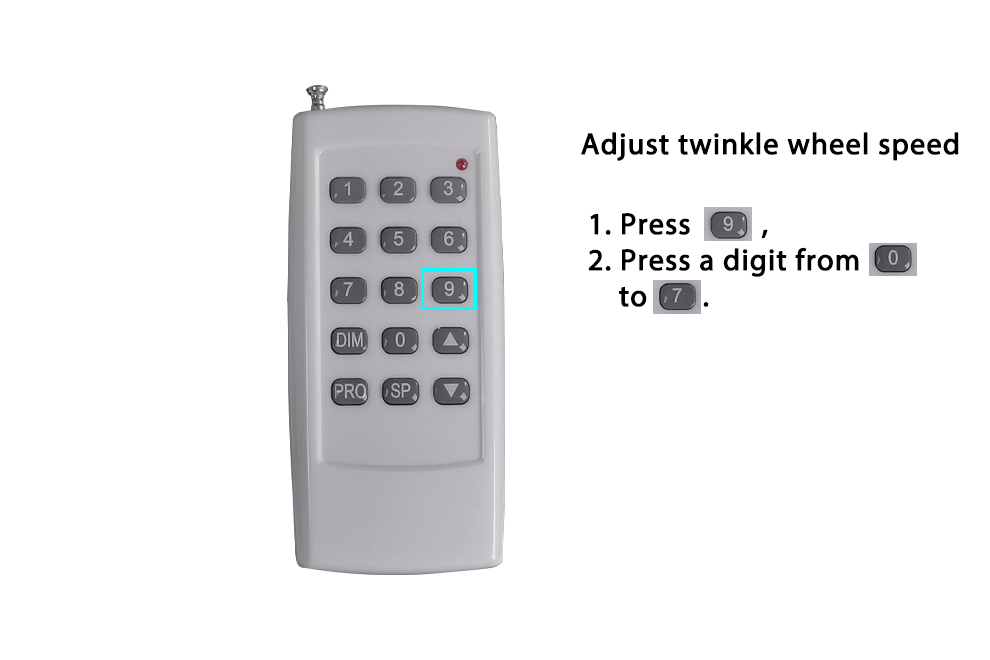

The following light engines have a twinkle wheel by default. Press the digit "9" and then press a digit between "0"-"7" can have a different twinkle wheel speed.

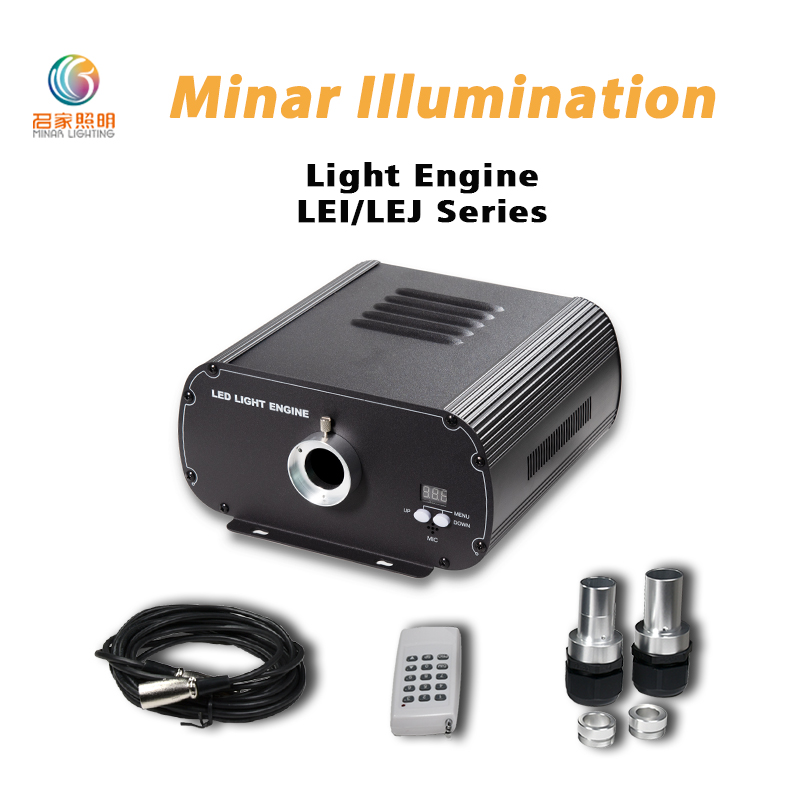

LEI-4121DMX/LEI-4241DMX/LEI-4361DMX
LEJ-4001DMX/LEJ-8001DMX
including their corresponding weather-proof models

For LER-4121DMX, the digit "9" stands for the flashing speed.

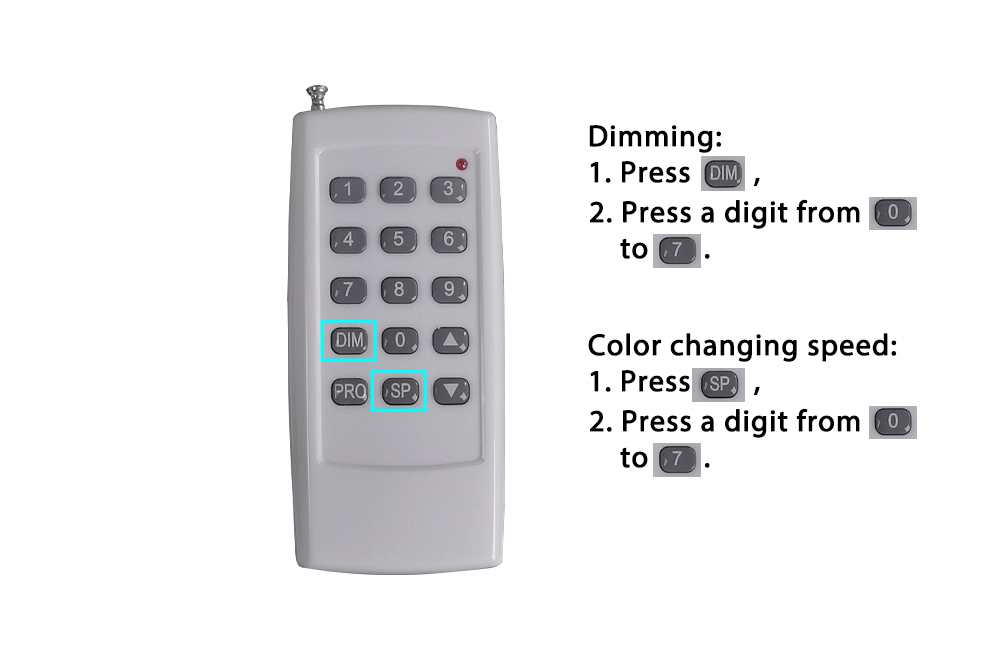

Dimming: Press the key "DIM", then press a digit from "0"-"7".

Color Changing Speed: Press the key "SP", then press a digit from "0"-"7".

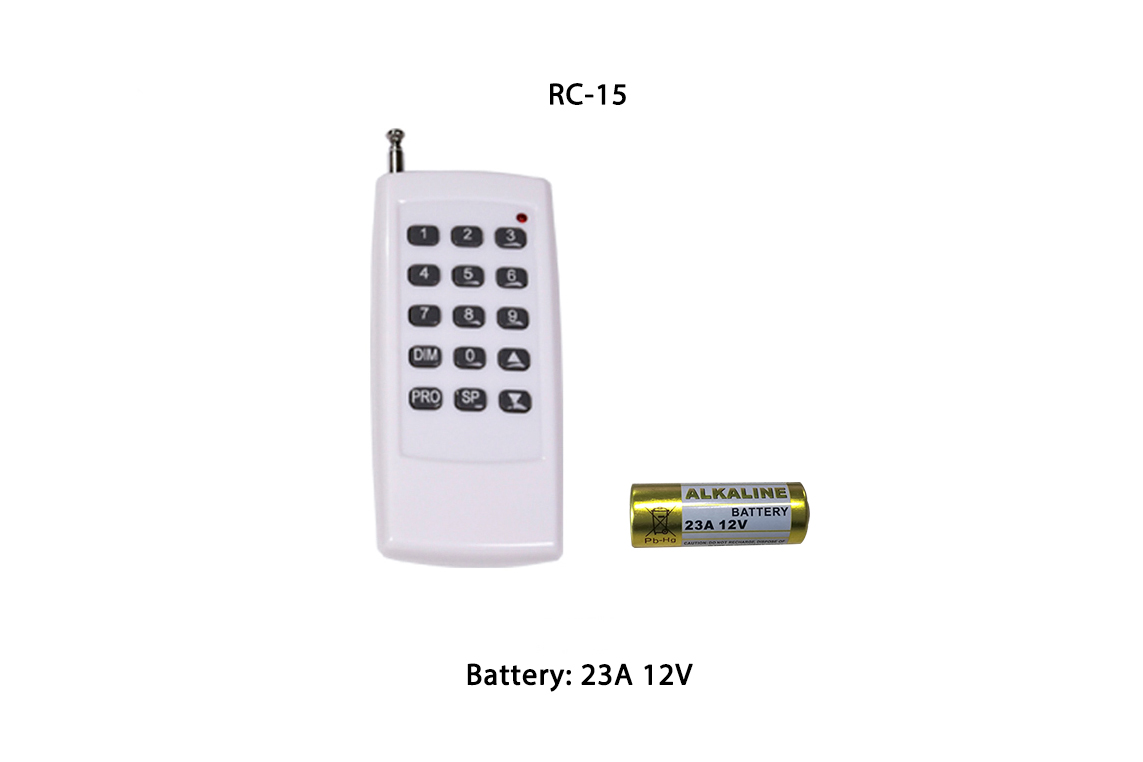

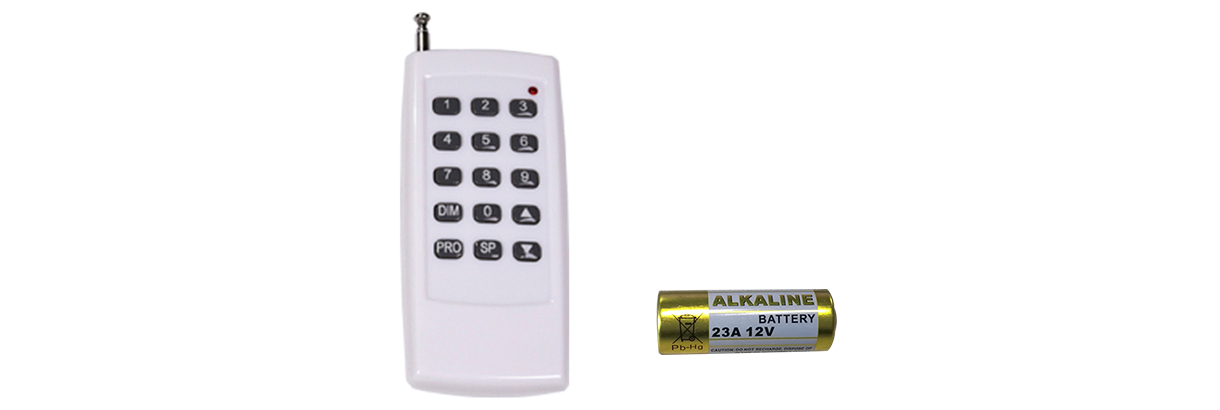

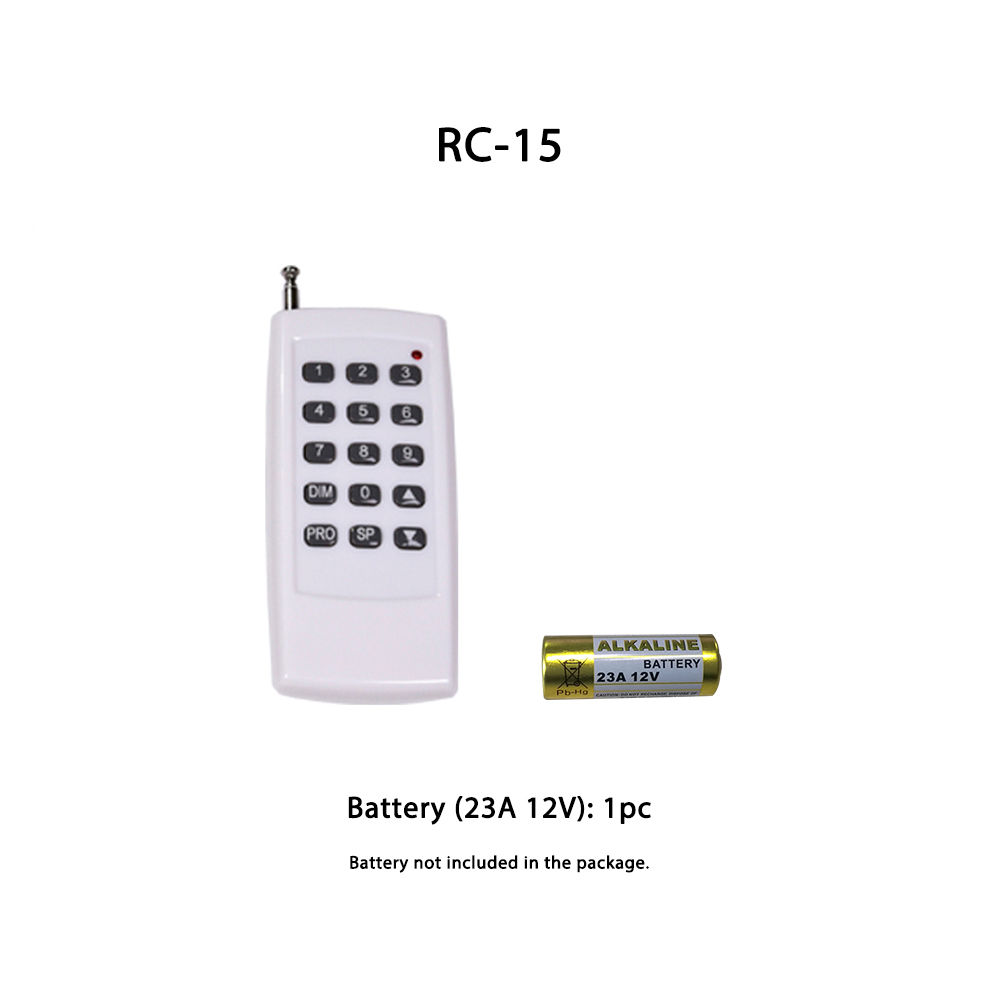

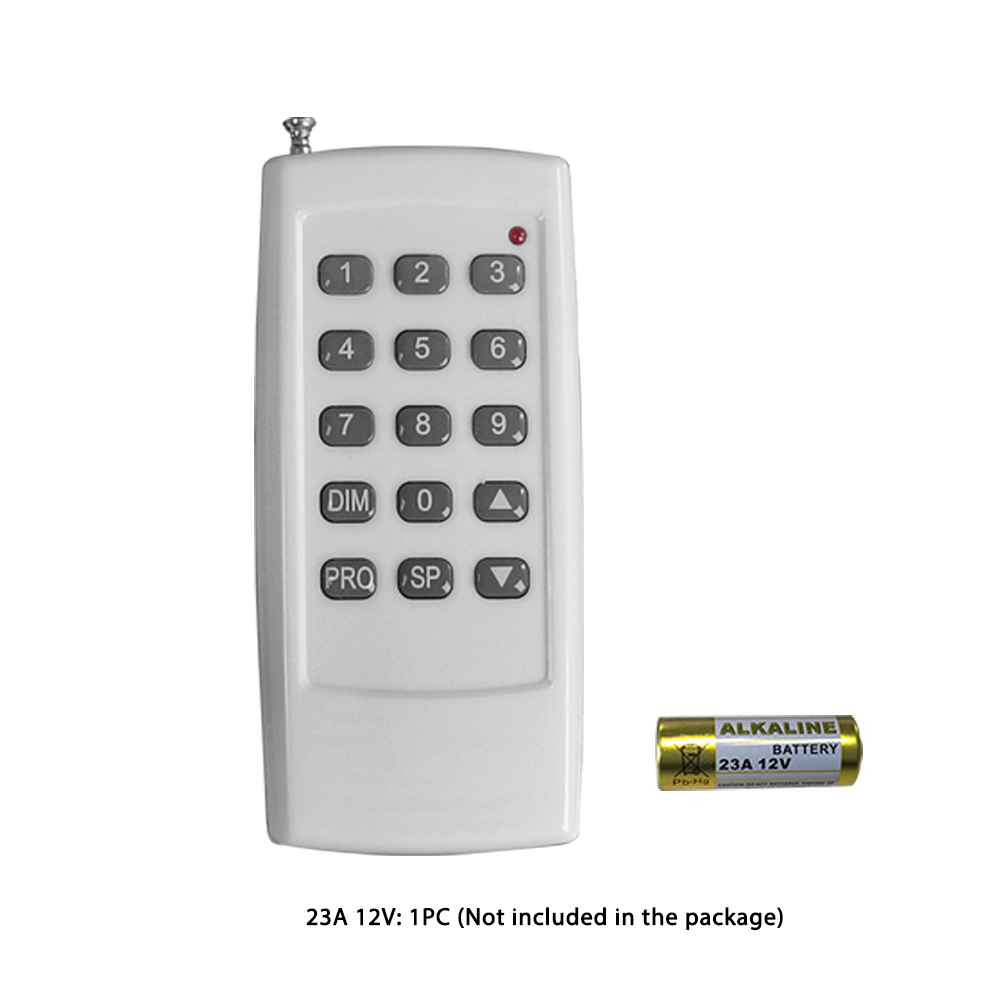

One piece of the battery is needed to operate the remote control.

Battery model: 23A 12V

The battery is not included in the remote control for all shipments from Minar Illumination.
