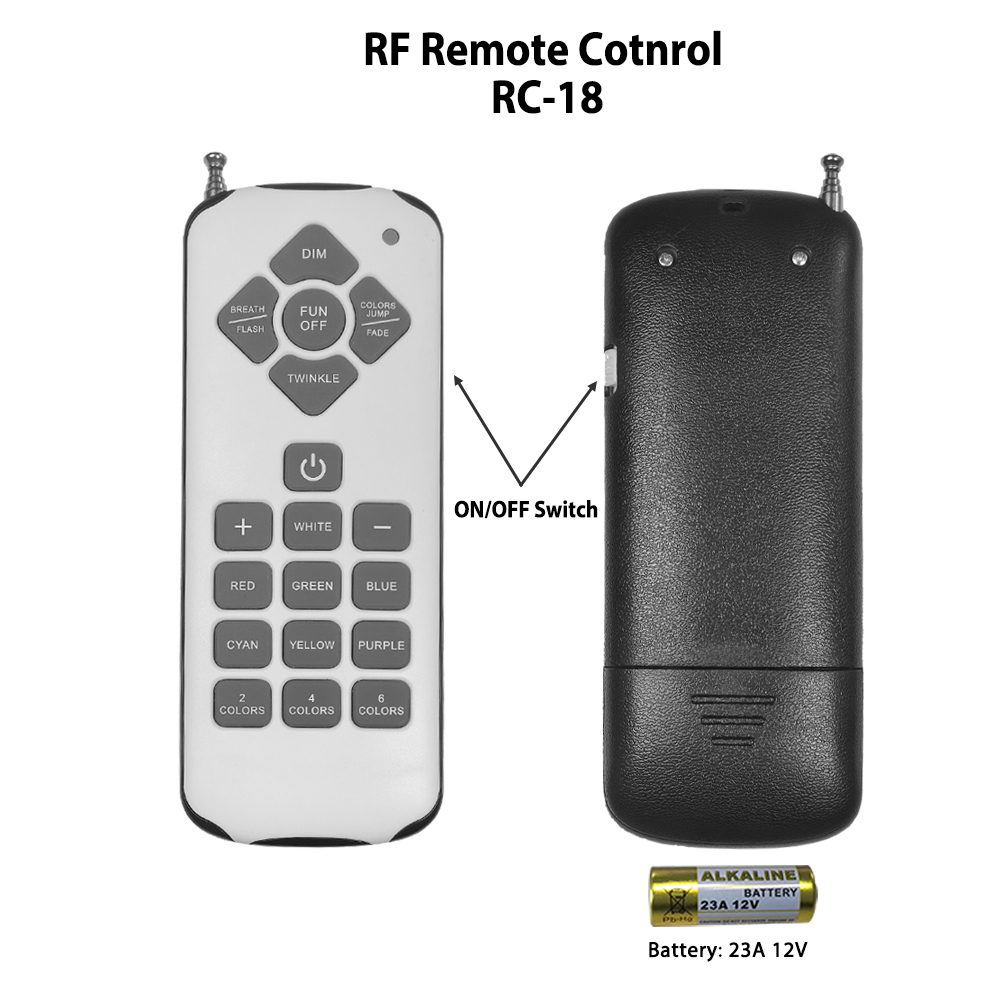

Specification:
| Item Number | Number of Keys | Type | Frequency | Battery | Dimensions | Net Weight |
| RC-18 | 18 | RF | 433MHz | 23A 12V, 1pc | L140XW52XH16mm | 70g |
Control Distance: 15 meters in an open area
Turn on Remote Control Function

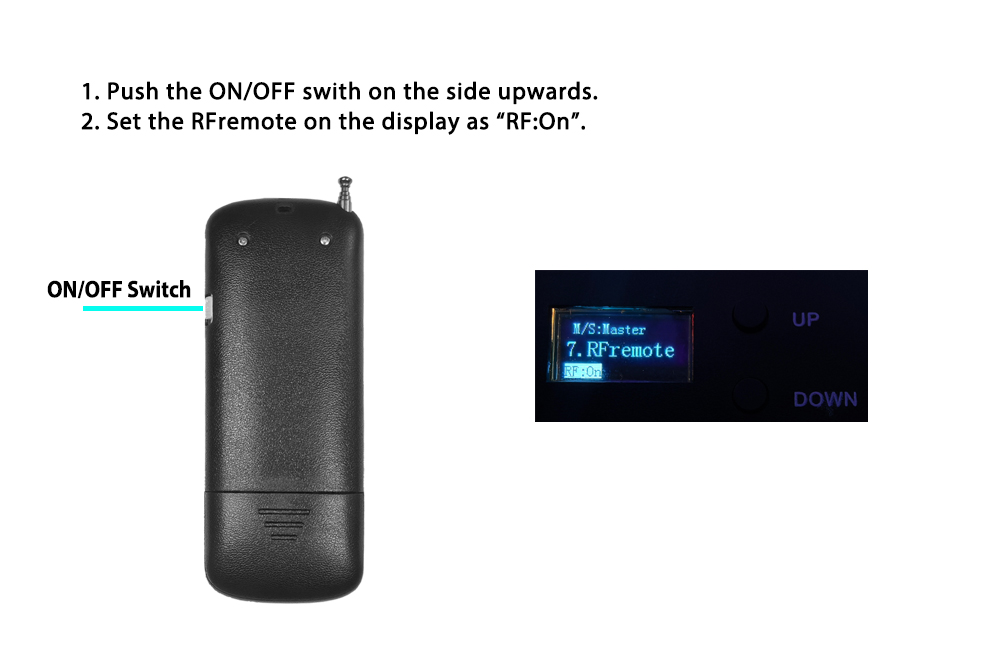

Before using the remote control, please double-check the following switches:
1. The ON/OFF switch on the side of the remote control: to push upwards to turn it "ON".
2. The ON/OFF switch on the OLED display of the APP control light engine.
the Matching of the Remote Control with the Light Engine
The 88-key remote control needs to match the light engine before use. For details, please read the User Manual of the light engine or check with the sales.

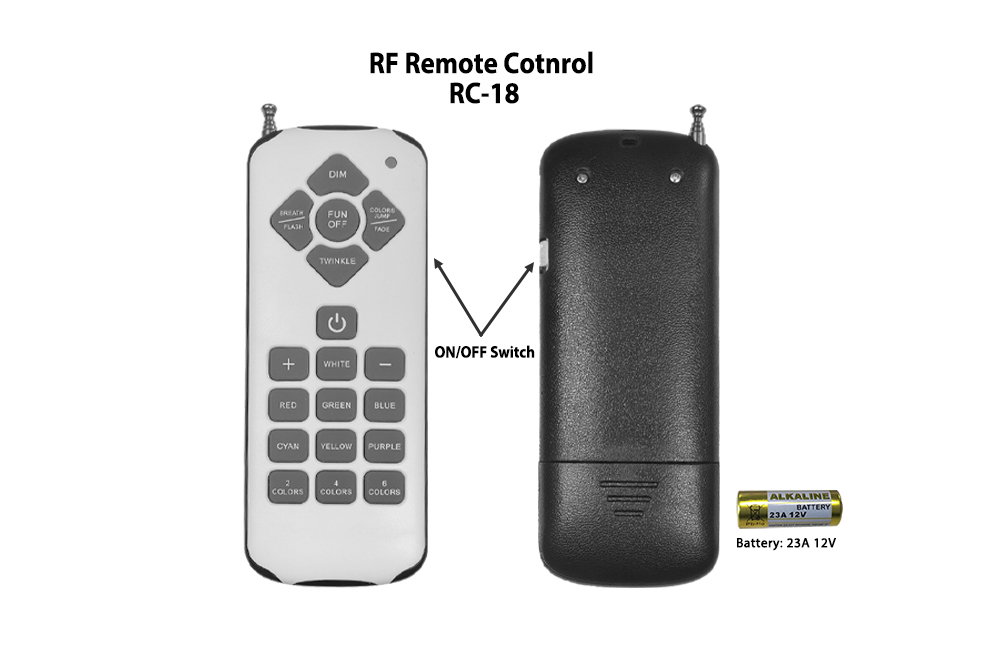

Battery
The battery is not included in all our remote controls, as both air and sea shipments do not allow any cargo containing it. Please source them in the local market.
Battery: 23A 12V
1 piece
Reset of the Light Engine
Press and hold the button at the lower left corner of the remote control, and turn on the light engine at the same time will reset the light engine. Its connection to the mobile APP will be terminated. Nevertheless, the connection with the remote control will be maintained.

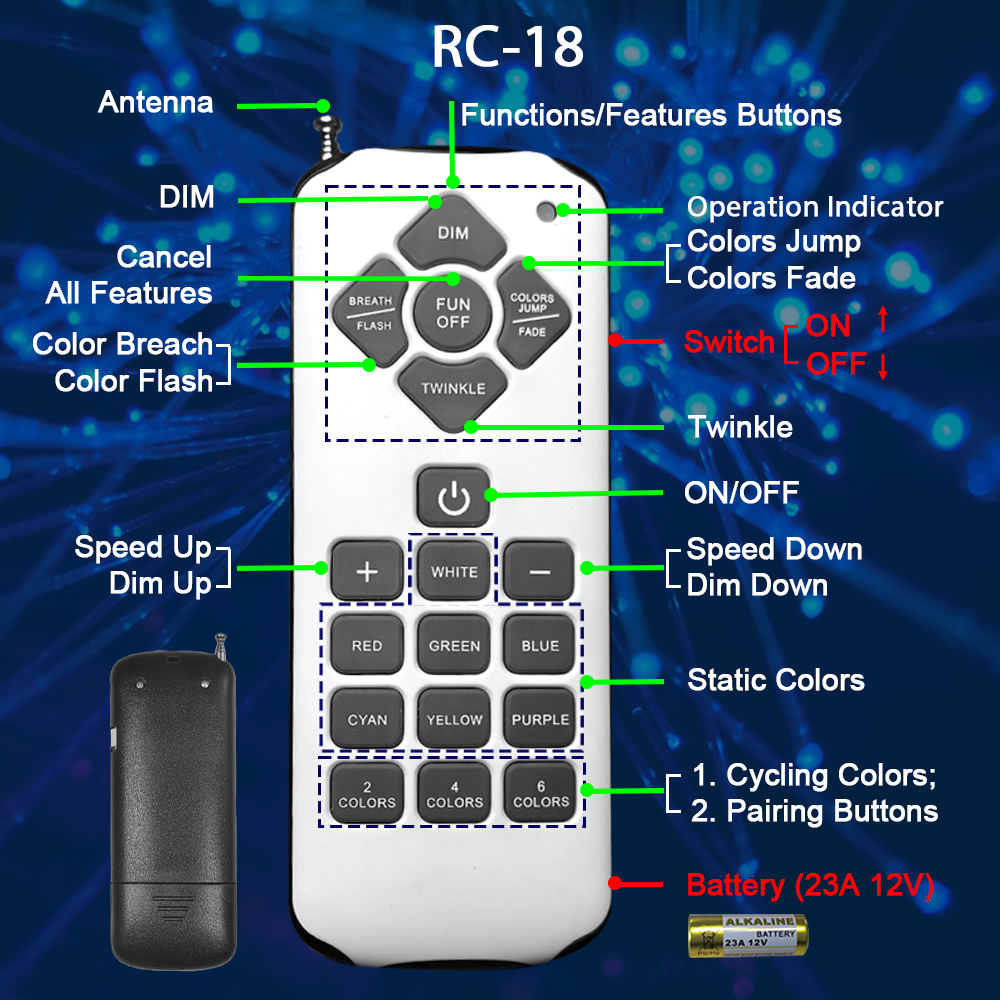

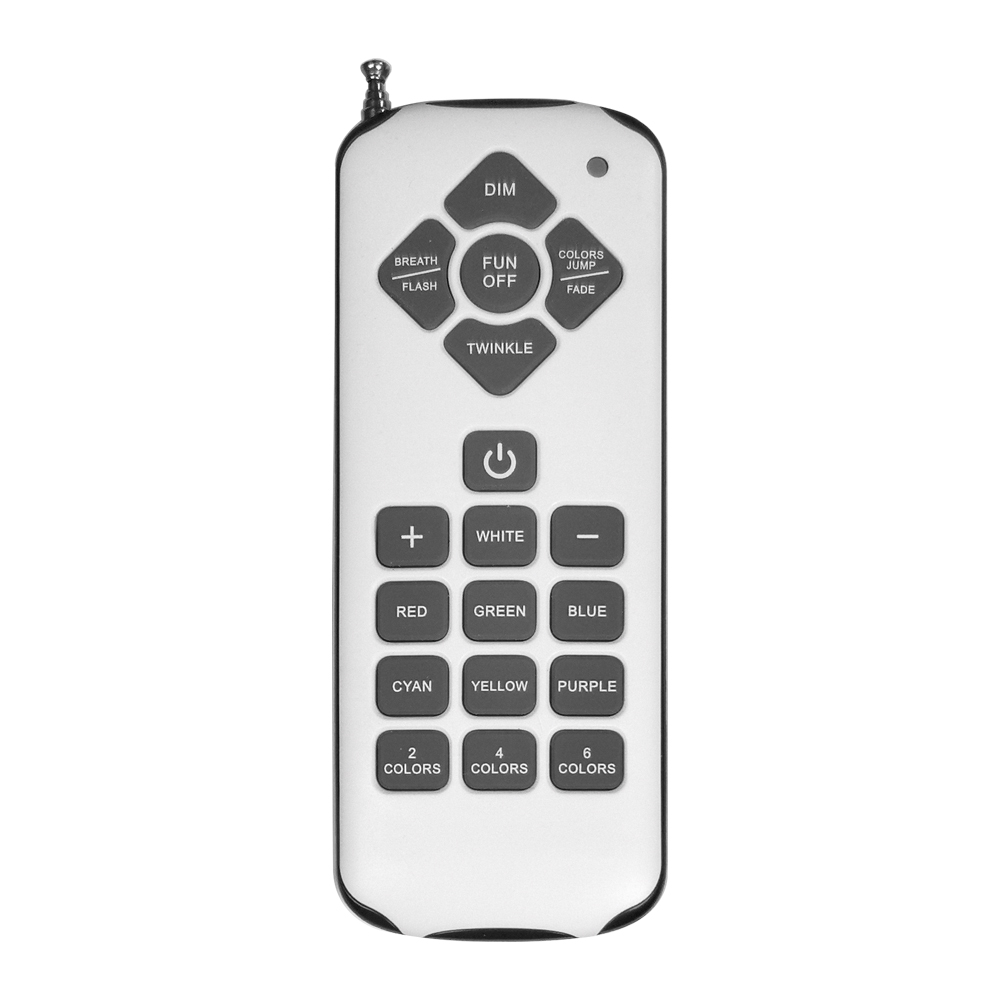

Remote Control Operation
Operation overview:

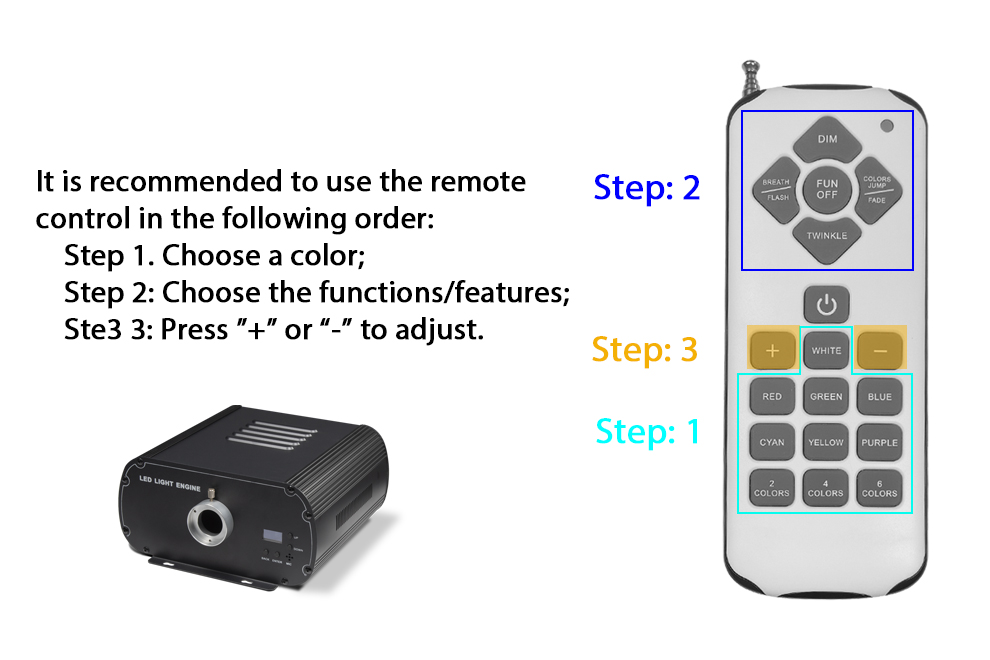

It is always recommended to use the remote control, RC-18, in the following order:
a. Choose a color;
b. Choose the functions/features;
c. Press ”+” or “-” to adjust.
