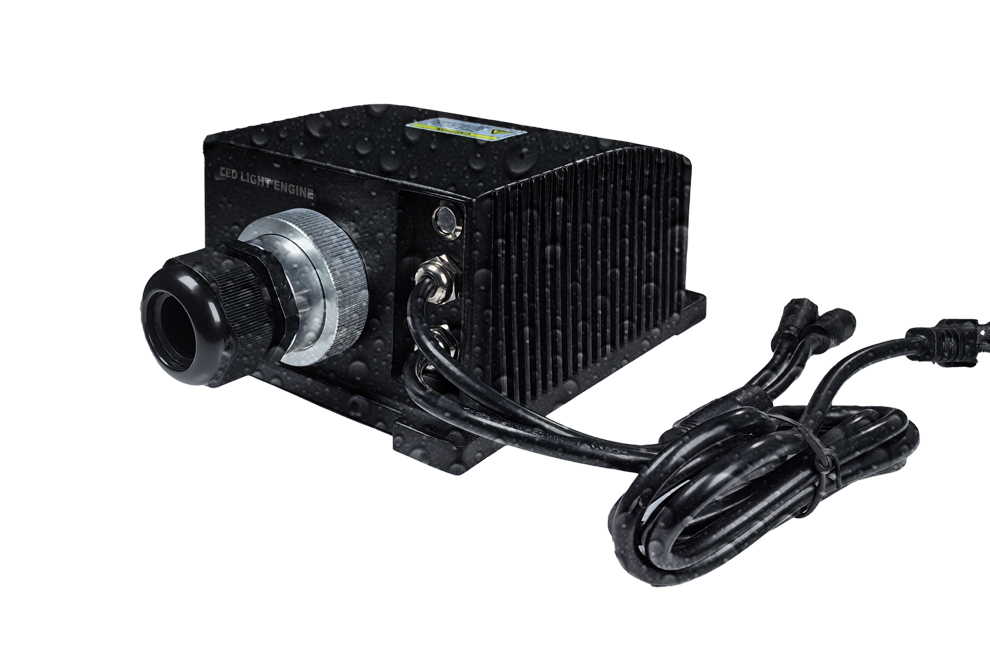

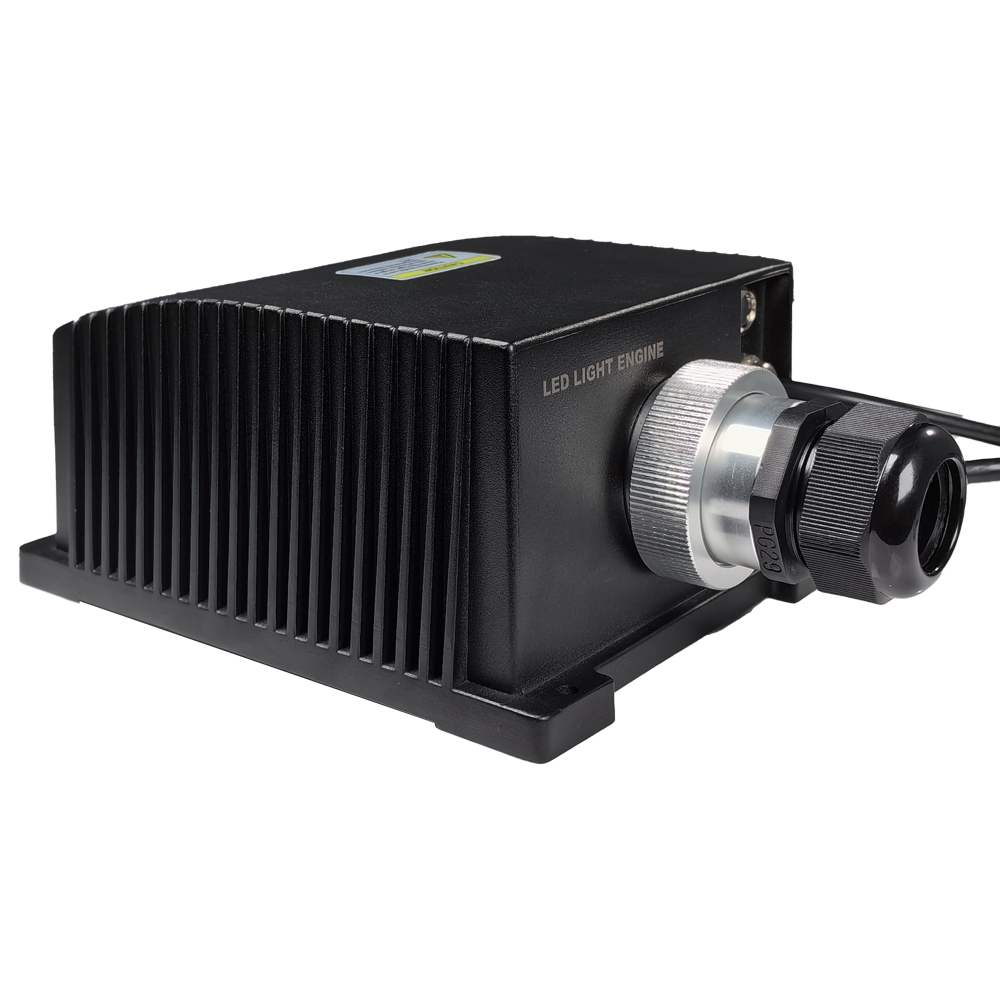

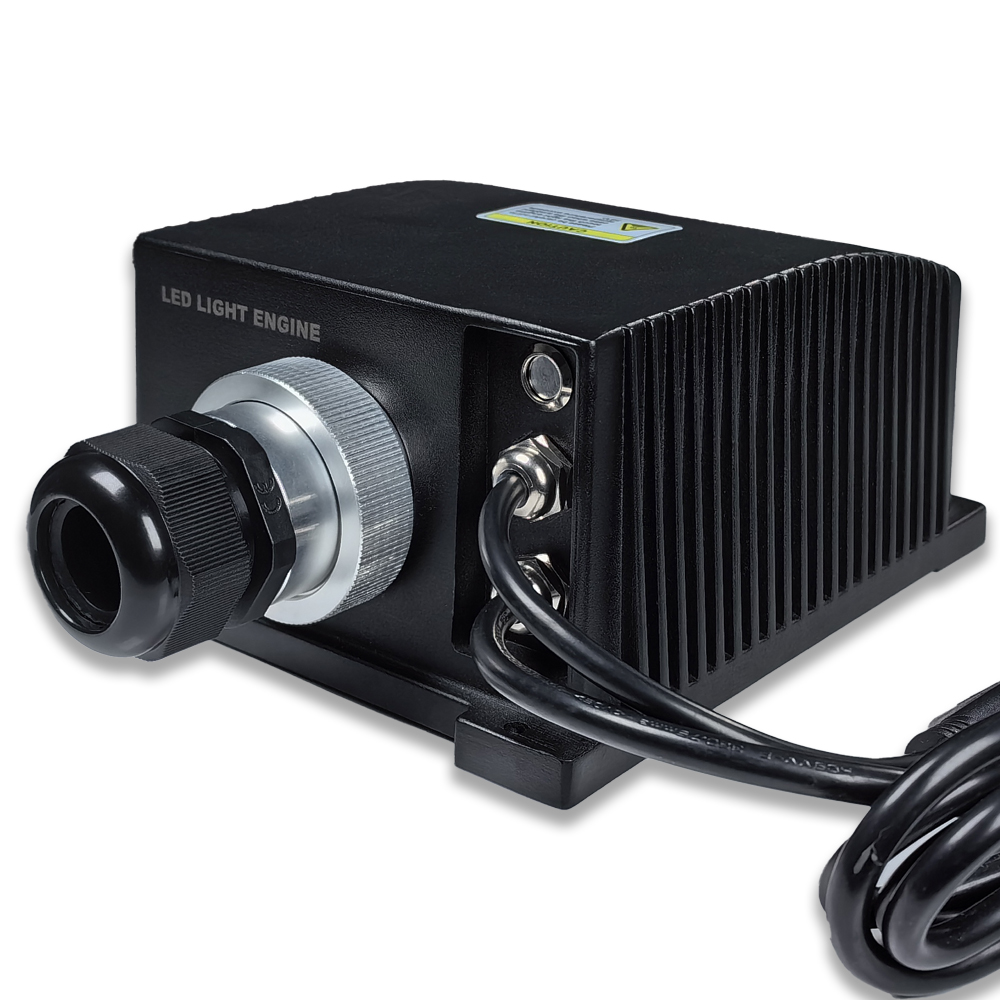

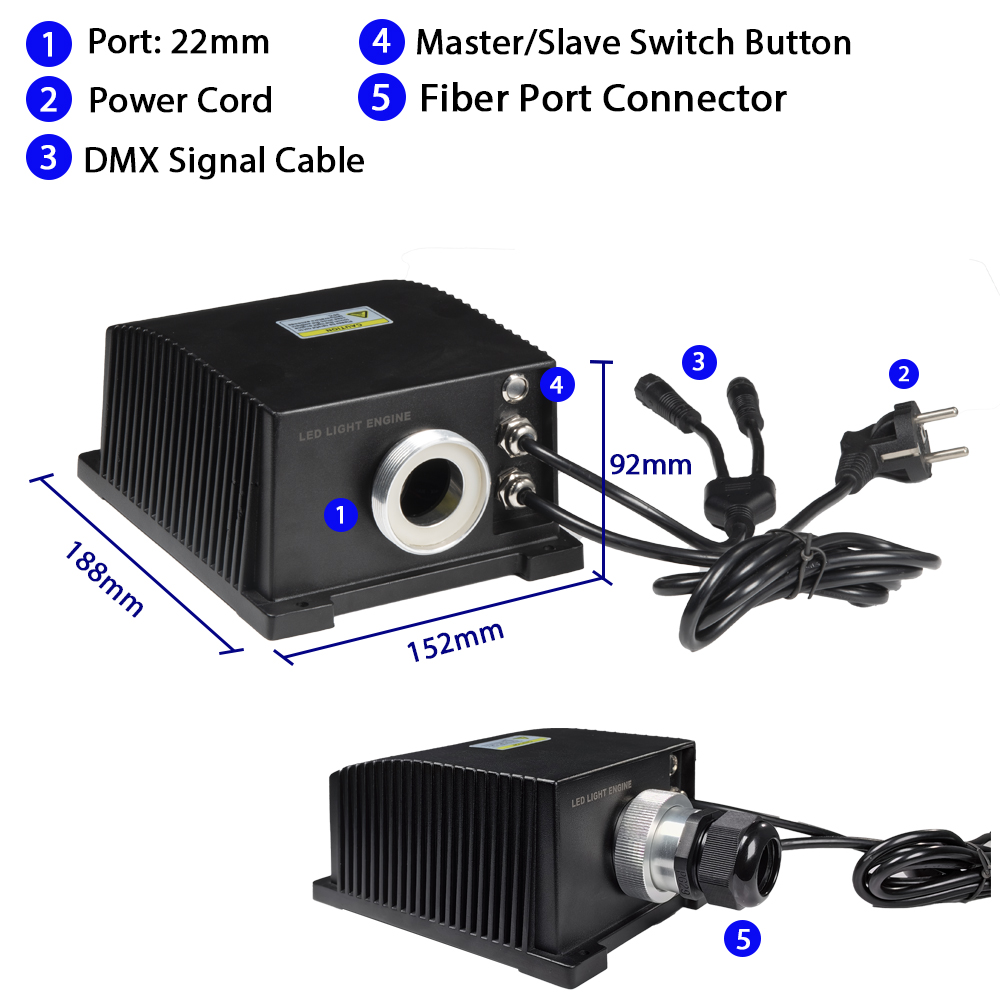

LES-2001DMX/WP

It is one of the two models that reach IP65 among all the light engines Minar provides. This makes it an ideal light engine for wet area lighting or outdoor use.

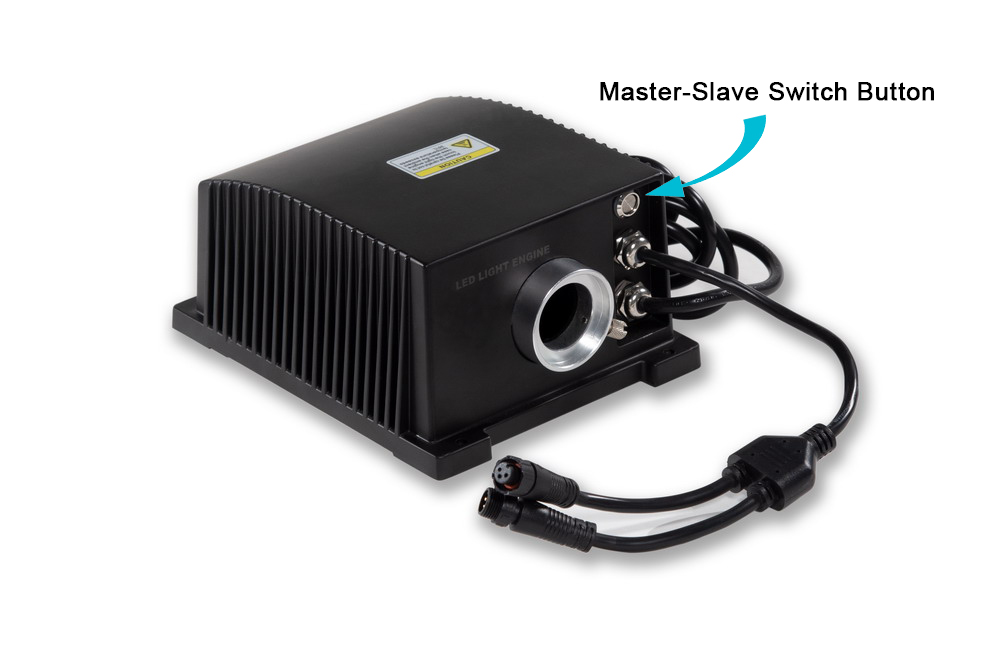

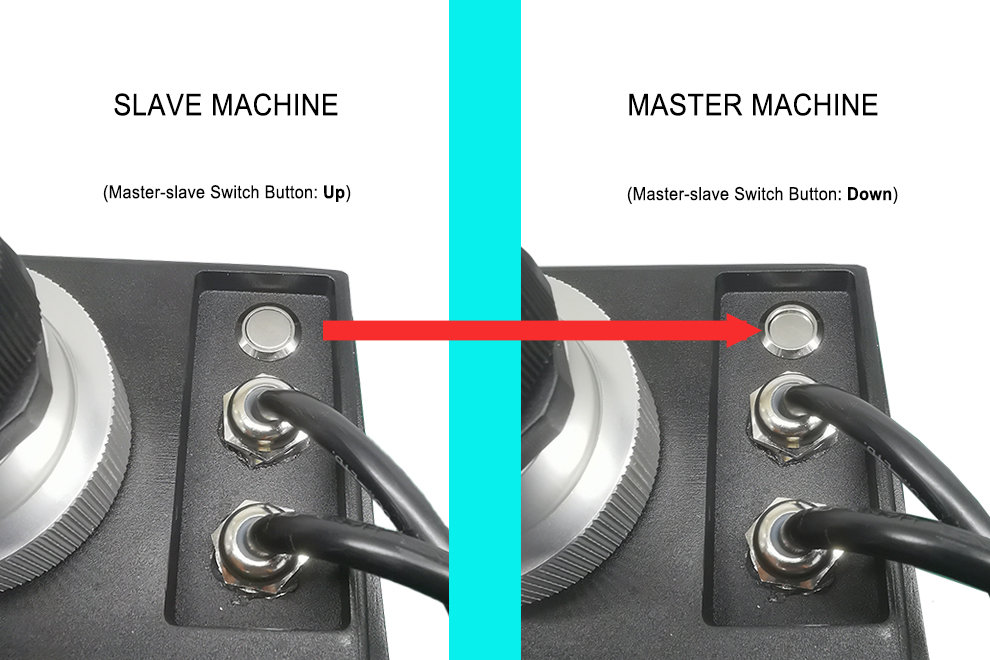

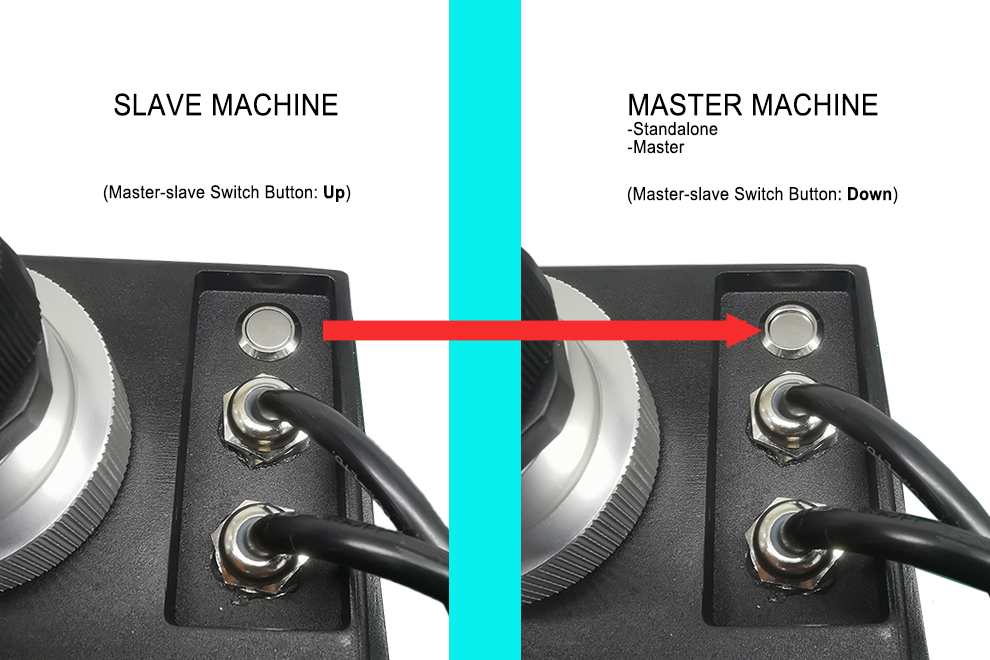

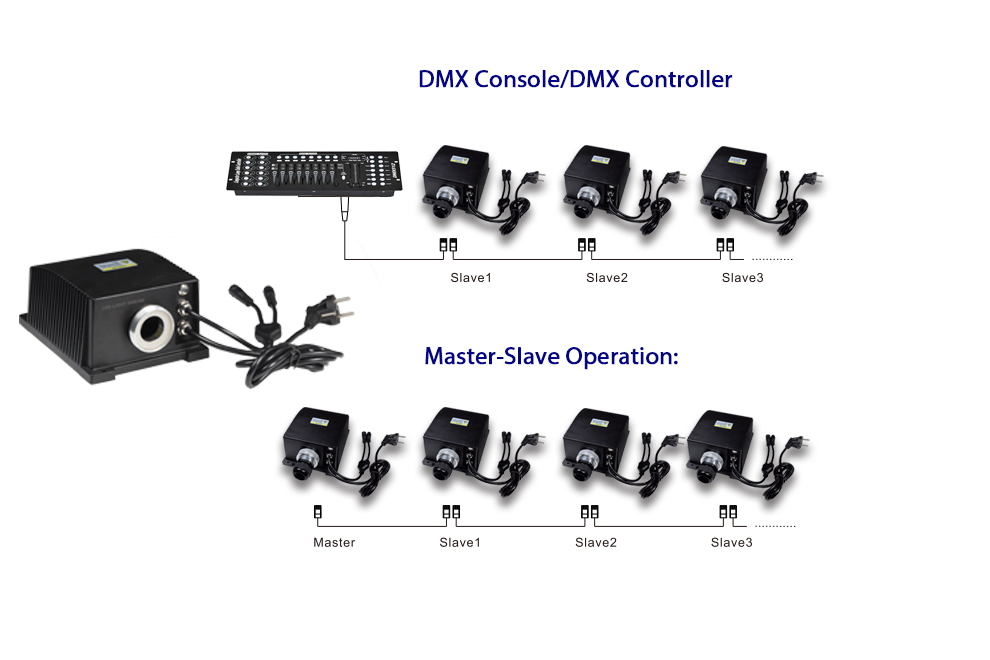

When the light engine works alone or as the master machine in a group, please make sure that the Master-Slave Switch Button on the front panel is pushed DOWN.

When the Button is pushed up, the light engine works as a slave machine, and will not emit light if it works alone.

PS:
The light engine will take about 12 seconds to conduct a self-examination when turned on. During this period, the light engine does not emit light.

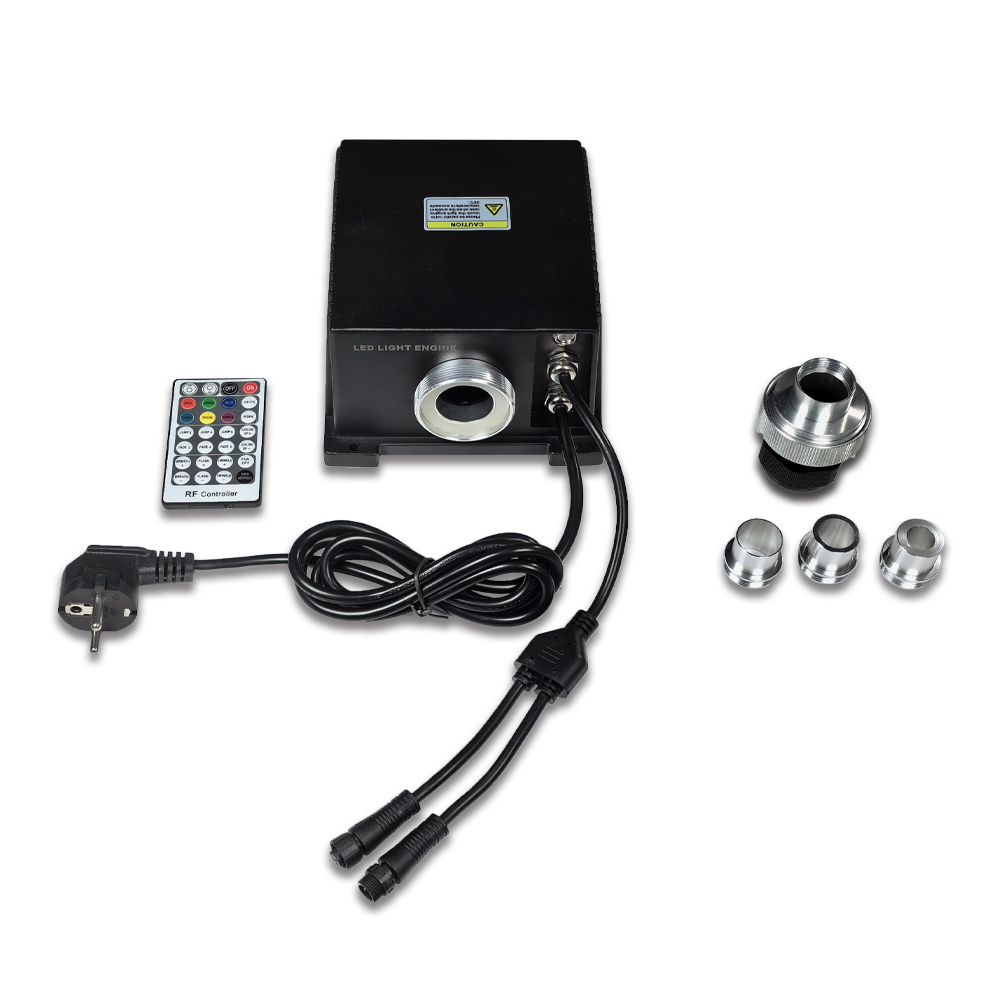

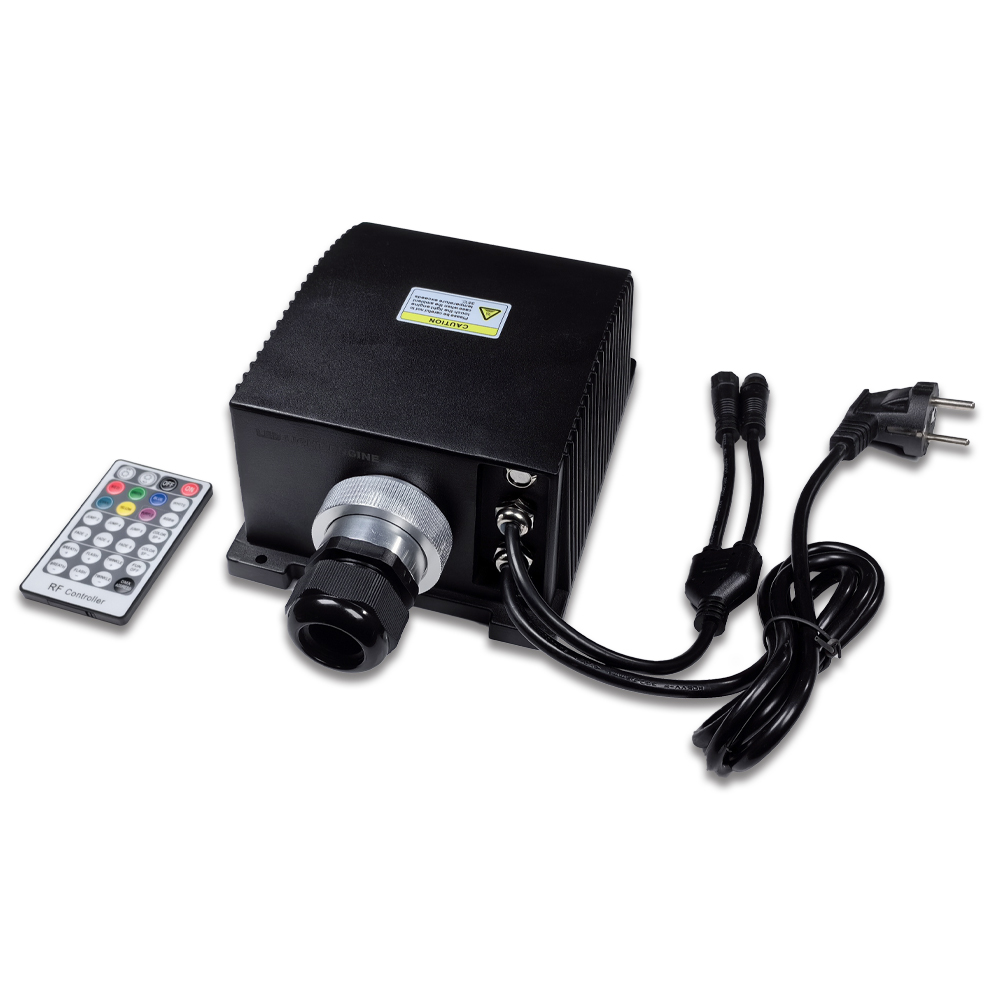

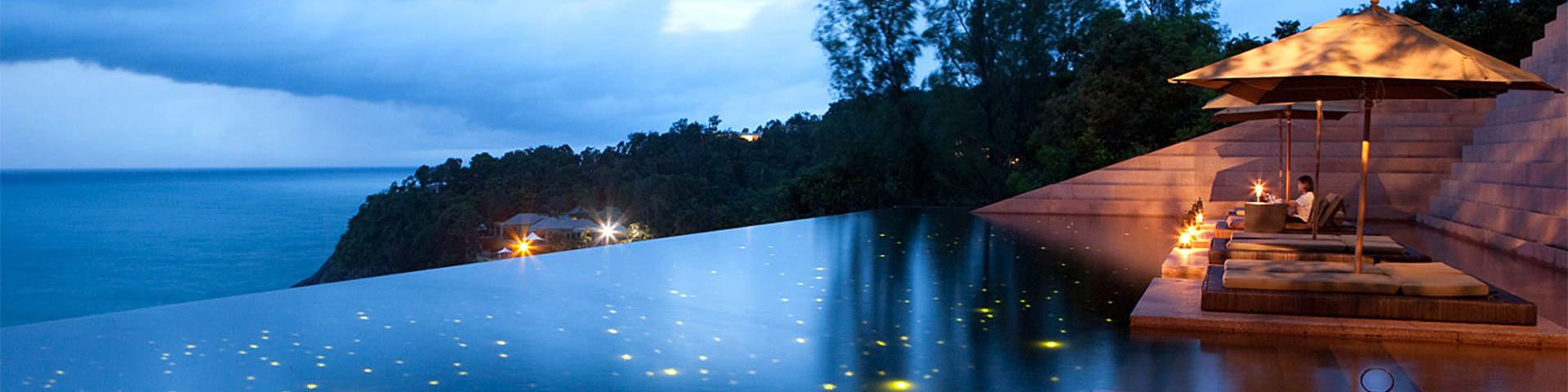

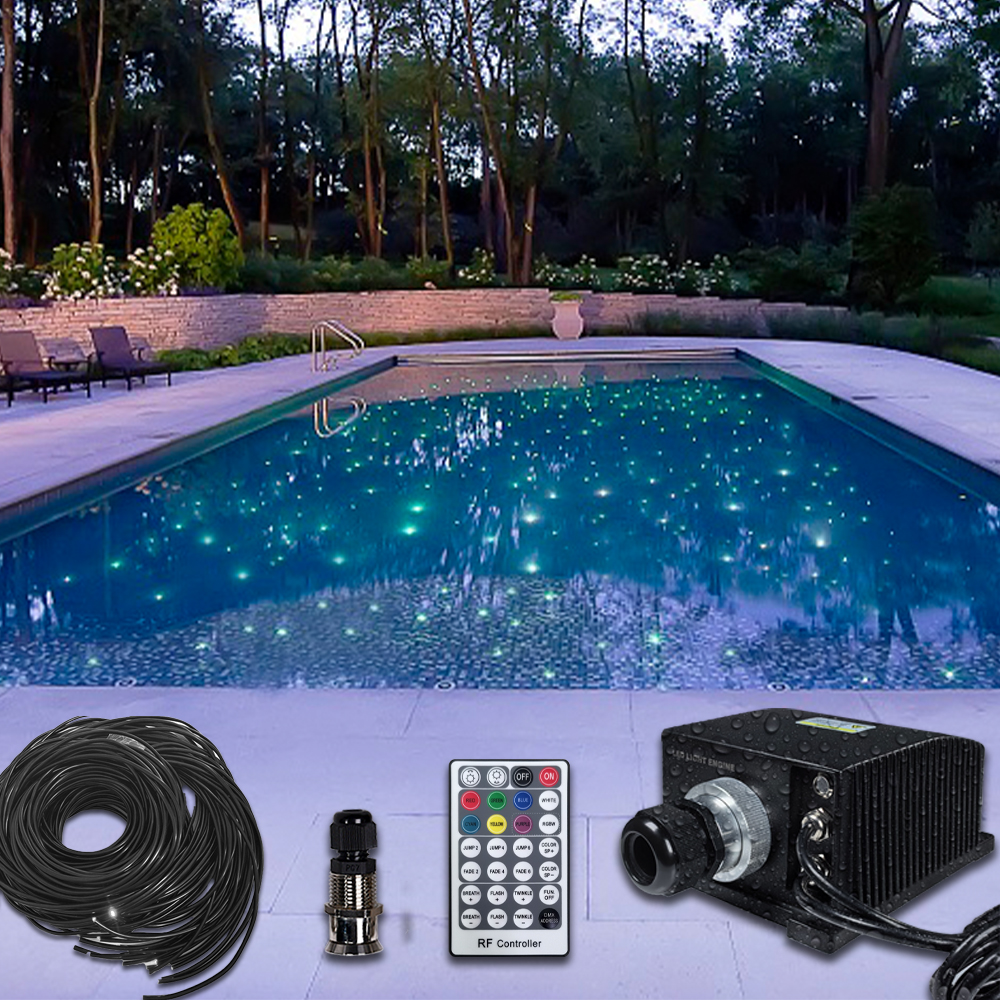

The LES series of fiber optic light engines are newly developed waterproof light engines to be used for small and medium size swimming pools/sauna rooms, and parks. Compact in size, but it is quite powerful. A new 28-key remote control is applied to have visual control of the light engine performance.

DMX Channels:
CH1: Red,
CH2: Green,
CH3: Blue,
CH4: White,
CH5: Twinkle Speed.

The remote control is always recommended for the LES series of light engines.

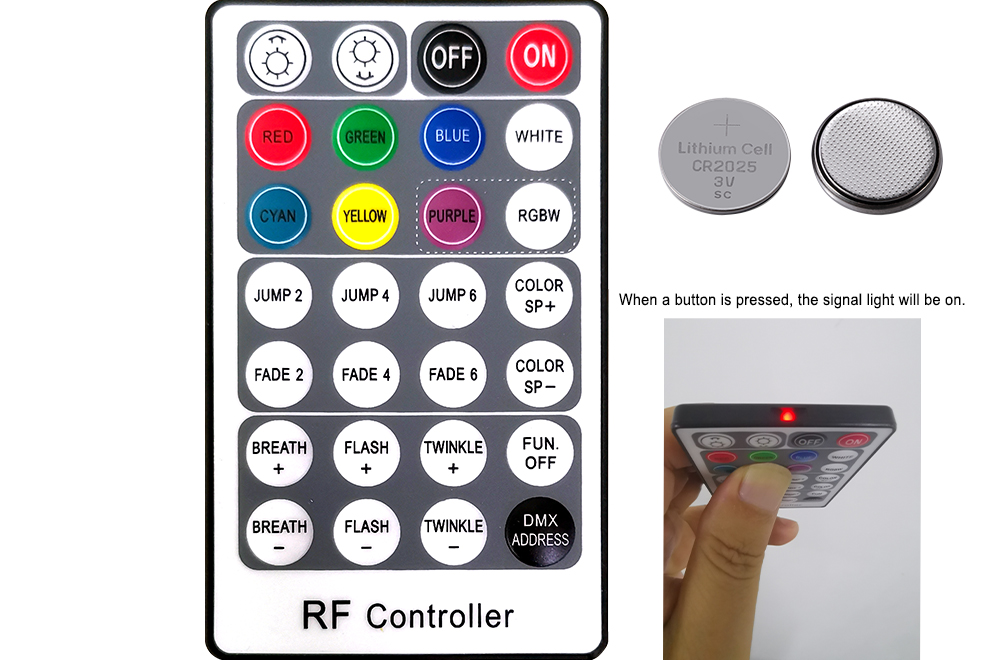

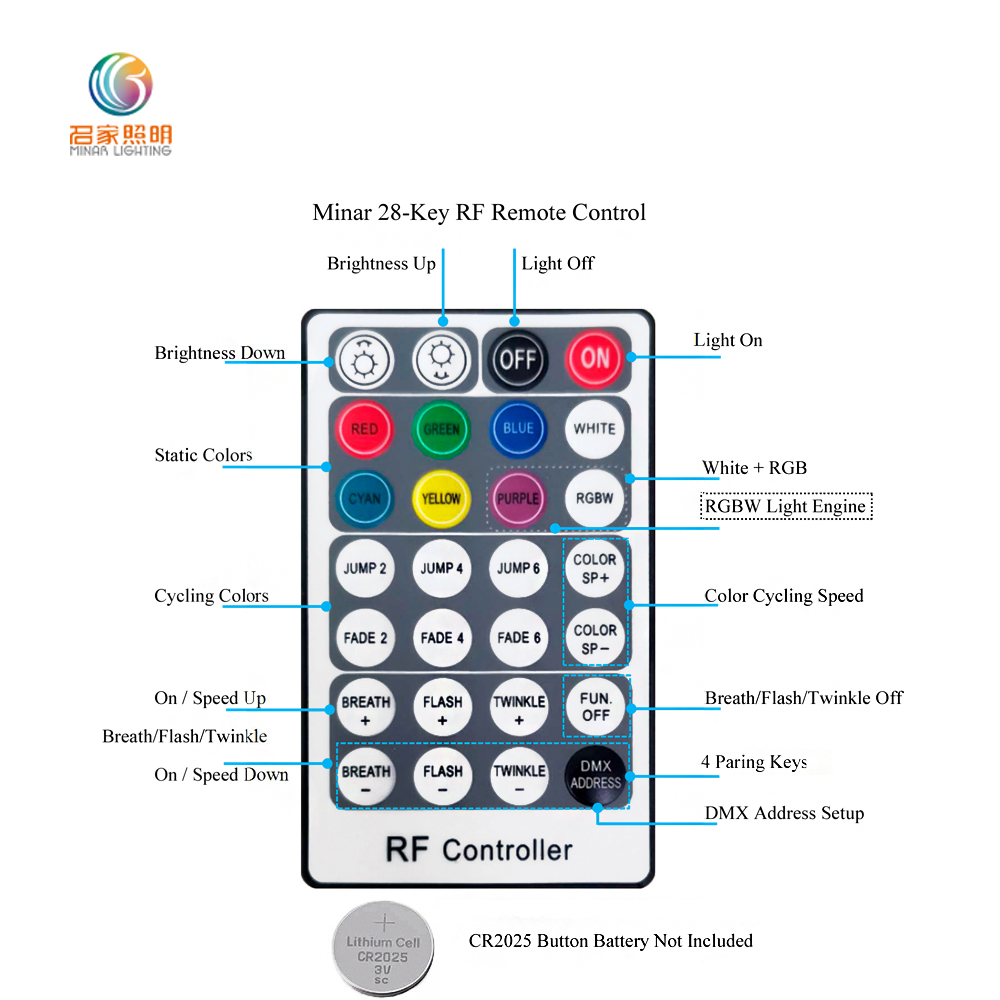

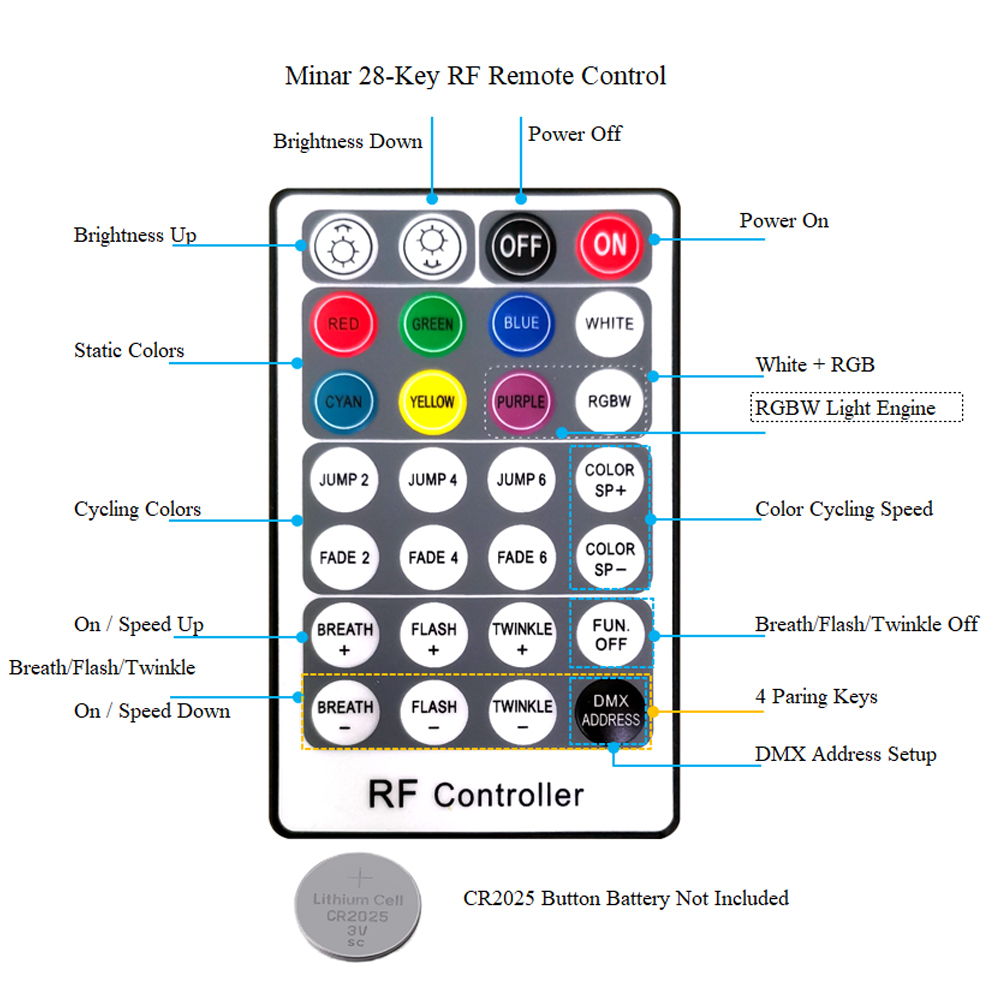

The 28-key remote control has an effective control distance of around 10 meters in an open area and can be used with fiber optic light engines to have a one-to-one, one-to-multi, multi-to-one, and multi-to-multi control.

The Remote control could also be used to set up the DMX address of the water-proof light engine.

If the signal light is blinking when a button is pressed, it means the battery is low, and the remote control may not work properly. A new battery is needed.

Battery: CR2025, 1pc (not included in the package).

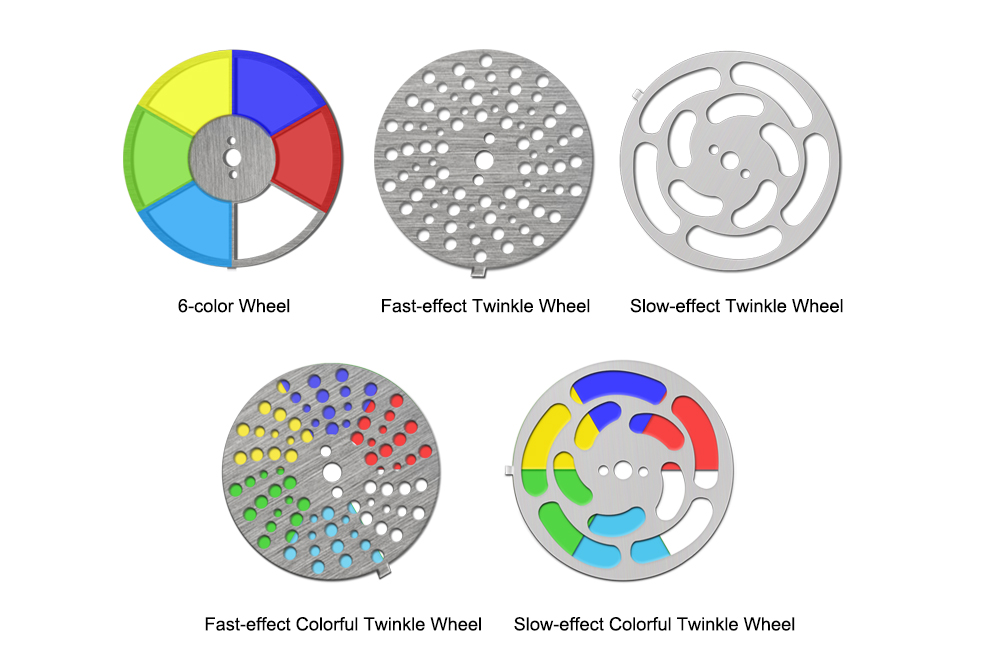

The wheels/discs that could be equipped into LES-2001DMX/WP fiber optic light engine, from left to right and top to bottom:
1. The 6-color wheel,
2. The fast-effect twinkle wheel,
3. The slow-effect twinkle wheel,
4. The colorful fast-effect twinkle wheel,
5. The colorful slow-effect twinkle wheel.
The default wheel is the 6-color disc. Other wheels/discs are available at request, and the customized requirement is also welcome.
