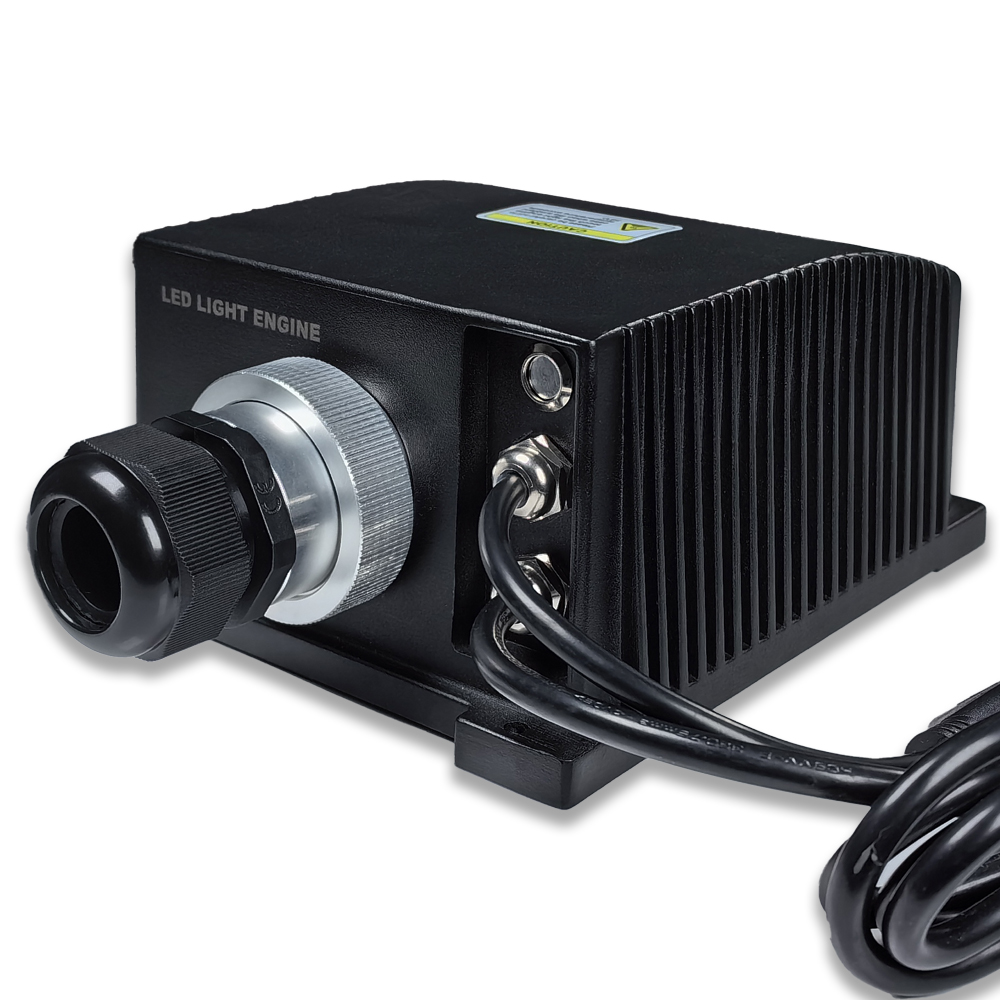

LES-4061DMX/WP

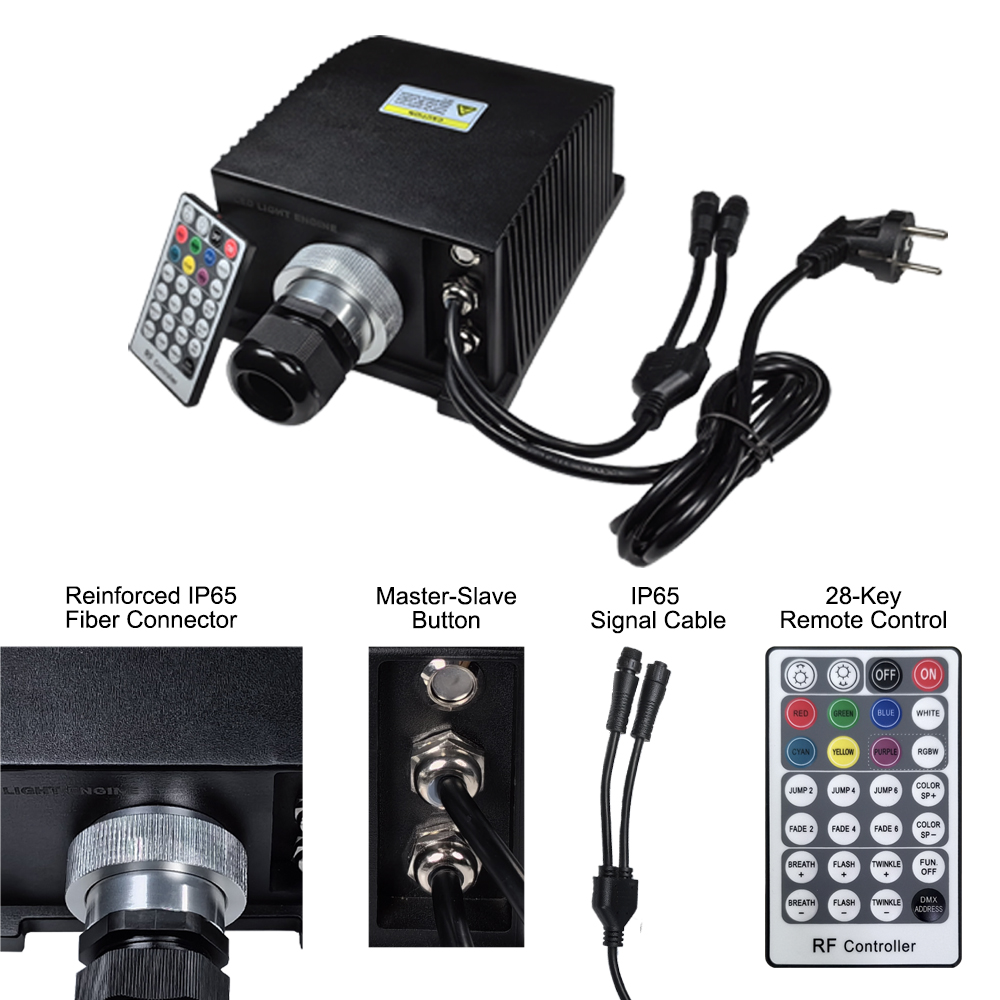

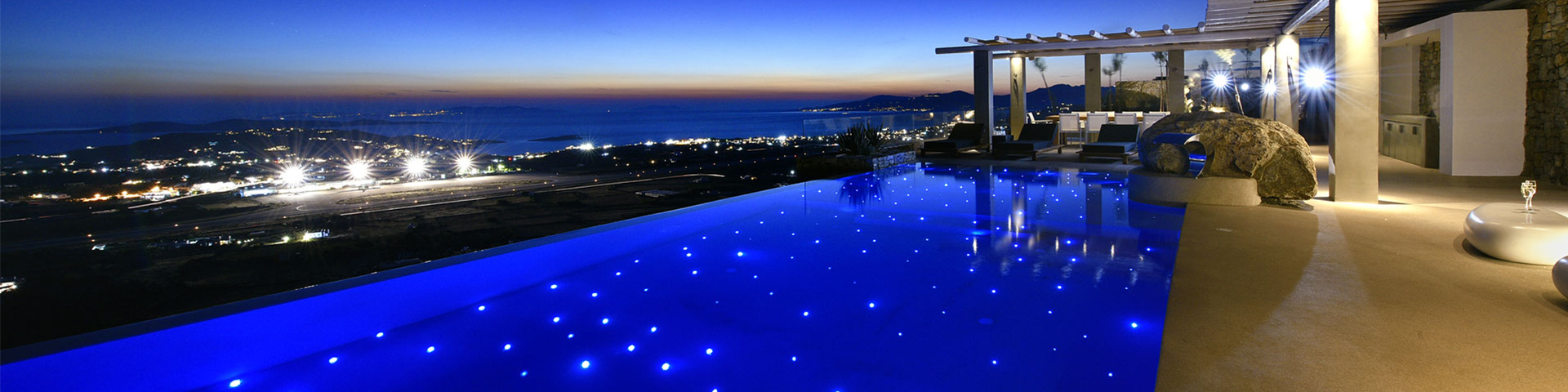

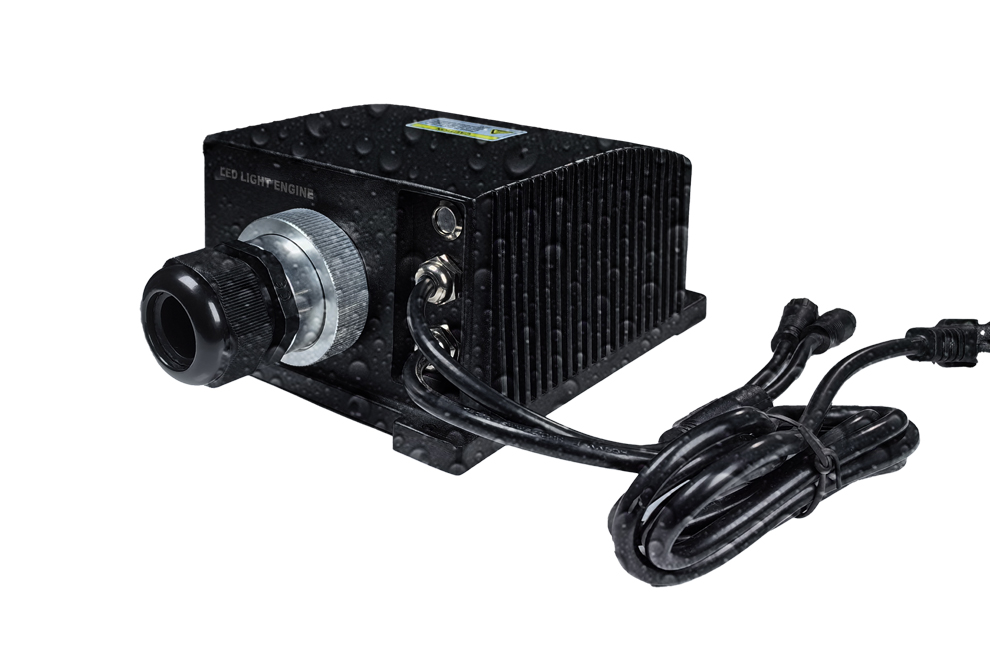

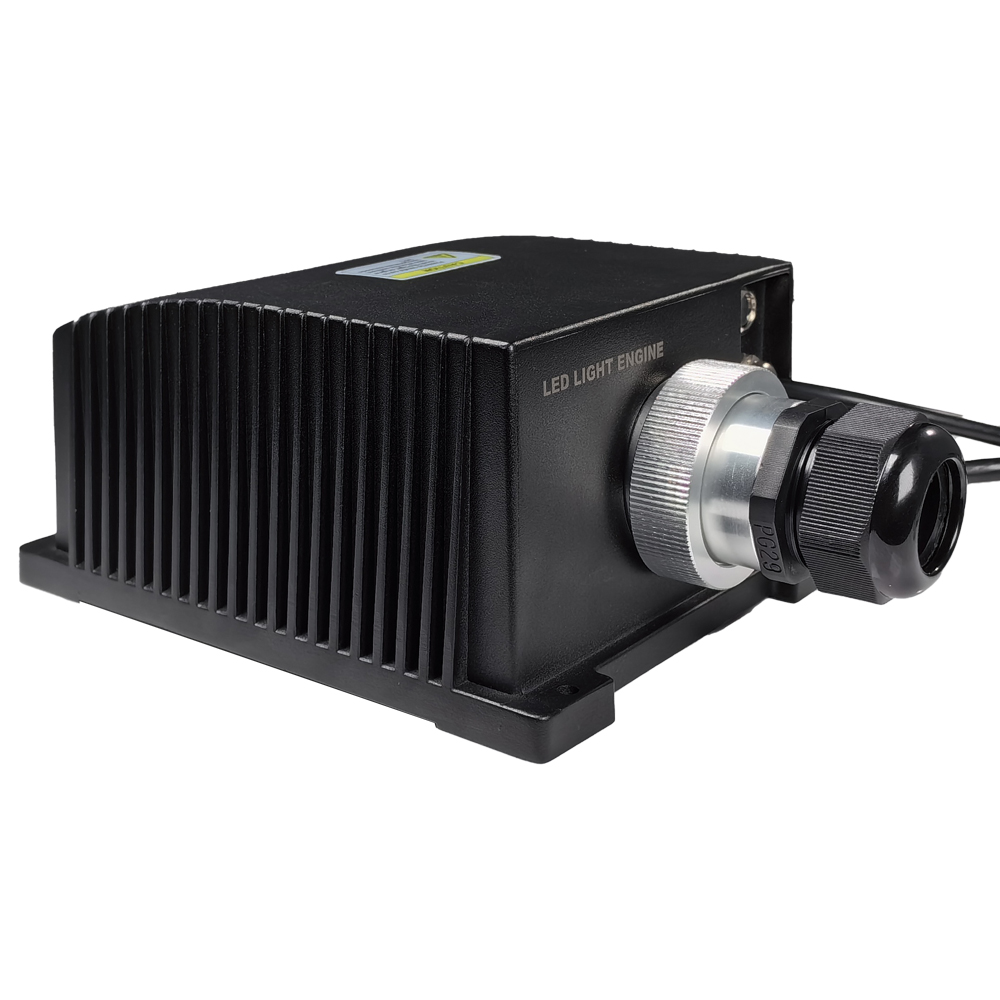

It is one of the two models that reach IP65 among all the light engines Minar provides. This makes it an ideal light engine for wet area lighting or outdoor use.

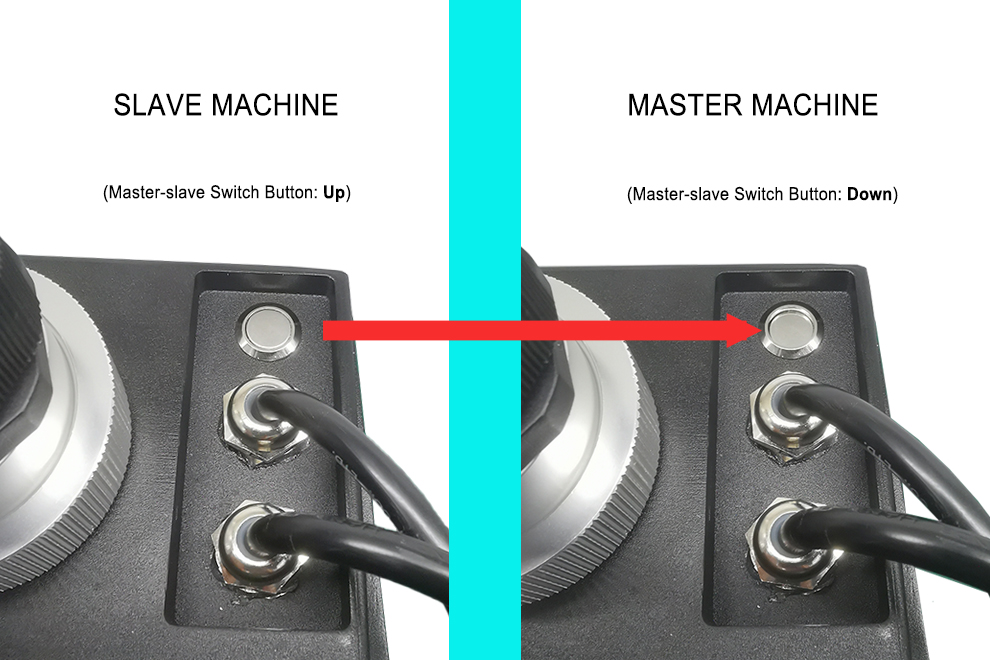

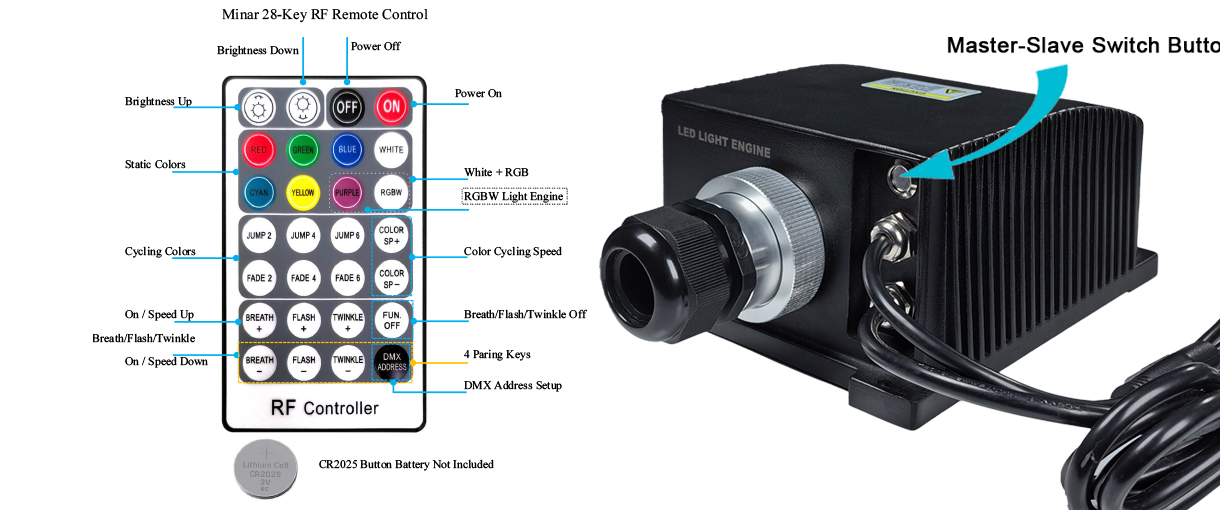

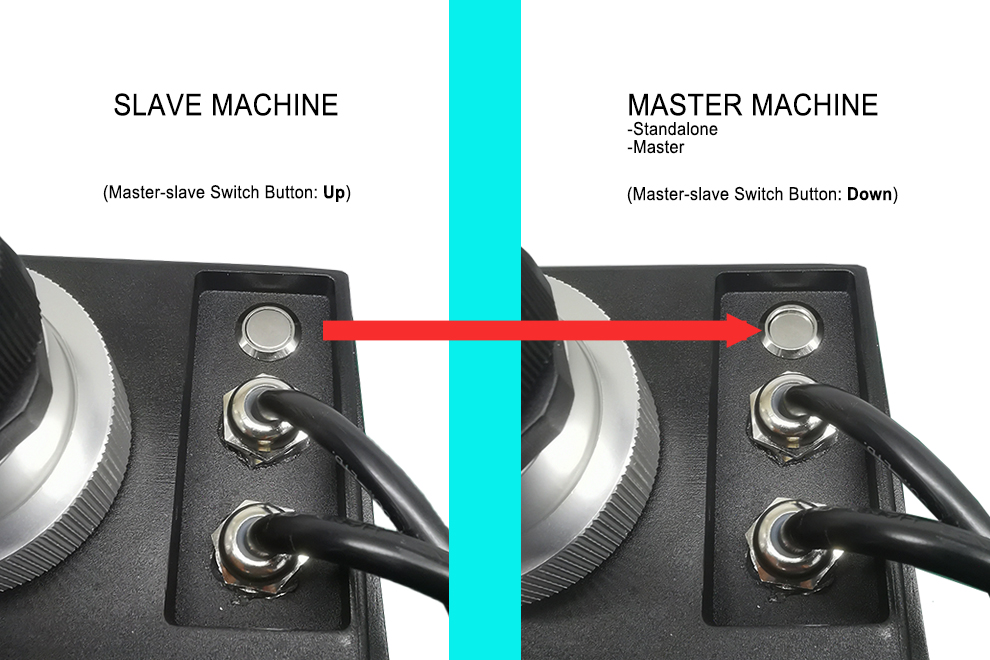

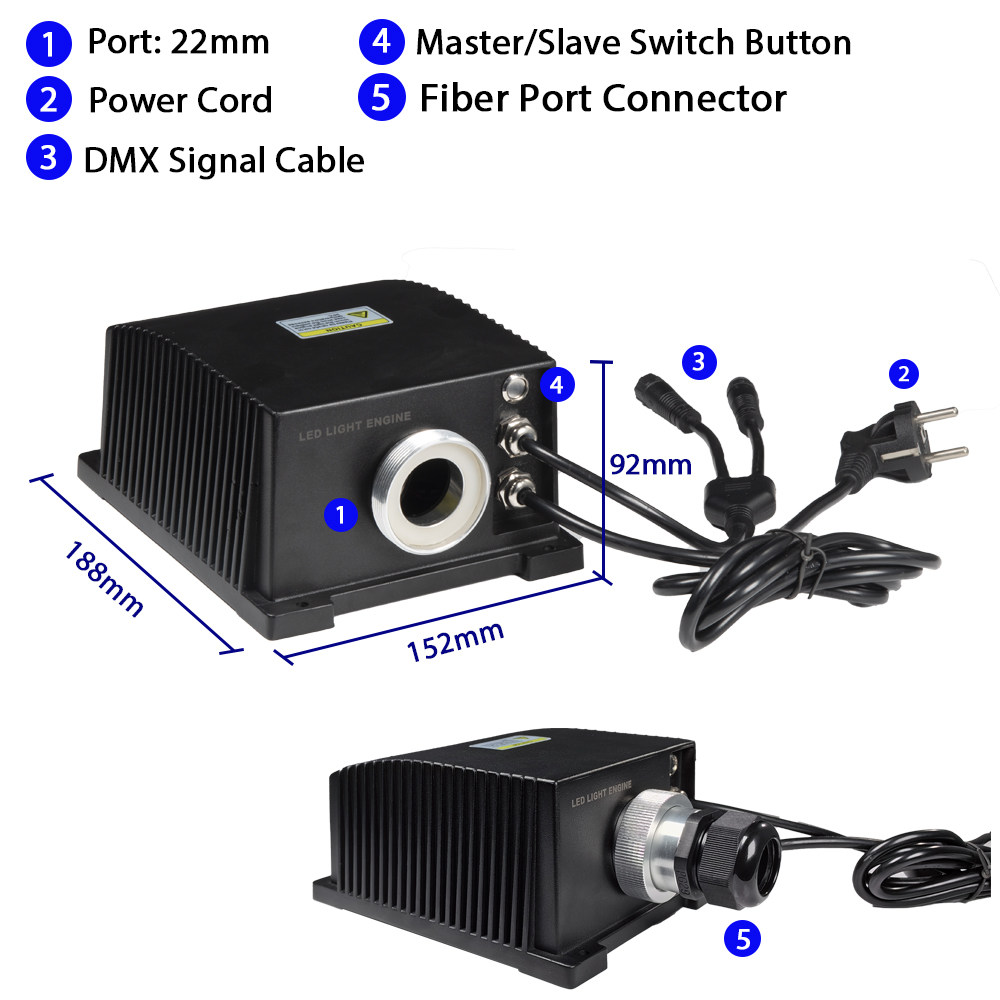

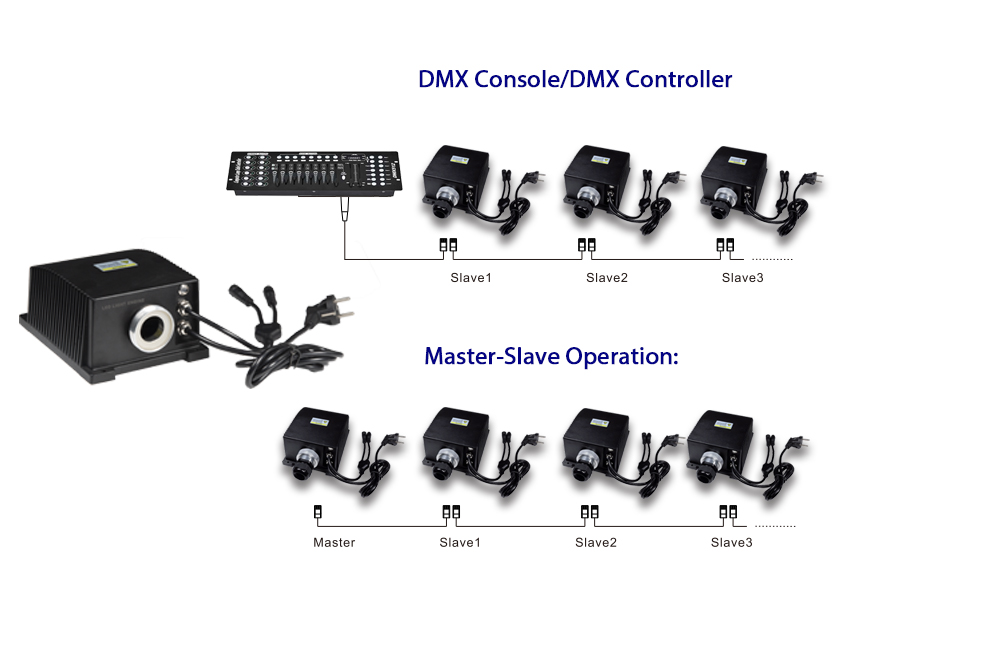

When the light engine works alone or as the master machine in a group, please make sure that the Master-Slave Switch Button on the front panel is pushed DOWN.

When the Button is pushed up, the light engine works as a slave machine, and will not emit light if it works alone.

PS:
The light engine will take about 12 seconds to conduct a self-examination when turned on. During this period, the light engine does not emit light.

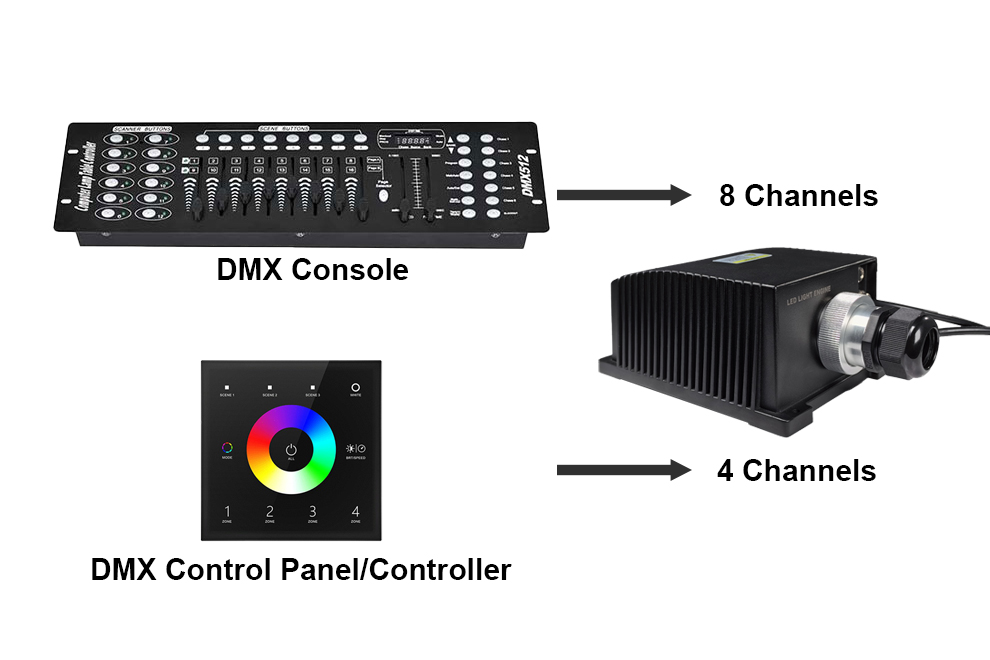

By default, the light engine, LES-4061DMX, has 8 DMX channels for colors and speed/dimming/flashing control via a DMX console.

In case it is connected to a DMX controller/DMX control panel, the light engine needs to come out with 4 DMX channels of RGBW only. The DMX channel numbers can be switched on the OLED display.

When the DMX channel number is 4, please note that the DMX address is always 001.

The remote control is always recommended for the LES series of light engines.

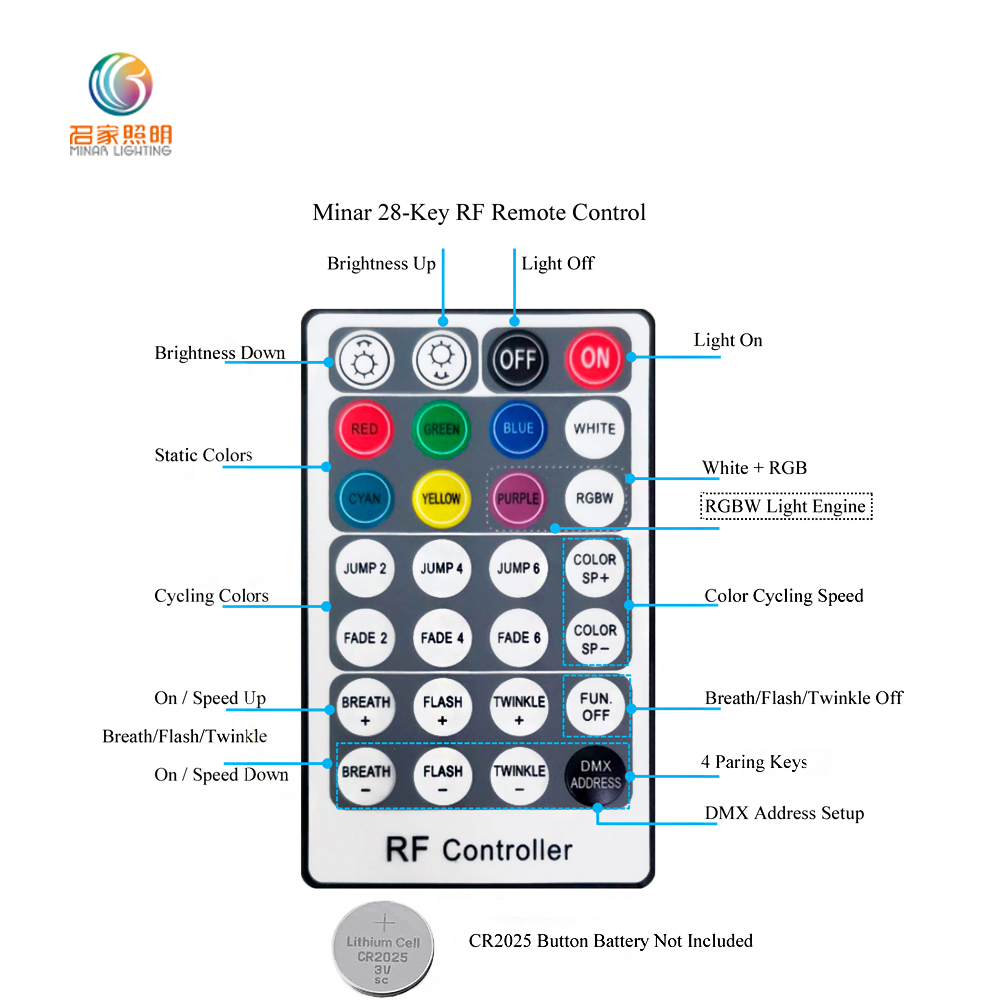

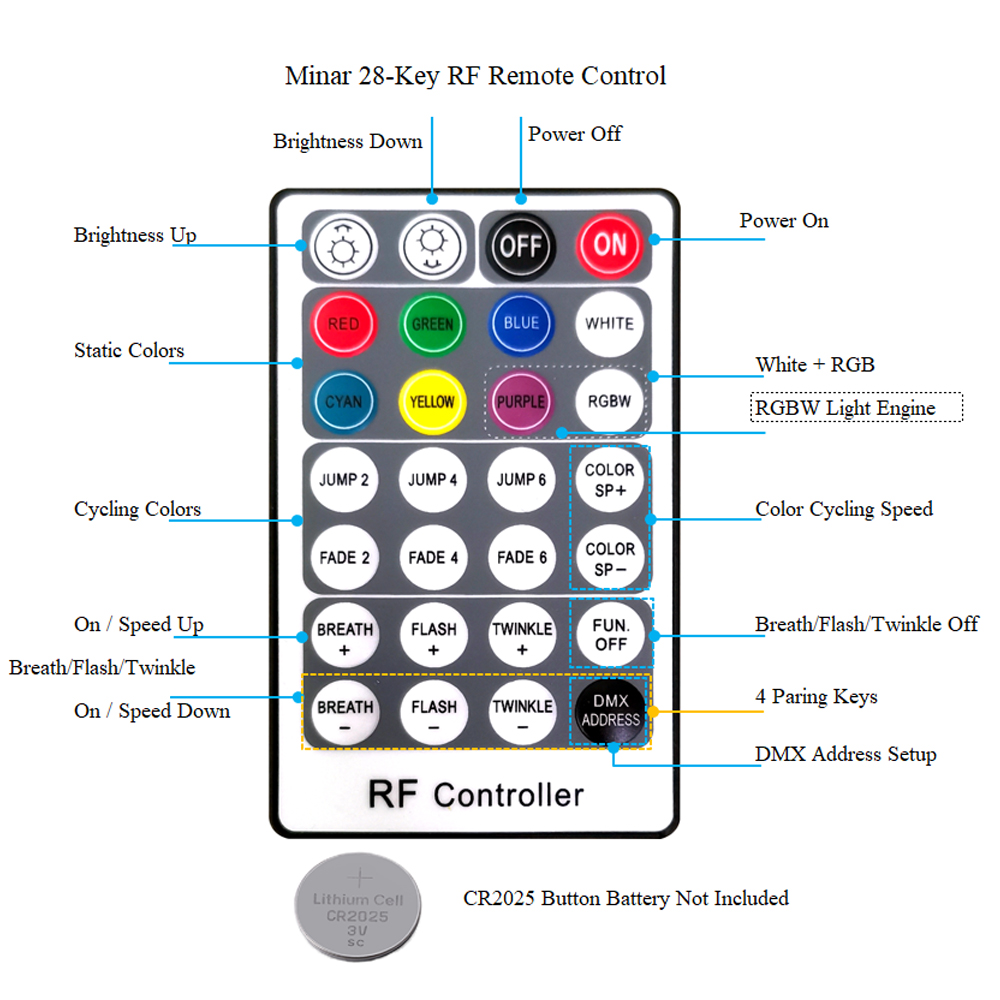

The 28-key remote control has an effective control distance of around 10 meters in an open area and can be used with fiber optic light engines to have a one-to-one, one-to-multi, multi-to-one, and multi-to-multi control.

The Remote control could also be used to set up the DMX address of the water-proof light engine.

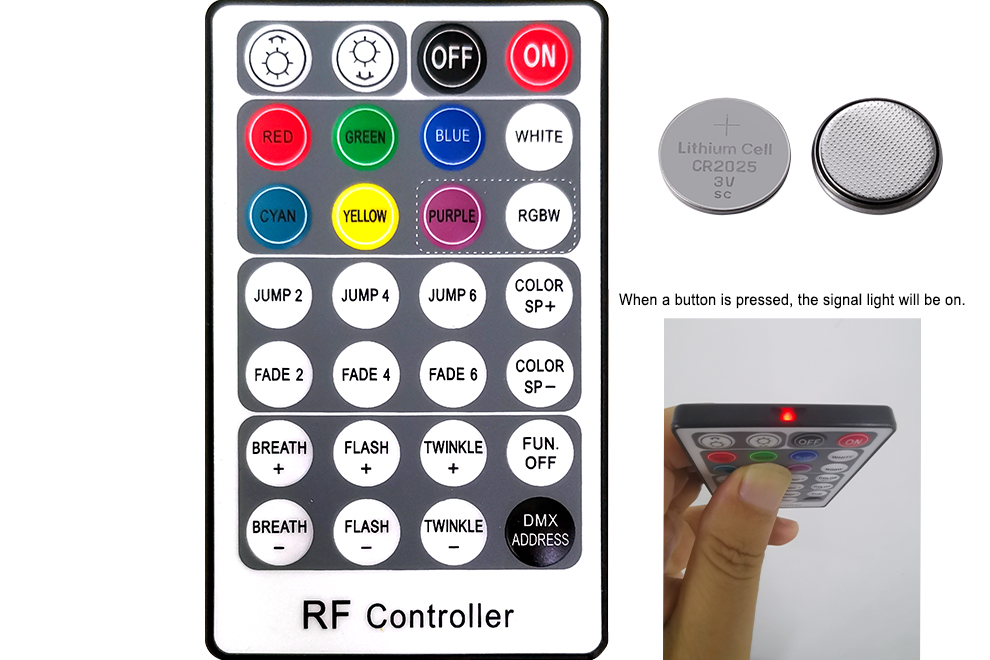

If the signal light is blinking when a button is pressed, it means the battery is low, and the remote control may not work properly. A new battery is needed.

Battery: CR2025, 1pc (not included in the package).

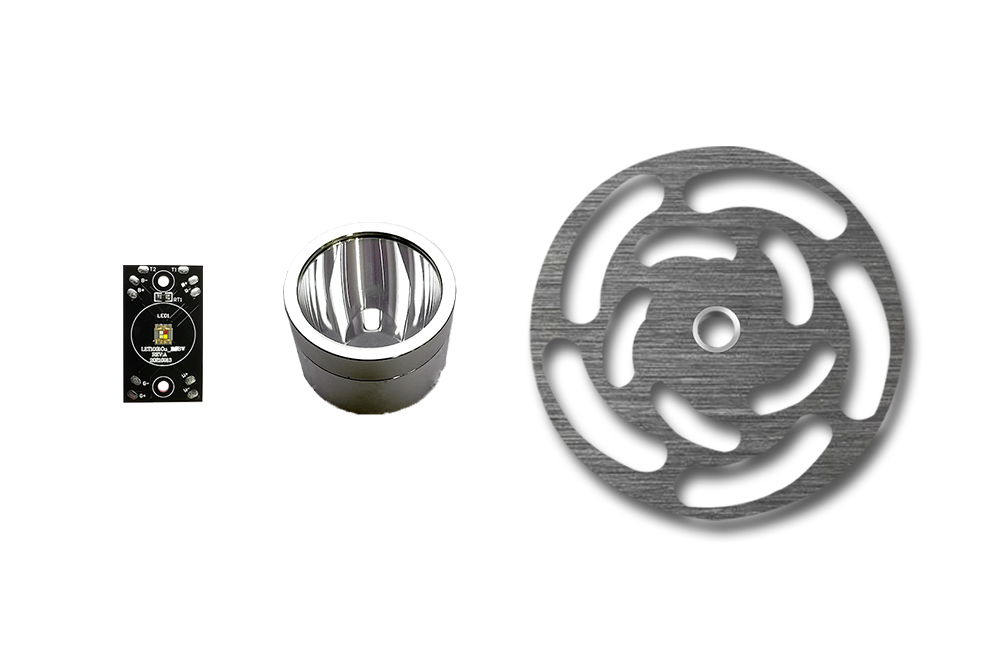

The choice of 24W LED modules, together with the reflective cup, delivers a super brightness of a small fiber optic machine.

The combination of a four-color RGBW LED module and the twinkle disc brings the starry ceiling a fantastic simulating effect.

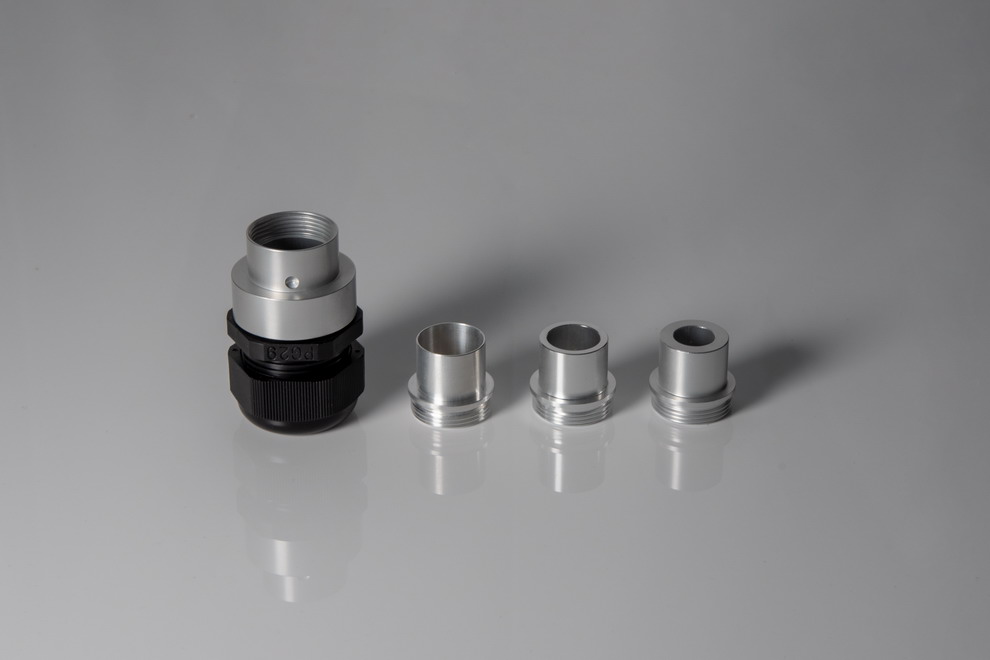

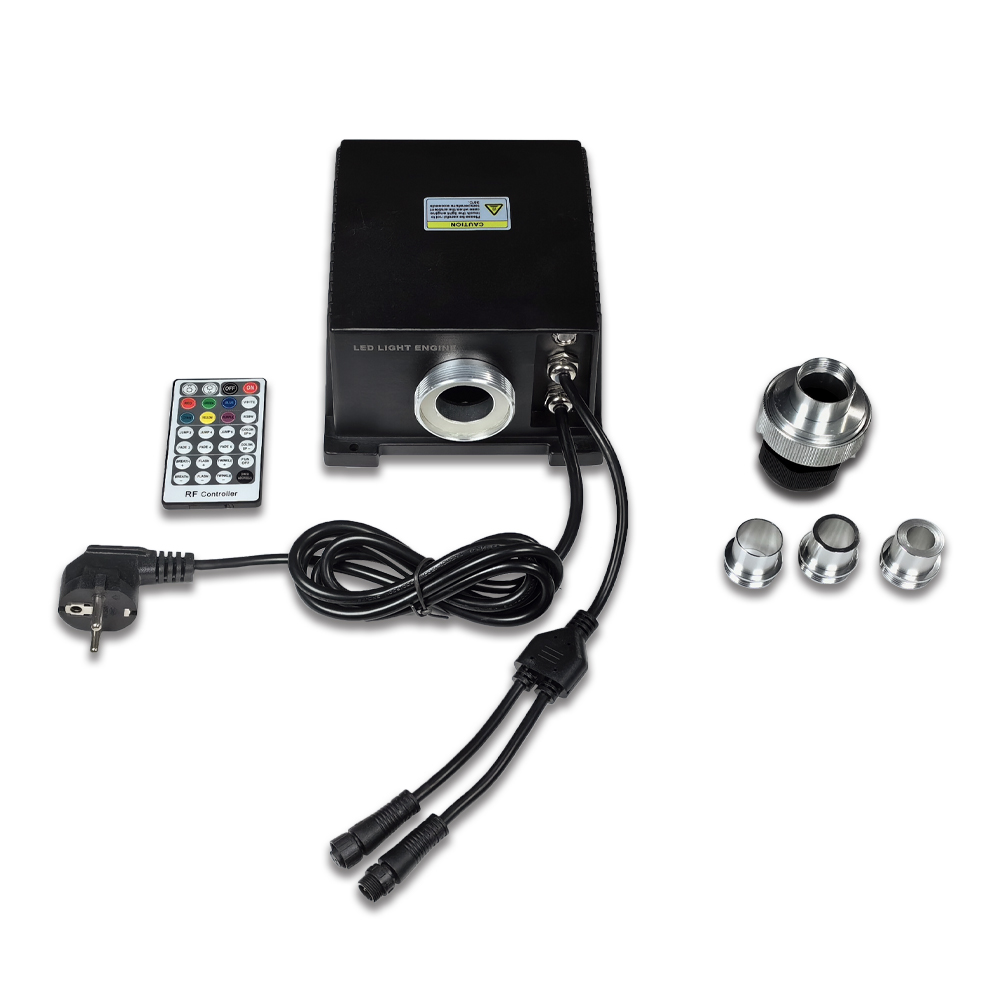

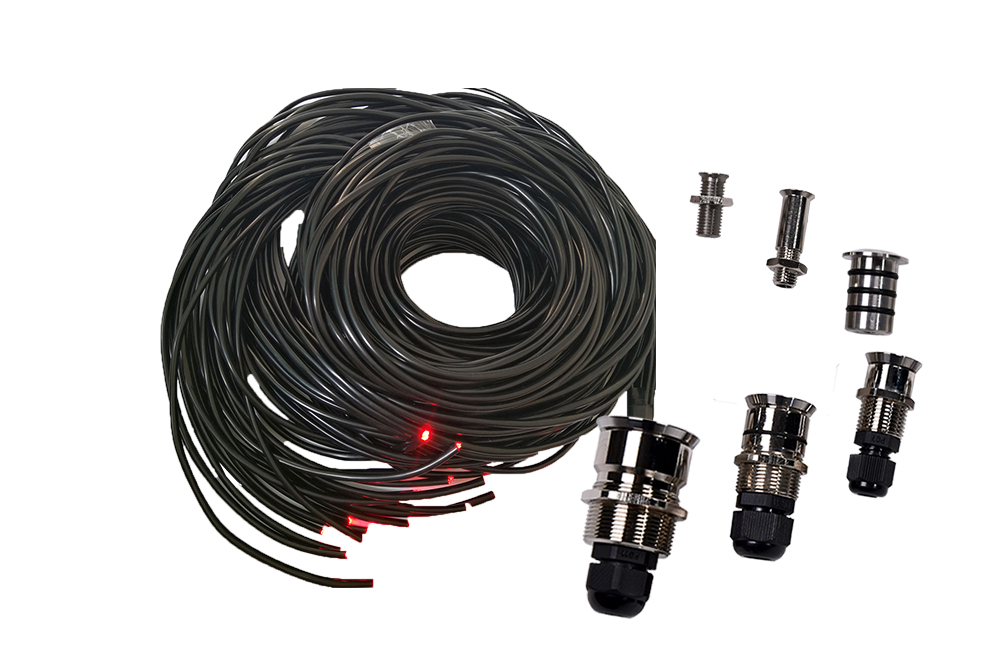

By default, Minar provides one piece of 14mm/18mm/22mm 3-in-1 combined fiber connector for the LET and LES series of light engines. These apertures are capable of 250pcs, 450pcs, and 650pcs of 0.75mm fiber tails respectively.

From left to right, the fiber connector: 22mm, 18mm, and 14mm.

Customized apertures are also welcome!
