Sparkle Fiber Optic Light Cable
General Information:
Core Material: Polymethyl-Methacrylate Resin (Acrylic/PMMA) ,
Cladding Material: a. N/A,
b. Fluorinated Polymeras,
Outer Diameter: 0.75mm~4.0m,
Dot Distance: 3cm,

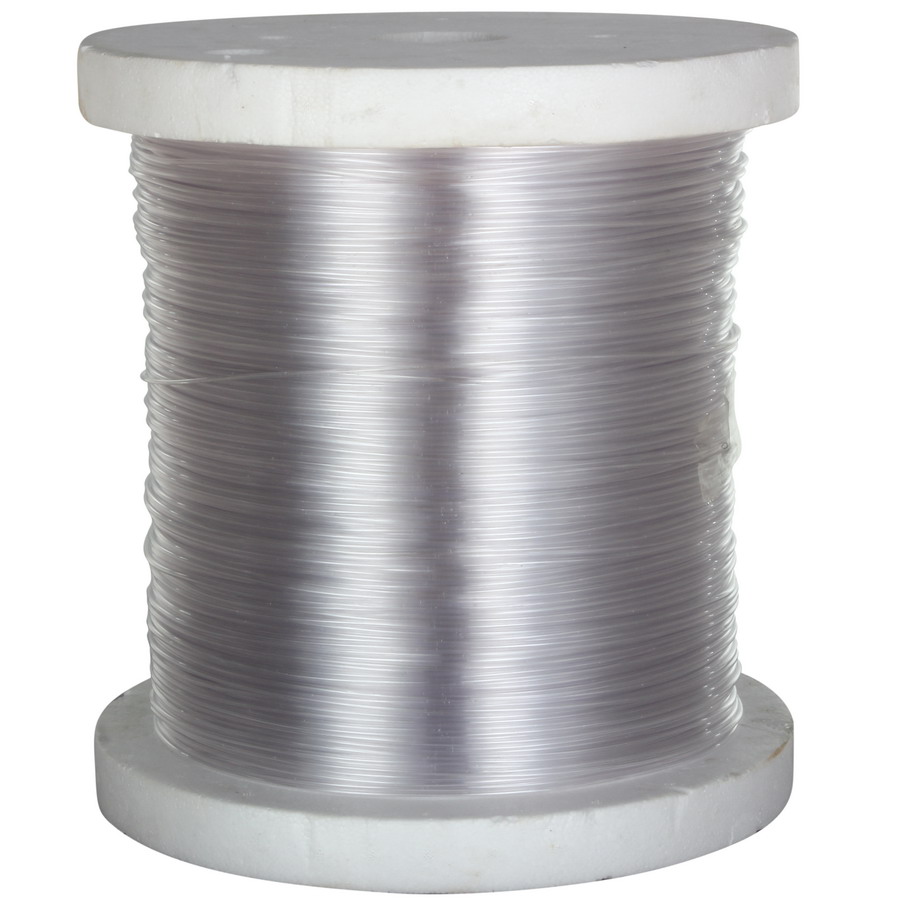

Spool Length: 3000m-900m,
Bend Radius: Minimum 10 x fiber diameter,
Core Refractive Index:1.49,
Refractive Index Profile: Step index,
Numeric Aperture: 0.50,
Attenuation: ≤0.22dB/M,
Operation Temperature: -55°C - 70°C,
Operating Temperature Range: -55°C - 70°C
Specifications:
Category | Ordering Code | Core Diameter (mm) | Outer Diameter (mm) | Dot Distance (mm) | PVC Sheath | Spool Length (m) | Attenuation (dB/M) | Minimum Bend Radius (mm) |
Minar MHF Side Spot Fiber Cable | SSOF-1*0.75/MHF | 0.75 | 0.75 | 30 | N/A | 2700 | ≤0.22 | 5 |
SSOF-1*1.0/MHF | 1.0 | 1.0 | 30 | N/A | 1500 | ≤0.22 | 10 | |
PSSOF-1*0.75/MHF | 1*0.75 | 1.4 | 30 | Clear | 5400 | ≤0.22 | 15 | |
PSSOF-1*1.0/MHF | 1*1.0 | 1.8 | 30 | Clear | 3000 | ≤0.22 | 18 | |
PSSOF-3*0.75/MHF | 3*0.75 | 3.0 | 30 | Clear | 1350 | ≤0.22 | 30 | |
PSSOF-3*1.0/MHF | 3*1.0 | 3.5 | 30 | Clear | 750 | ≤0.22 | 35 | |
PSSOF-7*0.75/MHF | 7*0.75 | 4.0 | 30 | Clear | 900 | ≤0.22 | 40 |
