The detailed specification of the sauna star kit:
LEA-501 sauna star kit:
| Item No. | LEA-501 + SFB015-01 |
| Description | LEA-501 Sauna fiber optic light star kit |
| Location | Home sauna room |

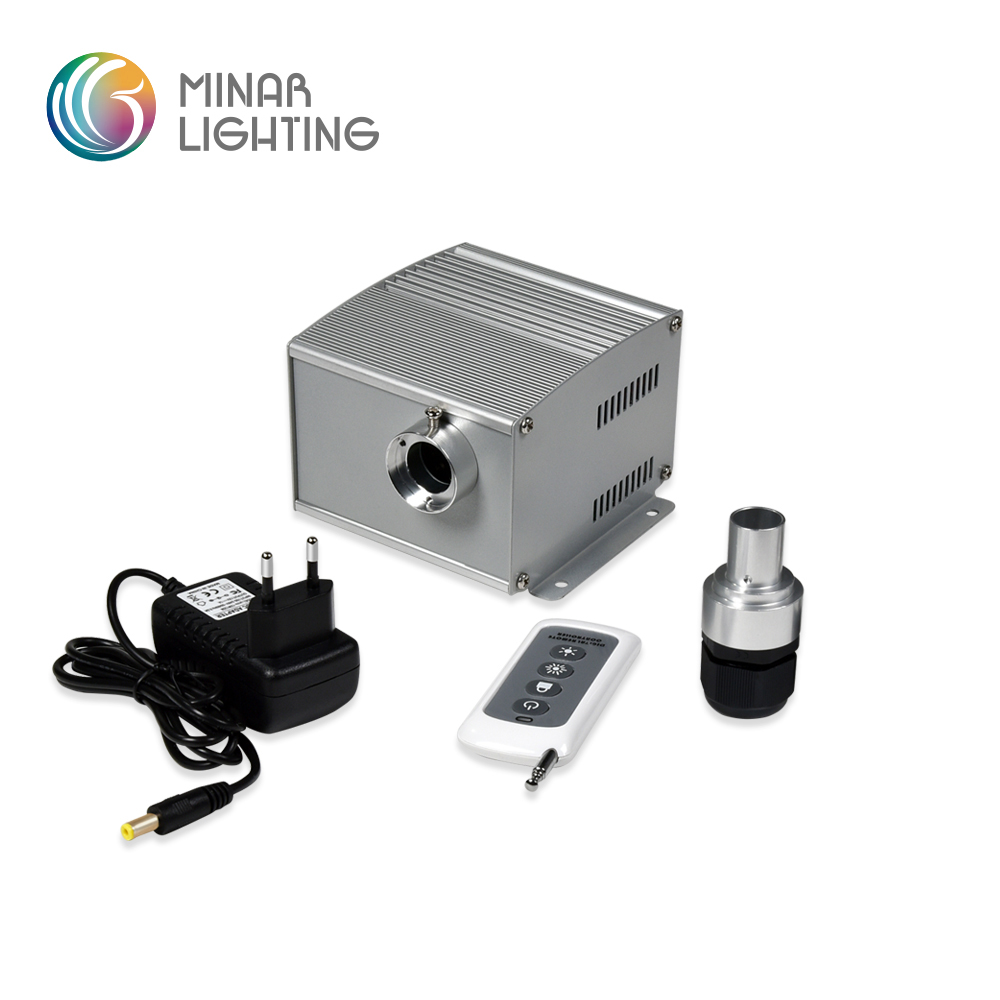

| Light Engine | LEA-501 |
| Lamp Source | LED: Cree XPG |
| LED Power | 5W |
| Emitting Colors | White, 3000K/4000K/6000K |
| Effect | Twinkle |

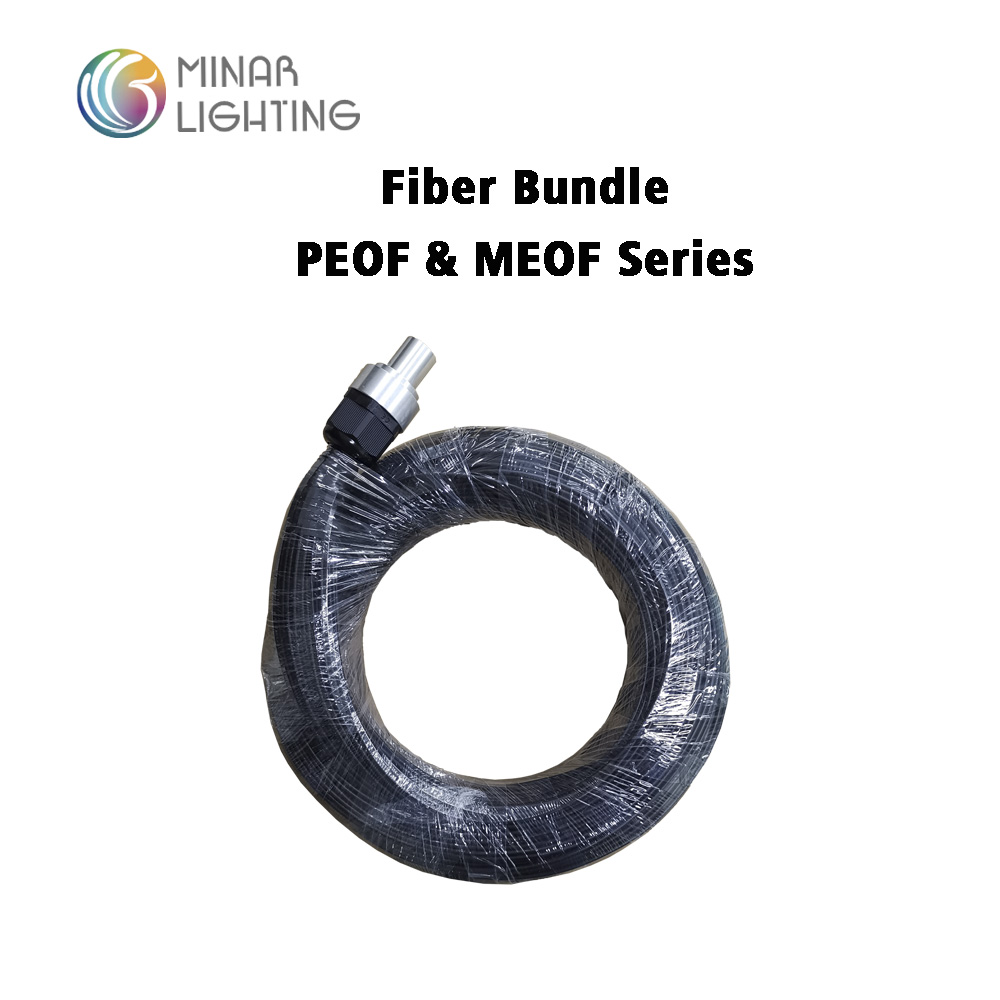

| Fiber Harness | SFB015-01 Sheathed end glow fiber cables with fiber connector PEOF-2.0/MF 15pcs*5m/pc |
| Control | Remote control DIP switches |
| Color | Light engine-Grey Fiber cable-Black |
| Material | Light engine-Aluminum Fiber strands-PMMA End fittings-Copper + Glass PVC Drill-HSS4241 |
| IP Rating | IP20: Light engine IP67: Fiber strands IP67: End fittings |
 | LEA-501 12V dc, 7W, twinkle LED: White, 5W Dimmable No fans Aluminum housing IP20 Size: L125*W125H80mm Net Weight: 0.8kgs |  | Fiber bundle: SFB015-01 Fiber Cable: PEOF-2.0/MF Active diameter: 2.0mm Outer Diameter: 3.0mm Length: 5 meters/pc Fiber connector Weight: 0.8kgs |

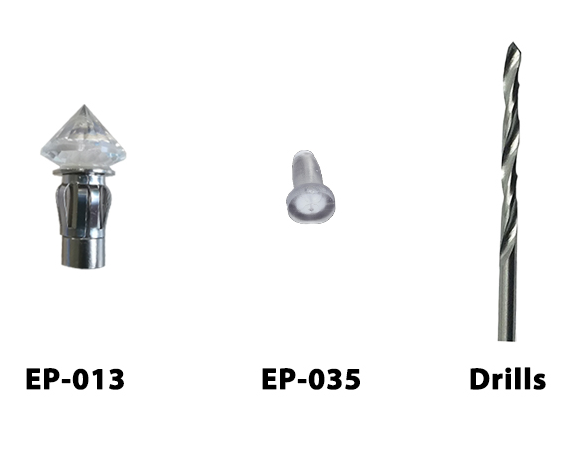

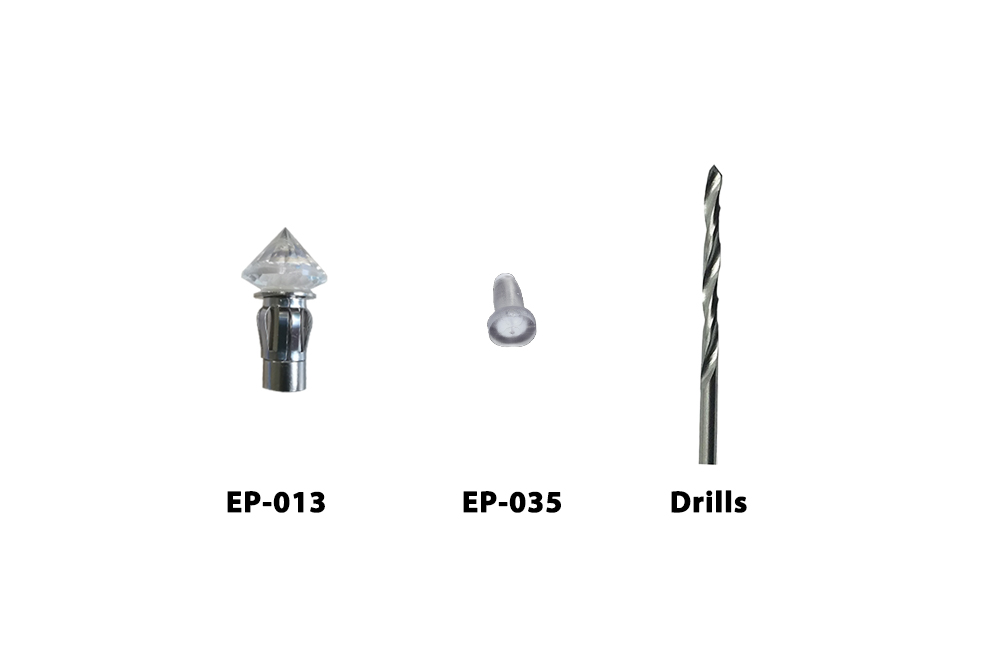

| End fittings: EP-013: 16pcs EP-035: 16pcs Drills: Φ2.5mm, 5pcs |
More LEA-501 sauna star kit:
| Item No. | LEA-501 + SFB015-01 | LEA-501 + SFB015-02 | LEA-501 + SFB020-01 | LEA-501 + SFB020-02 | LEA-501 + SFB050-01 |
| Light Engine: | LEA-501 | LEA-501 | LEA-501 | LEA-501 | LEA-501 |
| Fiber Bundle | SFB015-01 Fiber Cable: PEOF-2.0/MF Active diameter: 2.0mm Outer Diameter: 3.0mm Length: 5 meters/pc Fiber connector Weight: 0.8kgs | SFB015-02 Fiber Cable: PEOF-3.0/MF Active diameter: 3.0mm Outer Diameter: 4.0mm Length: 5 meters/pc Fiber connector Weight: 1.9kgs | SFB020-01 Fiber Cable: PEOF-2.0/MF Active diameter: 2.0mm Outer Diameter: 3.0mm Length: 5 meters/pc Fiber connector Weight: 1.0kgs | SFB020-02 Fiber Cable: PEOF-3.0/MF Active diameter: 3.0mm Outer Diameter: 4.0mm Length: 5 meters/pc Fiber connector Weight: 2.5kgs | SFB020-01 Fiber Cable: PEOF-2.0/MF Active diameter: 2.0mm Outer Diameter: 3.0mm Length: 5 meters/pc Fiber connector Weight: 2.5kgs |
| End Fittings | EP-013: 16pcs EP-035: 16pcs | EP-013: 16pcs | EP-013: 21pcs EP-035: 21pcs | EP-013: 21pcs | EP-013: 51pcs EP-035: 51pcs |
| Drills | Φ2.5mm, 5pcs | Φ3.5mm, 5pcs | Φ2.5mm, 5pcs | Φ3.5mm, 5pcs | Φ2.5mm, 10pcs |
