Star Ceiling Panels

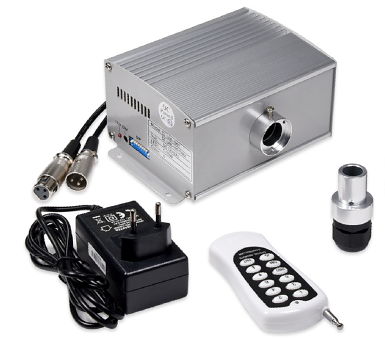

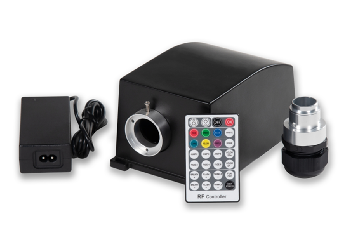

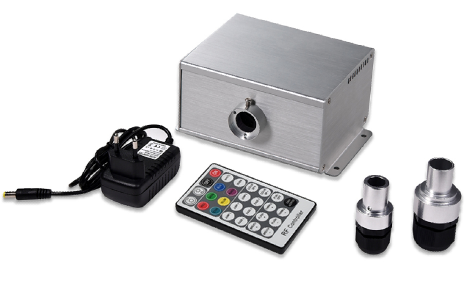

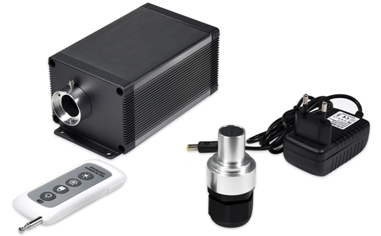

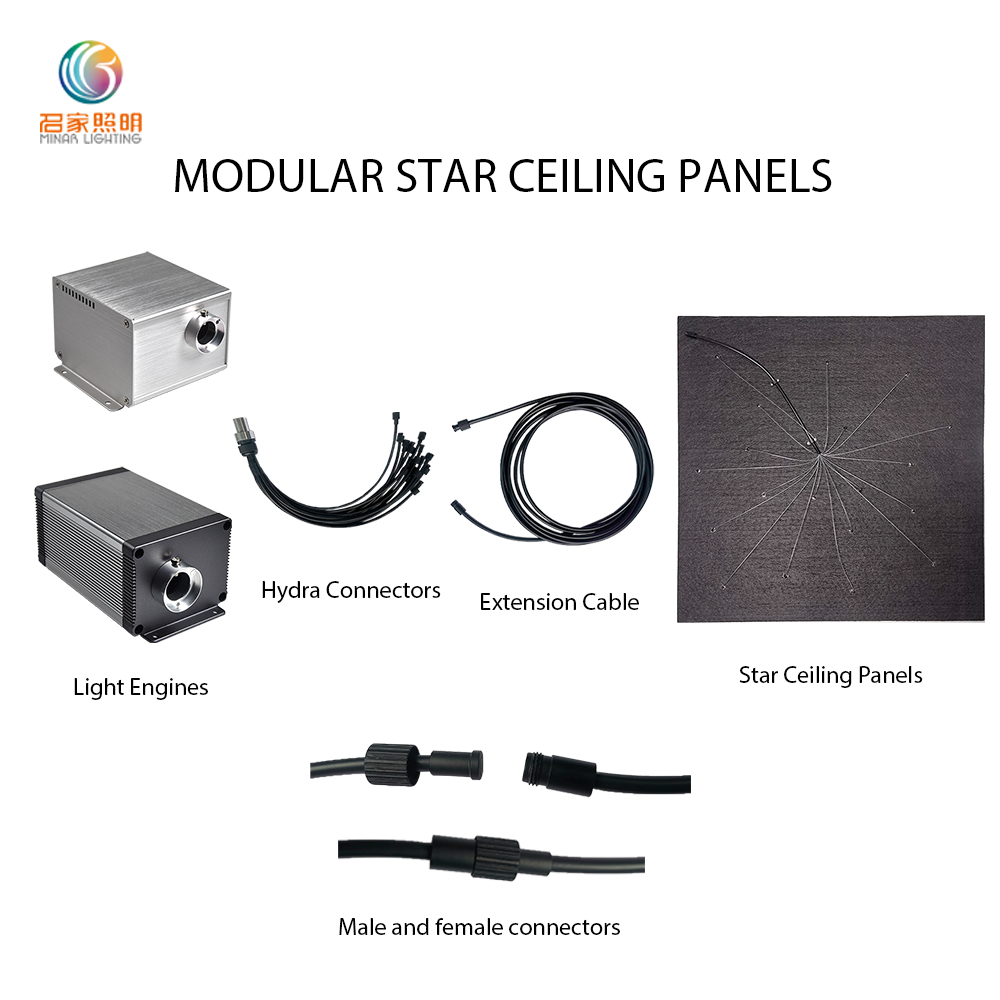

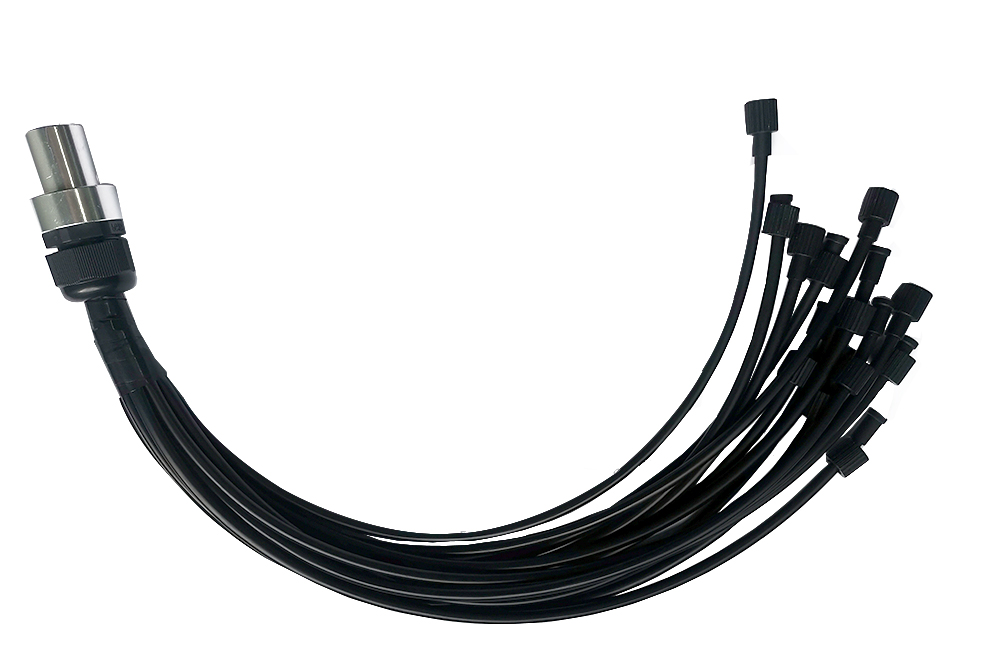

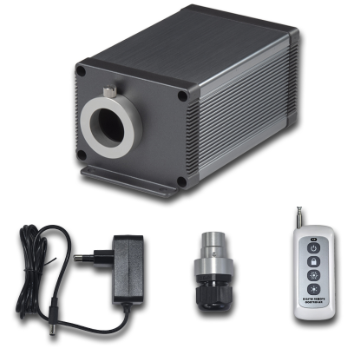

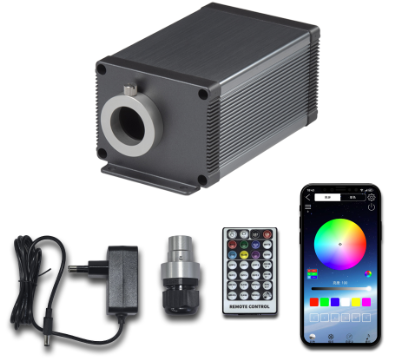

The hydra connector connects the light engine to the extension cable or the ceiling tiles directly. The fiber connector could be of different apertures depending on the light engine. Our standard panel kits have 13 tails and 23 tails respectively. Different quantity of tails is available at request. On the tails, there is a female connector to connect the extension cable or the panel tiles.

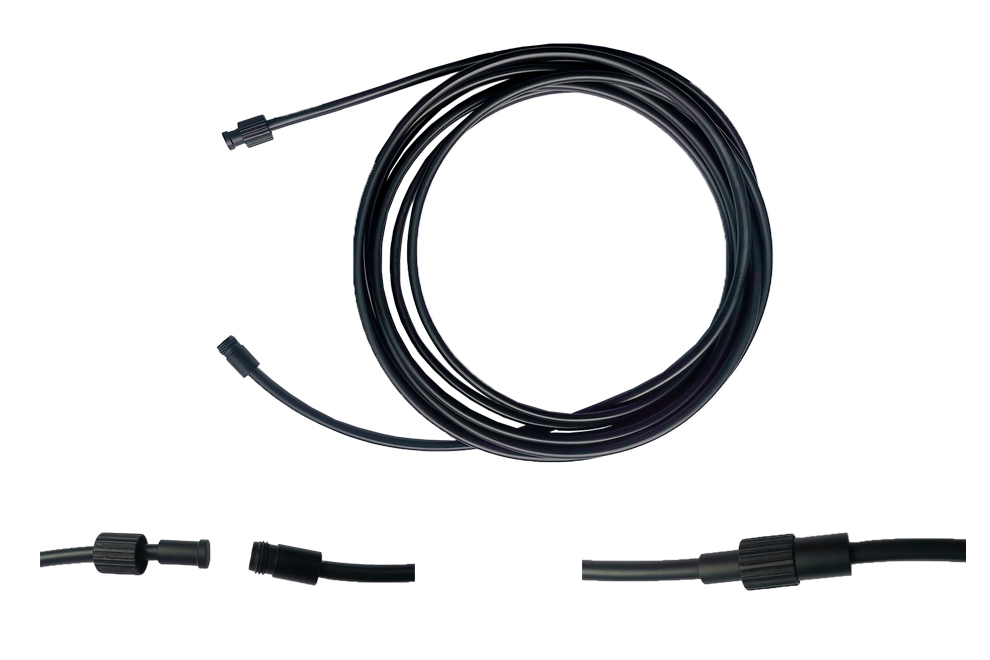

Between the hydra connector and the panel tiles, there could be extension cables. By default they are 3 meters long. They could also be different lengths at request. There are a male connector and a female connector at each end. The male connector and female connector can lock themselves by the screws.

The end-glow multi-string fiber cable, MEOF-19*0.75, has been applied for the standard modular star ceiling panel kit: SCP-01, and SCP-02. The end cable is 0.8m long with half PVC sheath peeled off.

Customized fiber cables are welcome!

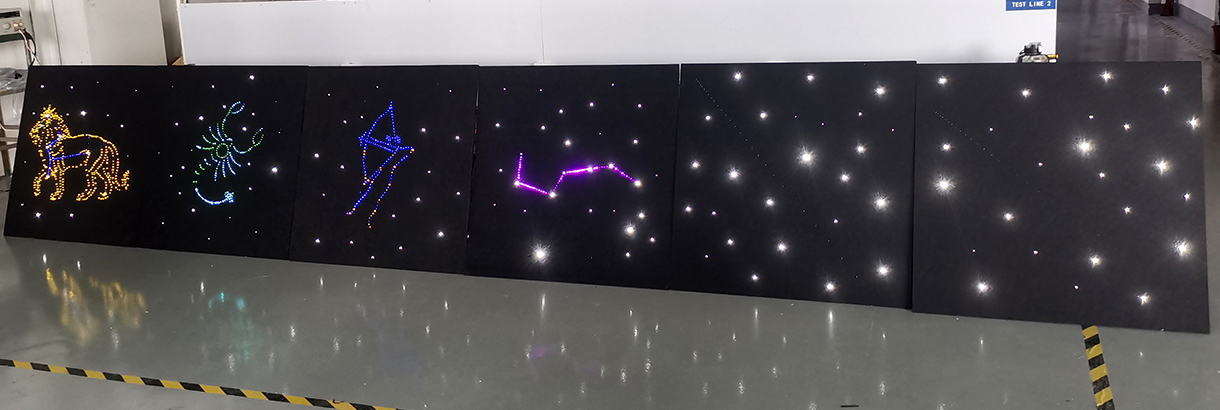

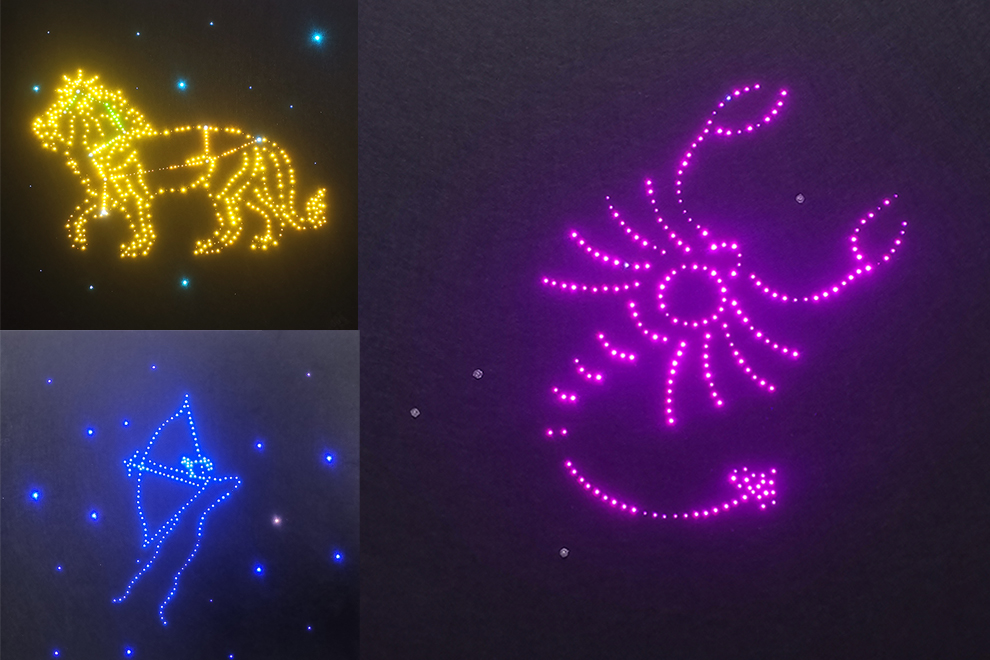

ODM and OEM services are also available. We provide customized ceiling tile designs of different sizes and stars arrangement upon clients' request.

Please contact the sales for details.

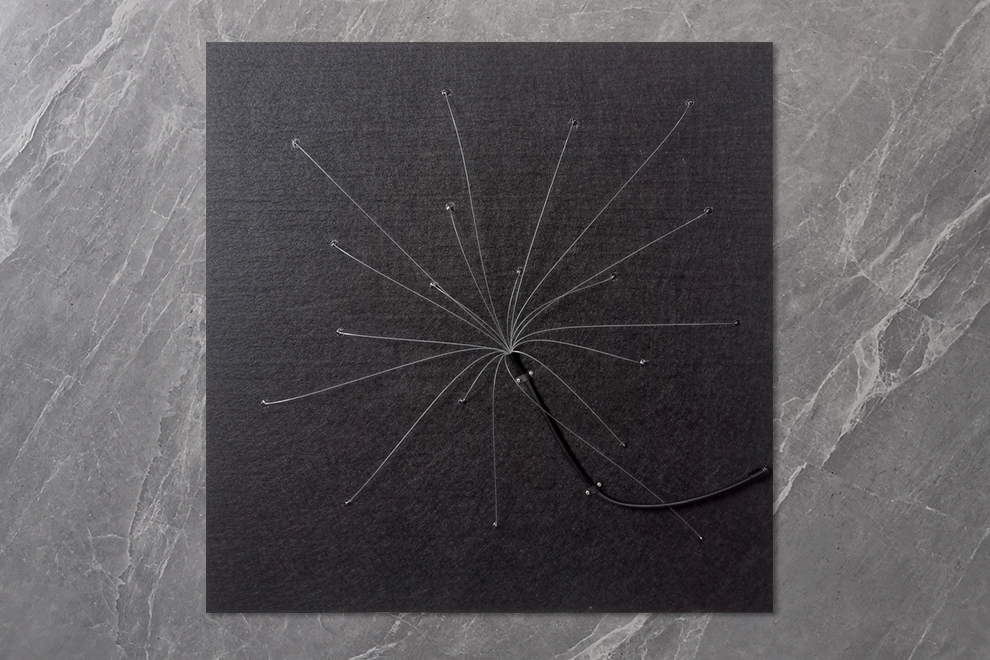

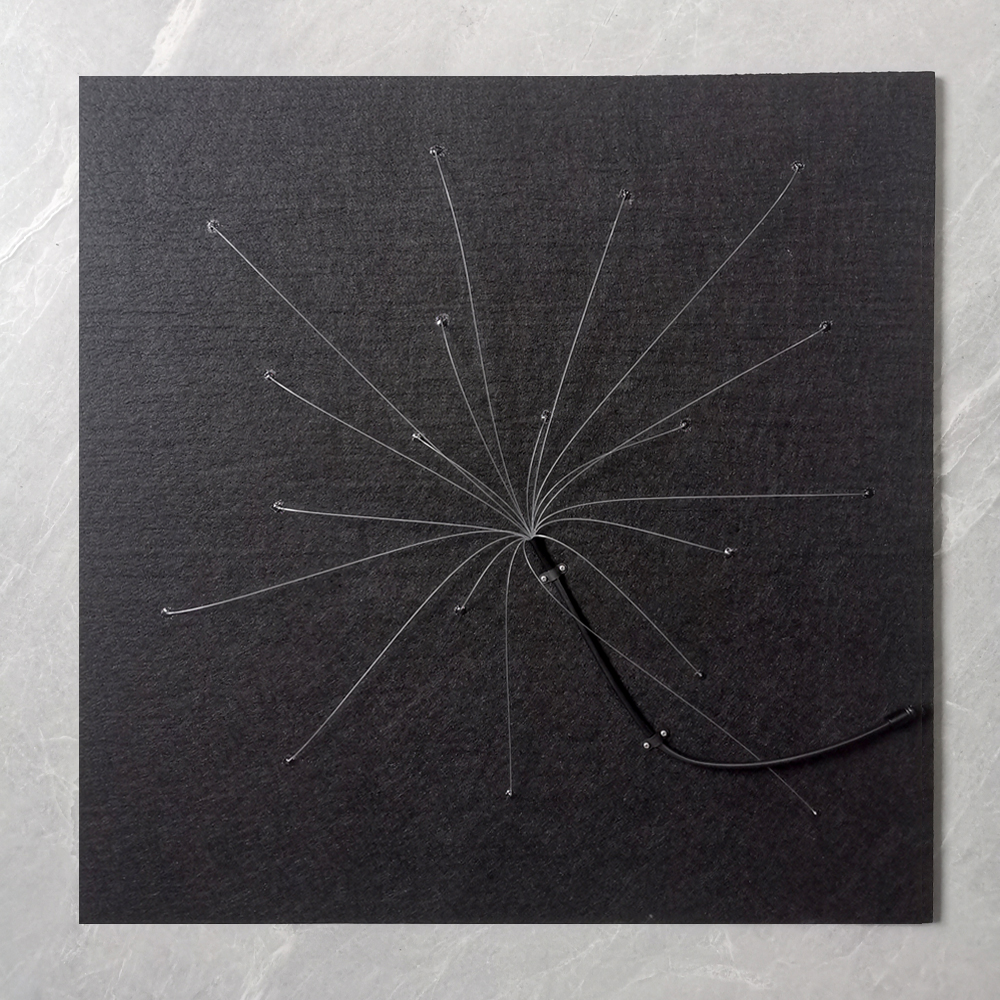

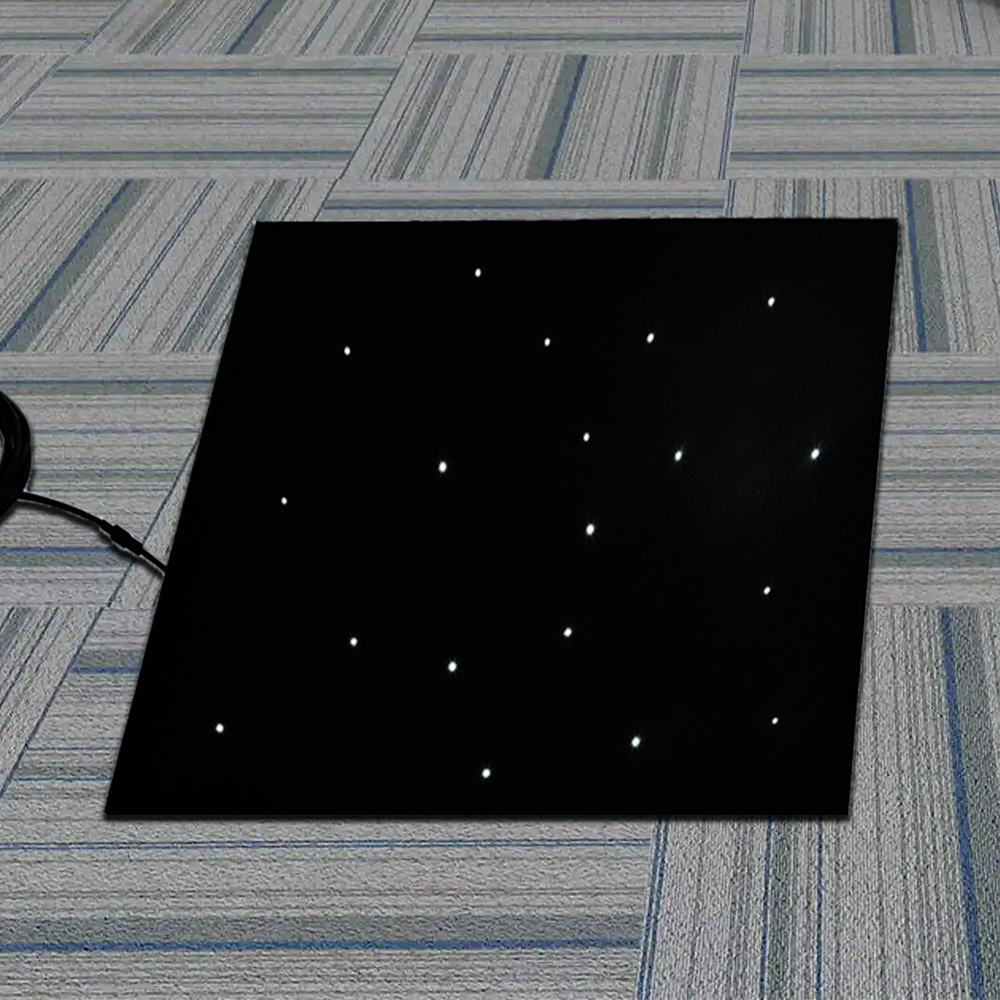

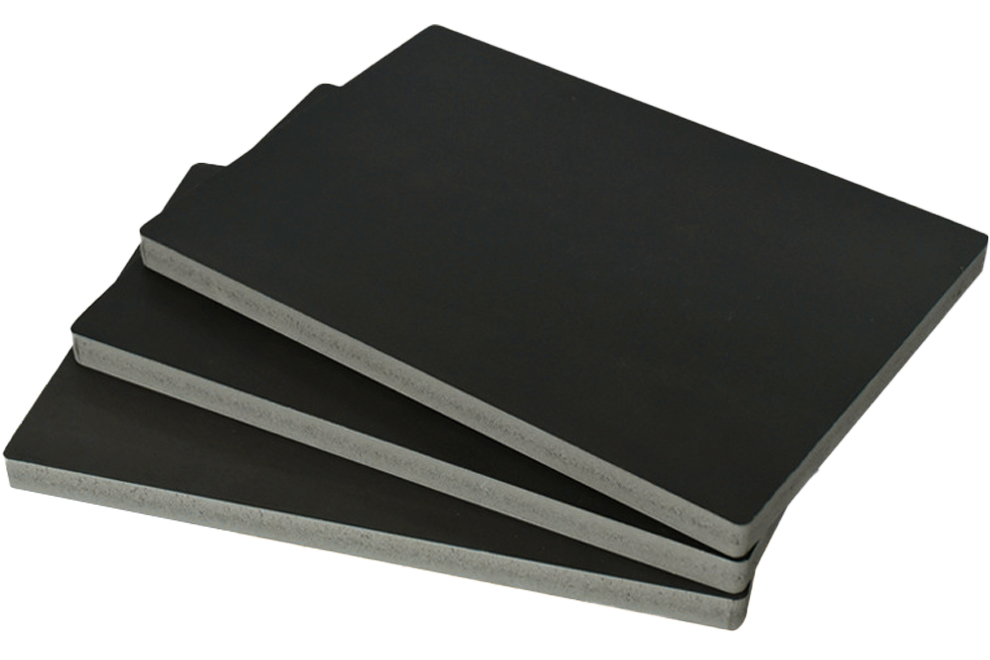

By default, we provide fire retardant fibreboard panels at a size of 600mm*600mm*9mm in black colors. Panels of customized sizes are available at request.

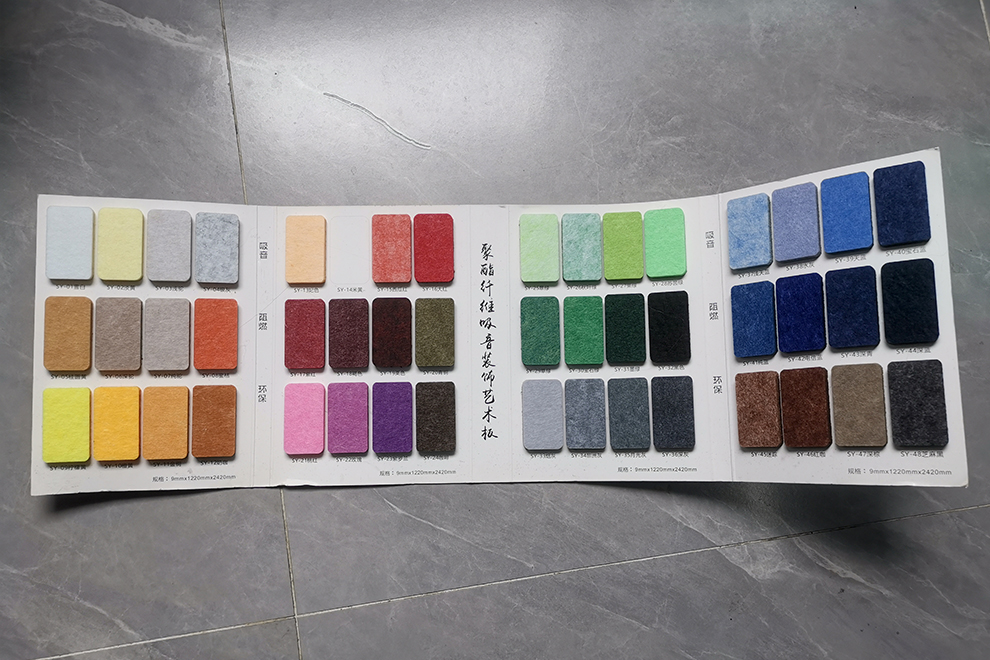

These modular star ceiling tiles are made of Polyester fiber acoustic panels with multiple colors to choose from.
