LLE-004TW

The LLE series of fiber optic light engines uses miniature housings with exquisite workmanship. With no fans inside, the series is noise-free, has a novel appearance, and offers high-cost performance. LLE-004TW especially features tunable white from 3000K to 6000K.

10W Tunable White LED Light Engine

General Information:

1. Model: LLE-004TW,

2. Input Voltage: DC 12V,

3. Light Source: LED,

4. LED Type: 8W,

5. Twinkle Disc: N/A,

6. Control: Remote control/DIP switches,

7. Light Emitting: Tunable white, 3000K-6000K,

8. Dimmable,

9. Remote control: RF, 24 buttons,

10. No fans or motors, noise-free,

11. IP Rating: IP20,

12. Warranty: 2 Years,

13. Packing: Neutral color box

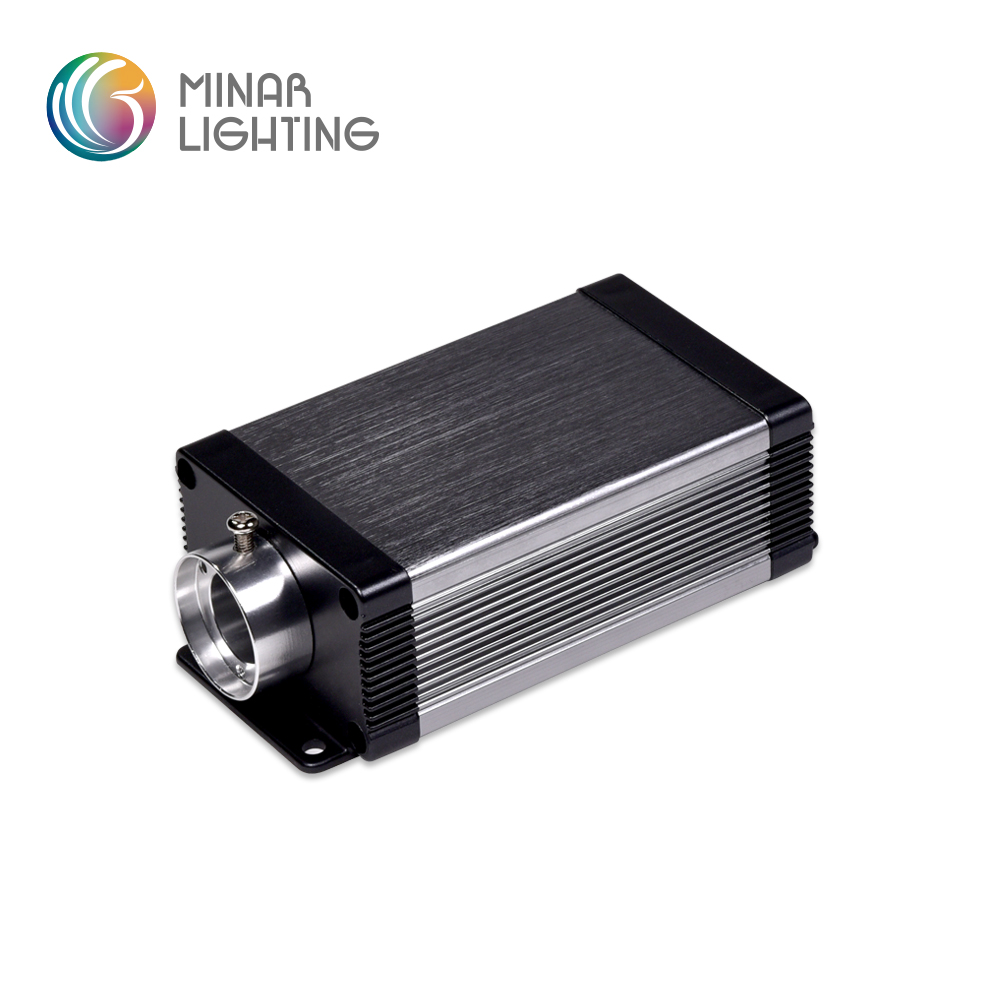

- Novel Appearance and Noise Free

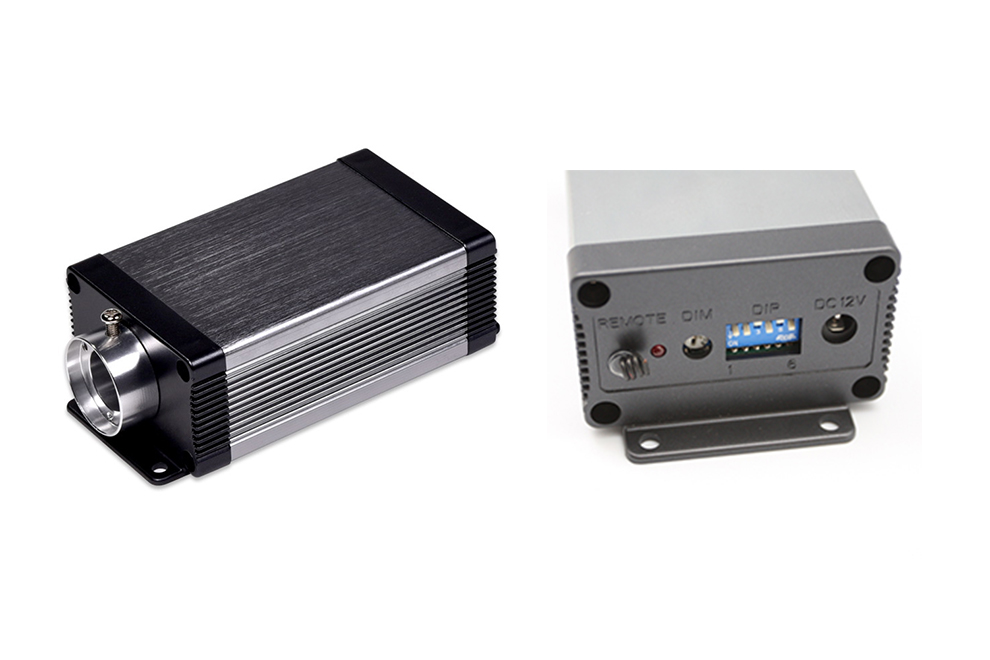

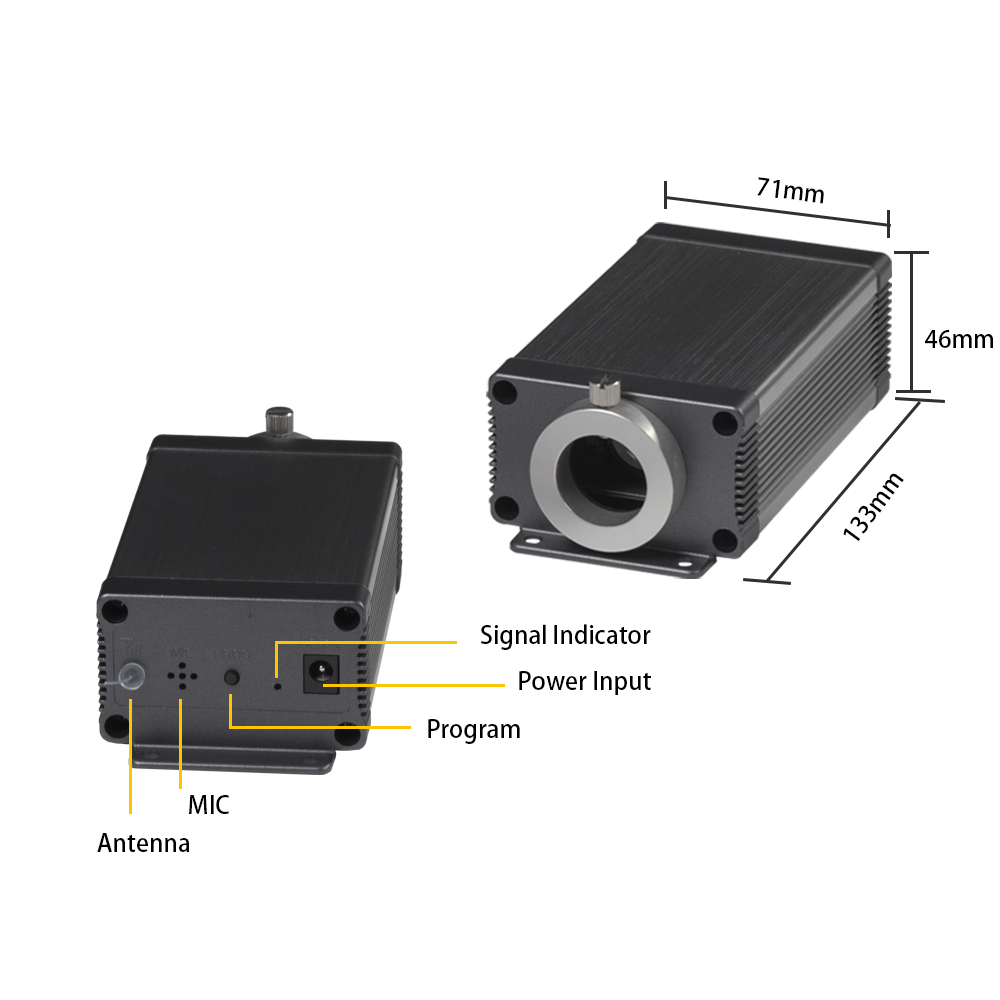

  With a length and width of just 133mm and 71mm respectively, it is particularly suitable for areas where installation size is restricted. The machine has no motors or fans and operates without any noise.

  The back panel of the light engine where DIP switches, antenna for remote control, Dim knob and power socket could be found. DIP switches are used to turn on remote control function and to choose the built-in programs.

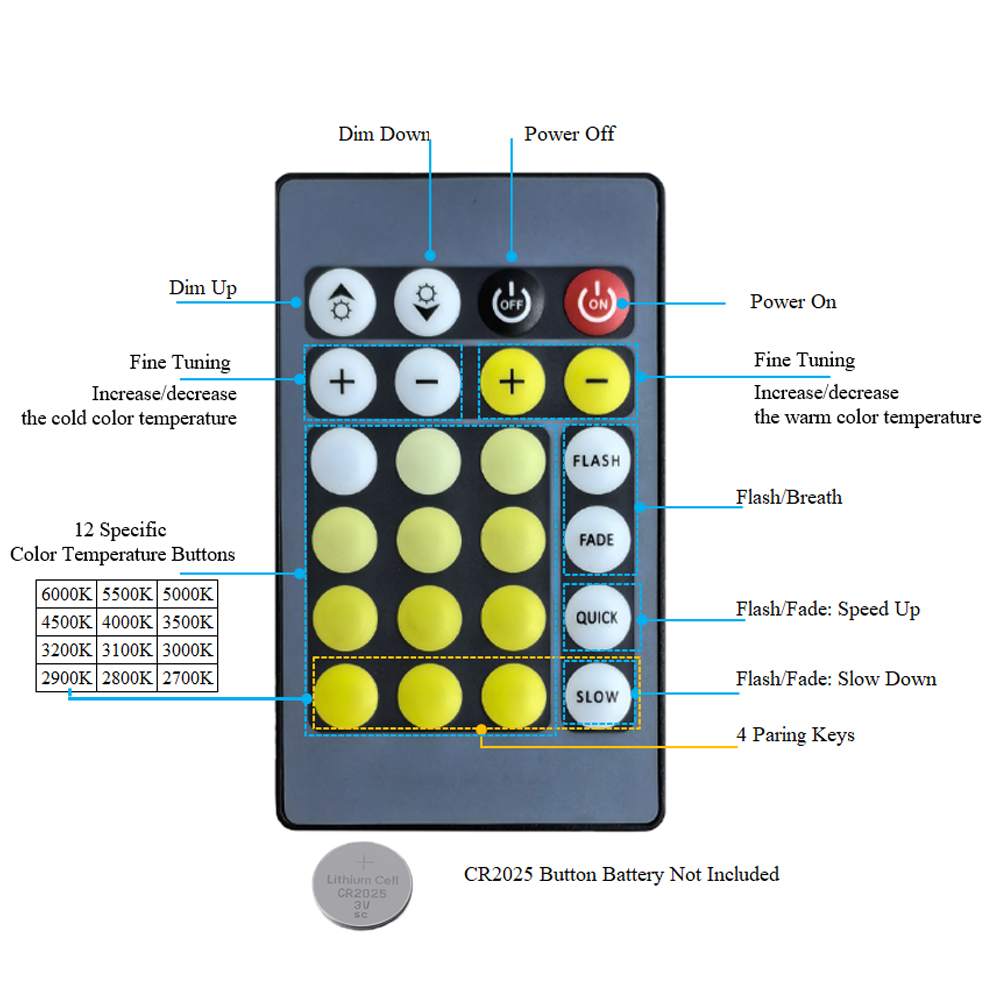

- 24-Button RF Remote Control

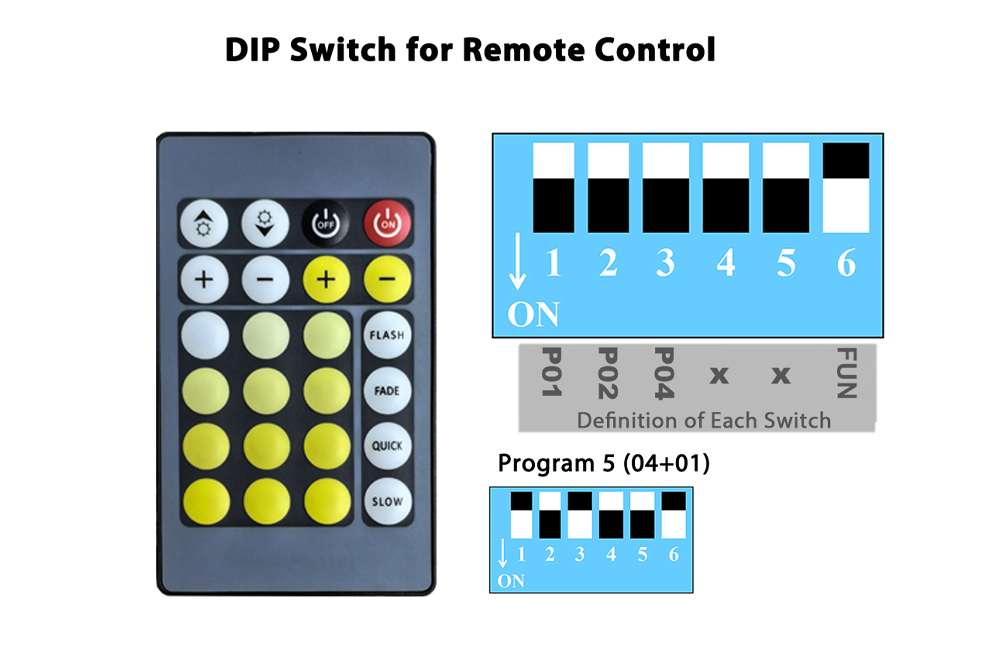

  The remote control needs to be paired with the light engine before use. Please ensure that the DIP SW6 is turned on to activate the remote control function.

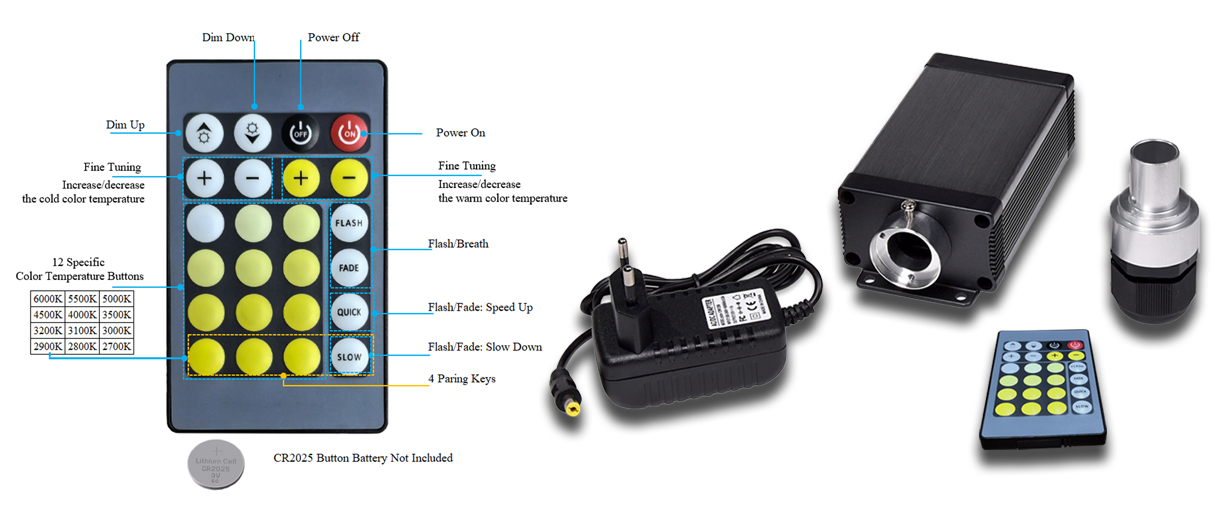

  The 4 buttons at the last row on the remote control are the pairing buttons. Please follow the instructions in the User Manual to perform the pairing work.

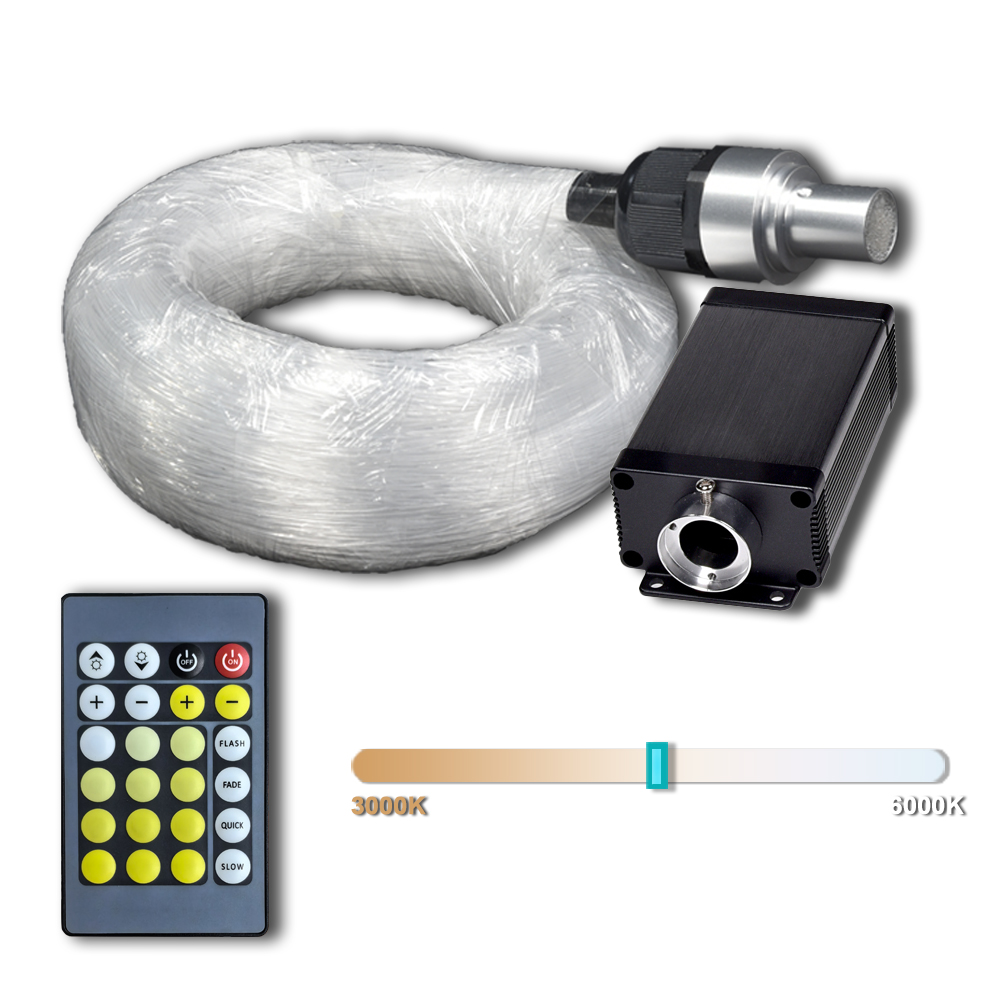

- CCT Changeable

  The color temperature is changeable from 3000K to 6000K. Pressing the buttons on the remote controller to get the color temperature needed.
- Neutral Color Box

  By default, the light engine and the fiber bundle will be packed in a neutral-color box.

  A customized color box is also available at request.

SPECIFICATIONS

Specification:

Item Number

Standard

Aperture

Optional

Aperture

Maximum Fiber Capacity

(0.75mm fiber tails)

Housing

Material

Housing

Color

Dimensions

(mm)

Optional

Remote Control

LLE-004TW

14mm

18mm

450pcs

Aluminum

Grey

L133XW71XH46

RC-24

Electrical Parameters:

Working Voltage	Power Consumption	Input Voltage	Adapter Power
12V	10W	100V-240V ac	12V/1A

LED Parameters:

LED Power	LED Color	Color Temperature Range	Luminous Flux	Life Span
8W	White	3000K~6000K	600lm	50000h

Control:

1	DIP Switches
2	Remote Control (optional)

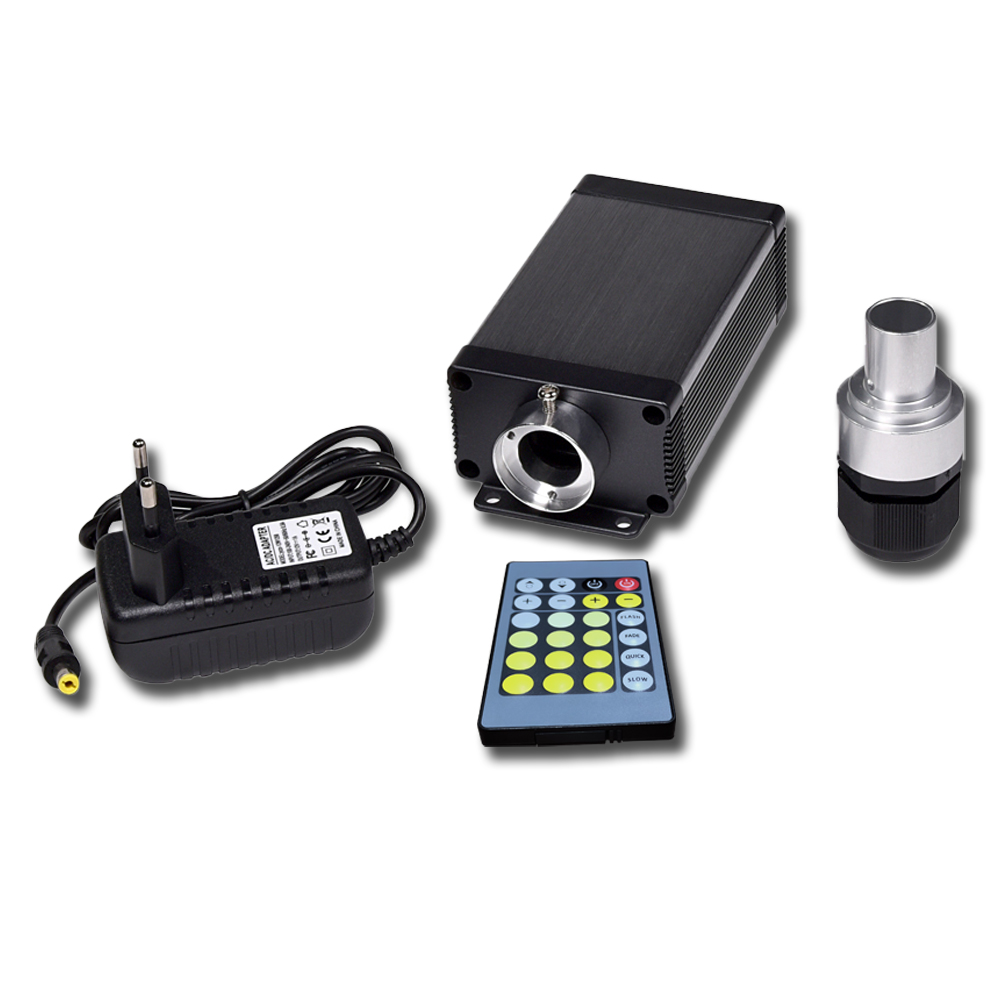

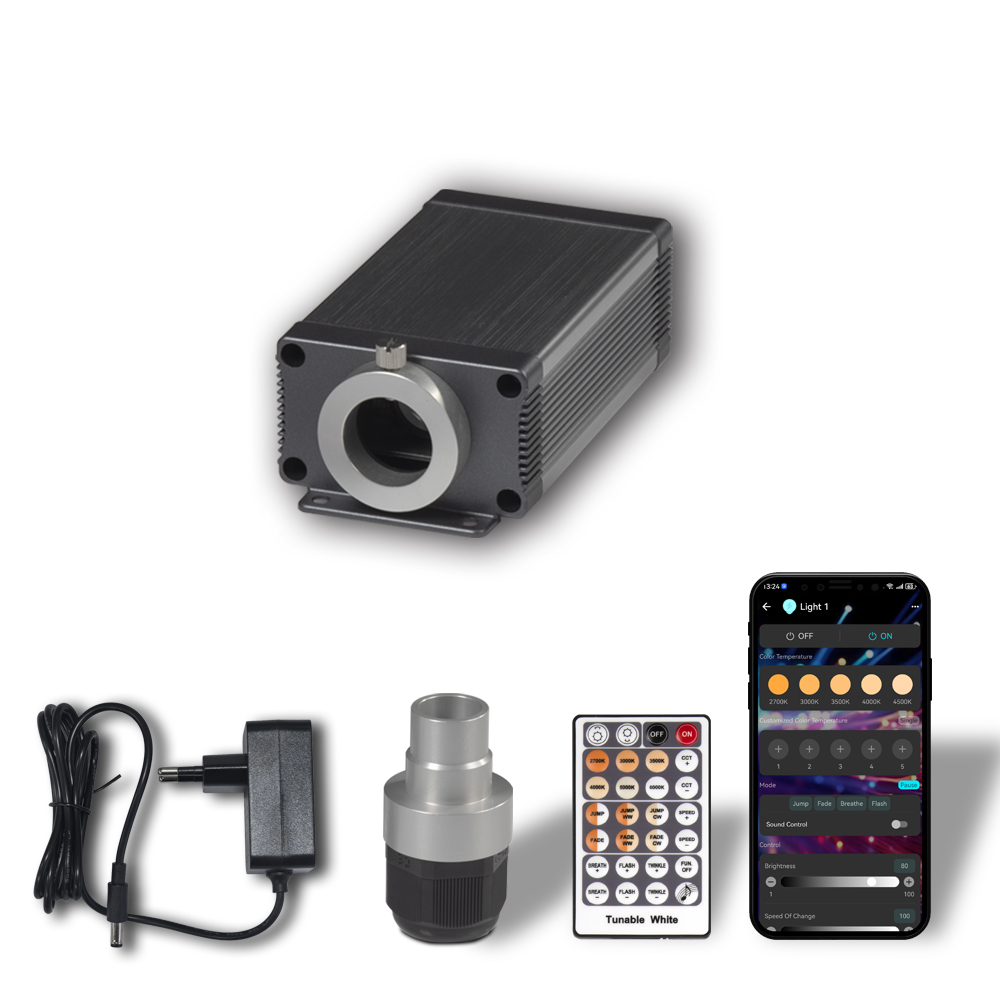

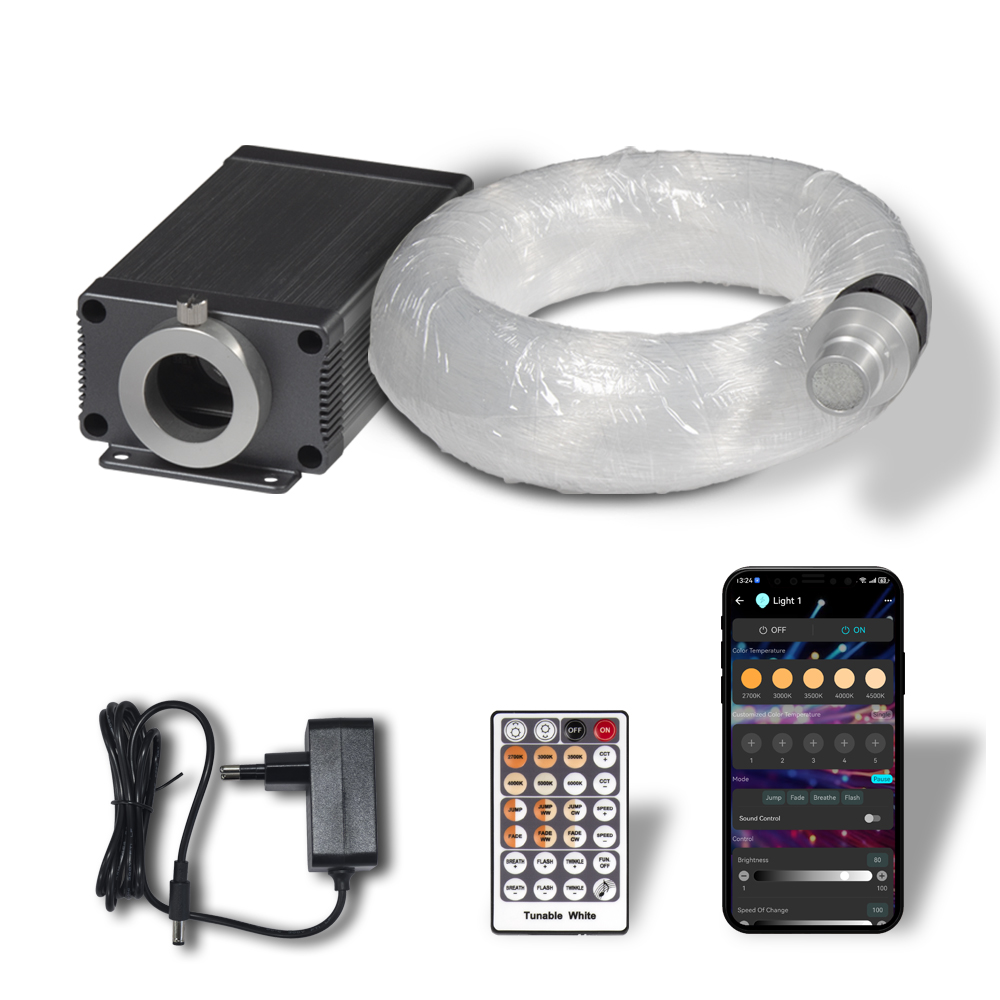

Spare Parts in the Package:

No.	Item	Quantity
1	14mm Fiber Connector	1
2	AC-DC Adapter	1

Optional Parts:

No.	Item
1	24-Key RF Remote Control

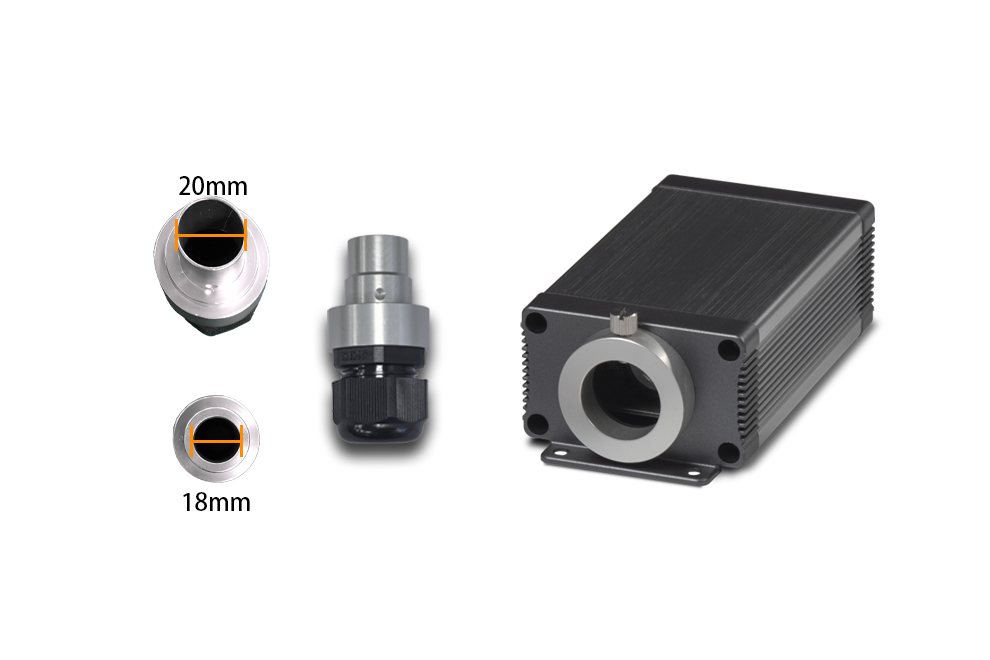

2	18mm Fiber Connector

Video of Tunable White Demo

89ed6eaa6e197d1060a98235434f789f.mp4

USER MANUAL

Download the instruction manual/specification
