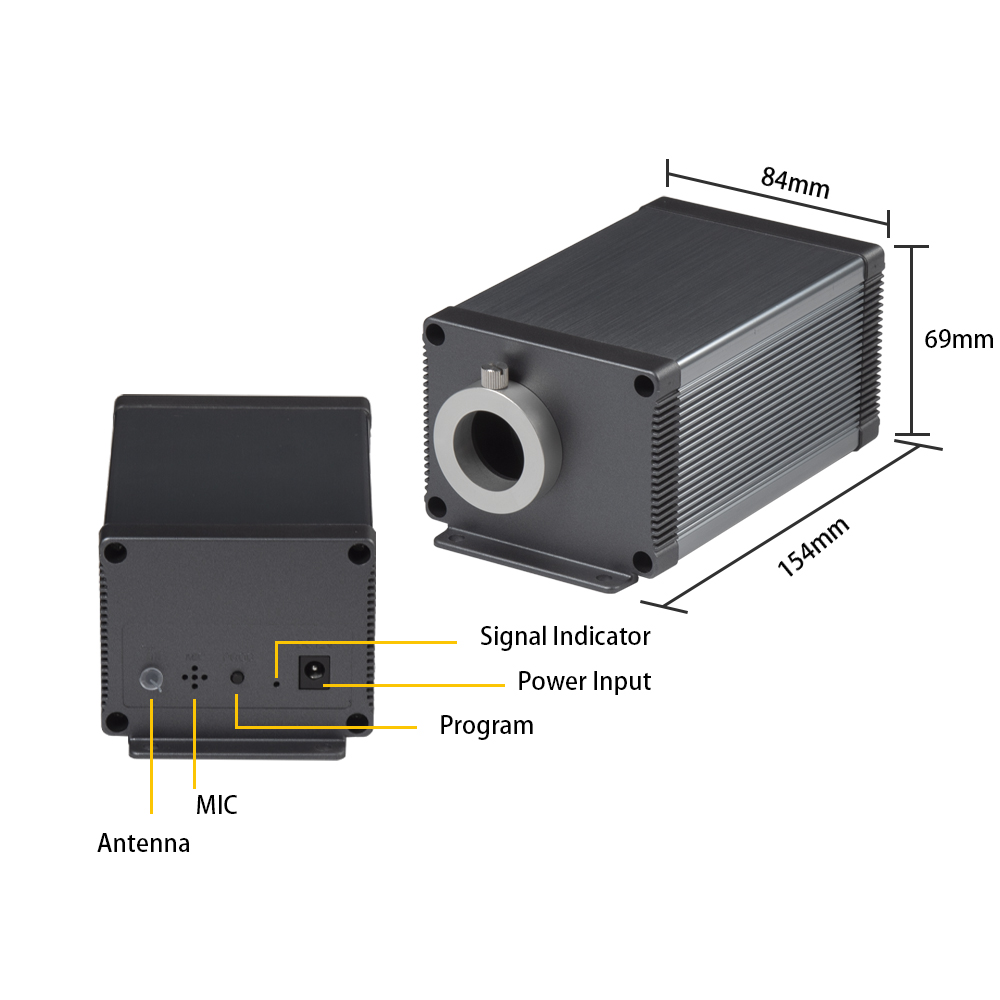

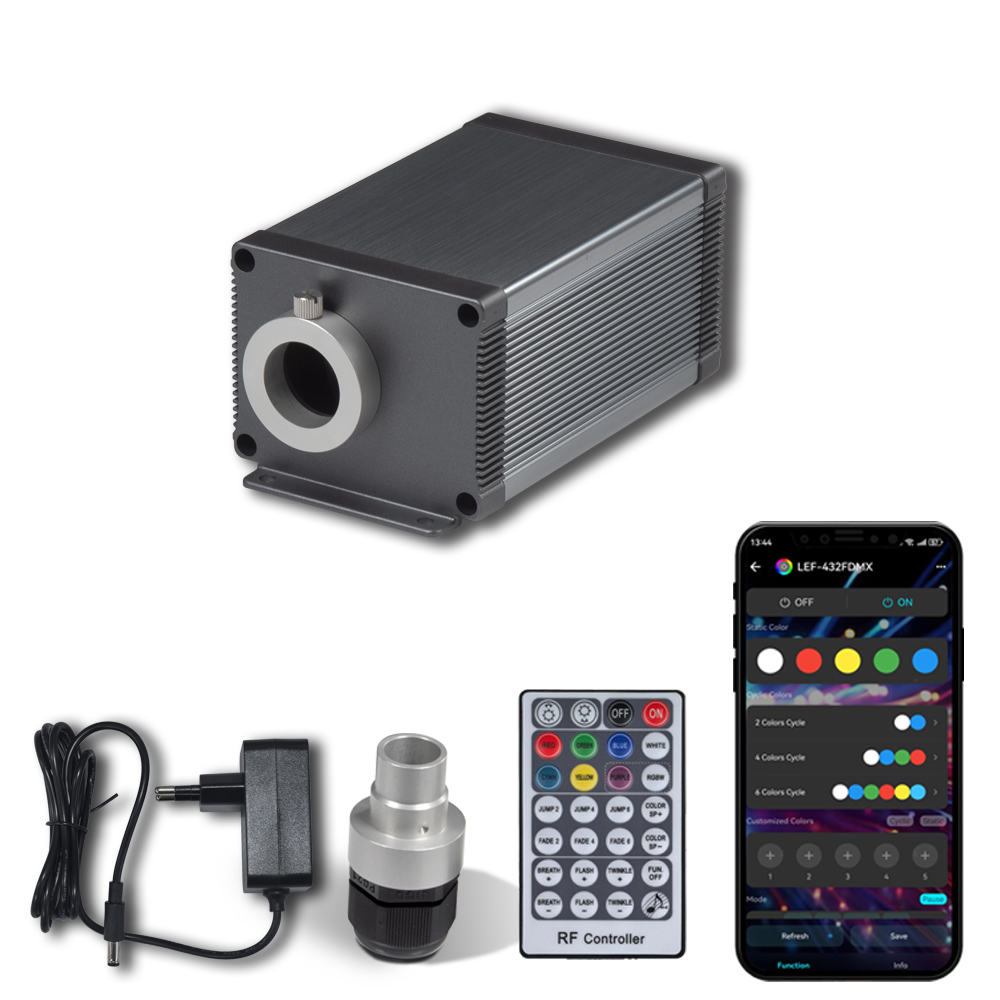

LLE-005

The LLE series of fiber optic light engines uses miniature housings with exquisite workmanship. With no fans inside, the series is noise-free. These novel appearance light engines offer high-cost performance. LLE-005APP especially features mobile Application control. Unlike others, it has no DIP switches.

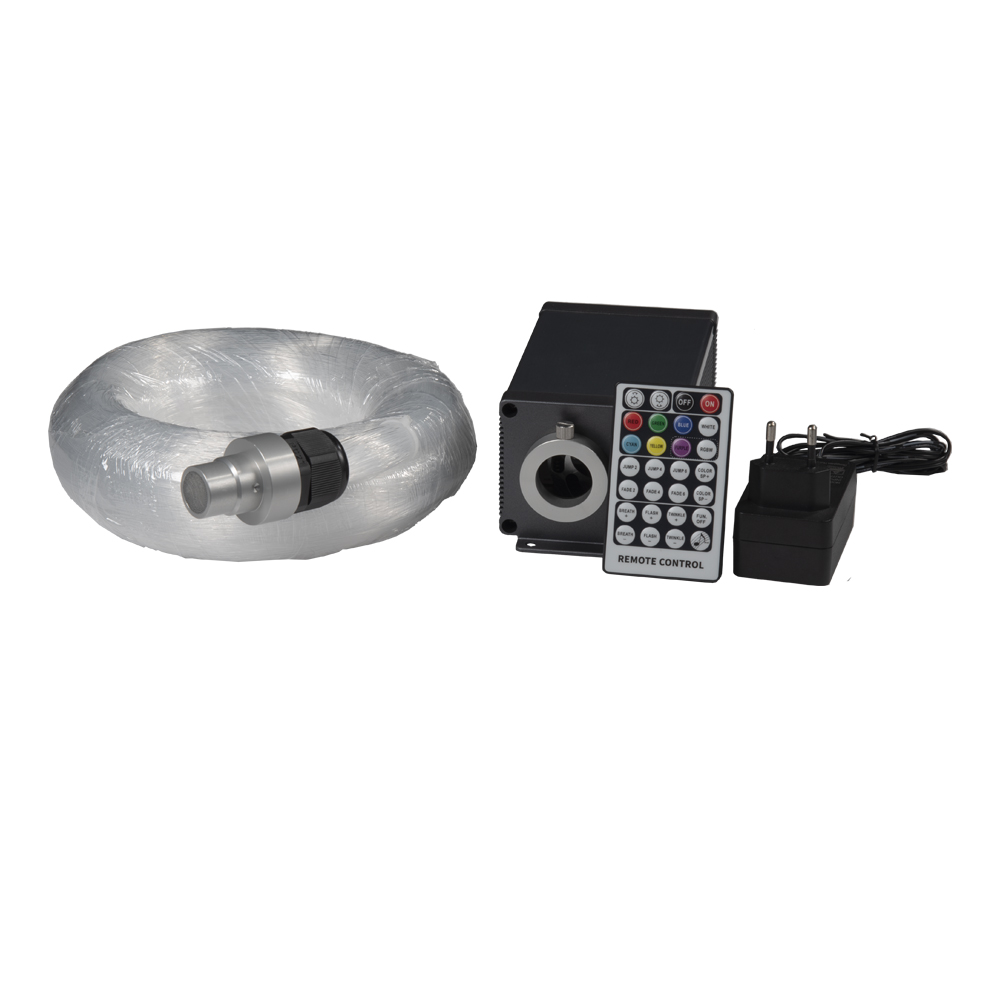

14W LED Light Engine for star ceiling

General Information:

1. Model: LLE-005,

2. Input Voltage: DC 12V,

3. Light Source: Colorful LED,

4. LED Type: RGBW, 4*3W, Cree,

5. Twinkle Disc: Yes,

6. Control: App, Remote control,

7. Light Emitting: Static color/Cycling colors,

8. Dimmable,

9. No fans, noise-free,

10. IP Rating: IP20,

11. Warranty: 2 Years,

12. Packing: Neutral color box.

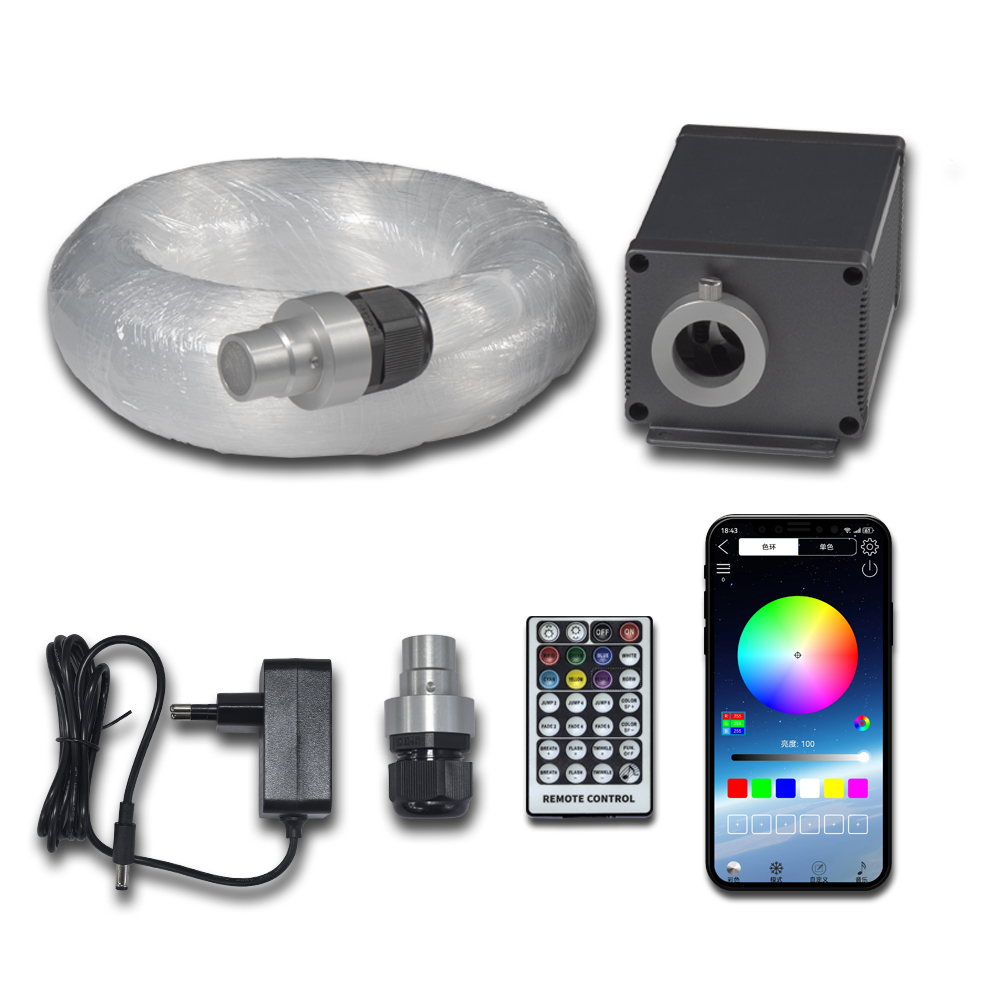

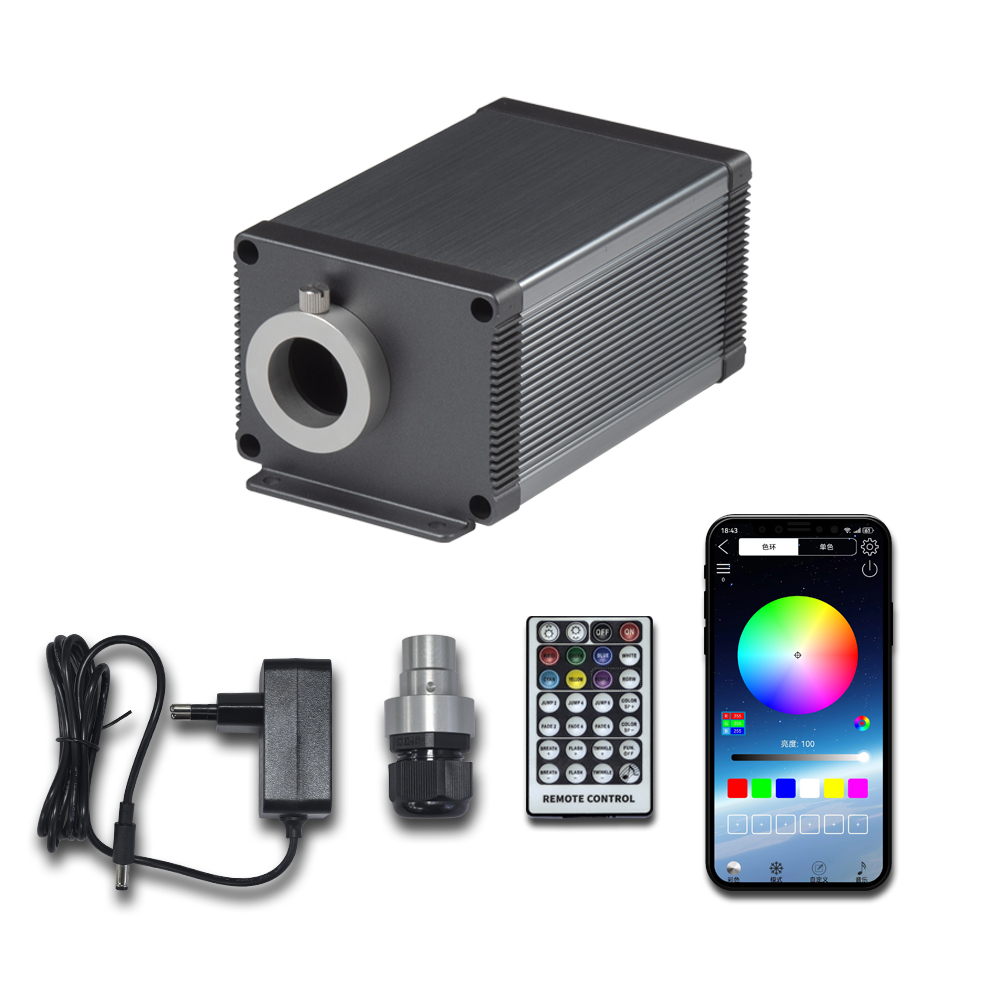

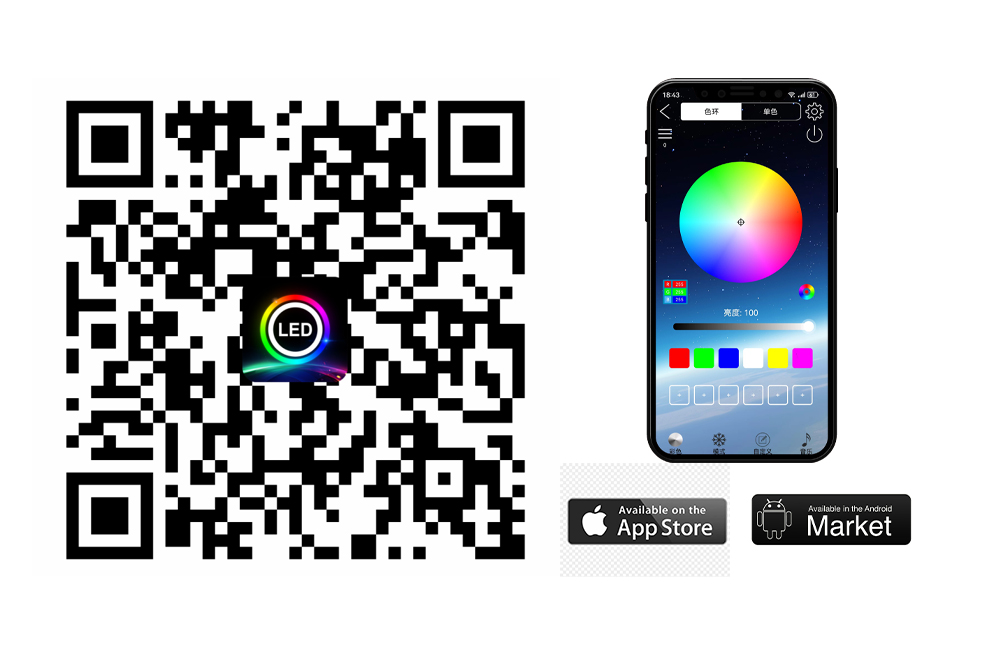

- Mobile App Control

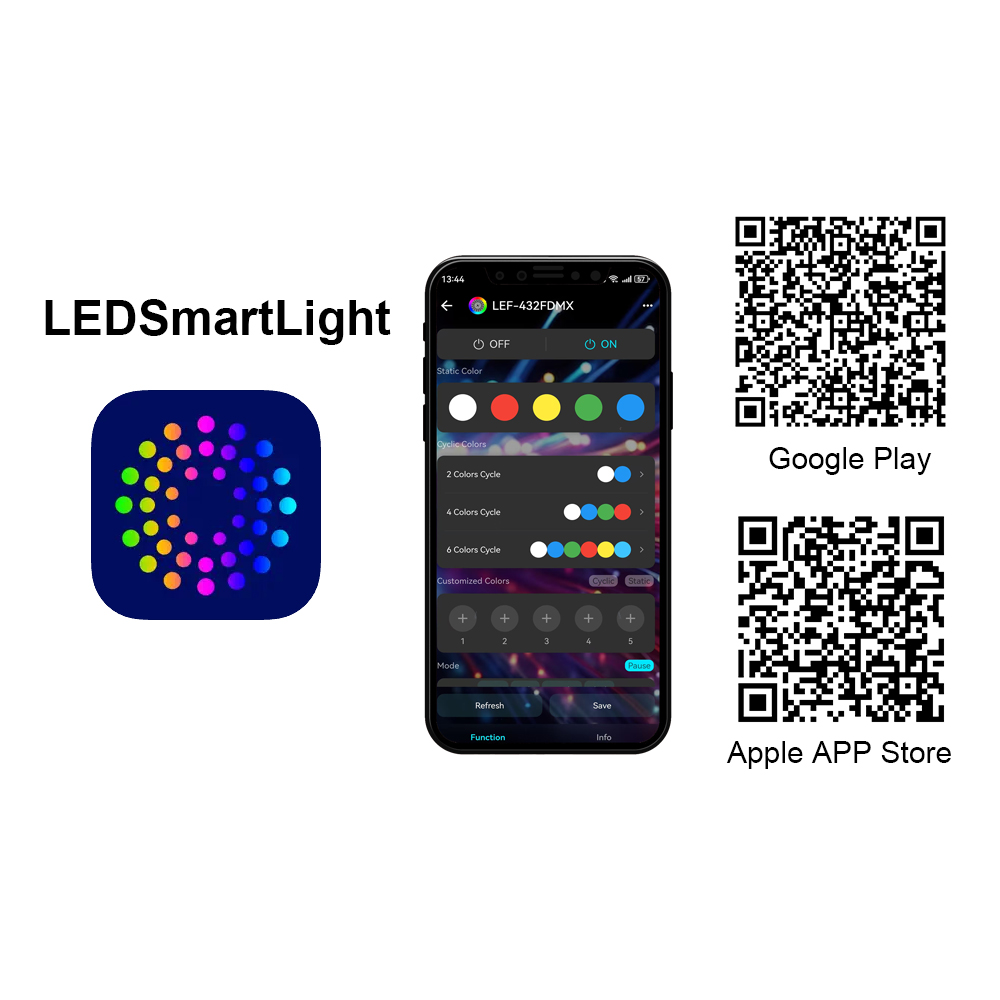

  This light engine can be controlled by a mobile APP, which can be downloaded from the Apple App Store or Android Market. The app can also be downloaded by scanning the left QR code.

  This mobile APP is easy to operate, and APP operation manual is available to download on this page.

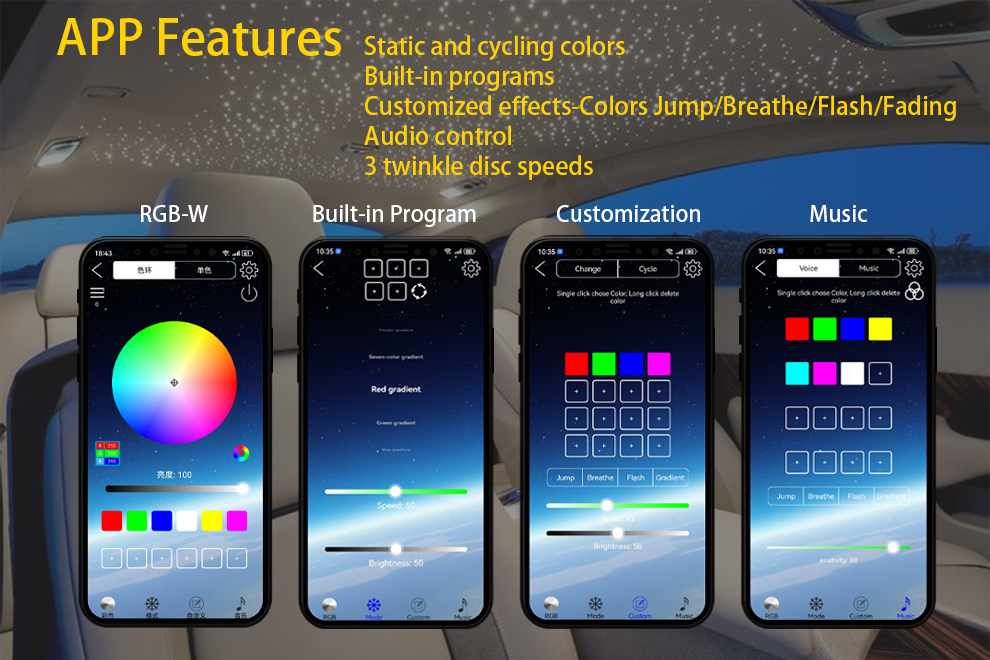

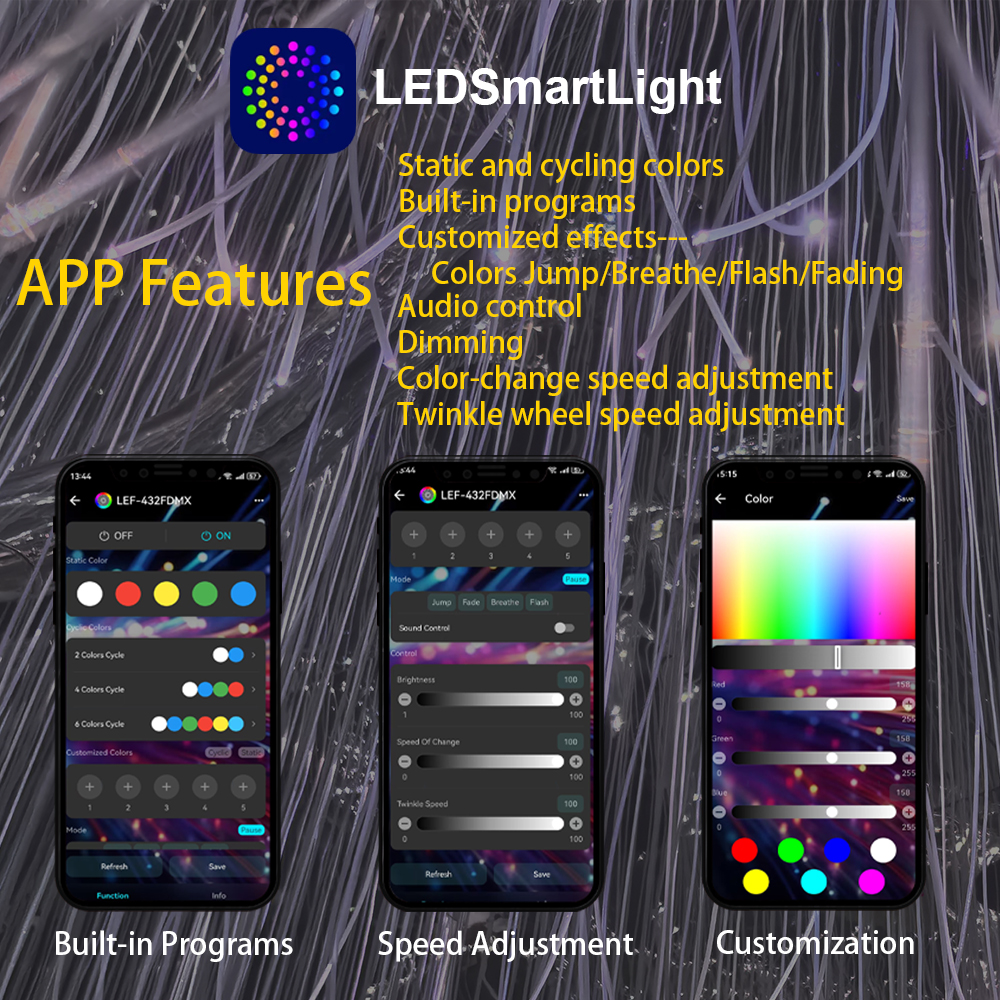

- App Features

  The APP main functions:
  * Static and cycling colors
  * Built-in programs
  * Customized effects - Colors Jump/Breathe/Flash/Fading
  * Audio control
  * 3 twinkle disc speeds

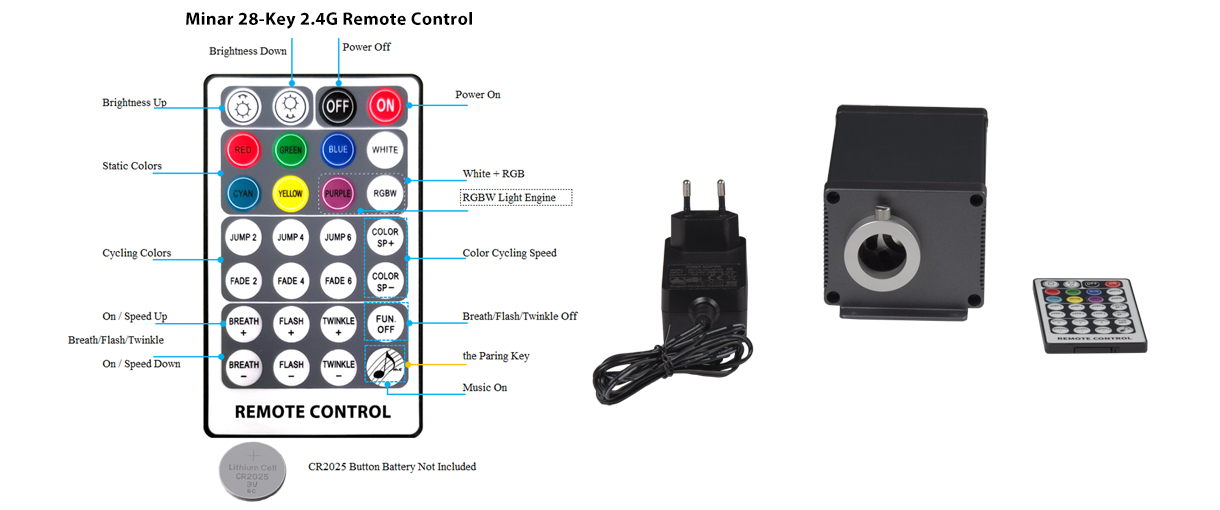

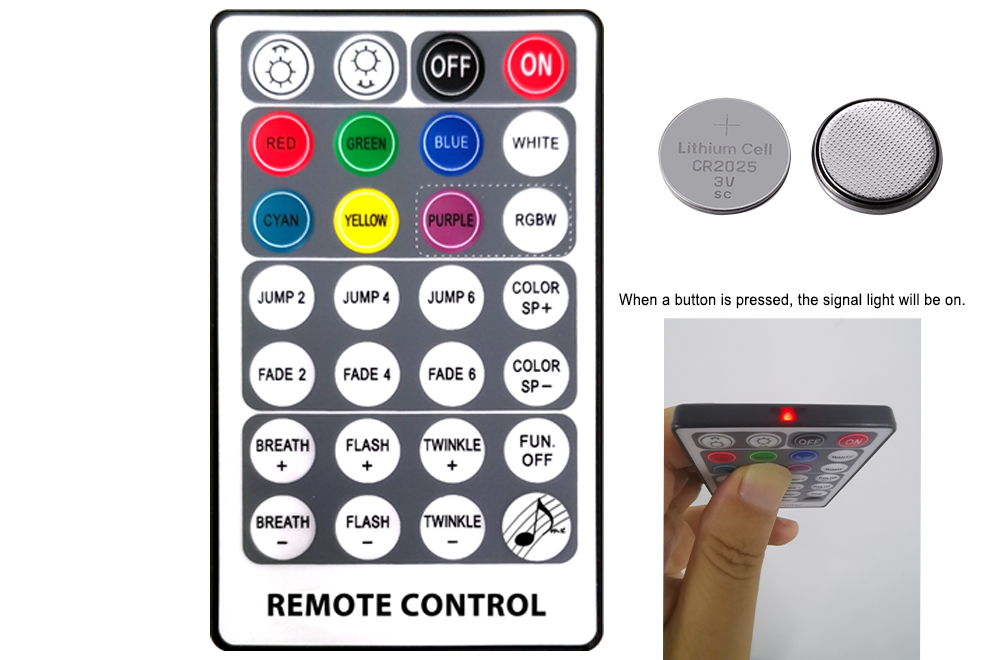

- 2.4G Remote Control RC-28M

  The 28-button remote control for the low-voltage APP control light engine is different from that for the non-APP control RGBW light engine. This remote control has the audio-on buttons.

  The matching operation of RC-28M with the APP light engine is also different from the regular 28-button remote control, RC-28. Please check the details on the User Manual of the APP light engines.

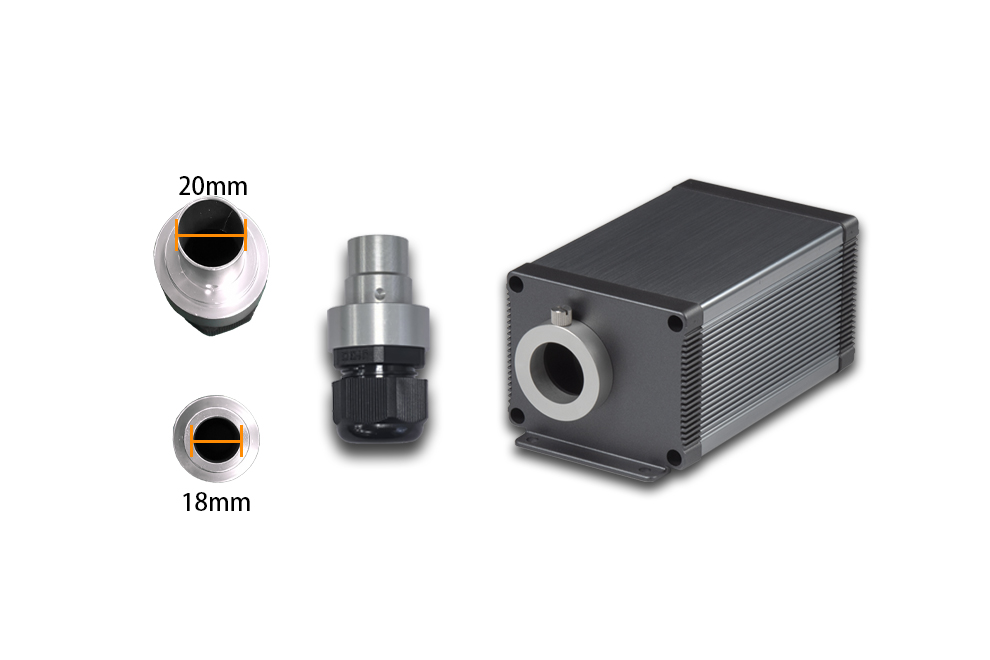

- Fiber Connector/Common End

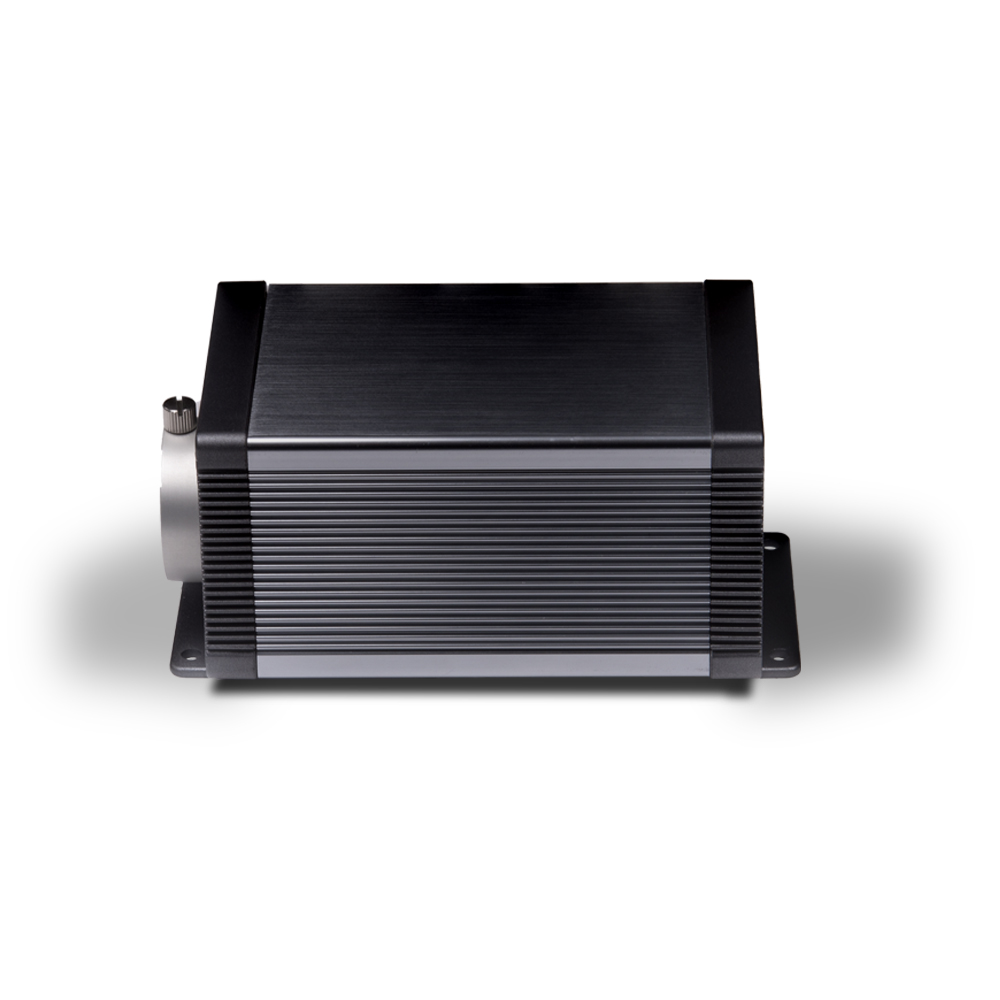

  The structure of the light engine's flange which holds the fiber connector is different from that of other light engines. Its surface is flat instead of having a slim edge.

  By default, the aperture of the fiber connector for the low-voltage APP light engine is 18mm. At request, 20mm is available. For the non-App control low-voltage light engines, their fiber connector aperture is 14mm or 18mm.

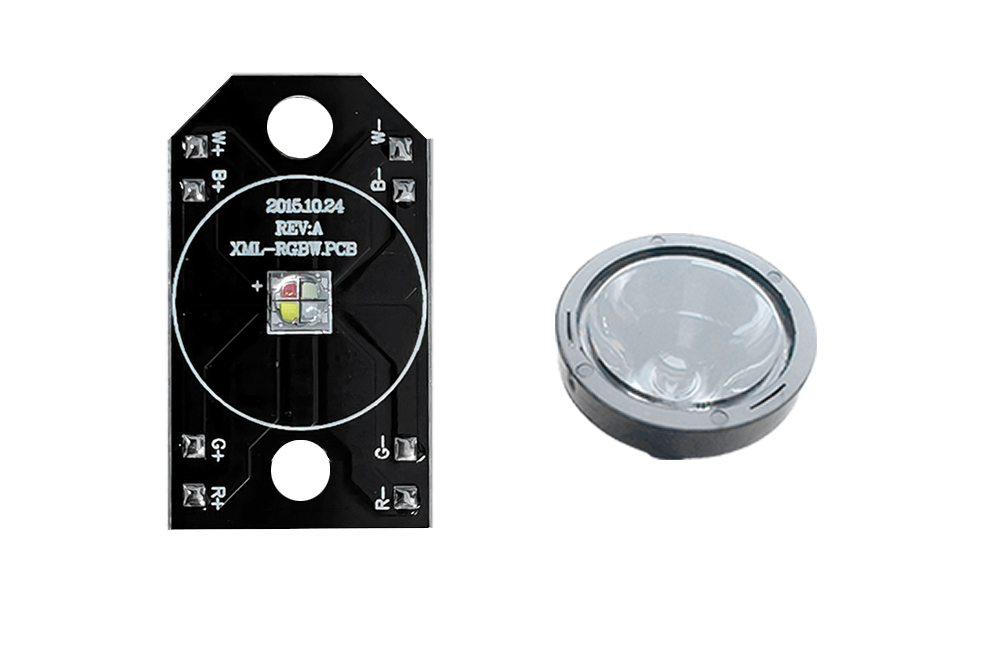

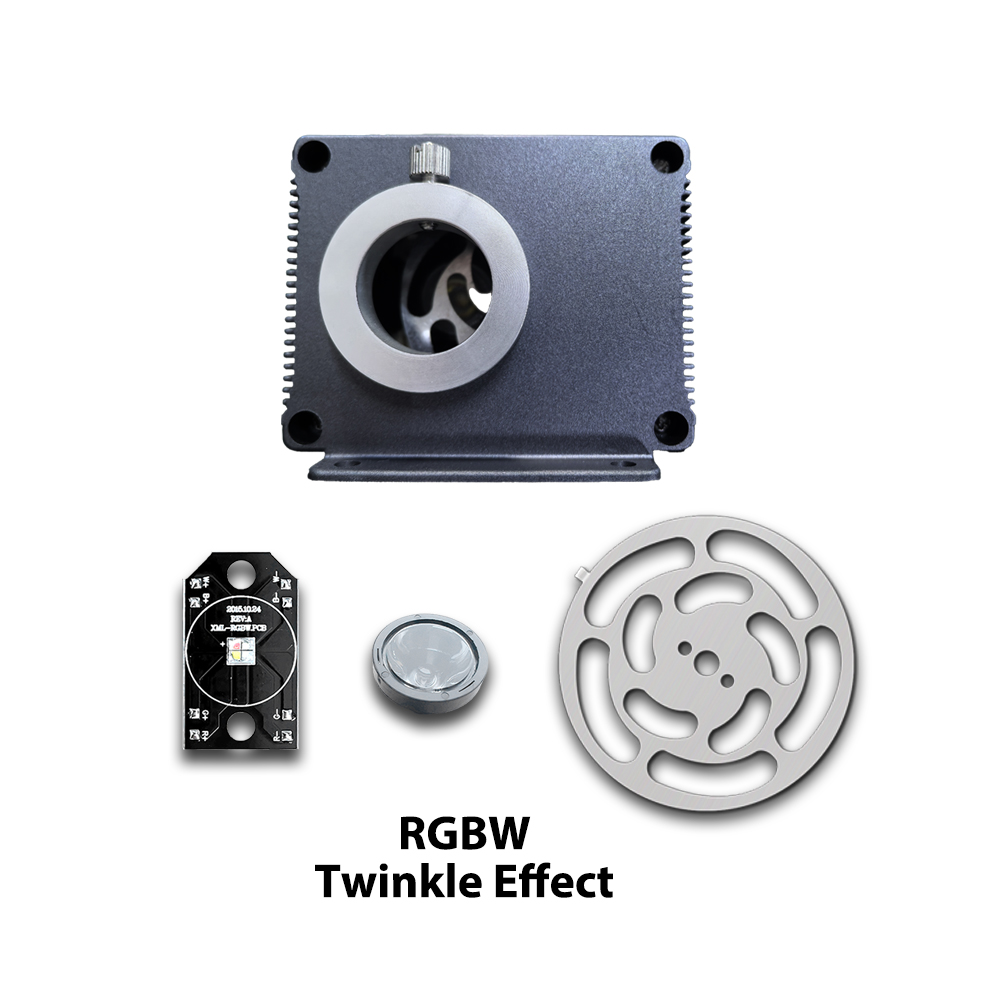

- RGBW + Lens

  1. The light engine has no motors or fans inside, so it does not produce any noise when working.
  2. The four-color LED module brings the starry ceiling a fantastic stimulating effect.

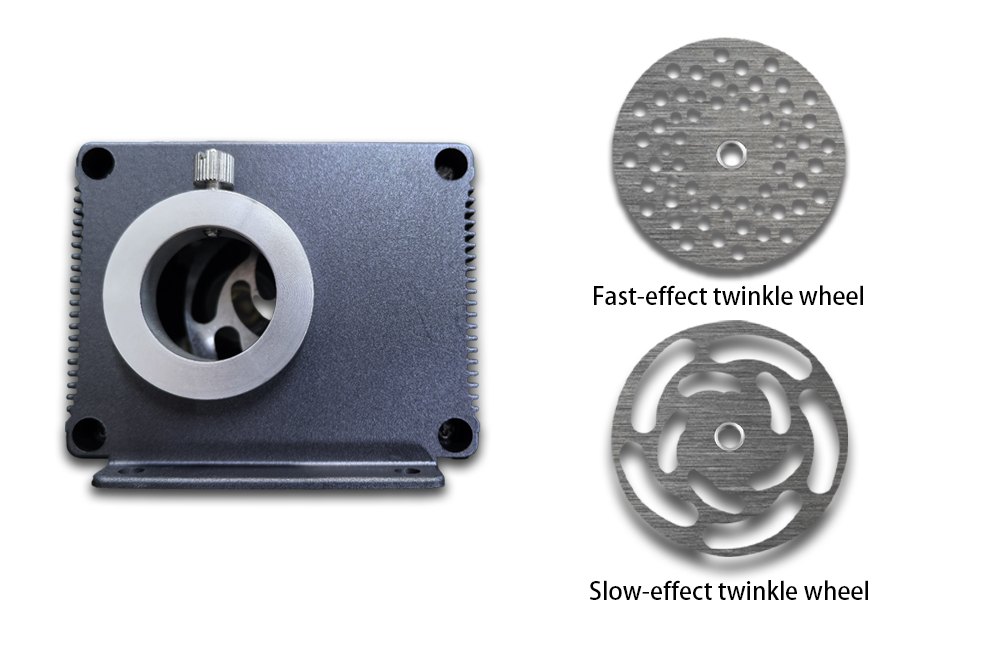

- Twinkle Wheel

  The wheels/discs that could be equipped into LLE-005RGBW fiber optic light engine, from left to right:
  1. The fast-effect twinkle wheel,
  2. The slow-effect twinkle wheel

  By default, the light engine is equipped with a slow-effect twinkle wheel.

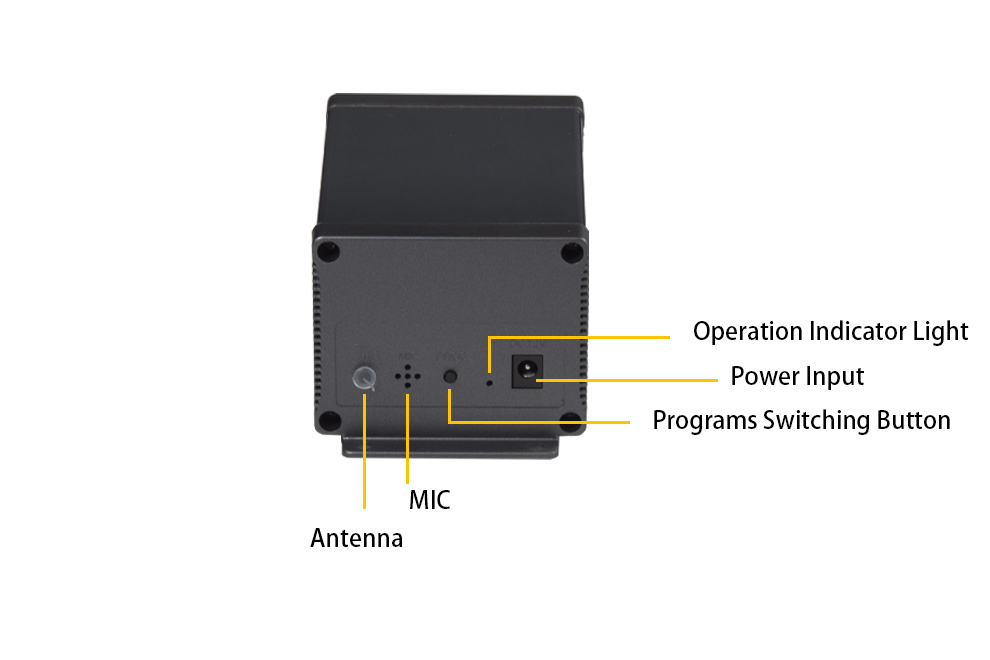

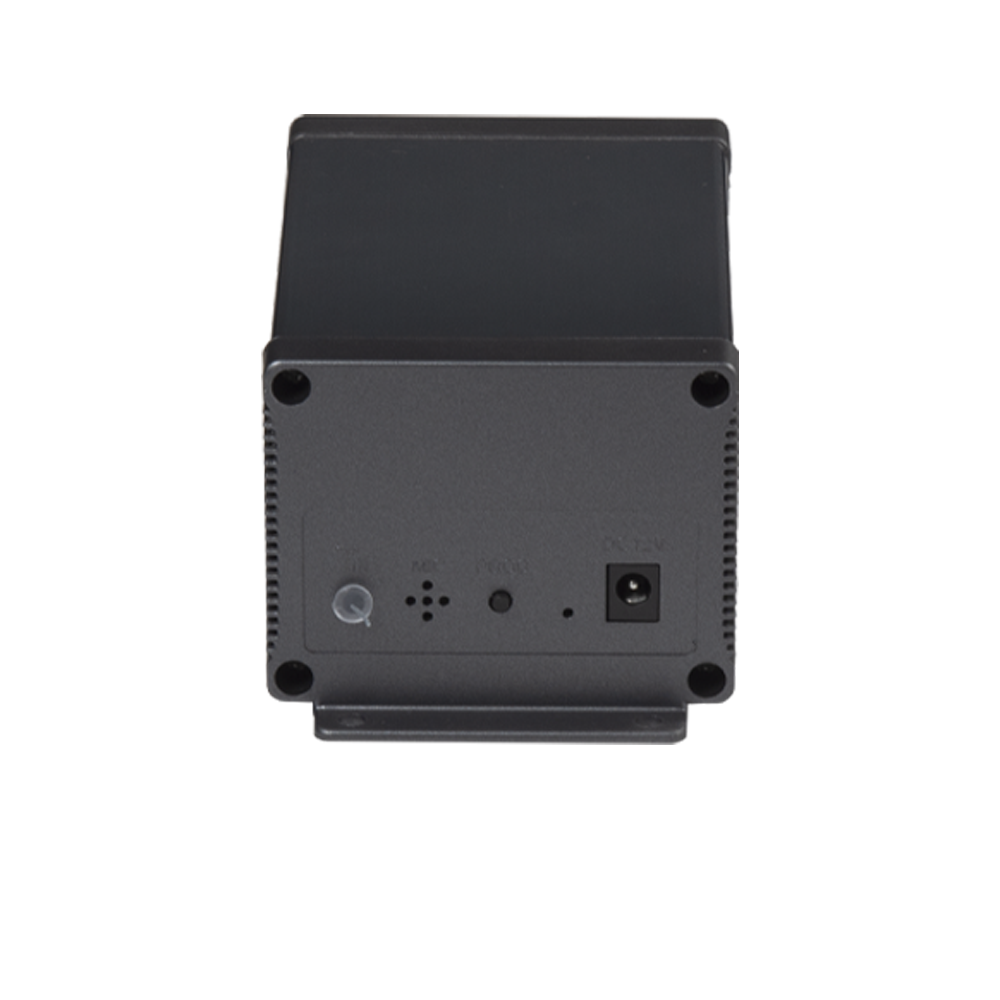

- Built-in Programs

  The light engine has 19 built-in programs. Push the knob on the back panel to change the built-in programs in sequence.
