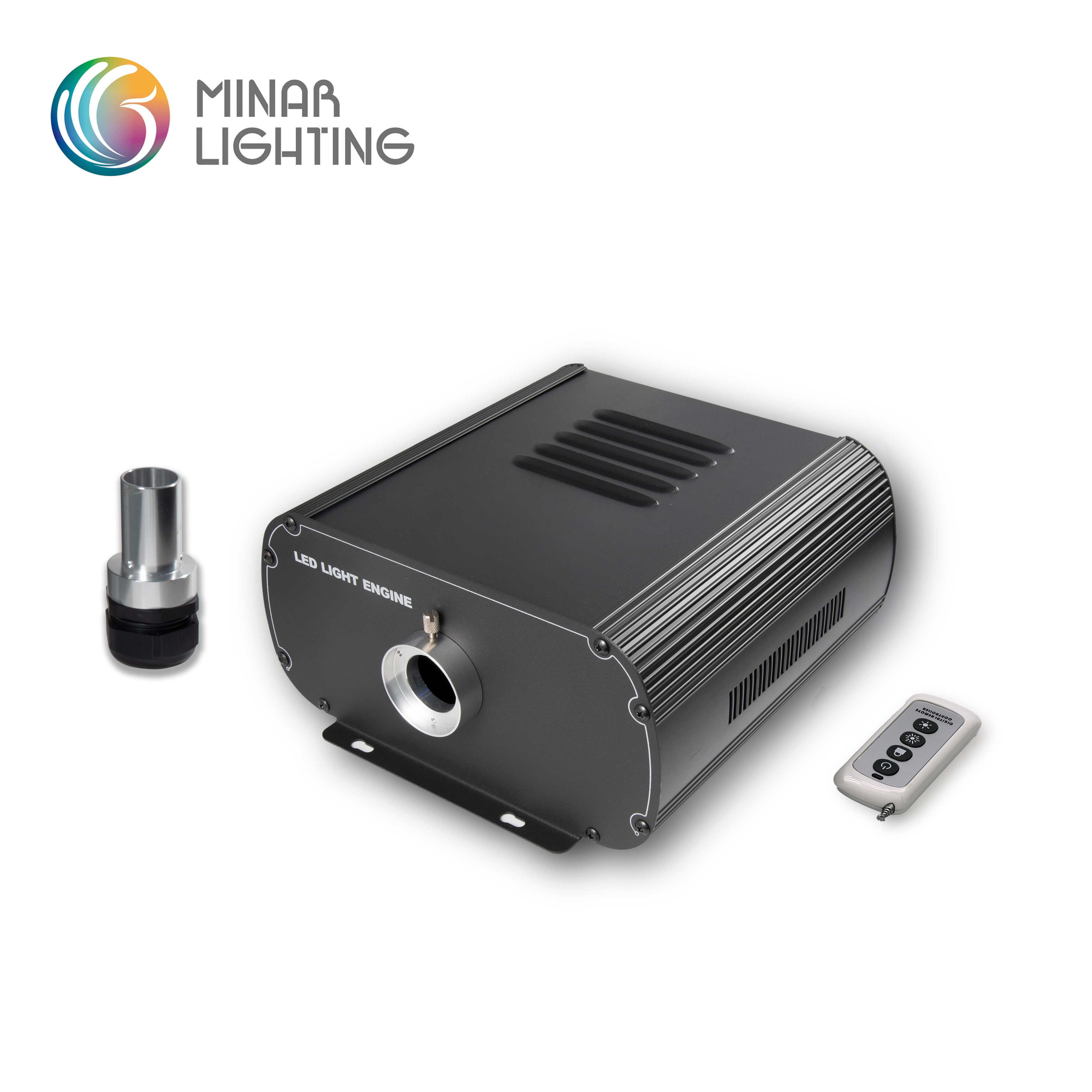

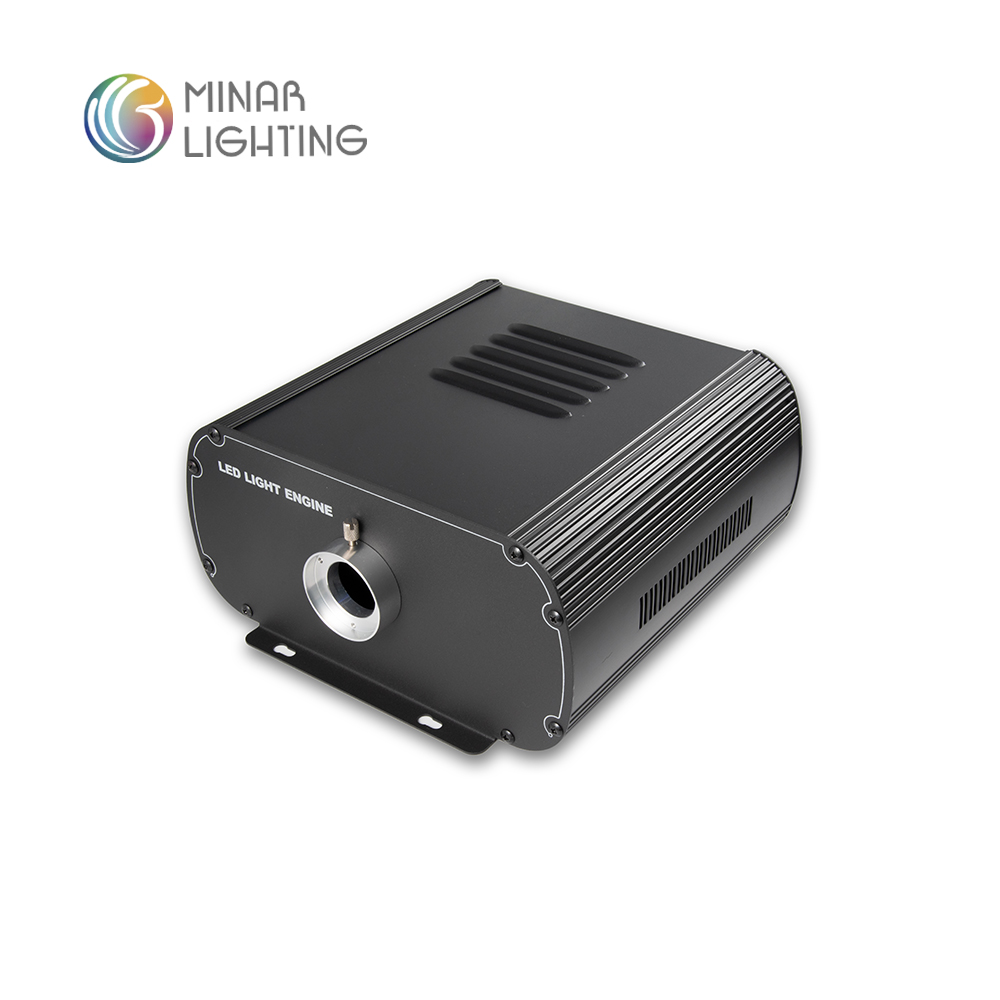

LEI-15001DALI

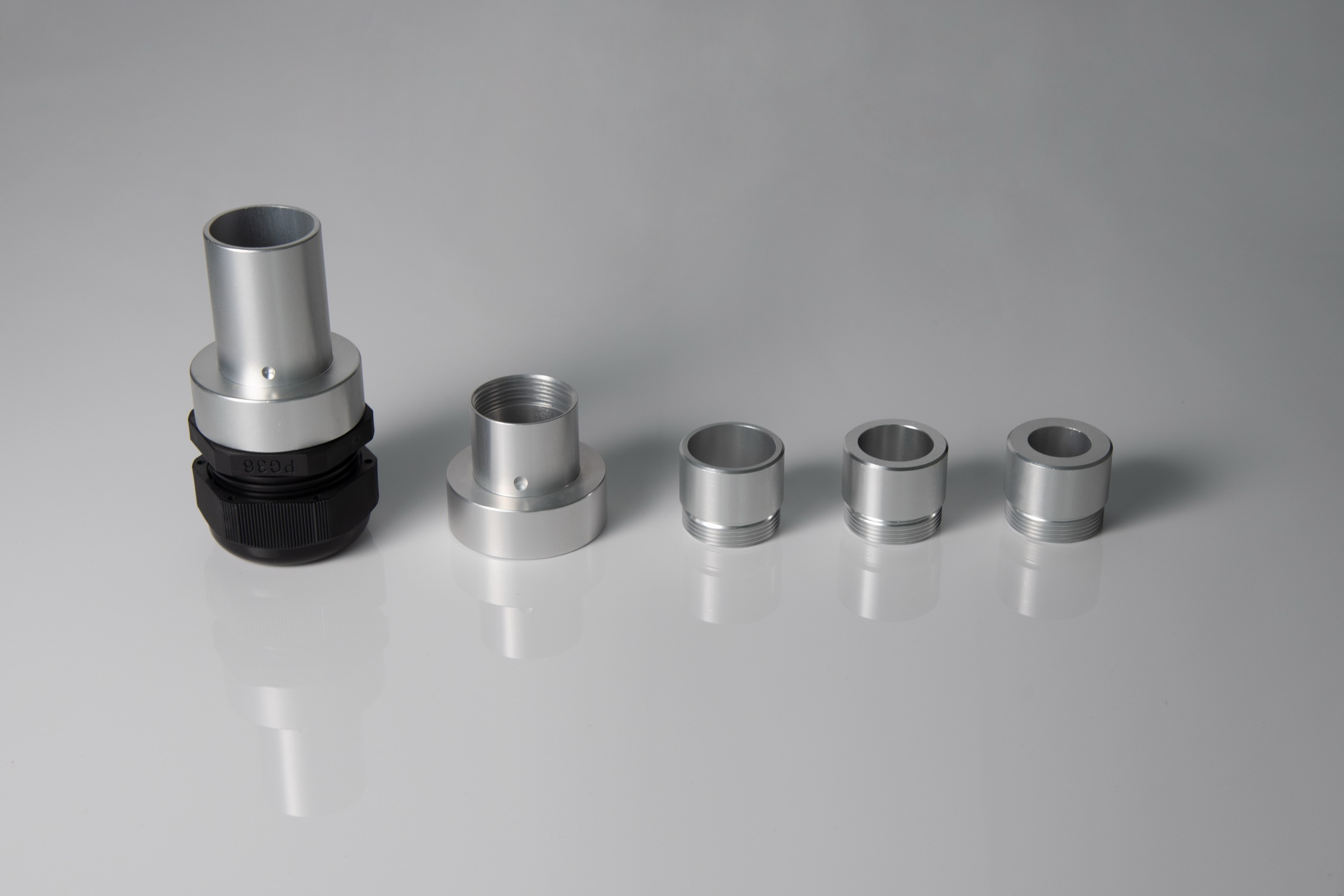

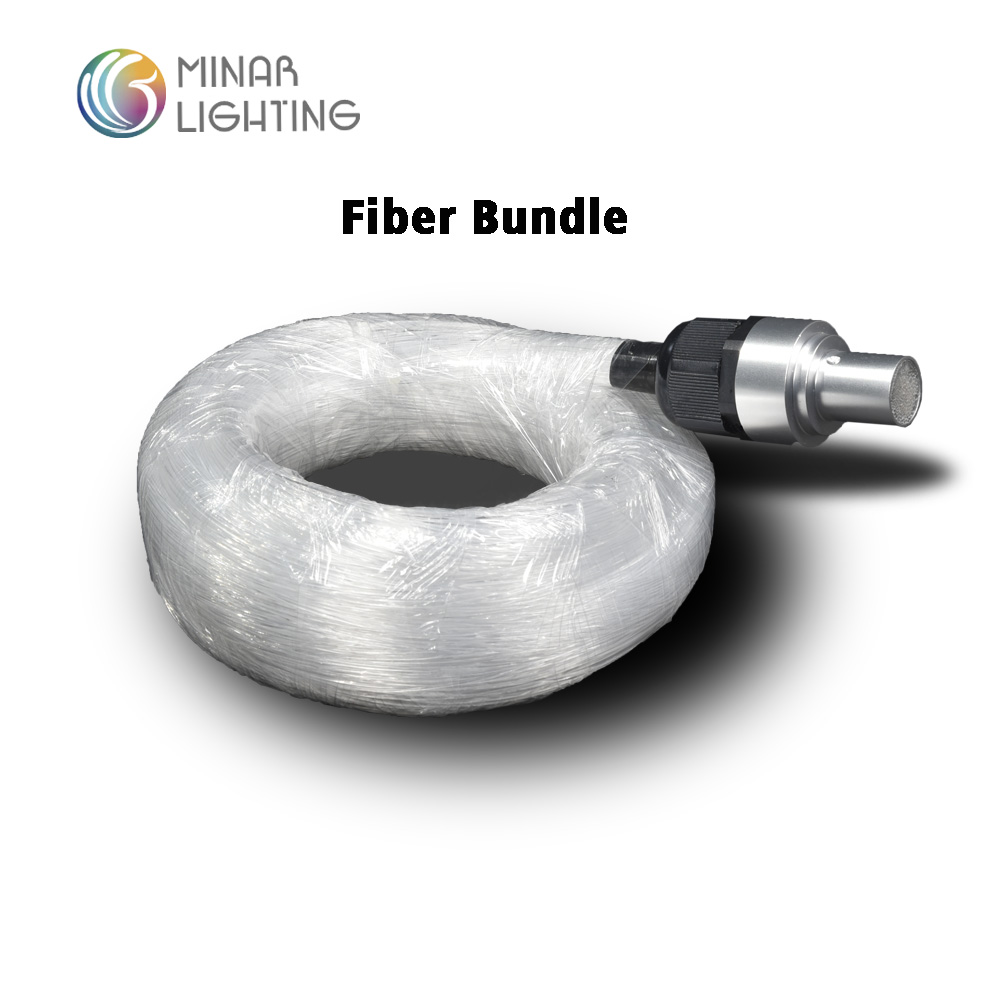

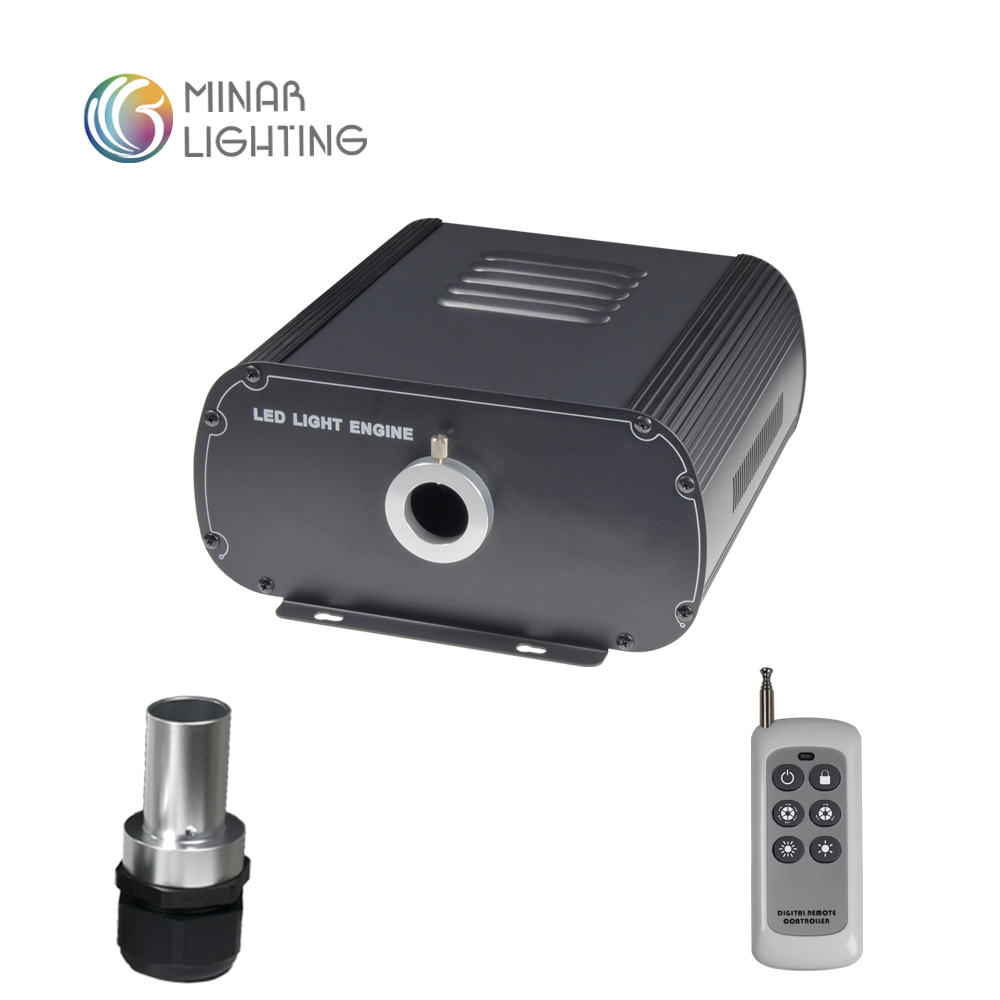

By default Minar provides one piece of 20mm/24mm/28mm 3-in-1 combined fiber connector for each line voltage light engine. These apertures are capable of 540pcs, 770pcs, and 1050pcs of 0.75mm fiber tails respectively. 30mm fiber connector is also available upon request.

Customized apertures are also welcome!

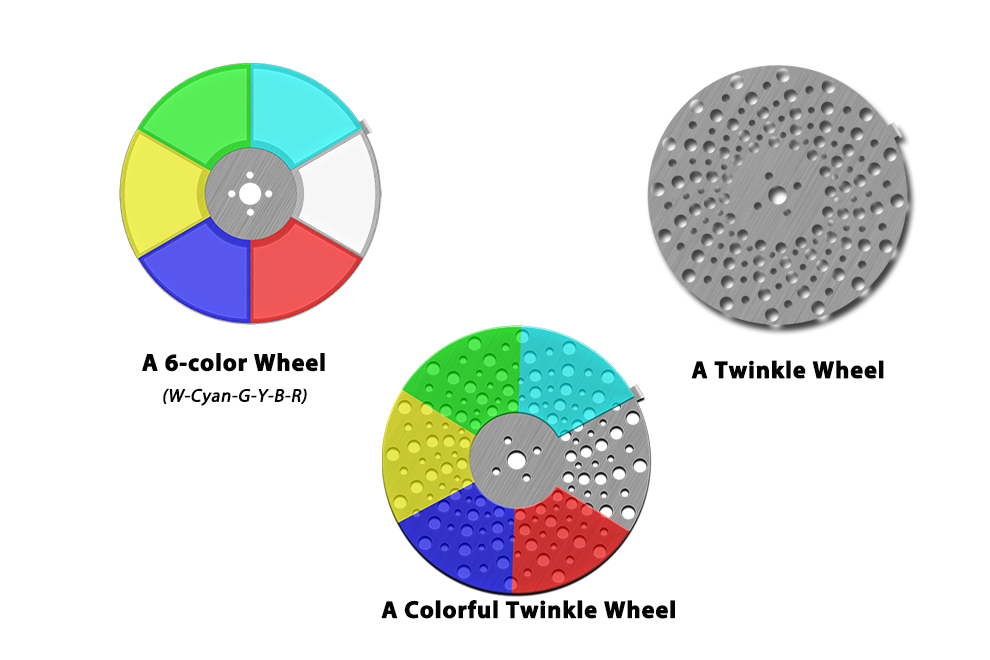

The wheels/discs that could be equipped into LEI series of fiber optic light engines, from left to right and top to bottom:
1. The 6-color wheel,
2. The twinkle wheel,
3. The colorful twinkle wheel.
The default wheel is the 6-color disc. Other wheels/discs are available upon request, and the customized requirement is also welcome. Of course, the wheel can also be removed from light engines.

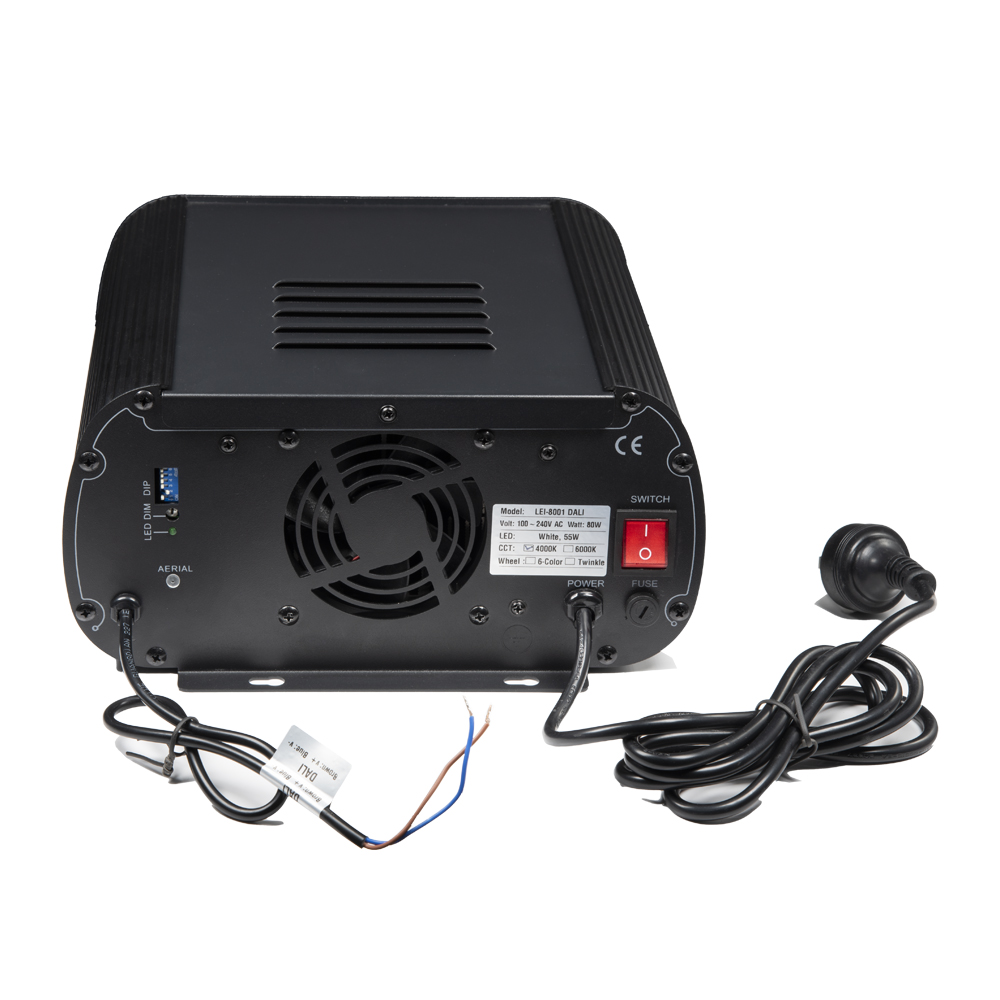

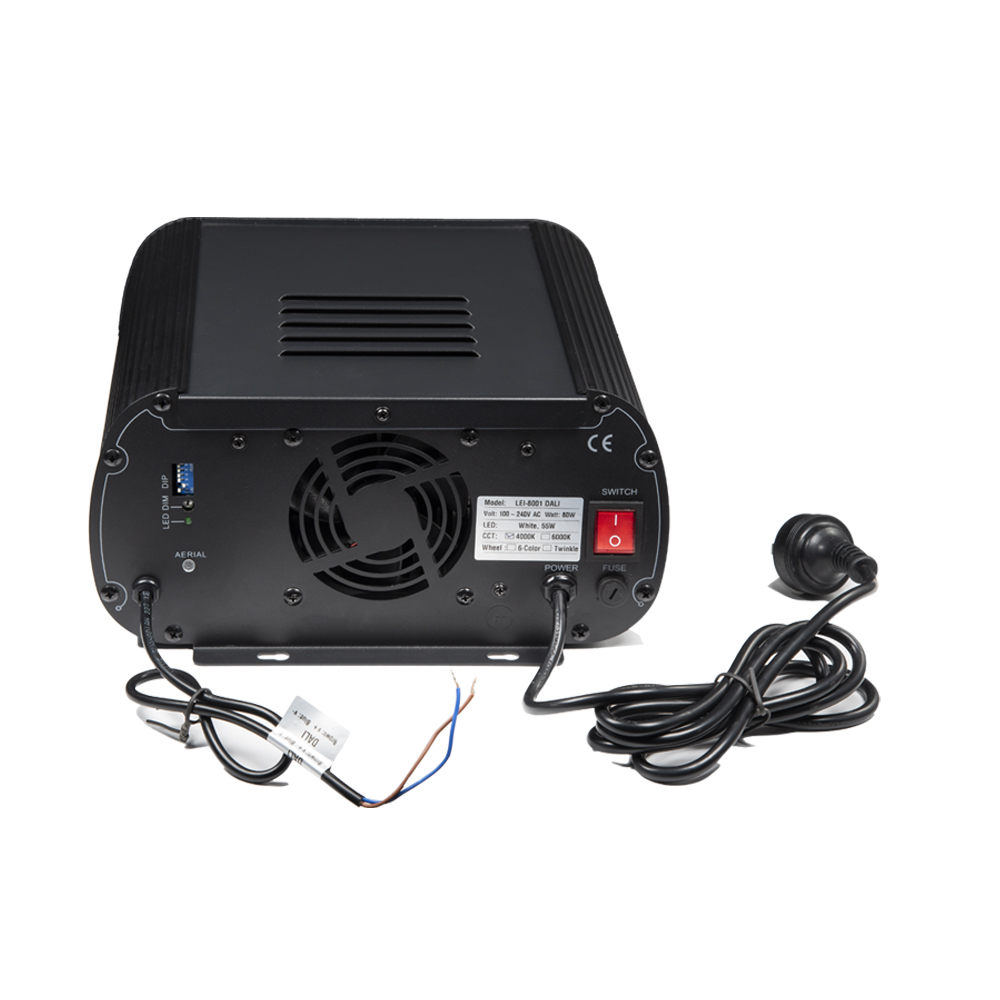

By default, our DALI light engines are equipped with a 6-color wheel to have cycling colors. The wheel speed can be adjusted by the DIP switches.

While the wheel is running, the remote control can stop the wheel to have a static color.

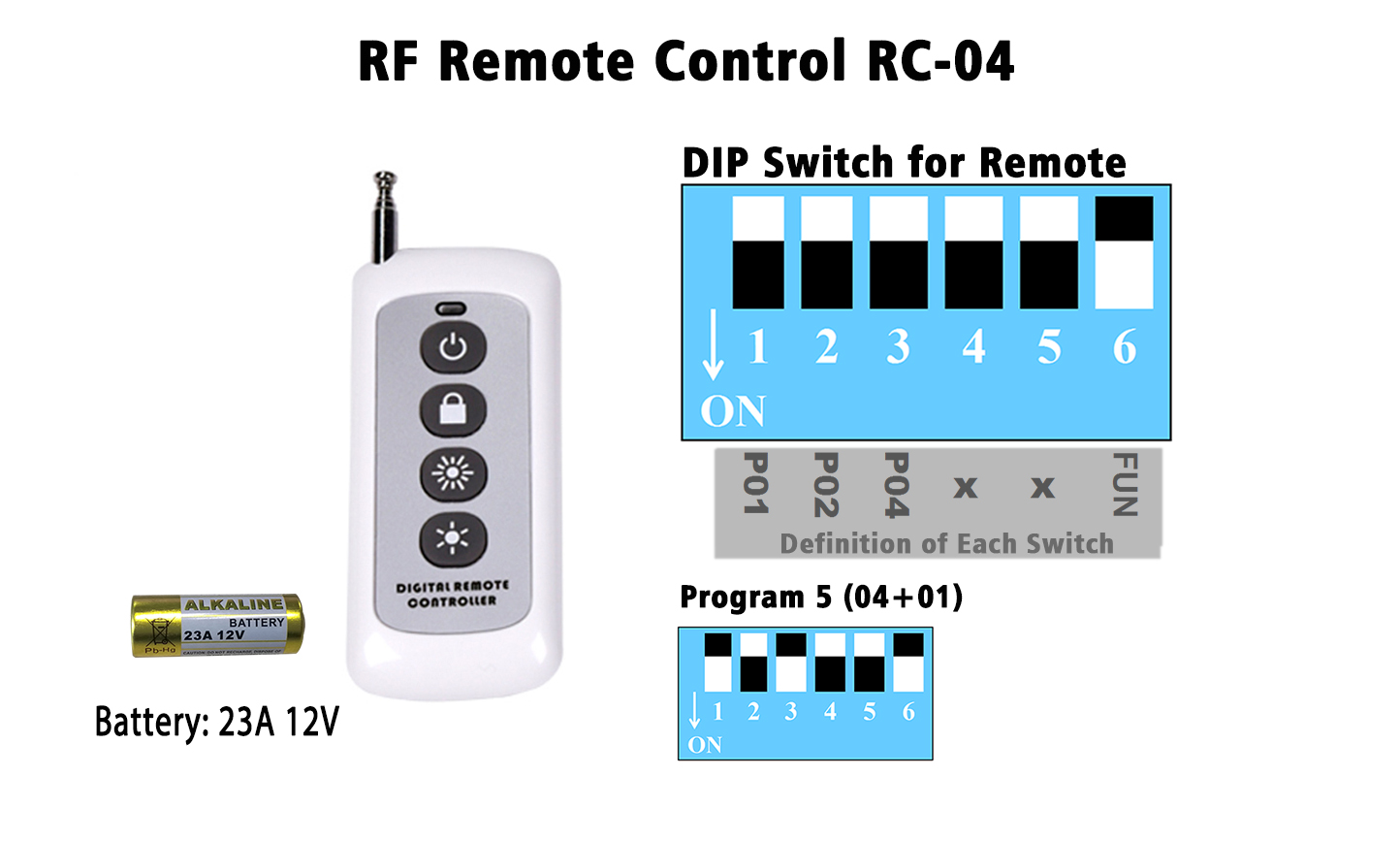

The 4-button remote control is used to start and stop the wheel. Only the second button works for DALI model light engines.

Please check the following two points before using the remote control:
1. Make sure that the light engine is equipped with a signal PCB (the antenna);
2. Push the 6th DIP switch downward to activate the remote control.
