LET-2001DALI

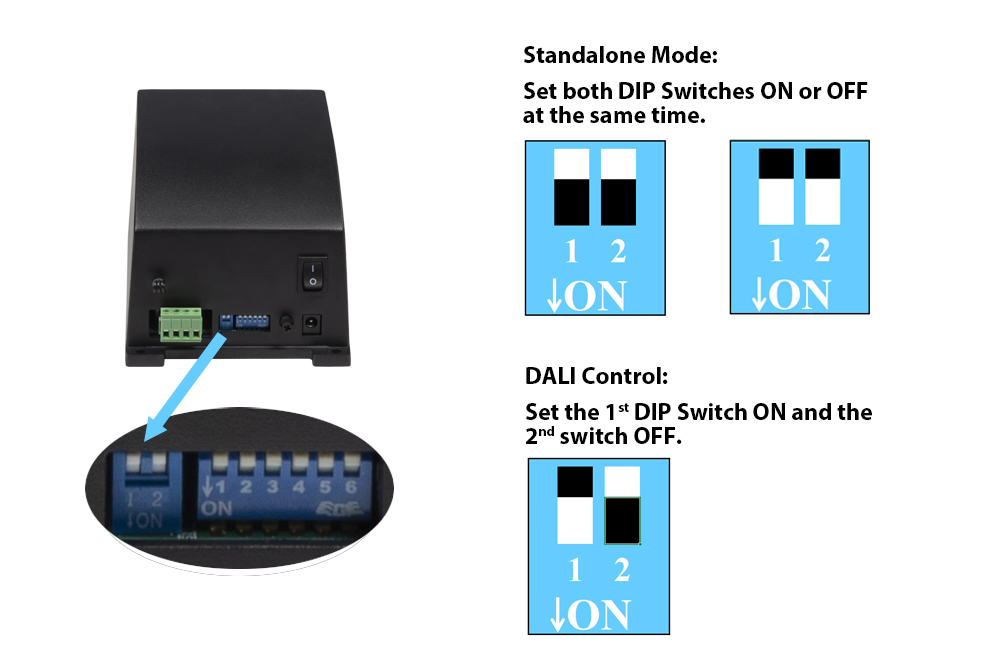

The light engine has two operation modes: DALI control and Standalone mode. The mode DIP switches set the operation mode. In a standalone state, the light engine will run its built-in programs only.

Standalone mode: Set Both DIP switches ON or OFF at the same time.
DALI control: Set the 1st DIP switch ON, and the 2nd OFF.

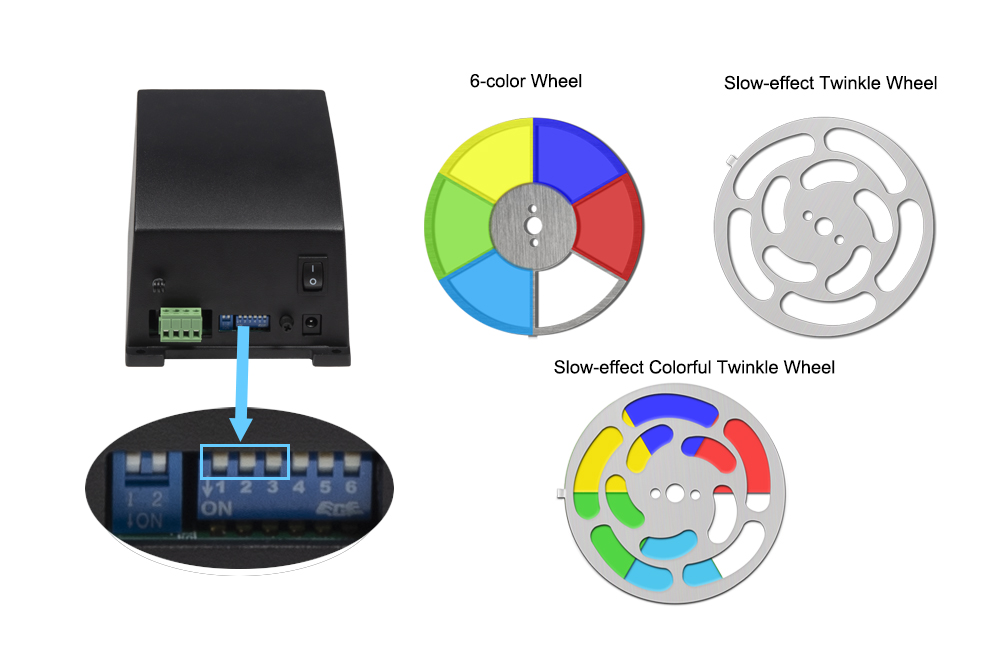

By default, the DALI model light engine is equipped with a 6-color wheel. The wheel can be replaced by a twinkle wheel or removed upon request.

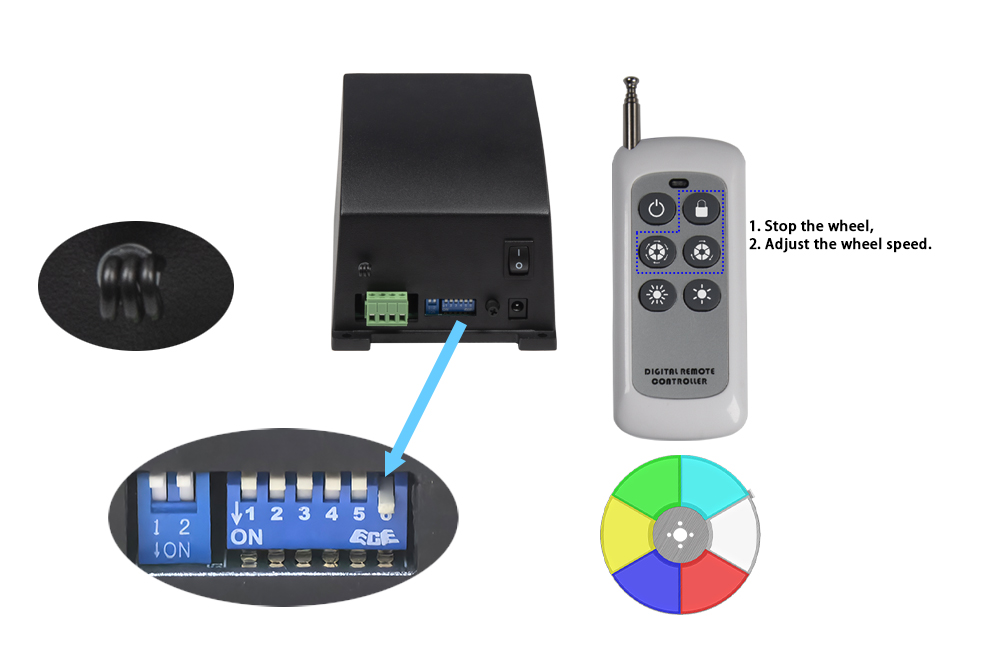

The running speed of the wheel is controlled by the first three switches of the 6-digit DIP switches. Please refer to the User Manual for different speed settings.

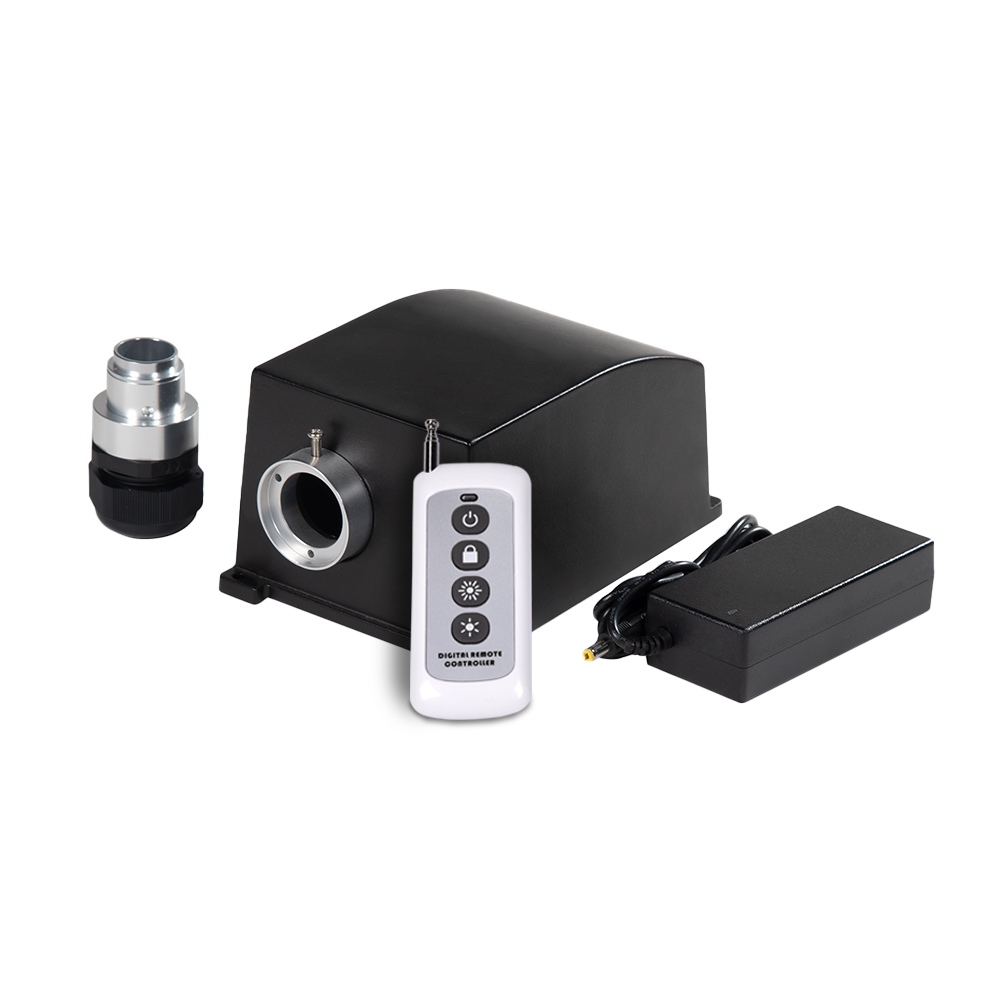

The 4-button remote control has different functions in the DALI control state and the standalone state.
DALI mode: 4 buttons have the same function to start or stop the wheel.
Standard mode: Light engine ON/OFF, start/stop the wheel, dimming.

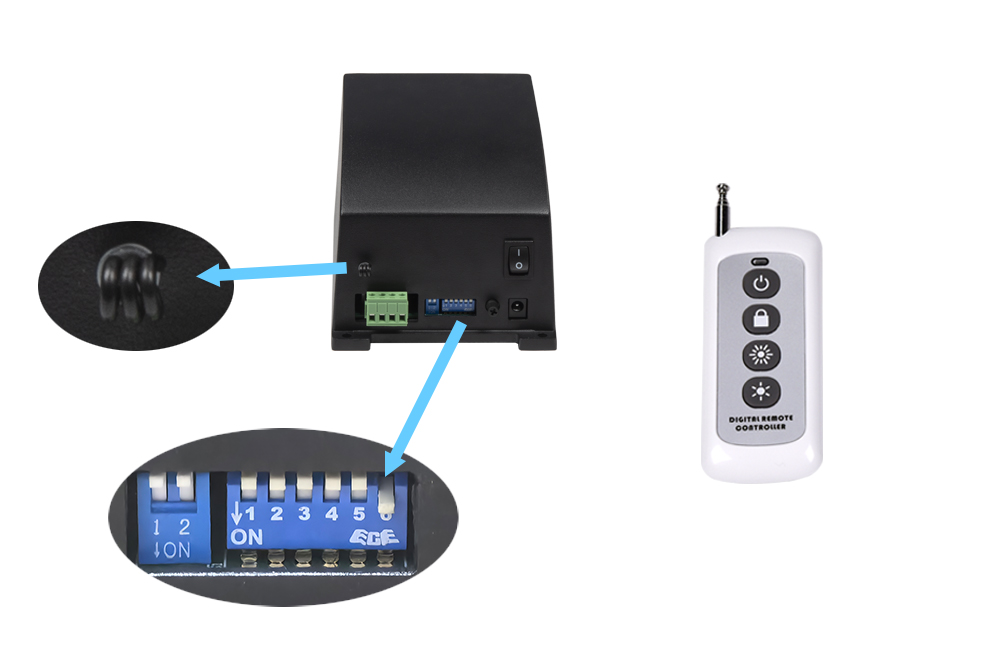

Please check the following two points before using the remote control:
1. Make sure that the light engine is equipped with a signal PCB (the antenna);
2. Push the 6th DIP switch downward to activate the remote control.

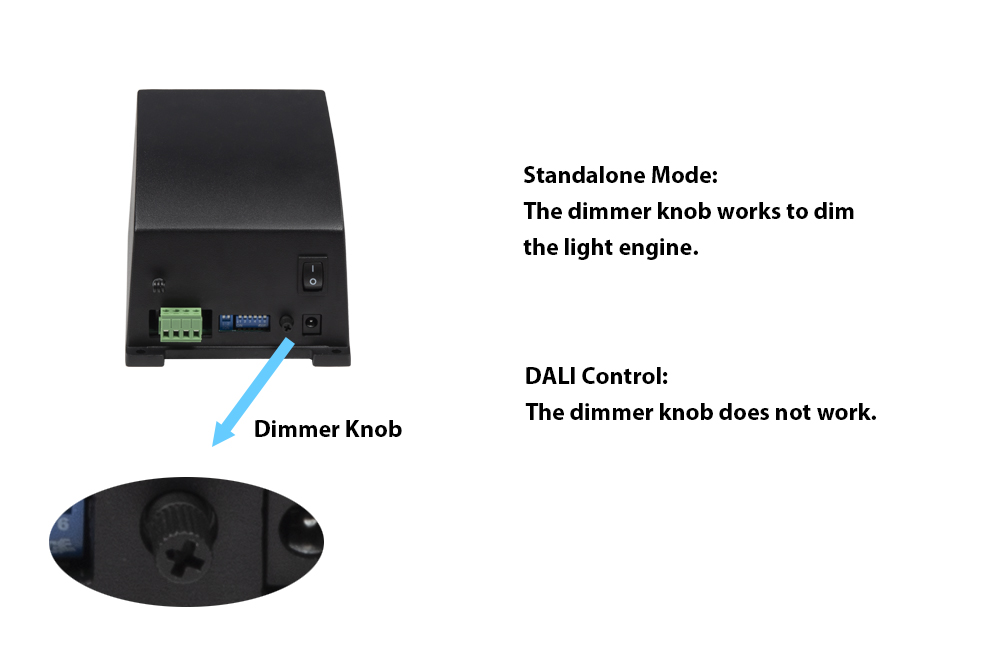

The dimmer knob works when the light engine is in a standalone state. In the DALI control state, the dimmer knob does not work.

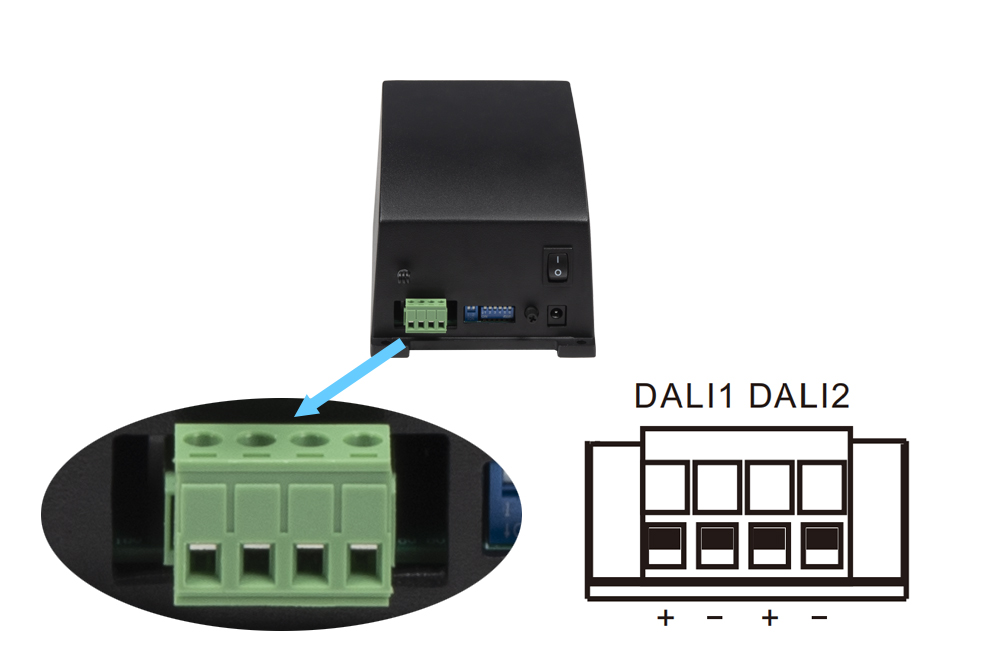

LET-2001DALI contains two DALI signal input terminals as shown in the right picture. Insert the DALI input signal cable into the terminal to run the DALI control.

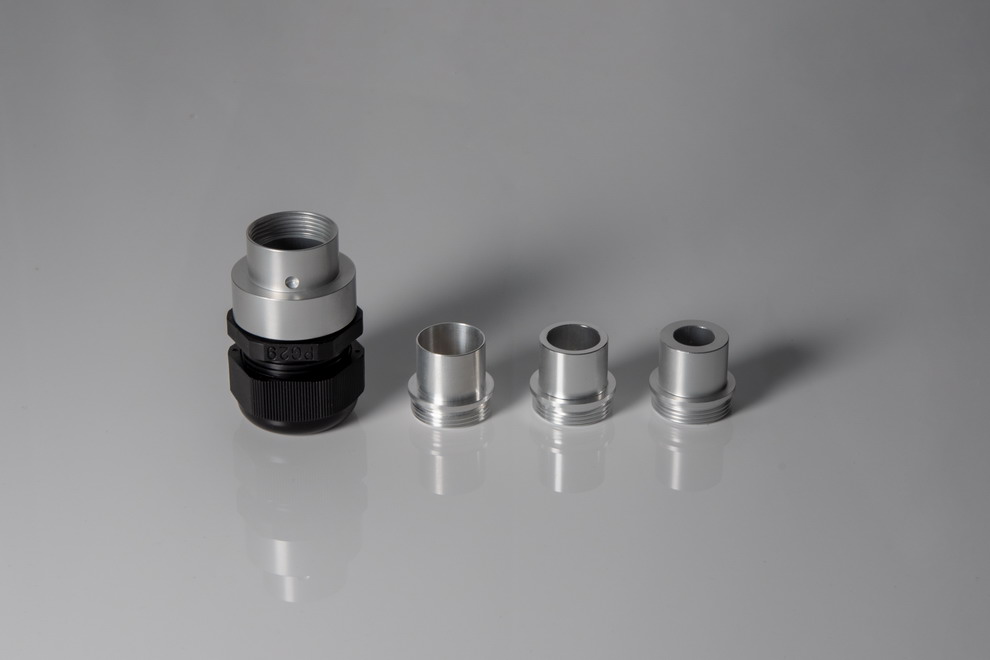

By default, Minar provides one piece of 14mm/18mm/22mm 3-in-1 combined fiber connectors for the LET and LES series of light engines. These apertures are capable of 250pcs, 450pcs, and 650pcs of 0.75mm fiber tails respectively.

Customized apertures are also welcome!
