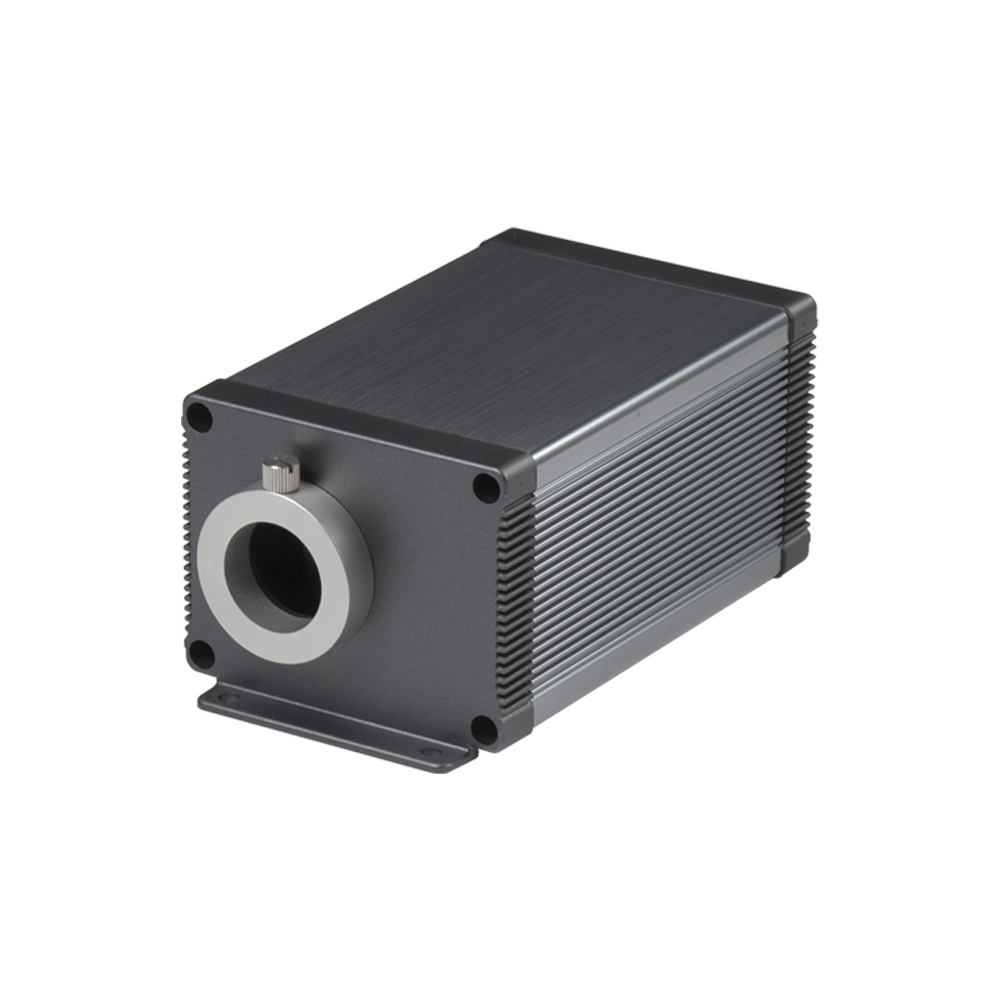

LLE-003

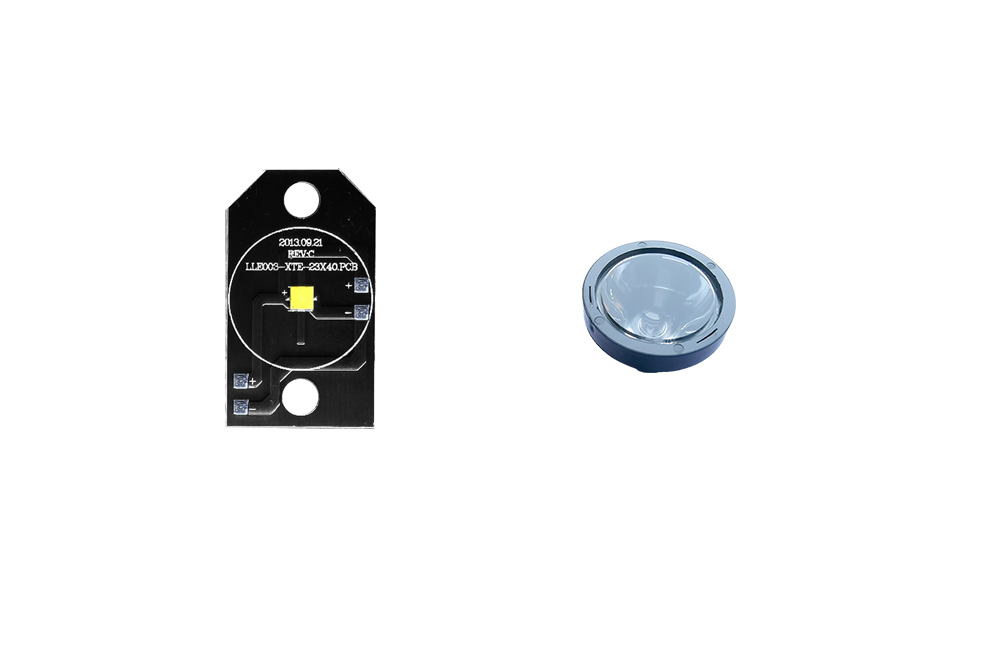

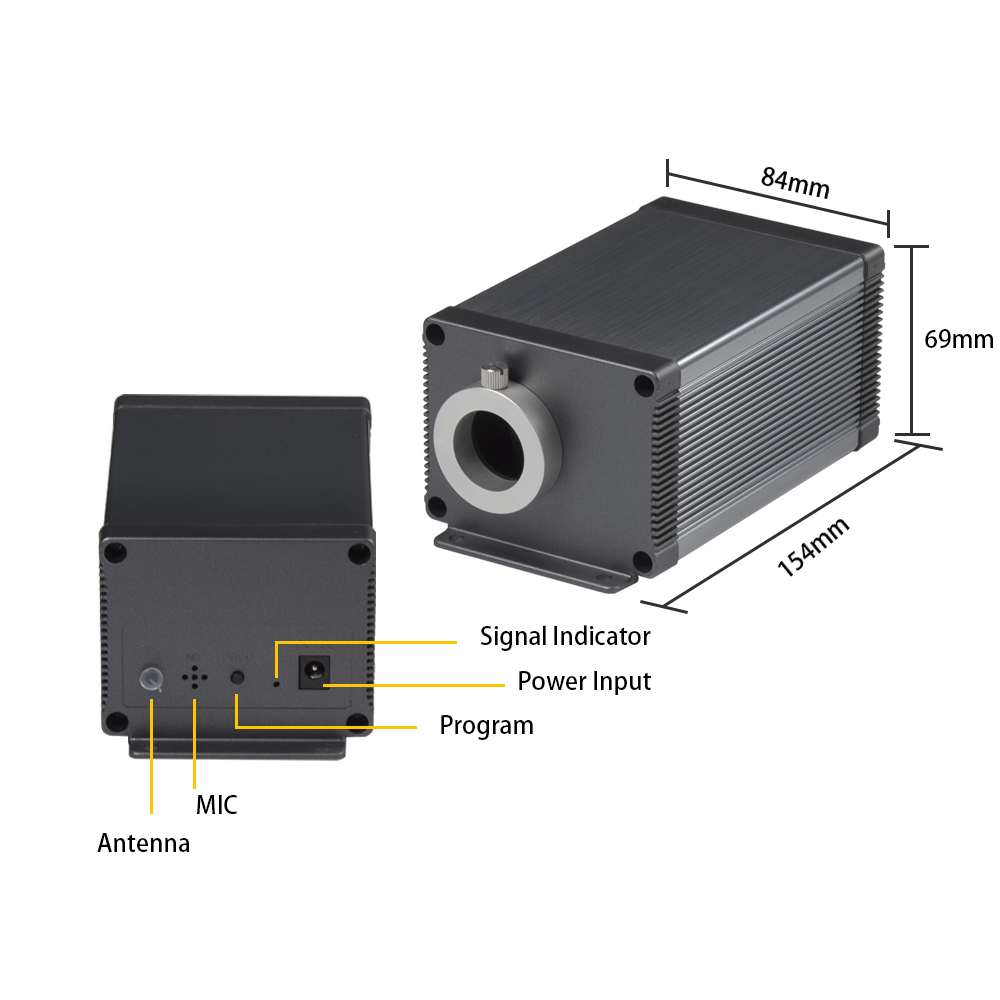

LLE-003 fiber optic light engine applies one piece of 5W CREE XTE LED module. Together with the lens, the light engine can drive the end glow fiber cable of 6-10 meters long.

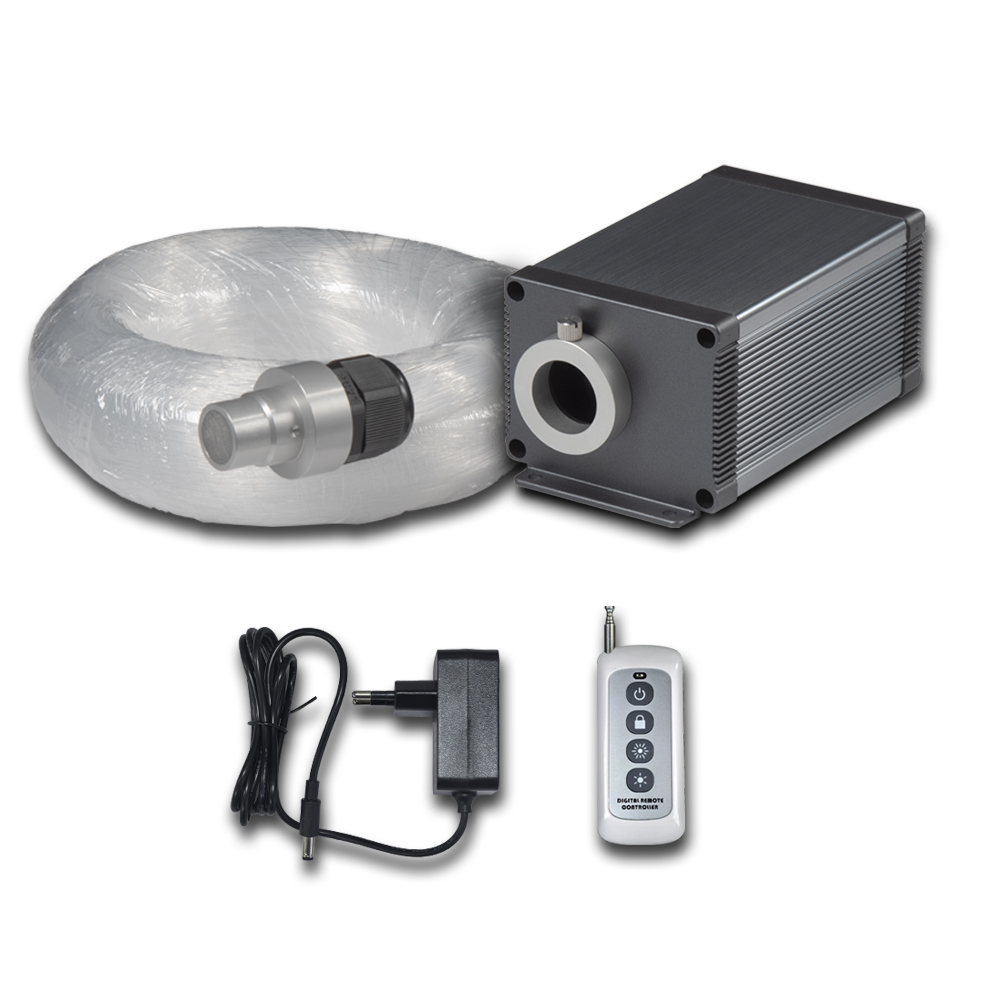

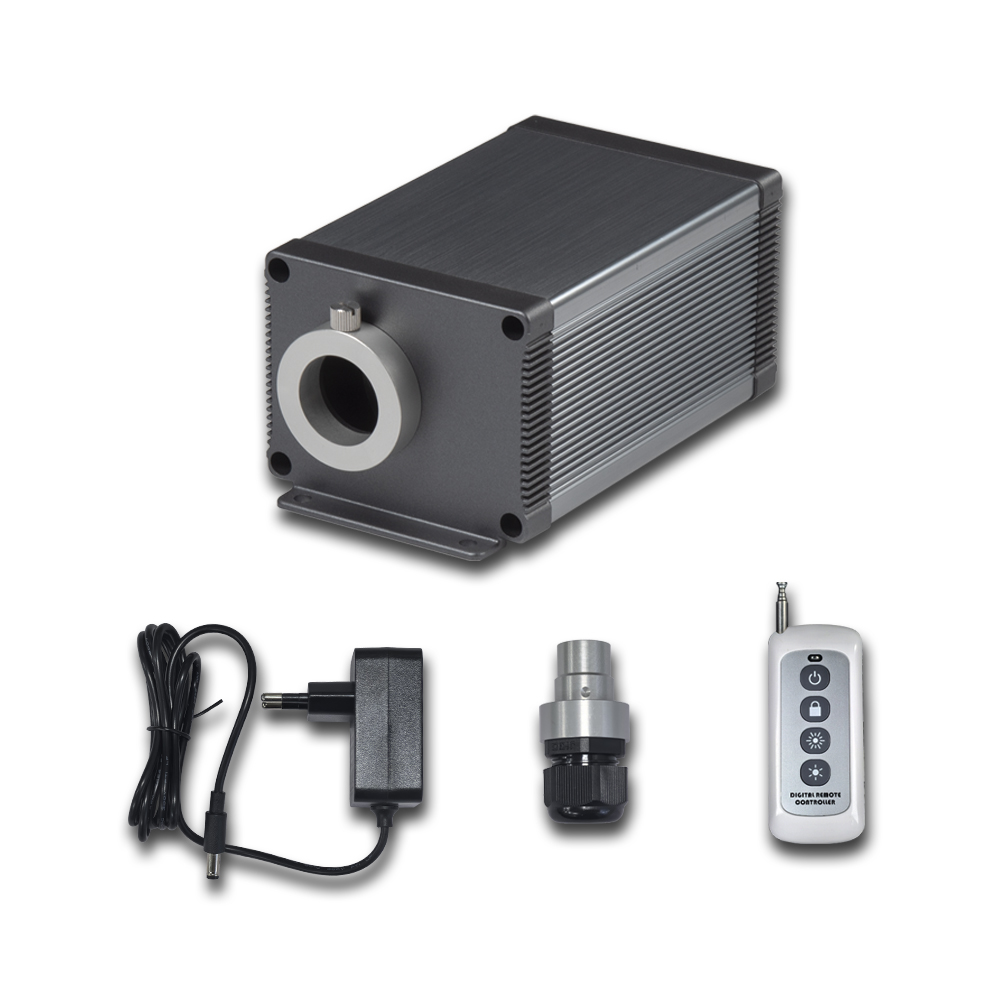

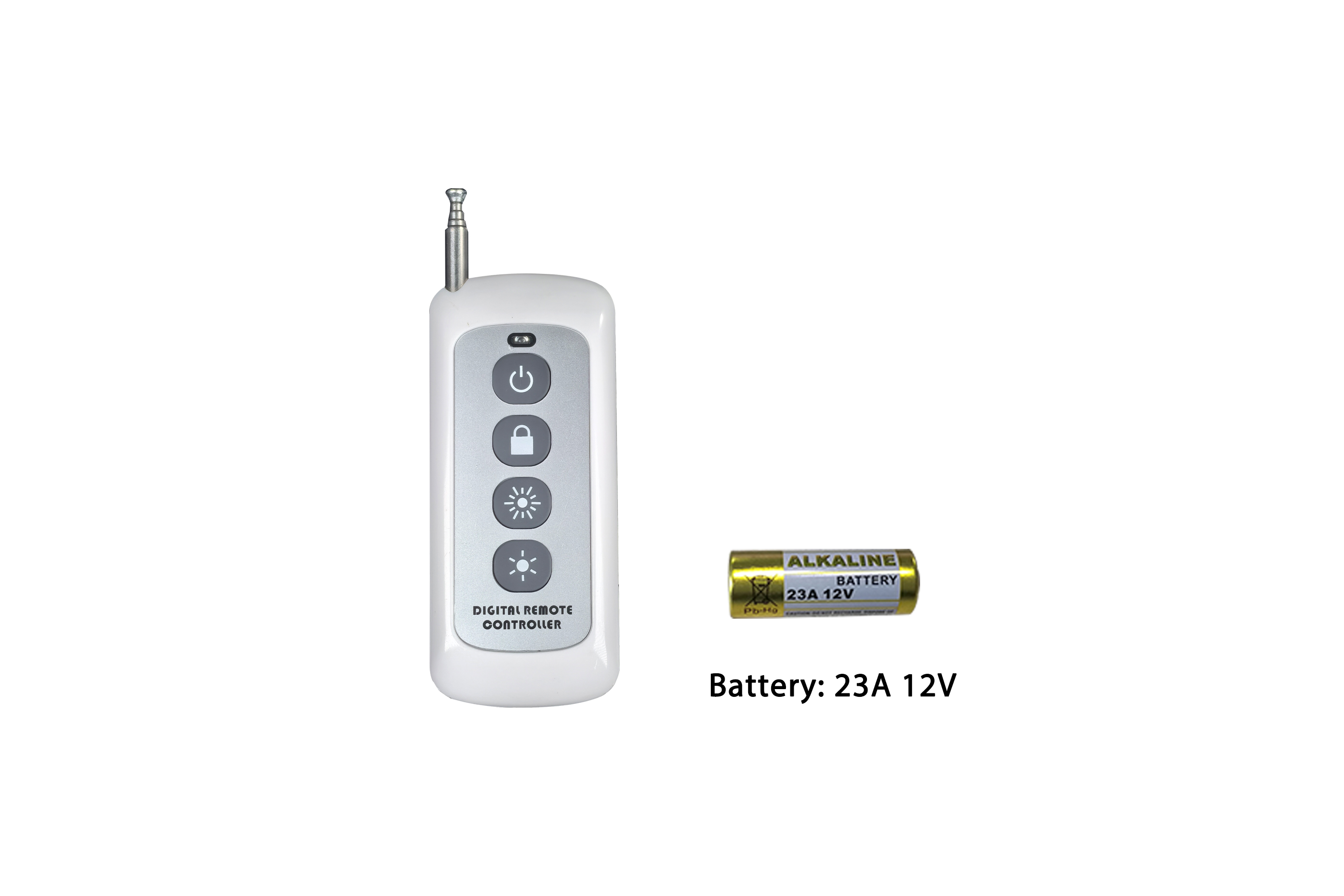

The 4-button RF remote control needs to be paired with the light engine to have one-to-one or one-to-many control.

The remote control has an effective control distance of around 25 metres in an open area. The function of those four buttons:
1. Turn on and off the light engine,
2. Stop the wheel to fix the emitting color,
3. Dim up and down,
4. Pair with the light engine.

Battery: 23A 12V, 1pc (not included in the package).

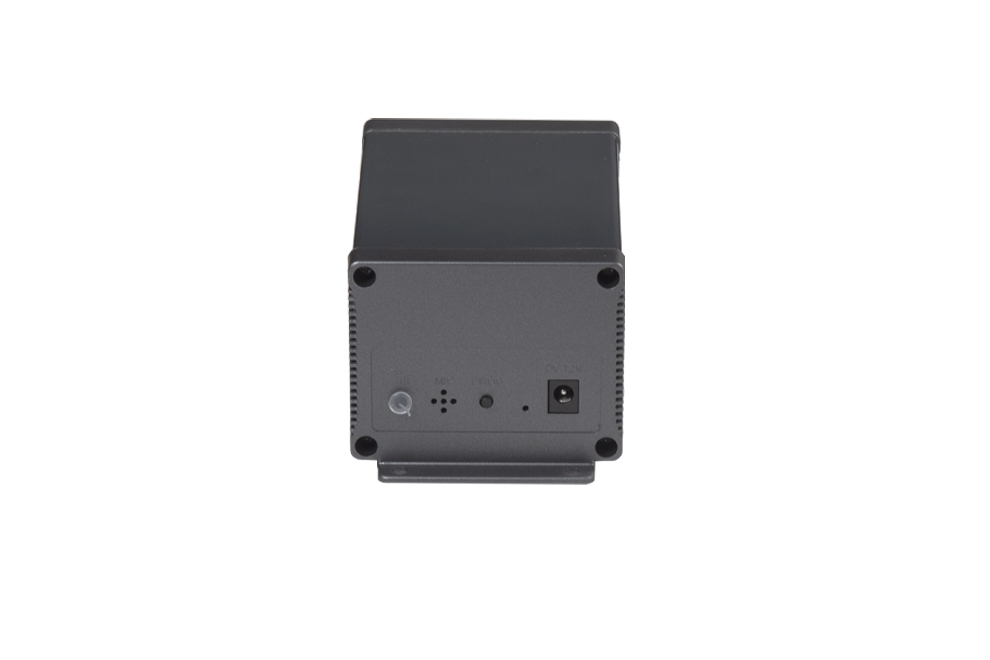

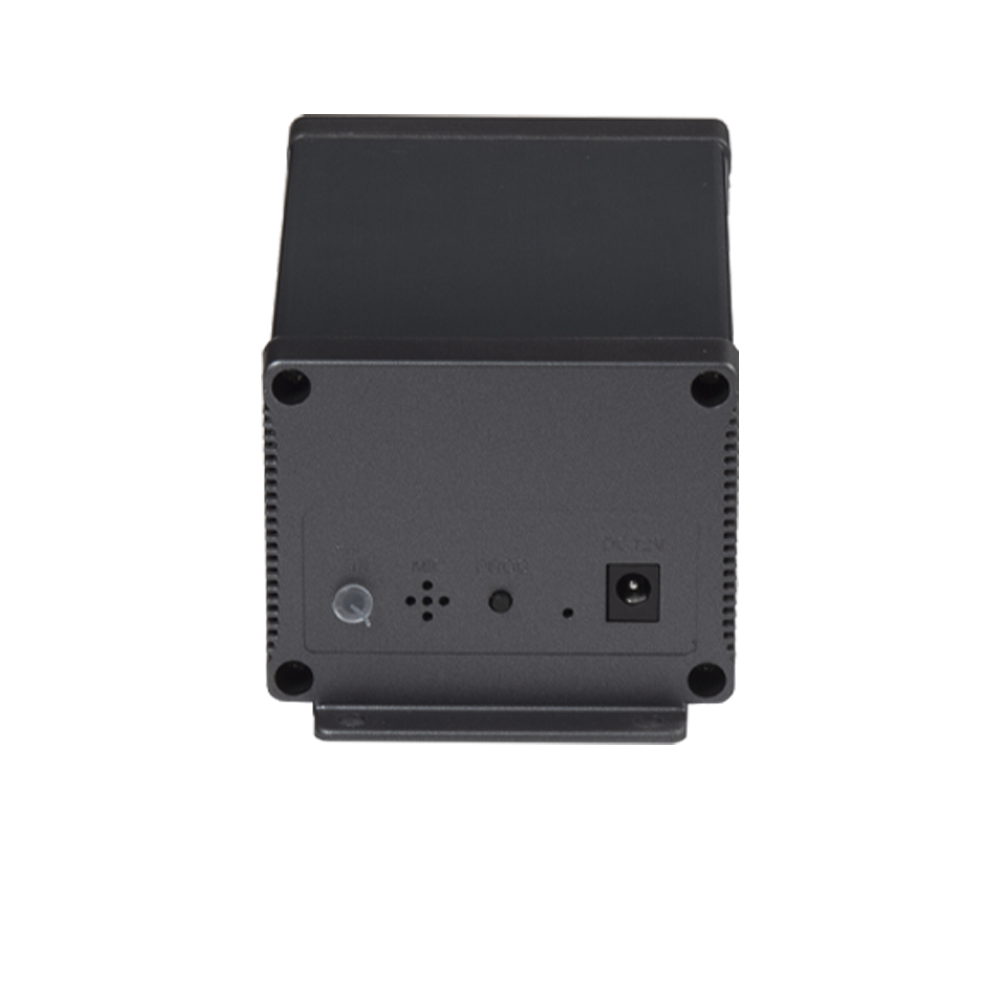

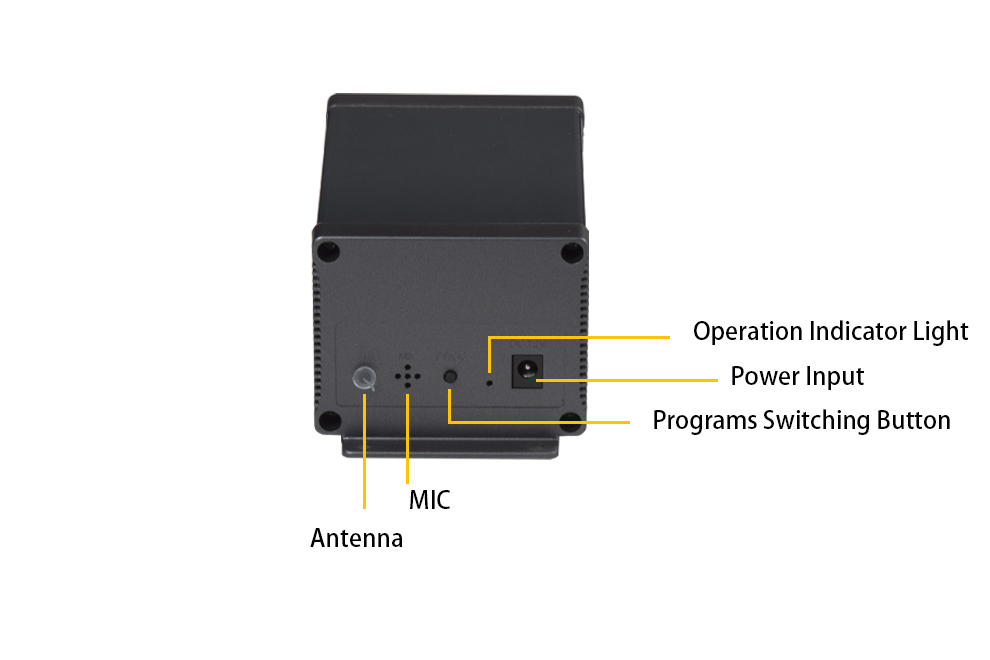

The light engine has 8 built-in programs, which can be selected by the Program Selection Button on the back panel of the light engine.

Each press of the button will select one program in turn.

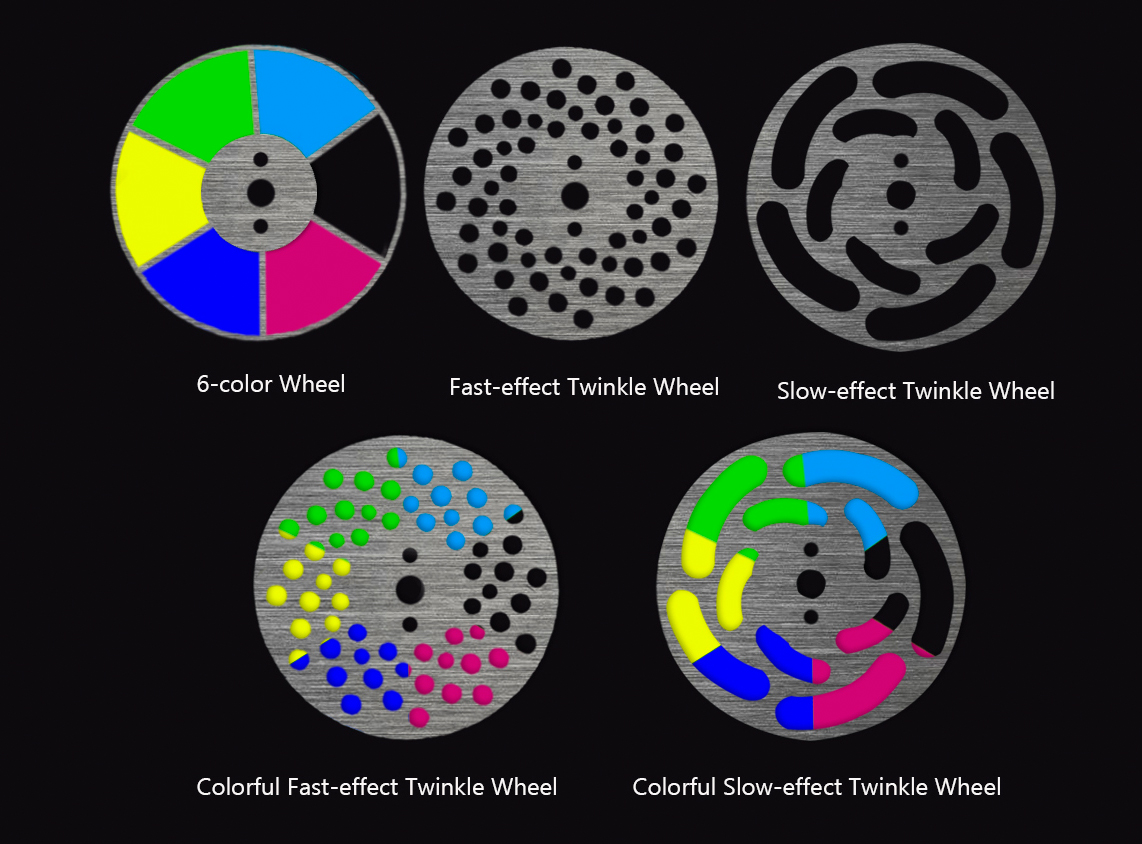

The wheels/discs that could be equipped into LLE-003 fiber optic light engine, from left to right and top to bottom:
1. The 6-color wheel
2. The fast-effect twinkle wheel,
3. The slow-effect twinkle wheel,
4. The colorful fast-effect twinkle wheel,
5. The colorful slow-effect twinkle wheel.
The default wheel is the 6-color disc. Other wheels/discs are available at request, and the customized requirement is also welcome.

The structure of the light engine's flange, which holds the fiber connector, is different from that of other light engines. Its surface is flat instead of having a slim edge.

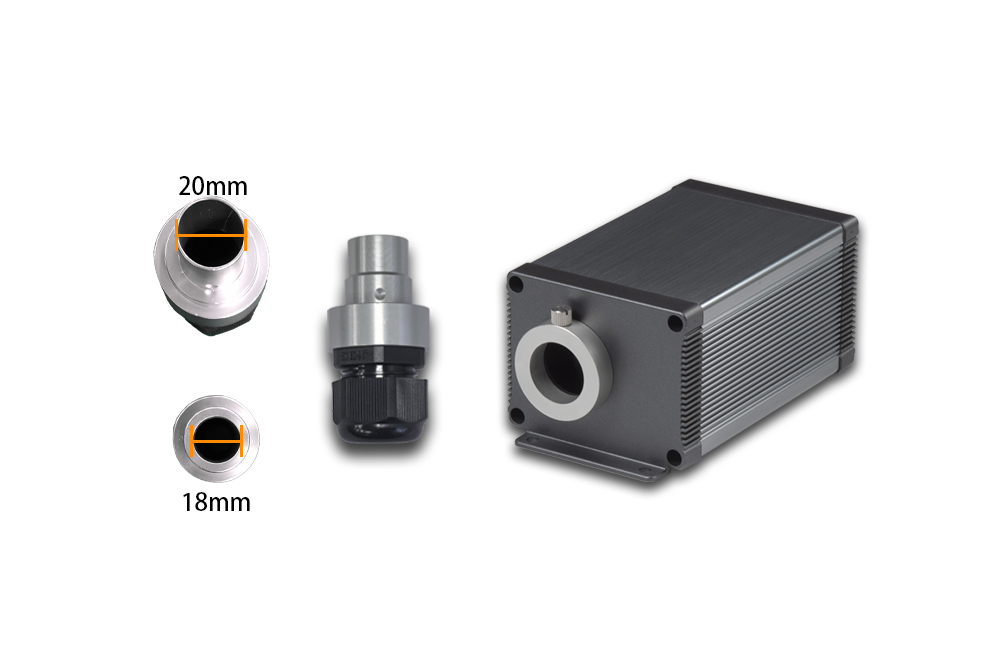

By default, the aperture of the fiber connector of this new LLE-003 is 18mm. A 20mm fiber connector is available at request.

Low-voltage fiber optic light engines are generally packaged in neutral color boxes. One unit of the fiber optic machine is packed in a color box. 8 to 10 color boxes are packed in an export carton.
